Bronco Type XXIII by Ken

[trout]

Ken, love watching you work.

[Ken_NJ]

Loose ends

A few things I have not shown. To clean up the deck edges that meet with the hull, I used an emory board across both sides and slightly sanded those edges to clean them up and make them smooth.



I also gave some downward pressure so that the outer edge would give me a sharp clean edge when it meets the hull.



The aft edge of the deck seems to be wider than the 20 thousandths elsewhere. No problem, will just use a wider filler piece. In hindsight, I should have cut this with a slight angle going from top-aft to bottom-forward. As the front part of the deck is inserted the back part would seat better going into a slight angle than it would going straight down. Will attend to this at a later time once the box is cut away and the SD is set in place which is not far off.



Here are the machine screws holding the front and aft sections together. The topmost screw was added after I made the deck cut. Once the cut was done I needed to add a small section of acrylic and add that top screw as I guess I did not get something right.



Here you can see the threads in the acrylic, and the added section at the top. Once the deck was cut, the top of the hull needed a screw to secure it to the radial joint as it was not secure.
Will be cutting that box away soon, but first have to design and build the stuffing tube and bearing for the prop and shaft which will be the next project.

[Das Boot]

Ken,
Tom had an article a while back of prop shaft support he made. I put these articles in the back of my head until I one day remember them. I got one from Tom for my XXIII project, but unfortunately, I never got around to building it.

[Ken_NJ]

I have it already done Casey. Fashioned my own. Just have a few things to finalize. Will be posting it after the weekend.

[Das Boot]

I have it already done Casey. Fashioned my own. Just have a few things to finalize. Will be posting it after the weekend.

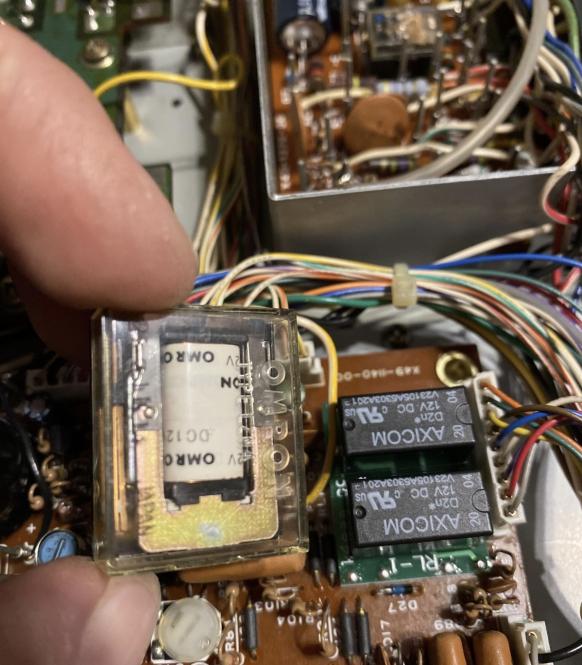

I think you’ve outdone yourself on this one. The fact of the matter remains, that you and David always make it look so easy. I’ve been working on a 45-year-old amateur radio trying to get it going again. I’m replacing old style relays with new modern ones. I’ve always been better with electronics than cutting plastic.

[Ken_NJ]

Always room for improvement. You get better the more you do it.

I watch this guy on occasion. Interesting to see what he brings back to working condition.

https://www.youtube.com/@MrCarlsonsLab

[Das Boot]

Always room for improvement. You get better the more you do it.

I watch this guy on occasion. Interesting to see what he brings back to working condition.
https://www.youtube.com/@MrCarlsonsLab

I’m a big fan of Mr. Carlson‘s lab. I don’t think there’s anything that guy can’t work on. Too bad he’s way up in Canada, because I’d love to visit that place. He also got a new place to live, and has a nicer test/repair area.

[Ken_NJ]

Propeller bearing housing, first attempt

How do you make a bearing housing for the propeller bearings? Hmm? This is the start of what I came up. A bit of engineering going on here. BUT, this was my first attempt which in the end I was not happy with. So there is a second attempt after this one, and the final attempt.

Here are some of the parts I have to work with and put together into something. Note the exit point of the prop shaft. There is an inner and outer rib. The inner rib seals off the opening. The outer is just a small rib. The inner one was filed down to make it the same diameter as the outer one.



Some of the many bearings I have to choose from. Very nice to have a stock of parts.



The balance point of the empty SD is aft of the center of the SD. This will change once the SD is populated.



Marking the center of the hull. The center point is bow to where the exit point of the prop shaft. The rudder skegs were excluded from this. The center of the SD is also noted. And you can see where the aft end of the SD is located in relation to the exit point of the shaft. So plenty of room for the intermediate shaft connecting the motor shaft to the prop shaft.



Another view of the SD and the prop shaft exit point.



Yeah, I get to use the lathe!!! Turning the housing on the lathe, ATTEMPT #1.



The is the housing I came up with. One small bearing will go in the end against the prop. Another larger bearing will be mounted separately in a rib adhered to the hull.



Another view with the two bearings.



This did not suit me. Lots of times you need to make multiple attempts at making something. The end of the acrylic housing, I think it is acrylic, where the smaller bearing for the 3/16 shaft goes, was too thin and cracked. The whole bearing sits into the housing. And, I changed my mind about the setup. The second attempt has both bearings in the housing. Sit tight, the second attempt is coming up.

[Ken_NJ]

Propeller bearing housing, second final attempt

More lathe work. Here I'm drilling out for the shaft.

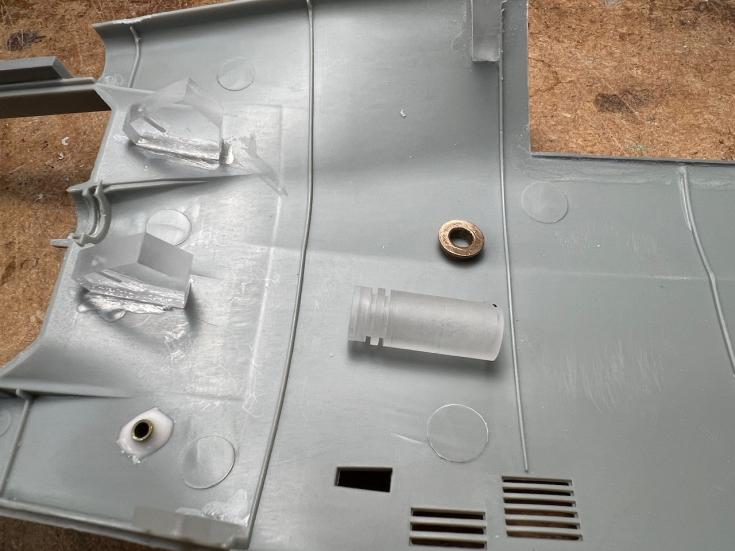

Final housing. You can see the two radial grooves. Those groves fit over the ribs in the hull. The smaller bearing fits into the left side and is flush with the end. The larger bearing sits on the right side but does not sit into a cup on the end.
