    A lot of brushless esc's also have a brushed mode too, so you can use the controller with either type of motor. These ESC's tend to be super compact and cheap. e.g.

    Comment

    • Ken_NJ
      Captain

      • Sep 2014
      • 877

      #17
      Thanks Andy, and David. So, maybe back to Mtroniks. I was looking at these two. I am using 3s Lipo with brush motor.

      The Viper 15 specs say not compatible with Lipo.
      The Viper 15HV is compatible with Lipo. But the voltage range is 12-24v. The nominal voltage for 3s is 11.1 volts. I have seen enough that besides dying esc's, that the Mtroniks line is touchy when it comes to under or over voltage from the specs. How true is this? Will the plain Viper 15 be fine? I have 3s Lipo/brushed motor in my Skipjack, will have to check which Mtroniks is in it.

      Viper Marine 15
      15A brushed RC boat speed controller for use in model boats 100% waterproof forwards and reverse throttle control


      Viper Marine 15HV
      15A brushed RC boat speed controller for use in model boats 100% waterproof forwards and reverse throttle control

      Comment

      • MFR1964
        Detail Nut of the First Order

        • Sep 2010
        • 1417

        #18
        Ken, i digged out the archives, if you want i have a Pdf about the XXIII, if you want it, give me your mailadress by PM

        Manfred.
        I went underground

        Comment

        • MFR1964
          Detail Nut of the First Order

          • Sep 2010
          • 1417

          #19
          Mail is send

          Manfred
          I went underground

          Comment

          • neitosub
            Lieutenant Commander

            • Nov 2021
            • 137

            #20
            Use a HobbyWing 1060, it's a modern brushed ESC perfectly suited to running 2-3S LiPOs.

            Comment

            • Ken_NJ
              Captain

              • Sep 2014
              • 877

              #21
              I bought one of those 1060's to try on a surface boat. Will try it out and see. Thanks.

              Comment

              • Subculture
                Admiral

                • Feb 2009
                • 2279

                #22
                When they say not Lipo compatible they simply mean there are no built in functions to prevent low discharge of the pack.

                Comment

                • Ken_NJ
                  Captain

                  • Sep 2014
                  • 877

                  #23
                  Batteries are not connected until running the boat and disconnected after. So then the Viper 15 will be fine. Thanks Andy.

                  Looked at my Skipjack, 3s Lipo, brushed motor and Viper Marine 15. Again the 15 will be fine.

                  eBay has a Marine 20 the next state north of me so should be here by the weekend. And I have the 1060 here as well. All good now!

                  Comment

                  • Ken_NJ
                    Captain

                    • Sep 2014
                    • 877

                    #24
                    The rudder skeg hatch removal.

                    Getting to actual work.

                    Clamped the hull halves together for this part. Clamps and rubber bands.

                    Click image for larger version  Name:	0105_IMG_8421.jpg Views:	0 Size:	55.4 KB ID:	187620

                    Styrene solvent was used to glue ONLY the section where the rudder access hatch is.

                    Click image for larger version  Name:	0106_IMG_8422.jpg Views:	0 Size:	54.5 KB ID:	187621

                    The weapon of choice. The backside of a #11 Exacto blade. Practicing on scrap styrene.

                    Click image for larger version  Name:	0107_IMG_8423.jpg Views:	0 Size:	51.9 KB ID:	187627

                    Cutting will be guided by using the engraved slot.

                    Click image for larger version  Name:	0108_IMG_8424.jpg Views:	0 Size:	55.6 KB ID:	187623

                    Cutting begins with the sharp edge of the blade to exaggerate the depth of the slot. Then the blade was flipped to use the backside to complete the cut.

                    Click image for larger version  Name:	0109_IMG_8425.jpg Views:	0 Size:	56.4 KB ID:	187625

                    For the 'topside' of the cut, better to reorient the work piece.

                    Click image for larger version  Name:	0110_IMG_8426.jpg Views:	0 Size:	56.4 KB ID:	187622

                    The Exacto blade came out with a 20 thousandths cut.

                    Click image for larger version  Name:	0111_IMG_8428.jpg Views:	0 Size:	53.7 KB ID:	187624

                    See! Proof!

                    Click image for larger version  Name:	0112_IMG_8429.jpg Views:	0 Size:	54.3 KB ID:	187626

                    Completed opening. Was thinker then I expected. It took about 35 minutes to cut this access hatch out.

                    Click image for larger version  Name:	0113_IMG_8430.jpg Views:	0 Size:	55.6 KB ID:	187628


                    Click image for larger version  Name:	0114_IMG_8431.jpg Views:	0 Size:	55.1 KB ID:	187629

                    Cleaned up. Note the hole provided for the rudder.

                    Click image for larger version  Name:	0115_IMG_8432.jpg Views:	0 Size:	53.9 KB ID:	187630

                    Ohh, ahhhh. Success! Any cleanup will be done later when the hull halves are joined.

                    Click image for larger version  Name:	0116_IMG_8433.jpg Views:	0 Size:	54.0 KB ID:	187631

                    David's work on this section...
                    https://imagizer.imageshack.com/v2/1024x768q90/922/lZa3w7.jpg (https://imageshack.com/i/pmlZa3w7j) https://imagizer.imageshack.com/v2/1024x768q90/921/BfzVce.jpg (https://imageshack.com/i/plBfzVcej) https://imagizer.imageshack.com/v2/1024x768q90/923/MomLVK.jpg (https://imageshack.com/i/pnMomLVKj) https://imagizer.imageshack.co
                    Last edited by Ken_NJ; 04-26-2025, 09:40 AM.

                    Comment

                    • Ken_NJ
                      Captain

                      • Sep 2014
                      • 877

                      #25

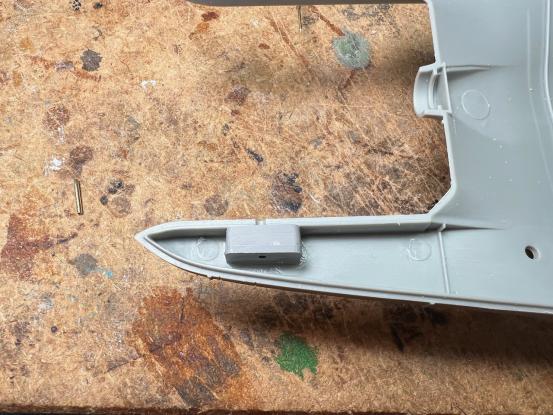

                      Rudder

                      The rudder will have a square brass tube inserted at the pivot point. This will be called the outer tube. The little nubs were removed for both pieces.

                      Click image for larger version

Name:	0020_IMG_8417.jpg
Views:	30
Size:	51.5 KB
ID:	187638

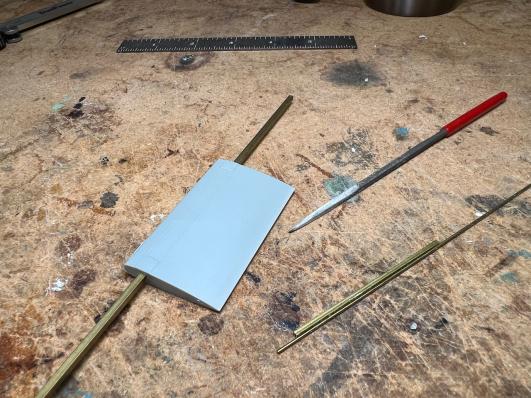

                      And where those nubs were, an opening was filed for the outer tube.

                      Click image for larger version

Name:	0021_IMG_8418.jpg
Views:	30
Size:	53.6 KB
ID:	187639

                      The outer tube extends the length of the rudder. Here it was CA'd in place. I added styrene spacers as support and glue points.

                      Click image for larger version

Name:	0022_IMG_8437.jpg
Views:	30
Size:	53.0 KB
ID:	187633

                      On one end of the rudder, two 1/8 holes were drilled.

                      Click image for larger version

Name:	0023_IMG_8438.jpg
Views:	30
Size:	55.4 KB
ID:	187634

                      Some epoxy was dripped into each half. I put some styrene solvent on the perimeter of the rudder edges to glue the two pieces together.

                      Click image for larger version

Name:	0024_IMG_8439.jpg
Views:	30
Size:	51.8 KB
ID:	187637

                      Clamped together. Using the solvent the way I did was not much help. They didn't join well enough and some of the epoxy leaked out. Noted for the future!!!

                      Click image for larger version

Name:	0025_IMG_8440.jpg
Views:	30
Size:	57.4 KB
ID:	187635

                      Once they were clamped enough I started adding drops in one of the holes. The other hole was for air to escape as epoxy was added. I sometimes used a pin in the fill hole to make sure the epoxy kept flowing down.

                      Click image for larger version

Name:	0026_IMG_8441.jpg
Views:	30
Size:	56.5 KB
ID:	187636

                      The next day. The rudder is cleaned up and sanded. The holes need to be filled so they are flush.

                      Click image for larger version

Name:	0027_IMG_8457.jpg
Views:	30
Size:	56.5 KB
ID:	187640

                      Used CA and baking soda to top off the holes. They will be further finished when I am doing body work with Nitro-San.

                      Click image for larger version

Name:	0028_IMG_8458.jpg
Views:	30
Size:	49.5 KB
ID:	187641

                      Comment

                      • Ken_NJ
                        Captain

                        • Sep 2014
                        • 877

                        #26

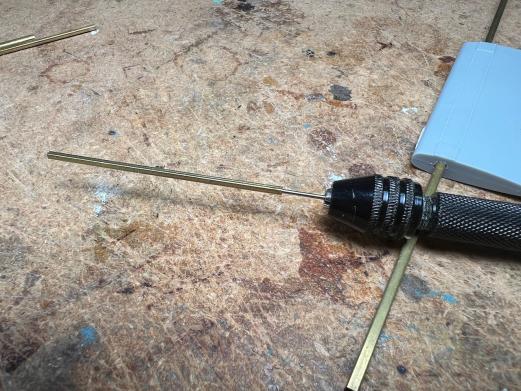

                        Rudder shaft assembly

                        The square tubes and rods I am using are imperial. The rudder shaft or pin I am using is metric. The pin was the best size I had to fit in the inner tube. I think the pin is .4mm. I had to ream out the inner square tube in order for the rod/pin to go in. That is what I am doing here.

                        Click image for larger version

Name:	0030_IMG_8420.jpg
Views:	31
Size:	53.5 KB
ID:	187649

                        Click image for larger version

Name:	0031_IMG_8419.jpg
Views:	31
Size:	51.8 KB
ID:	187648

                        Here is a breakdown of the rudder.
                        The mounting plate has a section of reamed tubing soldered to it. This is the upper rudder bearing.
                        The rudder shaft has two spacers soldered at the top under the rudder arm. These give room for the push rod.
                        The inner square tube slides over the shaft. It is a friction fit, for now.

                        The shaft slides into the upper bearing, then the inner tube slides on the shaft sandwiching in the upper bearing plate. With the friction fit, everything is solid. At some point I may solder the inner tube to the shaft at the bottom with a tiny spot of solder. Leaving that for the future.


                        Click image for larger version

Name:	0032_IMG_8467 copy.jpg
Views:	31
Size:	44.8 KB
ID:	187647

                        Here is how it all goes together. The inner square tube will insert into the rudders outer square tube. The square tube provides the action that is need to turn the rudder. There is no set screw needed to secure the rudder to the shaft. AND, the part I like, I can easily remove the rudder at any time for service.

                        Click image for larger version

Name:	0033_IMG_8466.jpg
Views:	31
Size:	42.9 KB
ID:	187646

                        Comment

                        • Ken_NJ
                          Captain

                          • Sep 2014
                          • 877

                          #27
                          Lower rudder foundation

                          A few pieces of styrene were glued together and this hunk was shaped to fit. A hole was drilled to accept a brass tube which is the power rudder bearing.

                          Click image for larger version

Name:	0035_IMG_8434.jpg
Views:	29
Size:	50.4 KB
ID:	187653


                          Click image for larger version

Name:	0036_IMG_8435.jpg
Views:	29
Size:	50.7 KB
ID:	187652

                          The the lower bearing is glued in place using the shaft as an alignment tool.

                          Click image for larger version

Name:	0037_IMG_8436.jpg
Views:	29
Size:	52.7 KB
ID:	187651

                          Comment

                          • Ken_NJ
                            Captain

                            • Sep 2014
                            • 877

                            #28
                            Putting it al together



                            Click image for larger version  Name:	0040_IMG_8459.jpg Views:	0 Size:	40.4 KB ID:	187660


                            Click image for larger version  Name:	0041_IMG_8460.jpg Views:	0 Size:	38.6 KB ID:	187657

                            Here you can see the assembled shaft.

                            Click image for larger version  Name:	0042_IMG_8461.jpg Views:	0 Size:	39.3 KB ID:	187659

                            The shaft assembly can be inserted in the top hole, then inserted into the rudder, then inserted into the lower bearing.

                            Click image for larger version  Name:	0043_IMG_8462.jpg Views:	0 Size:	43.4 KB ID:	187661

                            The 2-56 bolt is then inserted into the mounting plate to hold it all in place. The styrene that the mounting plate sits on, the bolt hole was tapped prior to gluing in place. The mounting plate/upper bearing is not soldered so that allows the shaft to freely rotate. The arm for the push rod and the inner square tube are/will be soldered to the shaft. And the square inner tube will force the rudder to move being that it resides in the square outer tube mounted in the rudder.

                            The washer under the bolt does a few things. It applies better pressure to the mounting plate. And it shortens up the bolt so it does not drive into the hull styrene once it bottoms out. The SS washer was scratched up and CA'd to the SS bolt. That way I'm not fumbling while inserting the bolt and having things drop off where they should not be.

                            Click image for larger version  Name:	0044_IMG_8463.jpg Views:	0 Size:	40.8 KB ID:	187658

                            And now I have a removable rudder for when I start painting and for service. The rudder feels solid now that it is filled with epoxy. The push rod will not be as it appears in the picture here. Once the SD driver is installed I'll get back to the push rod.

                            Click image for larger version  Name:	0045_IMG_8465.jpg Views:	0 Size:	44.9 KB ID:	187662


                            Next up, after returning from Subfest 24 Redux...

                            Aft dive planes
                            Forward dive planes
                            And figuring out how to have the torpedo doors open & close
                            Last edited by Ken_NJ; 04-26-2025, 11:25 AM.

                            Comment

                            • redboat219
                              Admiral

                              • Dec 2008
                              • 3276

                              #29
                              Originally posted by Ken_NJ
                              Rudder

                              The rudder will have a square brass tube inserted at the pivot point. This will be called the outer tube. The little nubs were removed for both pieces.

                              Click image for larger version

Name:	0020_IMG_8417.jpg
Views:	30
Size:	51.5 KB
ID:	187638

                              And where those nubs were, an opening was filed for the outer tube.

                              Click image for larger version

Name:	0021_IMG_8418.jpg
Views:	30
Size:	53.6 KB
ID:	187639

                              The outer tube extends the length of the rudder. Here it was CA'd in place. I added styrene spacers as support and glue points.

                              Click image for larger version

Name:	0022_IMG_8437.jpg
Views:	30
Size:	53.0 KB
ID:	187633

                              On one end of the rudder, two 1/8 holes were drilled.

                              Click image for larger version

Name:	0023_IMG_8438.jpg
Views:	30
Size:	55.4 KB
ID:	187634

                              Some epoxy was dripped into each half. I put some styrene solvent on the perimeter of the rudder edges to glue the two pieces together.

                              Click image for larger version

Name:	0024_IMG_8439.jpg
Views:	30
Size:	51.8 KB
ID:	187637

                              Clamped together. Using the solvent the way I did was not much help. They didn't join well enough and some of the epoxy leaked out. Noted for the future!!!

                              Click image for larger version

Name:	0025_IMG_8440.jpg
Views:	30
Size:	57.4 KB
ID:	187635

                              Once they were clamped enough I started adding drops in one of the holes. The other hole was for air to escape as epoxy was added. I sometimes used a pin in the fill hole to make sure the epoxy kept flowing down.

                              Click image for larger version

Name:	0026_IMG_8441.jpg
Views:	30
Size:	56.5 KB
ID:	187636

                              The next day. The rudder is cleaned up and sanded. The holes need to be filled so they are flush.

                              Click image for larger version

Name:	0027_IMG_8457.jpg
Views:	30
Size:	56.5 KB
ID:	187640

                              Used CA and baking soda to top off the holes. They will be further finished when I am doing body work with Nitro-San.

                              Click image for larger version

Name:	0028_IMG_8458.jpg
Views:	30
Size:	49.5 KB
ID:	187641
                              The idea I had in mind was to apply mold release to the square tube and pour resin inside the rudder cavity. Once the resin sets push the tube out leaving a square cavity to receive the square rudder post.
                              Make it simple, make strong, make it work!

                              Comment

                              • Ken_NJ
                                Captain

                                • Sep 2014
                                • 877

                                #30
                                Another valid way Romel.

                                I've used the square tubing this way before and it works great for me, so I went with it.

                                Comment
