    Assembling the sail

    Since I'll be doing something mechanical in the sail I wanted to make it easily serviceable. So I'm making it splittable without seeing any fasteners. Like the hull not sure how this will work out.

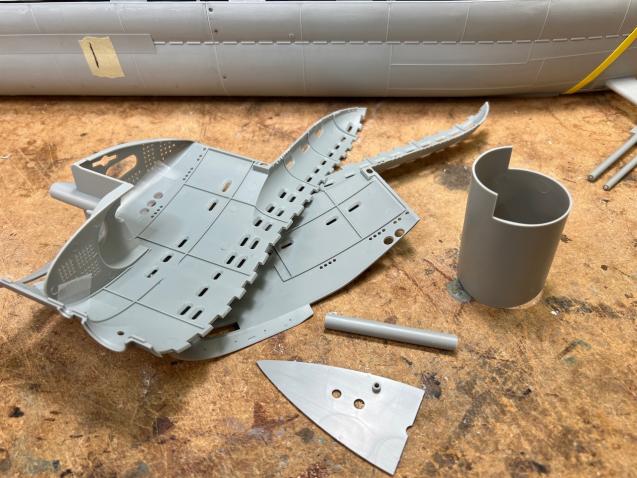

    What parts do I need, and not need. Determining that here.

    Click image for larger version  Name:	A_IMG_0176.jpg Views:	0 Size:	57.5 KB ID:	190159

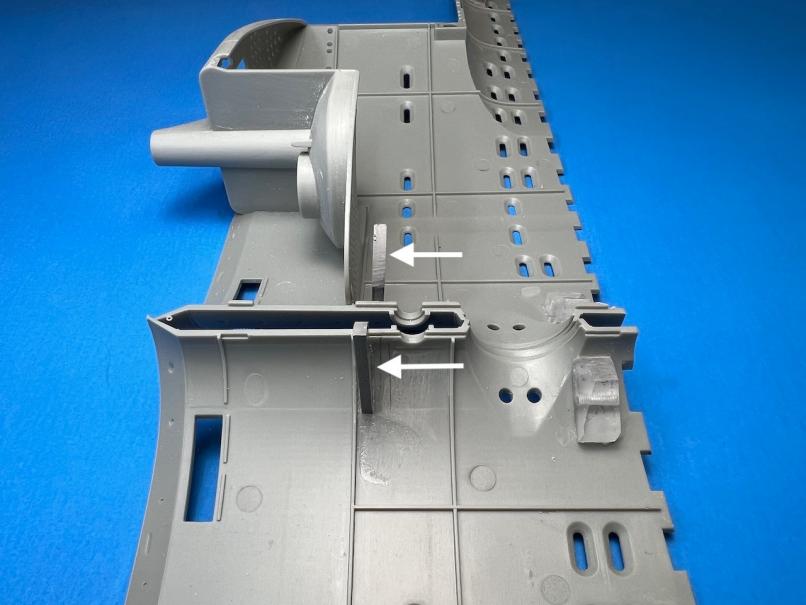

    These holes needed to be opened up so did that. The tabs were solid, so drilled holes through the tabs and cleaned up with a fine file.

    Click image for larger version  Name:	B_IMG_0178.jpg Views:	0 Size:	51.6 KB ID:	190160

    Click image for larger version  Name:	C_IMG_0177.jpg Views:	0 Size:	49.1 KB ID:	190161

    The top of the sail was attached to the starboard side of the sail with solvent. The port side will be removeable.

    Click image for larger version  Name:	D_IMG_0180.jpg Views:	0 Size:	54.9 KB ID:	190158

    Click image for larger version  Name:	E_IMG_0179.jpg Views:	0 Size:	53.8 KB ID:	190156

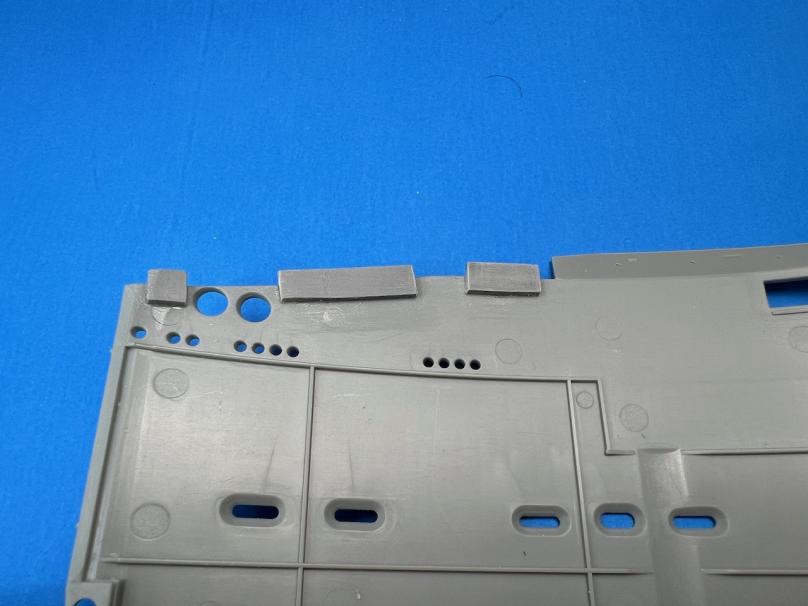

    Shaped and added these tabs.

    Click image for larger version  Name:	F_IMG_0305.jpg Views:	0 Size:	47.4 KB ID:	190154

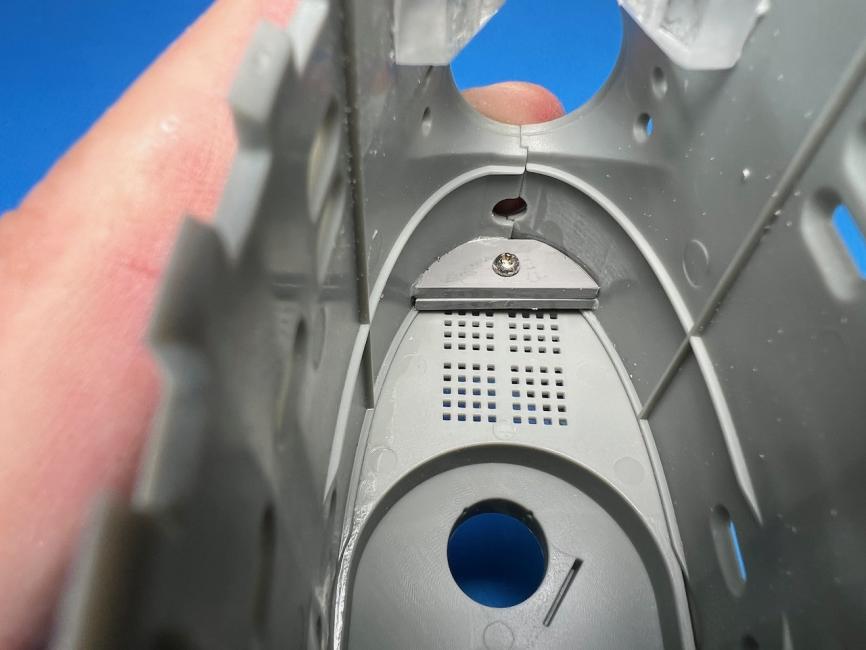

    They get a machine screw to hold this part together.

    Click image for larger version  Name:	G_IMG_0306.jpg Views:	0 Size:	48.7 KB ID:	190155

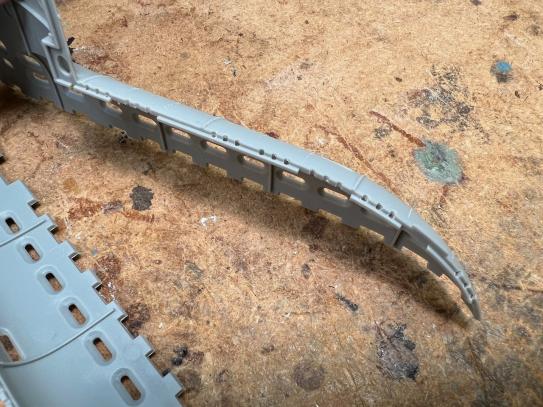

    The top aft port side gets these tabs.

    Click image for larger version  Name:	H_IMG_0311.jpg Views:	0 Size:	42.0 KB ID:	190157

    Click image for larger version  Name:	I_IMG_0312.jpg Views:	0 Size:	42.3 KB ID:	190162

    Which slide in when attached both halves together.

    Click image for larger version  Name:	J_IMG_0313.jpg Views:	0 Size:	41.0 KB ID:	190164

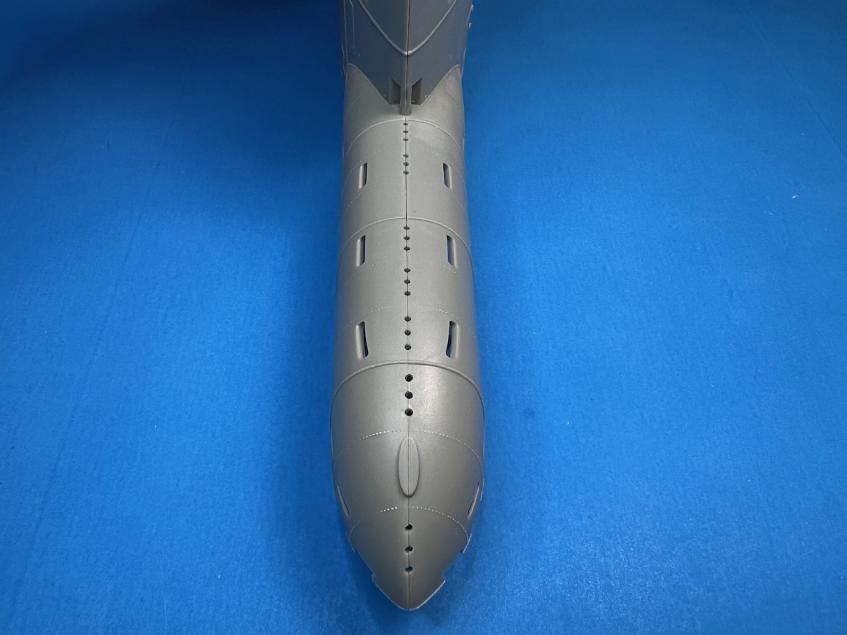

    And gives a nice not so noticeable joint. Thank you Bronco for making accurate parts.

    Click image for larger version  Name:	K_IMG_0314.jpg Views:	0 Size:	39.8 KB ID:	190163

    The exhaust housing gets these two acrylic parts. They were shaped as one unit to fit in position then cut in half so one piece is attached to each half of the sail. Holes were then drilled on the drill press and they were tapped for 2-56.

    Click image for larger version  Name:	L_IMG_0315.jpg Views:	0 Size:	44.5 KB ID:	190165

    Click image for larger version  Name:	M_IMG_0316.jpg Views:	0 Size:	44.5 KB ID:	190168

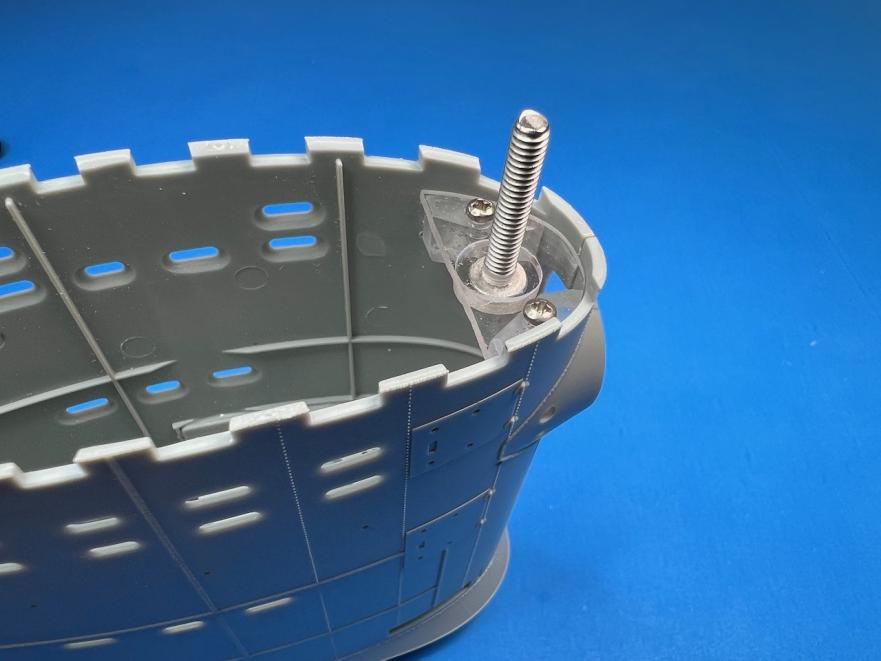

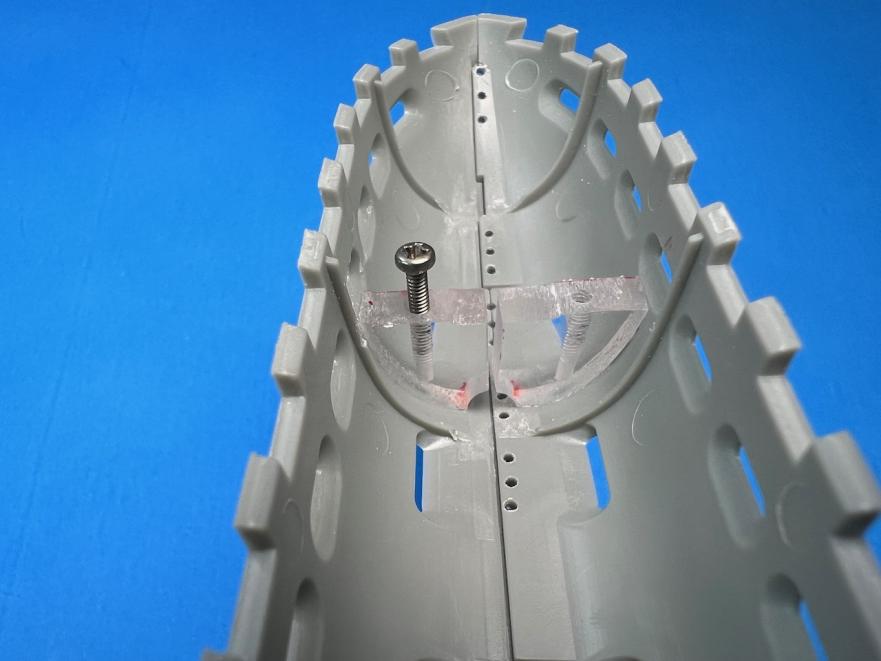

    The connecting piece was then made. The screw on the right is a through hole. The one on the left is a slot. When the sail is taken apart I just need to loosen the slotted screw. The 8-32 bolt will go through the deck holding the sail down to the hull

    Click image for larger version  Name:	N_IMG_0323.jpg Views:	0 Size:	46.7 KB ID:	190171

    Notice the ribs were filed down at TDC to allow any air bubbles to pass wherever they want to go.

    Click image for larger version  Name:	O_IMG_0324.jpg Views:	0 Size:	46.3 KB ID:	190167

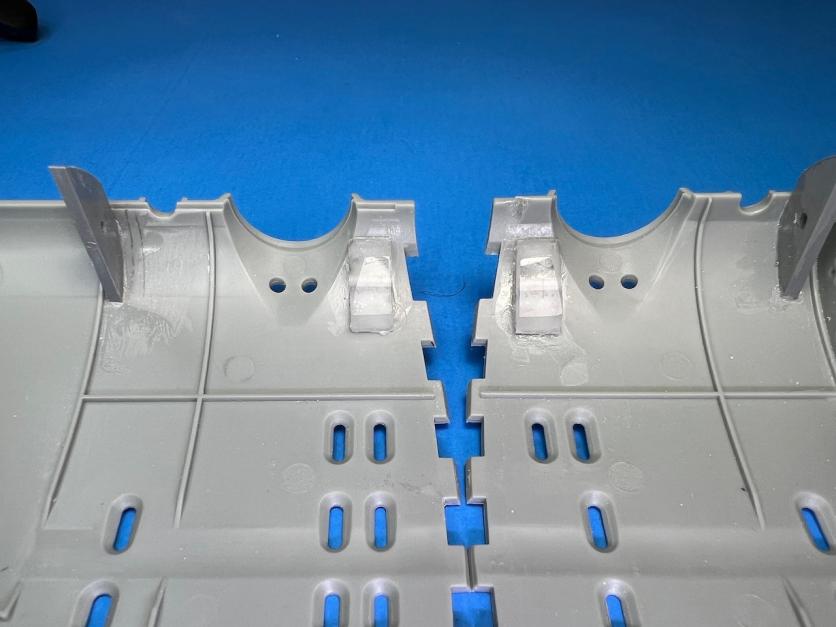

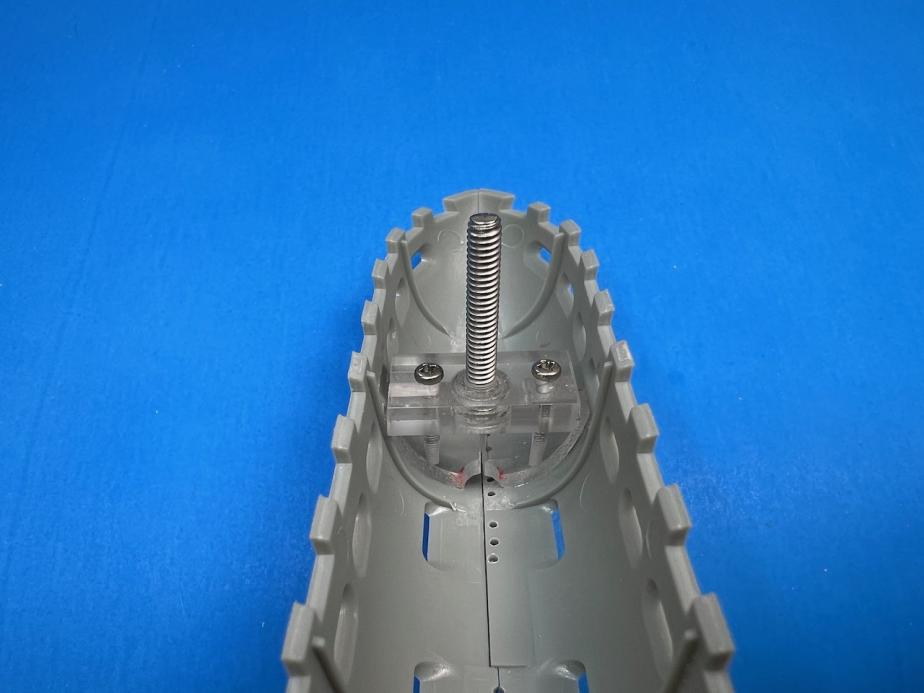

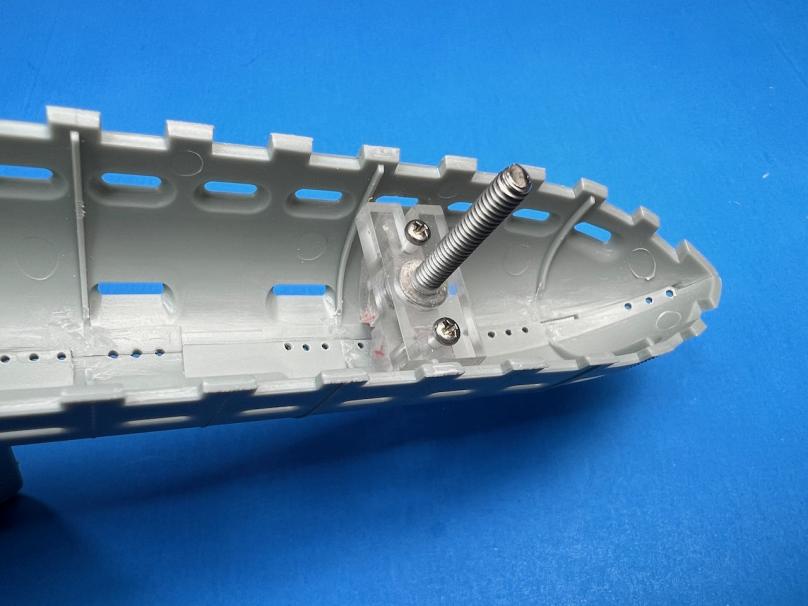

    Added these two acrylic foundations at the forward end.

    Click image for larger version  Name:	P_IMG_0317.jpg Views:	0 Size:	46.0 KB ID:	190166

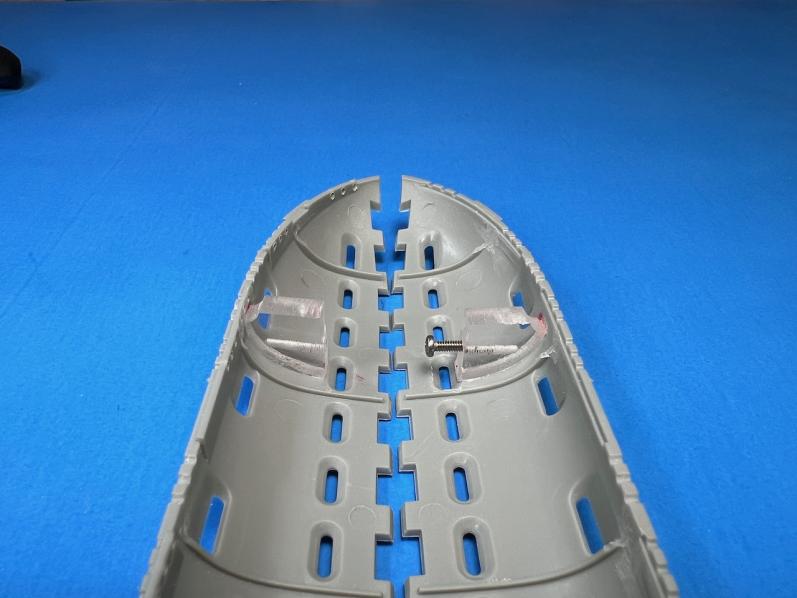

    And made a similar mounting point at the forward end of the sail.

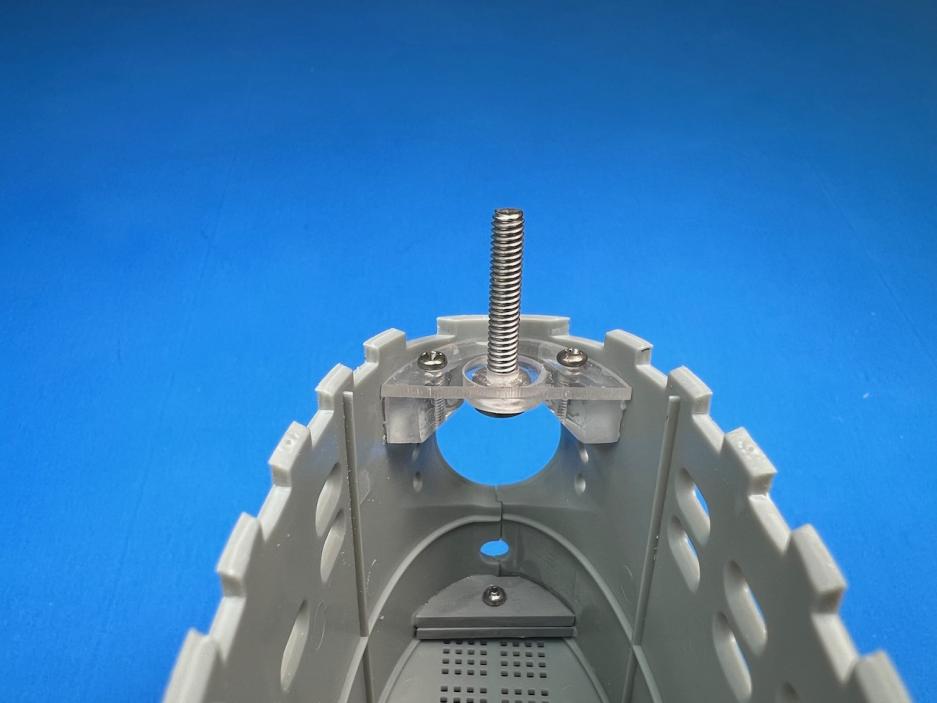

    Click image for larger version  Name:	Q_IMG_0325.jpg Views:	0 Size:	44.3 KB ID:	190169

    Click image for larger version  Name:	R_IMG_0321.jpg Views:	0 Size:	44.8 KB ID:	190170

    Click image for larger version  Name:	S_IMG_0326.jpg Views:	0 Size:	46.4 KB ID:	190172

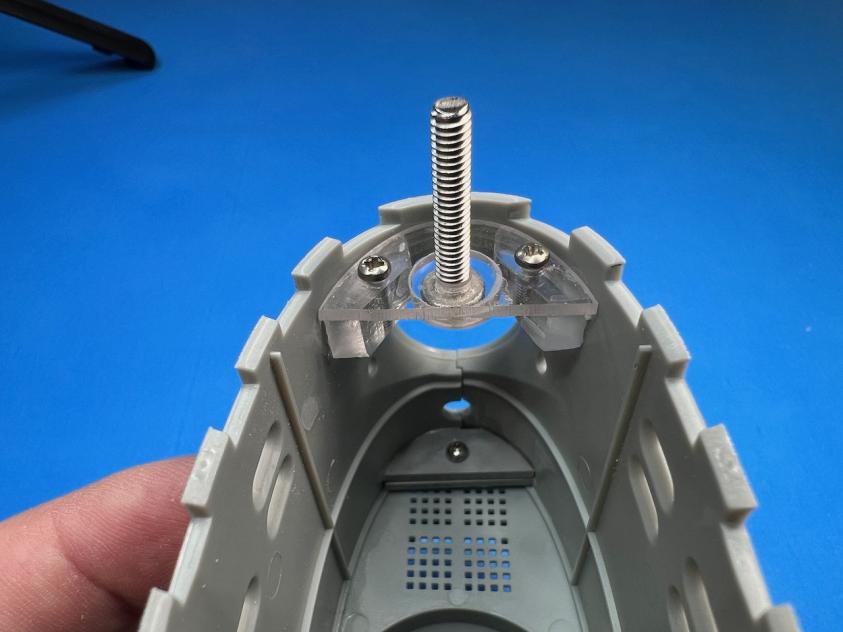

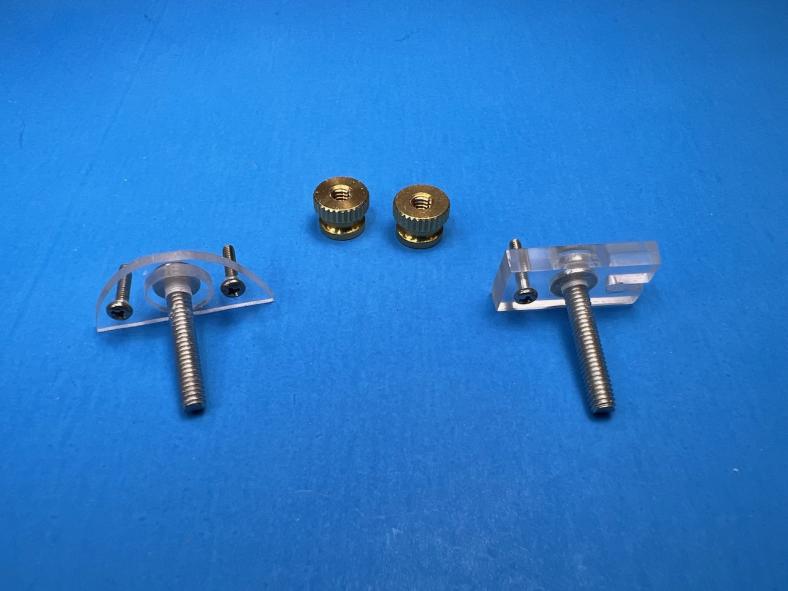

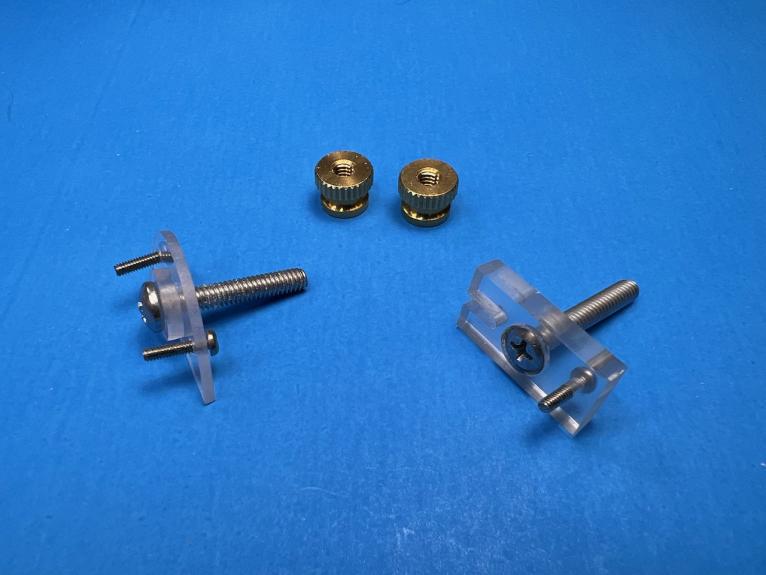

    These are the two parts that hold the sail to the deck. The knurled nuts hold the sail to the deck with the 8-32 bolts.

    Click image for larger version  Name:	T_IMG_0318.jpg Views:	0 Size:	39.8 KB ID:	190173

    Click image for larger version  Name:	U_IMG_0319.jpg Views:	0 Size:	39.6 KB ID:	190175

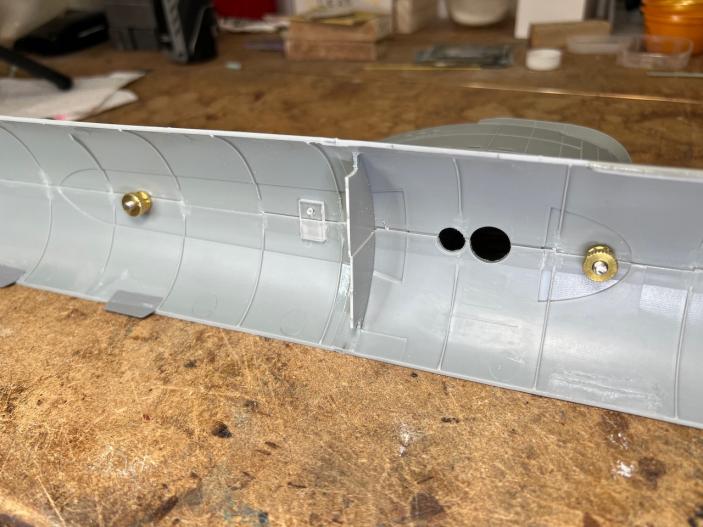

    Like this. I first used this method on my Marlin about 13 years ago. It works very well.

    Click image for larger version  Name:	V_IMG_0328.jpg Views:	0 Size:	54.0 KB ID:	190176

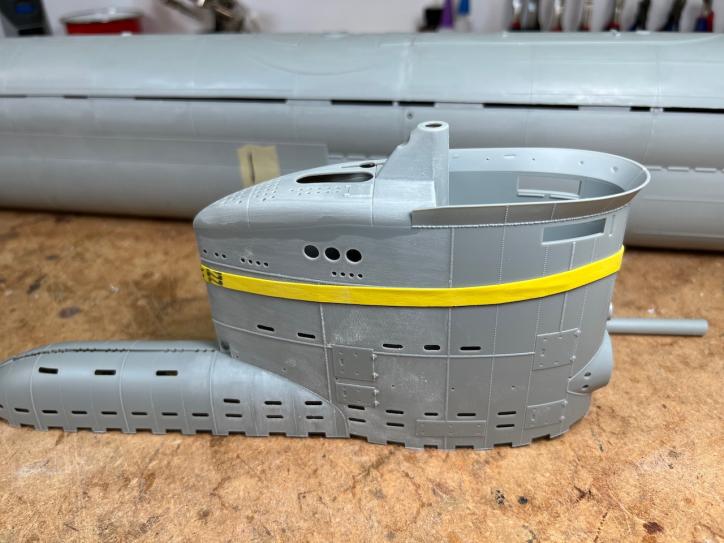

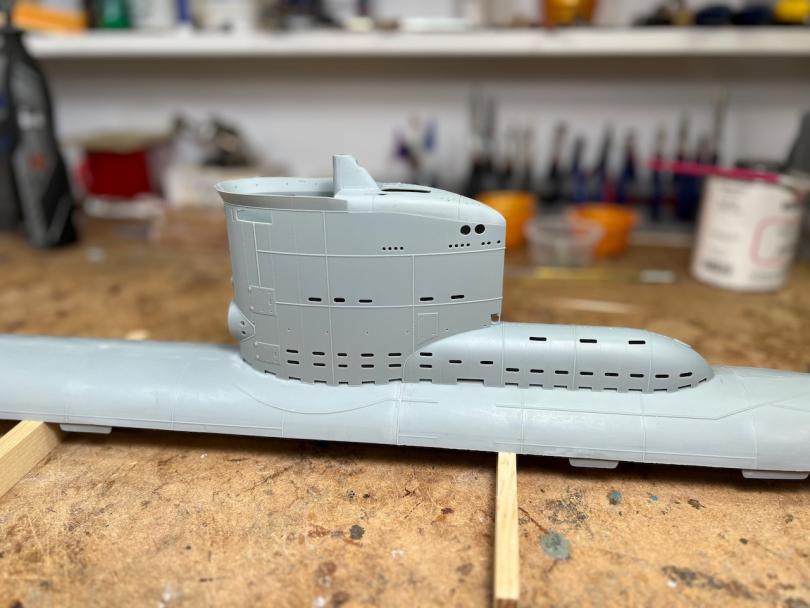

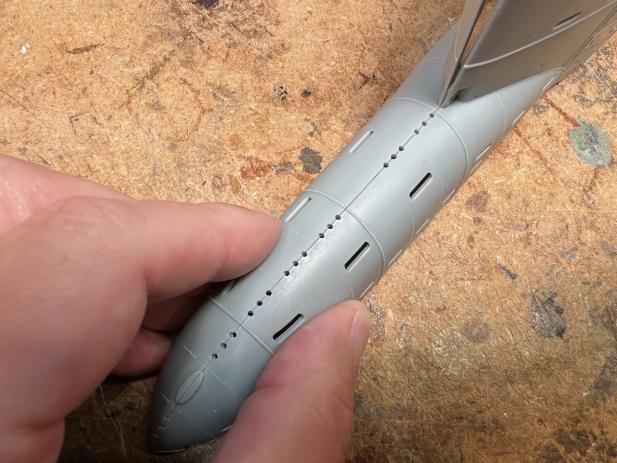

    Sail attached to the deck.

    Click image for larger version  Name:	W_IMG_0335.jpg Views:	0 Size:	57.0 KB ID:	190174

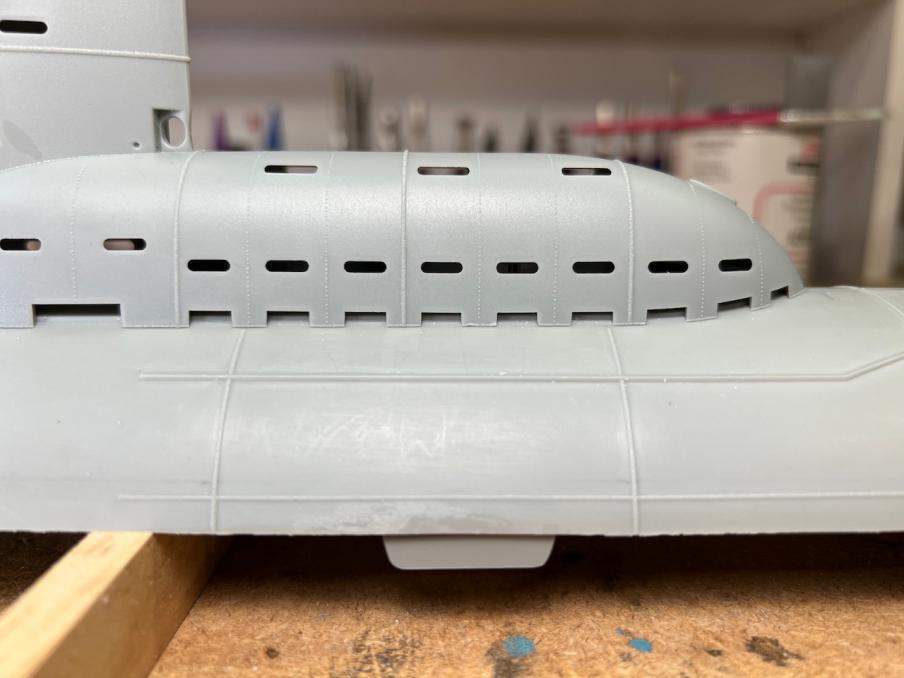

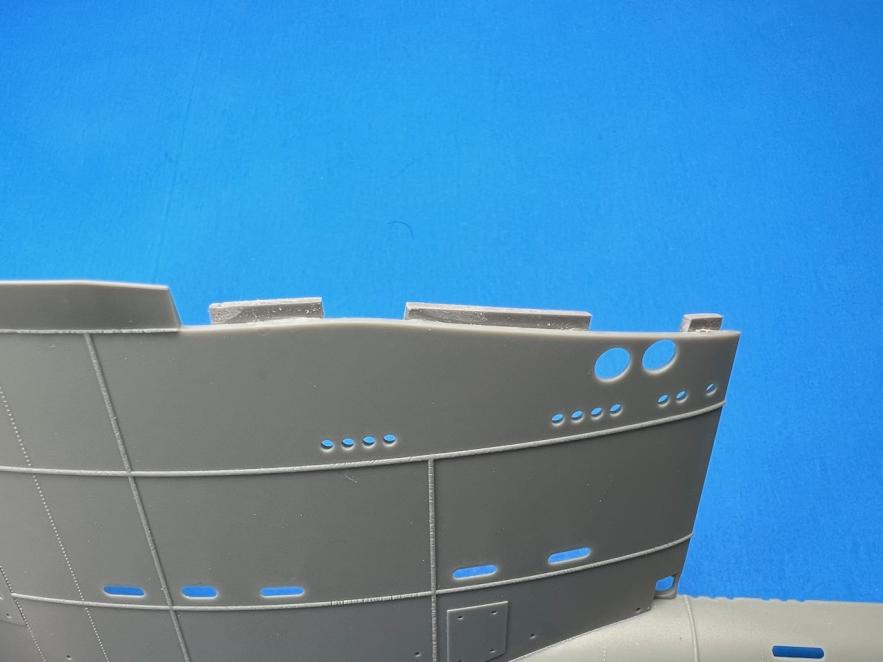

    Forward joint. Not sure yet what to do on the ladder rungs. That is a future decision.

    Click image for larger version  Name:	X_IMG_0310.jpg Views:	0 Size:	43.5 KB ID:	190177

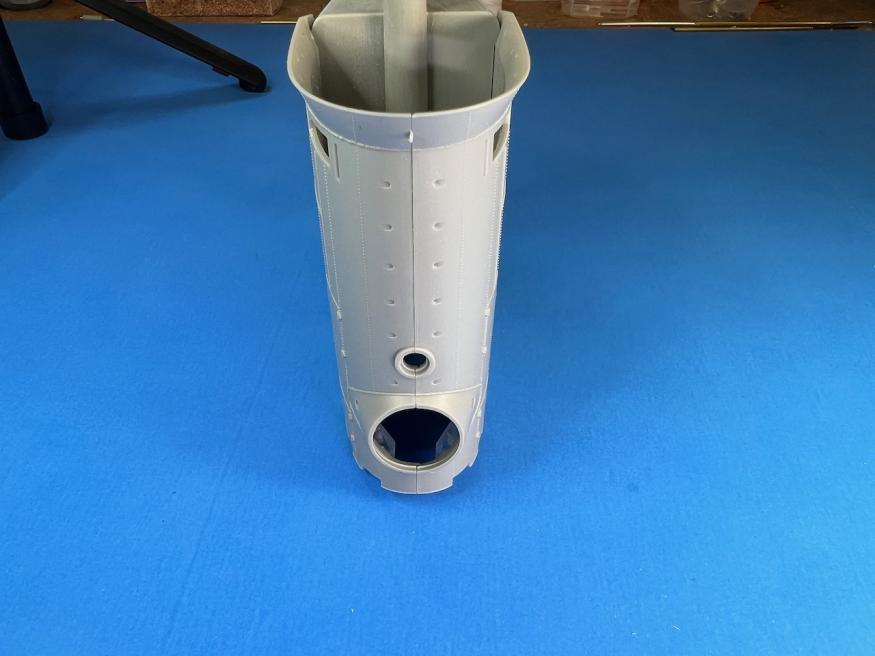

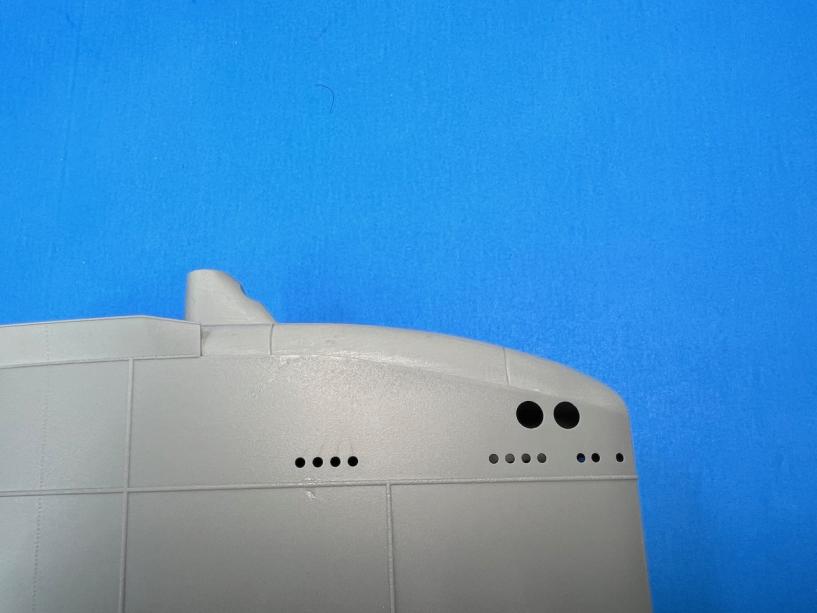

    The exhaust housing area. There will be a seam. Again, thanks to Bronco for decent work.

    Click image for larger version  Name:	Y_IMG_0327.jpg Views:	0 Size:	41.5 KB ID:	190179

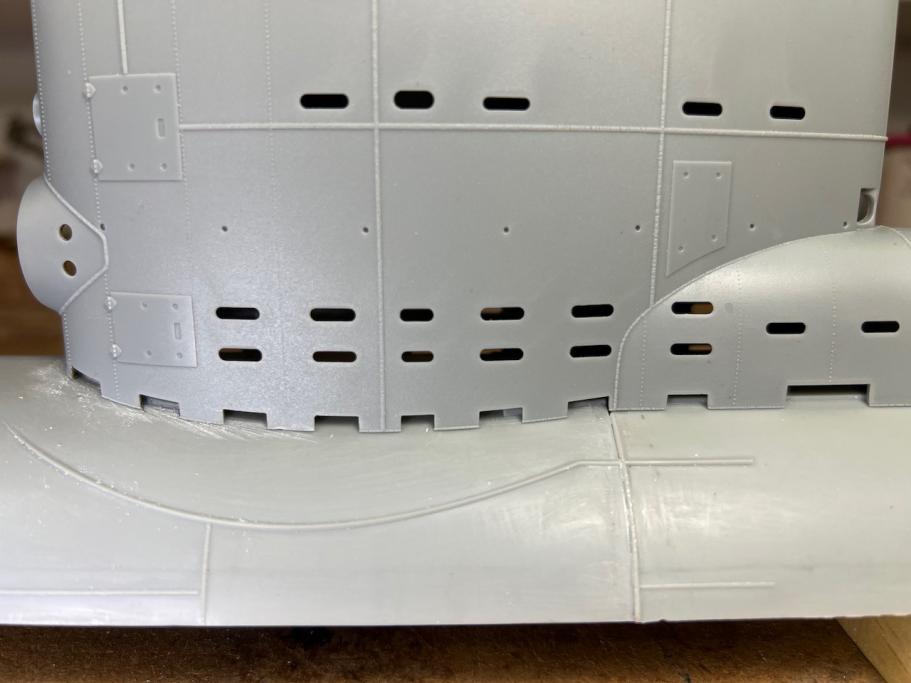

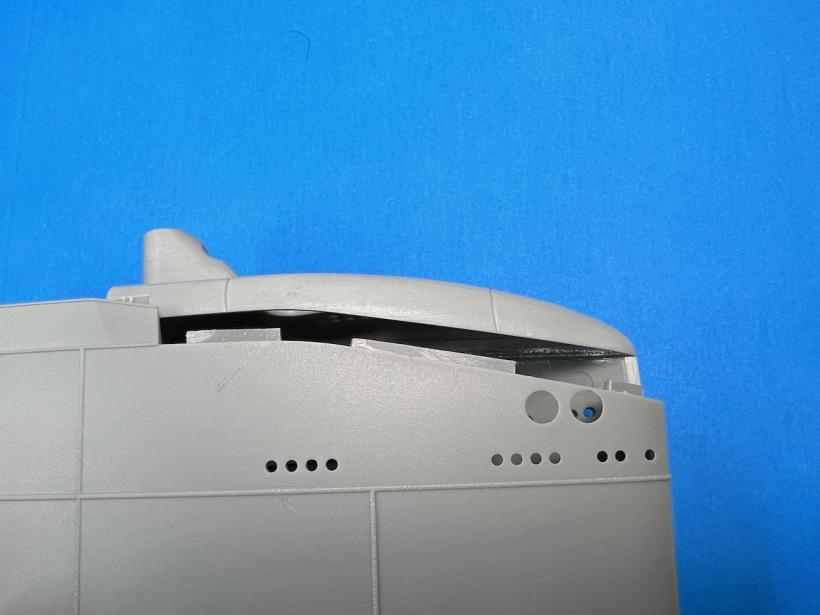

    I had to file down the deck area forward on the section that positions the sail so the sail would fit. See the scratches. Those will be cleaned up at a later time.

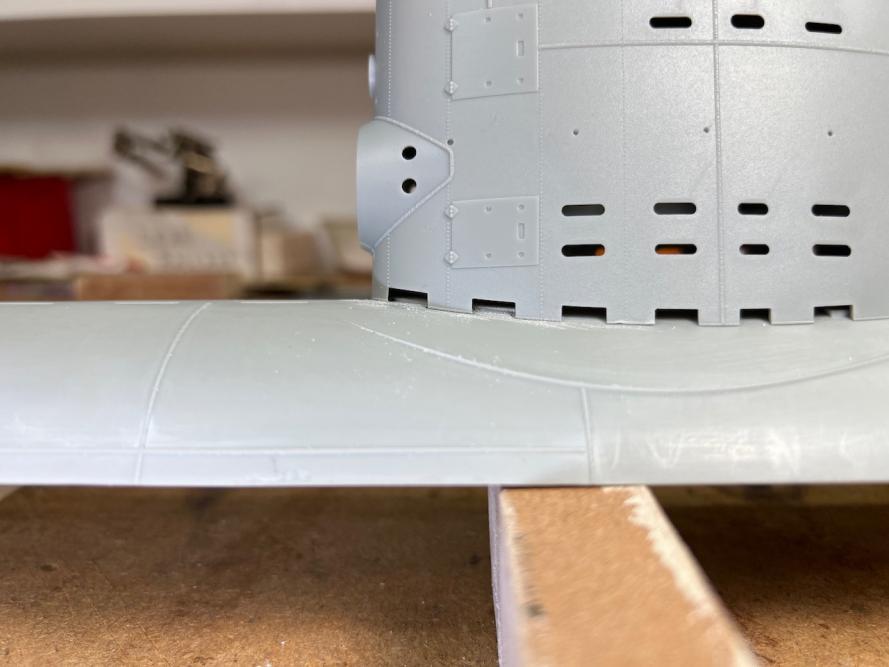

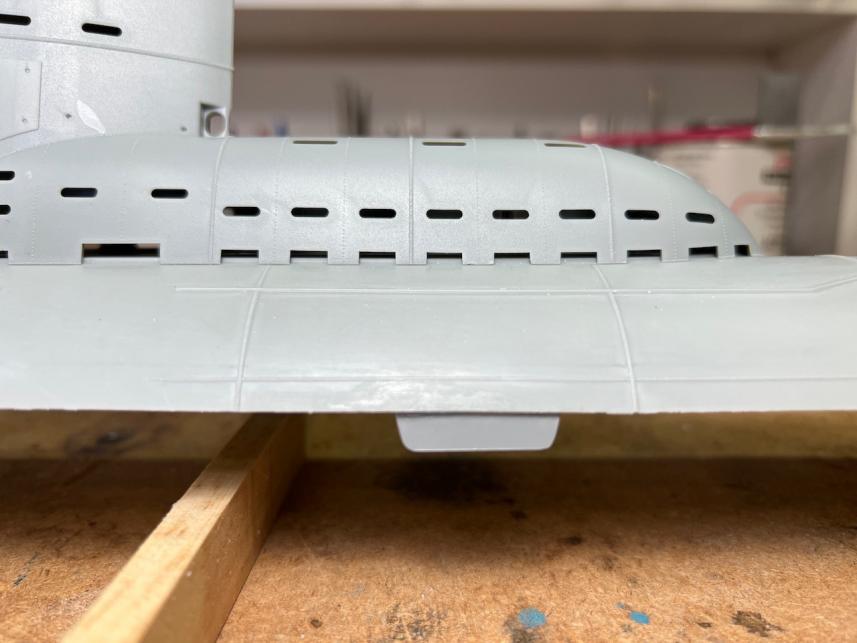

    Notice the lower scuppers against the hull, you can see the deck thingy that positions the sail. That will require attention, later.

    Click image for larger version  Name:	Z1_IMG_0331.jpg Views:	0 Size:	47.9 KB ID:	190181

    Same applies here

    Click image for larger version  Name:	Z2_IMG_0332.jpg Views:	0 Size:	49.2 KB ID:	190178

    Click image for larger version  Name:	Z3_IMG_0333.jpg Views:	0 Size:	49.0 KB ID:	190180

    Click image for larger version  Name:	Z4_IMG_0334.jpg Views:	0 Size:	48.7 KB ID:	190182

    Not sure if I'll ave another post before Groton, have much to do.
