jims Tyhpoon TK-208 build

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • #76

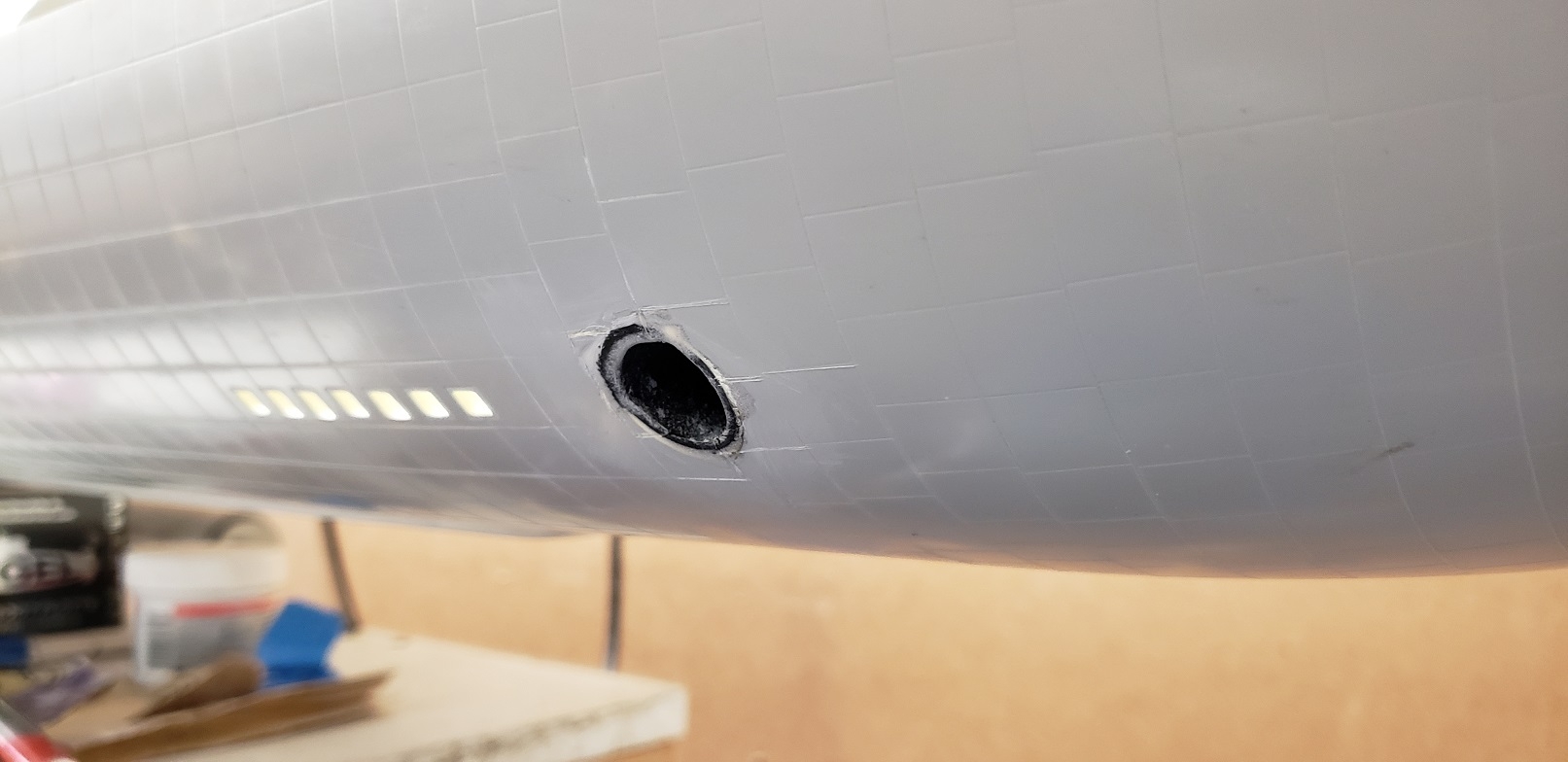

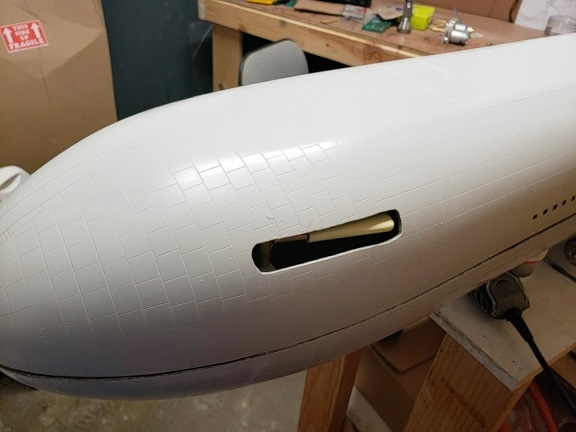

    installation of my bow thruster system. I'm planning to put detail on this sub other have not done at least not yet
    Attached Files
    Last edited by deepseadiver; 01-16-2019, 11:19 PM.
    Put your mind to it. If there's a will there's a way!

    Comment


    • #77

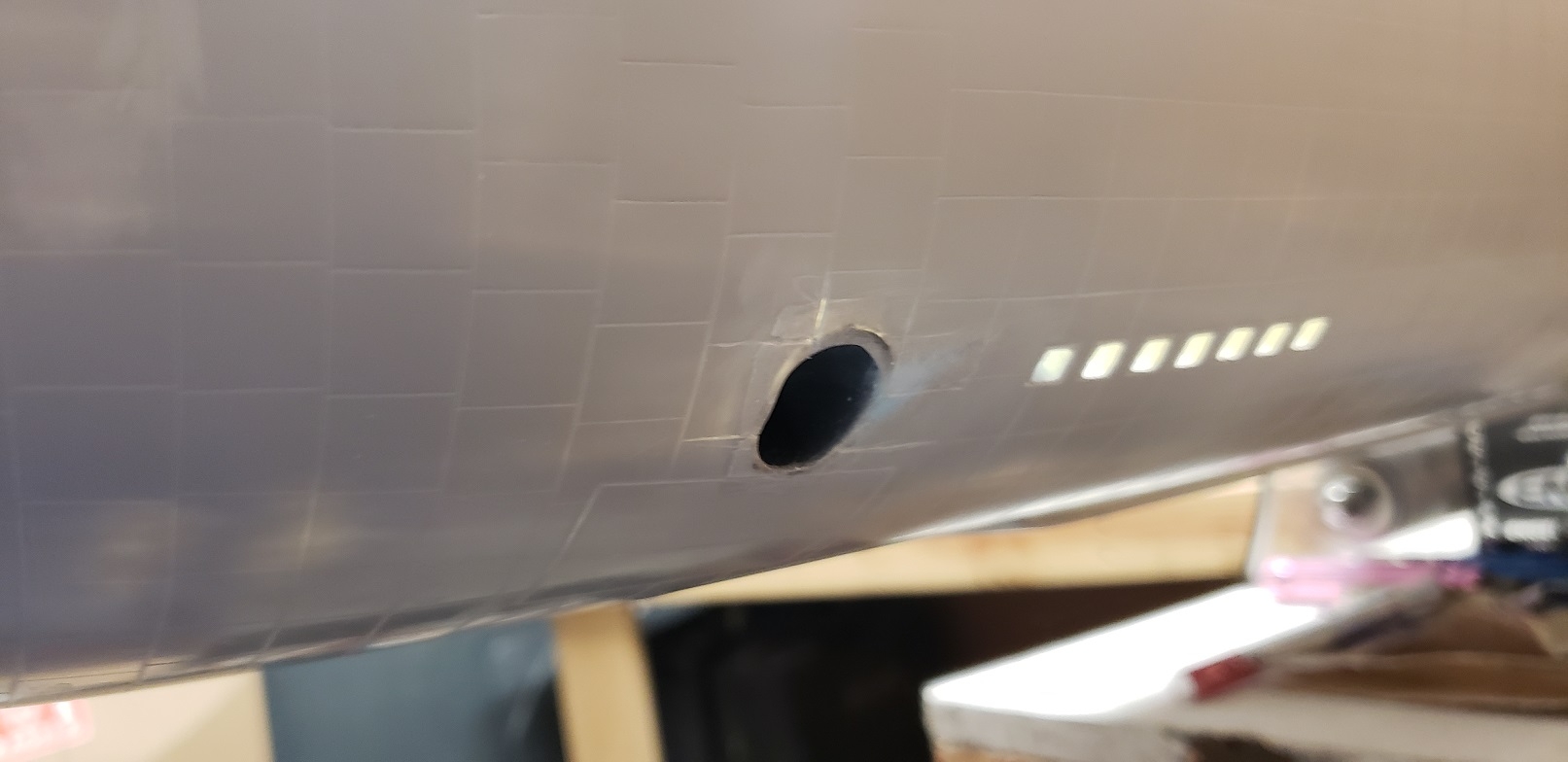

      thruster jets glued and sanded smooth while i had to do some rework on some of the scribe . will work on it more after primer is placed on. some day some time in the future I don't know! LOL.
      Attached Files
      Last edited by deepseadiver; 01-16-2019, 11:30 PM.
      Put your mind to it. If there's a will there's a way!

      Comment


      • #78

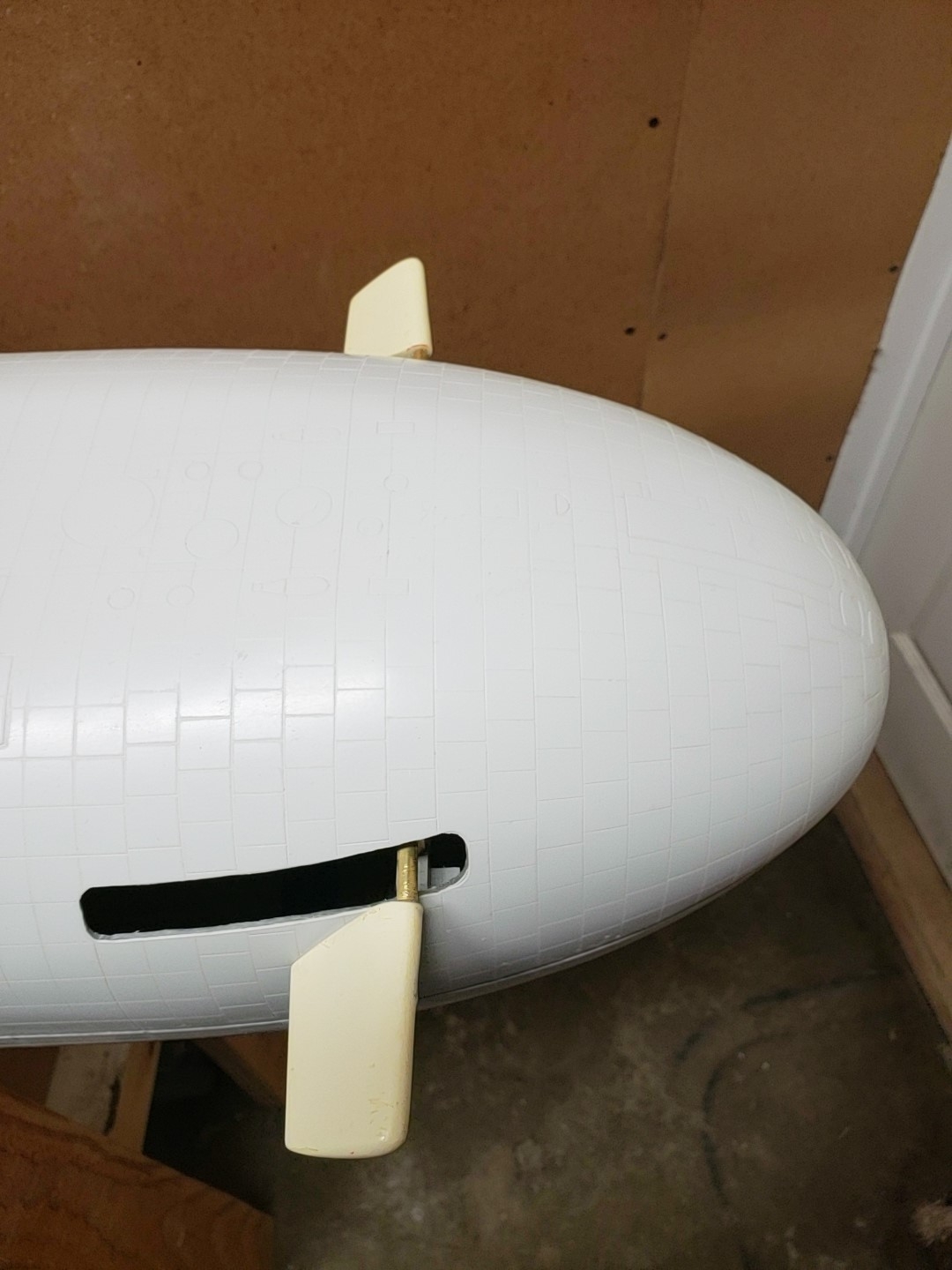

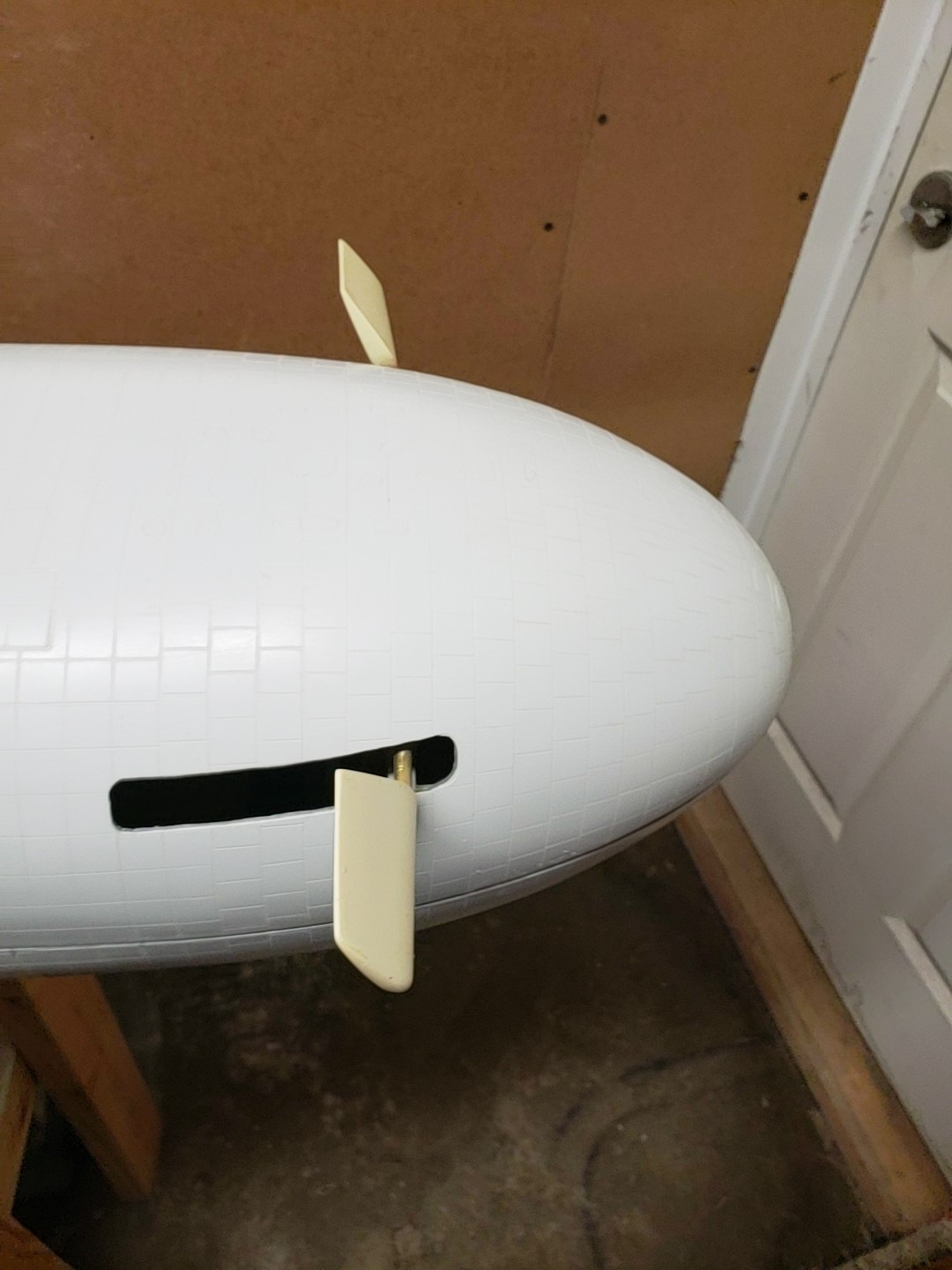

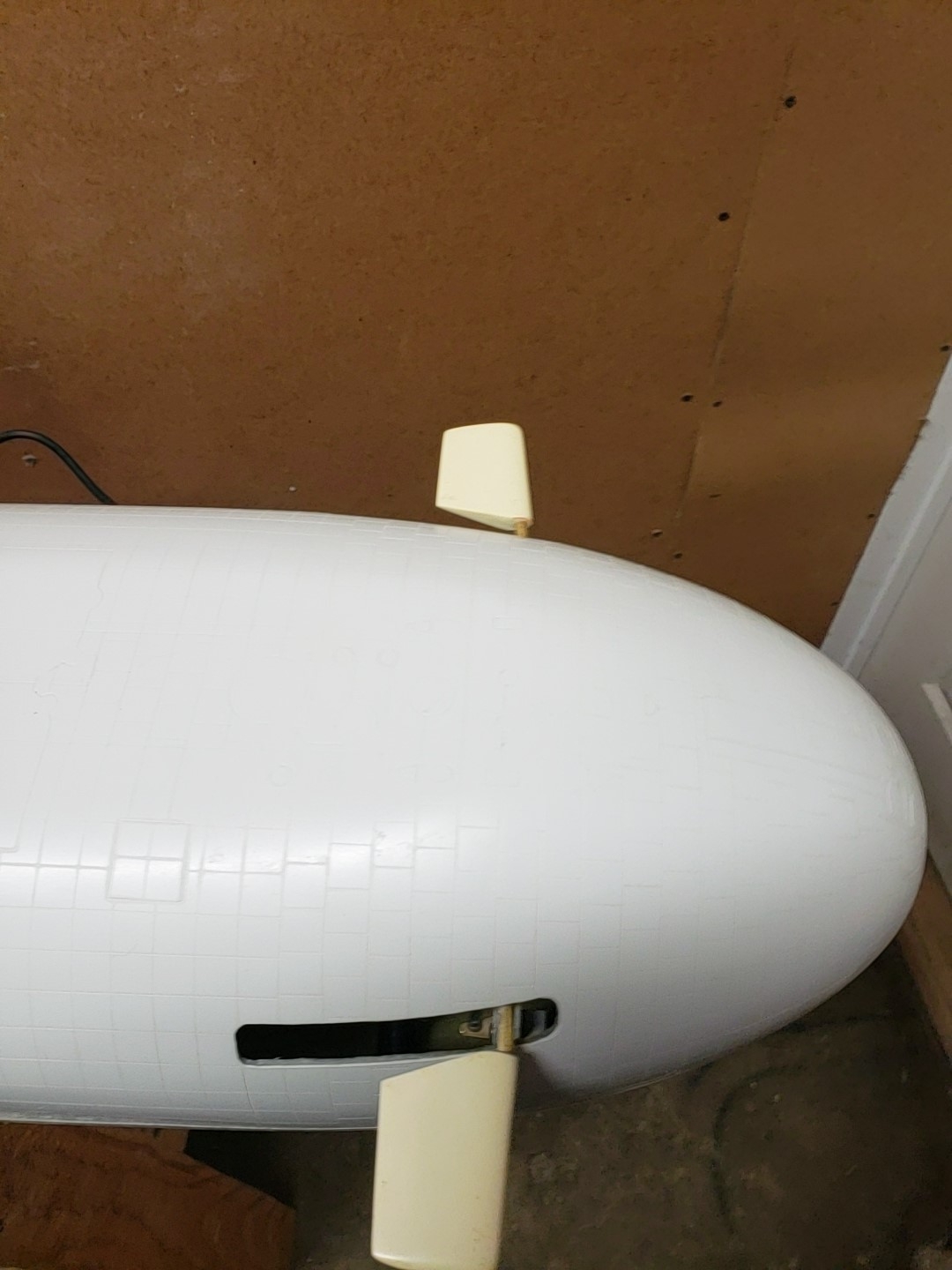

        dive plans work great all different angels
        Attached Files
        Put your mind to it. If there's a will there's a way!

        Comment


        • #79

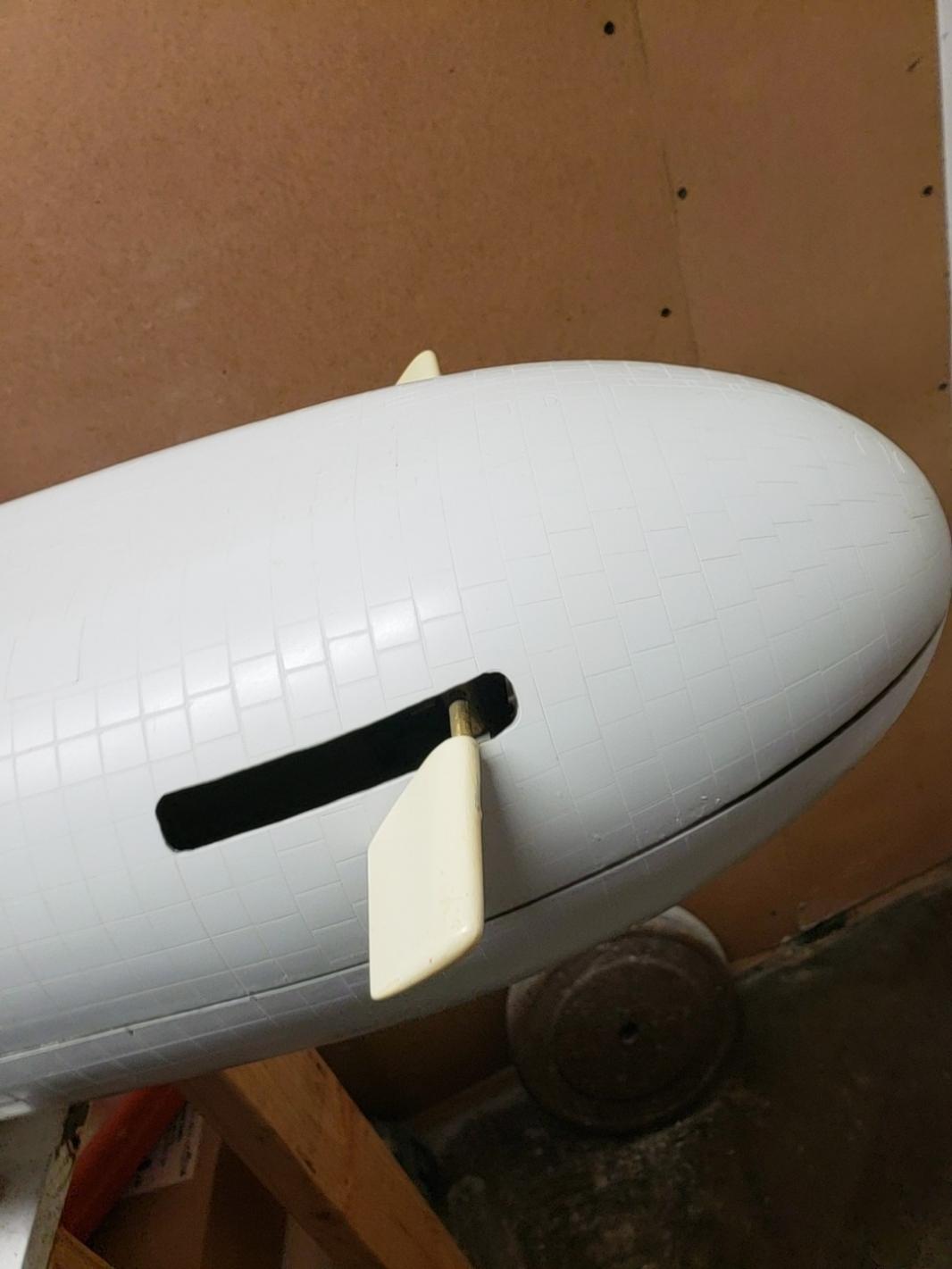

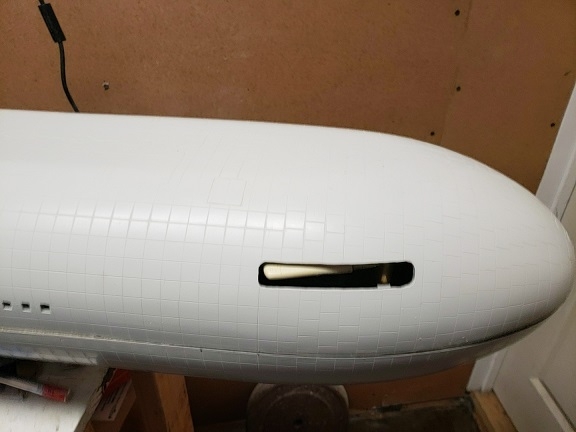

          one more angel
          Attached Files
          Put your mind to it. If there's a will there's a way!

          Comment


          • #80
            Click image for larger version

Name:	image_38685.jpg
Views:	1
Size:	336.7 KB

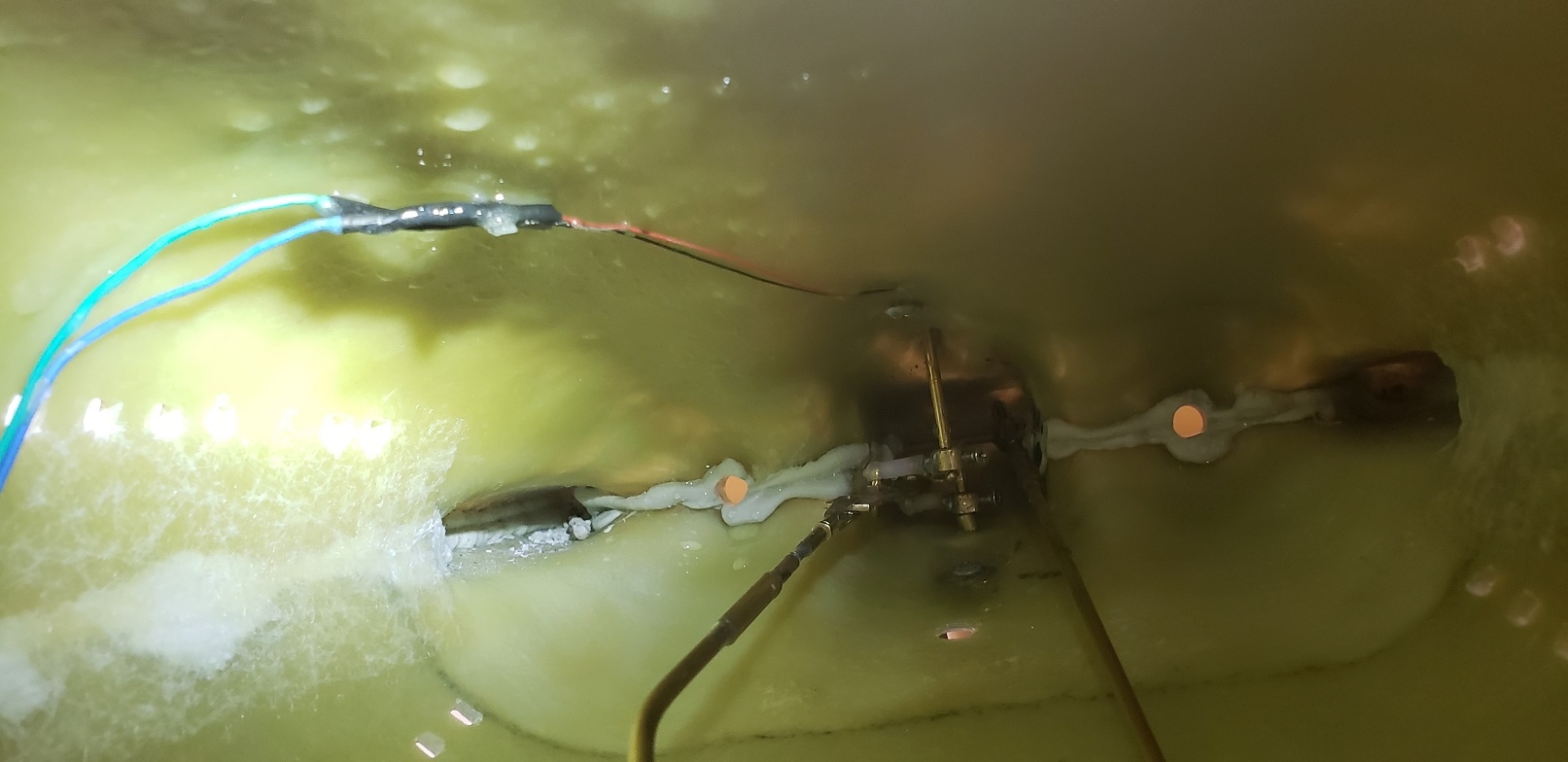

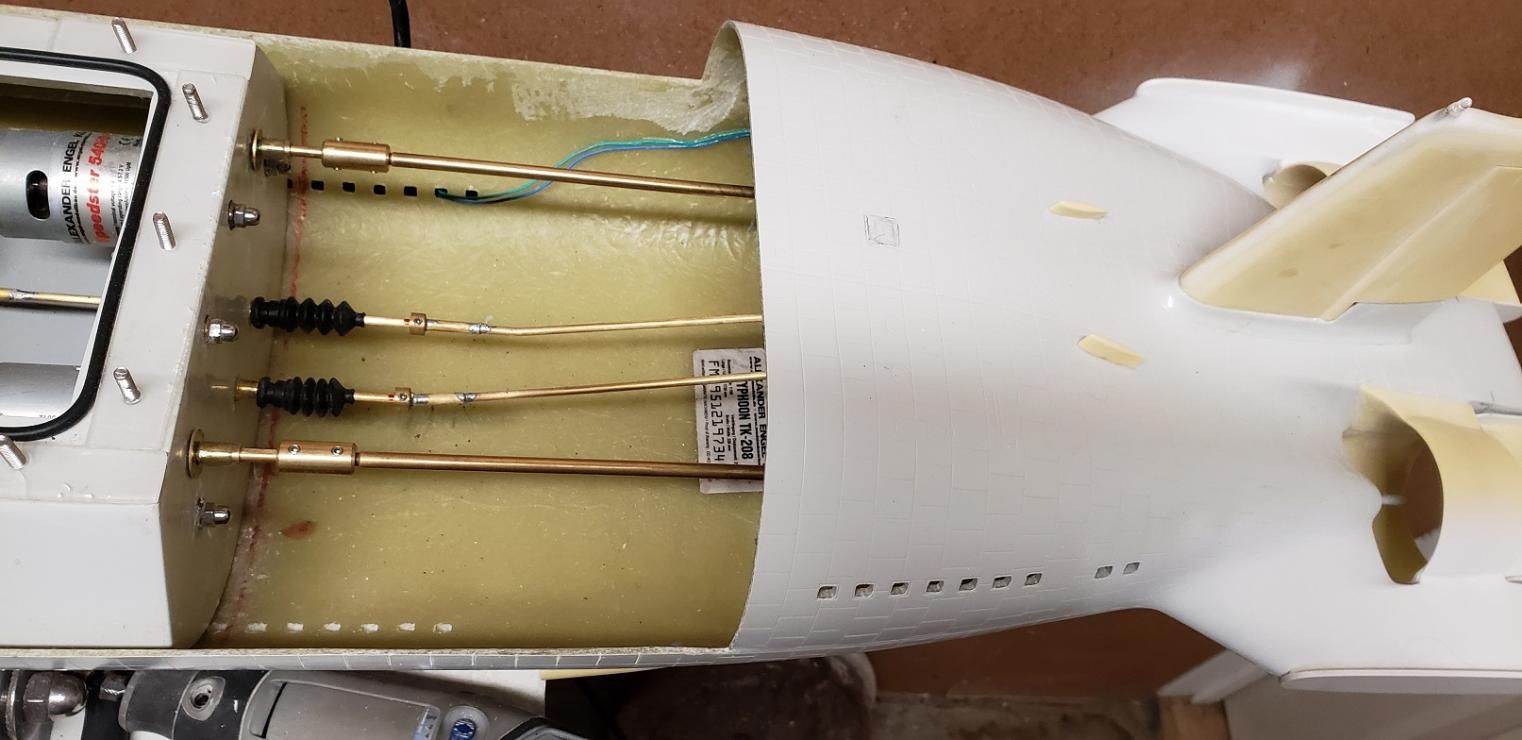

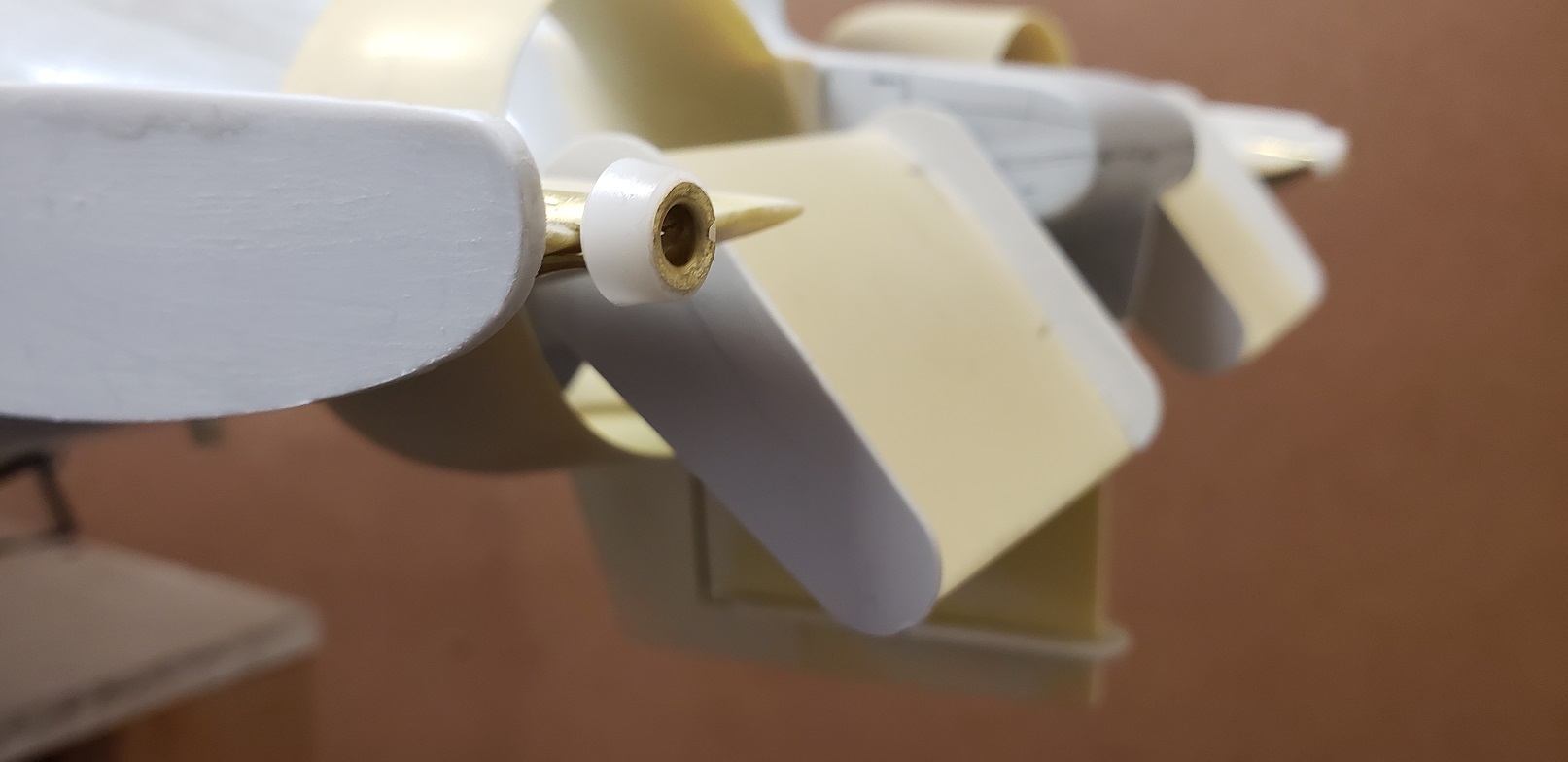

ID:	129660Click image for larger version  Name:	2q.jpg Views:	1 Size:	432.0 KB ID:	129659 tail fin light wire glued into the top out of the way and both brass push rods are in works smooth and perfect.
            Last edited by deepseadiver; 01-16-2019, 11:42 PM.
            Put your mind to it. If there's a will there's a way!

            Comment


            • #81

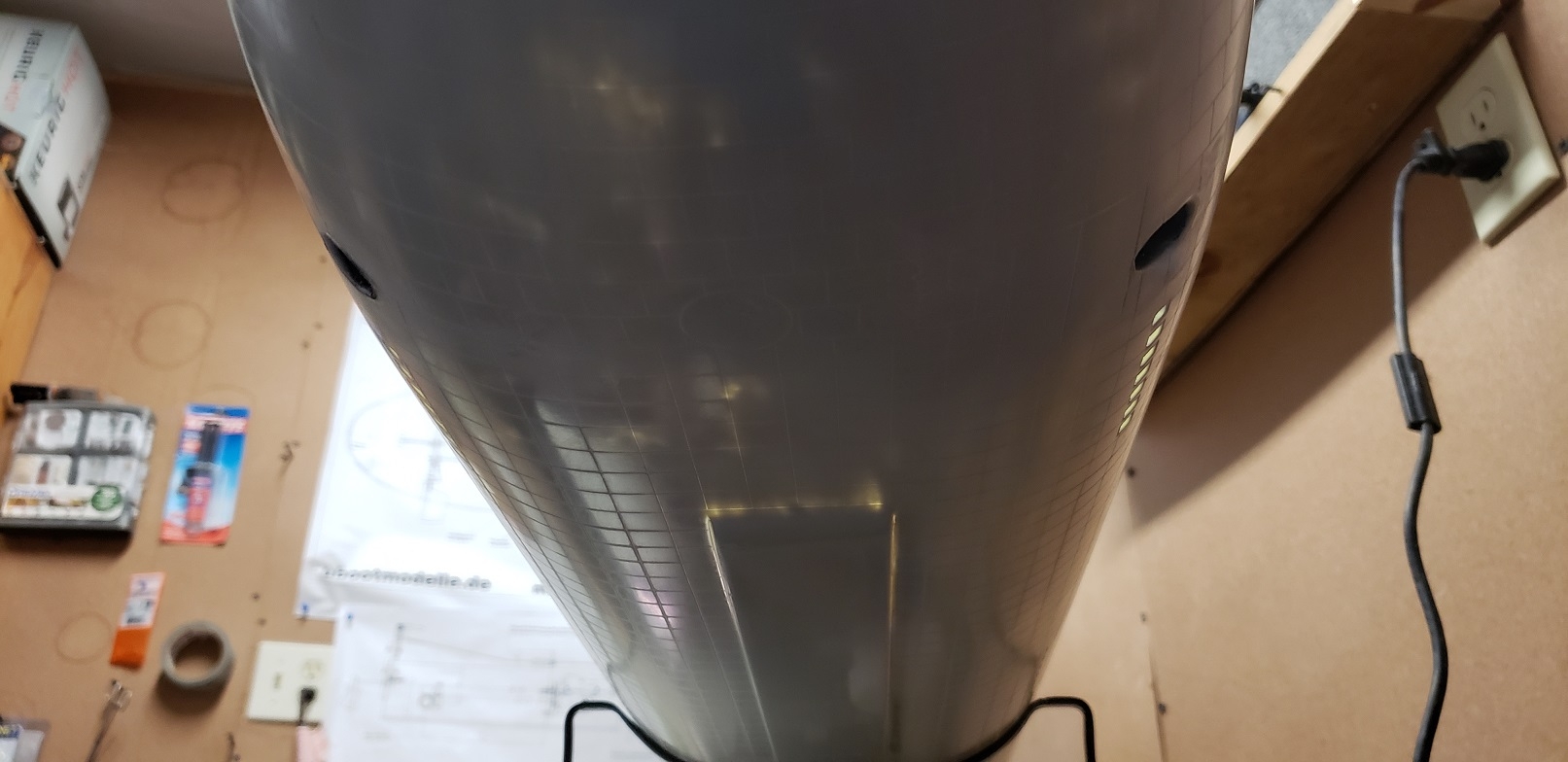

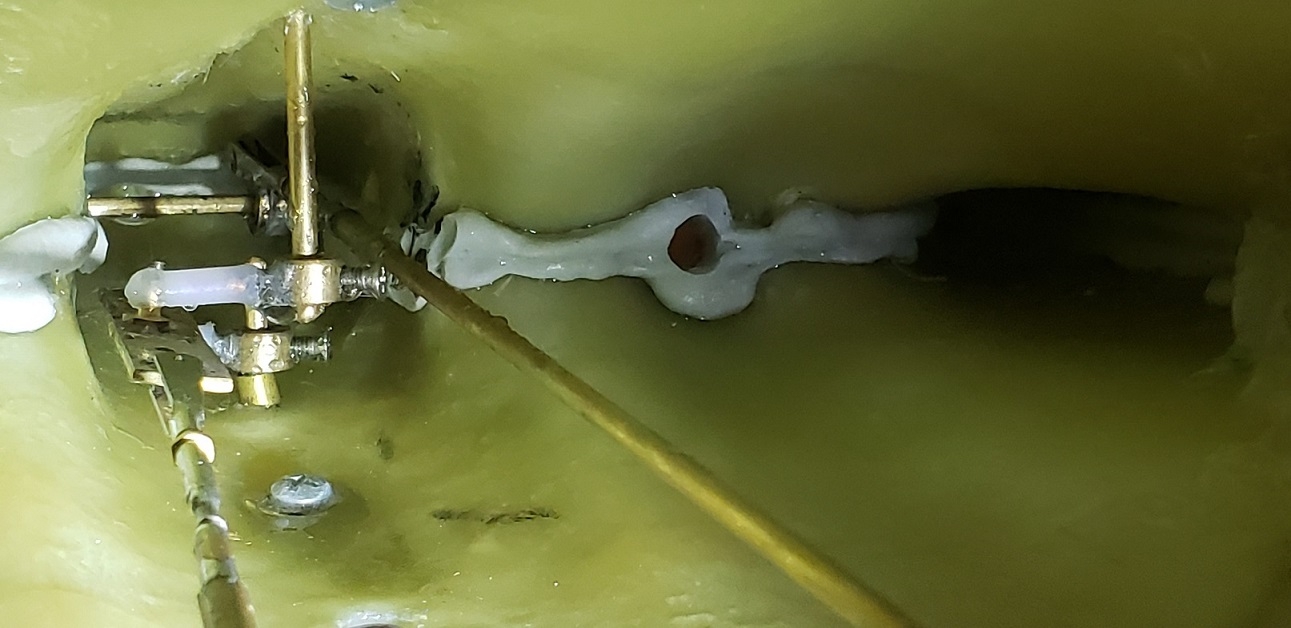

              fit perfect don't touch anything precession David im good
              Attached Files
              Put your mind to it. If there's a will there's a way!

              Comment


              • #82

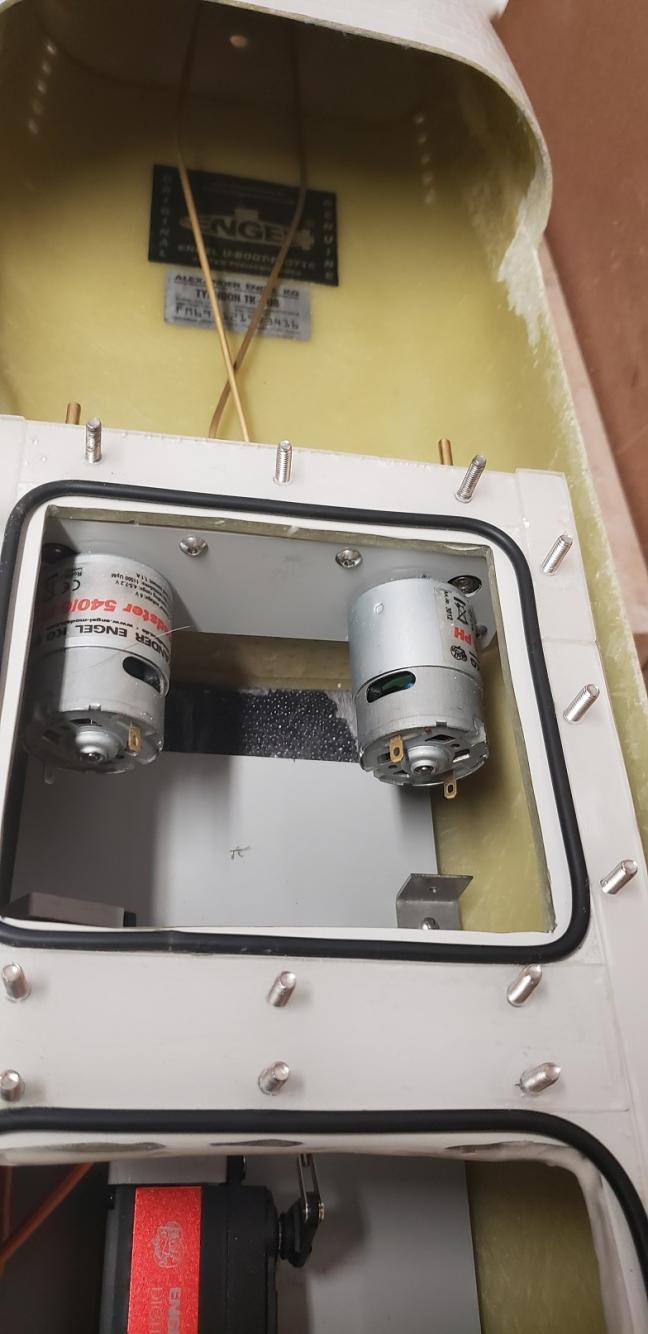

                motor have been installed next to place the drive shafts in next and control rods linked up to servos to work rudder tail fins all that fun stuff
                Attached Files
                Put your mind to it. If there's a will there's a way!

                Comment


                • #83
                  points awarded for hitting back and sticking with it.

                  David
                  "... well, that takes care of Jorgenson's theory!"

                  Comment


                  • #84
                    I did it a little different for those push rods. I used regular servo horns. Also I found I need to reinforce the bend on the push rods to stop them flexing - very important for the rear dive plane servo for good depth keeping.

                    Comment


                    • #85
                      Originally posted by Mankster View Post
                      I did it a little different for those push rods. I used regular servo horns. Also I found I need to reinforce the bend on the push rods to stop them flexing - very important for the rear dive plane servo for good depth keeping.
                      Hi thanks for the tip I really like what you did right on. Good stuff to know picture explain what you did very well
                      if I see any flex I may do the same . So far it looks solid when I work the servo between push rod and rudder.

                      Thanks

                      Jim :)
                      Last edited by deepseadiver; 01-25-2019, 06:05 PM.
                      Put your mind to it. If there's a will there's a way!

                      Comment


                      • #86
                        Alrighty, people. It seems there is a truce, albeit a tenuous one. I'm cleaning house in this thread, removing the off-topic diatribe for future posterity.

                        Comment


                        • #87

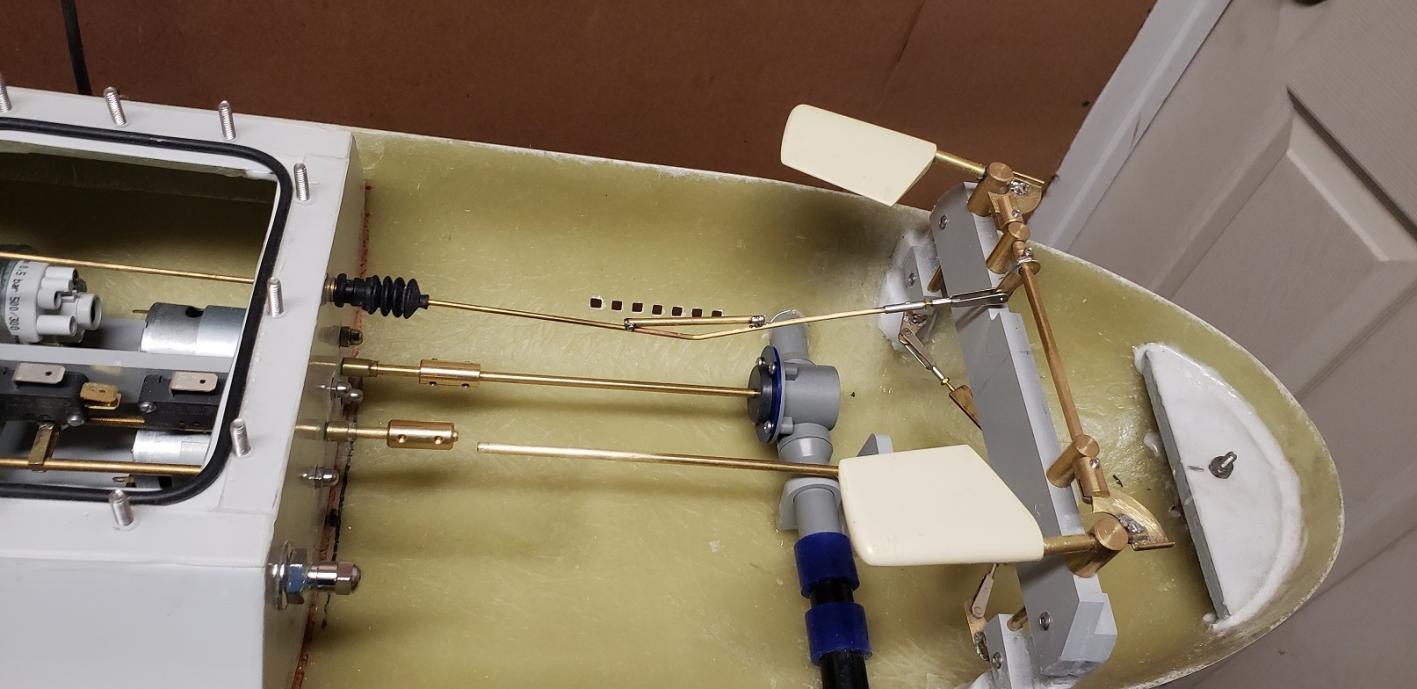

                          drive shaft installed work smooth
                          Attached Files
                          Last edited by deepseadiver; 01-24-2019, 04:39 AM.
                          Put your mind to it. If there's a will there's a way!

                          Comment


                          • #88

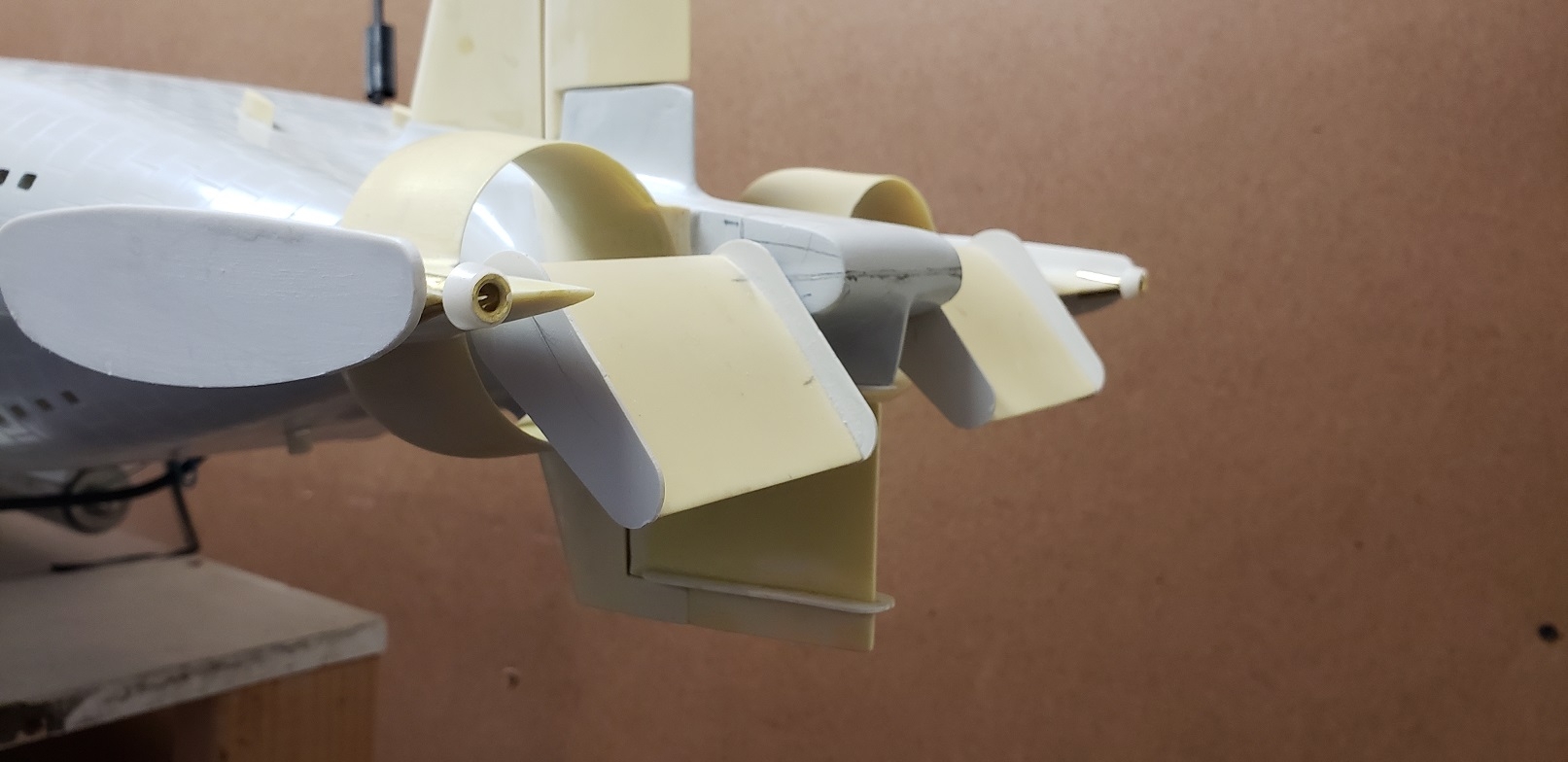

                            something I made from scratch. question do you know what there for I do ?
                            Attached Files
                            Last edited by deepseadiver; 01-24-2019, 04:46 AM.
                            Put your mind to it. If there's a will there's a way!

                            Comment


                            • #89
                              old vintage photos of this beast 48,000 tonnes built between1976-1986
                              Attached Files
                              Put your mind to it. If there's a will there's a way!

                              Comment


                              • #90

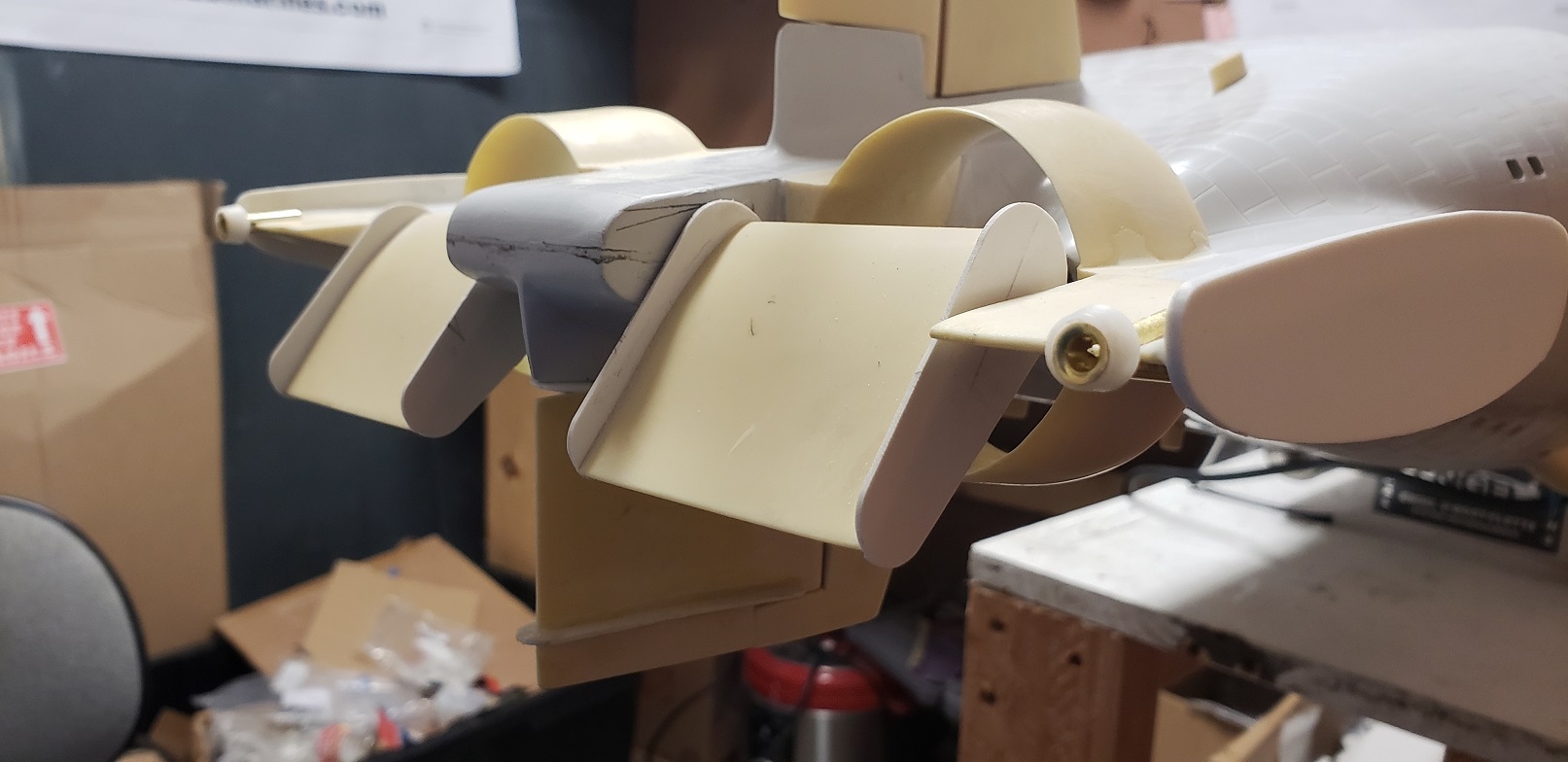

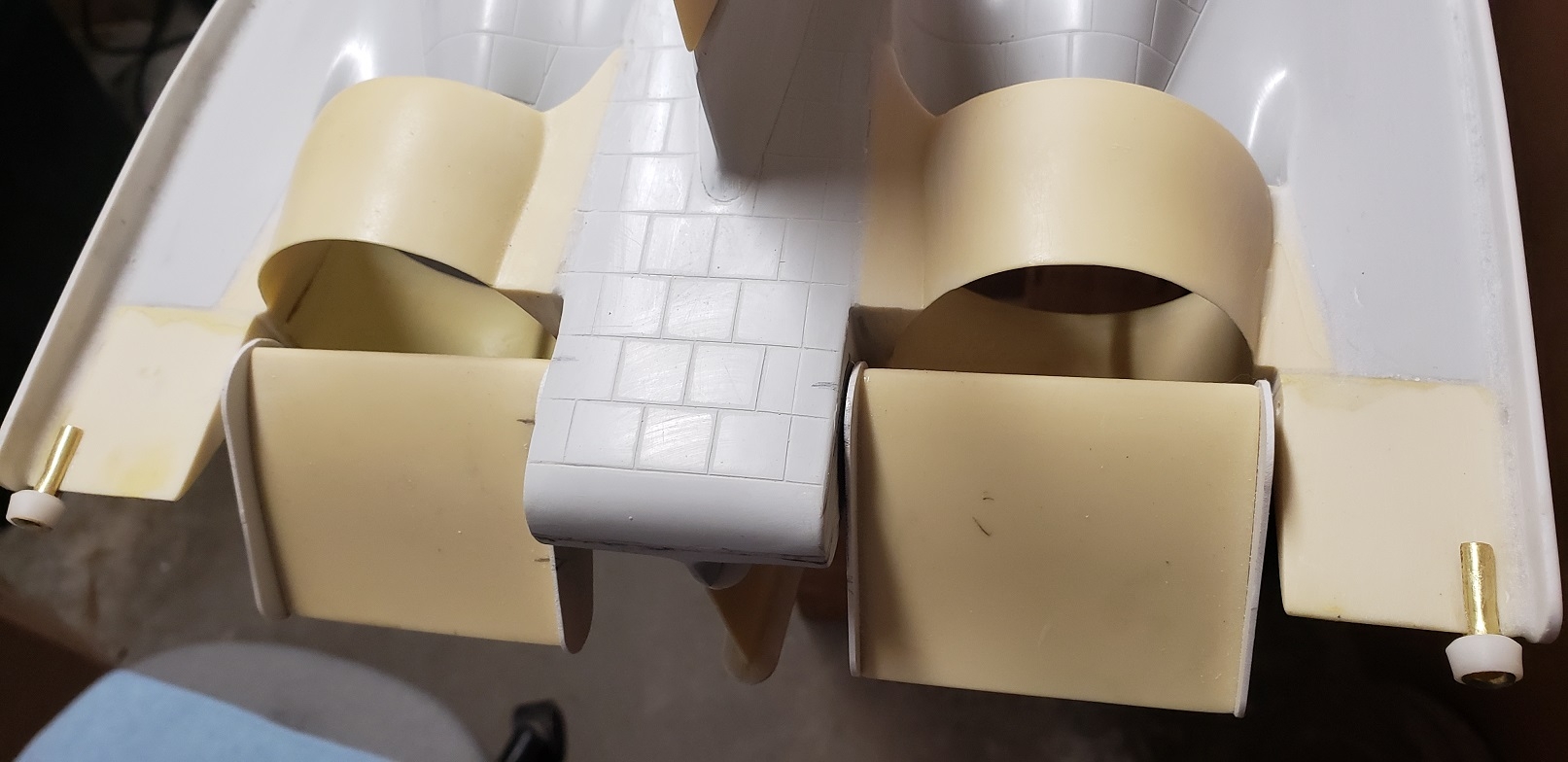

                                scratch built part.
                                Attached Files
                                Put your mind to it. If there's a will there's a way!

                                Comment
