      • Lots going on at the Drydocks over the last few days!

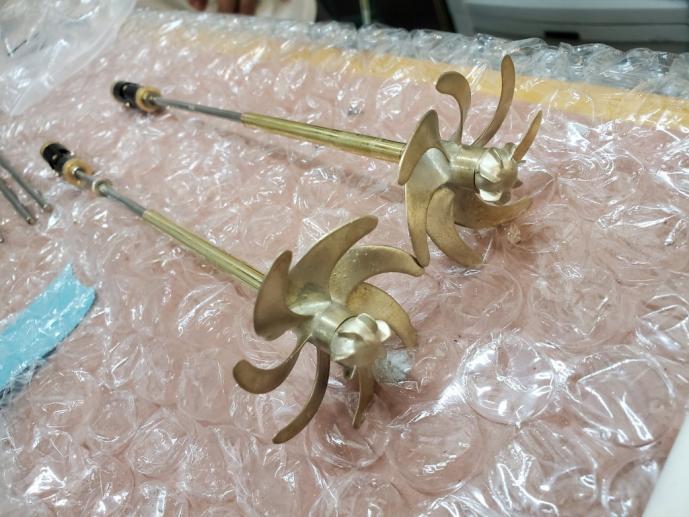

        In conjunction with OTW, we're happy to announce the release of our new 1/96 Russian Oscar II kit. The master patterns were created by Kevin McLeod and they are amazing. The model measures a massive 1613 mm ( 63.5 inches) with a beam of 190 mm ( 7.48 inches). Layout drawings are included. I now have the model queued up for a prototype build in order to create instructions. If you are an experienced builder and don't need a walkthrough, it is up and ready for purchase on my site here.

        Click image for larger version

Name:	20201026_113956.jpg
Views:	204
Size:	58.4 KB
ID:	144758Click image for larger version

Name:	20201026_113842.jpg
Views:	207
Size:	64.1 KB
ID:	144760Click image for larger version

Name:	20201026_114015.jpg
Views:	209
Size:	60.8 KB
ID:	144762Click image for larger version

Name:	20201026_114019.jpg
Views:	204
Size:	54.7 KB
ID:	144763Click image for larger version

Name:	20201026_114038.jpg
Views:	205
Size:	58.0 KB
ID:	144759

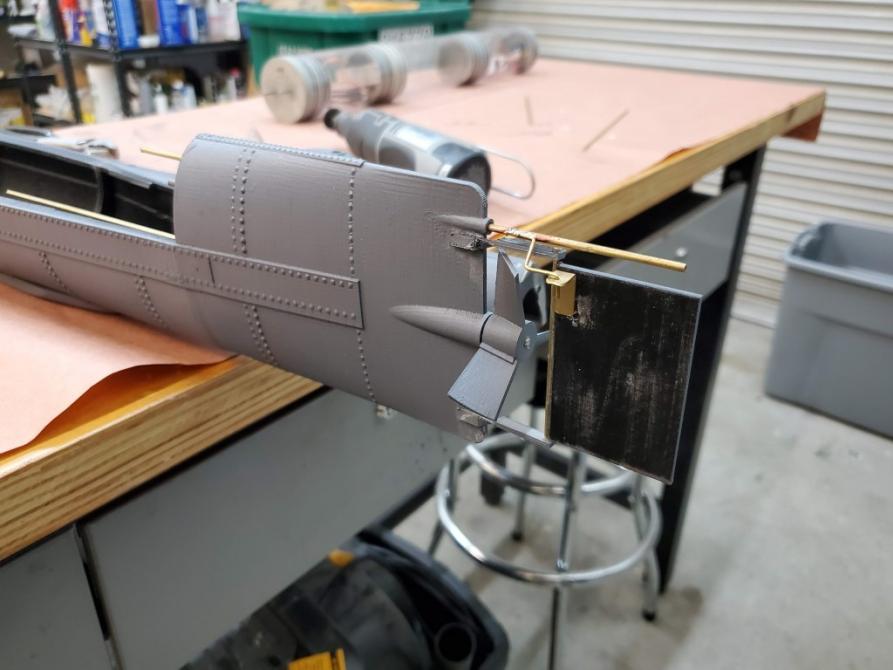

        The Hunley is coming along nicely! I may throw in the towel trying to get the authentic rudder linkage to work. I gave it the ol' college try, but that setup is actually really dynamic with a lot of moving parts. I elected to go with a conventional linkage, which is working perfectly.

        Click image for larger version

Name:	20201026_154752.jpg
Views:	211
Size:	59.4 KB
ID:	144766Click image for larger version

Name:	20201026_154818.jpg
Views:	207
Size:	56.4 KB
ID:	144767

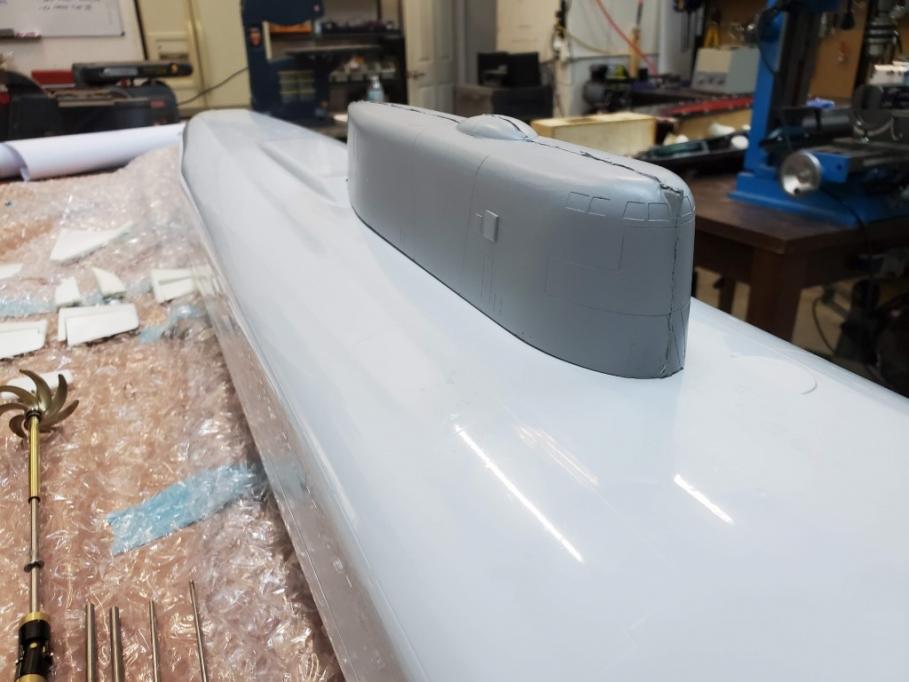

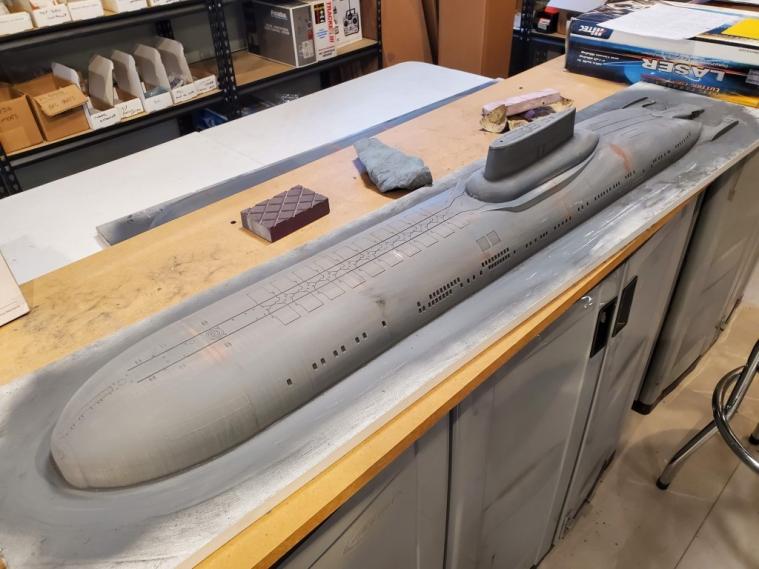

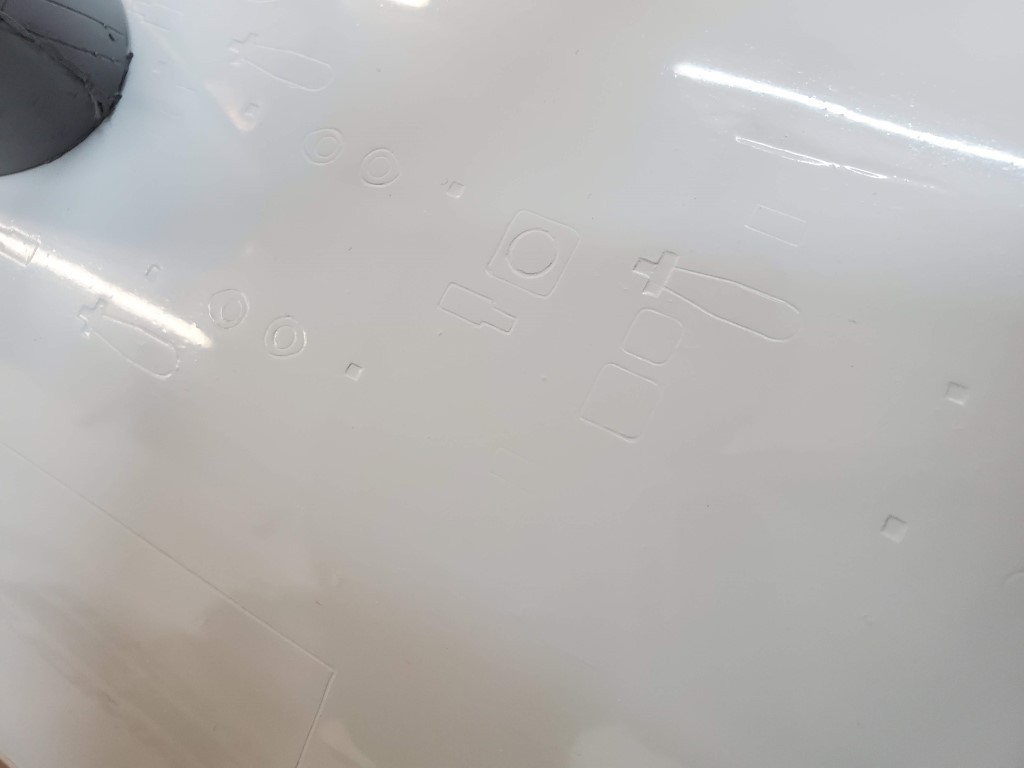

        Picking away at Typhoon. Lots of sanding for a perfectly smooth finish from the slightly grainy texture that the printing netted.


        Click image for larger version

Name:	20201026_154846.jpg
Views:	212
Size:	59.9 KB
ID:	144768

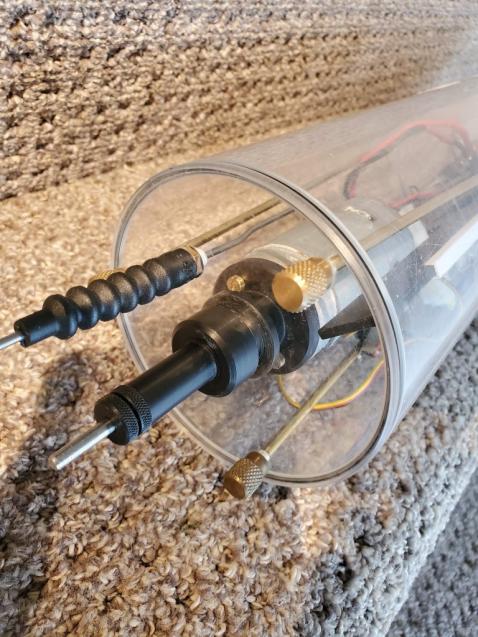

        The prototype cylinder is nearly complete! I encountered some issues getting a perfect valve built for opening and closing the snorkel air intake. I had a revelation last night that I feel is going to be ideal. I'll give it a shot today.

        Once done, this will get installed in the Hunley.


        Click image for larger version

Name:	20201026_154828.jpg
Views:	205
Size:	58.5 KB
ID:	144769

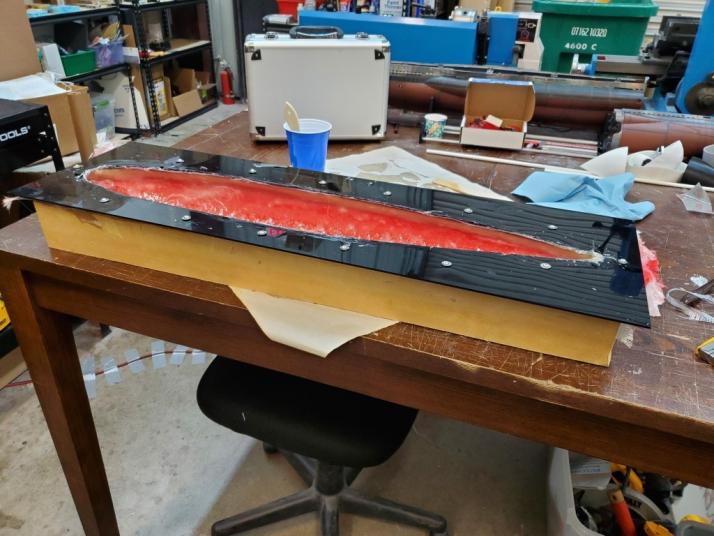

        The 1/6 Delphin first layup is in the molds and we will be de-molding this morning. The mold is symmetrical top and bottom, so one mold handles both.


        Click image for larger version

Name:	20201026_154743.jpg
Views:	207
Size:	61.9 KB
ID:	144770


        This is the cylinder that I'll be modifying for use in the Arkmodel Type VII buildup for Ed. Bigger than the "stock" 2.5" unit with a stubbier tank for better water control.


        Click image for larger version

Name:	20201026_154825.jpg
Views:	203
Size:	59.7 KB
ID:	144771

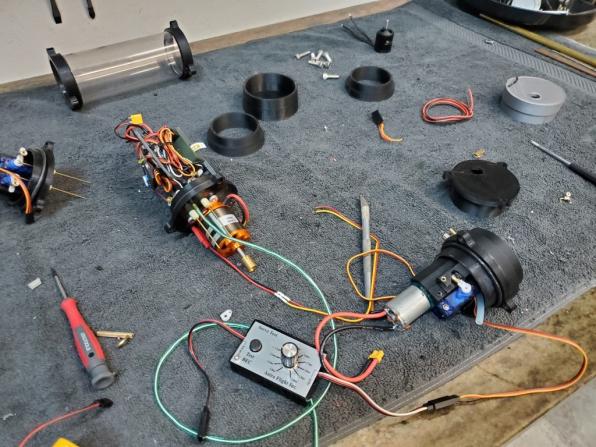

        This was a weird one... I had an OTW cylinder come to me for refit. The owner said that the motor was "broken" and wouldn't spin. It just "grinded". It turns out that the seal assembly was completely melted and fused to the stainless drive shaft. I have NO IDEA how he did that. I couldn't figure out a way to do that if I TRIED! At any rate, Jason and I disassembled it, cleaned it up, machined new clean faces to the parts and installed a bigger seal. Working perfectly now and I'm pressure testing it this morning.

        Click image for larger version

Name:	20201026_154727.jpg
Views:	201
Size:	67.1 KB
ID:	144772
        Attached Files

        Comment


        • That is a lot going on. Wow!

          Comment


          • Originally posted by RCJetDude View Post
            That is a lot going on. Wow!
            You have no idea....

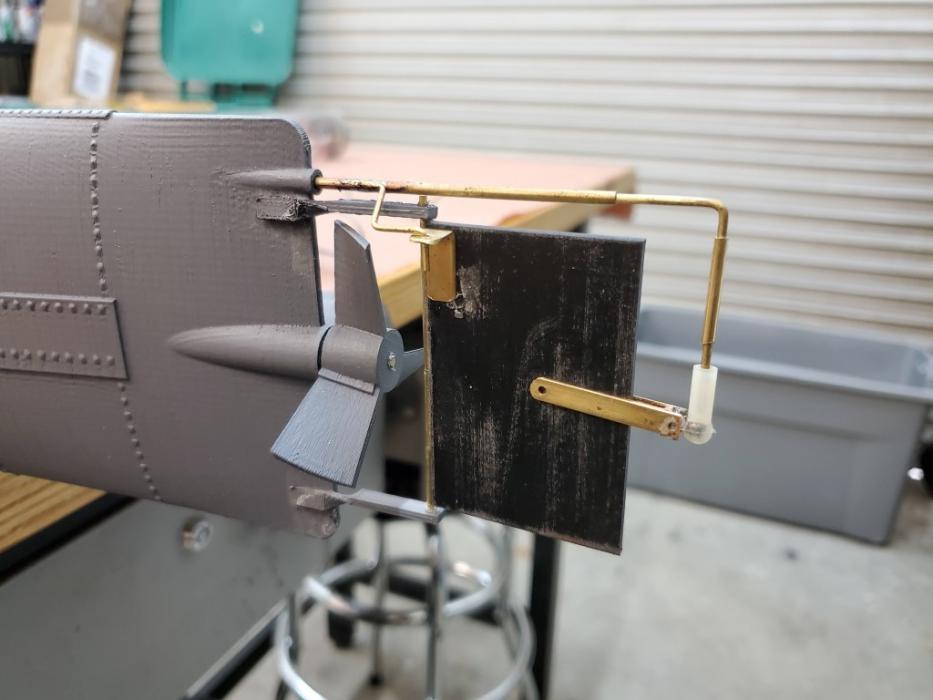

            Took a few minutes and finally nailed down the Hunley rudder linkage. The actual actuation takes place via a traditional push/pull linkage, but the swivel linkage is there for aesthetics. Works well on the bench and I'm getting about 30 degrees of throw. Not sure that I like the 3D printed rudder supports, but they're holding up so far.

            Click image for larger version

Name:	20201027_142111.jpg
Views:	191
Size:	56.6 KB
ID:	144785

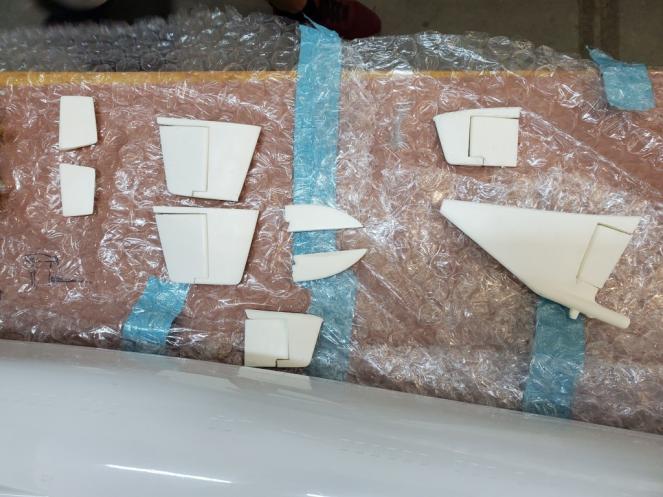

            Delphin first pull came out of the molds. Here is Jason cleaning up the molds getting ready to lay up the second half today:

            Click image for larger version

Name:	20201027_142132.jpg
Views:	174
Size:	60.1 KB
ID:	144787

            Got in a beautiful 72nd scale HMK Permit with SubDriver. Jason spend the afternoon refitting the cylinder (under my direction). The motor/spur gear alignment was out of whack, causing the shaft to slip. We adjusted that, modified the servo throws, installed a new remote switch, and she's good to go. Should be trimming today or tomorrow.

            This boat will be available for sale by this weekend after I get the pics/video made for her!

            Click image for larger version

Name:	20201027_142117.jpg
Views:	168
Size:	63.9 KB
ID:	144786

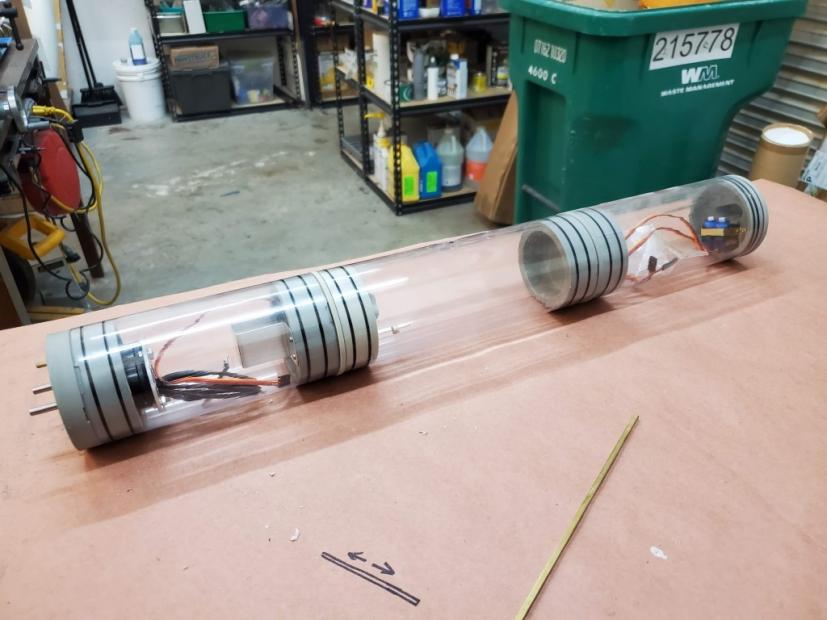

            The MKIII SubDriver is nearly ready for installation in Hunley. Two more 3D printed parts to install and we are on to testing for leaks and fitment into the hull! Lots more detail on this new version to come soon, including a dedicated video. DiveTribe members get an exclusive preview this Sunday at 2pm! Not a member? Why the hell not!?

            Click image for larger version

Name:	20201027_142122.jpg
Views:	169
Size:	58.5 KB
ID:	144788

            And one final pic of the horse/dog that has moved into the shop next to me. He's a BEAST (but a friendly one!)!!

            Click image for larger version

Name:	20201027_142315.jpg
Views:	171
Size:	55.2 KB
ID:	144789
