1/35 scale type 23

Collapse
X

  • Time
  • Show
Clear All
new posts
  • crazygary
    Captain
    • Sep 2012
    • 610

    #91
    Well, Sir!!

    With regard to the paint scheme in question:

    Whatever floats, or sinks, yer boat is all good!!
    Be it "poop-brindle-brown", "yaller" er "pity-tink".......!?

    Whatever it is, it looks kinda cool!!

    CG

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #92

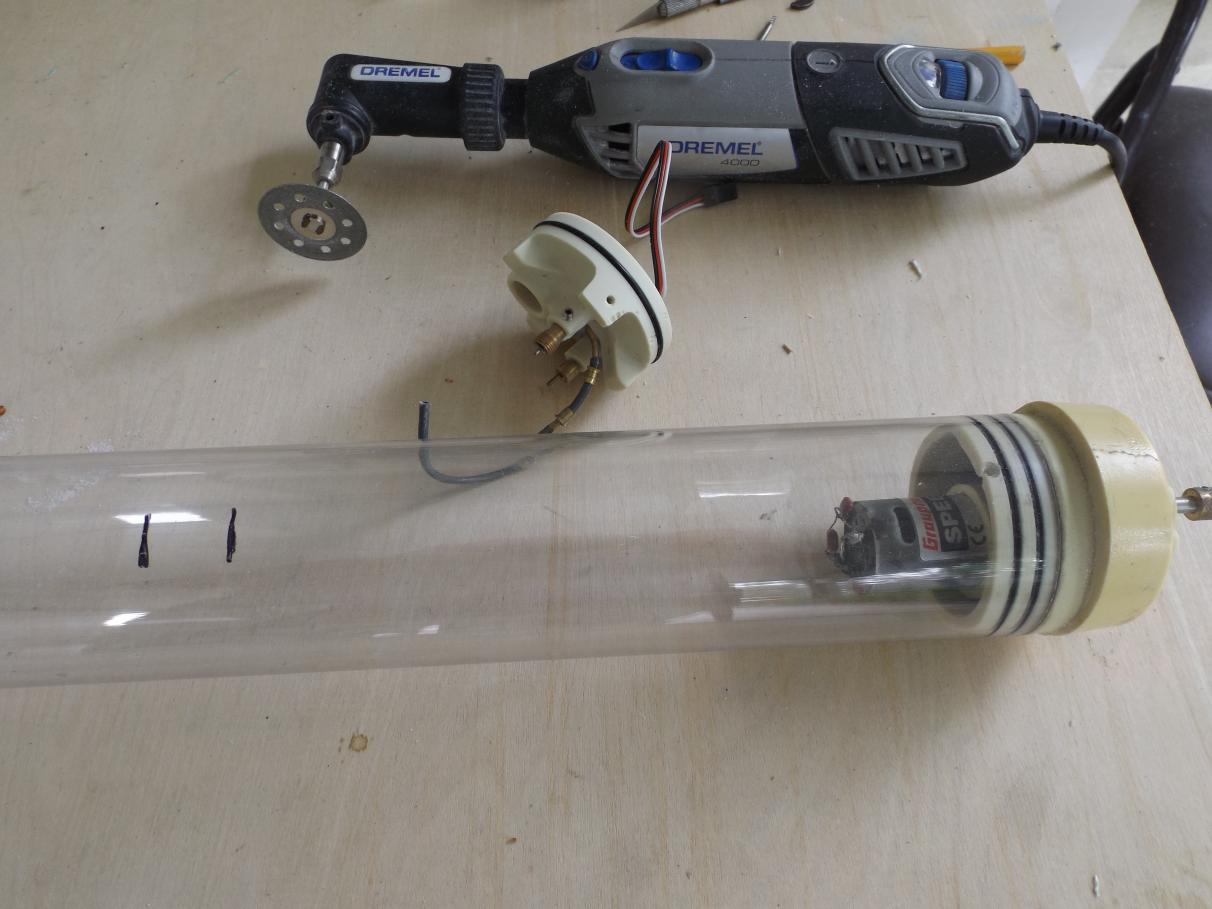

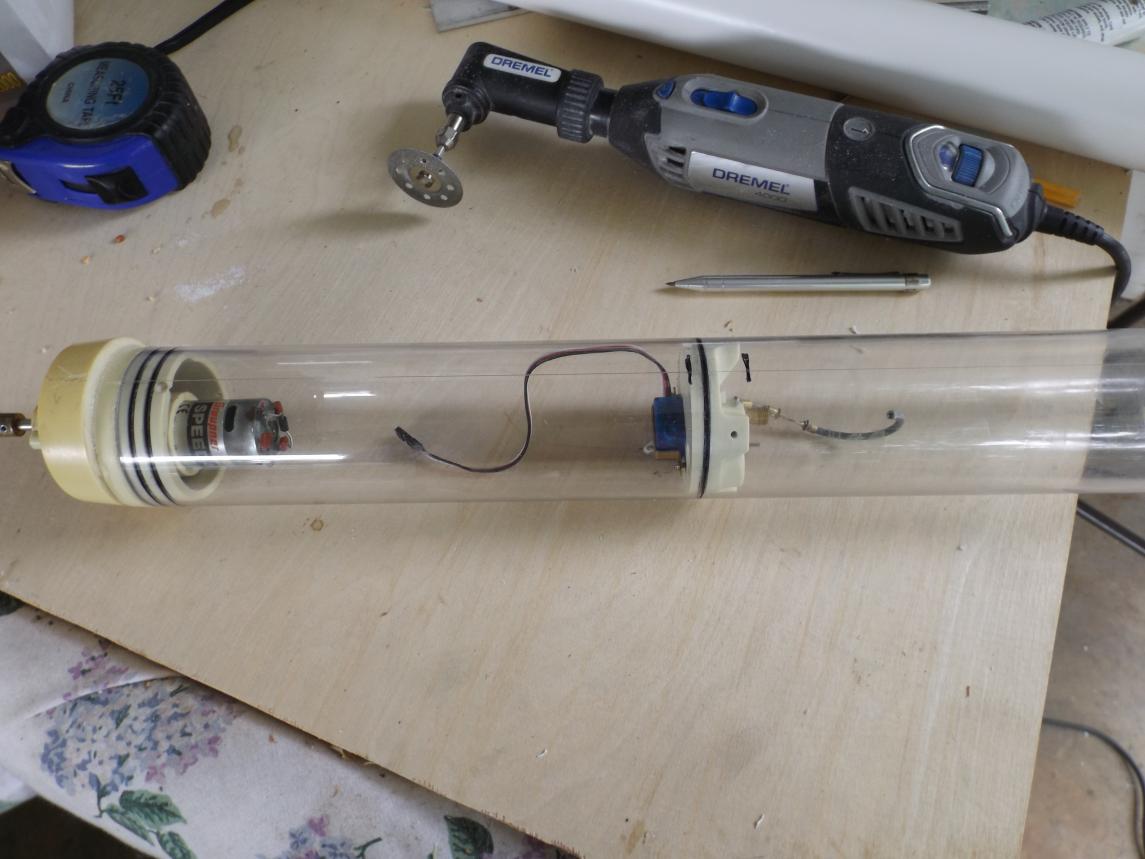

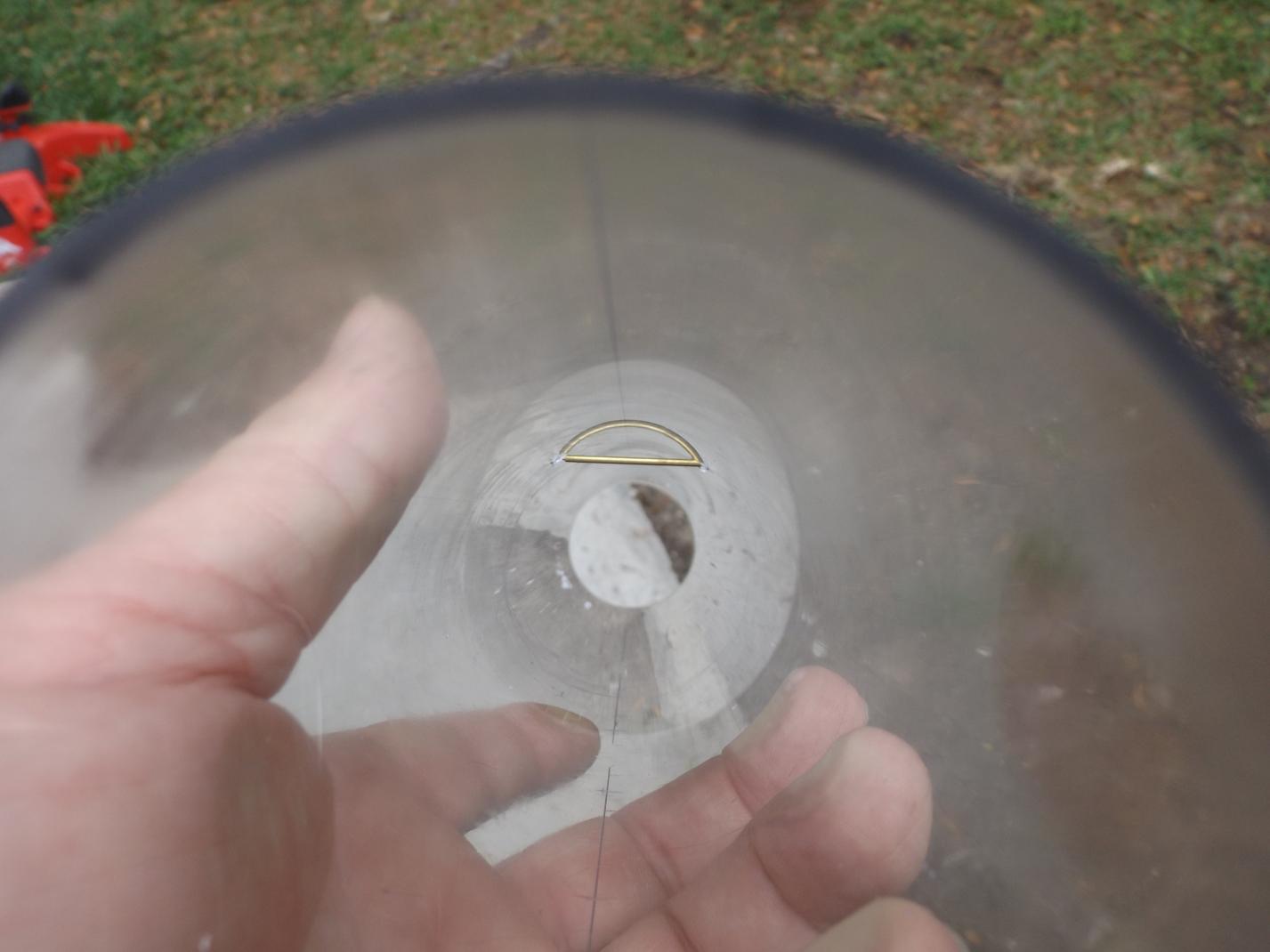

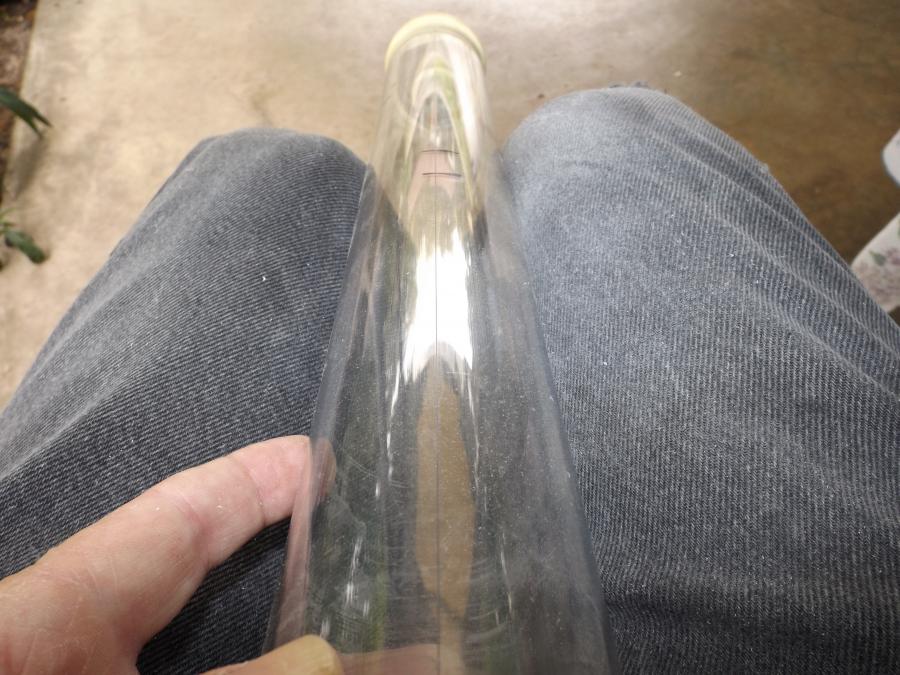

      Todays pitiful but fun progress. As you know, I purchased a piece of 2&1/2" lexan tube and have previously figured out how big and where everything is gonna go. Using a "Garage Sale" Subdriver that was too small for this boat I set about transfering everything over that I could. Using the old Subdriver as a guide I started marking it out. First I put a centerline down on top and on bottom and measured everything from there.

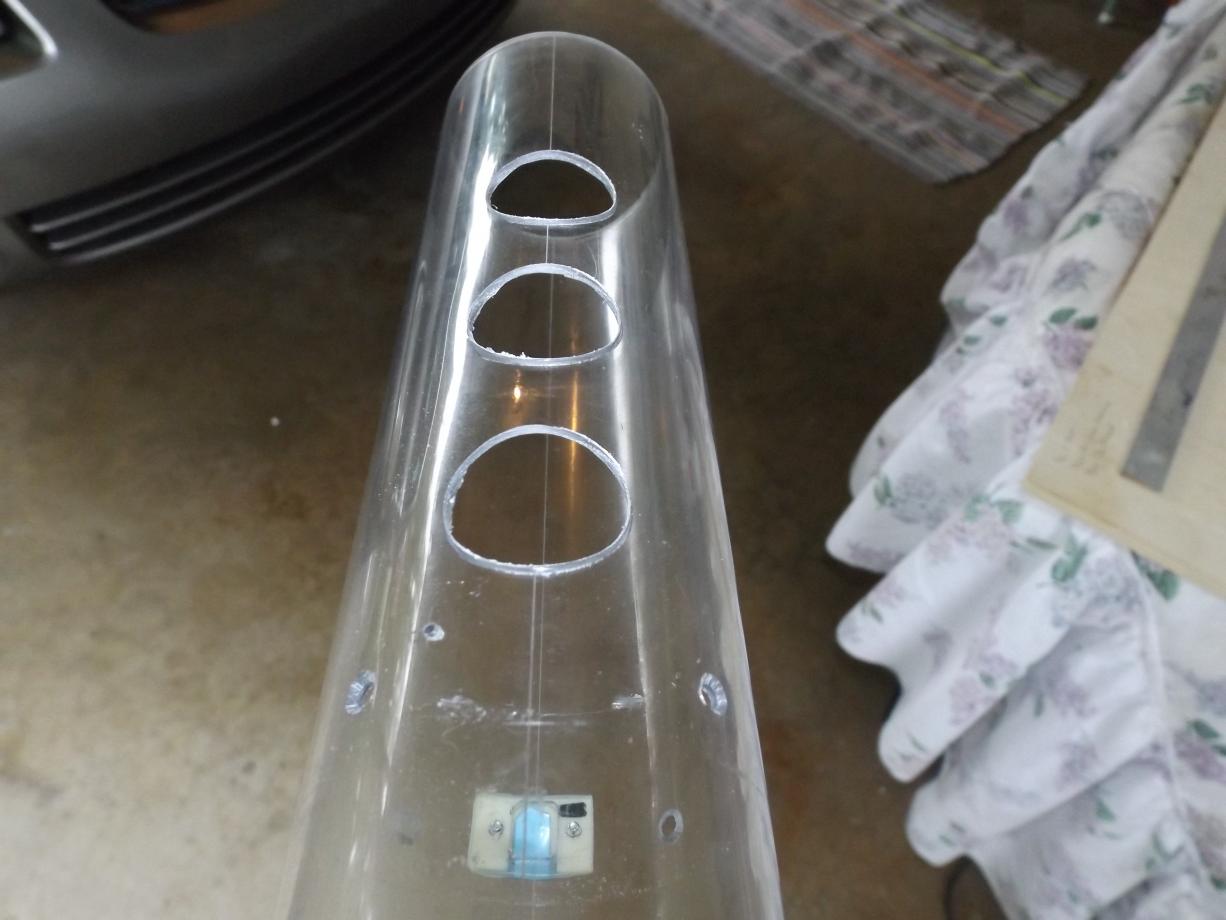

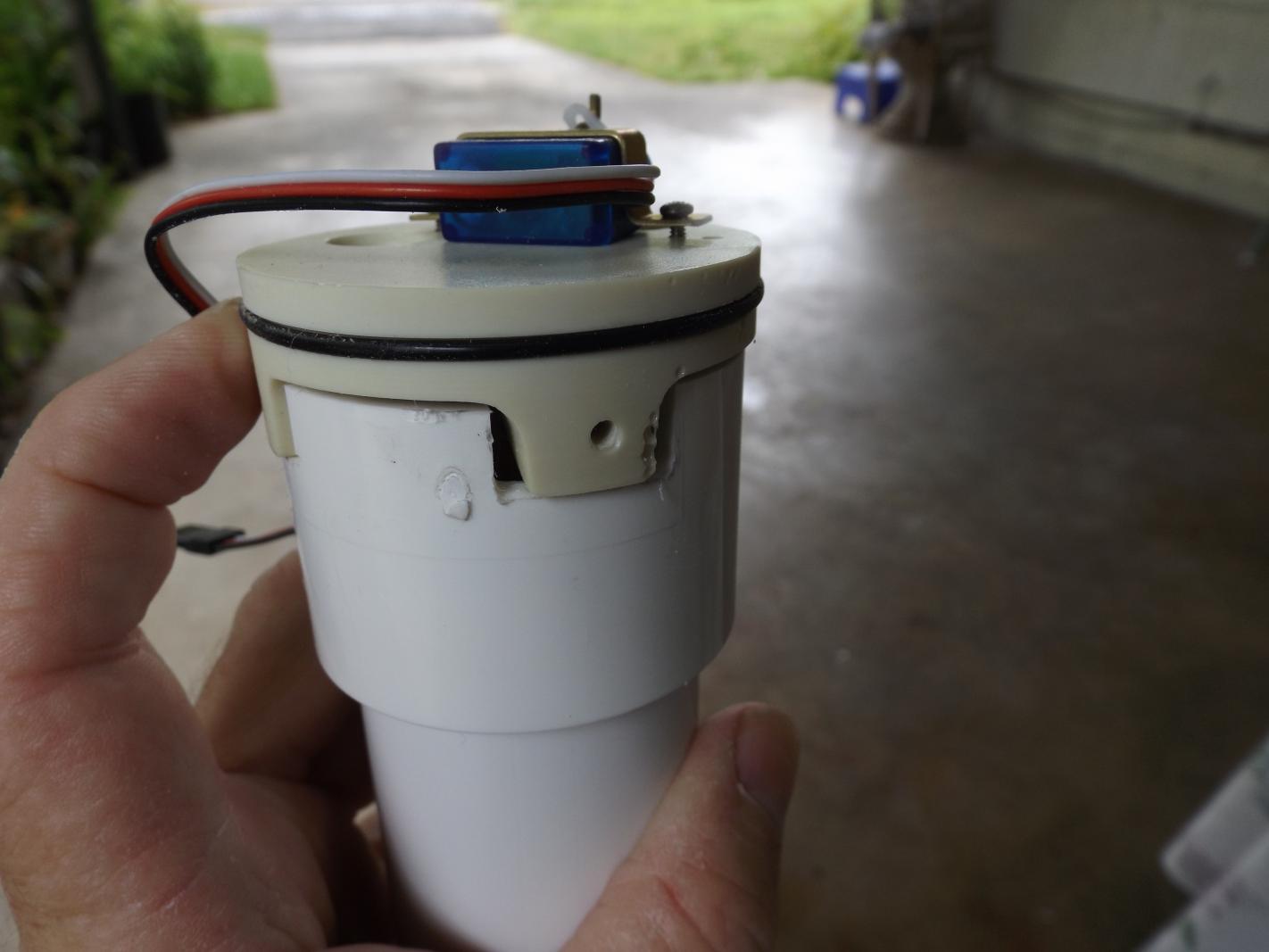

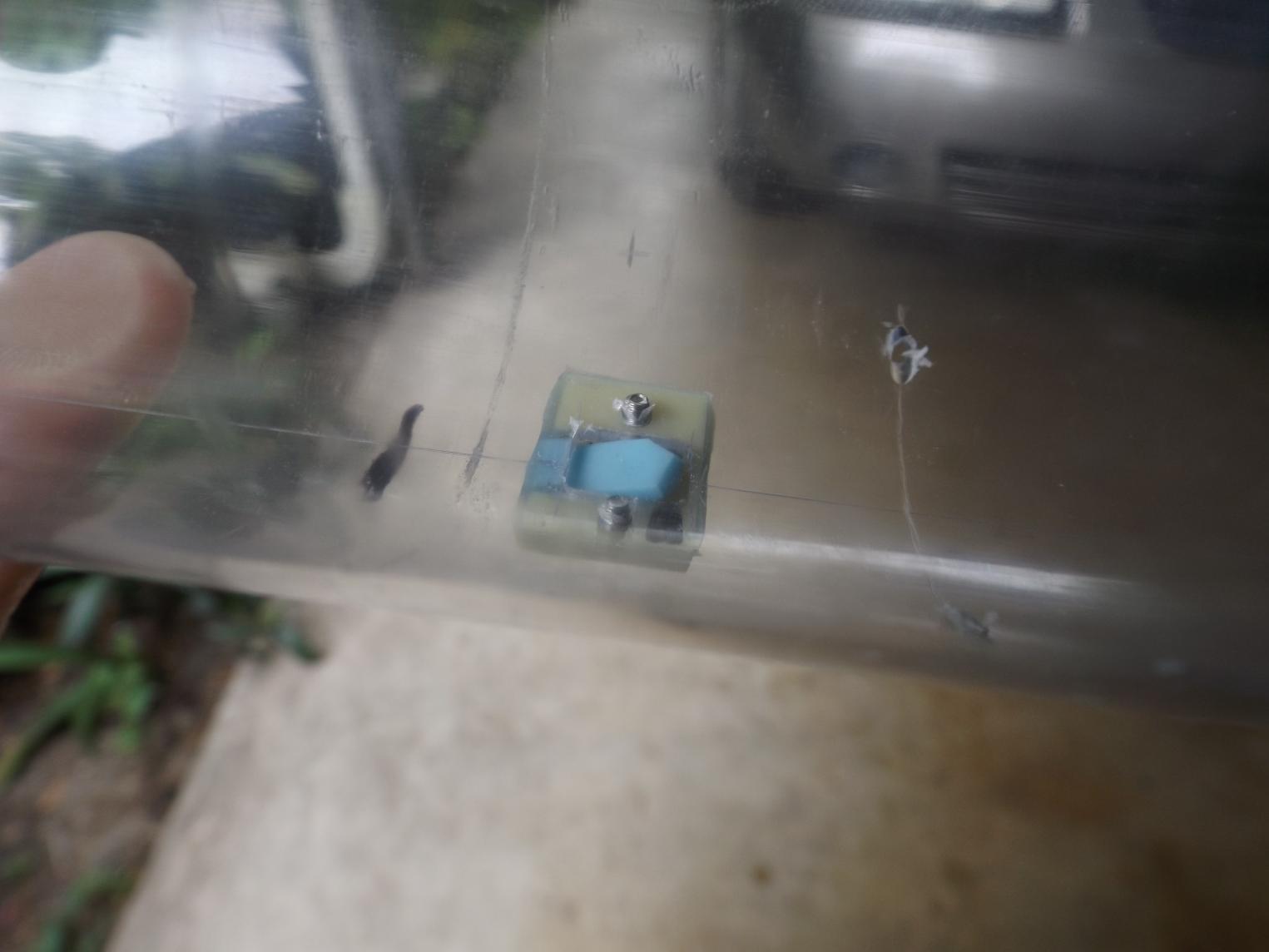

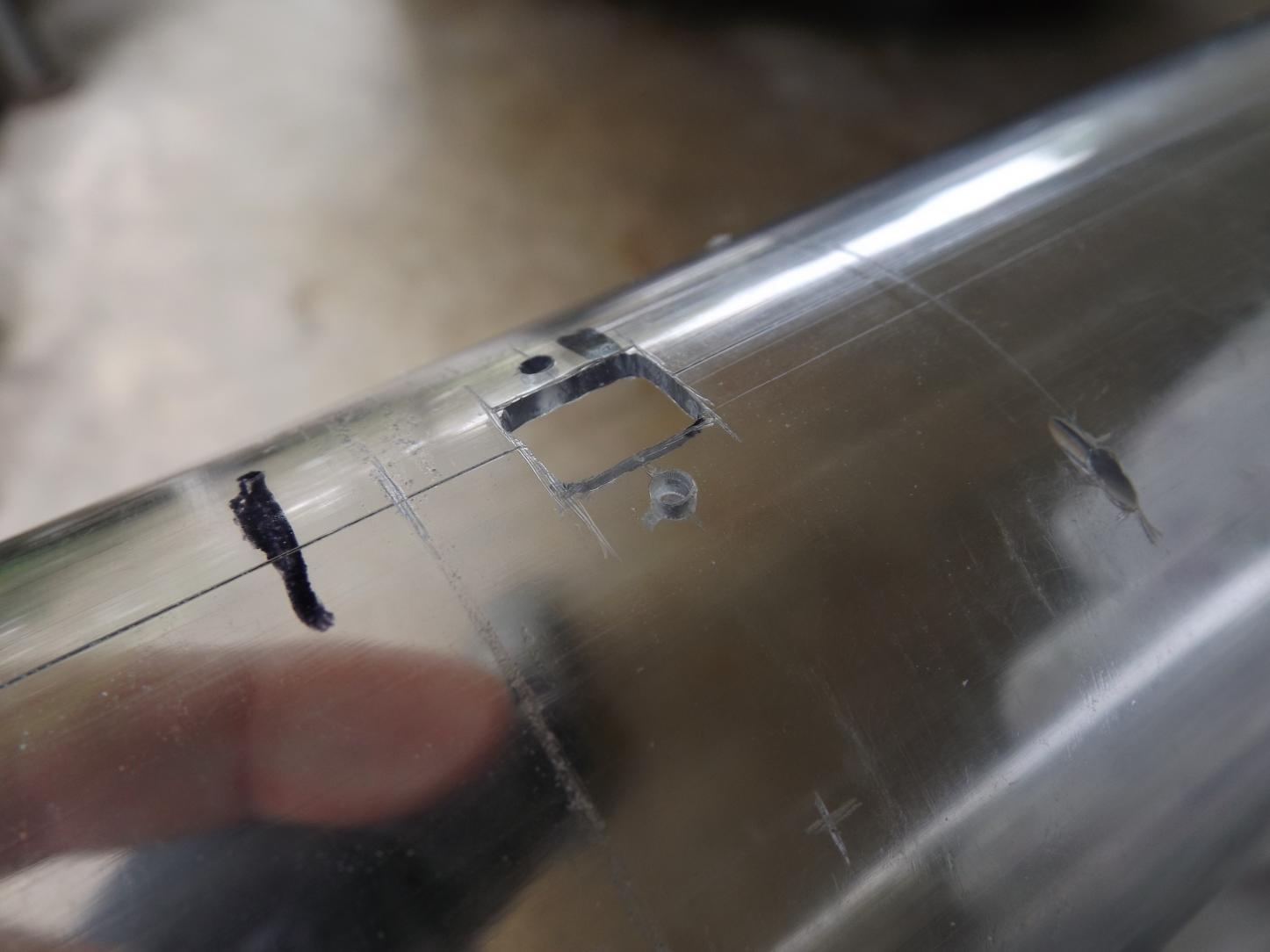

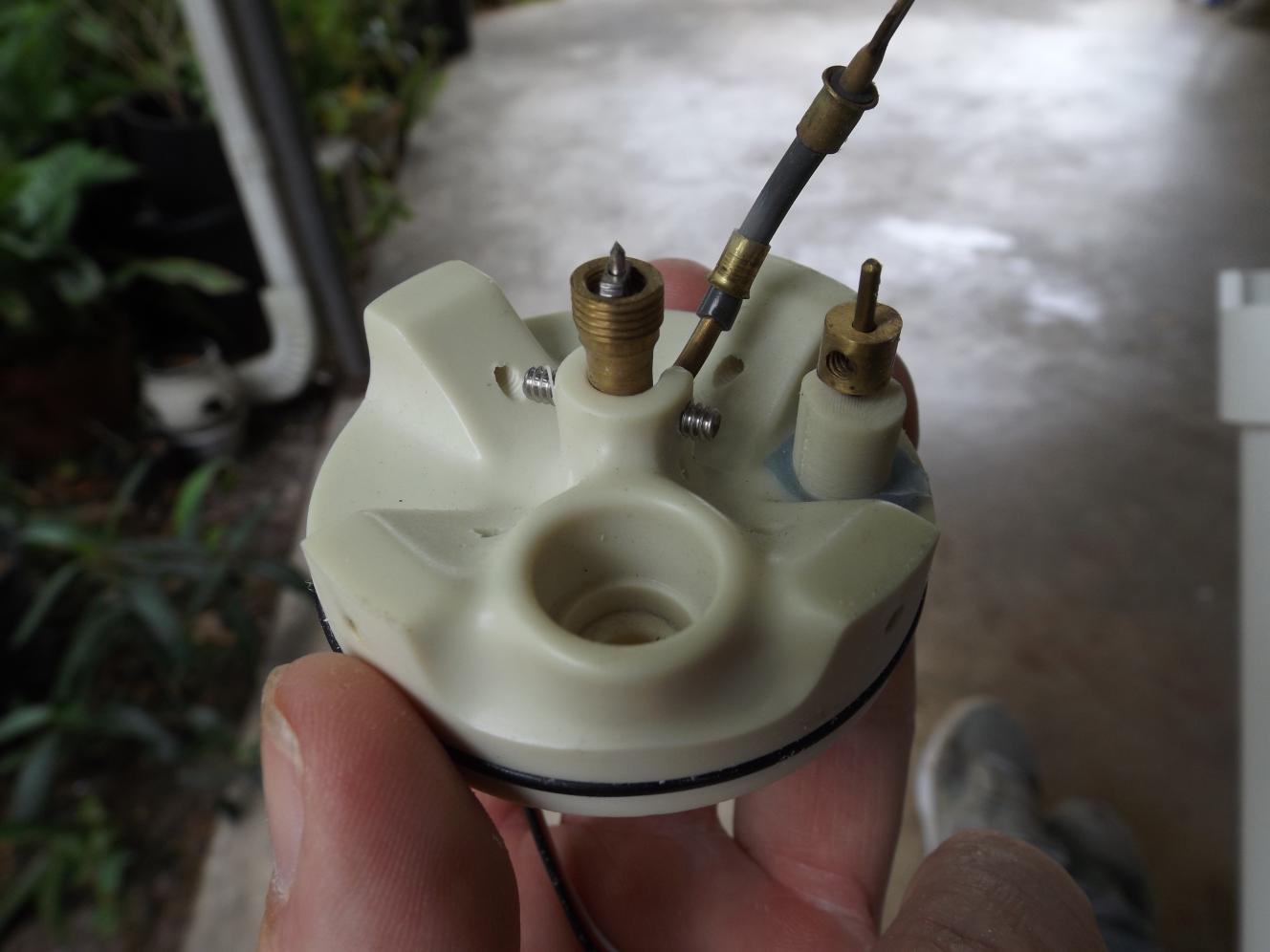

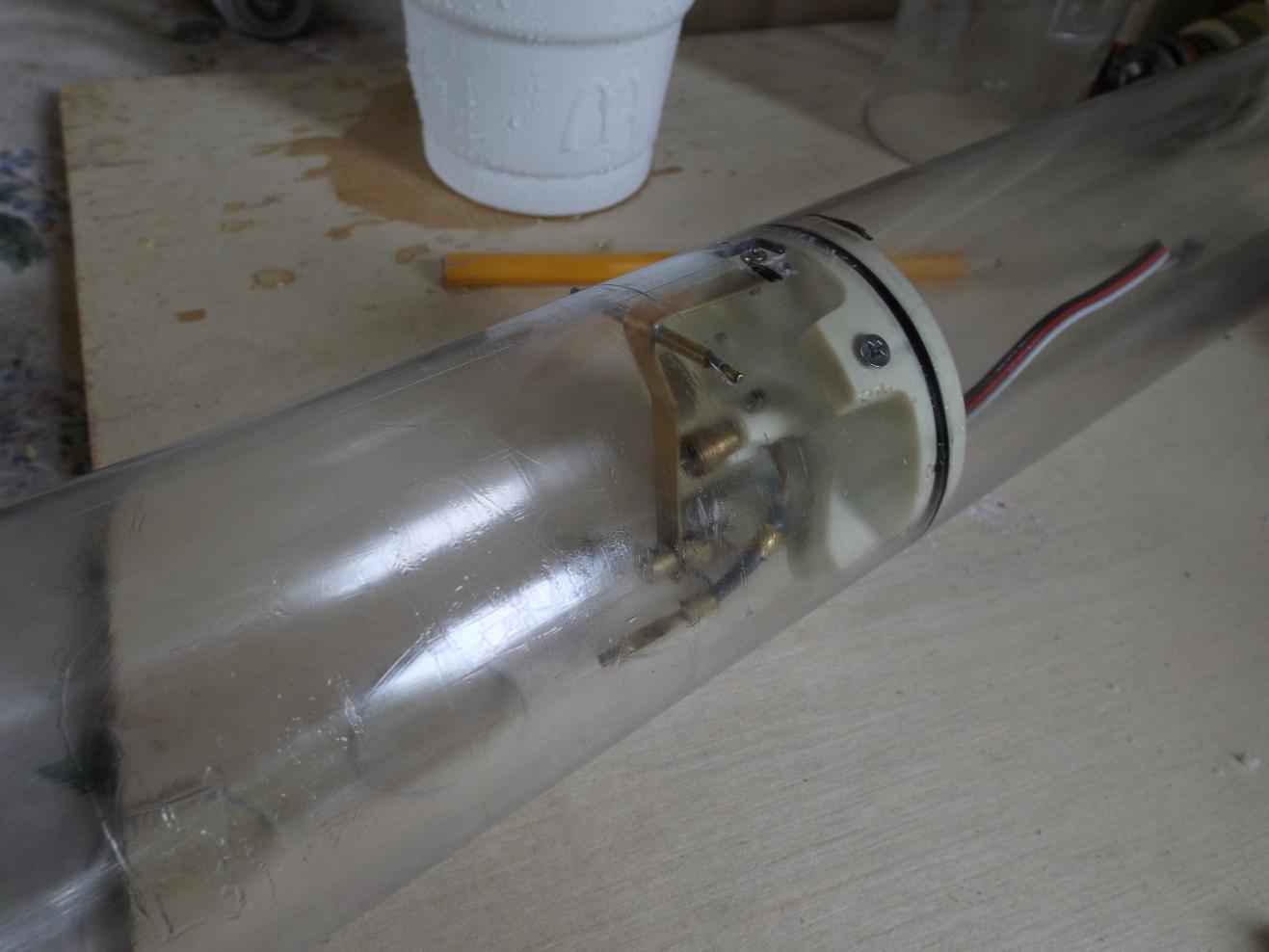

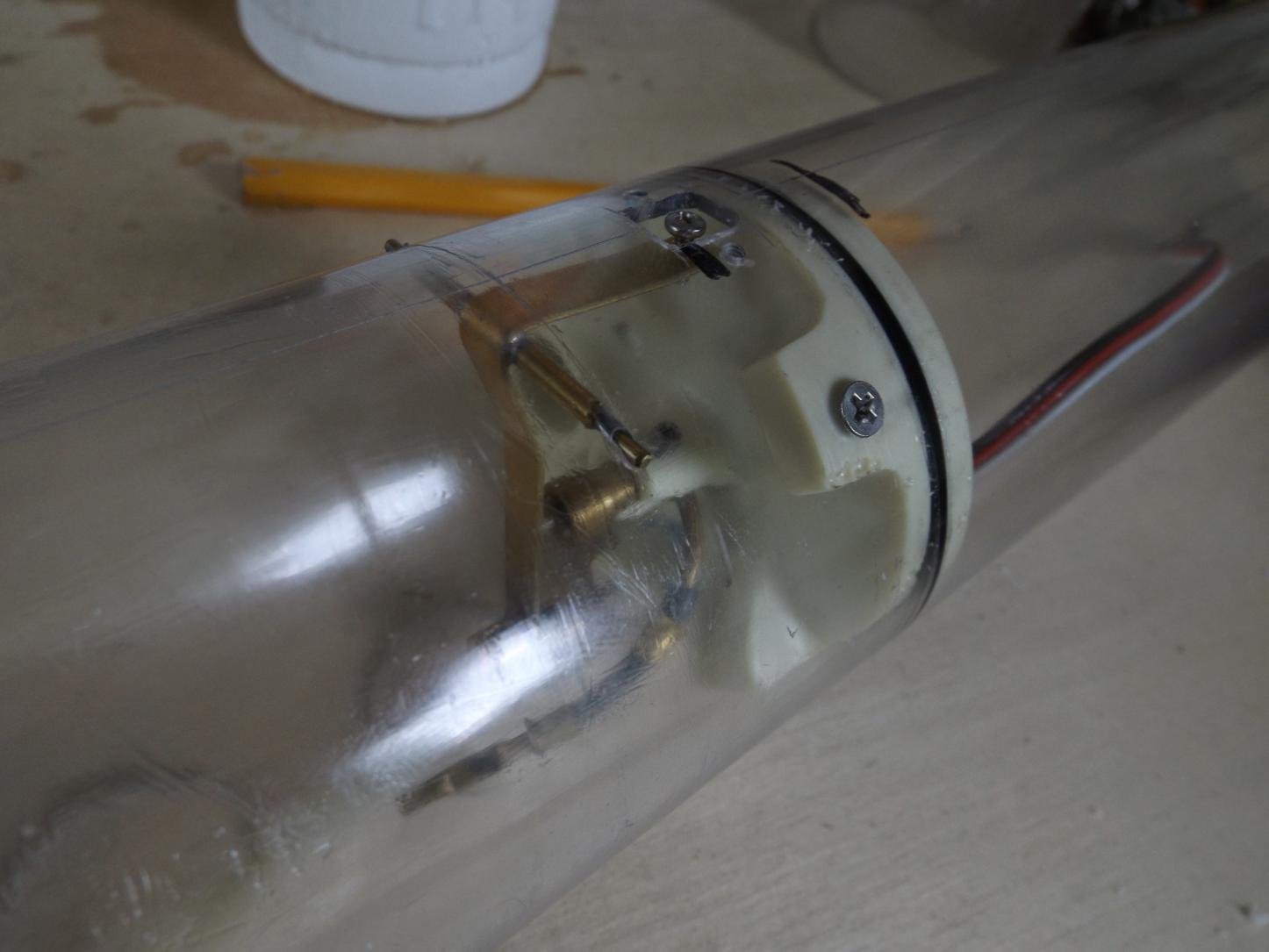

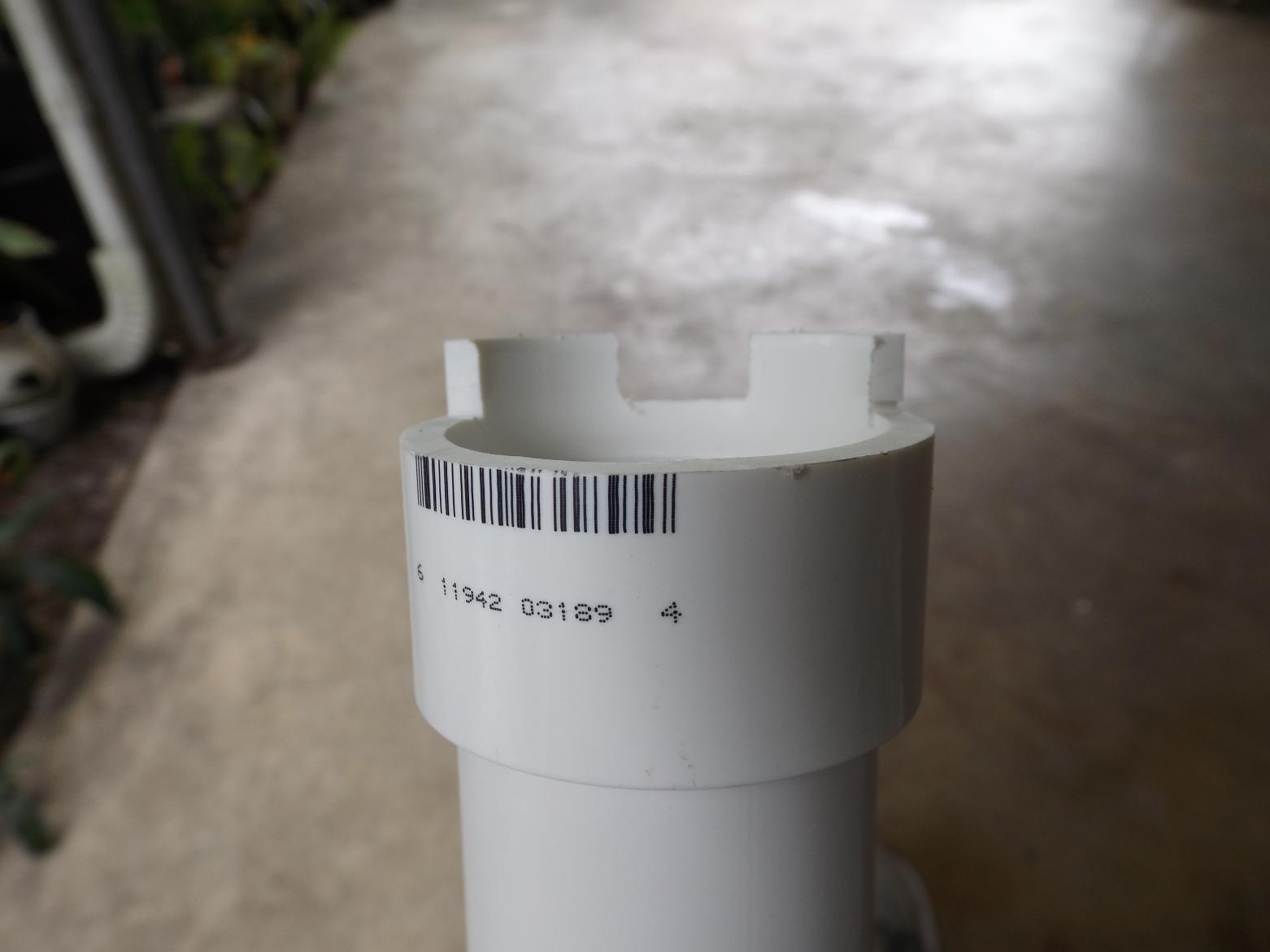

      I needed a way to push the ballast tank bulkhead out without damaging it and to be able to reinstall it, and a way to rotate it to make the holes line up. So, I purchased a piece of 1&1/2" PVC pipe and a coupler. On the end of the coupler I cut in depressions that would allow indexing with the shape of the ballast bulkhead. Then it was a matter of cutting and drilling all the holes and openings. Perhaps the most difficult, or so I thought, was the 1/16" rod that the gas ballast arm pivots on. Its a 1/16" hole that runs at a high angle to the outside. Careful marking and drilling resulted in a nice tight precision fit. Then the slot for the ballast vent valve and the countersunk holes that hold the bulkhead in place. Finally the 1" holes for the bottom, done with a hole saw on a variable speed drill. After filing and sanding and...........etc................etc.............. ..shes pretty much done. Just need to get a longer Clippard hose and to solder up the Propel tank with its new configuration.Click image for larger version

Name:	Fuji transfer 747.jpg
Views:	1
Size:	75.5 KB
ID:	90729Click image for larger version

Name:	Fuji transfer 748.jpg
Views:	1
Size:	76.0 KB
ID:	90730Click image for larger version

Name:	Fuji transfer 749.jpg
Views:	1
Size:	76.0 KB
ID:	90731Click image for larger version

Name:	Fuji transfer 750.jpg
Views:	1
Size:	90.5 KB
ID:	90732Click image for larger version

Name:	Fuji transfer 752.jpg
Views:	1
Size:	96.5 KB
ID:	90733
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • greenman407
        Admiral
        • Feb 2009
        • 7530

        #93
        Click image for larger version

Name:	Fuji transfer 753.jpg
Views:	1
Size:	86.5 KB
ID:	90734Click image for larger version

Name:	Fuji transfer 755.jpg
Views:	1
Size:	78.8 KB
ID:	90735Click image for larger version

Name:	Fuji transfer 756.jpg
Views:	1
Size:	76.4 KB
ID:	90736Click image for larger version

Name:	Fuji transfer 757.jpg
Views:	1
Size:	79.4 KB
ID:	90737Click image for larger version

Name:	Fuji transfer 758.jpg
Views:	1
Size:	76.9 KB
ID:	90738
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment

        • greenman407
          Admiral
          • Feb 2009
          • 7530

          #94
          Click image for larger version

Name:	Fuji transfer 760.jpg
Views:	1
Size:	81.4 KB
ID:	90739Click image for larger version

Name:	Fuji transfer 761.jpg
Views:	1
Size:	83.6 KB
ID:	90740Click image for larger version

Name:	Fuji transfer 762.jpg
Views:	1
Size:	80.9 KB
ID:	90741
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment

          • greenman407
            Admiral
            • Feb 2009
            • 7530

            #95
            Next up, making the equipment trays to hold the servos and udder stuff. It wont be easy.........................but I gotan id eerr.
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment

            • crazygary
              Captain
              • Sep 2012
              • 610

              #96
              Arrrgh!!
              She's be lookin' good thar, Matey!!!!

              CG

              Comment

              • redboat219
                Admiral
                • Dec 2008
                • 2759

                #97
                Greenman,
                Noticed something in the first photo in the #84 post in this thread. There's a substantial gap between the hull halves right under the SD cradle. Is there a fit problem between the 2 hull halves? Is this also the reason for the resin you poured?
                Last edited by redboat219; 03-25-2014, 02:04 AM.
                Make it simple, make strong, make it work!

                Comment

                • Albion
                  Captain
                  • Dec 2008
                  • 651

                  #98
                  Impressed, i'm going to be doing similar with my garage special. That stuff looks easy, but it aint. How did you drill the holes for the vent valve control arm hinge?
                  Next time someone points out it takes 42 muscles to frown, point out it will only take 4 muscles to b1tch slap them if they tell you how mnay muscles you need to smile:pop

                  Comment

                  • MFR1964
                    Detail Nut of the First Order
                    • Sep 2010
                    • 1304

                    #99
                    Mark,

                    You're doing a fine job with your home brew SD, as for your question on that paint sceme, i think they are presenting the scum line, yellow lines only above the waterline, either on the tower, exhaust or near the bow on top.
                    Don't know if you glued the tower tight, but i've cutted away almost all the deck stuff underneath the exhaust and tower, less trouble with airpockets, and it will save you weight above the waterline.


                    Manfred.
                    I went underground

                    Comment

                    • greenman407
                      Admiral
                      • Feb 2009
                      • 7530

                      Redboat, yes the hull was a little warped, everything didnt quite jam up nice like I wanted it. I would have poured epoxy down there anyway though.
                      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                      Comment

                      • greenman407
                        Admiral
                        • Feb 2009
                        • 7530

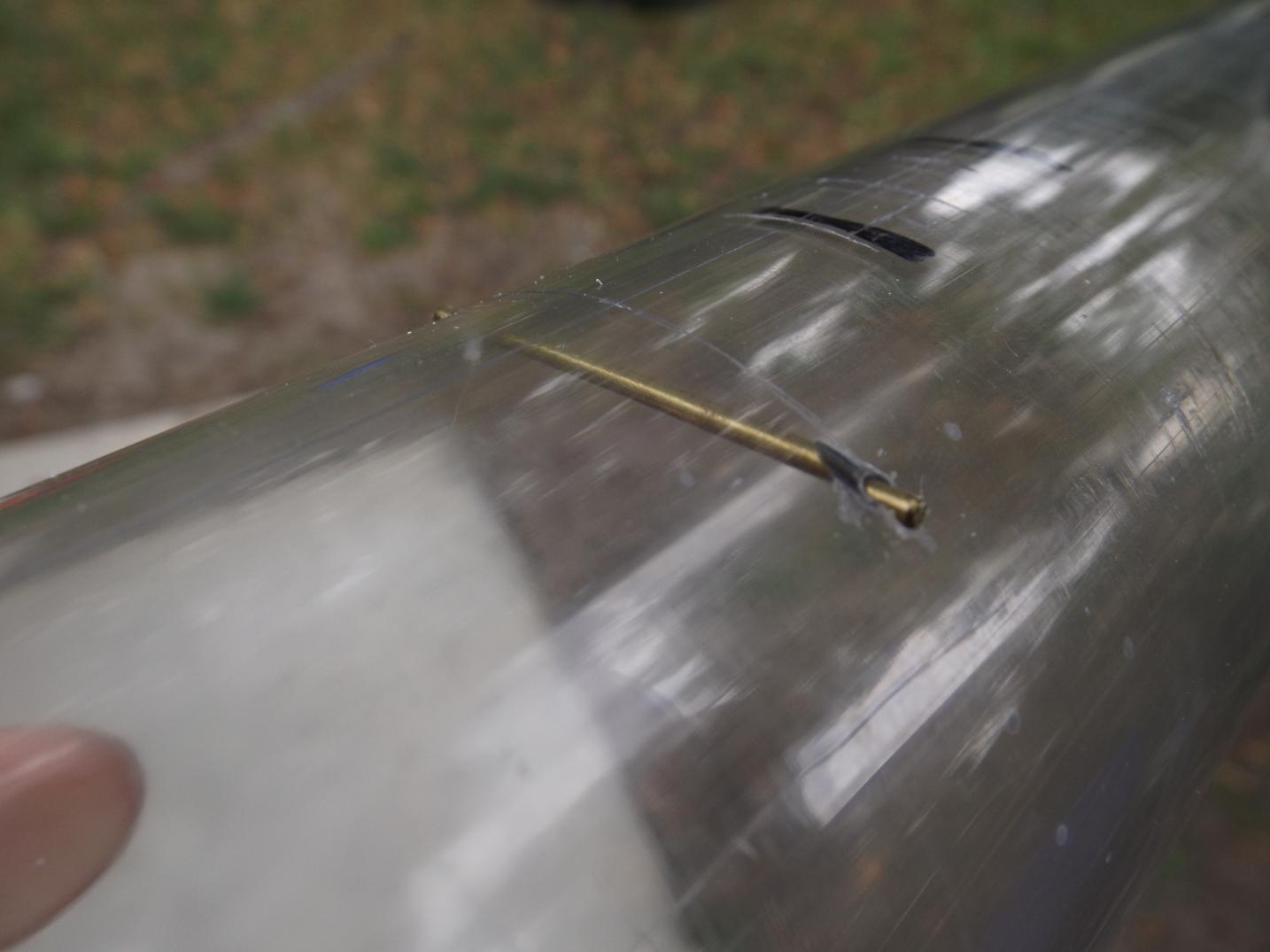

                        Albion, using the old subdriver as a guide I stuck a drill bit in the existing hole at a right angle to the subdriver, the way you would naturally drill a hole in it yourself. I then put a mark off to the side of it on both holes, then measured the distance center to center between them. I then transfered those marks to the new subdriver, and using a 1/16" drill bit , I drilled mine. Then with the drill bit spinning in the hole I changed the angle of the drill to the subdriver, bringing it in line with the direction that the rod was going to go thru. Thus using the drill bit to cut the hole at the odd angle that you need it.
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment

                        • greenman407
                          Admiral
                          • Feb 2009
                          • 7530

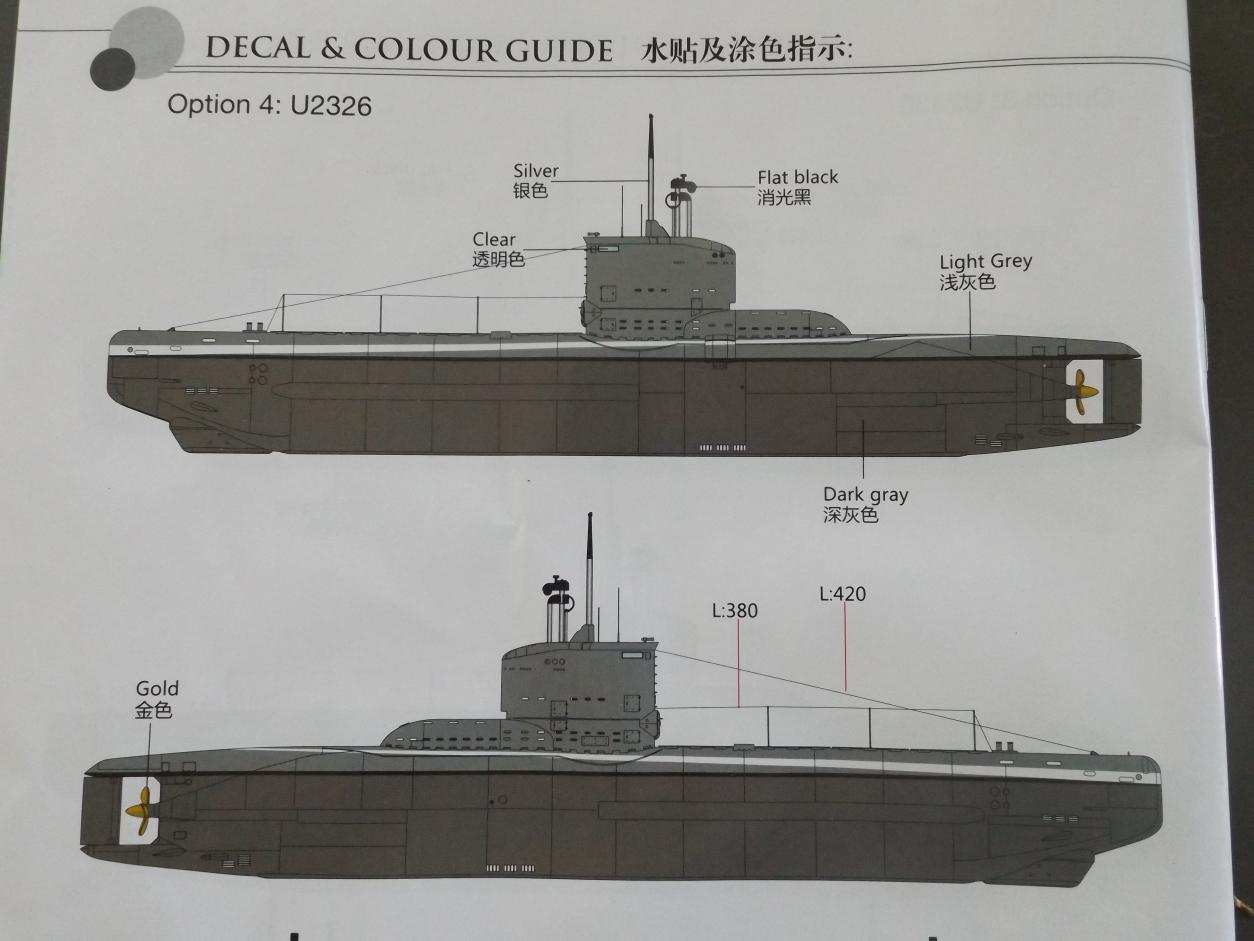

                          Manfred, thanks sir. However, I dont think that its representing the scum line because, If you look at it, it tapers from a wide stripe in the bow and narrows perfectly and consistantly all the way back to a point in the rear. It must be a painted stripe. RIGHT?? The other drawings of paint schemes that come with the model dont have this line painted on them. If it was a scum line then all the drawings would have it. IMOClick image for larger version

Name:	Fuji transfer 746.jpg
Views:	3
Size:	87.3 KB
ID:	90768
                          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                          Comment

                          • greenman407
                            Admiral
                            • Feb 2009
                            • 7530

                            Because the angle of the hull is changing from the front to the rear, curving over the top, its probably the same width stripe all the way back.
                            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                            Comment

                            • MFR1964
                              Detail Nut of the First Order
                              • Sep 2010
                              • 1304

                              Hm, white striping on a sub that wants to be undetected from above, the North Sea not clear, but not trouble water enough to conceil a sub running near the surface on persocope depth, most Uboats painted their decks later darkgrey to obtain better camouflage.
                              Maybe it should do the trick while running on surface, kind of false wave like the Bismarck had, just to soften up the contours of the boat.

                              Manfred.
                              Last edited by MFR1964; 03-25-2014, 04:06 PM.
                              I went underground

                              Comment

                              • He Who Shall Not Be Named
                                Moderator
                                • Aug 2008
                                • 12321

                                Well, try this:

                                The 23's operated in coastal waters, pretty much in areas where the axis had air superiority. Maybe the white band was an ID marking, like the white Allied 'invasion stripes' painted to the wings and fuselage of 'friendly' aircraft in order to prevent friendly fire from the air or ground. A poor man's IFF maybe?


                                M
                                Who is John Galt?
