Daily submarine picture

[greenman407]

Im scratching my head but im not coming up with anything. Perhaps Dave.

[greenman407]

The picture says Collins class. But that fillet on the sail bottom reminds me of a Virginia.

[greenman407]

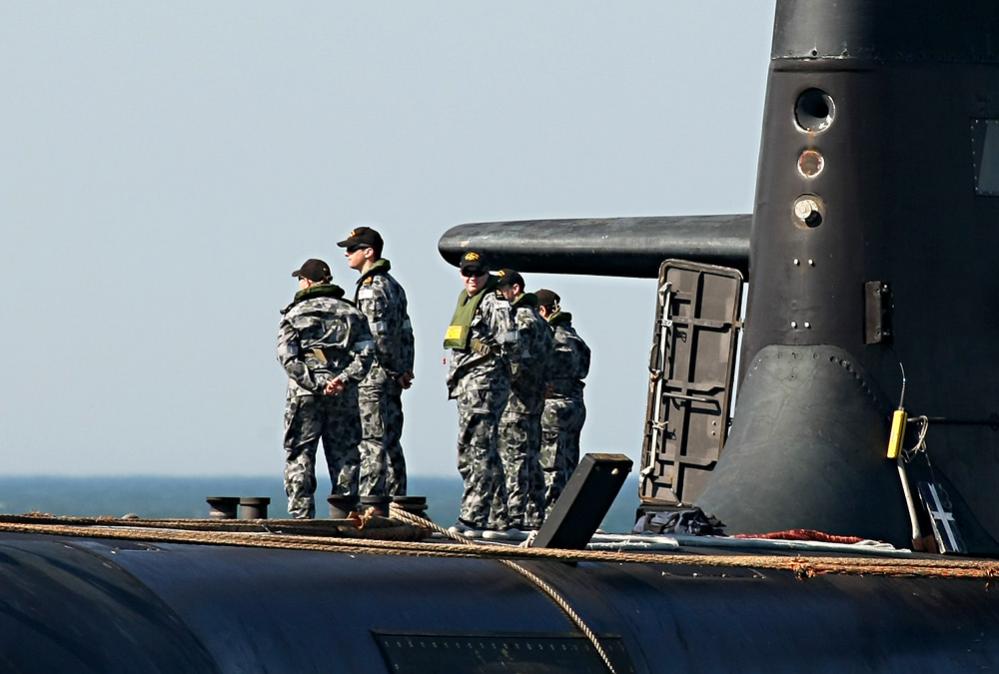

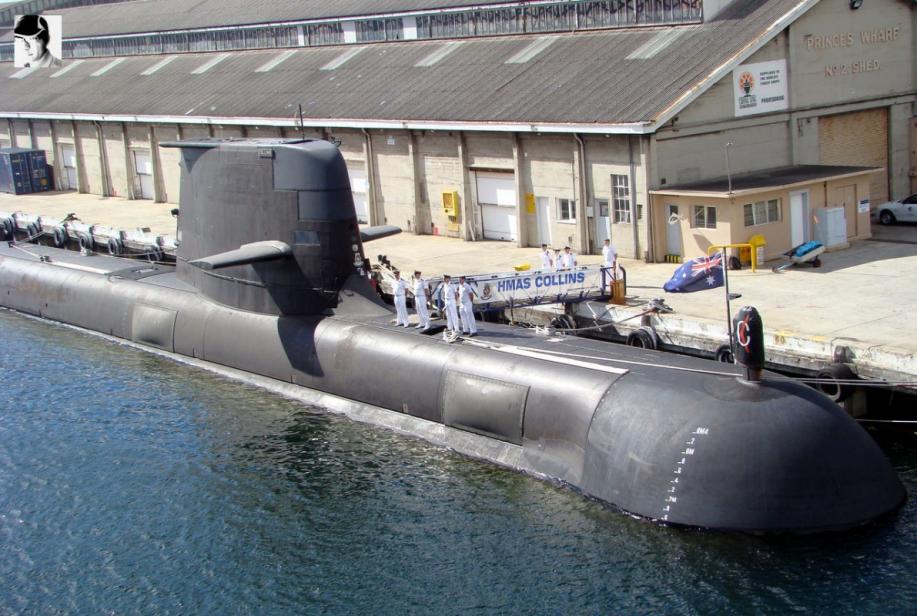

Have a look see. Heres a Collins with the sail fillet. And heres one without. MAKE UP YOUR MIND WILLYA!

[He Who Shall Not Be Named]

I built models for a sub-contractor on the Collins job. 1/96 and 1/144 sized. At that time, late 80's (the first of the class was just started building) there was no leading edge fairing/fillet at the sail-hull meeting point.

That fairing is a retro-fit.

David,

[greenman407]

I would assume that its purpose is relating to quietness underway?

[greenman407]

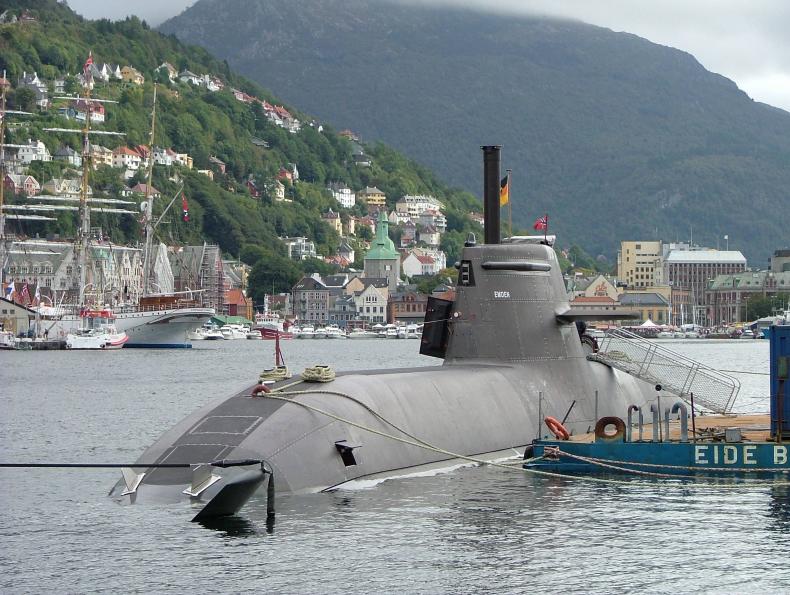

A nice detailed picture of a 212. I wonder what the purpose is for the two silver fins on the back slope. Maybe they are zincs. The cables that link the four X Tail fins suggests to me that perhaps they are not very robust in structure and need additional support. I say this because the Albacore and the Walrus and the Collins dont have them.

[redboat219]

I read somewhere that those wire are there to prevent the guidance cable of wire guided torpedoes fouling the screw.

[redboat219]

I built models for a sub-contractor on the Collins job. 1/96 and 1/144 sized.

David,

Any chance you still got the molds for these? Maybe market a few hulls for RCing.

[greenman407]

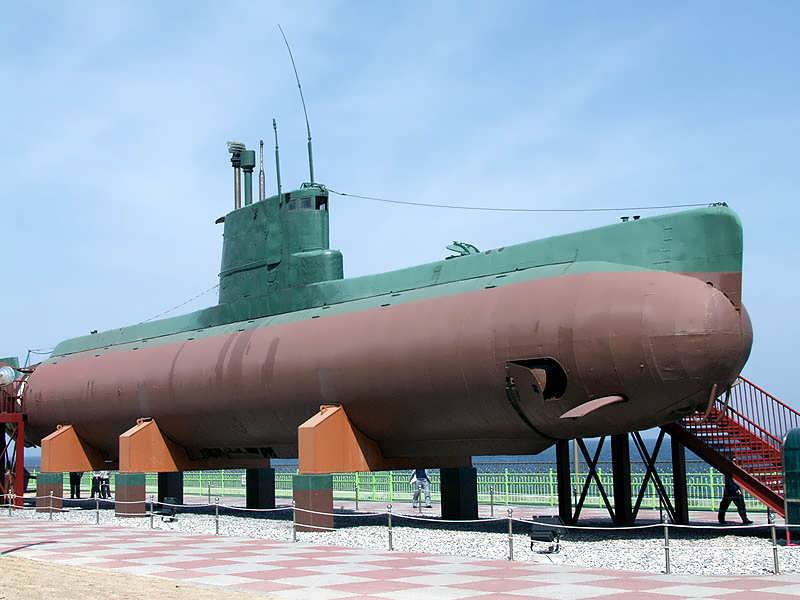

North Korean sub captured and put on display in South Korea

[He Who Shall Not Be Named]

deployable communication buoy's. The doors, bay, wench, buoys, and such are all in the wet, no making-things-pressure-proof issues there.

David,

[He Who Shall Not Be Named]

[ATTACH=CONFIG]6513[/ATTACH] A nice detailed picture of a 212. I wonder what the purpose is for the two silver fins on the back slope. Maybe they are zincs. The cables that link the four X Tail fins suggests to me that perhaps they are not very robust in structure and need additional support. I say this because the Albacore and the Walrus and the Collins dont have them.

Those white fin things are likely 'turbulators'. Apparently there are some boundary-layer issues concerning the water shedding off the hull and into the screw. These fins may be investigative tools or possibly a permanent fix. Don't know.

That awful four-point 'cable' around the stern control surfaces is the God-awful torpedo-guidance-wire fair lead -- it keeps the wire out of the propeller as the boat maneuvers. Yuck! I've read somewhere that the CO's of a few boats have 'accidentaly' lost this thing over the side. Tragic!

David,

[He Who Shall Not Be Named]

Any chance you still got the molds for these? Maybe market a few hulls for RCing.

Nope.

David,

[greenman407]

Thanks Dave and redboat219 for the info. I just noticed that the sail on the North Korean sub looks like a smaller version of a Romeo sail. Must be undisclosed Russian influence with Kim Jong Ill!

[greenman407]

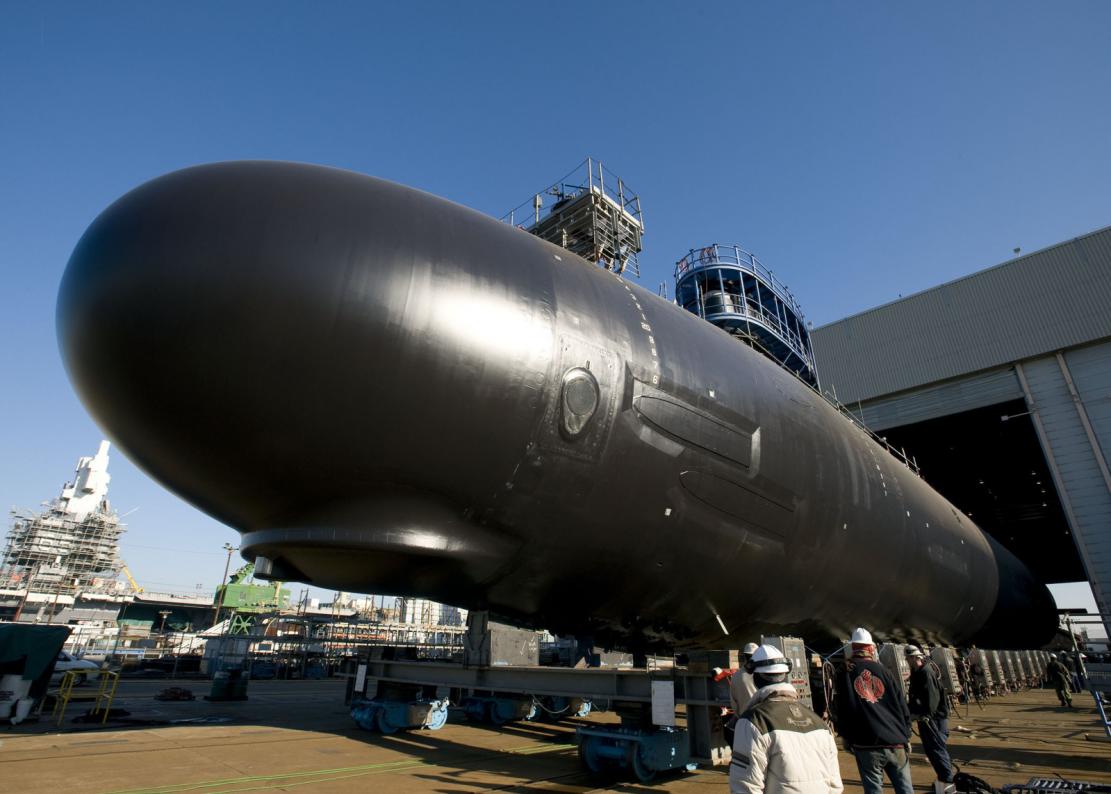

Closeup of a Virginia

[redboat219]

What's that oval shaped thing forward of the torpedo tube shutters?
