Moebius Skipjack

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Yup did that David on the test piece. So far no krinkles or other issues, seems fine after a few days. Have not tried a clear coat yet. I read that the Tamiya works with enamels or acrylics. I always try to test before committing.

    https://www.tamiyausa.com/shop/spray...s-33-dull-red/

    Now that you mention that, I should just use a Tamiya primer on the lower hull. Not even mix the types of paint.
    Last edited by Ken_NJ; 07-25-2021, 10:04 AM.

    Comment


    • Originally posted by Ken_NJ View Post
      Yup did that David on the test piece. So far no krinkles or other issues, seems fine after a few days. Have not tried a clear coat yet. I read that the Tamiya works with enamels or acrylics. I always try to test before committing.

      https://www.tamiyausa.com/shop/spray...s-33-dull-red/

      Now that you mention that, I should just use a Tamiya primer on the lower hull. Not even mix the types of paint.
      The real test is this: On the two chemistries applied and dry on your test article, apply some high-stick masking tape and pull. If things hold up, fine. If not, change your game plan.

      David
      Resident Luddite

      Comment


      • I just rubbed standard masking tape on and rubbed it on good. No paint peeling on any colors. Going to leave it on a few hours and try again for ****s and giggles to see what happens.

        BTW my test plastic is the clear acetate used on product packaging. I gave it a very good sanding and wipe before applying the lighter gray Rustoleum primer.

        Comment


        • Originally posted by Ken_NJ View Post
          I just rubbed standard masking tape on and rubbed it on good. No paint peeling on any colors. Going to leave it on a few hours and try again for ****s and giggles to see what happens.

          BTW my test plastic is the clear acetate used on product packaging. I gave it a very good sanding and wipe before applying the lighter gray Rustoleum primer.
          Sounds like a valid test to me, Ken. Go forth and make fumes.

          David
          Resident Luddite

          Comment

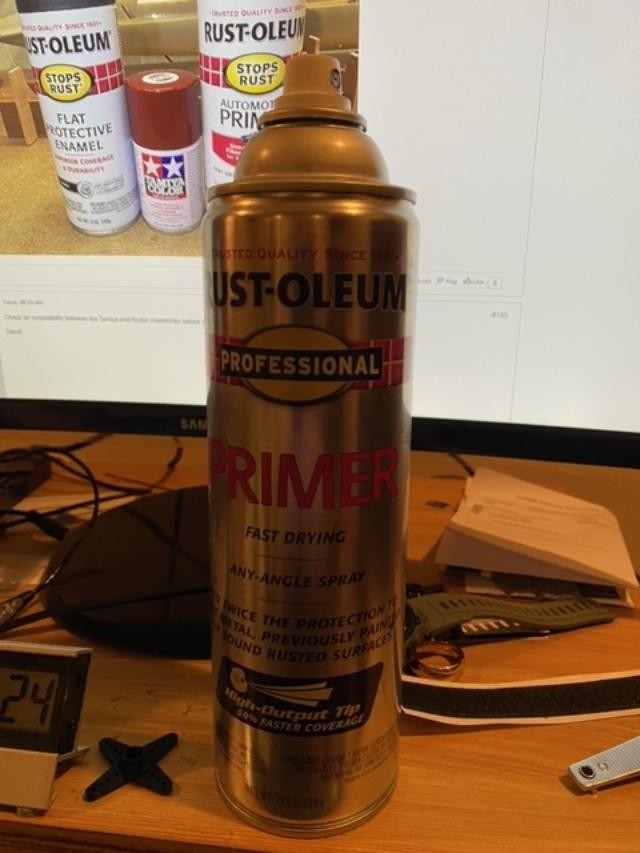

          • Click image for larger version  Name:	thumbnail (20).jpg Views:	0 Size:	77.8 KB ID:	151721 I'm using this flat red primer for the anti-foul. Also this for the paint to stick really well.
            PLAS-STICK® A-2330S™ POLYOLEFIN ADHESION PROMOTER (axaltacs.com)
            Last edited by Das Boot; 07-25-2021, 11:18 PM.

            Comment


            • Hmmm will keep those things in mind.

              Question for anyone that built the SJ. Did you use the photo etch brass parts? They get glued right to the styrene. Should any of the areas under the styrene be opened up? Like under the MSW suction and discharge openings? Think I saw David use foil on the deck ballast vents.

              Any pictures please?

              Comment


              • Originally posted by Ken_NJ View Post
                Hmmm will keep those things in mind.

                Question for anyone that built the SJ. Did you use the photo etch brass parts? They get glued right to the styrene. Should any of the areas under the styrene be opened up? Like under the MSW suction and discharge openings? Think I saw David use foil on the deck ballast vents.

                Any pictures please?
                Don't open up the holes under the main sea water and axillary sea water gratings! The over-pressure caused by a gas initiated blow will likely unseat the bond between the acid-etched parts and hull and you'll loose them.

                Here's how I represented the 'silver metal' face-rings of MBTV's. I've also tossed in a few other 'detailing' tips you might find useful, Ken:


















                David
                Resident Luddite

                Comment


                • Great help David, thanks. What are you doing with the length of wire with the tweezers? Don't see the final pic on that. I did those lift rings you added on my Marlin. I'll have to figure or make up that deck hatch that appears under the deck.
                  Last edited by Ken_NJ; 07-26-2021, 10:41 PM.

                  Comment


                  • Originally posted by Ken_NJ View Post
                    Great help David, thanks. Whatās are you doing with the length of wire with the tweezers? Donāt see the final pic on that. I did those lift rings you added on my Marlin. Iāll have to figure or make up that deck hatch that appears under the deck.
                    I'm using small gauge wire (zip-cord conductor is a fine source) to represent the down-haul cable that is associated with the McCann Bell submarine rescue system.

                    Click image for larger version

Name:	DSCF9172.JPG
Views:	100
Size:	52.4 KB
ID:	151751

                    Send me your address and I'll cast up a few of them for you.

                    Click image for larger version

Name:	DSCF9153.JPG
Views:	101
Size:	45.2 KB
ID:	151750

                    Click image for larger version

Name:	DSCF4792.JPG
Views:	109
Size:	47.9 KB
ID:	151749

                    David
                    Resident Luddite

                    Comment


                    • I came across something I don't like working with, photo-etch. Don't know how those guys that build surface warships can work with so much of it.

                      Have all the little PE pieces removed from the tree and trimmed. There are round solid ones and round open ones the same size. I'd think the open ones would be below the waterline on the lower hull? SEE DDD and EEE. Then most of the others I can figure out by the scribed areas on the boat. Also have a few that I suspect go on the lower hull AAA, BBB and CCC?

                      Now if these are glued in place then sprayed with primer and paint, wouldn't some of the detail be lost? Asking since this is my first time working with PE.

                      Click image for larger version

Name:	IMG_3403.jpeg
Views:	73
Size:	93.2 KB
ID:	151807

                      Click image for larger version

Name:	IMG_3404.jpeg
Views:	70
Size:	61.8 KB
ID:	151809

                      Click image for larger version

Name:	IMG_3405.jpeg
Views:	69
Size:	83.4 KB
ID:	151808

                      Comment


                      • Also have some parts primed.

                        Click image for larger version

Name:	IMG_3406.jpeg
Views:	72
Size:	59.8 KB
ID:	151811

                        Comment


                        • I divided up the PE into three sections. Sail, upper hull and lower hull. I can't seem to find a match where these go. Anyone?

                          Click image for larger version

Name:	IMG_3407.jpeg
Views:	66
Size:	67.7 KB
ID:	151813

                          Comment


                          • https://www.rcsubs.cz/images/010.pdf
                            Last edited by Das Boot; 07-28-2021, 03:46 PM.

                            Comment


                            • Awesome! Thank you!

                              Comment


                              • Ken,

                                The problem with using that PE set is that almost all of the pieces should be inlet into the plastic, hull, sail, etc. for it to look right. The tiny oval for the periscope head, and the main sea water screens can be used as-is, but the rest should be flush with the plastic surface to which they are adhered. All cover plates, MBT vent valves and the like are flush to the surface on "modern", nuclear submarines are faired-in. Skipjack class was our first to really push that philosophy home. I have that PE set and am only using some of the parts. Otherwise, it's way more work than I want to do for something I intend to run the living crap out of!!

                                Your work is impeccable, and David's help will give you a stunning end product! Keep it up, and we'll see how she does at North Lake in September.

                                Take care,

                                Bill

                                Comment
