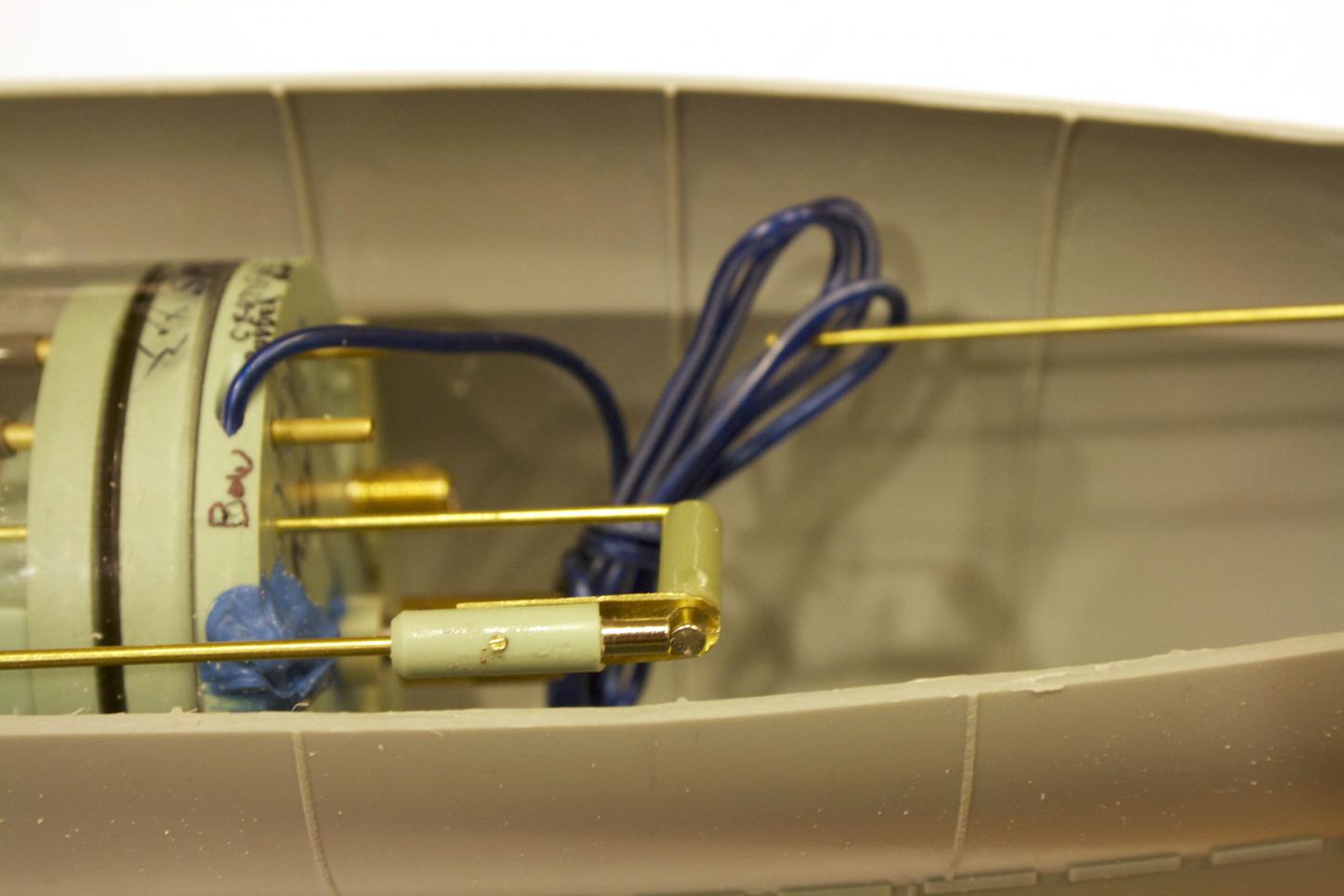

    Moved the bow bell-crank to port side and made a couple of bends to allow the pushrod to travel along the side of the sub-driver. When the bell-crank was moved forward simulating a dive configuration, the pushrod and horn would hit that ridiculous wall I left there.
    Click image for larger version

Name:	Bronco Type 23_088.jpg
Views:	1
Size:	86.9 KB
ID:	84901Click image for larger version

Name:	Bronco Type 23_089.jpg
Views:	1
Size:	87.0 KB
ID:	84902

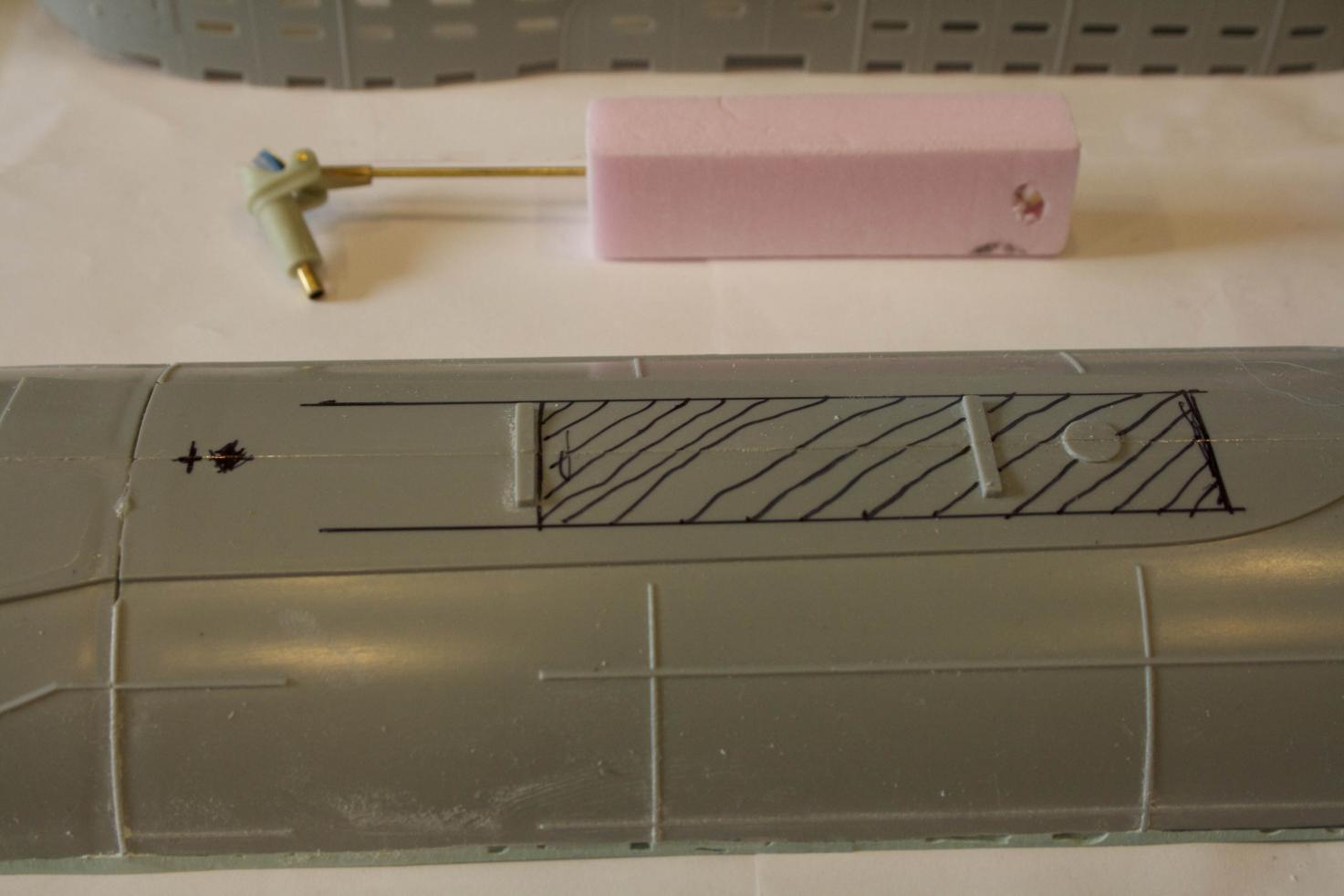

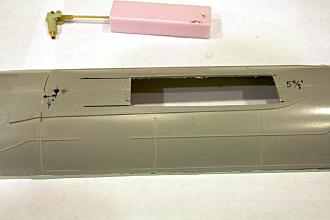

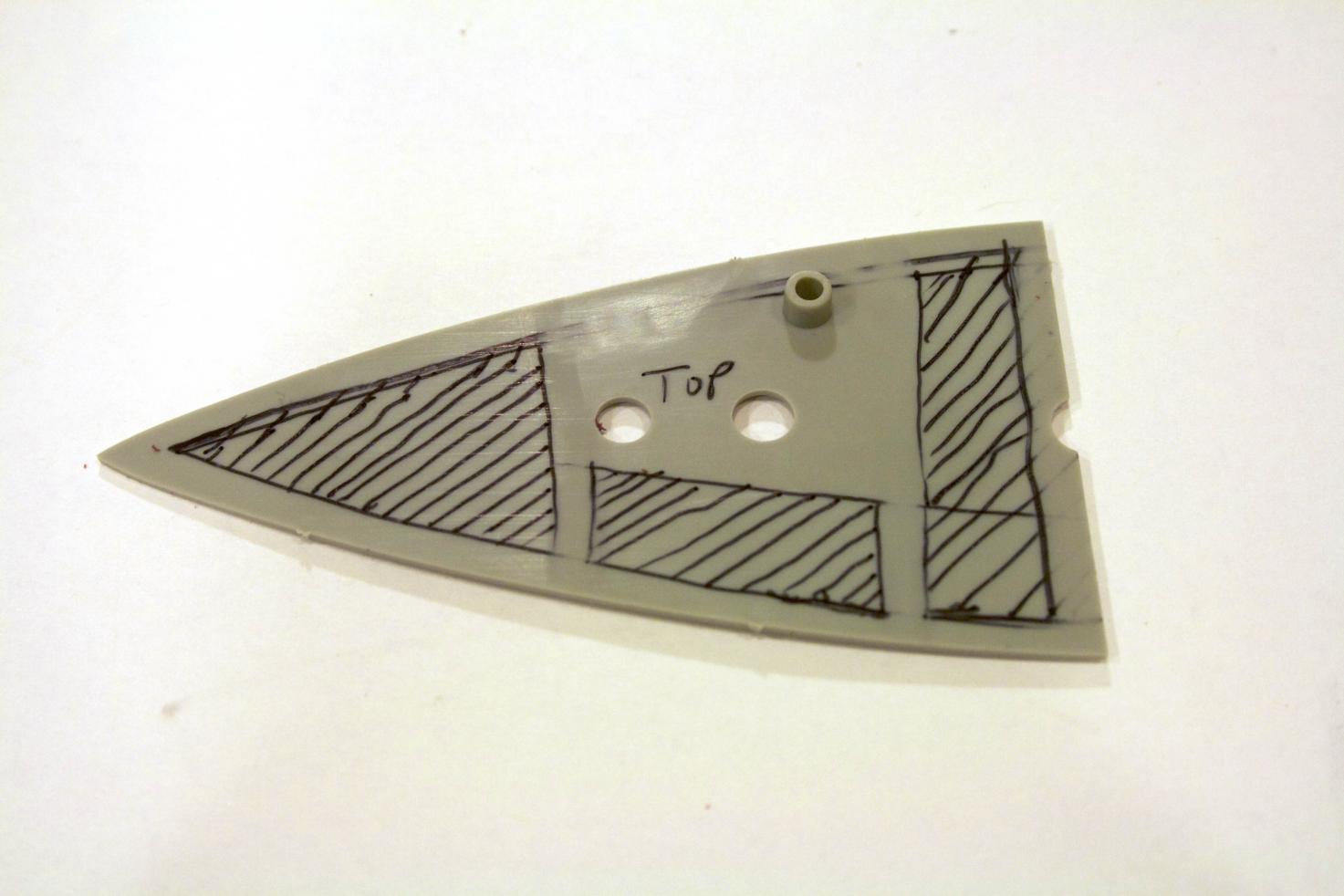

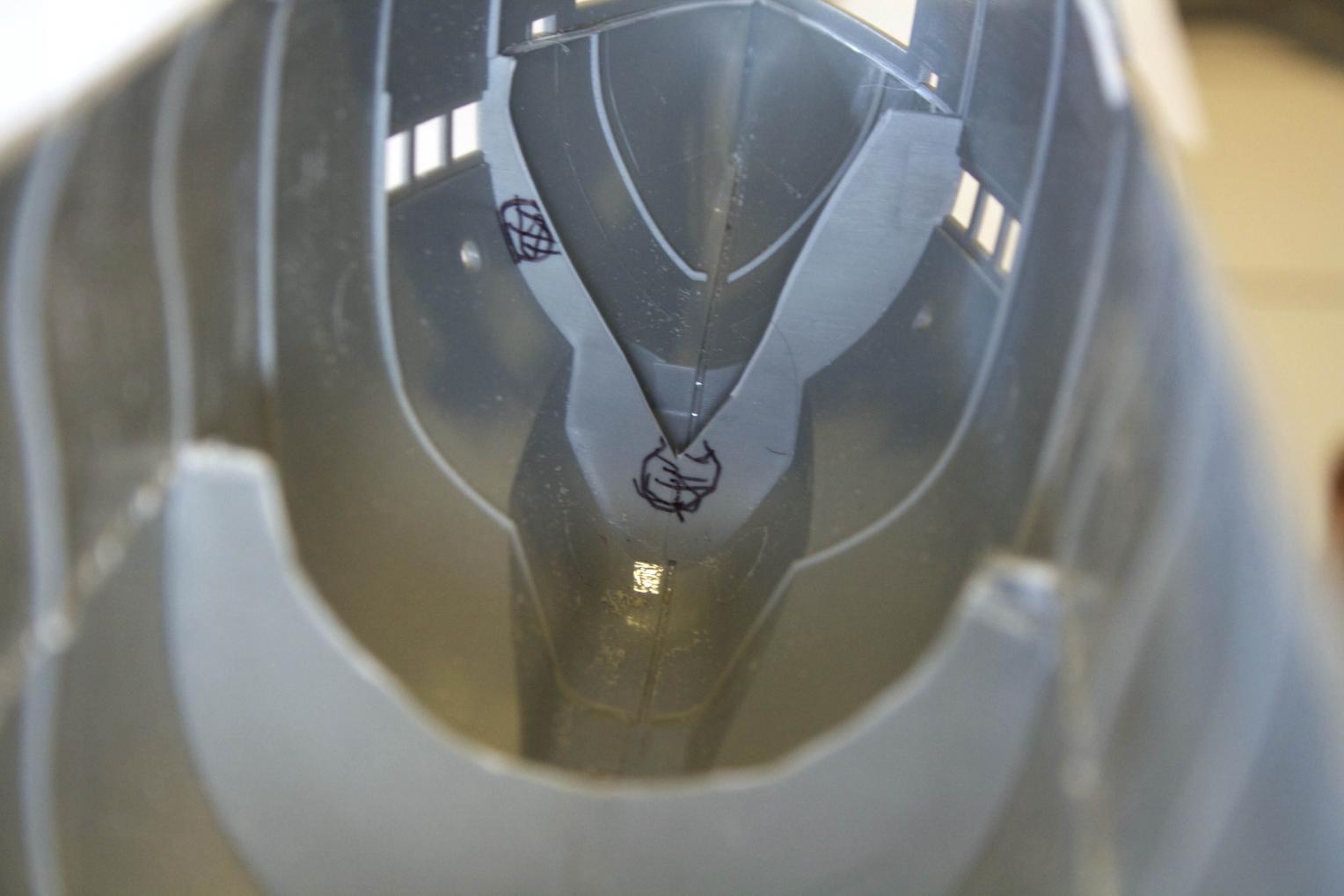

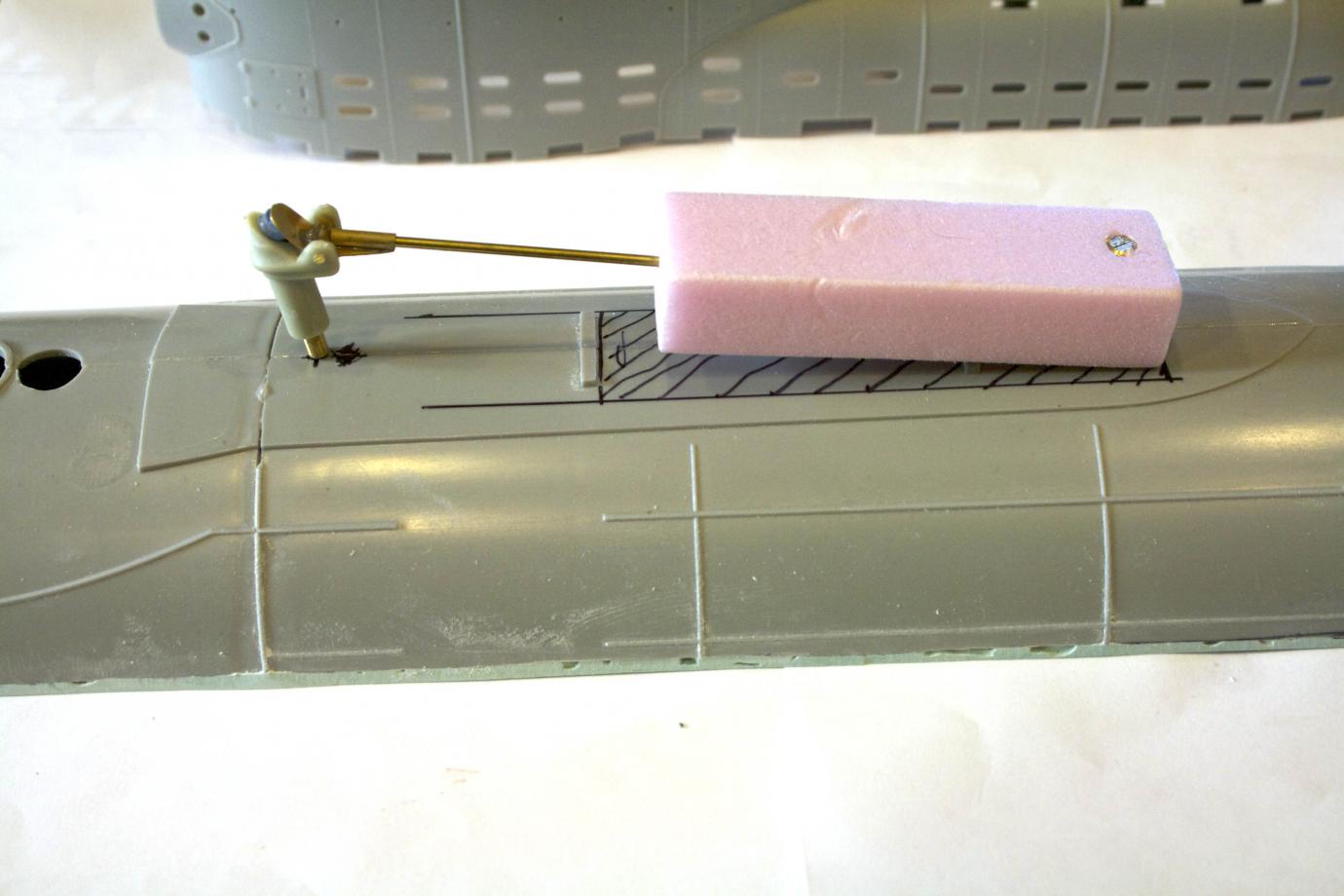

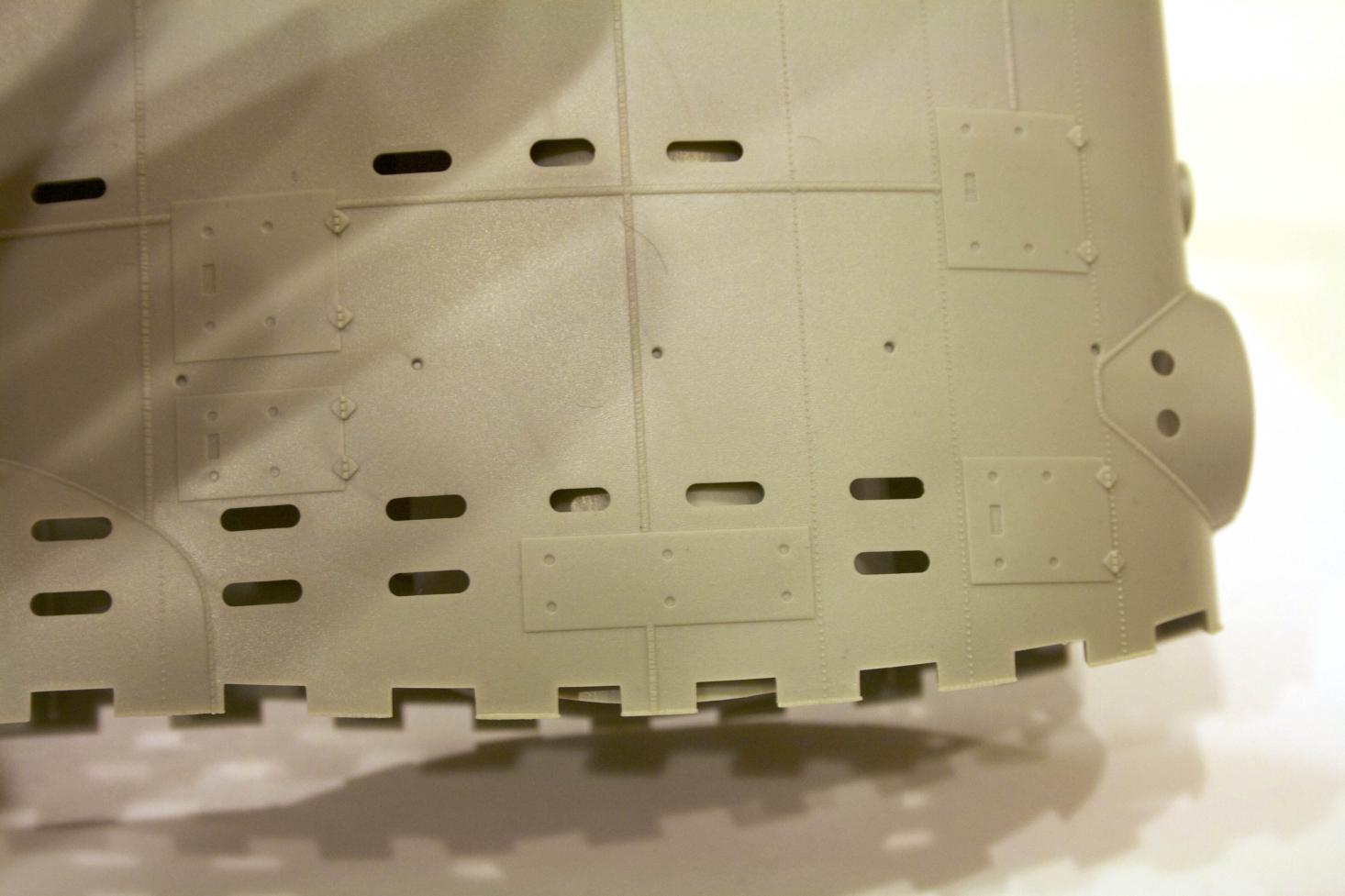

    Took everything out and marked areas that needed to get excavated out. While I was at it might as well open up drainage too.
    Click image for larger version

Name:	Bronco Type 23_090.jpg
Views:	1
Size:	85.5 KB
ID:	84903

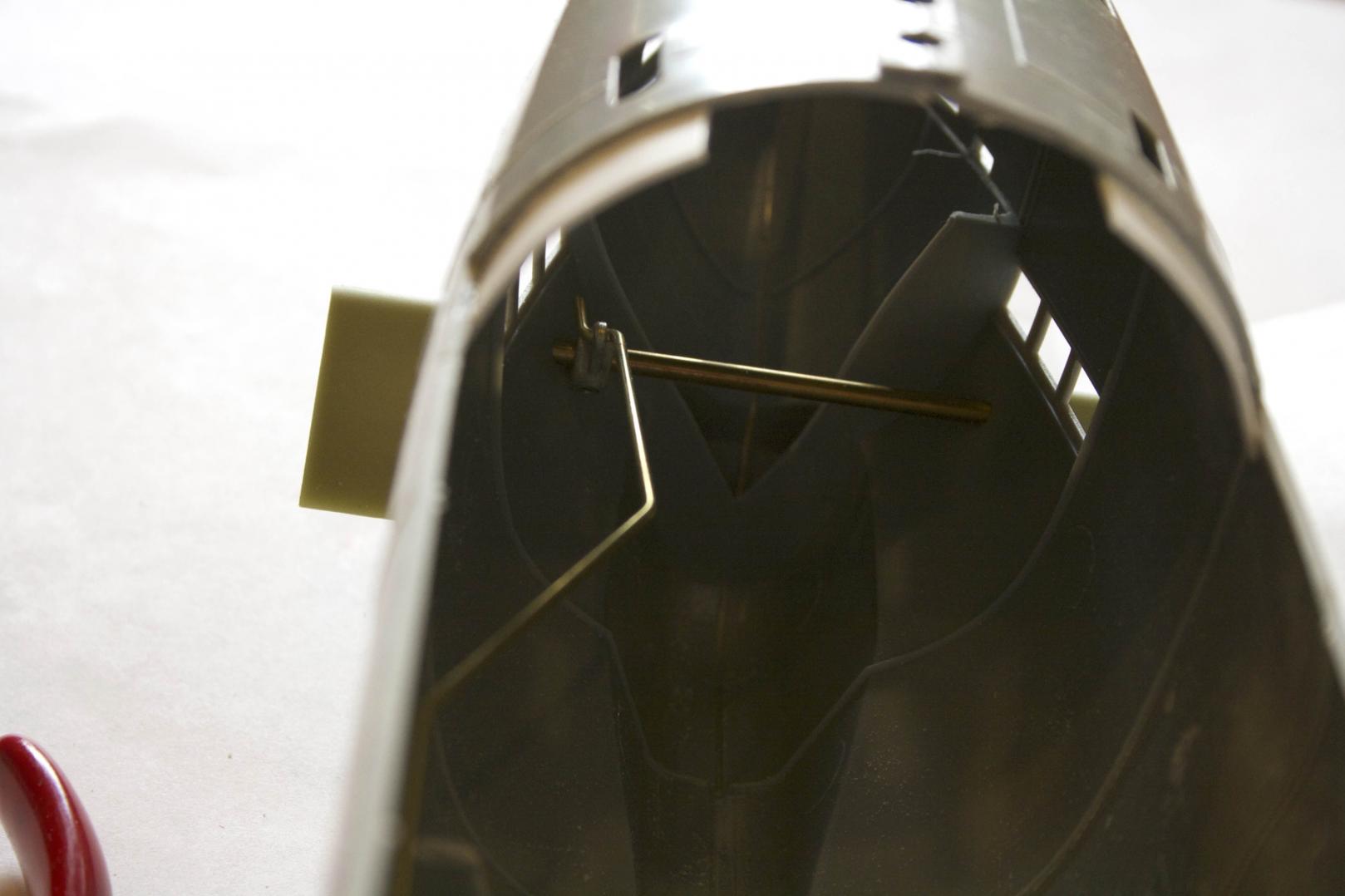

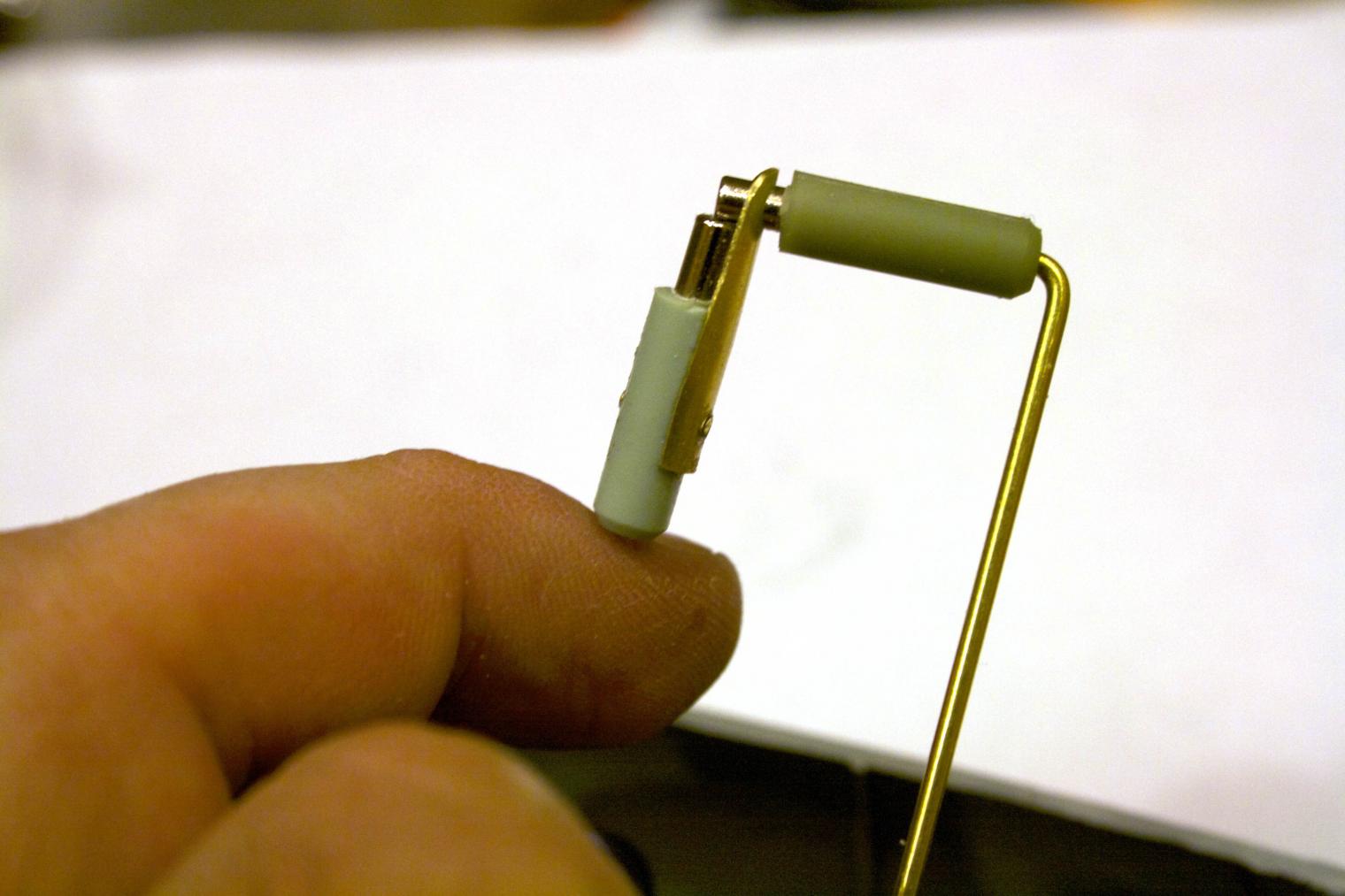

    Using the same magnet arrangement as the Scamp (Skipjack) in her sail dive planes, I tested an idea for the bow planes control.
    Click image for larger version

Name:	Bronco Type 23_091.jpg
Views:	1
Size:	100.9 KB
ID:	84904
    Here was a mockup to test the thought out, I think I will run with this setup.
    Click image for larger version

Name:	Bronco Type 23_092.jpg
Views:	1
Size:	83.2 KB
ID:	84905Click image for larger version

Name:	Bronco Type 23_093.jpg
Views:	1
Size:	82.4 KB
ID:	84906

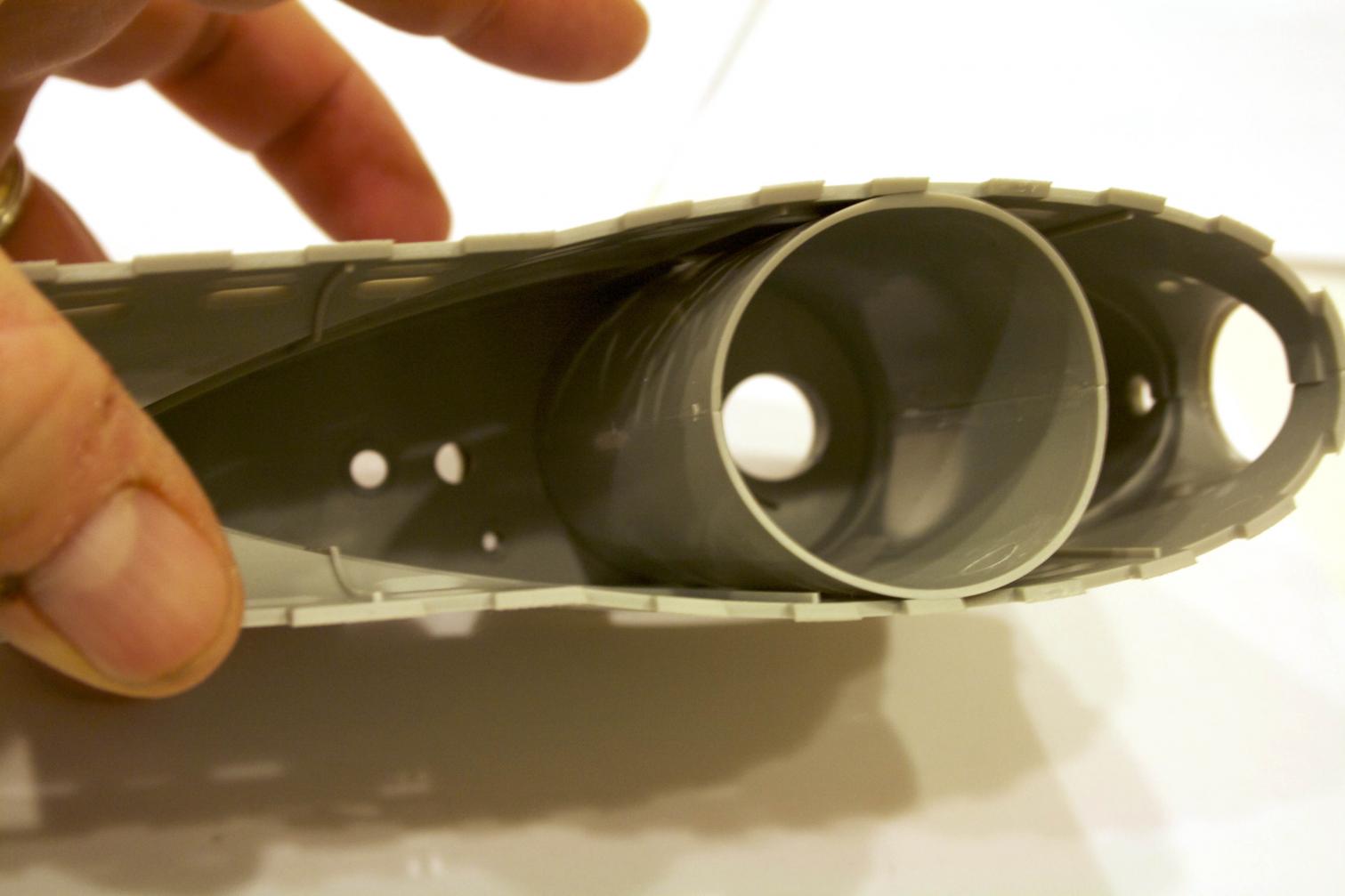

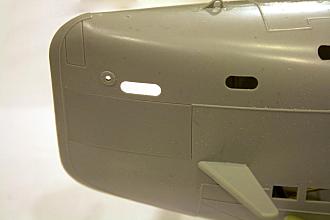

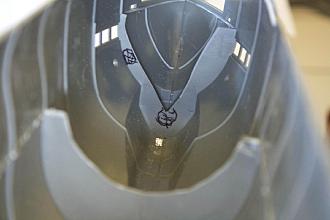

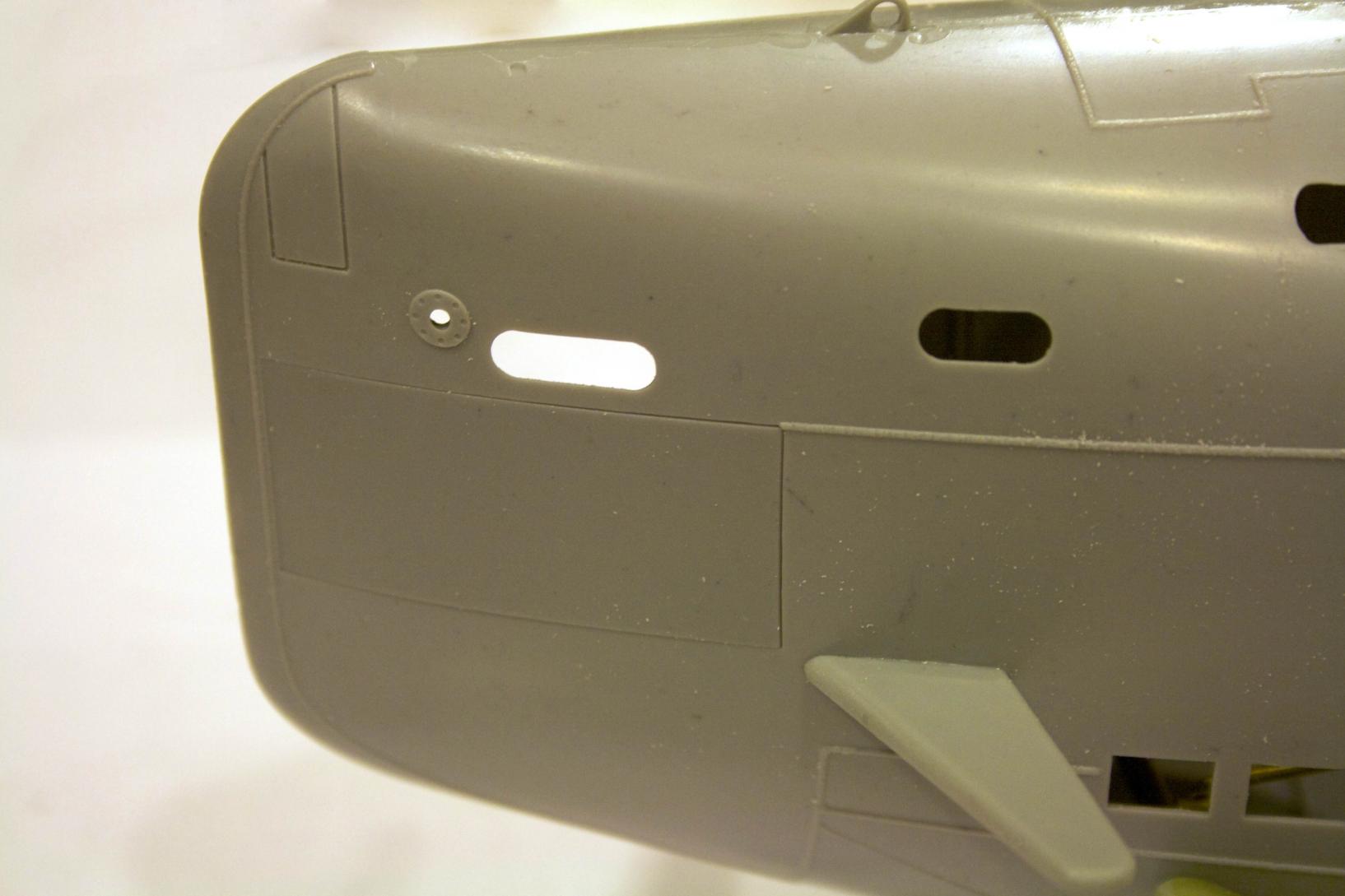

    Since I was opening up the bow for water flow, I went down the hull for all the styrene bulkheads.
    Click image for larger version

Name:	Bronco Type 23_094.jpg
Views:	1
Size:	90.6 KB
ID:	84907
    Last edited by trout; 12-07-2013, 11:01 PM.
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment

    • crazygary
      Captain
      • Sep 2012
      • 610

      #32
      K.I.S.S. all the way! Gotta do what ya gotta do!!
      "You Da Man", Tom!!

      Comment

      • trout
        Admiral
        • Jul 2011
        • 3545

        #33

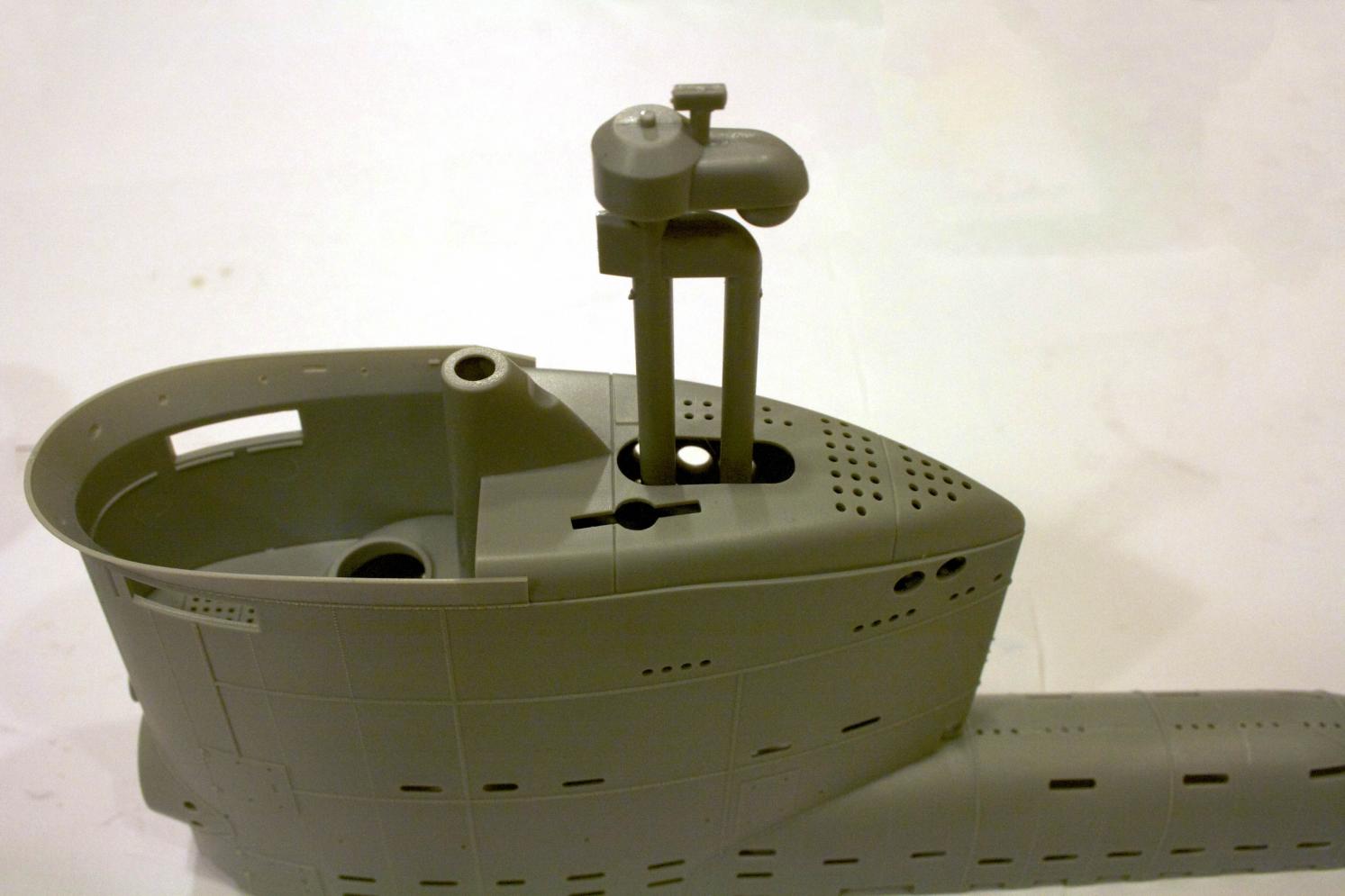

        Using David's build photos as a reference on where to put the snorkel valve assembly, I estimated an appropriate location.
        Click image for larger version

Name:	Bronco Type 23_095.jpg
Views:	1
Size:	84.0 KB
ID:	84911
        The sail was put on to make sure there was plenty of clearance and there is. Now I am doing this the way David did, but if this sub will set with the rear low, I may nee to relocate this further towards the bow.
        Click image for larger version

Name:	Bronco Type 23_096.jpg
Views:	1
Size:	90.6 KB
ID:	84912

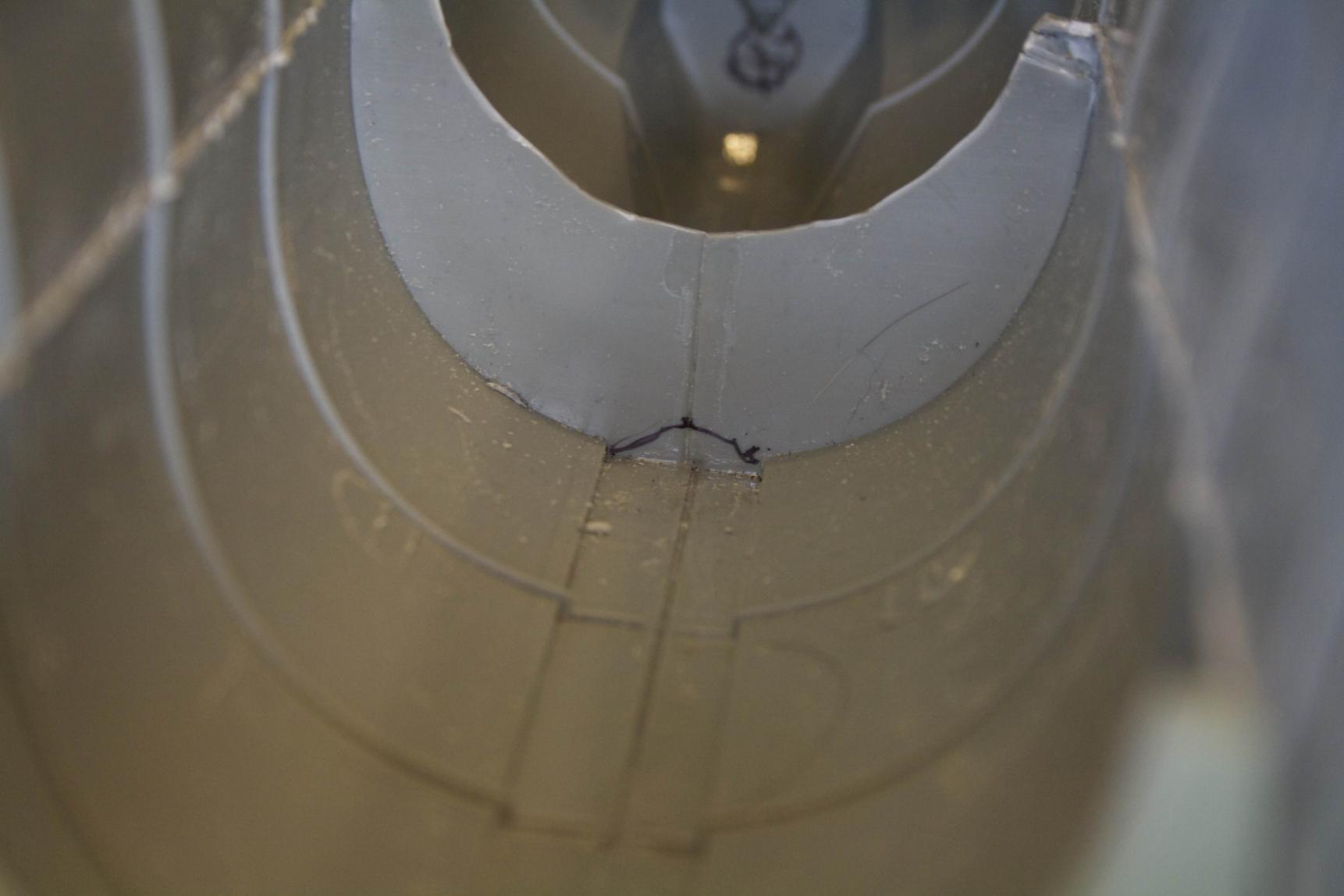

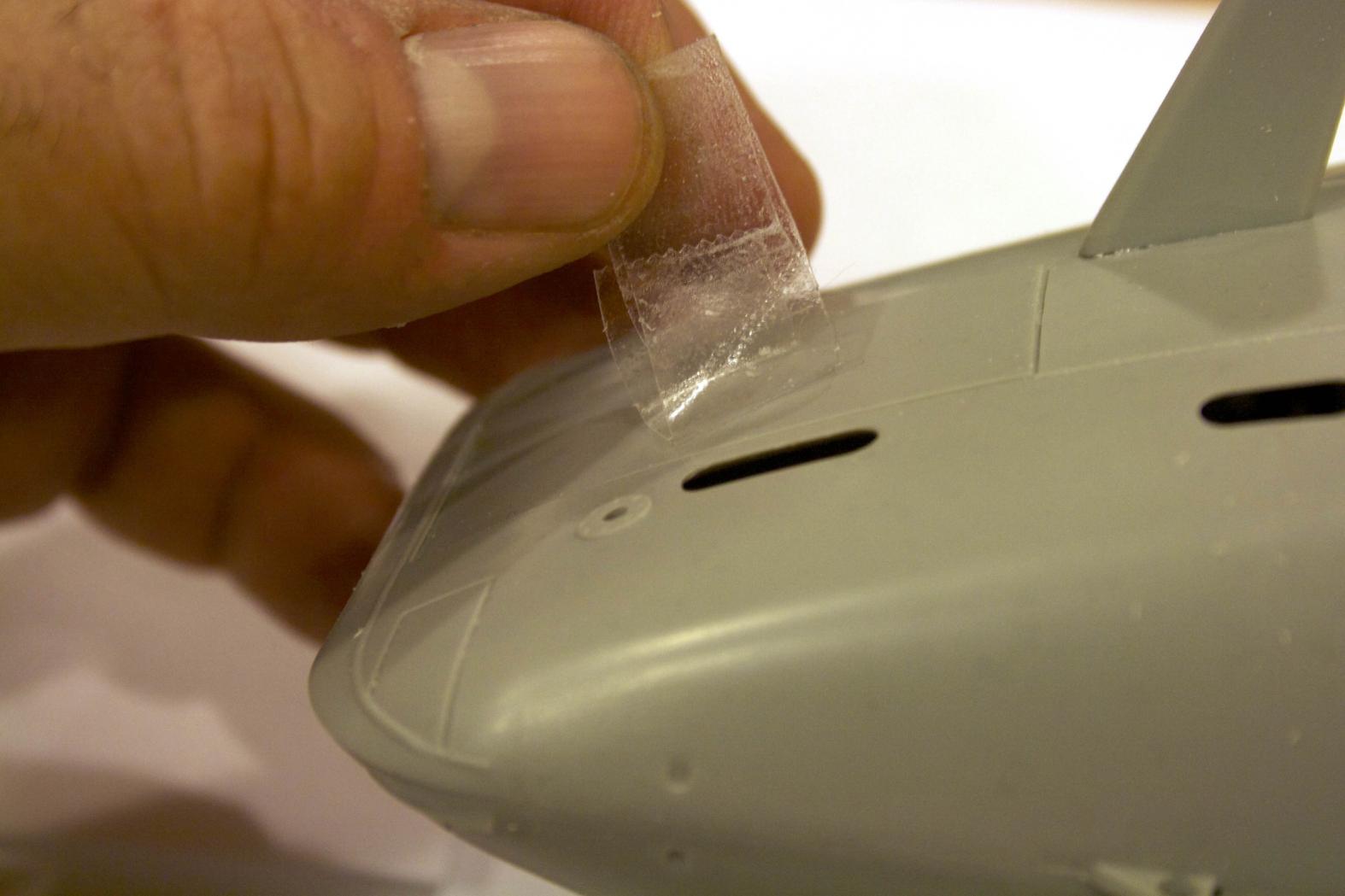

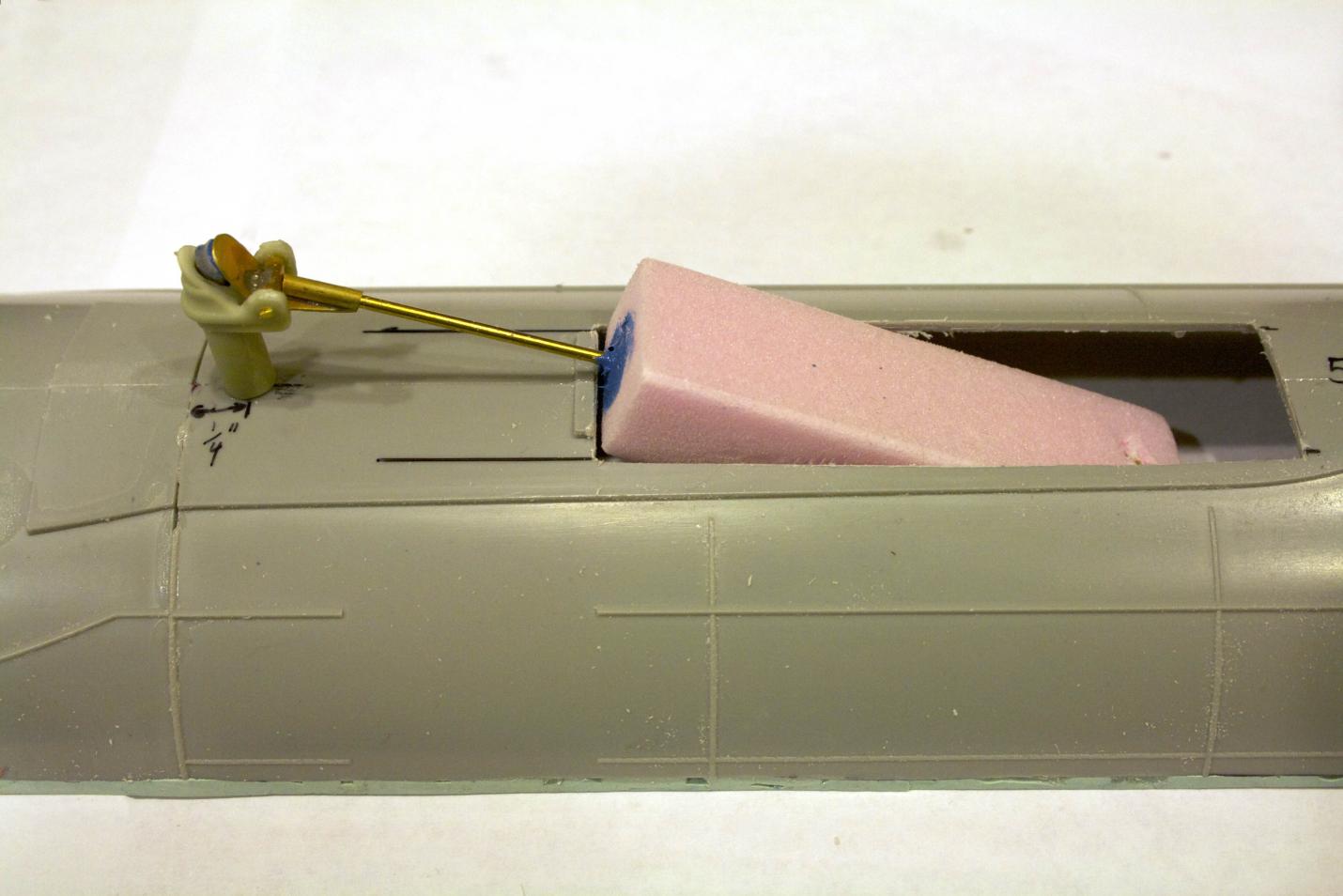

        Using the seam where the two halves are glued together as my reference point or datum, 1/4" aft I drilled a 1/8" hole. The aft most line for the opening that the float will use is 5 3/8" from the datum.
        Click image for larger version

Name:	Bronco Type 23_097.jpg
Views:	1
Size:	91.4 KB
ID:	84913
        There may need to be some tweaking necessary for the float to rise and lower properly.
        Click image for larger version

Name:	Bronco Type 23_098.jpg
Views:	1
Size:	94.8 KB
ID:	84914
        Last edited by trout; 12-09-2013, 01:31 AM.
        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

        Comment

        • trout
          Admiral
          • Jul 2011
          • 3545

          #34
          Played a little with the innards and I felt comfortable sealing up the back of the conning tower.
          Click image for larger version

Name:	Bronco Type 23_099.jpg
Views:	1
Size:	98.3 KB
ID:	85015

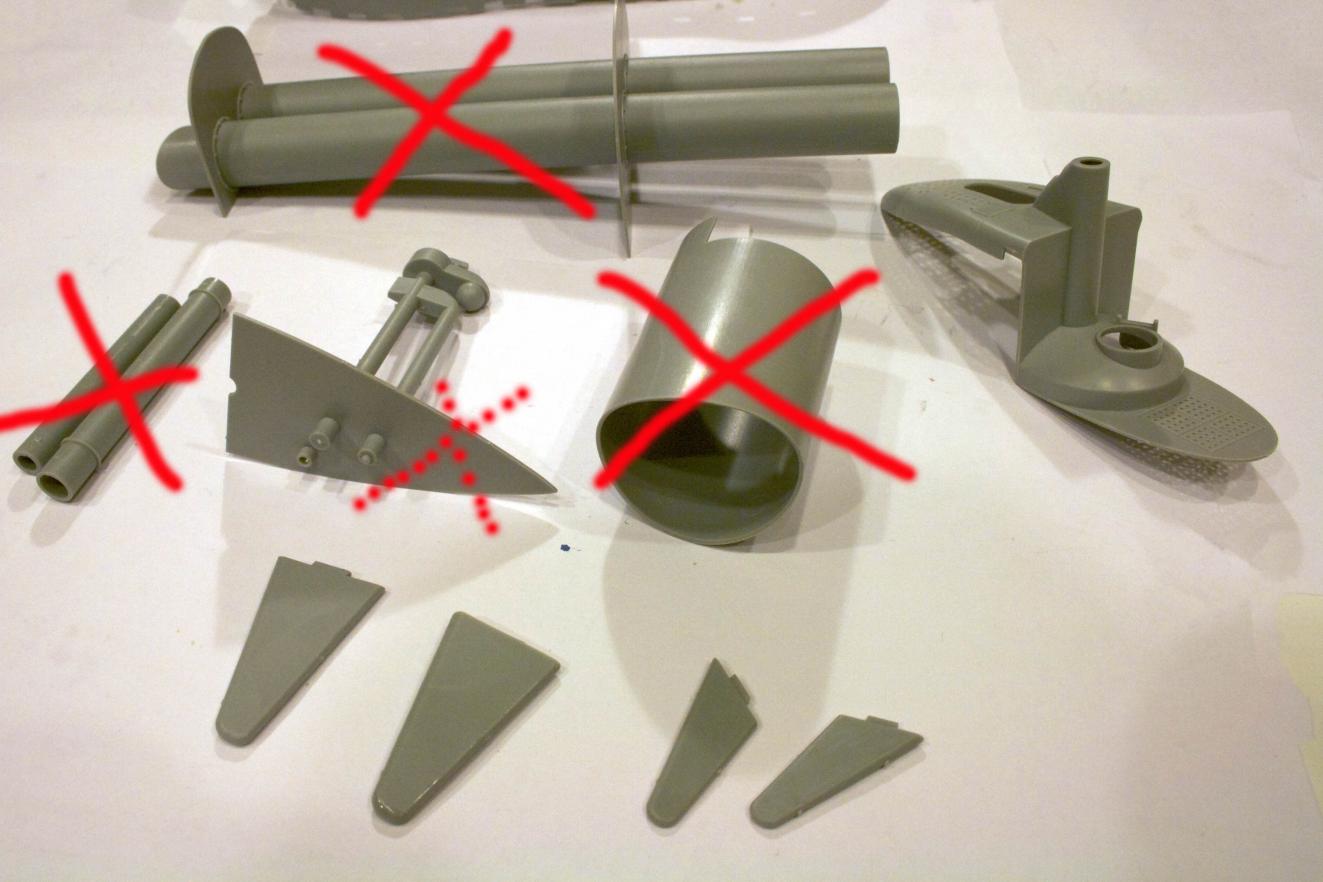

          I also checked out some of the other assemblies. There a some that I definitely will not use like the torpedo tube assembly. There are some that I probably will not use like the tubes and large cylinder (that is the conning tower proper). There are things like the plane guards and top of the conning tower that are of course going to be used.
          Click image for larger version

Name:	Bronco Type 23_100.jpg
Views:	1
Size:	92.6 KB
ID:	85016

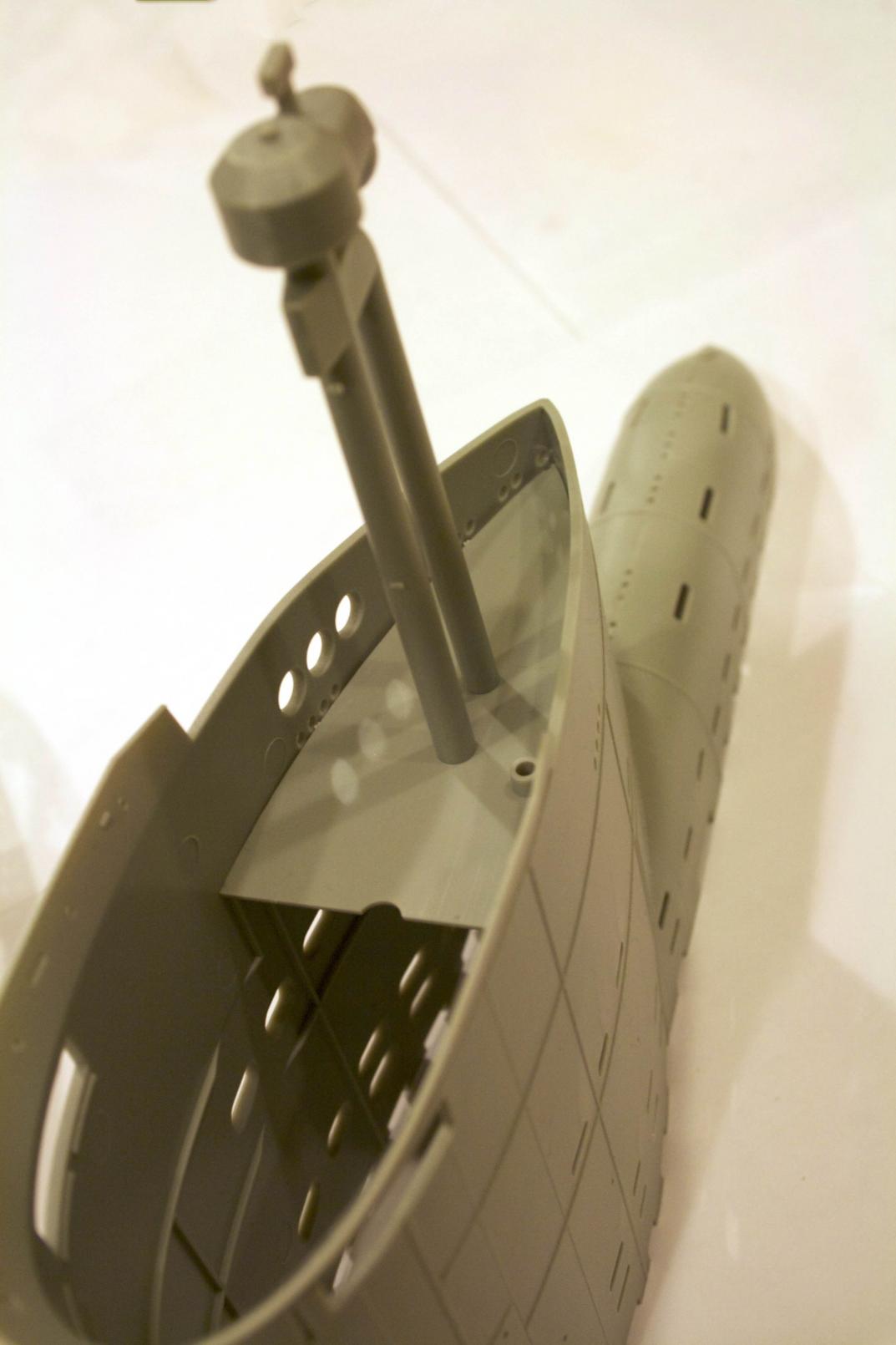

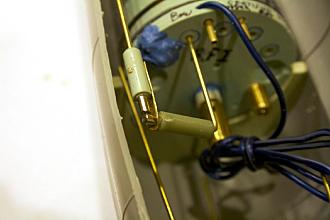

          The snorkel and radar antenna are attached to this plate which then gets covered by the top piece.
          Click image for larger version

Name:	Bronco Type 23_101.jpg
Views:	1
Size:	84.7 KB
ID:	85017Click image for larger version

Name:	Bronco Type 23_102.jpg
Views:	1
Size:	99.2 KB
ID:	85018
          So, I will remove sections to allow air out and trim a small amount of weight.
          Click image for larger version

Name:	Bronco Type 23_103.jpg
Views:	1
Size:	91.2 KB
ID:	85019

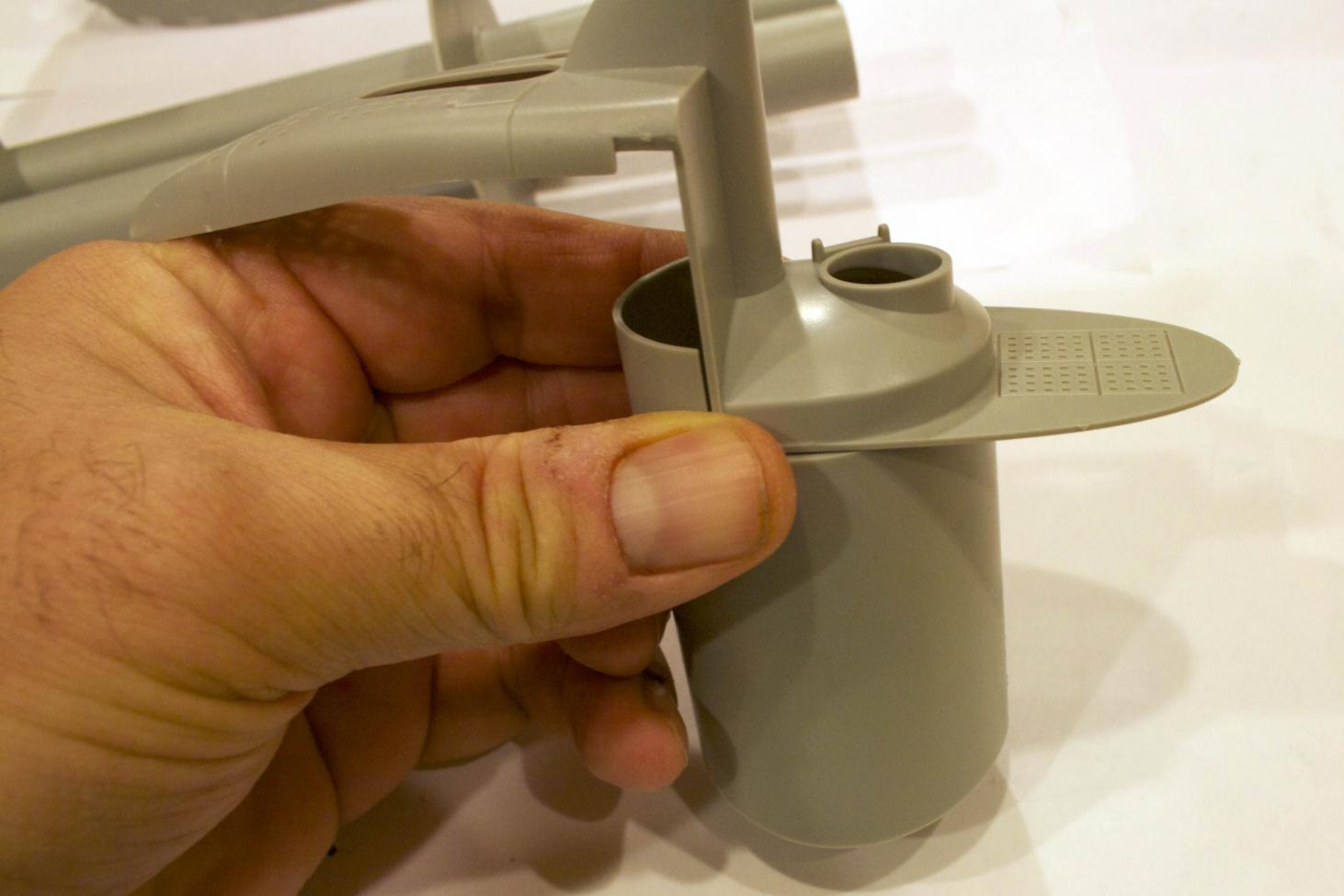

          The large cylinder fits to the conning tower top piece and is below the hatch opening. It will not be a necessary piece for the sub to run and just adds weight, it can go.
          Click image for larger version

Name:	Bronco Type 23_104.jpg
Views:	1
Size:	85.6 KB
ID:	85020Click image for larger version

Name:	Bronco Type 23_105.jpg
Views:	1
Size:	81.3 KB
ID:	85021
          That being said, it does add a nice dimension of reality and is better than seeing air inside. If I kept it, the sides that do not face towards the holes will be removed to reduce weight and provide air flow.
          Click image for larger version

Name:	Bronco Type 23_106.jpg
Views:	1
Size:	95.7 KB
ID:	85022

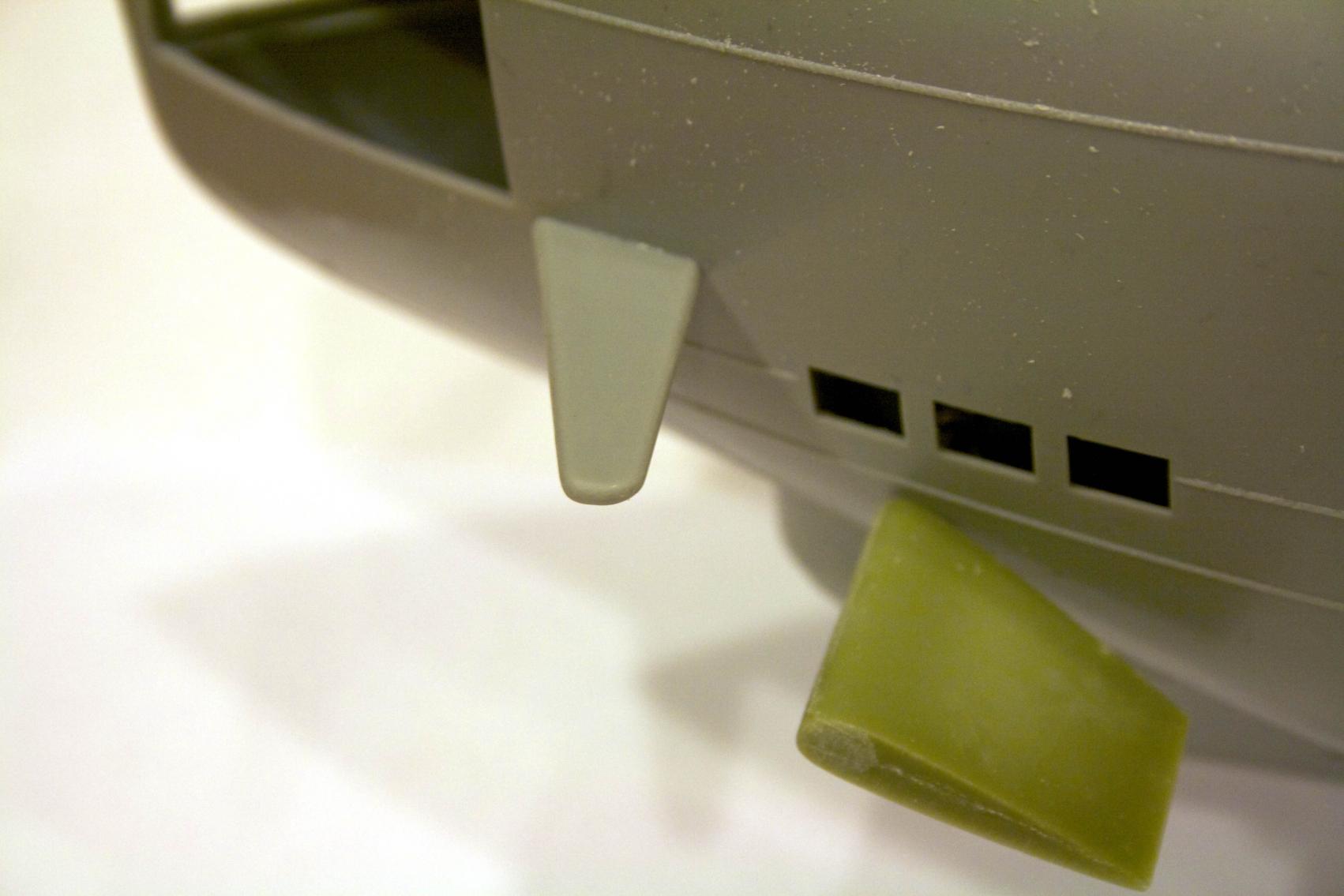

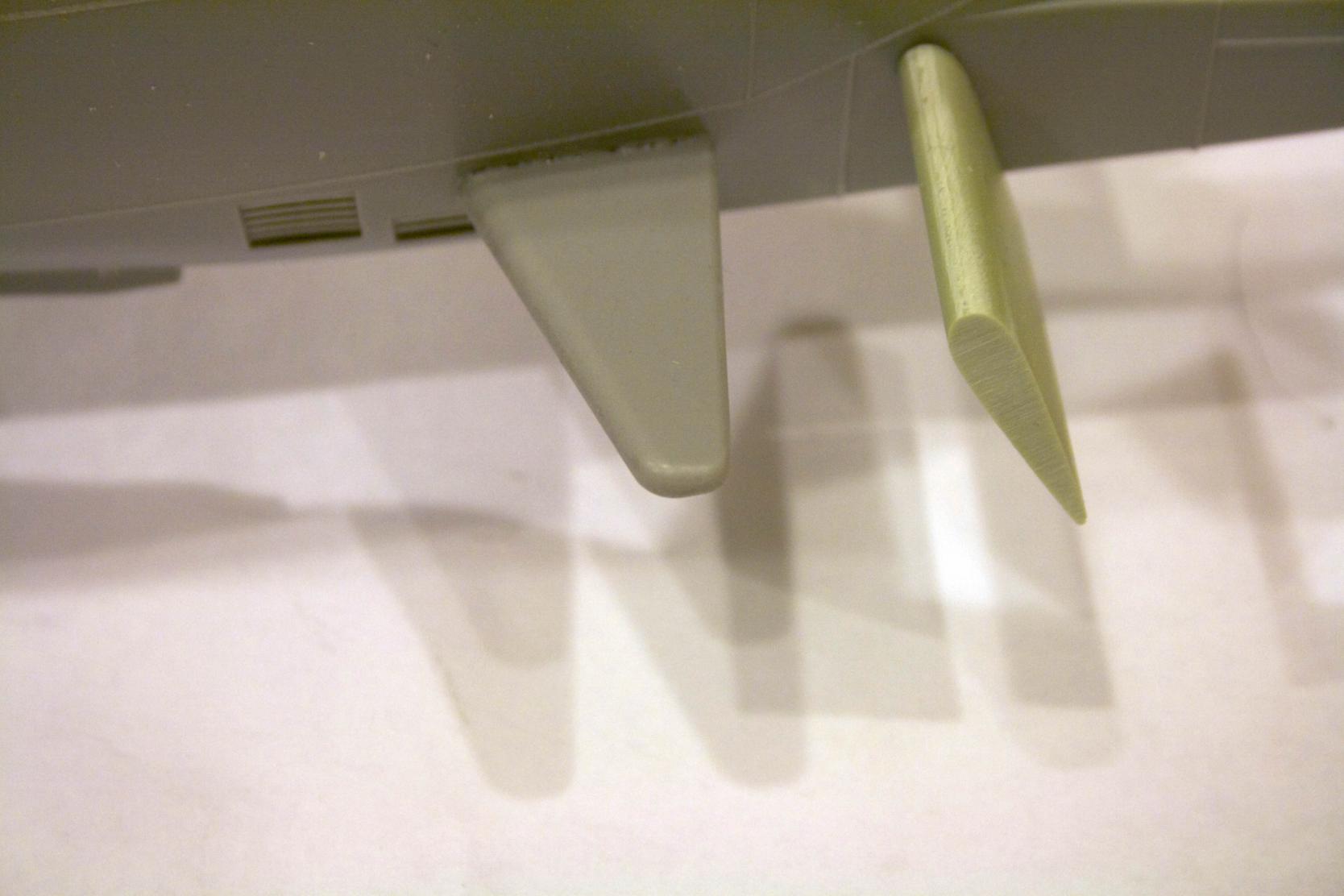

          There are two sets of guards for the dive planes. One set is solid plastic and the other needs to be assembled with two halves.
          Click image for larger version

Name:	Bronco Type 23_107.jpg
Views:	1
Size:	109.8 KB
ID:	85023

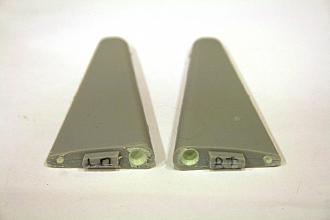

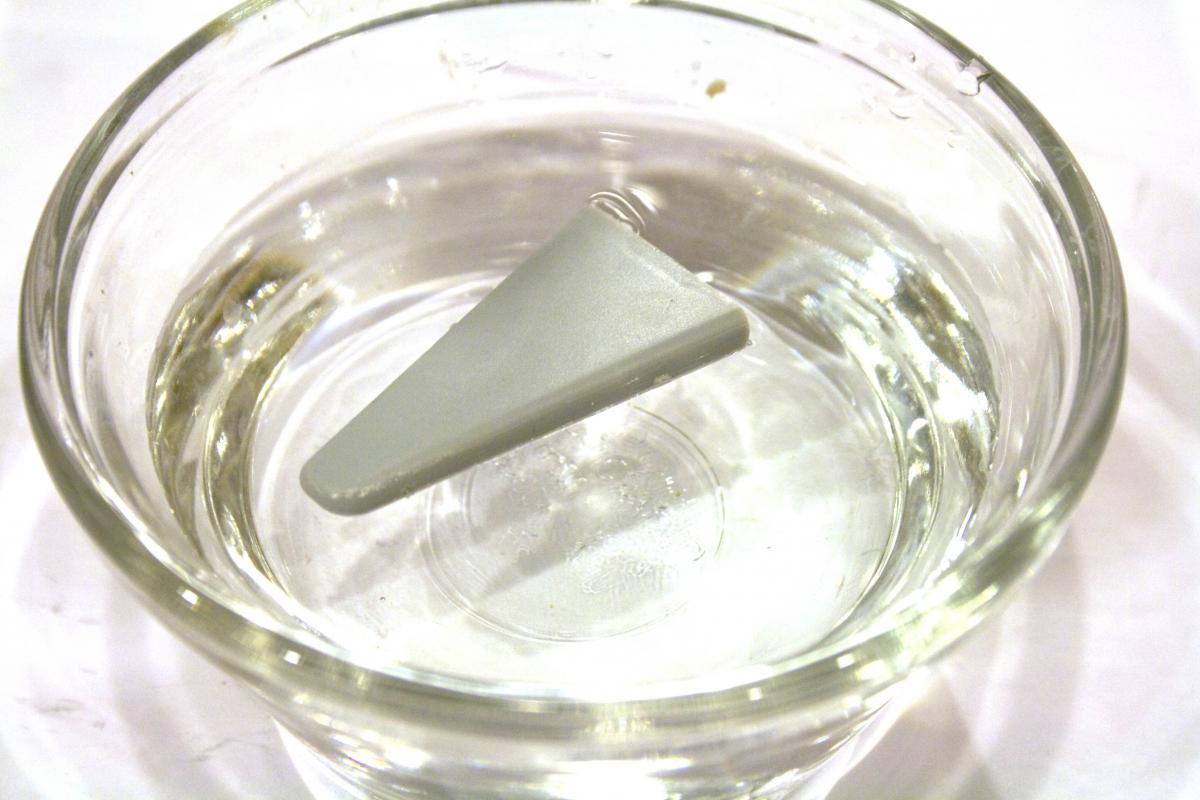

          My issue with the ones that needed to be assembled is they are so light and one big trapped bubble. I was surprised just how buoyant they are once placed in water. That is not good low on the sub (granted not huge in the grand scheme of things) and look at how the solid ones handle in the bowl. They sink.
          Click image for larger version

Name:	Bronco Type 23_108.jpg
Views:	1
Size:	90.4 KB
ID:	85024Click image for larger version

Name:	Bronco Type 23_109.jpg
Views:	1
Size:	91.9 KB
ID:	85025
          I am going to fill the hollow ones, maybe throw some weight in there too especially since these are low in the sub. Then seal them with resin or epoxy.
          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

          Comment

          • trout
            Admiral
            • Jul 2011
            • 3545

            #35

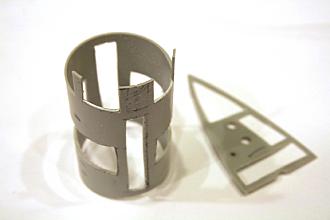

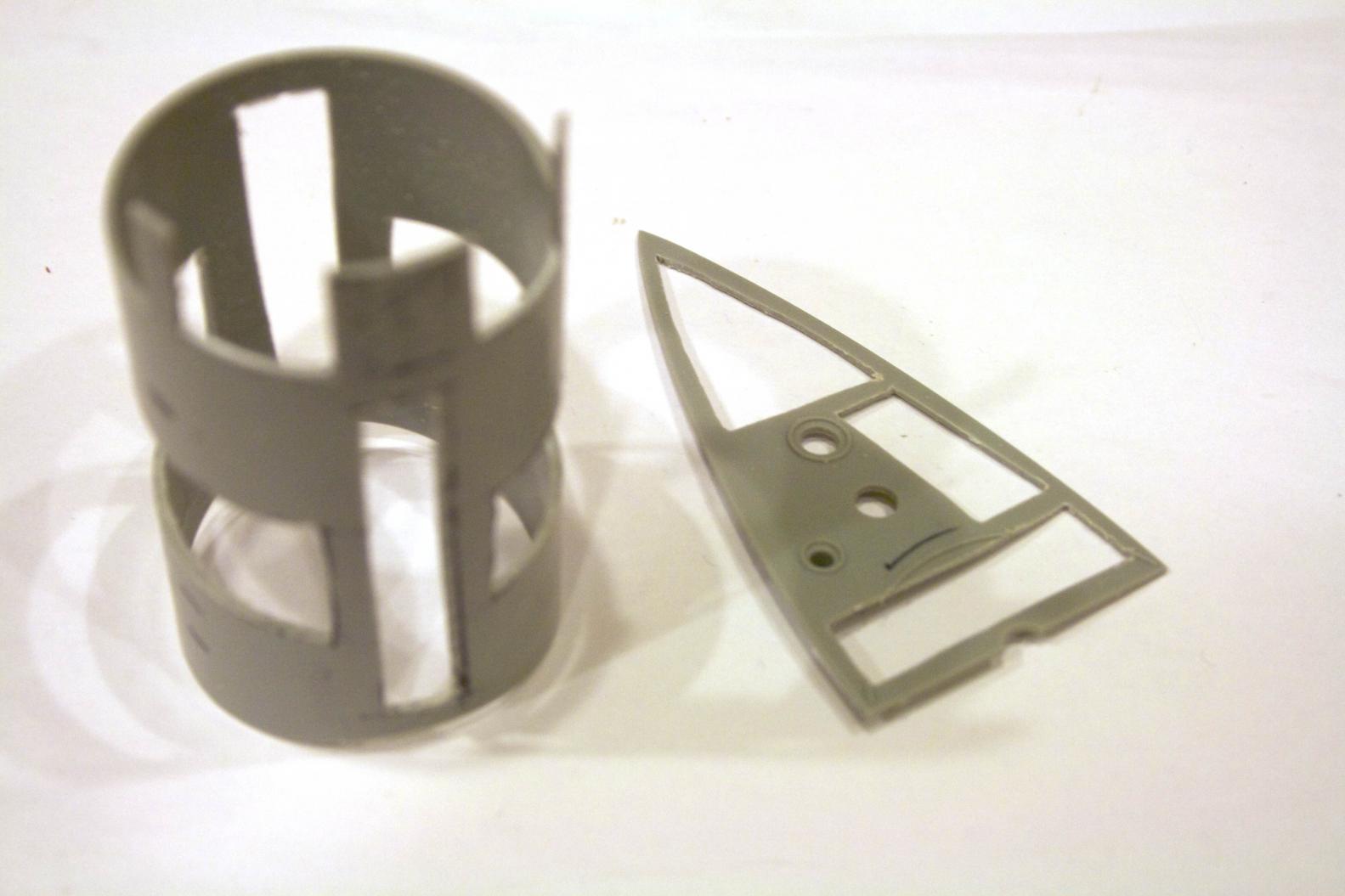

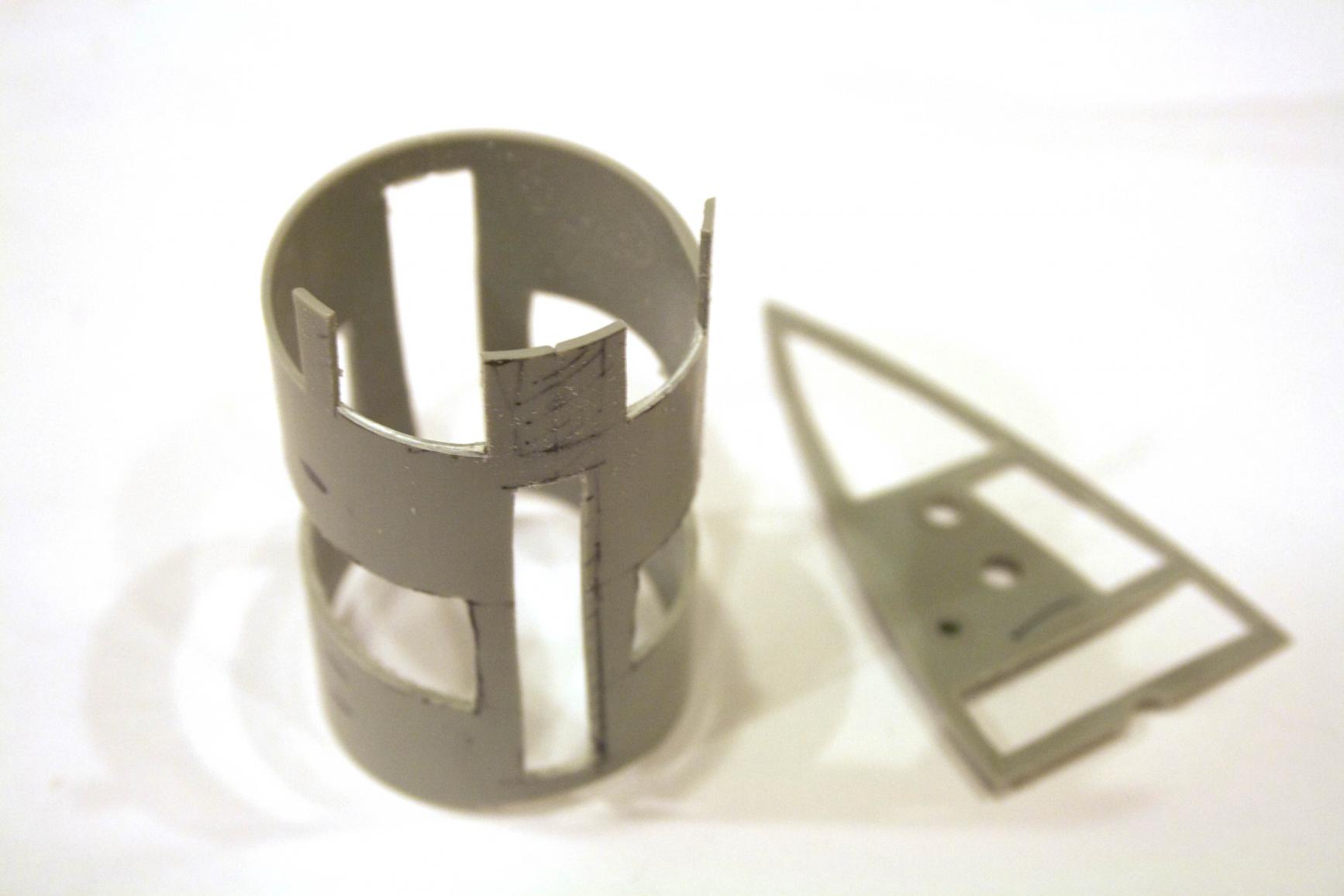

            Excavated the conning tower cylinder to lighten it yet still give the feel of being complete when installed. I am still dancing with the decision on using it or not. If I need to move the float forward the cylinder would be in the way or need to be chopped up more, but I like the feel that there is more than an empty shell.
            Click image for larger version

Name:	Bronco Type 23_110.jpg
Views:	1
Size:	91.2 KB
ID:	85038
            The flat piece is opened up and I am ok with how it looks.
            Click image for larger version

Name:	Bronco Type 23_111.jpg
Views:	1
Size:	95.4 KB
ID:	85039
            If you ever go to the urgent care or hospital and they put an I.V. in you, ask for the saline syringe when they are done with it. I got several from a visit earlier in the year. I trimmed the threaded end off just leaving the nipple.
            Click image for larger version

Name:	Bronco Type 23_112.jpg
Views:	1
Size:	105.0 KB
ID:	85040

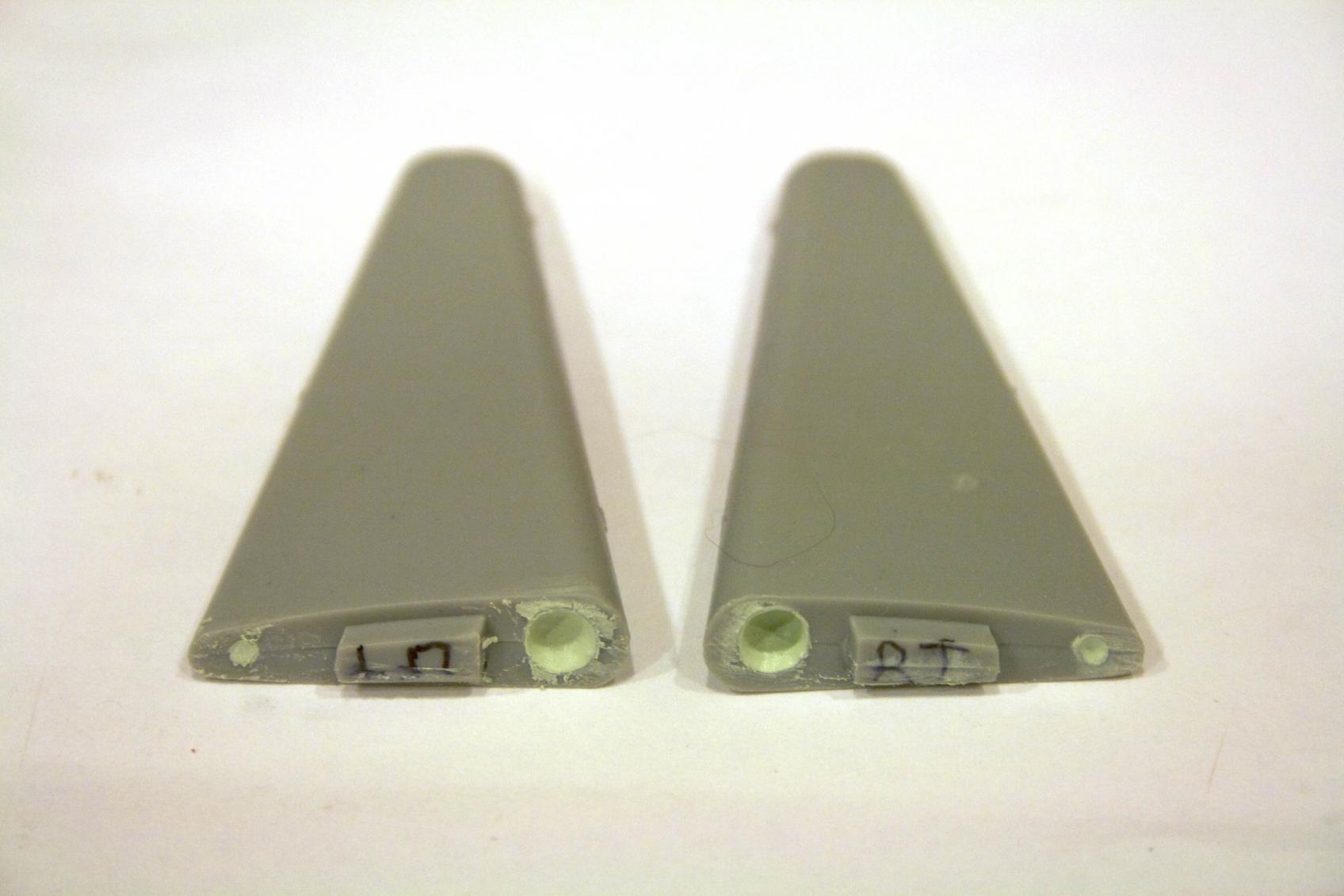

            Drilled two holes in each plane guard. One a small hole for venting air and another large enough to put the syringe nipple in.
            Click image for larger version

Name:	Bronco Type 23_113.jpg
Views:	1
Size:	110.5 KB
ID:	85041

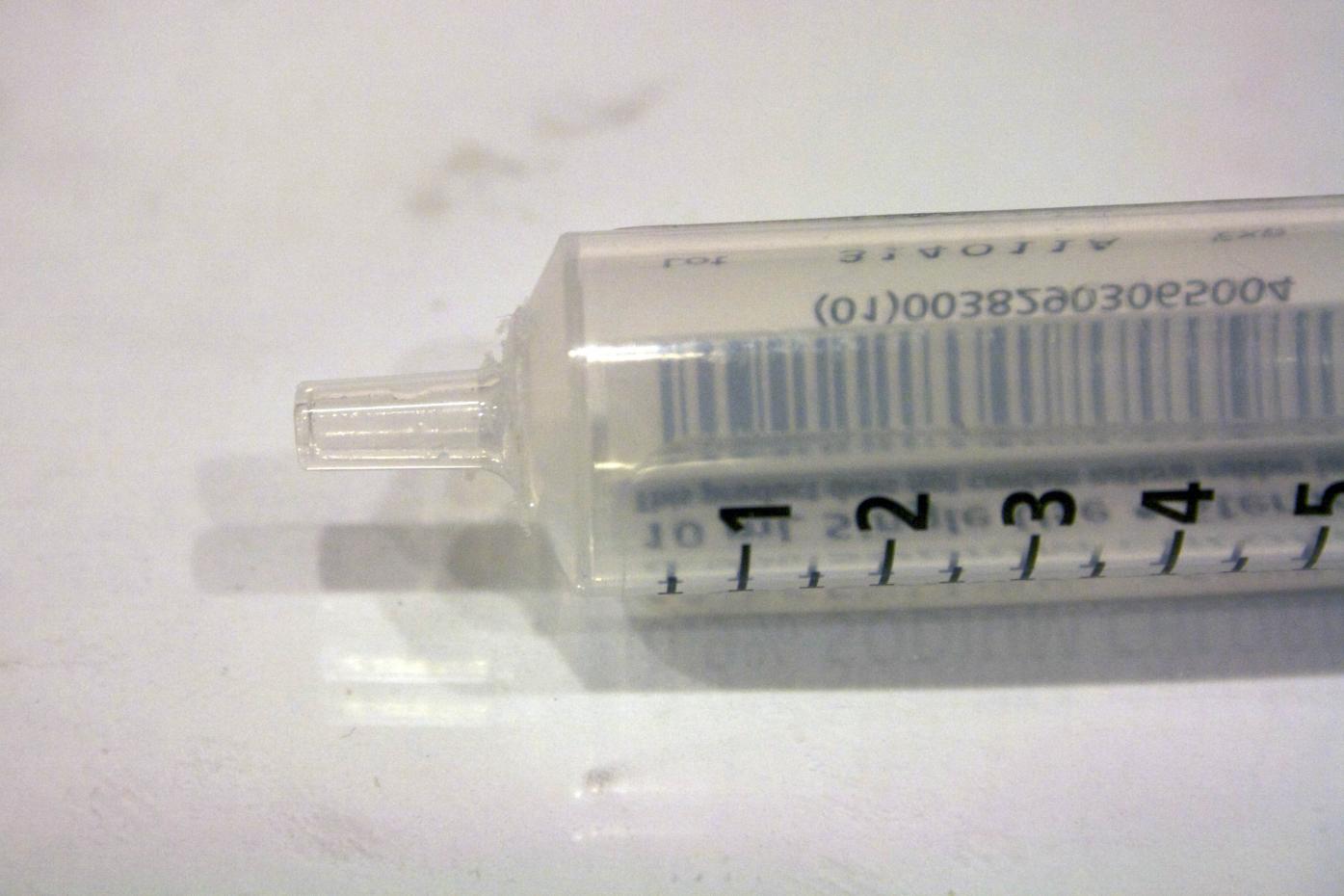

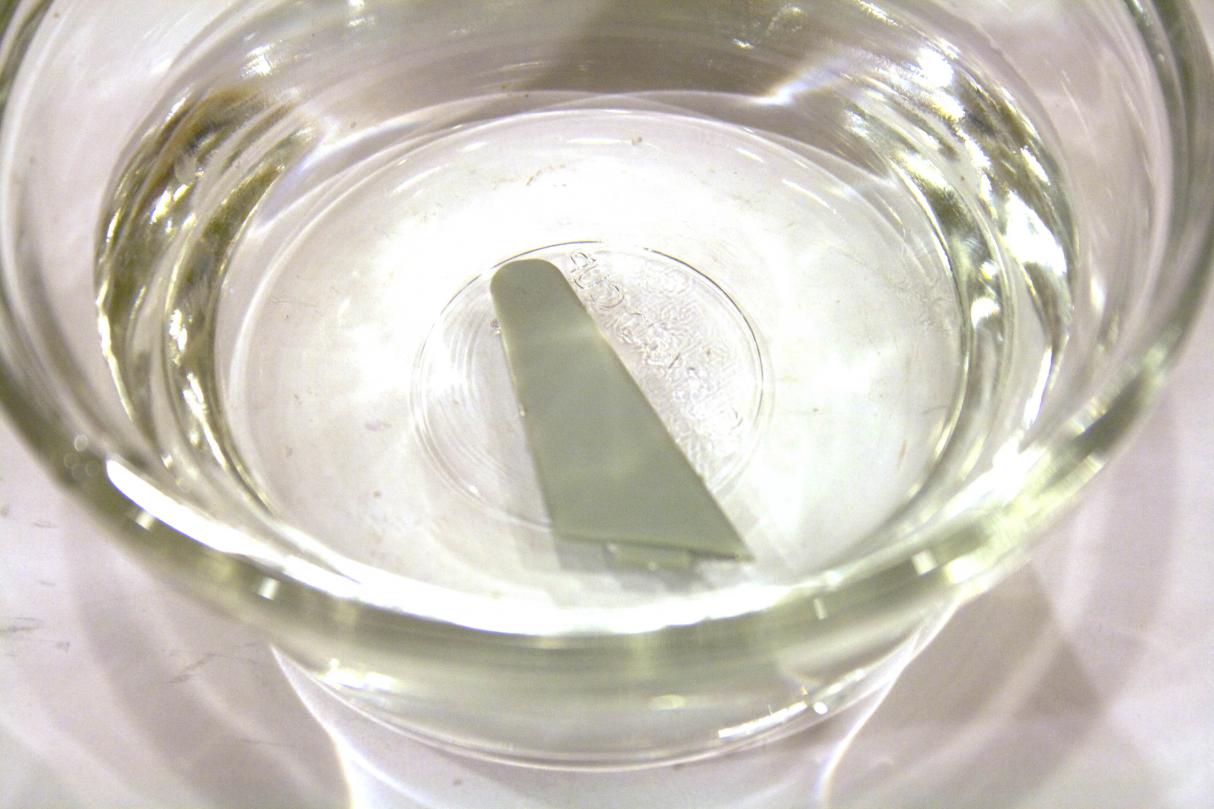

            Mixed up a batch of Evercoat Metal Glaze and scooped it into the syringe. With the syringe inserted into the larger hole, I positioned it so the vent hole was up and the tip of the guard was tilted down. Once the glaze was oozing out of the vent I placed the plane guard in an upright position to solidify. I thought I would put weight in, but I did not have any fine shot to go in. Had I filled this before I glued the hulls together, I would have drilled and tapped a 2-56 thread in there and screwed the guard to the hull. That would help prevent the piece from getting knocked off.
            Click image for larger version

Name:	Bronco Type 23_114.jpg
Views:	1
Size:	110.4 KB
ID:	85042
            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

            Comment

            • crazygary
              Captain
              • Sep 2012
              • 610

              #36
              Really like the float valve inside the sail!!
              I'm guessing that its job is to release ballast tank internal pressure??
              Very cool!
              Am very much enjoying your thread, Tom!! Great stuff, here!

              Comment

              • He Who Shall Not Be Named
                Moderator
                • Aug 2008
                • 12256

                #37
                It's to break the vacuum within the cylinder created when the LPB took a suction on the dry spaces of the cylinder to blow ballast water while the sail was submerged.

                M
                Who is John Galt?

                Comment

                • trout
                  Admiral
                  • Jul 2011
                  • 3545

                  #38

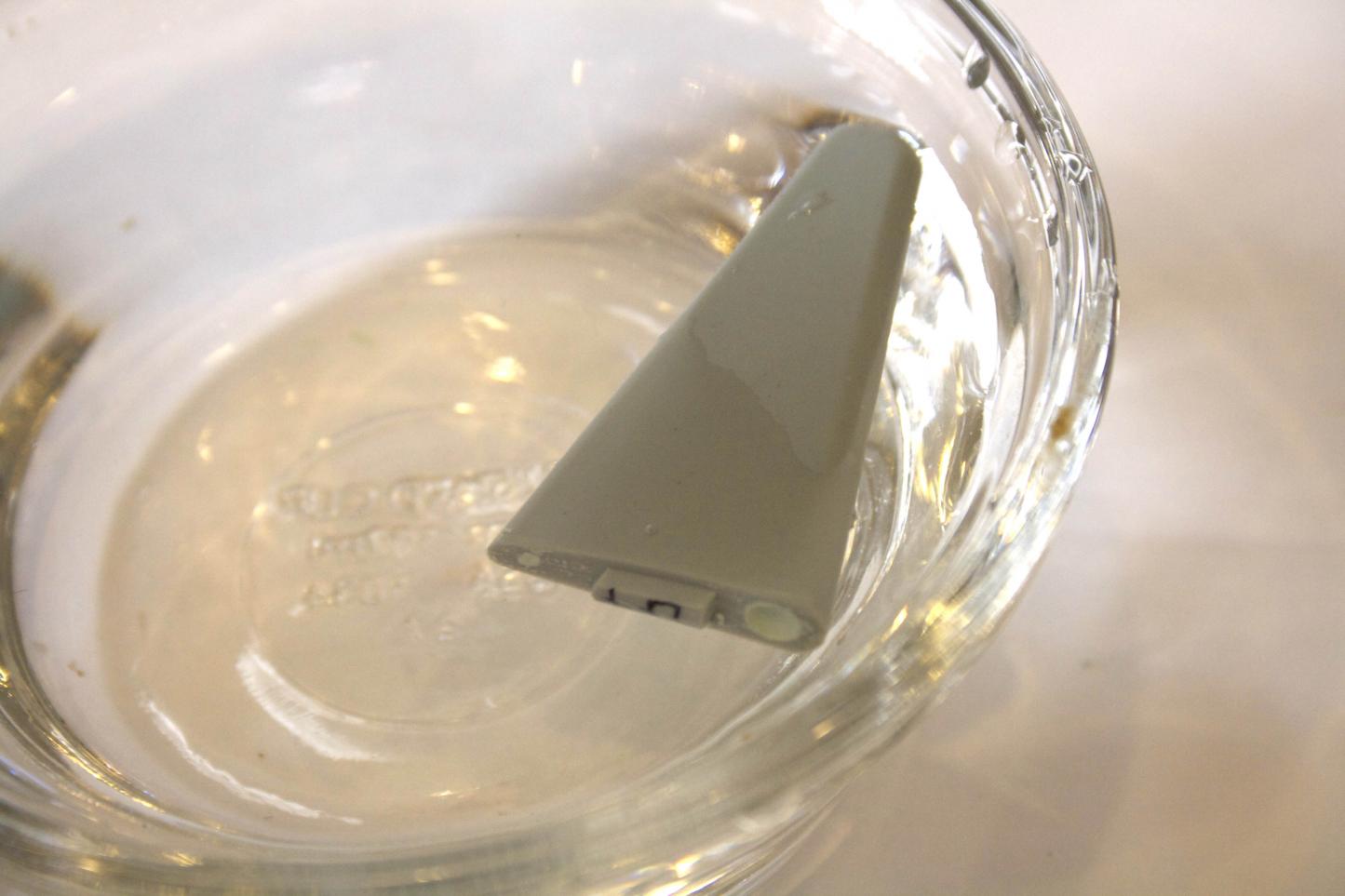

                  Well, I should have put some kind of weight in. It still floats, but not as high.
                  Click image for larger version

Name:	Bronco Type 23_115.jpg
Views:	1
Size:	88.7 KB
ID:	85043

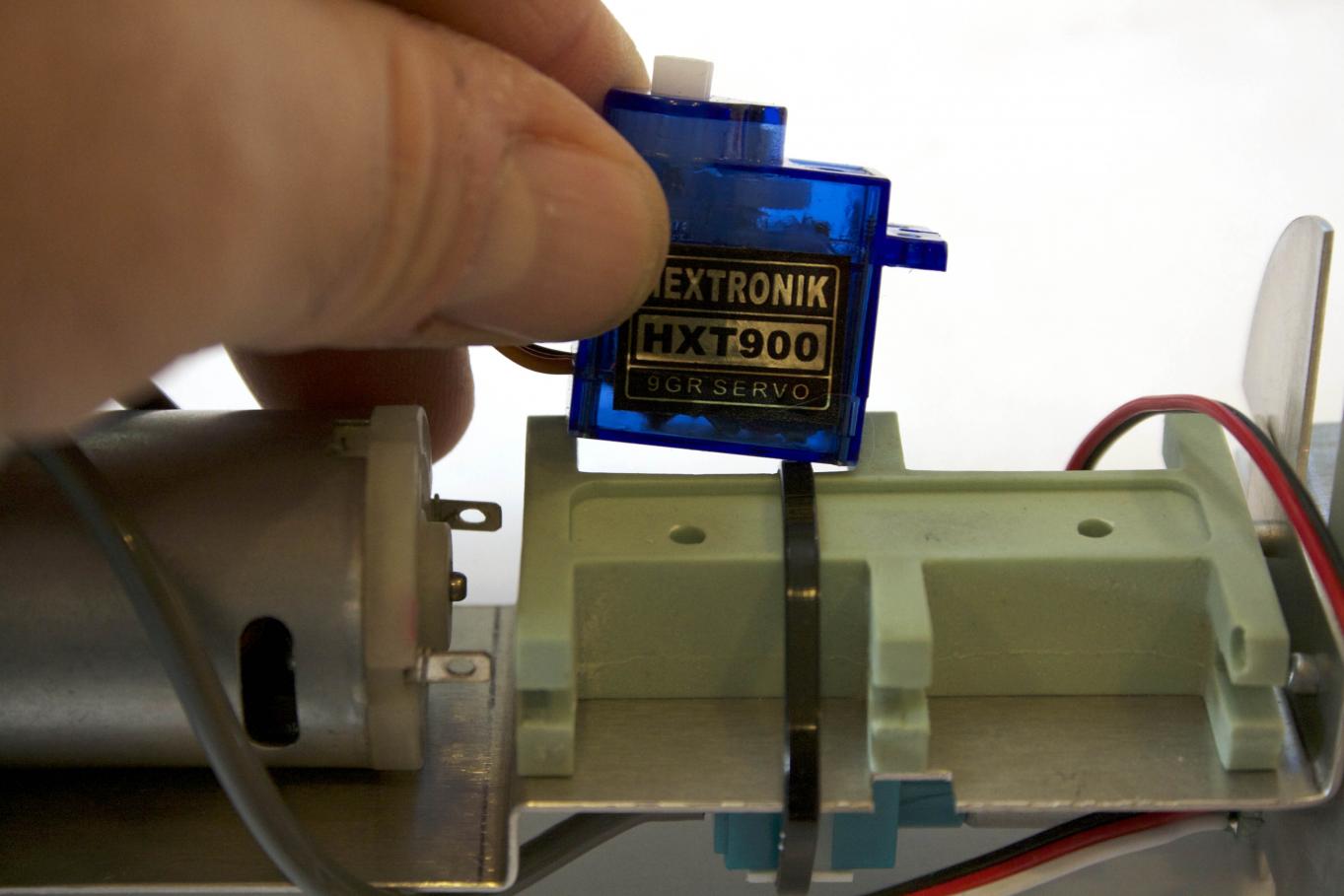

                  My servos were a little too big.
                  Click image for larger version

Name:	Bronco Type 23_116.jpg
Views:	1
Size:	85.2 KB
ID:	85044
                  Marked an approximate amount that needed to be removed.
                  Click image for larger version

Name:	Bronco Type 23_117.jpg
Views:	1
Size:	82.9 KB
ID:	85045

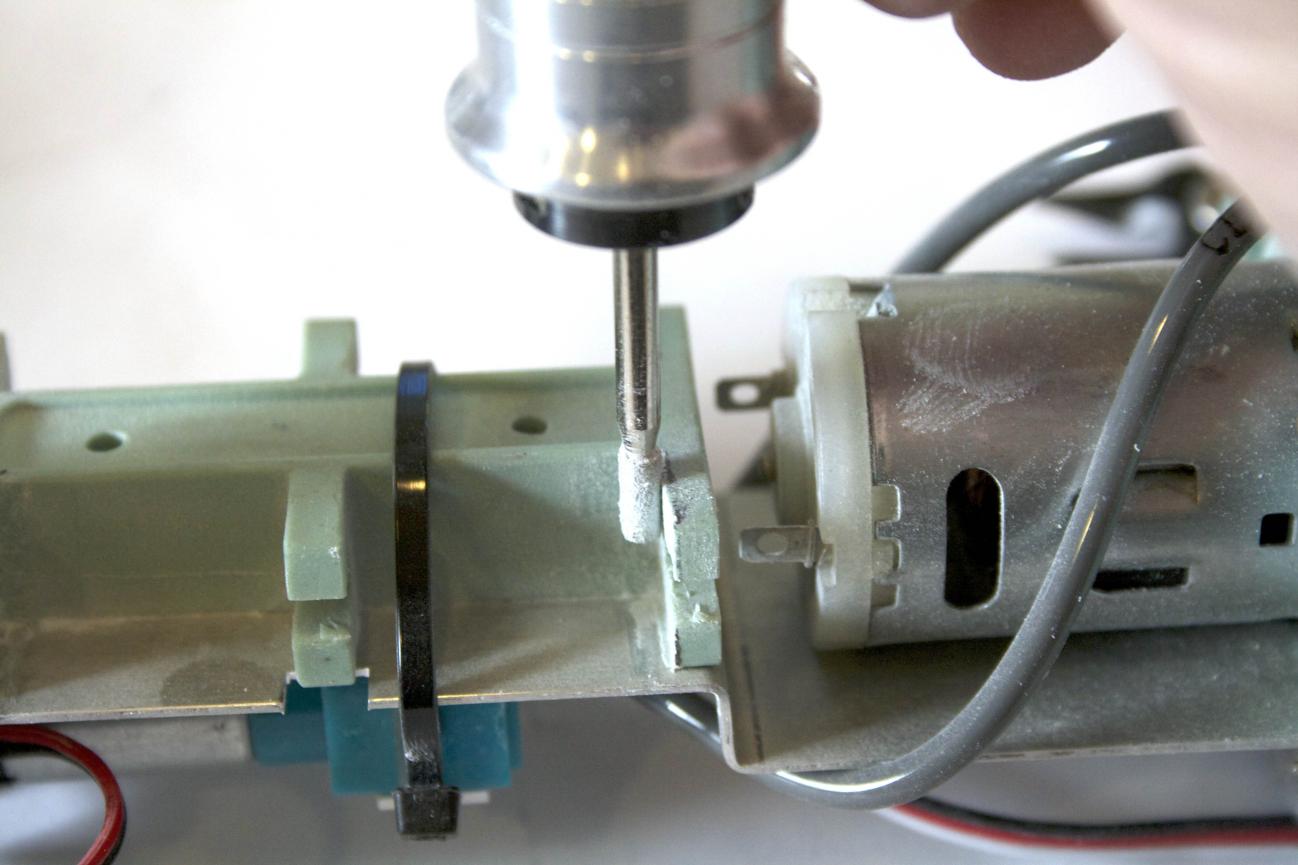

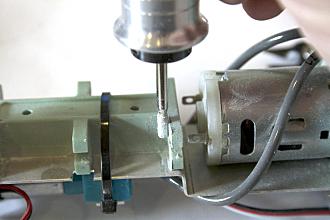

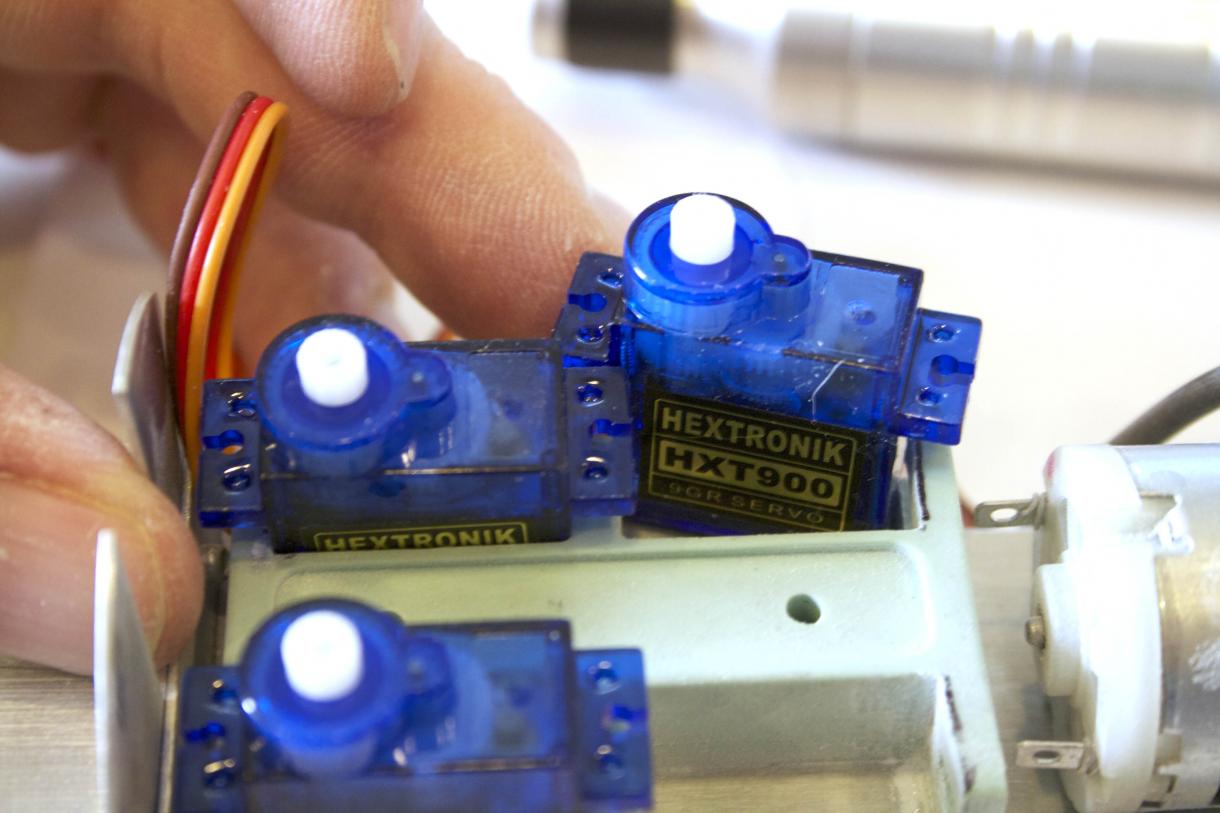

                  Using a Foredom and a diamond cylinder bit. Like a mill, I worked the areas to be removed.
                  Click image for larger version

Name:	Bronco Type 23_118.jpg
Views:	1
Size:	88.6 KB
ID:	85046
                  As I fit the servos in, it became clear the tabs would interfere . A quick clip with flush cut pliers
                  Click image for larger version

Name:	Bronco Type 23_119.jpg
Views:	1
Size:	85.0 KB
ID:	85047Click image for larger version

Name:	Bronco Type 23_120.jpg
Views:	1
Size:	88.7 KB
ID:	85048

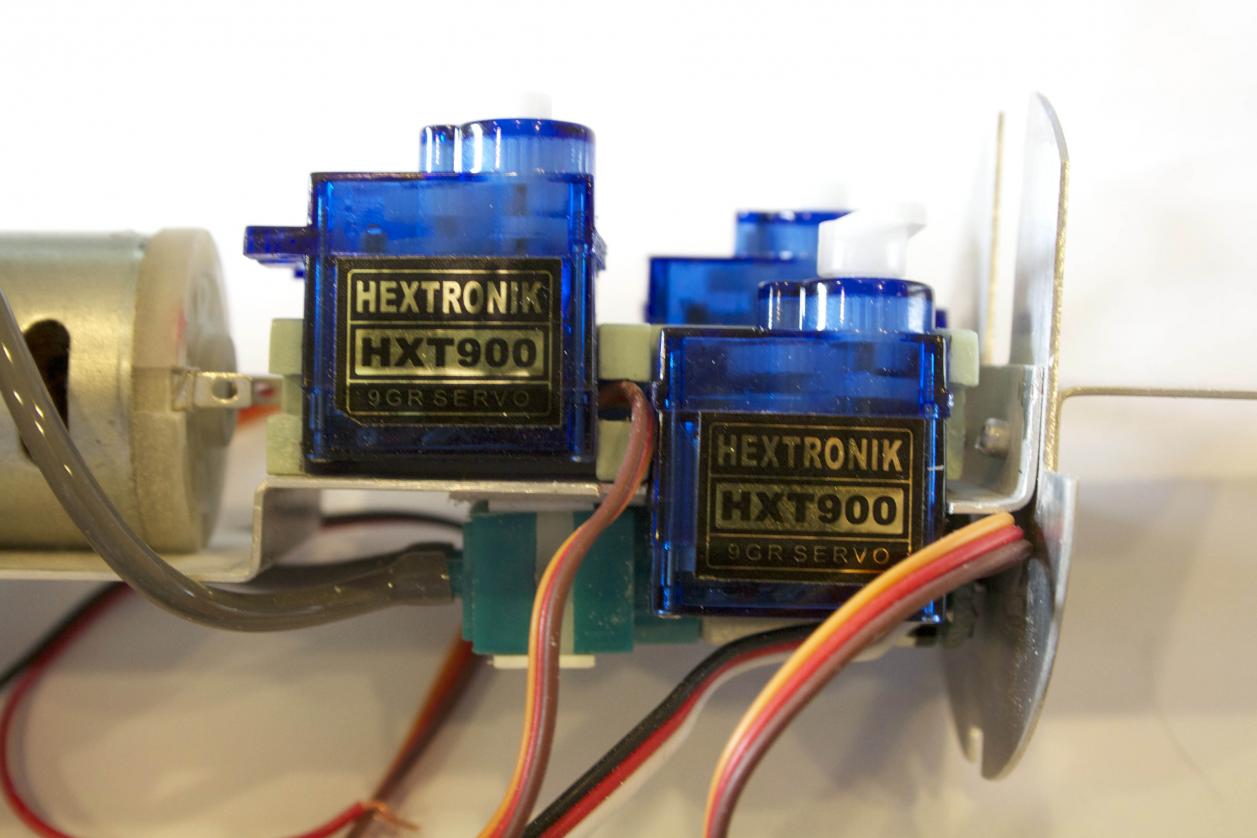

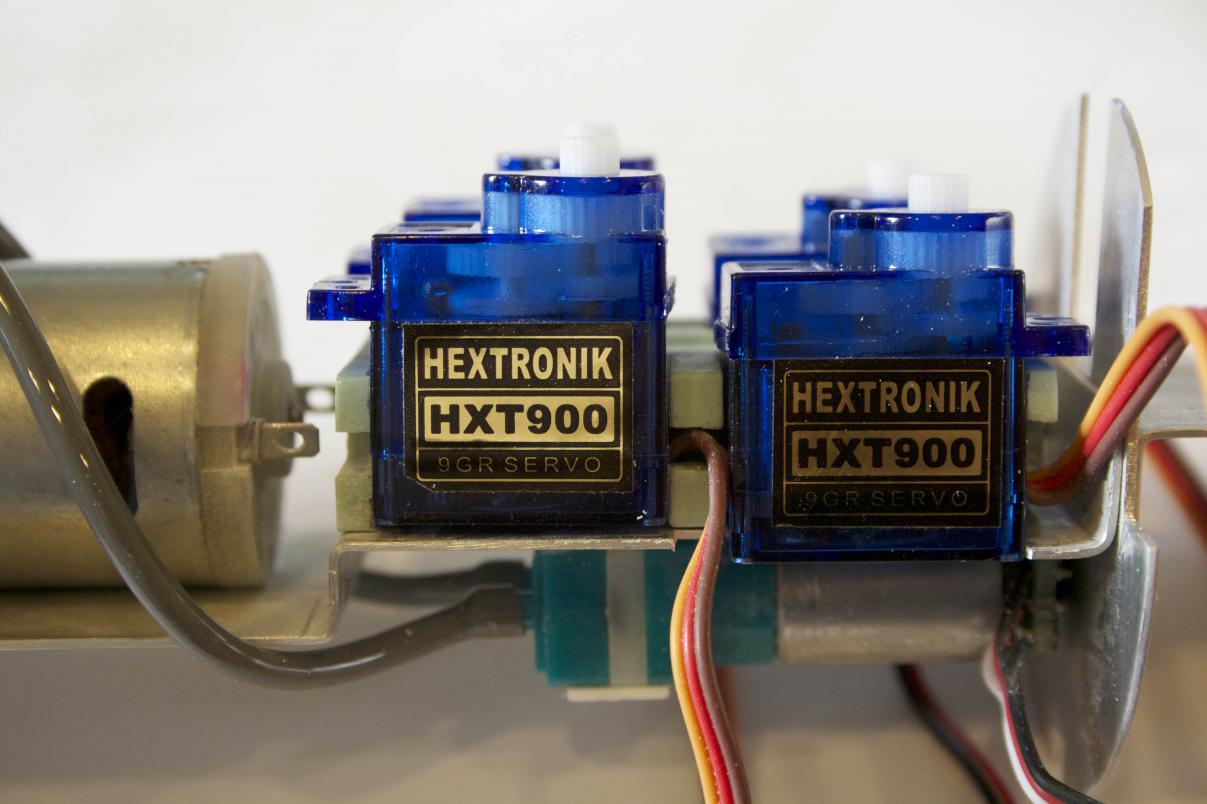

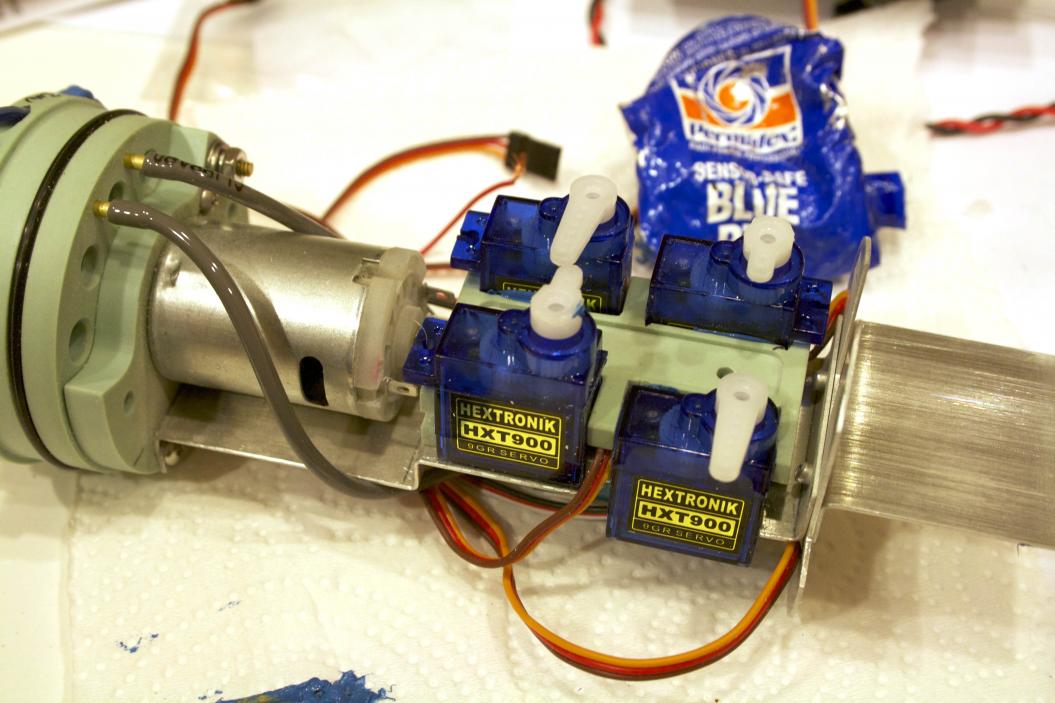

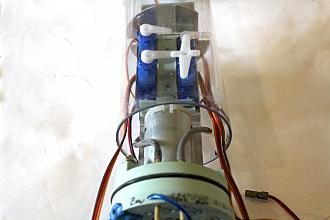

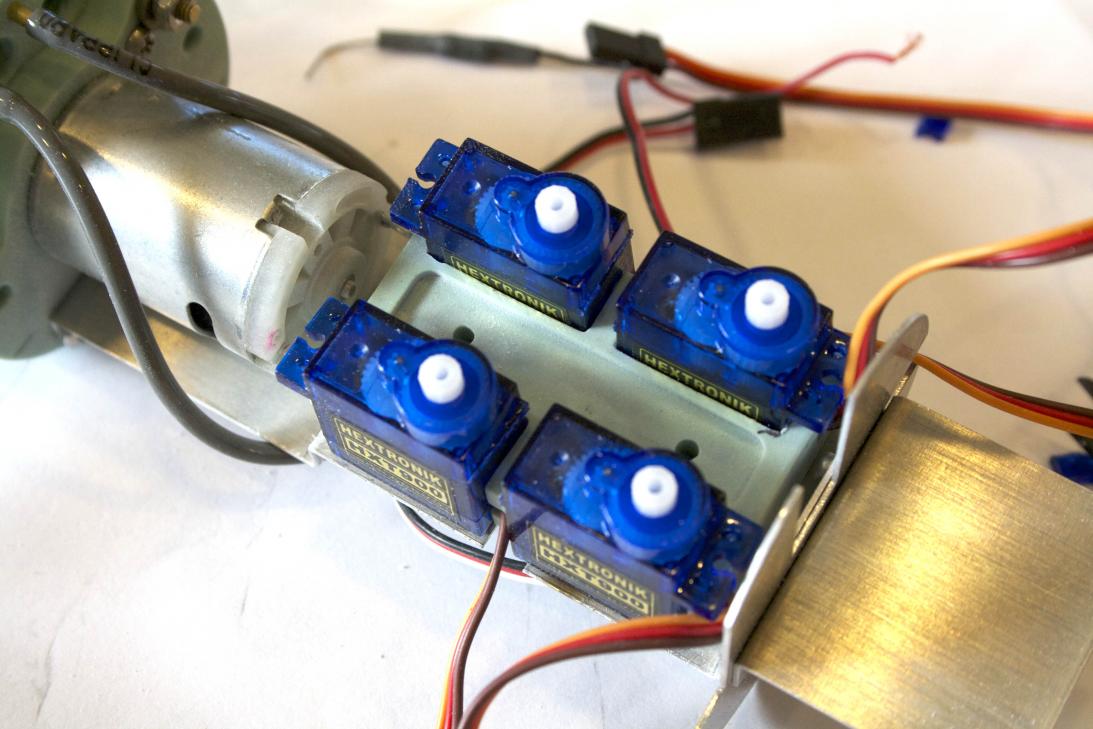

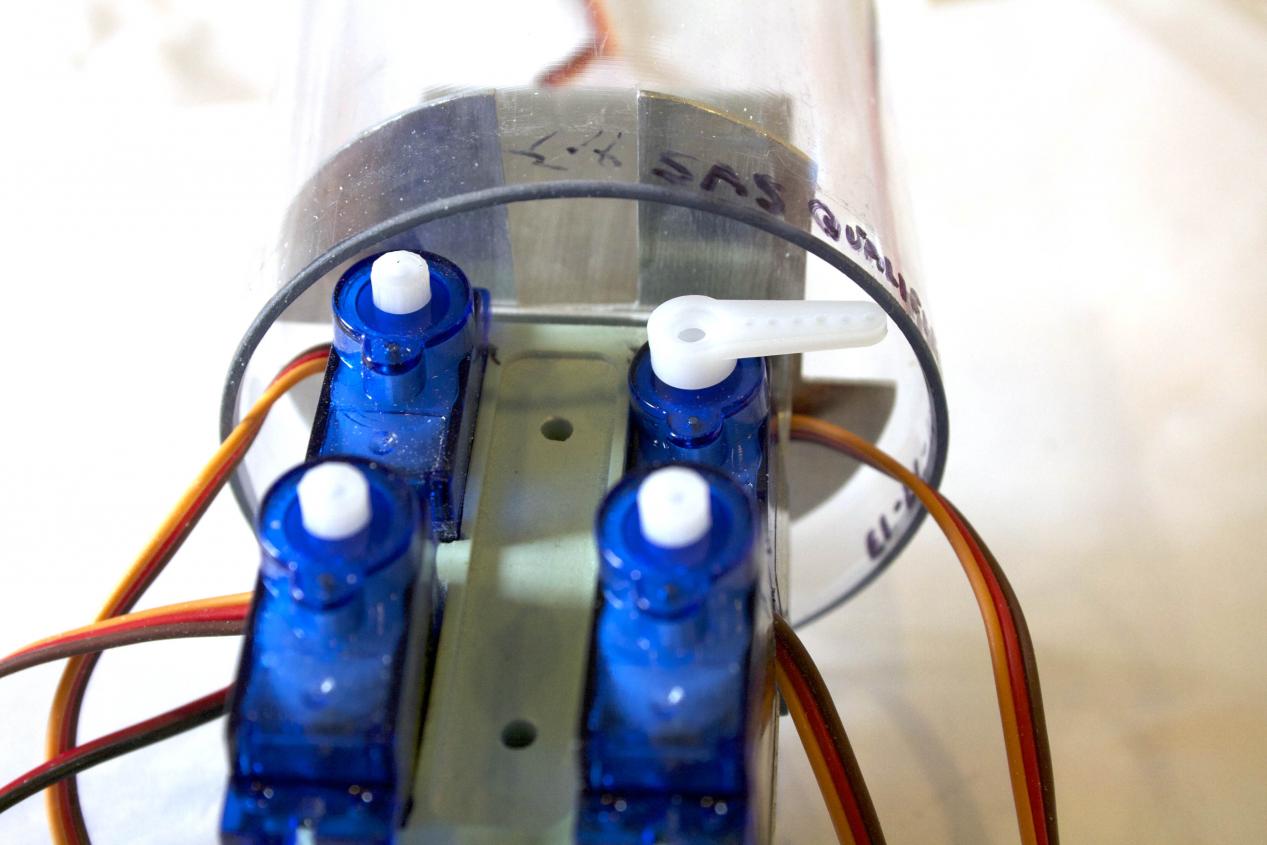

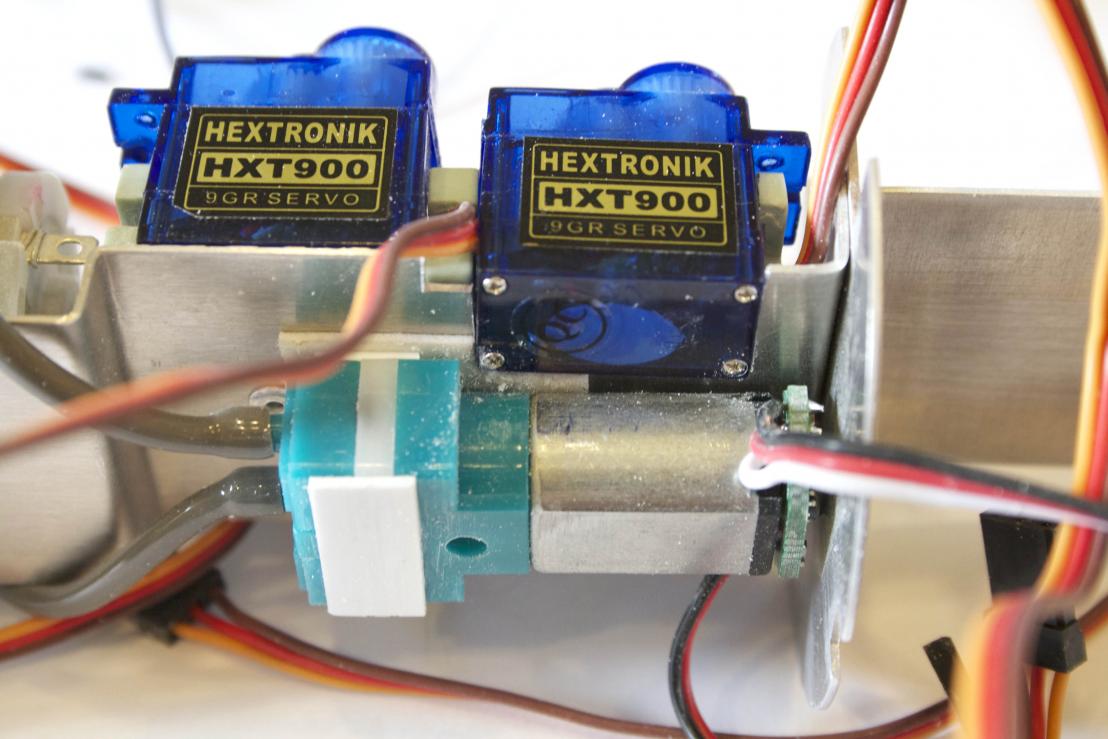

                  All four are in, yes four. One for rudder, bow planes, aft planes, and the final one is for the mechanism for moving the battery (maybe, if it will work).
                  Click image for larger version

Name:	Bronco Type 23_121.jpg
Views:	1
Size:	91.4 KB
ID:	85049

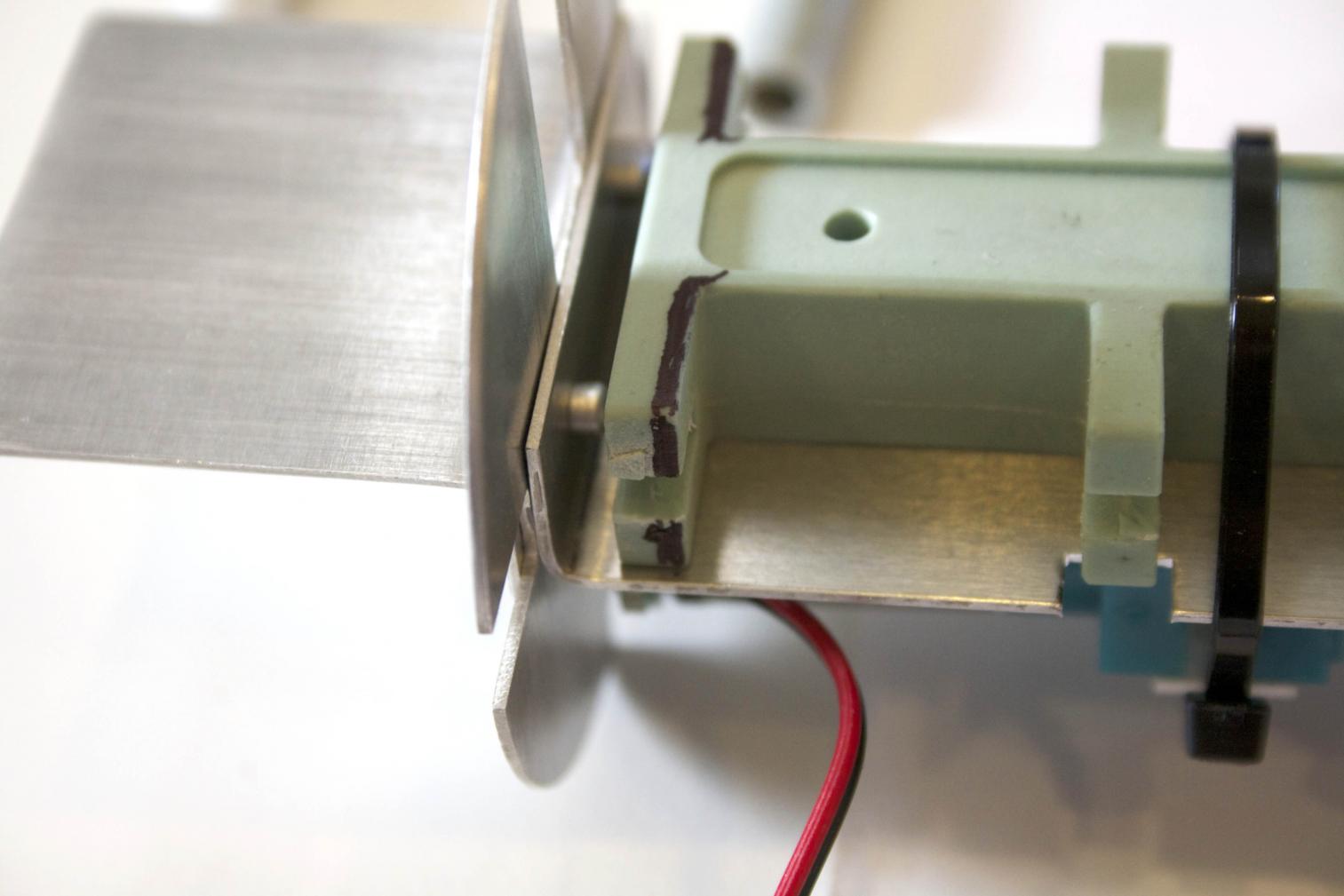

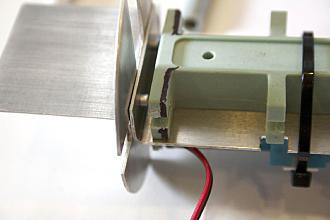

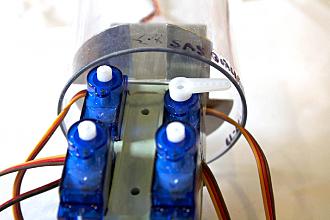

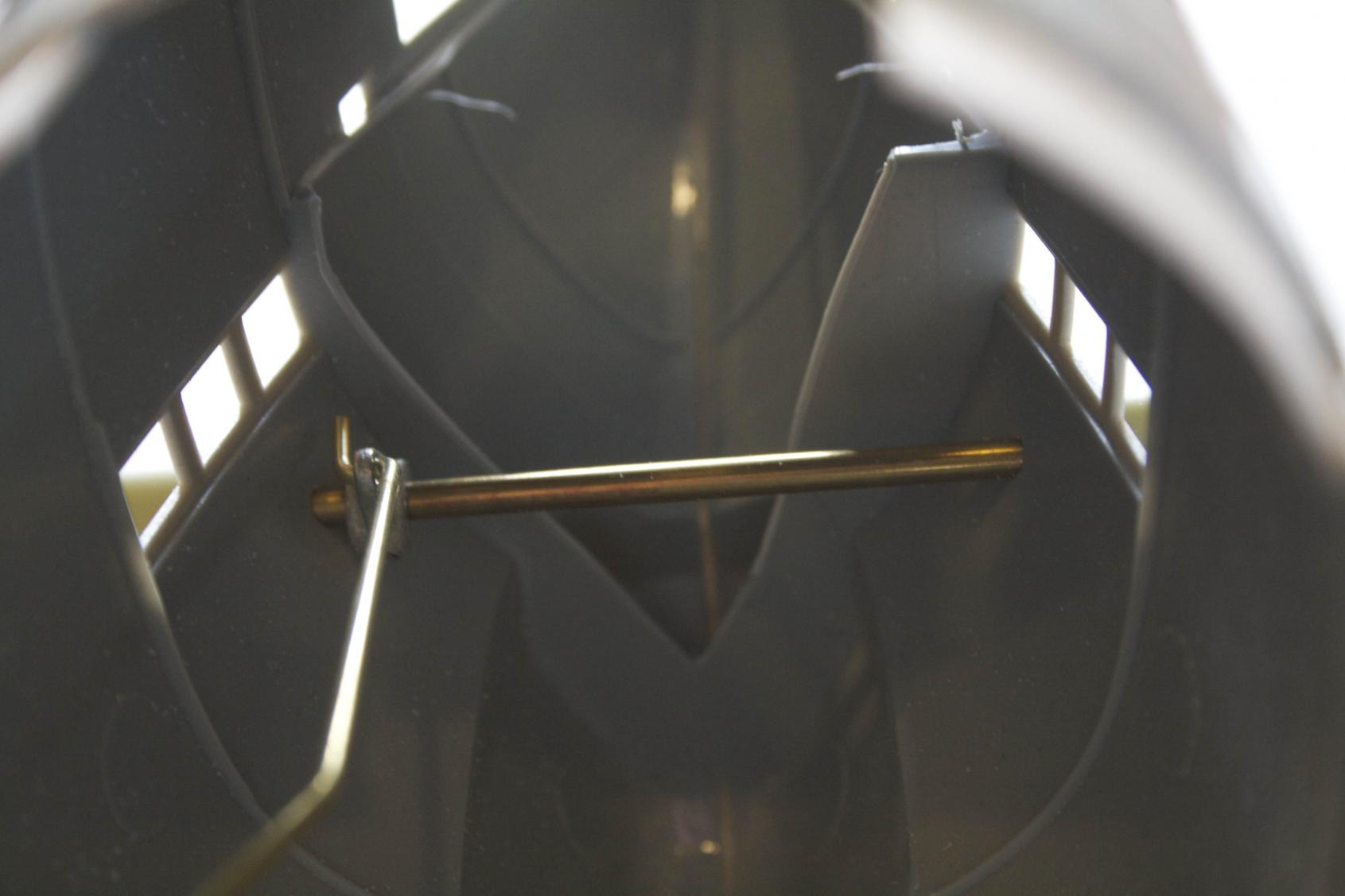

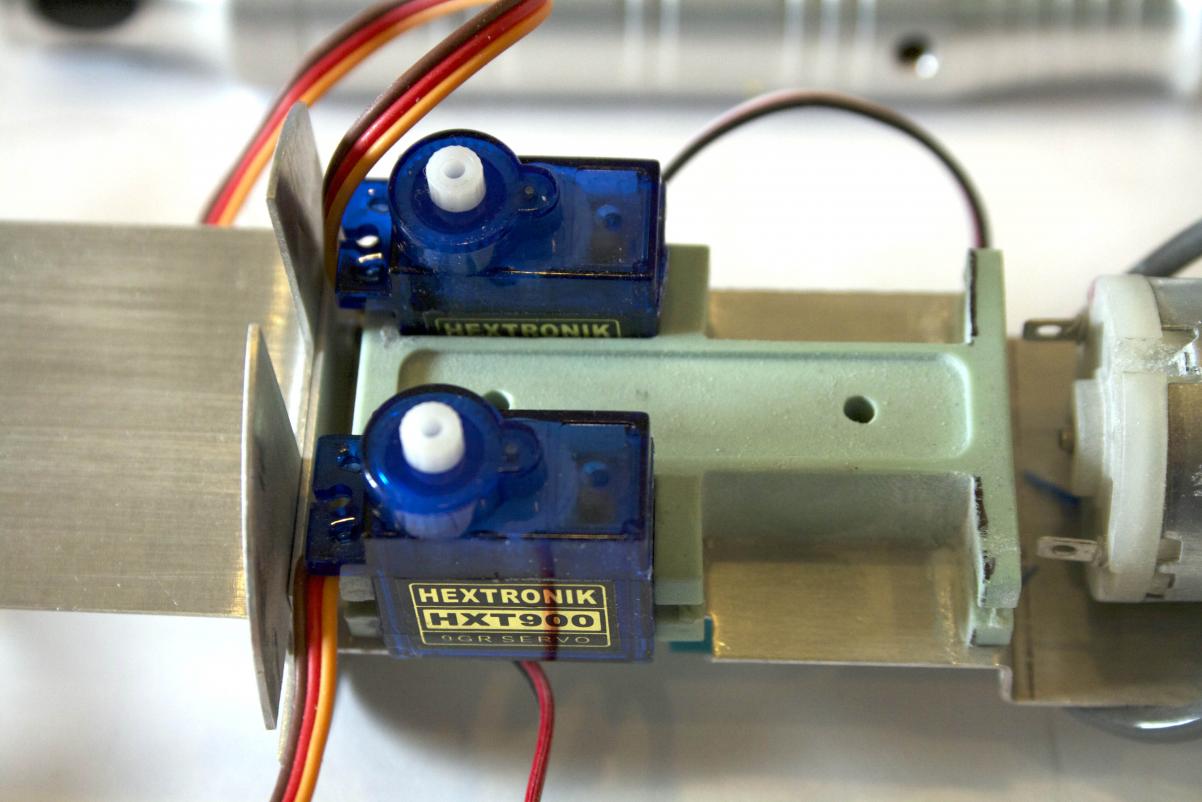

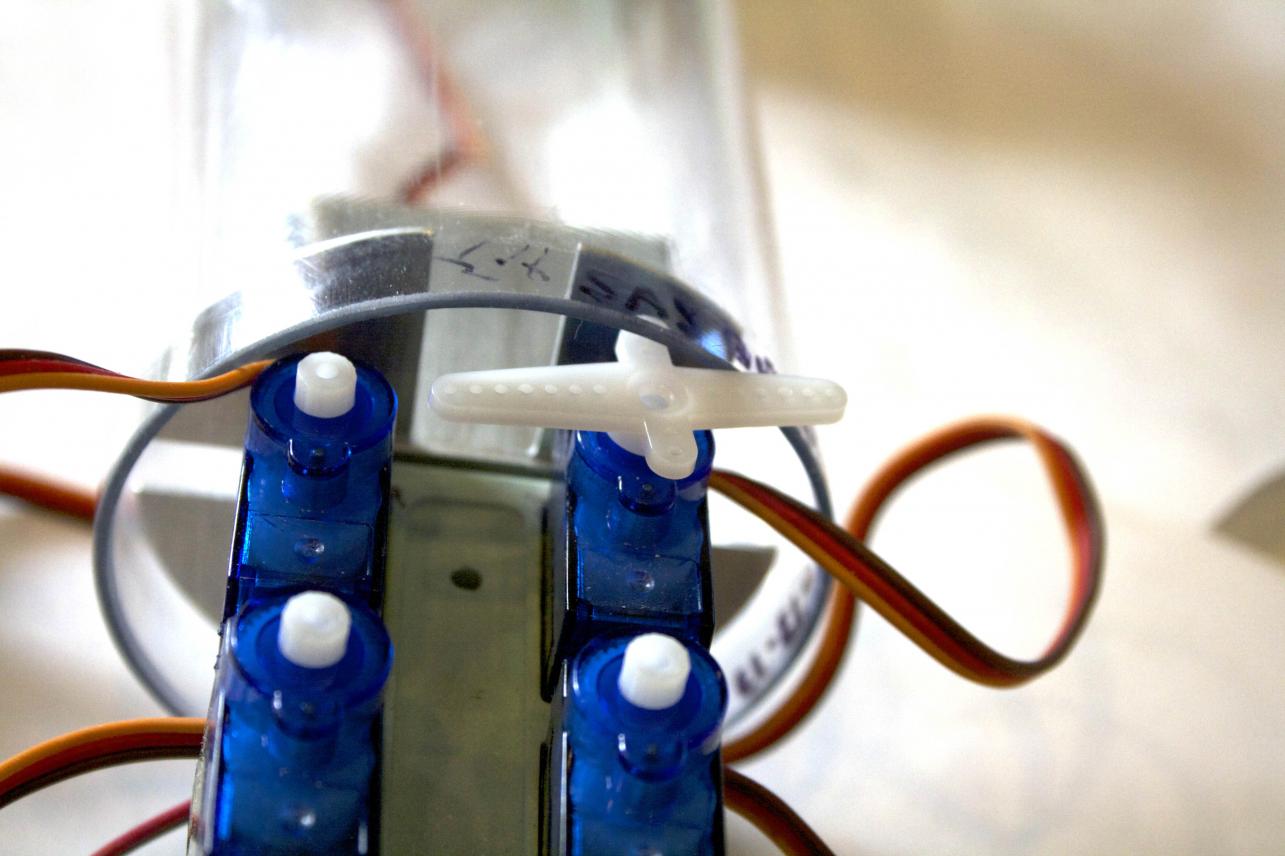

                  The problem with this setup is the servos are high up and the arm will hit the cylinder if it is swinging outwardly.
                  Click image for larger version

Name:	Bronco Type 23_122.jpg
Views:	1
Size:	89.6 KB
ID:	85050
                  Opened up the bottom of the servo by removing the aluminum tray. I learned from the Gato build that by cutting on each end of the tray and scoring the back portion, you can snap off the tray or bend it if it does not snap off and it will break along the scribe line.
                  Click image for larger version

Name:	Bronco Type 23_123.jpg
Views:	1
Size:	89.6 KB
ID:	85051Click image for larger version

Name:	Bronco Type 23_124.jpg
Views:	1
Size:	88.2 KB
ID:	85052
                  Because of the pump beneath the forward most servos are the only ones that could be lowered and of those two only one even further lower. It was necessary to get the clearance I needed.
                  Click image for larger version

Name:	Bronco Type 23_125.jpg
Views:	1
Size:	85.3 KB
ID:	85053
                  That was enough to get the swing I needed.
                  Click image for larger version

Name:	Bronco Type 23_126.jpg
Views:	1
Size:	85.9 KB
ID:	85054Click image for larger version

Name:	Bronco Type 23_127.jpg
Views:	1
Size:	88.8 KB
ID:	85055
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                  Comment

                  • crazygary
                    Captain
                    • Sep 2012
                    • 610

                    #39
                    Thank you, M!!

                    "Knowledge is good"!! ( Faber University, "Animal House"!)

                    Comment

                    • crazygary
                      Captain
                      • Sep 2012
                      • 610

                      #40
                      Wow, Tom!! Very interesting things here!

                      Kinda like trying to pack 10 pounds of groceries into a 3 pound bag!! Hah!!

                      "Inspirational Creativity"!! "Murphys Law" not withstanding!!

                      Excellent thread going!!! Liking it alot!!

                      Comment

                      • trout
                        Admiral
                        • Jul 2011
                        • 3545

                        #41
                        Thank you Gary!

                        Just a quick update, played with the servo arms and will need to trim only the longest one extending outward (just the last hole).

                        Click image for larger version

Name:	Bronco Type 23_128.jpg
Views:	1
Size:	91.5 KB
ID:	85070
                        A little RTV silicon placed on the side of the servo and pressed against the plate is enough to hold these servos in. The brackets supplied (that I needed to trim to fit) will prevent forward and backward motion and what little outward motion, the silicon will be more than enough to hold (at least that has been my experience).
                        Now to figure out were to put things? I am reusing some parts I have until I can purchase new because I want to get this in the water soon.
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment

                        • trout
                          Admiral
                          • Jul 2011
                          • 3545

                          #42
                          Attached the plane guards.
                          Aft
                          Click image for larger version

Name:	Bronco Type 23_129.jpg
Views:	1
Size:	111.9 KB
ID:	85087
                          then the bow
                          Click image for larger version

Name:	Bronco Type 23_130.jpg
Views:	1
Size:	108.0 KB
ID:	85088

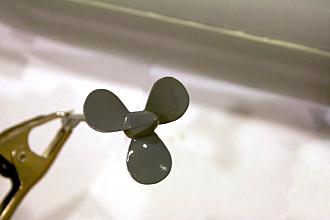

                          The prop was filed, sanded, and lightly polished. Then etched in ferric chloride. Now a primer coat....Time for all to dry.
                          Click image for larger version

Name:	Bronco Type 23_131.jpg
Views:	1
Size:	104.8 KB
ID:	85089
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment

                          • george
                            Captain
                            • Dec 2010
                            • 727

                            #43
                            Hello trout

                            Thank you for posting your build. Very helpful! I read in an earlier posting that you mention another builder: Albion, Koryu Type D build. I can`t find that. Could you post a link to it?

                            Thanks again for your posts, look forward to reading more and pictures.

                            George

                            Comment

                            • Albion
                              Captain
                              • Dec 2008
                              • 651

                              #44
                              Originally posted by george
                              Hello trout

                              Thank you for posting your build. Very helpful! I read in an earlier posting that you mention another builder: Albion, Koryu Type D build. I can`t find that. Could you post a link to it?

                              Thanks again for your posts, look forward to reading more and pictures.

                              George



                              Try these. Needs remembering that the Koryu is a big dry hull boat with a lot of mass, hence i needed a pretty substantial weight to move around. A smaller wet hull boat wont need as much technology. It also uses a single Piston tank which also affects the trim when the tank is neither completely full or empty.
                              Next time someone points out it takes 42 muscles to frown, point out it will only take 4 muscles to b1tch slap them if they tell you how mnay muscles you need to smile:pop

                              Comment

                              • trout
                                Admiral
                                • Jul 2011
                                • 3545

                                #45
                                Thank you George! Albion is really an accomplished builder.

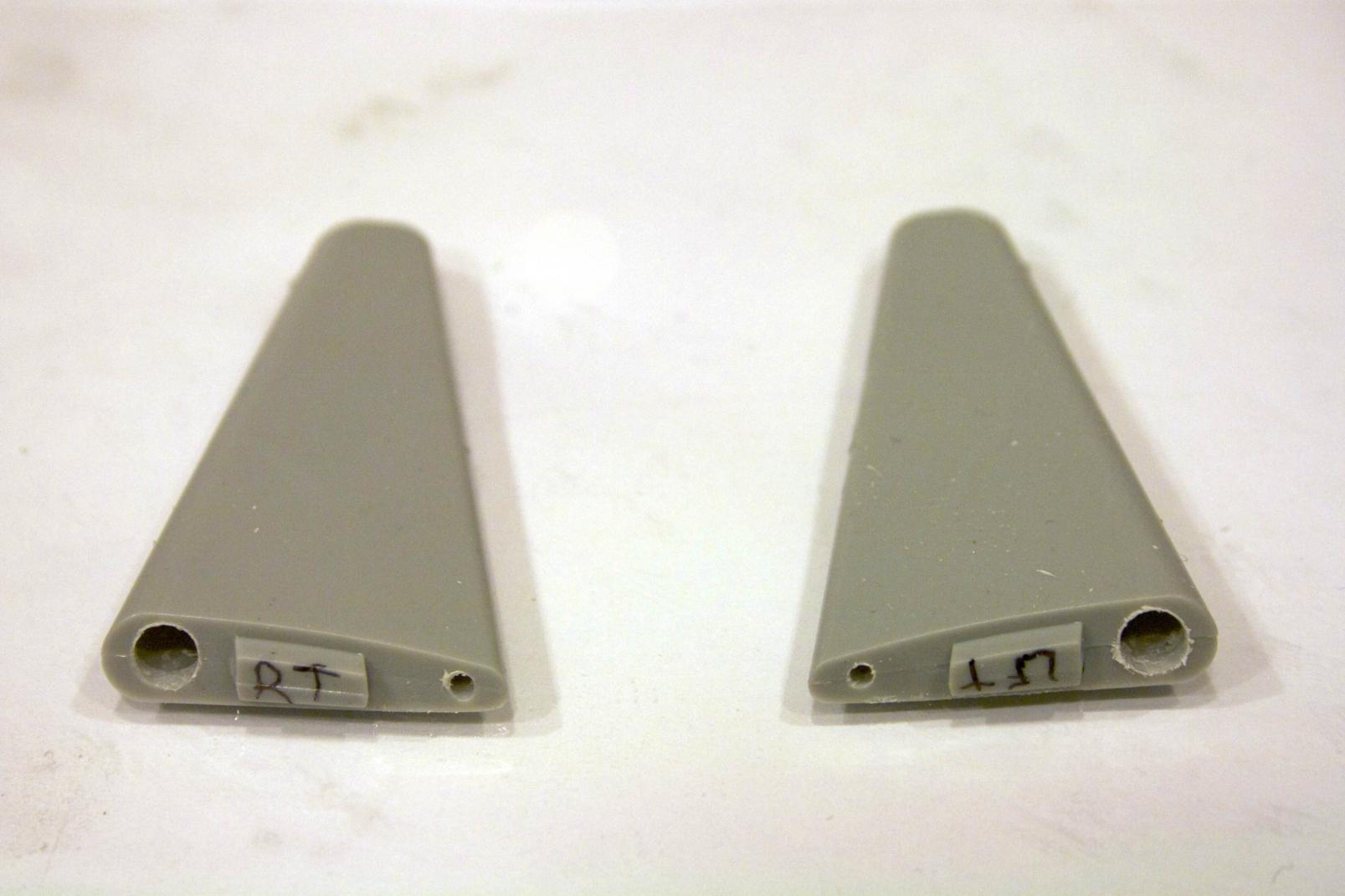

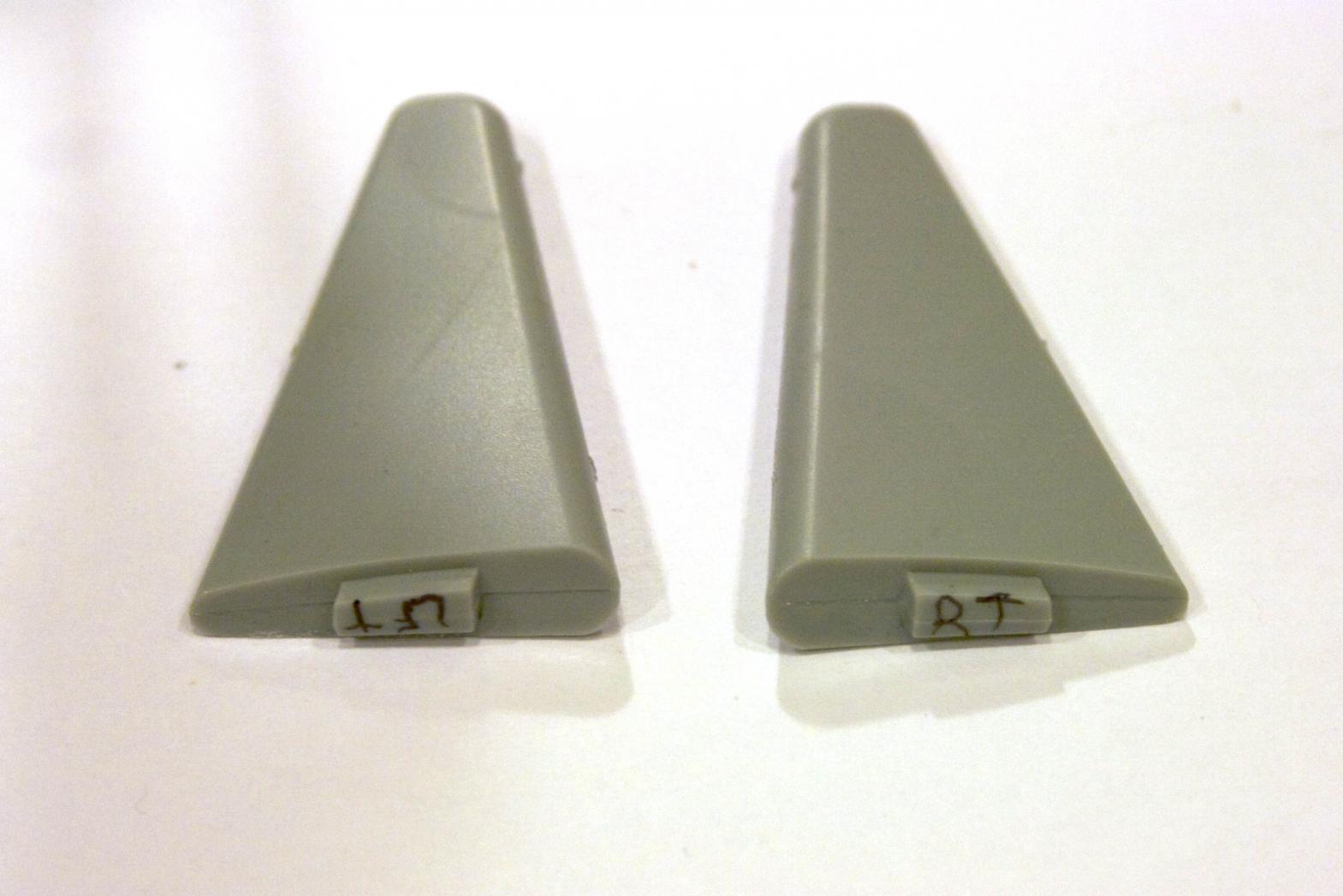

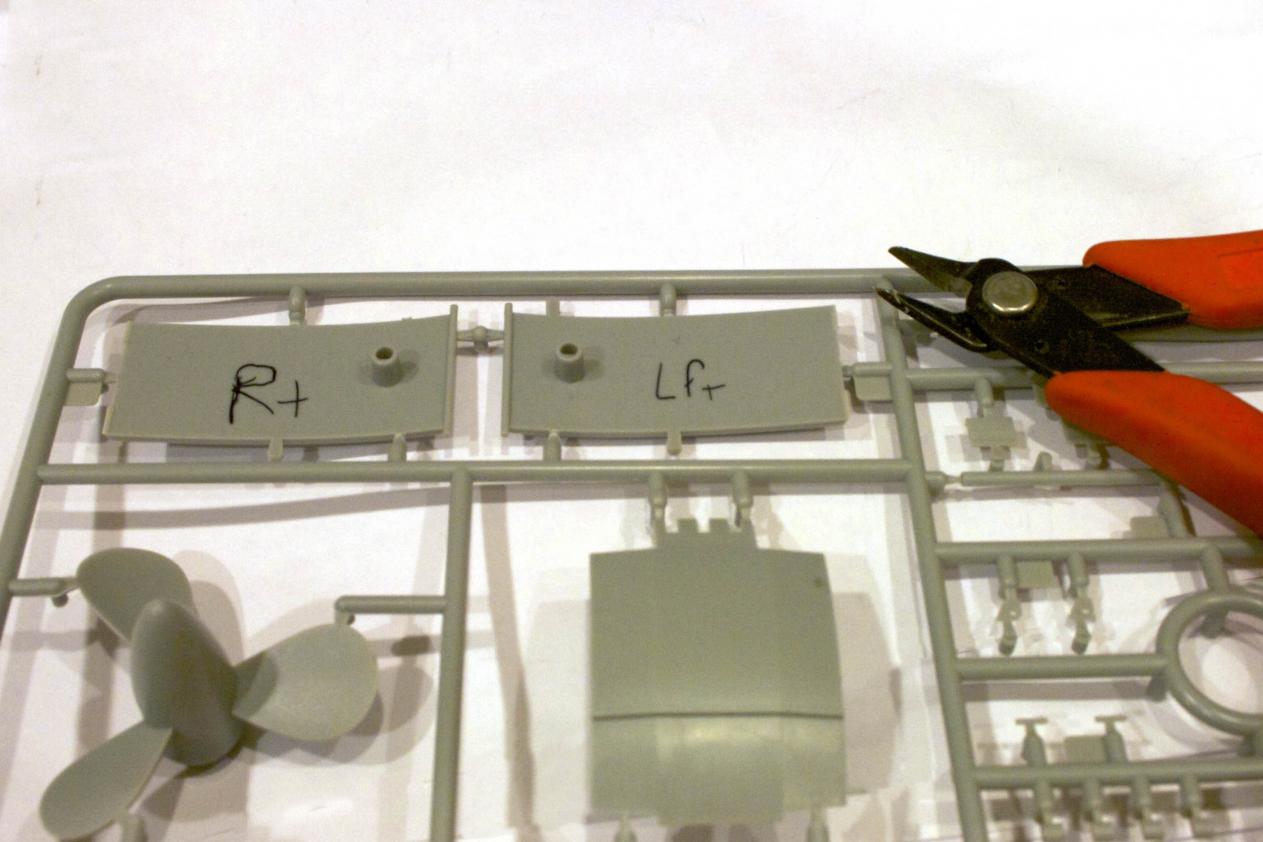

                                It makes sense to me to mark the parts. Especially when they are so close looking. Would one torpedo door work in the other side? Don't know, but I do not want to be in the position of tearing it apart (done that too many times before).
                                Click image for larger version

Name:	Bronco Type 23_132.jpg
Views:	1
Size:	90.6 KB
ID:	85112
                                Had I looked at the instructions earlier (like, oh I don't know - before putting the hulls together) I would have installed the torpedo doors first. Since I did not, we are at this point.
                                The port side was really easy because I could reach in from the starboard torpedo door opening to glue and make adjustments. I also left a slight proud fit for character. The door shows up slightly better.
                                Click image for larger version

Name:	Bronco Type 23_133.jpg
Views:	1
Size:	98.2 KB
ID:	85113
                                On the starboard side I cannot reach in from the port opening since it is now closed. What I did was use a little tape to pull the door out and held it there while the glue set up.
                                Click image for larger version

Name:	Bronco Type 23_134.jpg
Views:	1
Size:	96.9 KB
ID:	85114

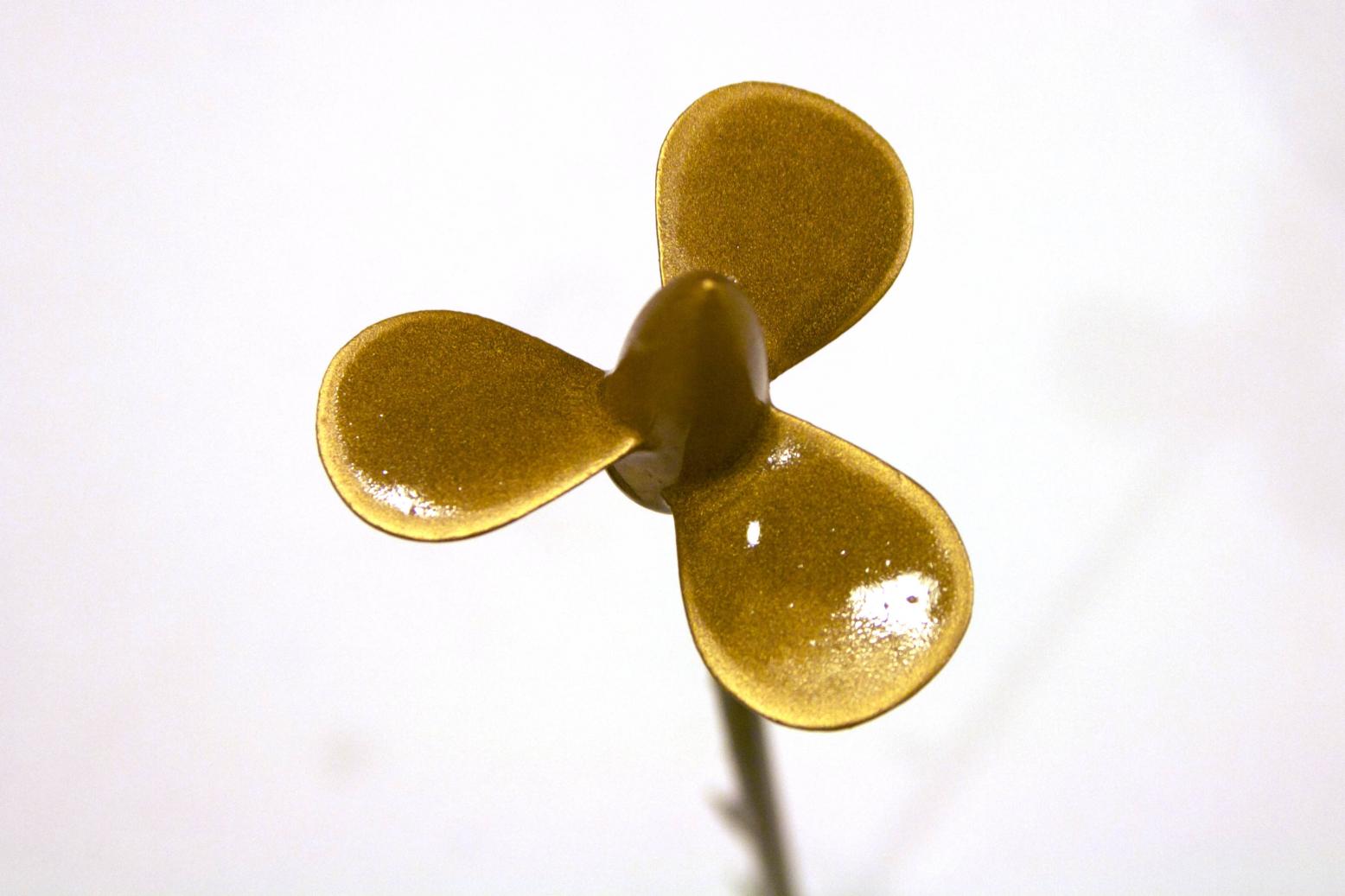

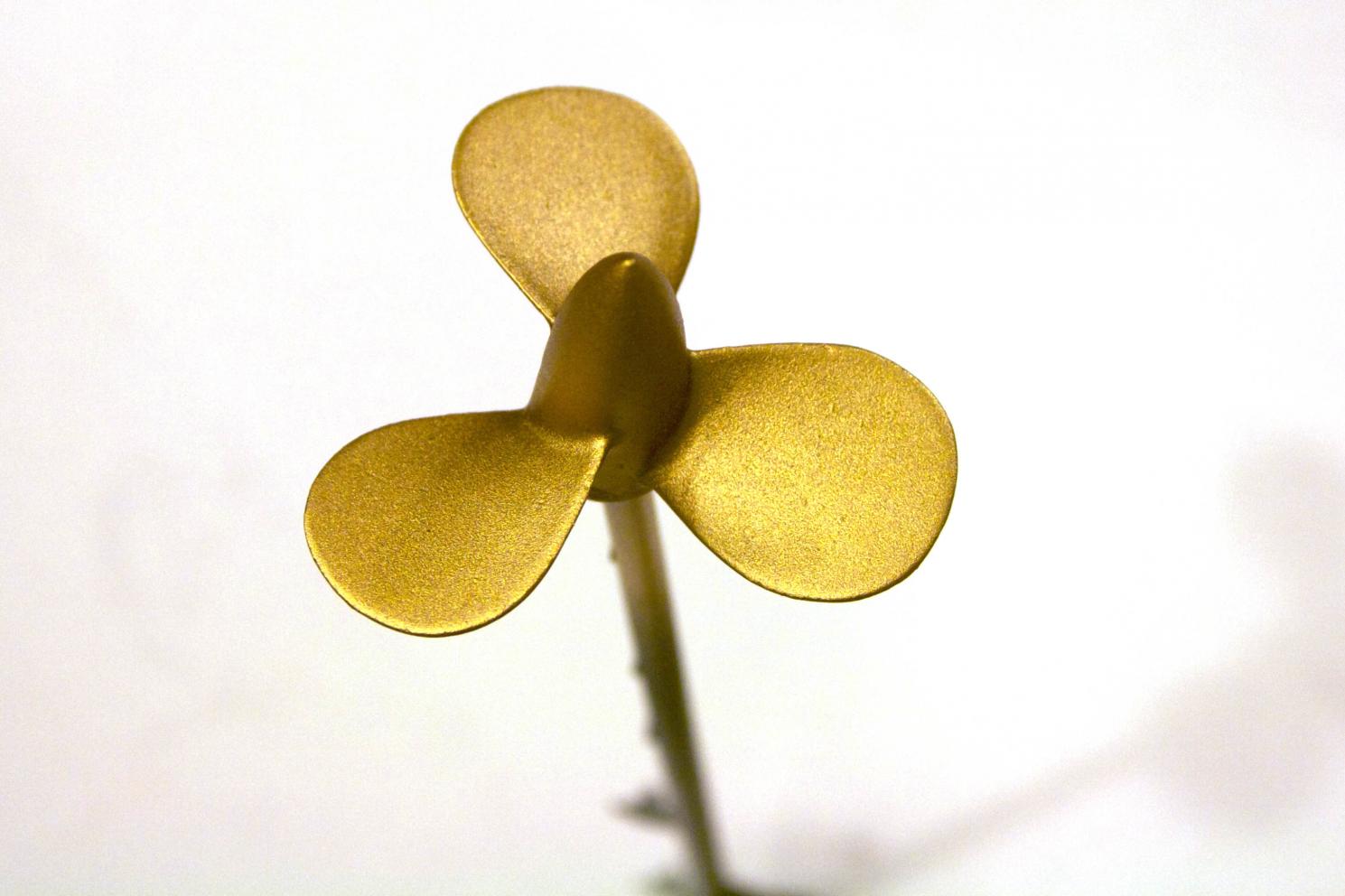

                                The propellor gets a gold coat. The two pictures are the same coat just the one on the left is freshly painted and the right is mostly dried.
                                Click image for larger version

Name:	Bronco Type 23_135.jpg
Views:	1
Size:	99.1 KB
ID:	85115Click image for larger version

Name:	Bronco Type 23_136.jpg
Views:	1
Size:	101.6 KB
ID:	85116
                                Sometimes watching paint dry is exciting. I will let the prop set for at least a day if not two and then add the bronze and gray flecks to weather up the prop.
                                Last edited by trout; 12-18-2013, 03:24 AM.
