Variable Ballast Tank

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Variable Ballast Tank

    Can an active variable ballast system like a water pump or piston be used for changing depth in lieu of dynamic surfaces ( dive planes)? Guess you'll still need active pitch control for any longitudinal instability.

    Can the KMC Depth Cruiser be used to control such variable ballast system? Using an ESC controlled pump instead of a servo controlled dive planes.
    Make it simple, make strong, make it work!

  • #2
    This is for those early submarines that lack proper dive planes or had anemic ones.

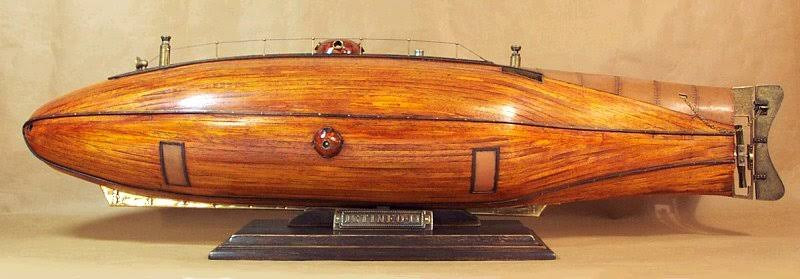

    Icteneo II

    Click image for larger version

Name:	images (1) (7).jpg
Views:	62
Size:	69.5 KB
ID:	166844 https://www.lowtechmagazine.com/2008...marines-1.html
    Last edited by redboat219; 11-15-2022, 01:13 AM.
    Make it simple, make strong, make it work!

    Comment


    • #3
      Originally posted by redboat219 View Post
      Can an active variable ballast system like a water pump or piston be used for changing depth in lieu of dynamic surfaces ( dive planes)? Guess you'll still need active pitch control for any longitudinal instability.

      Can the KMC Depth Cruiser be used to control such variable ballast system? Using an ESC controlled pump instead of a servo controlled dive planes.
      Romel,

      My observation! I think yes that a ballast system could be used in the place of dive planes! If the boat was weighted properly and with 2 ballast systems one more towards the bow and one to the stern and were independent of each other as to operation, and then speed would have to be involved to a certain degree as well.

      I would sure like to have some STL files on that sub!!

      Rob
      "Firemen can stand the heat"
      Last edited by rwtdiver; 11-15-2022, 02:15 AM.

      Comment


      • #4

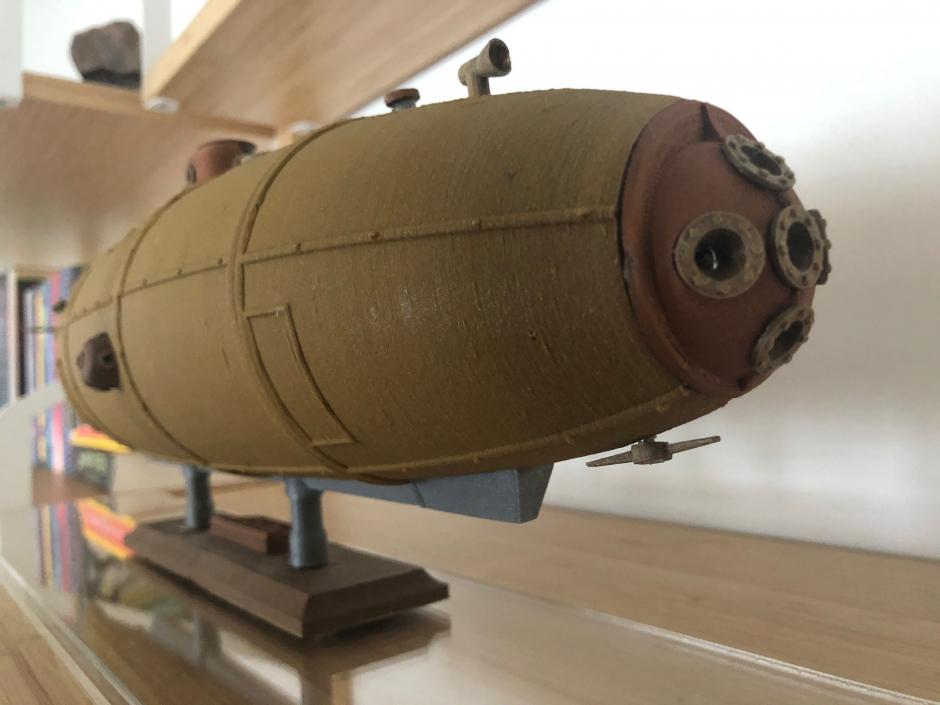

        Click image for larger version  Name:	print-and-build-your-own-model-kit-of-the-ictineo-ii-3d-model-bf74732b6a.jpg Views:	0 Size:	70.3 KB ID:	166848

        Rob
        found this

        https://www.lowtechmagazine.com/2008...marines-1.html

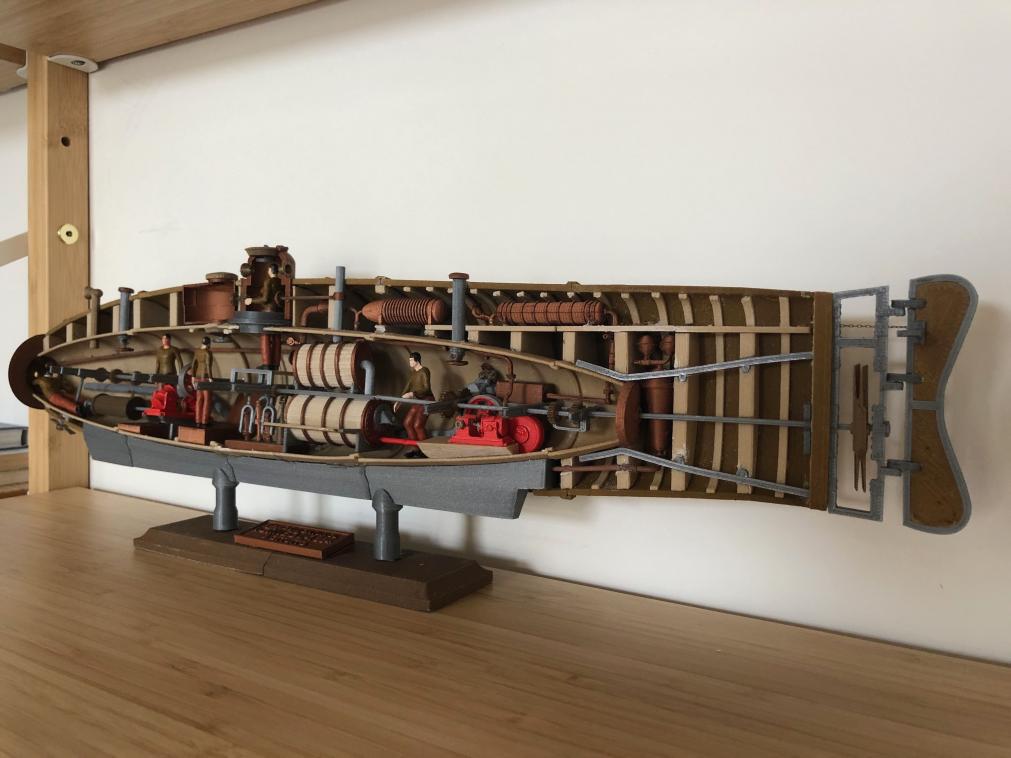

        Meant to be a static cut away model with one side open to show interior. Maybe it would be possible to play around with the files to print a mirror image of the starboard side to make a full hull. Click image for larger version  Name:	print-and-build-your-own-model-kit-of-the-ictineo-ii-3d-model-8ec27d1a57.jpg Views:	0 Size:	49.2 KB ID:	166847
        Last edited by redboat219; 11-15-2022, 07:02 AM.
        Make it simple, make strong, make it work!

        Comment


        • #5

          Make it simple, make strong, make it work!

          Comment


          • #6
            I was able to see both I & II in Barcelona. The technoligy in II was and still is mind blowing!!

            Comment


            • #7
              STL file available https://www.cgtrader.com/3d-print-mo...the-ictineo-ii
              Make it simple, make strong, make it work!

              Comment


              • #8
                Most slicers will allow you to mirror a part on the plate

                Comment


                • #9

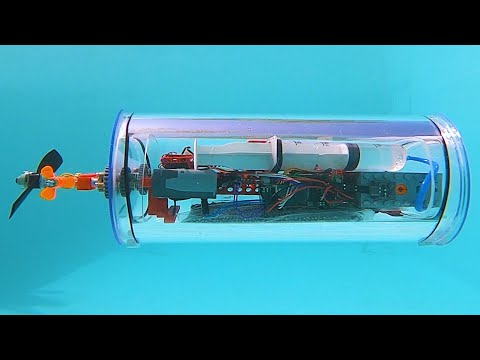

                  Going back to my first question, using a variable ballast tank instead of dive planes to change depth - see video.

                  Just leaves the 2nd question.
                  Can the depth cruiser control a variable ballast system?

                  Last edited by redboat219; 11-15-2022, 08:58 AM.
                  Make it simple, make strong, make it work!

                  Comment


                  • #10
                    I would imagine it all depends on how many amps are required to change the displacement. A simple vent and blow, I'd say sure -but a screw jack system would need a go between relay or servo (operative words are " I would Imagine")...BG

                    Comment


                    • #11
                      Originally posted by redboat219 View Post
                      This is for those early submarines that lack proper dive planes or had anemic ones.

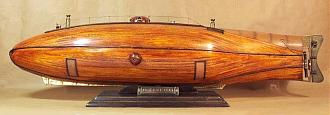

                      Icteneo II

                      Click image for larger version

Name:	images (1) (7).jpg
Views:	62
Size:	69.5 KB
ID:	166844 https://www.lowtechmagazine.com/2008...marines-1.html

                      Wow Rob, love it! It has "Steampunk" written all over it! This would have fit right in as a Sub in the old, graphic adventure/puzzle video game, "Myst".

                      Very cool.
                      v/r "Sub" Ed

                      Silent Service "Cold War" Veteran (The good years!)
                      NEVER underestimate the power of a Sailor who served aboard a submarine.
                      USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

                      Comment


                      • #12
                        ....and to the question? Why not? I'm always the first to say build to your requirements, not just to an idea. Here you are presented with a perfect example! People make some wonderful things happen!


                        v/r "Sub" Ed

                        Silent Service "Cold War" Veteran (The good years!)
                        NEVER underestimate the power of a Sailor who served aboard a submarine.
                        USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

                        Comment


                        • #13
                          There actually was a sub on rails in myst III-exile.

                          Loved those games, until they had a 3d-environment...

                          Comment


                          • #14
                            Originally posted by redboat219 View Post
                            Click image for larger version Name:	print-and-build-your-own-model-kit-of-the-ictineo-ii-3d-model-bf74732b6a.jpg Views:	0 Size:	70.3 KB ID:	166848

                            Rob
                            found this

                            https://www.lowtechmagazine.com/2008...marines-1.html

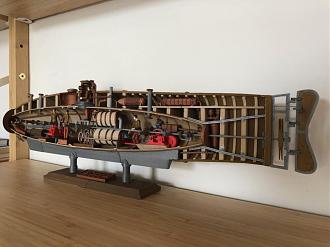

                            Meant to be a static cut away model with one side open to show interior. Maybe it would be possible to play around with the files to print a mirror image of the starboard side to make a full hull. Click image for larger version Name:	print-and-build-your-own-model-kit-of-the-ictineo-ii-3d-model-8ec27d1a57.jpg Views:	0 Size:	49.2 KB ID:	166847
                            Thanks for the info Romel!

                            I did see this on CGtrader, and can now see a possible way to print a submarine here! I could print two halves to go together to form up a complete hull! WOW! Yes, this would work! I think it would be worth the $98.00 to get these files. I would not only attempt to build a full operational submarine, but also build the kit as designed as a model.

                            WOW! Here we go! Thanks again Romel!

                            Rob
                            "Firemen can stand the heat"

                            Comment


                            • #15
                              Originally posted by QuarterMaster View Post
                              ....and to the question? Why not? I'm always the first to say build to your requirements, not just to an idea. Here you are presented with a perfect example! People make some wonderful things happen!

                              Ed,

                              In some respects, you and I really think alike! You like stepping outside the box with your building subs and for sure when it comes to the radio systems that you have set up. I can really feel a cool build here!

                              Rob
                              "Firemen can stand the heat"

                              Comment
