Russian Alfa Class

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Originally posted by rwtdiver
    WOW! Not sure how I am to take those remarks!? Moving on!!

    Worked a little HARDER and got the upper and lower rudders and the dive plains all working on the 1:96 scale Alfa!



    Now I will have a 1:96 scale and a 1:72 scale Alfa building at the same time!!

    Rob
    "Firemen can stand the heat"
    Excellent! If you can get linkages to work in the very tight confines of a 1/96 ALFA, you should never again be intimidated by the job of inter-connecting stern control surfaces, no matter the subject or size.

    If you get cocky, try this:








    David
    Resident Luddite

    Comment


    • #17

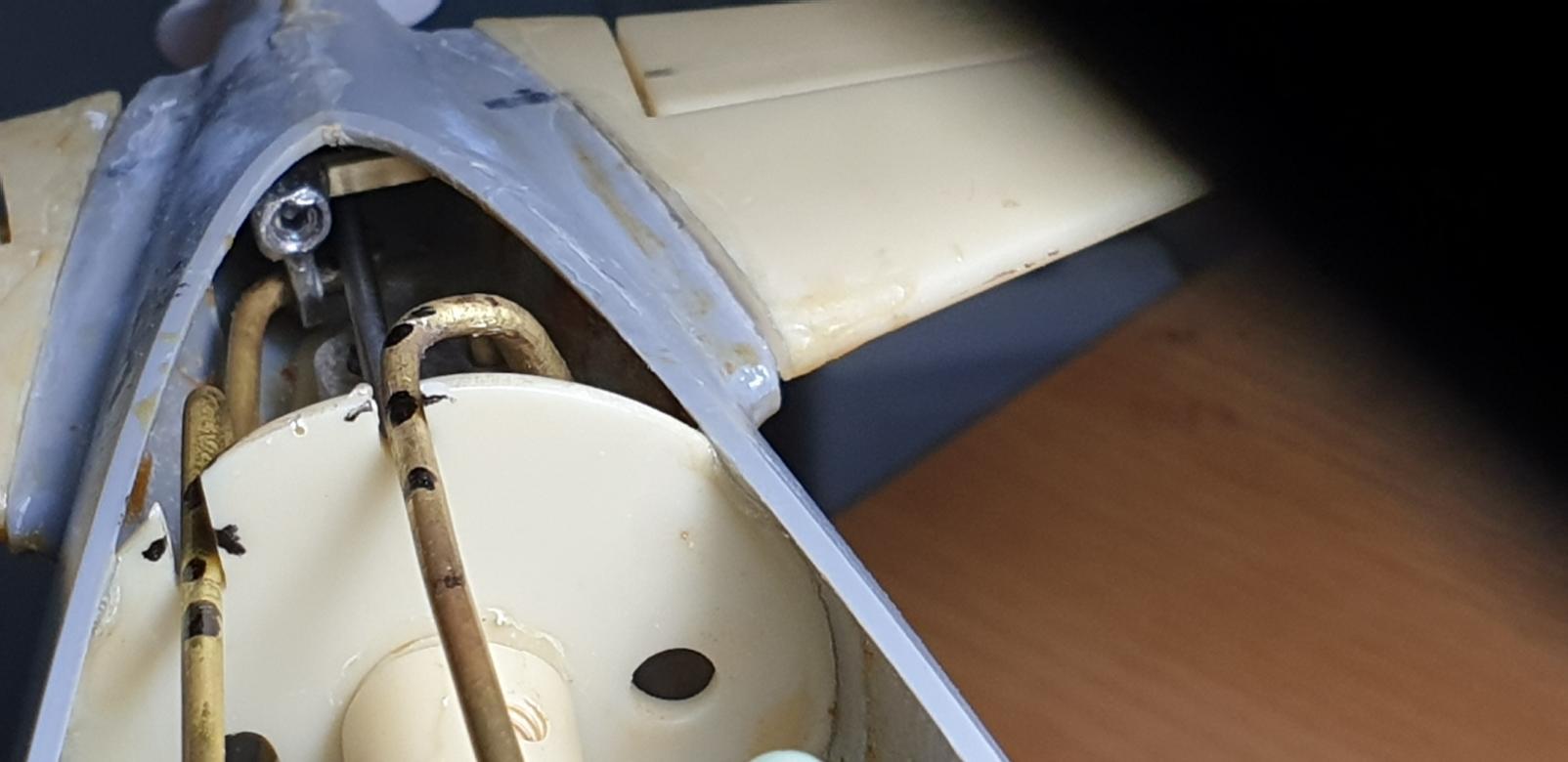

      Try doing that with a thrust bearing bulkhead installed Click image for larger version  Name:	20210725_155928.jpg Views:	0 Size:	82.6 KB ID:	152498
      Last edited by redboat219; 08-16-2021, 11:07 PM.
      Make it simple, make strong, make it work!

      Comment


      • #18
        Is the hull the typical Z split? If so should the bow be glued to the upper hull sections?

        Comment


        • #19
          Ahh...gotcha.

          Comment


          • #20
            It's not the reinforced areas you need to worry about as much when it comes to heat and PLA. The less reinforced sections, (especially the areas surrounding the MBT grates) will deform very easily, and ripple outwards circumferentially. Don't ask me how I know . . .

            Comment


            • #21
              Print another one in 1/144 and you can then nestle them one in another like those Matryoshka dolls. Lol.
              Make it simple, make strong, make it work!

              Comment


              • #22
                To me, the Alpha Class is just boring. There's been so many of them done. Give me the November, Hotel or the Yankee Class any day.

                Comment


                • #23

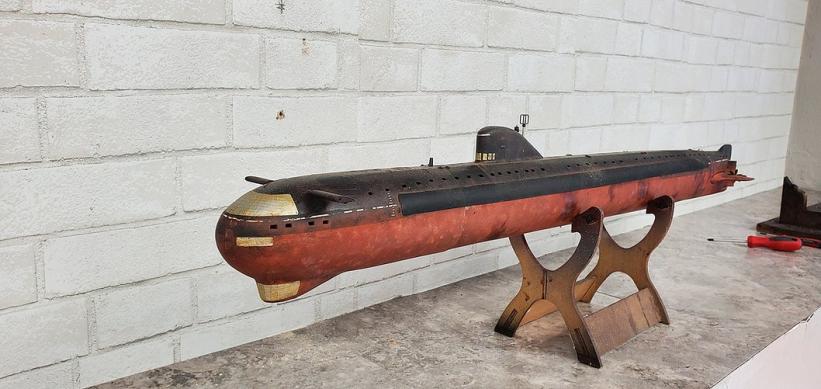

                  Click image for larger version

Name:	image_48311.jpg
Views:	149
Size:	51.8 KB
ID:	152656
                  I happen to have a built up 1/96 November for sale in my shop! :)

                  https://www.rc-submarine.com/product...-finished-hull

                  Comment


                  • #24

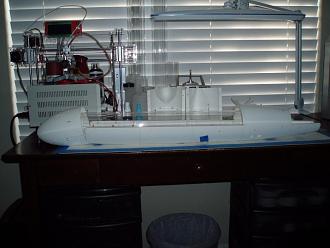

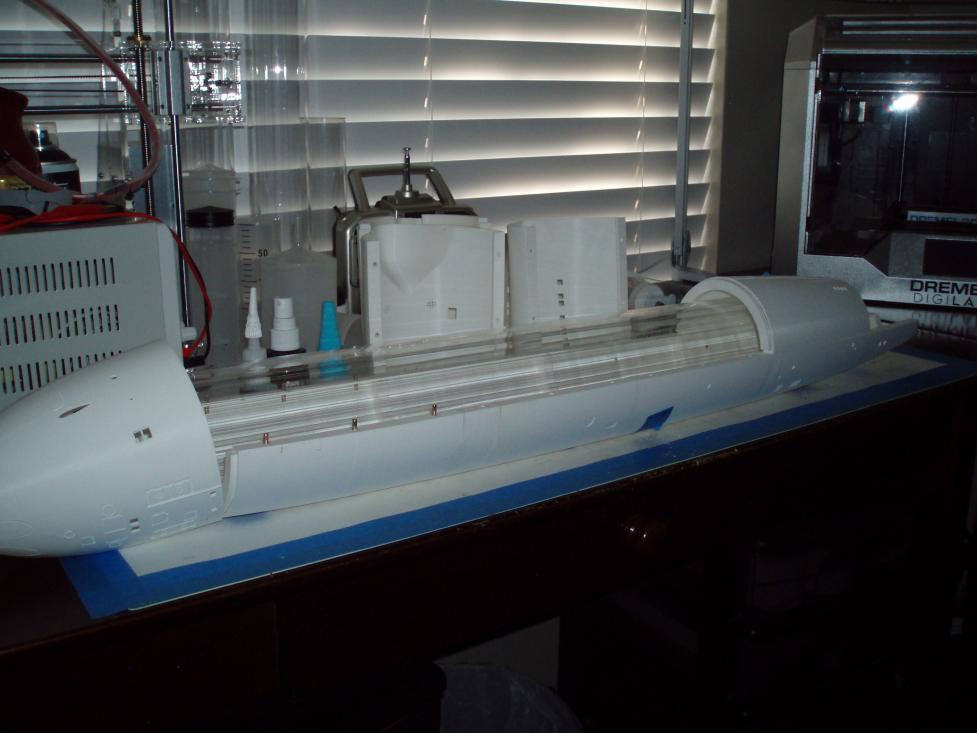

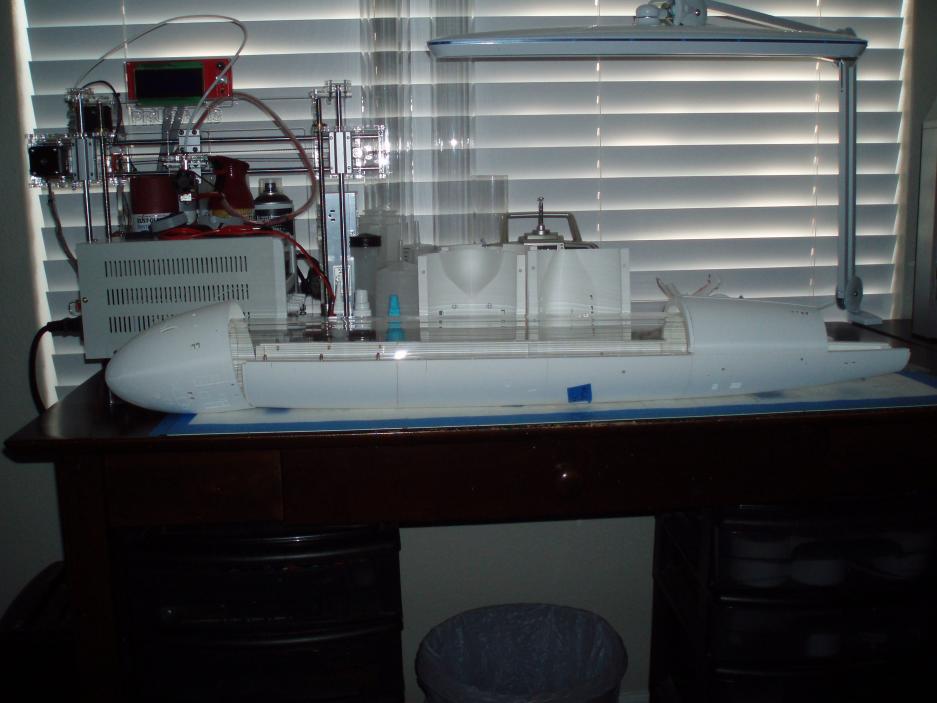

                    I have finally finished up the 3D printed roughly 1:72 scale Alfa!

                    Click image for larger version  Name:	Alfa Boat 4.jpg Views:	0 Size:	66.3 KB ID:	152822Click image for larger version  Name:	Alfa Boat 5.jpg Views:	0 Size:	64.2 KB ID:	152823

                    As I stated before, this is just me messing around with my own off the wall design! The files for this boat hull are from Nautilus Drydocks 3D files of the 1:96 scale Alfa, which I have built! I am going to be using a 3.5" WTC cylinder, and using my own design for a piston type ballast system! This boat is completely scratch built and not a true 1:72 scale! I am not going to explain how I do this build! But, I will make sure to have lots of photos as I go with it.

                    Rob

                    "Firemen can stand the heat"

                    Special Note: I am going to move ALL my builds to one build blog in this forum! NOTE: New build blog: "Unorthodox Submarine Building"
                    Last edited by rwtdiver; 09-11-2021, 12:03 PM.

                    Comment


                    • #25

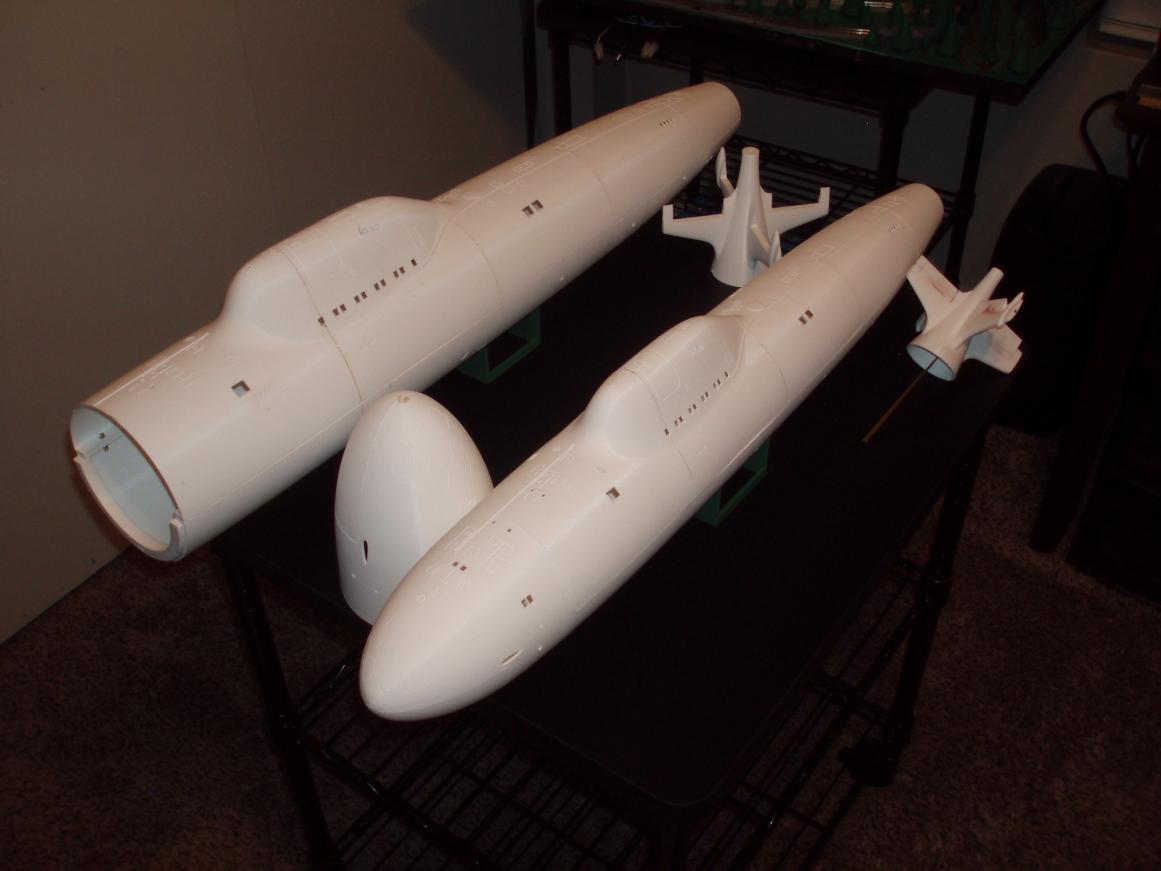

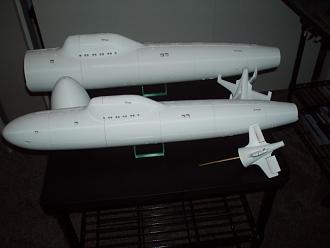

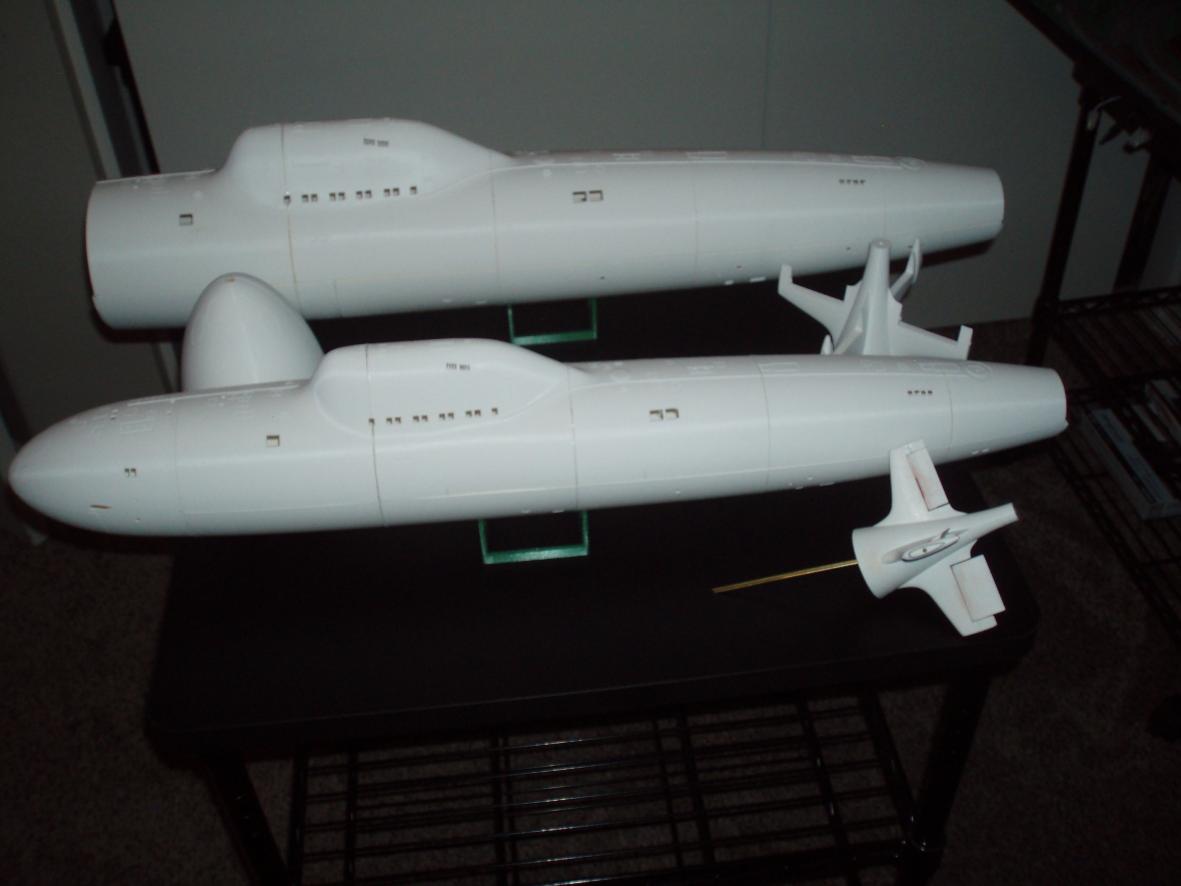

                      Today I finished up the two Alfa hulls!

                      Click image for larger version  Name:	Alfa Boats.jpg Views:	65 Size:	56.8 KB ID:	153016Click image for larger version  Name:	Alfa 1 & 2.jpg Views:	58 Size:	59.0 KB ID:	153017

                      Next up is to fabricate the stern linkages (upper & lower rudder and dive planes) for the 1:72 scale, then I will fabricate the bow dive plane linkage system for both boats! The bow plane 3D files came out small, so I will be enlarging them a little off scale to enhance there operation!

                      Rob
                      "Firemen can stand the heat"
                      Last edited by rwtdiver; 09-11-2021, 12:03 PM.

                      Comment


                      • #26
                        Off to a good start Rob! The Alpha is one of my all-time favorites. The Russians really pushed the technological envelope with this project at a time when we had no torpedoes to stop this thing (unless you could get in a close trailing position and launch before they detected the weapon.)

                        I am extensively changing some aspects of this model. The joints between T2/T3 use a single frame, instead of 3 for a larger bonding surface. T3/T4 will get the same treatment. I've also increased the thickness of the frames from 7.5 to 12mm, which not only adds more structural integrity to the bond joint but significantly increases the size of the "lip" when aligning the hulls. I'm a big believer in index marks as well for precision alignment.

                        My references show a much longer bow plane, which almost doubles the size; I started added trim tabs to them last night while overhauling the bow, which I reduced the taper a bit on and added more topside to. In addition, the bow planes are relocated lower, rather than near the center of the sides.

                        Mesh-wise, there is a lack of geometric symmetry on all parts, making mods a lot more work but the end result is worth the effort and makes later changes much simpler. That's one of the huge differences between modeling in CAD and modeling in a straight 3D environment where the mesh is directly manipulated. Once a CAD program does the STL conversion for printing, the mesh gets completely asymmetrical (The measurements are correct, but the geometry is out of whack.) Re-building the mesh puts this right and the subsequent STL conversion keeps both the mesh symmetrical and measurements as intended. A lot of the scribed details are not perpendicular to the faces they're placed; in the case of the bow sonar dome, the depth varies in multiple places. This is not really noticeable by eye, but it's the kind of issue I try to avoid in my modeling - all depths stay equal.

                        There are very few sources of submarine modeling-specific information available for those who want to make their own hulls. If there's enough interest, I'll create a modeling series using Fusion 360 and my 3D modeling software together describing how to optimize a mesh for easier/faster printing at some point. I think now, more than ever it would be beneficial to give people another resource to learn about the foundations of 3D modeling/printing to help them explore other aspects of the hobby and allow them to make changes when desired. It isn't a skill that is learned quickly or easily; there's a lot of time and effort required to get good at it, but for simple things like designing your own endcaps or control surfaces, those aren't too difficult. So while it isn't for everyone, I'm sure some would benefit from it.
                        Last edited by CC Clarke; 09-03-2021, 11:38 AM.

                        Comment


                        • #27
                          Originally posted by CC Clarke View Post
                          There are very few sources of submarine modeling-specific information available for those who want to make their own hulls. If there's enough interest, I'll create a modeling series using Fusion 360 and my 3D modeling software together describing how to optimize a mesh for easier/faster printing at some point. I think now, more than ever it would be beneficial to give people another resource to learn about the foundations of 3D modeling/printing to help them explore other aspects of the hobby and allow them to make changes when desired. It isn't a skill that is learned quickly or easily; there's a lot of time and effort required to get good at it, but for simple things like designing your own endcaps or control surfaces, those aren't too difficult. So while it isn't for everyone, I'm sure some would benefit from it.
                          YES, a series like that would be so helpful!
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment


                          • #28
                            Originally posted by trout View Post

                            YES, a series like that would be so helpful!
                            I don't want to thread-jack here, so if someone starts a new thread asking for specifics of what they would like to learn, and there's enough interest, I'll begin work on a beginner series starting with modeling and applying it toward 3D printing as the end result. Fusion 360 is preferred because it's powerful and free, but is not the only program I use to create 3D models. There are multiple modeling techniques and most importantly, no one right way to create anything.

                            Comment


                            • #29
                              Originally posted by CC Clarke View Post

                              I don't want to thread-jack here, so if someone starts a new thread asking for specifics of what they would like to learn, and there's enough interest, I'll begin work on a beginner series starting with modeling and applying it toward 3D printing as the end result. Fusion 360 is preferred because it's powerful and free, but is not the only program I use to create 3D models. There are multiple modeling techniques and most importantly, no one right way to create anything.
                              I would be in for that. What should it be called?

                              Comment


                              • #30
                                Originally posted by RCJetDude View Post

                                I would be in for that. What should it be called?
                                CC Clarke,

                                Thread jacking is not a problem here, and if this Alfa boat is one of your favorites, it may be an interesting side by side look at the two methods of printing! Non the less I think you have an idea that would show there are other ways to enhance the design and building methods used in our hobby!

                                I may be in someway past the point of truly understanding and comprehending these new design techniques (old dog new tricks) but I for one would say go for it!

                                Rob
                                "Firemen can stand the heat"
                                Last edited by rwtdiver; 09-11-2021, 12:04 PM.

                                Comment
