Russian Alfa Class

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Russian Alfa Class

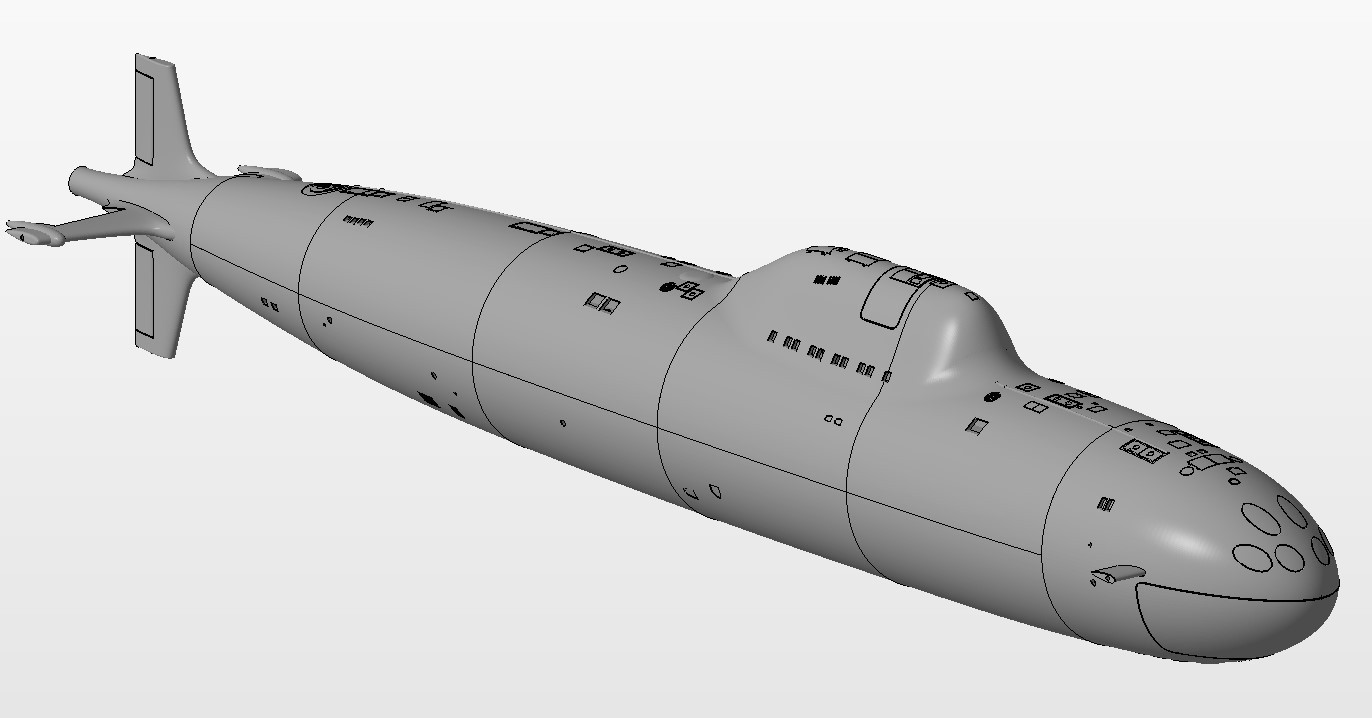

    Click image for larger version

Name:	Russian Alfa Class #1.jpg
Views:	169
Size:	77.1 KB
ID:	152820
    Last edited by rwtdiver; 08-27-2021, 08:45 PM.

  • #2
    Will what you are lifting out of the water weigh more than 200 grams? Metric is so cool for us here, 1cc of water equals 1 gram of weight. 200 grams is around 7 ounces.
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment


    • #3
      Remember, you want the top of the cylinder under the water line or it is working against you instead of helping. Also, it is nice to have room around it for foam at the water line.

      Comment


      • #4
        You don't need to guess anything.

        Displacement is key when sizing ballast tanks, not weight. Water weighs 1kg-1000g for every 1L-1000ml of displacement, and will vary by less than 1% depending on temperature and mineral content.

        We size ballast tanks based on the amount of water displaced. Most unreinforced plastics e.g. ABS, polystyrene, pvc tend to have the same mass as water, but filled plastics and composites like glassfibre reinforced hulls are denser. If you use weight then you end up with a tank which is too big. PLA is a pretty dense thermoplastic.

        With conventional precast hulls, we don't tend to know the volume above the waterline, and with hand laid fibreglass, they can vary from hull to hull, so it's best to use empirical methods to find out the hull displacement. The method for doing that is straightforward, trim the boat for neutral buoyancy (or close to it), then use foam blocks to bring the boat to the required waterline. The volume of foam blocks will equal the displacement of the hull- or close enough, the weight of the foam itself skews things a little.

        With a 3d printed file we have no such worries, you can split the boat at the intended waterline in CAD, then check the properties to find out the volume of the structure above the waterline- easy peasy lemon squeezy .
        Last edited by Subculture; 08-05-2021, 04:17 AM.
        DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

        Comment


        • #5
          Can anyone who has set up a boat tell us if this sound right.

          I sliced the model at the waterline and got a volume of 5.782 cu in (94747.16 cu mm). This does not include the rudder or bulkheads.

          Randy

          Comment


          • #6
            Originally posted by RanSan View Post
            Can anyone who has set up a boat tell us if this sound right.

            I sliced the model at the waterline and got a volume of 5.782 cu in (94747.16 cu mm). This does not include the rudder or bulkheads.

            Randy
            Include ALL structures above water line open to sea.

            David
            Resident Luddite

            Comment


            • #7
              That's a smidge under 100ml or 3.5 ounces. Small tank if correct, those prints must be quite a thin cross section? Add on ten per cent to account for changing densities if you want the capacity to trim for different water densities.
              DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

              Comment


              • #8
                Originally posted by rwtdiver
                Sorry you guys! I did not mean to come off disrespectful to any of you! Sometimes with this hobby you can really get frustrated! Certainly did not mean to take out my frustrations on any of you! I understand you are just trying to help, and I do appreciate it!



                Rob
                "Firemen can stand the heat"
                No sweat.

                Hey, Rob, I'm with you, pal. Basically I'm a non-math-seat-of-your-pants engineer. But, once you decide to do something professionally that requires some math and mechanical skills -- if you want the gig bad enough, you apply yourself and learn the math, and figure out the mechanics of those things you will be responsible for. Had to happen when you took on fire-fighting. And it happened to me when I became determined to qualify in submarines, and later join the diving community -- there ARE absolutes in those games!

                Thing is, with a hobby, you can flop around and do things so-so. No one dies or gets hurt (now that I think about that, I remember that I almost killed Gene Berger with some bad advice... but that's another story). Hobby mistakes are classroom lessons, not life altering tragedy. You lose a model submarine? So what, you still go home at night.

                Your ballast tank, if its close enough to get the boat under... good enough. In time you will come to realize the utility of a few basic principles, such as Andy posted here recently, and will learn to apply them to make your road just a little less rocky.

                David
                The Horrible
                Resident Luddite

                Comment


                • #9
                  The piston tank system is usually the simplest system of all. It generally has the fewest components and is very reliable in use. Many consider it complex, because unless the boat is large enough to house an Engel piston tank, you have to make it yourself.

                  There's no mathematics needed for this area. Essentially what we are talking about is a law of physics first set down by a chap much older than any of us here- Archimedes of Syracuse (circa 200bc).
                  DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

                  Comment


                  • #10
                    Yes, this was orignially designed for 72nd scale, so thicker walls, but I've printed in 96t and the bulkheads make it plenty strong, even with the thinner walls.

                    Bob

                    Comment


                    • #11
                      Originally posted by rwtdiver
                      Today I finished up all the file prints, and have moved on to the stern section! I have made the decision to go full out on this boat! (Yes it will DIVE) I am totally ready for the plunge. (No pun intended)



                      I have the brass pieces cut, and ready to install the sleeves and the shafts.





                      As you can see, the bottom rudder is larger (1/2" wide to 1 1/8" wide! I know this is not to scale, but i wanted to increase the boats turning radius for use in my pool.

                      Rob
                      "Firemen can stand the heat"
                      Good call. Enlarging that rudder was the right move. This boat will be a screamer. Set your transmitters ch-3 end-point to 30% ahead-astern for starters. Increase as you get more cocky with this little rocket.

                      David
                      Resident Luddite

                      Comment


                      • #12
                        Why don't I just send you a white-metal propeller designed for a 1/96 ALFA?

                        Click image for larger version

Name:	1_kSCNnkkVpUp-jk6nRy-QQg[1] - Copy.jpg
Views:	256
Size:	55.3 KB
ID:	152369Click image for larger version

Name:	IMG_0155.JPG
Views:	246
Size:	62.4 KB
ID:	152370Click image for larger version

Name:	IMG_0225.JPG
Views:	248
Size:	48.2 KB
ID:	152371Click image for larger version

Name:	IMG_0242.JPG
Views:	253
Size:	44.5 KB
ID:	152372Click image for larger version

Name:	IMG_0249.JPG
Views:	244
Size:	37.7 KB
ID:	152373Click image for larger version

Name:	IMG_0245.JPG
Views:	246
Size:	58.3 KB
ID:	152374Click image for larger version

Name:	IMG_0176.JPG
Views:	242
Size:	35.3 KB
ID:	152375
                        Resident Luddite

                        Comment


                        • #13
                          Originally posted by rwtdiver

                          the bottom rudder is larger (1/2" wide to 1 1/8" wide!, wanted to increase the boats turning radius for use in my pool.

                          Rob
                          "Firemen can stand the heat"

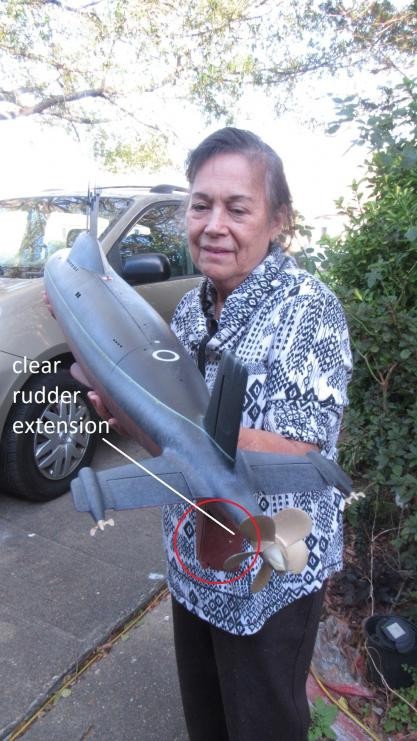

                          As David mentioned in your Russian Borei build, you could use a clear rudder extension to increase you rudder's turning effect but keep everything "in scale".
                          Click image for larger version  Name:	image_47680.jpg Views:	0 Size:	94.7 KB ID:	152377
                          Make it simple, make strong, make it work!

                          Comment


                          • #14
                            So, darling, you don't want to go out with me... is your Mom available tonight?

                            Hey! Whatever works, pal. Fortune smiled on the propeller front I see.

                            David
                            Resident Luddite

                            Comment


                            • #15
                              Success! Nicely done Rob. That does look tight in there.

                              Comment
