  • rwtdiver
    Vice Admiral
    • Feb 2019
    • 1770

    #76
    Originally posted by redboat219

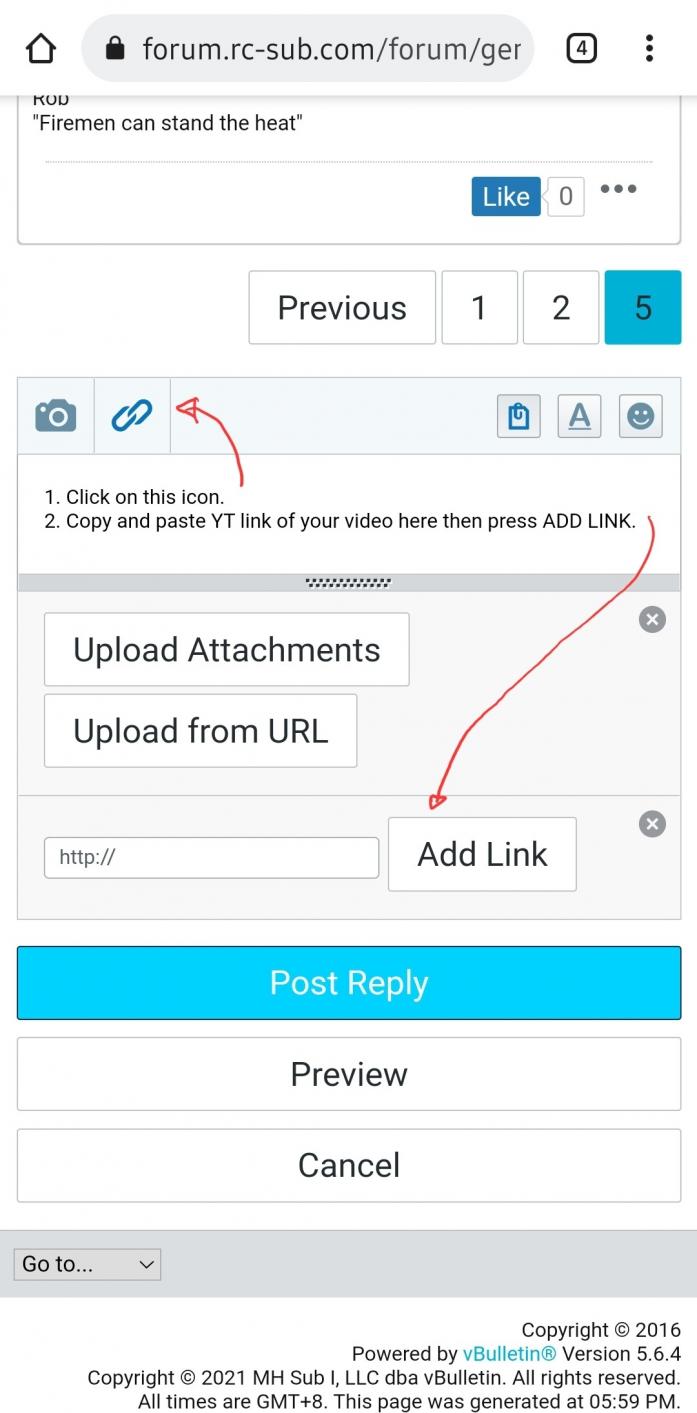

    Click image for larger version

Name:	Screenshot_20210915-170559_Chrome.jpg
Views:	353
Size:	87.7 KB
ID:	153465
    Thanks Romel,

    Great information! I will make a copy of this and use it from now on! May go back in and edit the two videos I just posted! Thanks again for the help!!

    Rob
    "Firemen can stand the heat"

    Comment

    • rwtdiver
      Vice Admiral
      • Feb 2019
      • 1770

      #77
      I have another question?

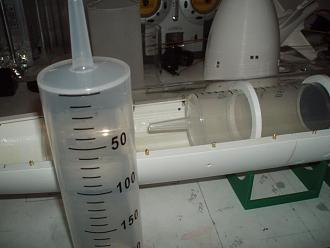

      Click image for larger version  Name:	Piston inlet.jpg Views:	0 Size:	60.1 KB ID:	153498

      Does it make any difference if the water inlet is in the center of piston tank or if it is located near the bottom of the tank! I have seen some tanks where the water inlet/outlet is located nearer the bottom of the tank! Just don't know if it would draw in more water from the bottom or if it does not make any difference!? Any thoughts would be appreciated!

      Rob
      "Firemen can stand the heat"
      Last edited by rwtdiver; 09-16-2021, 02:22 AM.

      Comment

      • trout
        Admiral
        • Jul 2011
        • 3545

        #78
        For drawing in water, I do not think it makes a difference. I place my inlet near the bottom to allow draining on the bench, but it depends on if that makes the most sense with all the other devices. Sometimes in the center just is easier for piping. The thing that is important is the inlet needs to be large enough to move the water the piston pushes. In other words, if it ia too small the piston will push, but there will be a lot of resistance because the water cannot get out quick enough.This will cause the motor to work harder than it needs to.
        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

        Comment

        • rwtdiver
          Vice Admiral
          • Feb 2019
          • 1770

          #79
          Originally posted by trout
          For drawing in water, I do not think it makes a difference. I place my inlet near the bottom to allow draining on the bench, but it depends on if that makes the most sense with all the other devices. Sometimes in the center just is easier for piping. The thing that is important is the inlet needs to be large enough to move the water the piston pushes. In other words, if it ia too small the piston will push, but there will be a lot of resistance because the water cannot get out quick enough.This will cause the motor to work harder than it needs to.
          If I understand you correctly Tom, it's more important that the inlet/outlet opening is large enough to move the water in and out to create less resistance than where the opening is located!? I understand your point!
          I think I will leave the opening where it is located (center of tank) at this point. I will install a fitting that will give me at least a full 1/4" ID for water movement!

          Thanks Tom, I appreciate your expertise!

          Rob
          "Firemen can stand the heat"

          Comment

          • rwtdiver
            Vice Admiral
            • Feb 2019
            • 1770

            #80
            Another question on my Alfa 1:96 scale build!

            What size drive motor (propulsion) in a brushed motor, (I am using 3s 11.1volt lipo battery) would be recommended?

            Rob
            "Firemen can stand the heat"

            Comment

            • redboat219
              Admiral
              • Dec 2008
              • 2735

              #81
              Most common rule is propeller diameter = brushed motor can diameter.
              Make it simple, make strong, make it work!

              Comment

              • Subculture
                Admiral
                • Feb 2009
                • 2119

                #82
                The can size can be misleading, you need to also look at the RPM and torque characteristics of the motor.

                You ought to be looking at a shaft speed of about 4-5000RPM for decent performance for a 1/96 Alfa.

                Direct drive

                555 for direct drive. High turn crawler 500's are another alternative .e.g. https://www.componentshop.co.uk/mabu...-dc-motor.html

                Geared

                A speed 385 geared down about 2.5:1 for reduction.

                Brushless alternative-.

                28-35mm outrunner, 400-500kv, direct drive.

                Comment

                • rwtdiver
                  Vice Admiral
                  • Feb 2019
                  • 1770

                  #83
                  Originally posted by Subculture
                  The can size can be misleading, you need to also look at the RPM and torque characteristics of the motor.

                  You ought to be looking at a shaft speed of about 4-5000RPM for decent performance for a 1/96 Alfa.

                  Direct drive

                  555 for direct drive. High turn crawler 500's are another alternative .e.g. https://www.componentshop.co.uk/mabu...-dc-motor.html

                  Geared

                  A speed 385 geared down about 2.5:1 for reduction.

                  Brushless alternative-.

                  28-35mm outrunner, 400-500kv, direct drive.
                  Subculture,

                  Thank you VERY much for the great information! I do appreciate you taking the time to post it up! I was able to locate the Mabuchi 555 motors 12V 4500 RPM on ebay, and I purchased three off them for possible new boats and for back-up! Thanks again for you help!!

                  Rob
                  "Firemen can stand the heat"
                  Last edited by rwtdiver; 09-17-2021, 08:25 PM.

                  Comment

                  • rwtdiver
                    Vice Admiral
                    • Feb 2019
                    • 1770

                    #84
                    I am making some more progress on my scratch built WTC! I have printed out some cylinder bridging and also two end caps! I am using some colored PLA instead of the old plain white, not sure on colors yet!

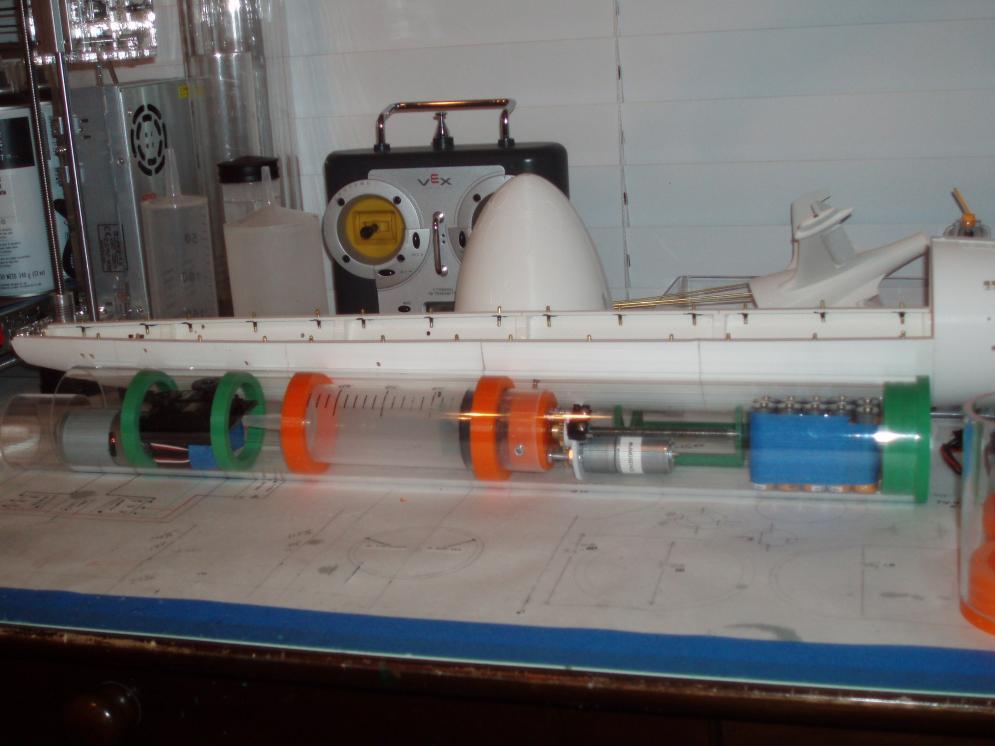

                    Click image for larger version

Name:	WTC Total Set-up.jpg
Views:	261
Size:	65.9 KB
ID:	153592

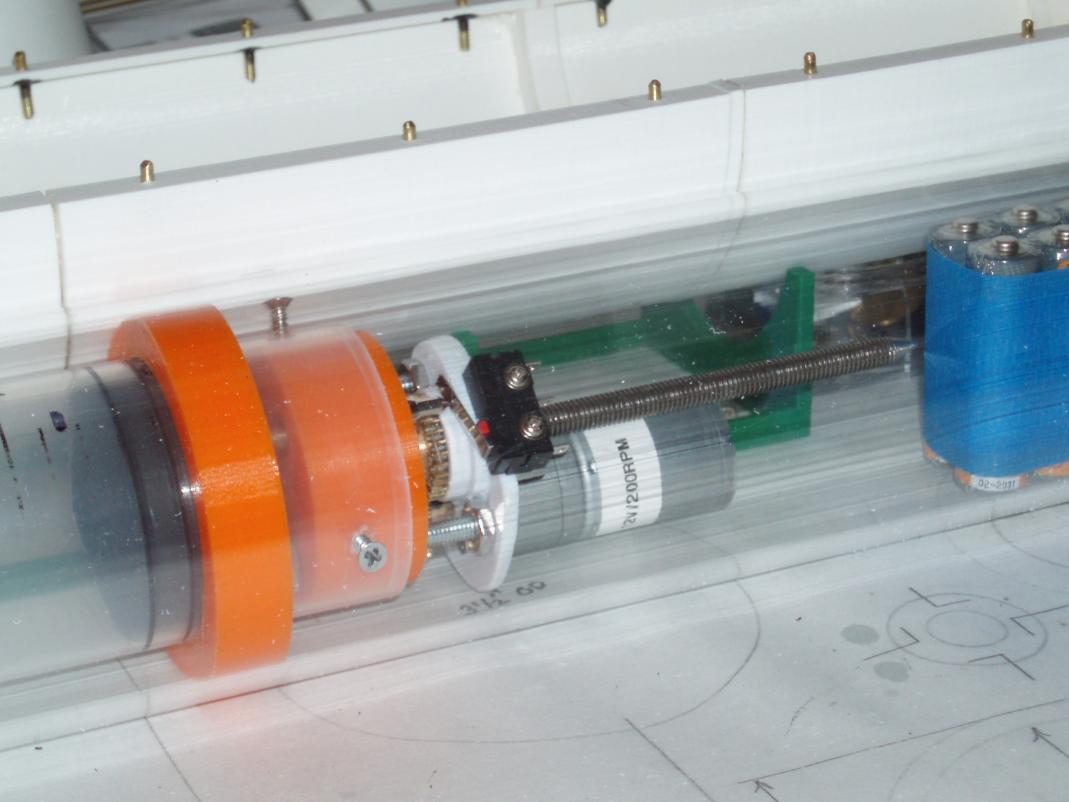

                    This shot just show a total overview of the preliminary cylinder layout! It is going to be tight for sure!

                    Click image for larger version

Name:	WTC Set-up 1.jpg
Views:	311
Size:	67.0 KB

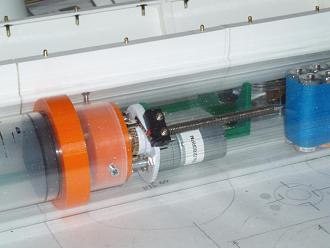

ID:	153593Click image for larger version

Name:	WTC Set-up 2.jpg
Views:	324
Size:	66.6 KB
ID:	153594

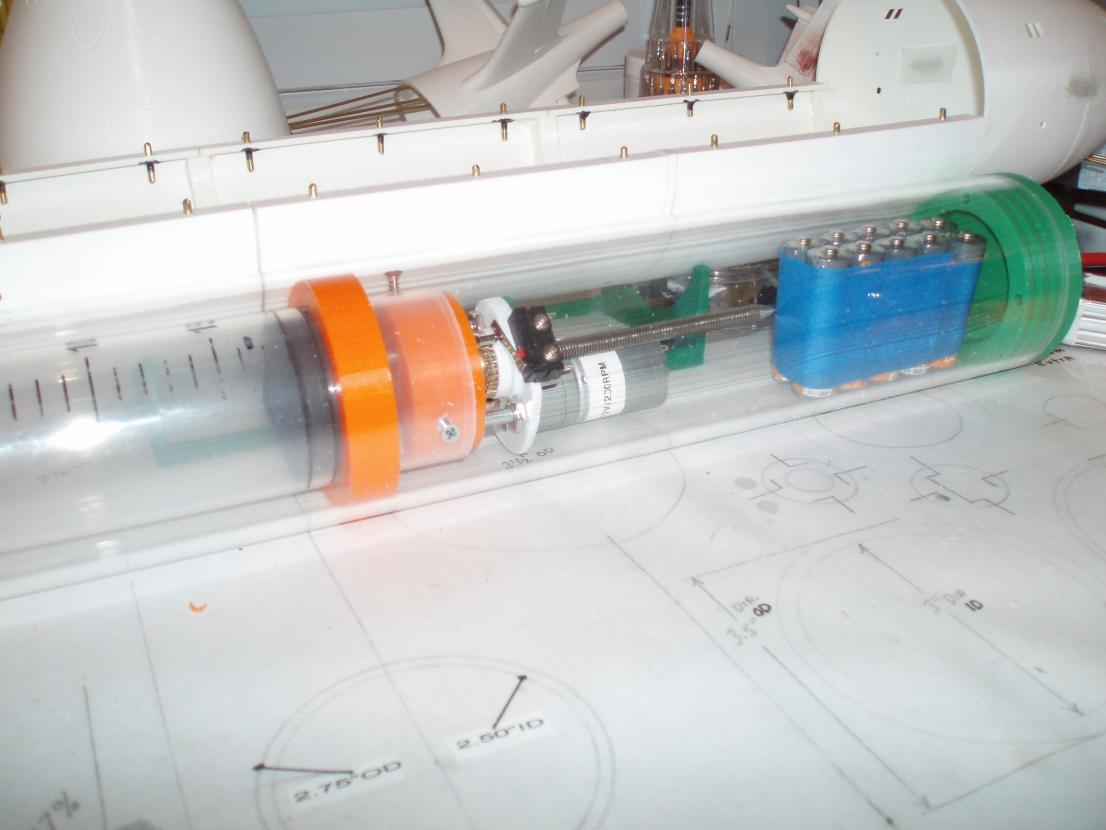

                    These two last shots are showing the piston gearing set-up and the piston shut down (full ballast tank position) micro switch! There will another micro switch on the other end of the cylinder that will shut the piston down when the cylinder is empty! Still have more design and building to do to get everything needed inside the WTC for full system operation!

                    Rob
                    "Firemen can stand the heat"

                    Comment

                    • rwtdiver
                      Vice Admiral
                      • Feb 2019
                      • 1770

                      #85
                      I have a Battery question?

                      I found a NMHB 12 volt 2000mAh rechargeable battery! It's made up of 10 AA batteries.

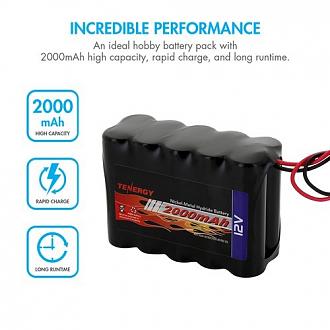

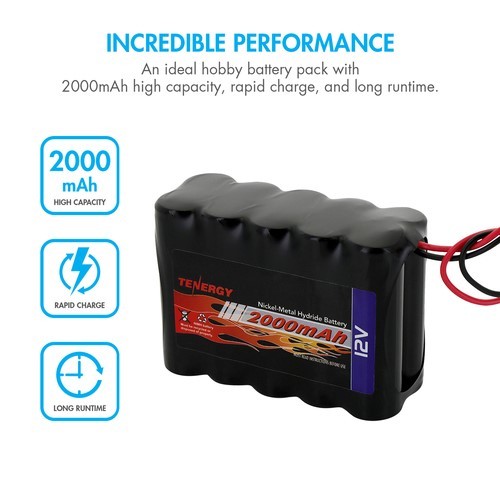

                      Click image for larger version

Name:	12 volt 2000mAh.jpg
Views:	318
Size:	43.5 KB
ID:	153690
                      This battery is a great fit for my Alfa 1:96 scale sub build. Without going into a lot of detail (which I understand you need for an accurate answer) this battery will be operating the following: 1-550 12v DC drive motor, 1- 12v geared piston tank drive motor, and 2- 12g mini drive servos.

                      With my current situation, this boat would be in the water 10 to 15 min in between battery charges! My question, based on the information I have given you, will this battery do the job?

                      Rob
                      "Firemen can stand the heat"

                      Comment

                      • JHapprich
                        Captain
                        • Oct 2017
                        • 715

                        #86
                        Cant you use a lipo instead? I assume your machinary will deplete them rather quick. Also the cables look very thin. I had the problem on my early models that such small cells were drained quickly when you had everything running at once.

                        Besides, great work with your ALFA. Am curious how your cylinder will perform!

                        Jörg

                        Comment

                        • trout
                          Admiral
                          • Jul 2011
                          • 3545

                          #87
                          My 1/72 Skipjack runs on them and I get an long amount of time (never depleted them completely) - ran over an hour. If running all your electronics draws 1 amp, you will get 2 hours on that battery.
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment

                          • rwtdiver
                            Vice Admiral
                            • Feb 2019
                            • 1770

                            #88
                            Thank you Jorg and Tom!

                            I appreciate the information and advice! I may just give it a run and see what happens. When the ballast tank piston is in operation it is pulling almost 6 amp's, (approximately 45 seconds) The wires seem a little undersized to me as well, may just step them up a GA. or two! Thank you very much for the help you guys!!

                            Rob
                            "Firemen can stand the heat"

                            Comment

                            • trout
                              Admiral
                              • Jul 2011
                              • 3545

                              #89
                              Rob,
                              Yes, if I used my piston like crazy and ran my sub at full speed, it wouldn't last 10 minutes....but I don't. I really look forward to seeing you get this one working.
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment

                              • Subculture
                                Admiral
                                • Feb 2009
                                • 2119

                                #90
                                6 amps, at 12 volts? That's 72watts, something wrong there.

                                Comment
