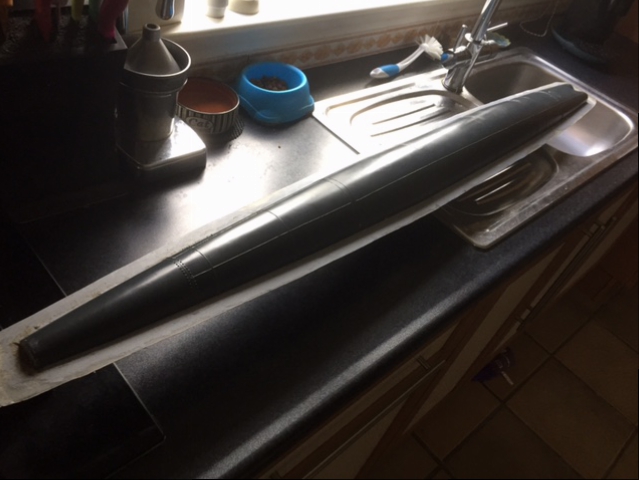

    Time to make a new update, i've cutted the hull into 4 parts, initially i wanted to make two cuts, but the conical rearpart gave me some trouble, since i have to place all moving parts into this part, and i've got big hands, i decided to make the third at the double row of rivets, giving me room to play inside the little conical part.
    Next task was to make all connections for the hullparts, i seems funny, first make one hull, cut it into four parts and rebuild it back into one hull, pictures. Click image for larger version  Name:	P1070017.JPG Views:	1 Size:	16.8 KB ID:	124620



    At the end i've got me this, working on this every day into the weekends. Click image for larger version  Name:	P1070018.JPG Views:	1 Size:	17.5 KB ID:	124621



    The two-shooter, temporarely fixed with bolds to the forward bulkhead, still have to make the provisions for making it removable from the bulkhead. Click image for larger version  Name:	P1070019.JPG Views:	1 Size:	14.4 KB ID:	124622



    The studs that will keep the conningtower to it's place, it will be secured with some neodyne magnets. Click image for larger version  Name:	P1070020.JPG Views:	1 Size:	15.8 KB ID:	124623



    The frontpart can be placed without taking off the two-shooter, have to make the pin-connections on the frontpart, made this such way so you can tinker with the tubes without taking the complete model apart, no king of complexity this time. Click image for larger version  Name:	P1070021.JPG Views:	1 Size:	14.7 KB ID:	124624



    Rearpart number one, same method as the frontpart, securing it yet again with magnets. Click image for larger version  Name:	P1070023.JPG Views:	1 Size:	13.8 KB ID:	124625



    The last rearpart which gave me some trouble, with this configuration i can reach inside to get the moving parts working, the gearbox can be placed inside with plenty of room for the steering rods, same trick with securing it with magnets. Click image for larger version  Name:	P1070024.JPG Views:	1 Size:	16.9 KB ID:	124626



    This was my aim, getting one hull again, for now i have to order my magnets, they will be different in strenght and sizes, i mostly need round one's, probably some rod-type one's, still have to make my wishlist, for now it's looking good, most of the components are pre-build so i can speed up the pace.


    Manfred.
    Last edited by MFR1964; 01-08-2018, 02:45 PM.

    Leave a comment:


  • MFR1964
    replied
    Thanks Tom,
    She turned out nice, it was a bit tricky to take the saw and cut her up in three pieces, i must admit, it will be four pieces at the end.
    The rearpart is not easy to access, so there will be a next cut near the double rivetline, giving me enough room to fiddle around.(think gearbox and rudder/dive planes)
    She has to be reinforced first when i want to do that, the seem is now together with pure epoxy, have to add some additional strenght with glassfibre.
    As for running, first solve the back together chapter, yet again i think magnets and pins, type XXIII style, another advantage will be the shortened length for transportation.

    Manfred.

    Leave a comment:


  • trout
    replied
    Manfred, this is really coming along. Enjoyed this video and the sub running too!

    Leave a comment:


  • MFR1964
    replied
    Thanks Bart,
    I must admit, it took some sweat and elbowgrease to get to this point, i lacked the time this summer to make a start with the hull.
    For now i hace to reinforce the parts and start working to get it back in one piece.

    Manfred.

    Leave a comment:


  • bwi 971
    replied
    you lucky you.

    grtz,
    Bart

    Leave a comment:


  • MFR1964
    replied
    I don't know about you guys, but i've got me a happy newyear gift, a very good start for 2018.



    Manfred.

    Leave a comment:


  • MFR1964
    replied
    No hulls yet, still working on the mold for the conningtower, when ready i'll start up the work on making a hull and conningtower.

    Manfred.

    Leave a comment:


  • Albion
    replied
    Joins hull Q if there is one. My Koryu is 1/20 and same dive module would work here. I was fortunate enough to go diving in the Kavieng area of Papua New Guinea in 2001. One of the dives was on a WW2 era Japanese merchant wreck. About 50 m from the main shipwreck was an A class which had been on the deck of the merchant when she started to list.

    Leave a comment:


  • MFR1964
    replied
    Sorry for the late respons guys, it's busy in the cave, i'm pushing to get the molds ready before the low tempartures hit me.

    Tom, as for more hulls, i have to see about that how the final hull will come out of the mold, from that i can see what the amount of time will be to build more.

    As for the work allready done i'll give a update,


    Click image for larger version

Name:	IMG_1338_zpss7agq7do.jpg
Views:	199
Size:	276.7 KB
ID:	124070

    First i had to follow the drill of building a jigg to hold the plug.

    Click image for larger version

Name:	IMG_1340_zpspbspkw33.jpg
Views:	175
Size:	170.9 KB
ID:	124071


    Playing around with some clay to patch up the void between the jigg and the plug.

    Click image for larger version

Name:	IMG_1339_zpsjtfttsqq.jpg
Views:	179
Size:	159.1 KB
ID:	124073


    Using a simple tool to remove the clay, from this point on you have to act in one move, when finished reworking the clay i added the mold-release.

    Click image for larger version

Name:	IMG_1341_zpsl4g6udaq.jpg
Views:	161
Size:	175.7 KB
ID:	124075


    The gelcoat added to catch all the details of the plug, now you have to wait for the moment when the gelcoat becomes sticky, normally it takes half a hour, but since the temparture is lower i waited for a hour to be sure.

    Click image for larger version

Name:	IMG_1342_zpscfjhpdd6.jpg
Views:	166
Size:	184.5 KB
ID:	124077


    Added the first layer of glass and epoxy, used chopped strands to catch all sharp corners, you're out of the dangerzone when this layer has dried.

    Click image for larger version

Name:	IMG_1348_zpssg5lop1i.jpg
Views:	187
Size:	154.6 KB
ID:	124079

    Building up the layers is pretty straight forward, it took me a full week every day to build up the mold on one side, cleaned the outer edges with the dremel.

    Click image for larger version

Name:	IMG_1347_zpstiep0m6r.jpg
Views:	162
Size:	150.7 KB
ID:	124081


    Prepping the other side for the next run, yet again it took me a week to complete the other side. Click image for larger version  Name:	IMG_1352_zpsf0eqezgk.jpg Views:	1 Size:	222.7 KB ID:	124062



    The fun part after a few weeks, splitting the mold, due to the simple shape it came loose without any efford. Click image for larger version  Name:	IMG_1354_zpsoiz2pumn.jpg Views:	1 Size:	228.4 KB ID:	124063



    The other side also loosened, with this mold i made it with fewer layers as with the V80 and the type 17, this gave me some flex for loosening the plug, it worked out well. Click image for larger version  Name:	IMG_1353_zpsal9szdvy.jpg Views:	1 Size:	155.1 KB ID:	124064



    As for the details, they came out well, the plug was only slightly damaged, lost some weldinglines as some rivets, but nothing what can't be replaced on the plug, one big hurdle taken. Click image for larger version  Name:	IMG_1355_zpsvvgztfbz.jpg Views:	1 Size:	180.8 KB ID:	124065



    Right now i'm in the proces of making the mold for the tower, making this jigg was a differend story, i followed the path used on the balconygerat of my type 17, stiffened the jigg with some copper rods, for now i'm playing with this, to be continued.


    Manfred.
    Attached Files
    Last edited by MFR1964; 11-13-2017, 03:08 PM. Reason: messed up my picture links

    Leave a comment:


  • HardRock
    replied
    Here, here. Great looking boat.

    Leave a comment:


  • trout
    replied
    Manfred, That is an amazing sub! If you re going to make some hulls, let me know the price and I will see if I can afford one. That is truly a work of art as well as a reflection of your craftsmanship.

    Leave a comment:


  • MFR1964
    replied

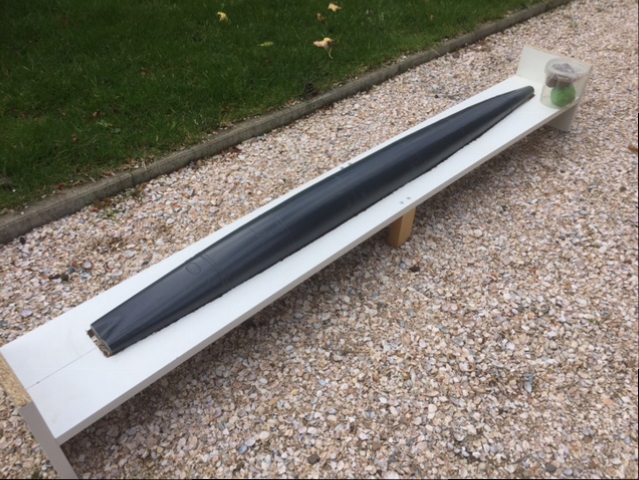

    As promised the rest of the story, after placing the weldinglines i had to move over to placing the rivets, used the laser again to mark out the places of the rivets, started with the easy one's at the bow and the stern, a job pretty straight forward.

    Click image for larger version

Name:	IMG_1313_zpsgbh9l7co.jpg
Views:	308
Size:	105.7 KB
ID:	123773

    The more difficult one's where the ventholes for the batteries, made a template and drilled the holes, inserting the rivets to finish it up.

    Click image for larger version

Name:	IMG_1312_zpsaoibgycj.jpg
Views:	341
Size:	136.0 KB
ID:	123772

    This one was more complex, luckely i had some documentation profided by David and Gene, together with a book from this sub i went making the templates for making this, you also can see the double row of rivets at the stern.

    Click image for larger version

Name:	IMG_1318_zpsavz30wq2.jpg
Views:	289
Size:	305.7 KB
ID:	123774

    Click image for larger version

Name:	IMG_1317_zps3fl5kacw.jpg
Views:	313
Size:	303.1 KB
ID:	123775

    I decided to use primer instead of glue for locking up those rivets, this way i get nice sharp rivets without the trouble of removing the excess glue, gave her a total of three layers of primer, more to be sure that those rivets stay on their place.

    Click image for larger version

Name:	IMG_1336_zpsipxxtqtu.jpg
Views:	305
Size:	163.7 KB
ID:	123776

    Click image for larger version

Name:	IMG_1337_zps2o0hmxwg.jpg
Views:	311
Size:	159.4 KB
ID:	123777

    Last but not least the final layer of paint, done this to get a smooth surface for making the mold, for now i have to make the bracket for holding the plug and prep her for building up the actual epoxy mold, this would be my first in adding all details on the plug itself, to get all the details i'm going to use a gelcoat at the first stage of building the mold.
    I took me a few months to get to this point, running the gauntlett between the honey-do list, my house, the bikes and some other minor things, normally i prefer to build the mold during the spring because of tempartures.


    Manfred.

    Leave a comment:


  • MFR1964
    replied
    Tom is right, i bought a simple laser that could project both the horizontal and the vertical lines at once, placed it on a tripod and moved the boat on the workingbench.
    Added the fishinglines as imitation of the weldingbeads, one catch, use braided line, it better simulates the weldingbead.
    Be patient, the rivet adventure will follow soon, all i can say, it was al lot of work/time to get those in complete with all the hatches.

    Manfred.

    Leave a comment:


  • HardRock
    replied
    Less exciting than I had imagined. Que James Bond laser scene etc etc.

    Leave a comment:


  • trout
    replied
    laser is for straight lines both vertical and horizontal and fish line for actual bead, I believe.

    Leave a comment:
