    Originally posted by MFR1964
    Hah!!!, (thundering voice) IT'S ALIVE!!!!,IT'S ALIVE!!!!

    It has become a MD (Manfredised Driver) instead of a SD, as for annoying you, i just like to poke you with a sharp stick to keep you sharp.

    Greetings from the Great Foreigner Metric Empire.

    Manfred.
    This Type-A of yours is perhaps the most ambitious r/c submarine project I've seen to date. It's most instructive to observe your solutions to big-league problems. A real beauty, Manfred.

    David

    Leave a comment:


  • MFR1964
    replied
    Hah!!!, (thundering voice) IT'S ALIVE!!!!,IT'S ALIVE!!!!

    It has become a MD (Manfredised Driver) instead of a SD, as for annoying you, i just like to poke you with a sharp stick to keep you sharp.

    Greetings from the Great Foreigner Metric Empire.

    Manfred.

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Originally posted by MFR1964
    Firstly, happy newyear to all you bubbleheads.

    As promised i'll post some pics from the progress i made these days, i allways like to molest David's SD's to my own standards.

    Click image for larger version Name:	IMG_1839.JPG Views:	0 Size:	55.8 KB ID:	135813

    The beginning with the motorpart

    Click image for larger version Name:	IMG_1840.JPG Views:	0 Size:	59.0 KB ID:	135814

    Placed the ESC and a Sombra SL8, re-routed the airlines by drilling some holes through the aluminum, this way the transistion is better, at least to my taste.

    Click image for larger version Name:	IMG_1841.JPG Views:	0 Size:	57.6 KB ID:	135815

    De-sparked the e-motor with the usual condensators, i never take the gamble if that motor is allready de-sparked factory stile without knowing.

    Click image for larger version Name:	IMG_1842.JPG Views:	0 Size:	48.4 KB ID:	135816

    Drilled the holes for my steering-rods which will control the torpedo tubes,and placed the feedthroughs, a old style powerswitch which i can access easely by taking of the " magnetic" bowpart.

    Click image for larger version Name:	IMG_1844.JPG Views:	0 Size:	54.1 KB ID:	135817

    The batterypack made from Eneloop cells, 7,2 Volt 2,5 Ah, i chose the heavy cells above a lipo because i want to have some weigth under the waterline, better heavy cells then useless lead.
    The fat leads are for the power of the SD itself, the slim one's for charching the pack while it stays inside the SD.

    Click image for larger version Name:	IMG_1843.JPG Views:	0 Size:	54.7 KB ID:	135818

    So that was the boring part, for now i'm playing around with building up the plumbing Type XXIII style, me like tighty SD outside.


    Manfred.
    God damn, Manfred!! … why don't you get it over with, bend that poor SubDriver over a barrel, and have you way with it!????

    I send you a perfectly good WTC and you strap it to the lab table, cut it up, and turn the poor thing into Frenkinstein's half-brother!

    Damned foreigners -- why do I bother!????

    (by the way, nice work on display here, as usual, Manfred).

    David

    Leave a comment:


  • MFR1964
    replied
    Firstly, happy newyear to all you bubbleheads.

    As promised i'll post some pics from the progress i made these days, i allways like to molest David's SD's to my own standards.

    Click image for larger version  Name:	IMG_1839.JPG Views:	0 Size:	55.8 KB ID:	135813

    The beginning with the motorpart

    Click image for larger version  Name:	IMG_1840.JPG Views:	0 Size:	59.0 KB ID:	135814

    Placed the ESC and a Sombra SL8, re-routed the airlines by drilling some holes through the aluminum, this way the transistion is better, at least to my taste.

    Click image for larger version  Name:	IMG_1841.JPG Views:	0 Size:	57.6 KB ID:	135815

    De-sparked the e-motor with the usual condensators, i never take the gamble if that motor is allready de-sparked factory stile without knowing.

    Click image for larger version  Name:	IMG_1842.JPG Views:	0 Size:	48.4 KB ID:	135816

    Drilled the holes for my steering-rods which will control the torpedo tubes,and placed the feedthroughs, a old style powerswitch which i can access easely by taking of the " magnetic" bowpart.

    Click image for larger version  Name:	IMG_1844.JPG Views:	0 Size:	54.1 KB ID:	135817

    The batterypack made from Eneloop cells, 7,2 Volt 2,5 Ah, i chose the heavy cells above a lipo because i want to have some weigth under the waterline, better heavy cells then useless lead.
    The fat leads are for the power of the SD itself, the slim one's for charching the pack while it stays inside the SD.

    Click image for larger version  Name:	IMG_1843.JPG Views:	0 Size:	54.7 KB ID:	135818

    So that was the boring part, for now i'm playing around with building up the plumbing Type XXIII style, me like tighty SD outside.


    Manfred.
    Last edited by MFR1964; 01-02-2020, 04:08 PM.

    Leave a comment:


  • MFR1964
    replied
    For now most shops are closed during these holidays, within a few weeks everybody is up and running, that will be the moment i will hunt the stuff down, i do own a small torch on butane gas, only have to get me some real silversolder and some flux.

    To kill the time i've started with building up the SD, the servo's are ordered, pictures will follow soon.

    Manfred.

    Leave a comment:


  • Bob Gato
    replied
    Hey Manfred.. I don't know if you have a welding supply shop near you but that would be the best place to buy silver solder and the flux that would be required for it... And a regular propane or MAPP gas torch is sufficient to do small jobs..

    Leave a comment:


  • MFR1964
    replied
    Thanks for the explanation about the socalled silversolder, next time i will pay attention if it's the reall stuff, got me only 10 inch of that wrong stuff, i'll contact the local jewellers shop to get me the real stuff.

    Manfred.

    Leave a comment:


  • Bob Gato
    replied

    "During a few tests the propblades started to bend towards the torpedo-body, you would expect the other way, the other prop simply shattered, i must remark, all blades are silver soldered for strenght, what the hell is going on!!!"

    Sorry to see such nice work come apart by a marketing misunderstanding-That wasn't silver solder (noted by the dull gray color seen in the pictures) as is commonly thought of as silver solder- It was probably plumbing solder with silver in it (as found in Home Depot) that usually melts at around 450*F. Its just a little bit stronger then lead solder-True silver solder (now branded and referred to as silver brazing) melts at between 800*F and 1100*F. It is actually stronger than the brass! and will also join steel.
    As for the prop blades-bear in mind that the prop is trying to pull the torp forward...the forces on the prop tips are fwd and ultimately in an arc down to the torpedo body-the heat of soldering annealed the brass and probably made it very soft.Example-in airplane accident investigations ...if the prop blades are bent back when the aircraft contacted the ground, it means that the power was reduced or none- but if they were bent forward it means the ground was contacted with power on.
    Last edited by Bob Gato; 12-26-2019, 01:28 PM.

    Leave a comment:


  • MFR1964
    replied
    Props are refurbished, so ready for some testing, and now another issue, i don't want to run my boat with the torpedo's always inside, leaving the tubes open will give problems with scooping up all the water during driving.

    Click image for larger version

Name:	IMG_1824.JPG
Views:	307
Size:	51.3 KB
ID:	135654

    So i made this, a set of plugs to place inside the tubes when i don't run the torps.

    Click image for larger version

Name:	IMG_1826.JPG
Views:	309
Size:	49.7 KB
ID:	135655

    They fitt tightly inside the tubes, also added some slots for securing the plugs.

    Click image for larger version

Name:	IMG_1835.JPG
Views:	295
Size:	47.3 KB
ID:	135656

    This is inside the plug, by turning the nut at the front you can lock them inside the slots of my tube.

    Click image for larger version

Name:	IMG_1832.JPG
Views:	310
Size:	52.0 KB
ID:	135657

    Next stage in the evolution, stuffed as many holes i can get inside the plug, the goal is to get no airbubbles inside, that piece of styrodure at the end is used to get me a neutral bouyency, this way i can trim the boat with plugs inside the tubes.
    Why?, most of the time you will drive your boat without the torps, when you use them it will create some positive bouyency, i want to have my boat level after firing the torps and not drive her as some drunken idiot with the nose down, due to loss of bouyency.

    Click image for larger version

Name:	IMG_1828.JPG
Views:	311
Size:	41.0 KB
ID:	135658

    So most of the time i will drive her like this, those targets have to take the gamble if she is plugged or armed.

    Manfred.

    Leave a comment:


  • MFR1964
    replied
    As promised the Vid,



    After this test i decided to molest the tubes even more,

    Click image for larger version

Name:	IMG_1837.JPG
Views:	340
Size:	51.9 KB
ID:	135310

    To solve the issue of pressure even more, i decided to drill some holes into the sides of the tubes.

    Click image for larger version

Name:	IMG_1838.JPG
Views:	332
Size:	48.8 KB
ID:	135311

    As you can see i now have some inlets to get me a better free waterflow when starting up the torps.

    For now i'll dig up the jigg for reparing the old brass props and do some more testing with those props to see if my modifications work.


    Manfred.

    Leave a comment:


  • MFR1964
    replied
    As for the Master thing, i screwed up my torps, that is, props only, the rest is fine.

    Click image for larger version

Name:	IMG_1814.JPG
Views:	388
Size:	50.5 KB
ID:	135254

    During a few tests the propblades started to bend towards the torpedo-body, you would expect the other way, the other prop simply shattered, i must remark, all blades are silver soldered for strenght, what the hell is going on!!!

    Click image for larger version

Name:	IMG_1815.JPG
Views:	343
Size:	48.9 KB
ID:	135255

    I still want to do some tests this weekend, so i ended up with a slight modification, three blades nylon props, also a bit smaller diameter.

    Click image for larger version

Name:	IMG_1823.JPG
Views:	343
Size:	51.0 KB
ID:	135256

    I coocked my brains about the propellor issue, my theory is that starting up those high torque torps sends a pressure wave agains the closed back of my tubes, this would explain the prop blades being bent towards the torpedo-body, the light went on when i was thinking about the tubes of my type XXIII, same method of launching but no shattered blades, the picture shows my solution, drilled as many holes i could into the backplate of my tubes.
    Now the pressure wave has a way to get away instead of deflecting, pretty much the same arrangement as on my type XXIII, tomorrow i'll shoot some vids about launching the torps, stay tuned.


    Manfred.

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Originally posted by MFR1964
    Yeah i know, me like complexity, frankly said, i have no idea how they kept their torps inside the tubes, there was no room to use those lockingballs as used on your gastorps, so i ended up with the hook thingy, on the dry it works well.
    This week i'll do some testing with launching from the tubes and give the mechanism a rub down to iron out the defects.

    Manfred.
    I love watching the Master at work (don't tell anyone I just said that!).

    David
    In Training

    Leave a comment:


  • MFR1964
    replied
    Yeah i know, me like complexity, frankly said, i have no idea how they kept their torps inside the tubes, there was no room to use those lockingballs as used on your gastorps, so i ended up with the hook thingy, on the dry it works well.
    This week i'll do some testing with launching from the tubes and give the mechanism a rub down to iron out the defects.

    Manfred.

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Oh, man! You've made Rube Goldberg proud, sir!

    David

    Leave a comment:


  • MFR1964
    replied
    It took some weeks to complete the launcher and the mechanics, pictures.

    Click image for larger version

Name:	IMG_1803.JPG
Views:	287
Size:	54.2 KB
ID:	135078

    First i had to adapt the torpedo's, so i could use the lockingmechanisms, ended up with some tubes underneath the torpedo's.

    Click image for larger version

Name:	IMG_1794.JPG
Views:	248
Size:	52.0 KB
ID:	135079

    Made the hooks which will lock into those tubes.

    Click image for larger version

Name:	IMG_1799.JPG
Views:	240
Size:	48.2 KB
ID:	135080

    The hooks will fitt inside the tubes like this.

    Click image for larger version

Name:	IMG_1798.JPG
Views:	245
Size:	46.3 KB
ID:	135081

    Took a spare rear-end and made a green led inside, this is done for adjusting the magnets so you will not burn up your motors.

    Click image for larger version

Name:	IMG_1800.JPG
Views:	239
Size:	47.7 KB
ID:	135082

    Peeking through the slits i can see when the torpedo is activated by the magnet.

    Click image for larger version

Name:	IMG_1804.JPG
Views:	223
Size:	48.9 KB
ID:	135083

    Had to change the magnets because the old configuration was too weak to get me a trusty launch.

    Click image for larger version

Name:	IMG_1806.JPG
Views:	221
Size:	50.7 KB
ID:	135084

    Had to find out at which place the locking device had to be placed, an glued them for the time being with some CA.

    Click image for larger version

Name:	IMG_1807.JPG
Views:	253
Size:	43.9 KB
ID:	135085

    Those pieces of lead ensure a firm lock inside the topedo's by gravity.

    Last step was to make some wires attached to both the controle rods and the lockingdevices.

    Made a vid to show how the whole concept works, enjoy



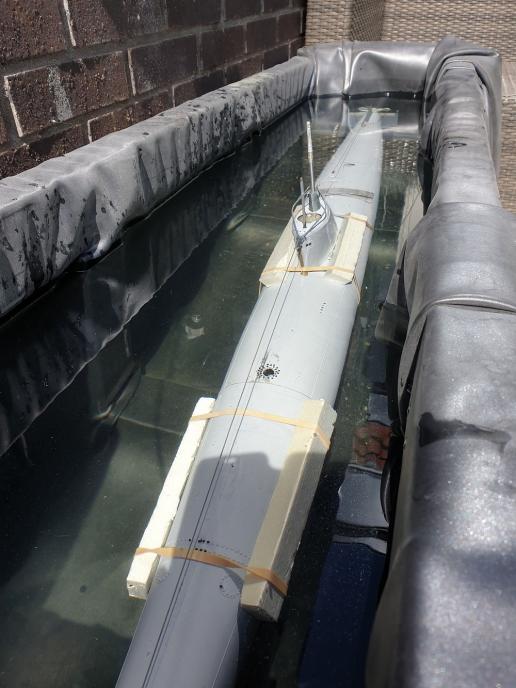

    Next week i will have some testing inside the tub, which also will be documented, stay tuned


    Manfred.





    Leave a comment:
