  • I may be wrong but your post 270 has No pictures showing. All previous ones are visible.

    Comment


    • The ordered servo's will arrive next week, just in time to replace the dummy servo's i used to get the arragement right, pictures

      Click image for larger version

Name:	IMG_1851.JPG
Views:	124
Size:	59.2 KB
ID:	136229

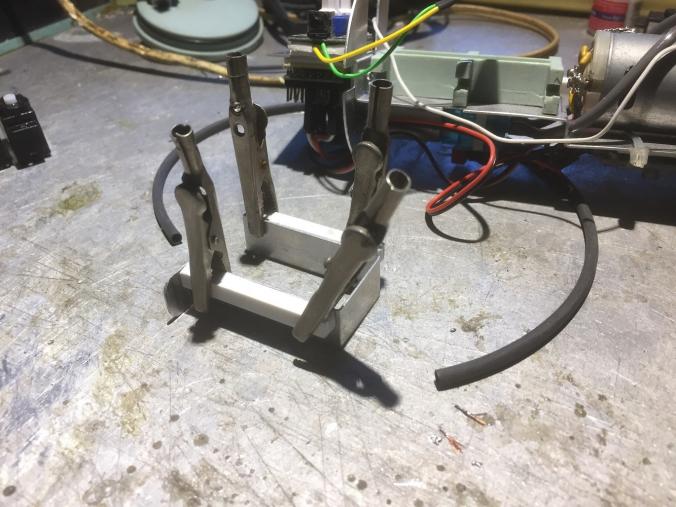

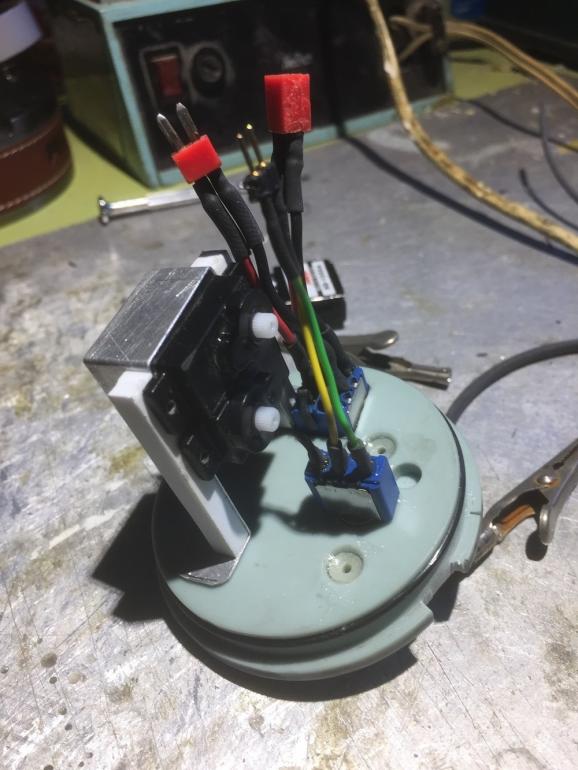

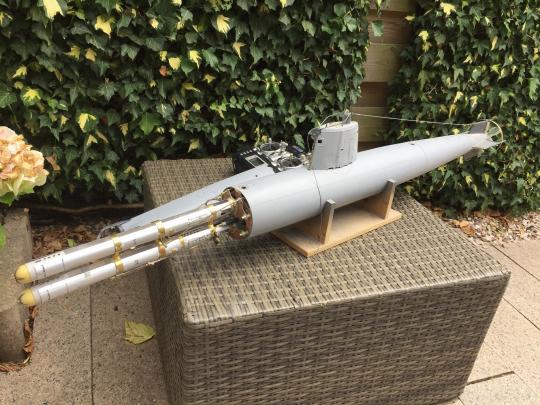

      I had to make a bracket to house the servo's for the launchtubes, took some stock aluminum plate and bended the right shape, those white strips of evergreen will be used to fasten the servo's.

      Click image for larger version

Name:	IMG_1854.JPG
Views:	108
Size:	59.4 KB
ID:	136230

      Took some broken servo's as a dummy to see at which position they had to be placed.

      Click image for larger version

Name:	IMG_1858.JPG
Views:	110
Size:	55.5 KB
ID:	136231

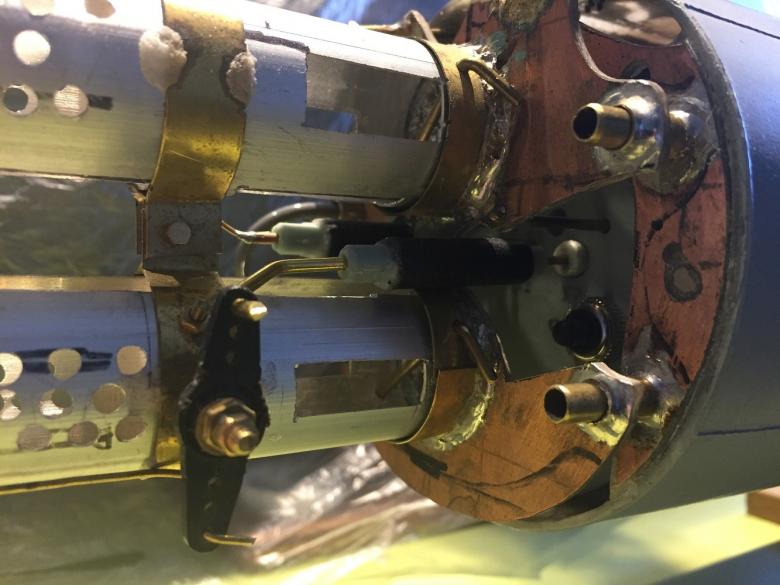

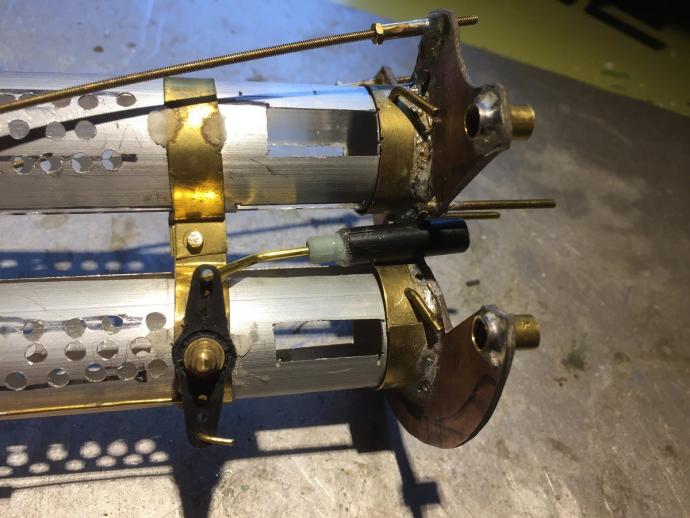

      Bended the rods for controlling the launchtubes, it's a tight fitt around the control switches but enough room is left for moving them.

      Click image for larger version

Name:	IMG_1859.JPG
Views:	109
Size:	56.0 KB
ID:	136232

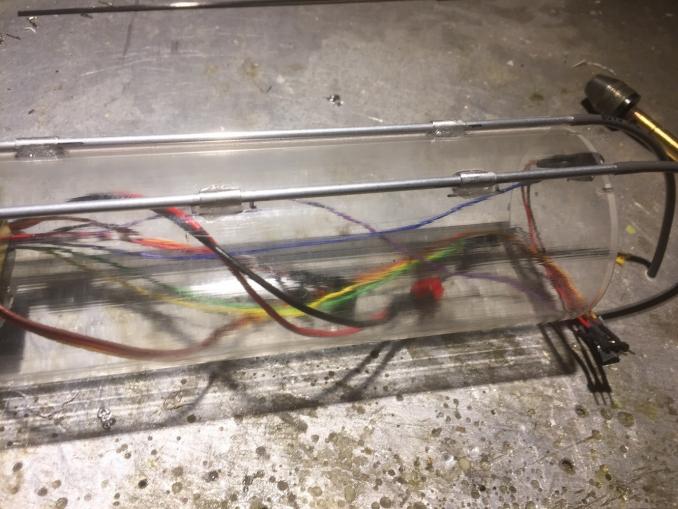

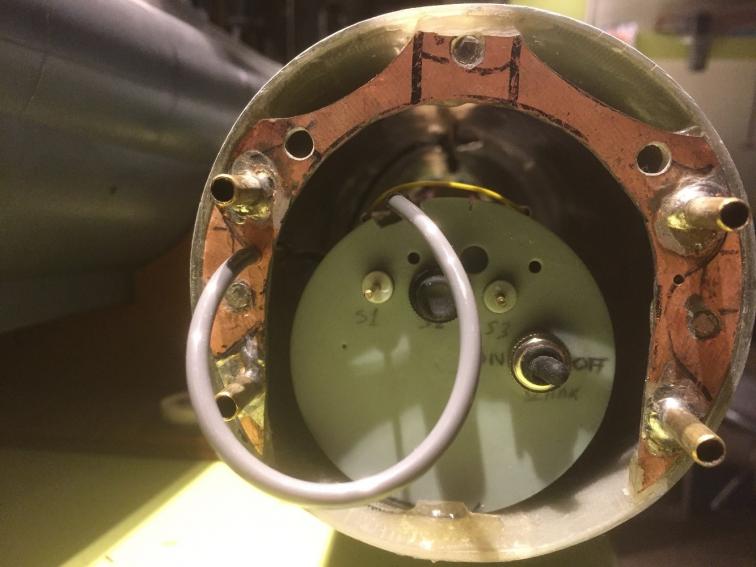

      All wires in the rearpart of the SD are in, all connectors soldered and documented which is which.

      Click image for larger version

Name:	IMG_1860.JPG
Views:	110
Size:	51.8 KB
ID:	136233

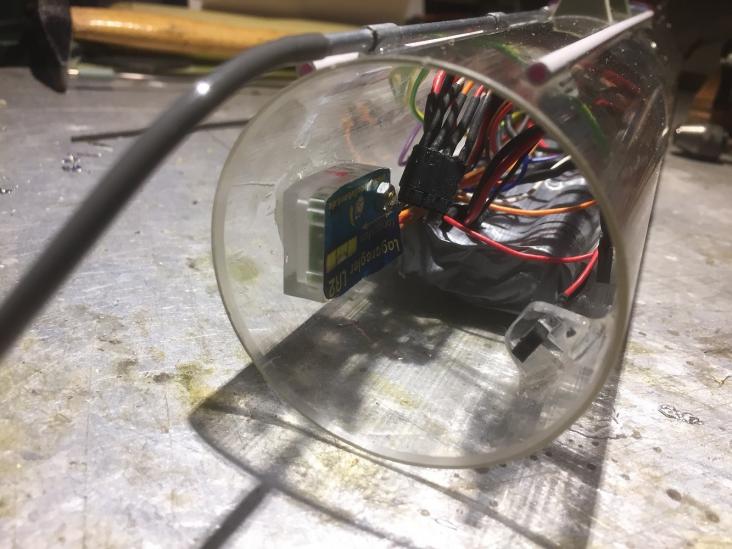

      Battery pack and levelkeeper are placed inside, made a small charging plug so i don't have to take the battery pack out during charging.

      Click image for larger version

Name:	IMG_1861.JPG
Views:	110
Size:	58.6 KB
ID:	136234

      From left to right, levelkeeper, battery pack and the charging plug.

      For now i have to wait when i have the servo's, when arrived i can start building up the rear bulkhead and the front bulkhead and start testing my contraption.

      Manfred.

      Fertig zum unterwasser.

      Comment

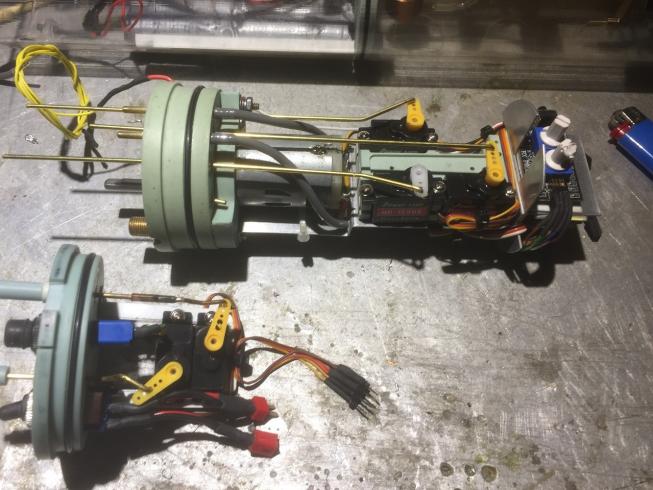

      • All the delivered servo's are placed, rear bulkhead is finished as is the front bulkhead.

        Click image for larger version

Name:	IMG_1866.JPG
Views:	101
Size:	56.6 KB
ID:	136365

        Click image for larger version

Name:	IMG_1867.JPG
Views:	87
Size:	55.8 KB
ID:	136366

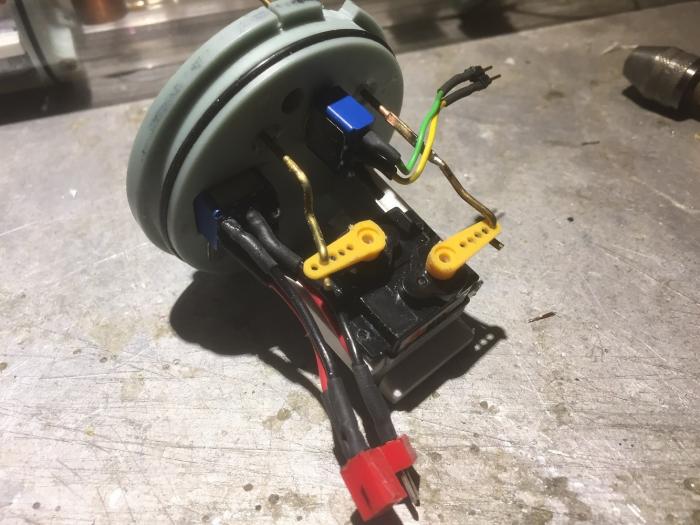

        All cables are tied together with small T raps, i like to keep things tidy, that ESC i ordered some time ago as a test, it can handle up to 10A, BEC 1A, the horns of the servo's are not yet fastened, this will be done when i know the exact position with all channels in neutral.

        Click image for larger version

Name:	IMG_1862.JPG
Views:	87
Size:	45.2 KB
ID:	136367

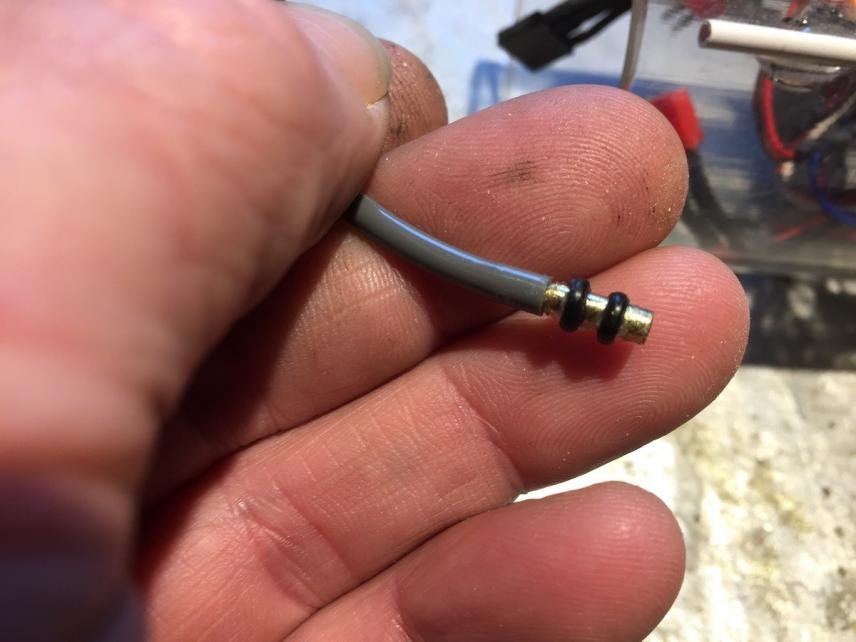

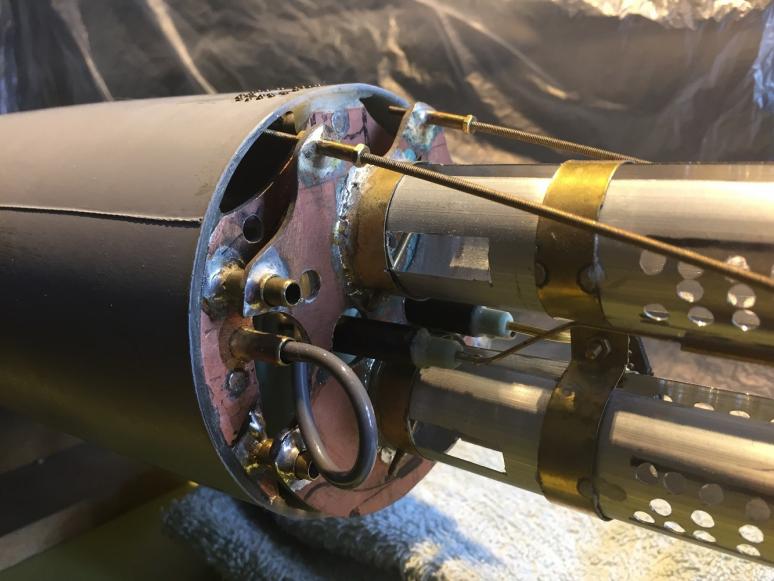

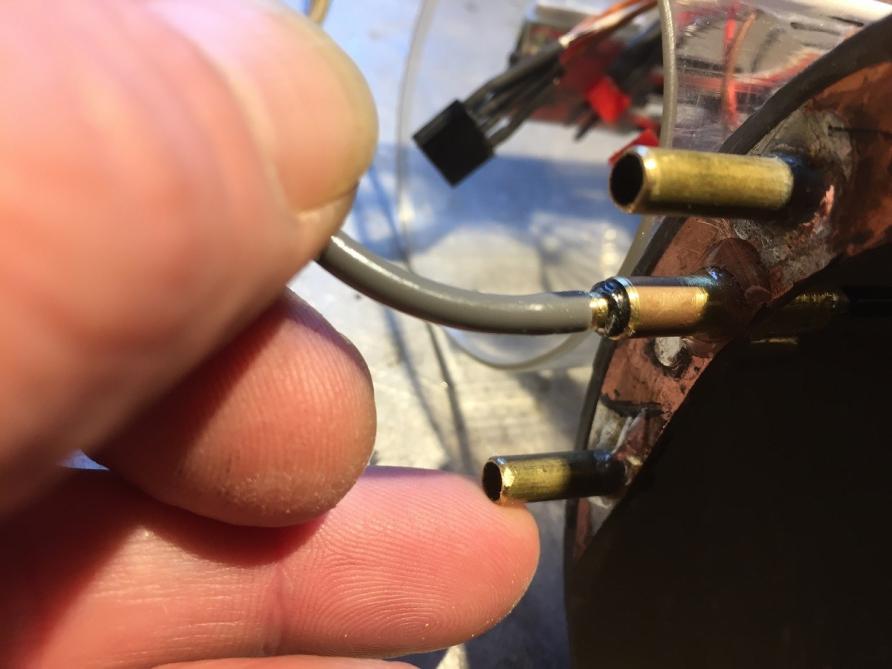

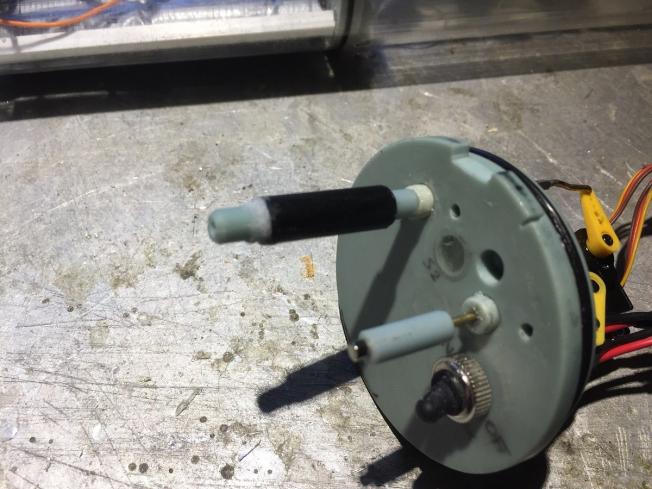

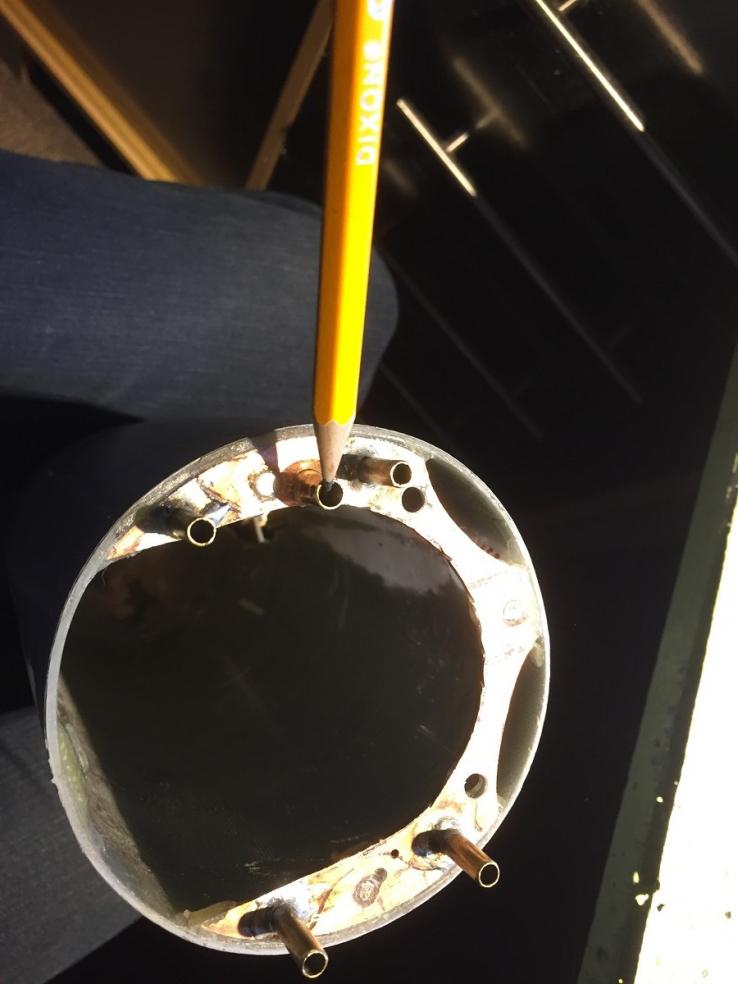

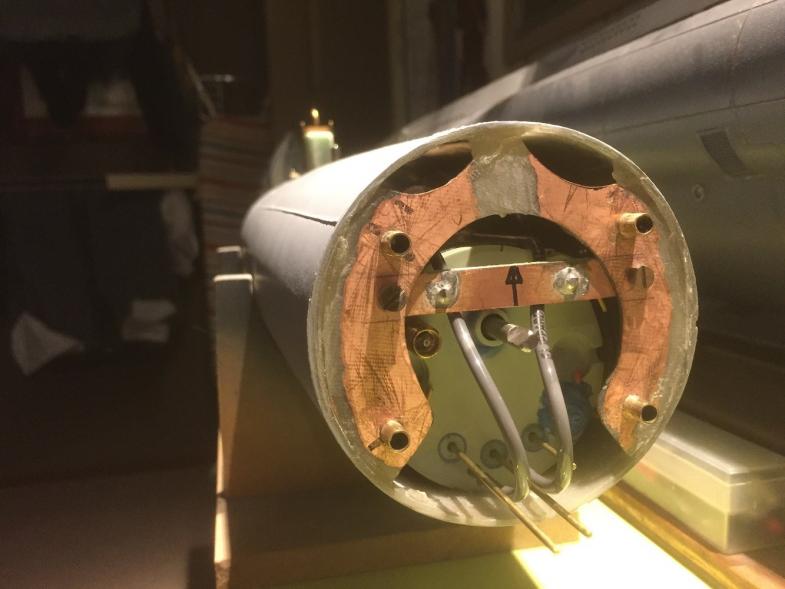

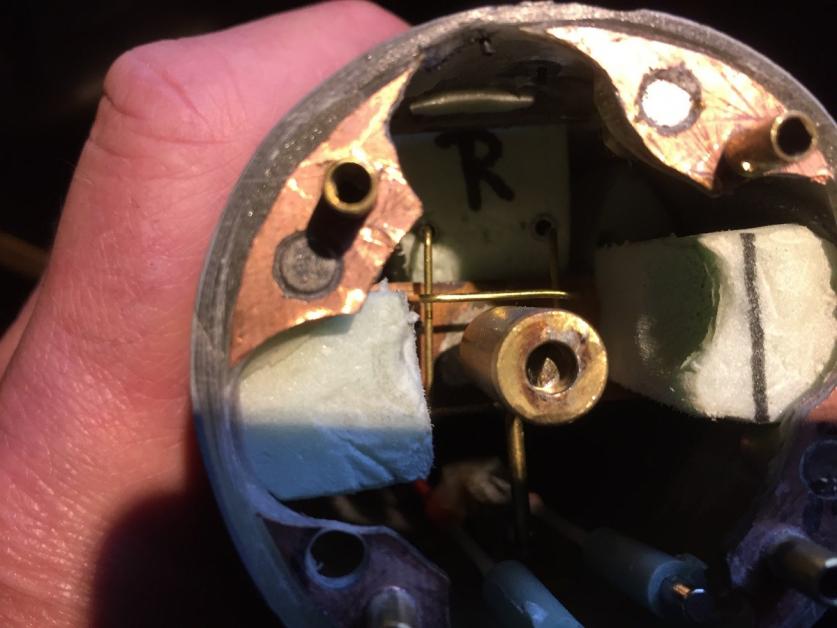

        I did mentioned about linking up the SAS float at the front , don't want to peel the tube off each time, so i've designed a watertight airplug which i have to make on the lathe.

        Click image for larger version

Name:	IMG_1863.JPG
Views:	88
Size:	42.8 KB
ID:	136369

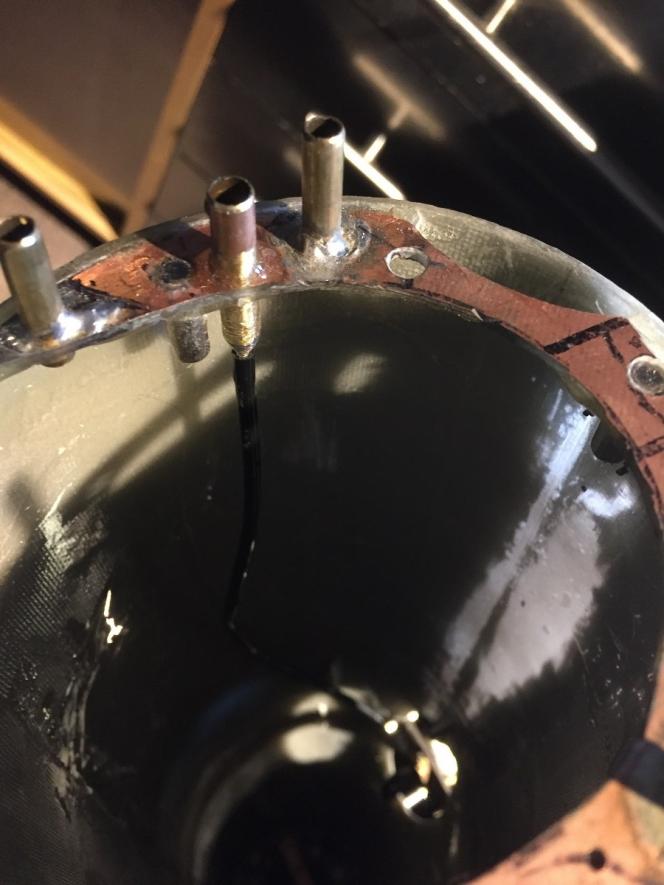

        This is not needed for the rearpart, i only have to adjust the length of the tubes.

        Before i can start testing the SD i have to take out the SL8 receiver from the 212, don't know why, but my contraption with the old receiver and shadow programmer is dead, in a way it's better, the receiver was allready a bit of a risk.


        Manfred.

        Attached Files
        Fertig zum unterwasser.

        Comment


        • Interesting times are starting here in the Netherlands, today they announced a partial shutdown of the country, She Who Will Be Obeyed was ordered last week to work from home by laptop, we are still well, and hope to stay that way by limiting our social contacts.
          It's a big mess in the Southern part of our country, they expect a second wave to hit this week, which can turn out nasty, i'll keep you guys informed.

          Manfred.
          Fertig zum unterwasser.

          Comment


          • Hang tight, Manfred. We'll get through this, pal. And Ellie say's hi, to your Boss Lady.

            Stand by for heavy rolls, my friend.

            David
            "... well, that takes care of Jorgenson's theory!"

            Comment


            • I'm wondering at which point the Triffids will turn up?
              DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

              Comment


              • Originally posted by Subculture View Post
                I'm wondering at which point the Triffids will turn up?
                Only a true SF fan would quip that, Andy! Buckets of sea-water on stand-by!

                David
                "... well, that takes care of Jorgenson's theory!"

                Comment


                • I had to look that up.......Triffids

                  Here is a photo of one of our Walmarts.
                  Click image for larger version  Name:	Lodg24KZQOODpi2PUAzPGg.jpg Views:	0 Size:	94.1 KB ID:	137175

                  BUT, the real survival food was not being touched

                  Click image for larger version  Name:	vdoug24ETWyfPwgM3WsWsQ.jpg Views:	0 Size:	108.6 KB ID:	137176

                  That's correct, there were still Snickers!

                  Stay safe Manfred.
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                  Comment


                  • LOL, Tom. Right on point!

                    David
                    "... well, that takes care of Jorgenson's theory!"

                    Comment


                    • They need to make toilet roll snickers. Seems to be what everyone is after at the moment- seems to be priority number one to have something to wipe their arse!
                      DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

                      Comment


                      • Originally posted by Subculture View Post
                        They need to make toilet roll snickers. Seems to be what everyone is after at the moment- seems to be priority number one to have something to wipe their arse!
                        Yeah. I don't get the rush-on-****-paper thing. This is not digestive, its pulmonary. Idiots!
                        "... well, that takes care of Jorgenson's theory!"

                        Comment


                        • Thanks for all your comments guys, it made me and SWMBO laugh, which is a good thing, the bad thing is, people are dying here like flies, each time there are more sick people added to the list, they gave us more restrictions, i must say not that heavy as with Bart, the future will learn if our measures will be effective.

                          So, that was the serious part, the bright side is, i've corrected some things at the SD.

                          Click image for larger version

Name:	IMG_1884.JPG
Views:	19
Size:	48.6 KB
ID:	137392

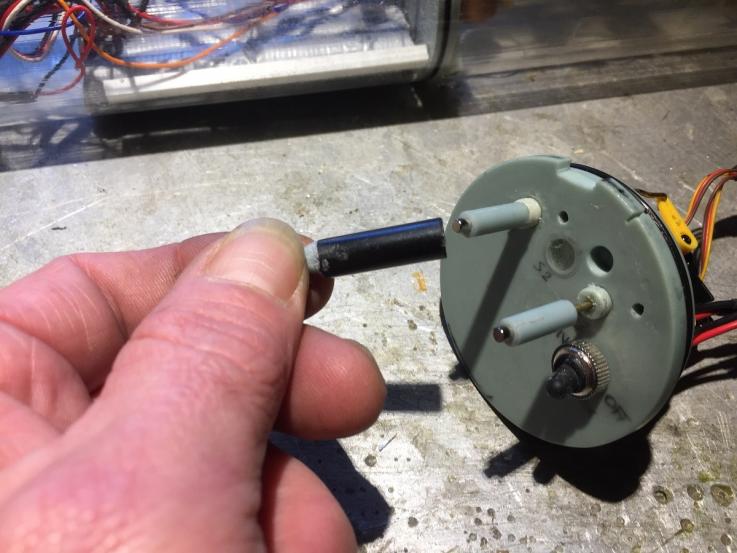

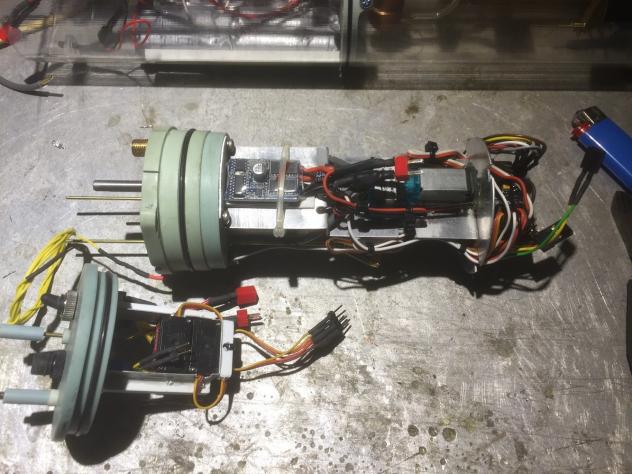

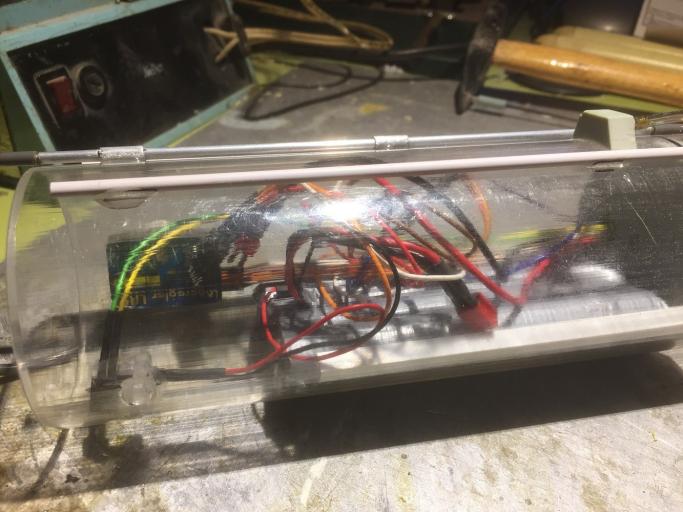

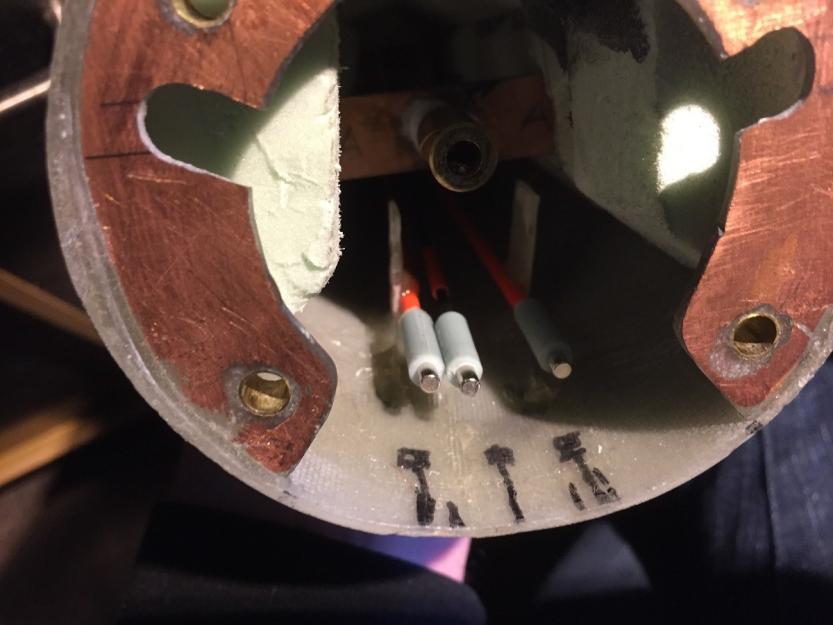

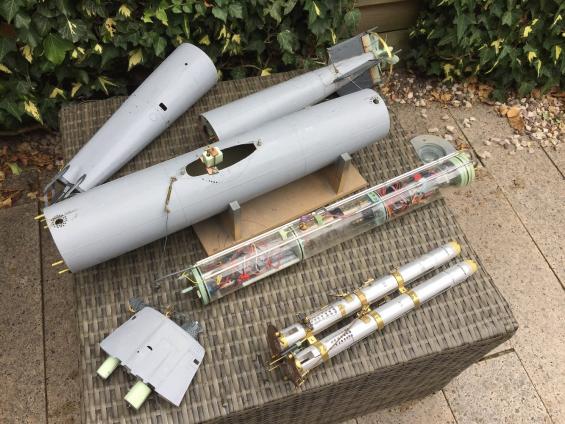

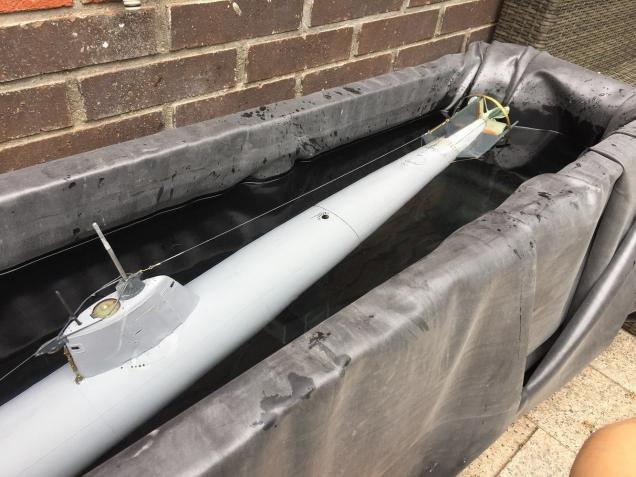

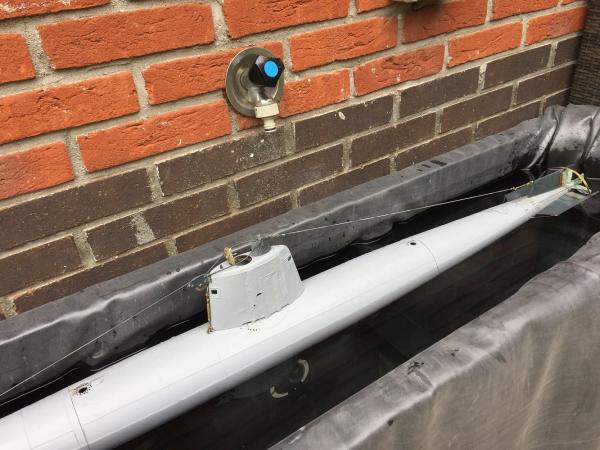

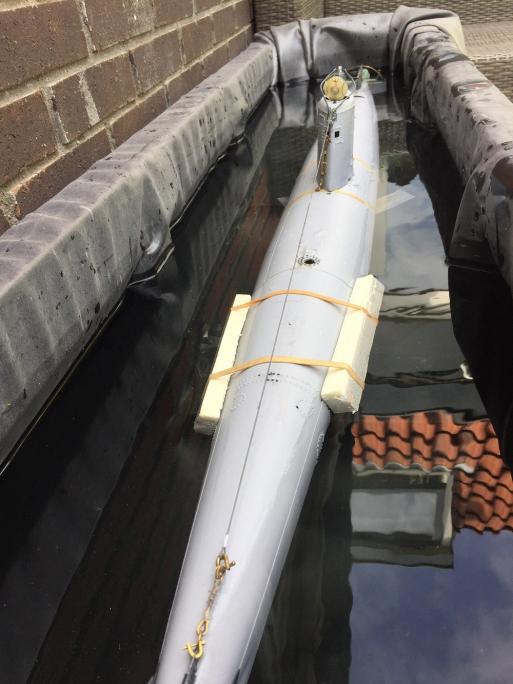

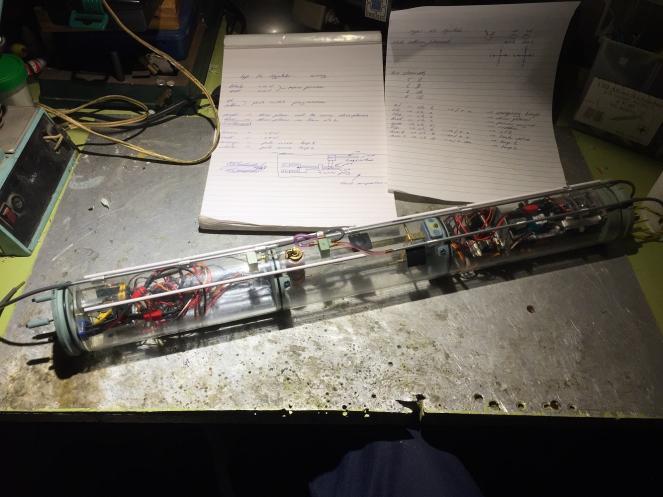

                          The SD is now finished and tested, had to replace the receiver and the levelkeeper, added the magnetconnectors and finished up the connections to the rearpart of the sub.

                          Click image for larger version

Name:	IMG_1885.JPG
Views:	17
Size:	52.8 KB
ID:	137393

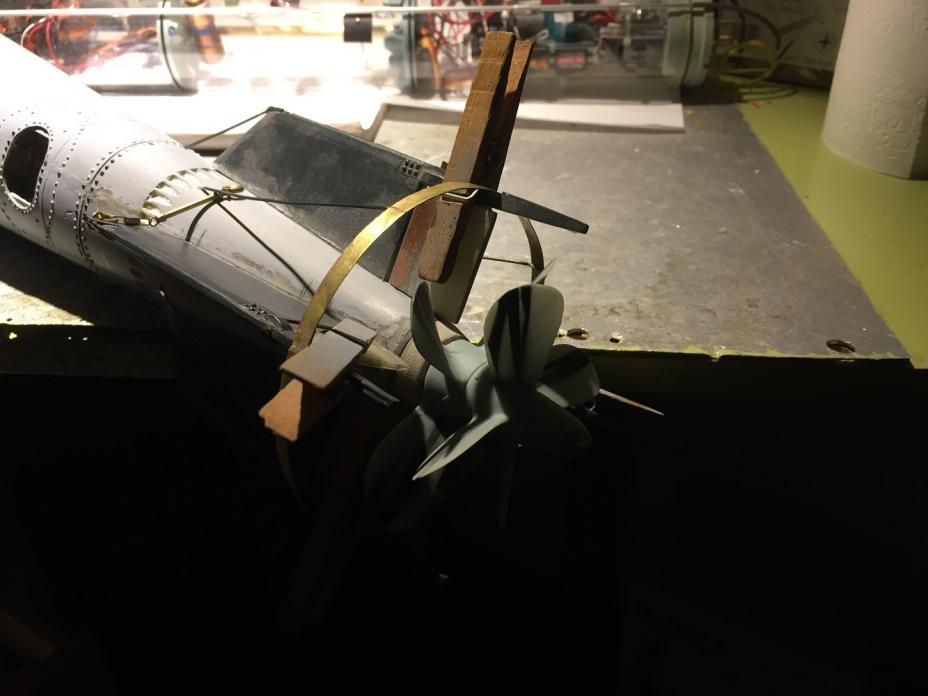

                          Locked down the diveplanes and the rudders for the next step, cutting the rods the right length.

                          Click image for larger version

Name:	IMG_1886.JPG
Views:	17
Size:	51.0 KB
ID:	137394

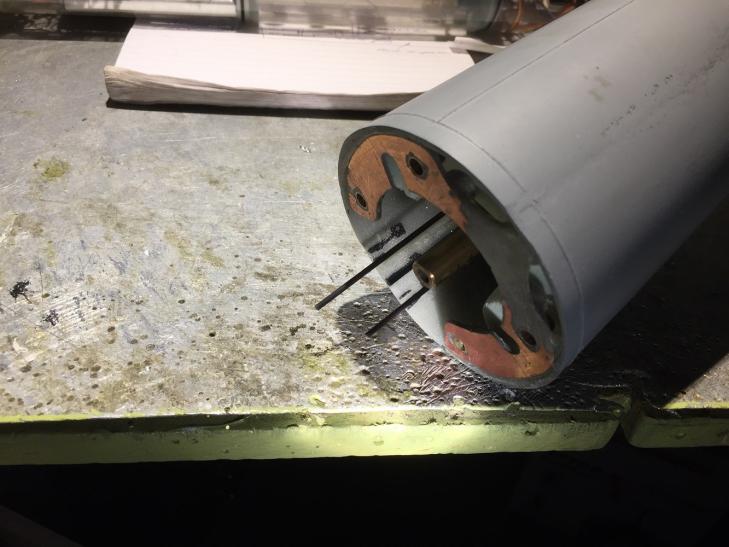

                          I did kept some extra length so i could tweek with them.

                          Click image for larger version

Name:	IMG_1888.JPG
Views:	17
Size:	58.3 KB
ID:	137395

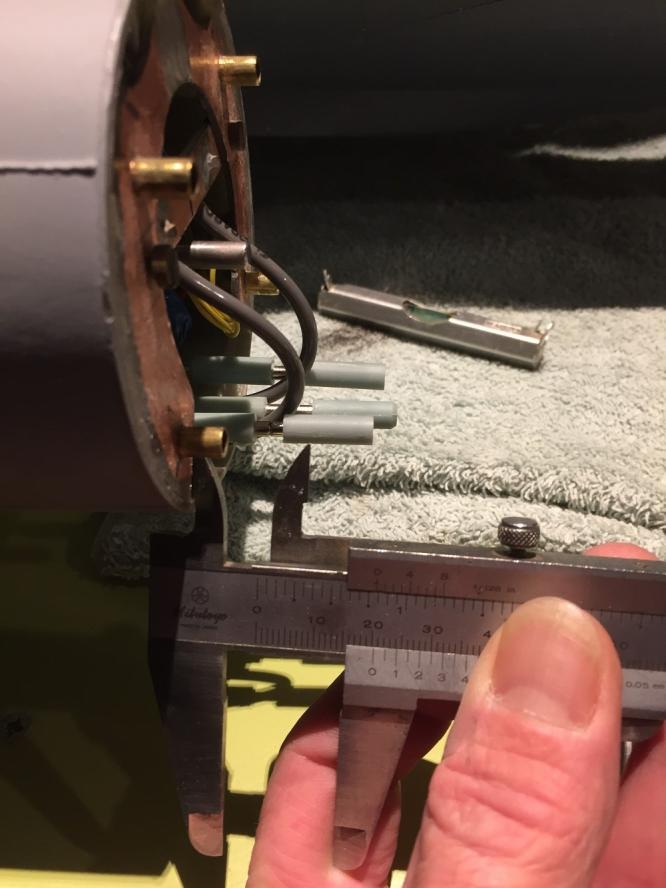

                          Taking my measurement for cutting down the rods.

                          Click image for larger version

Name:	IMG_1897.JPG
Views:	17
Size:	50.2 KB
ID:	137396

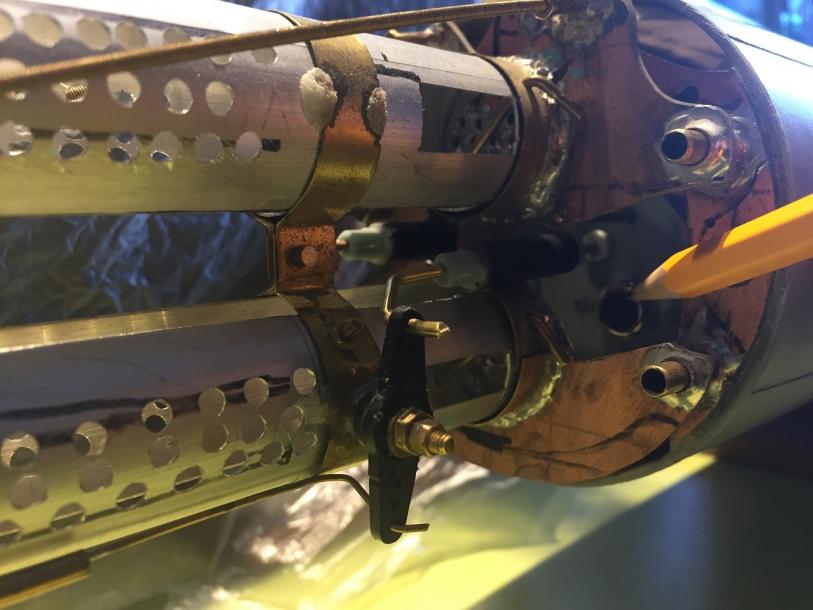

                          After cutting the rods up it revealed that it did not work as intended, so back to the drawingboard, my second attempt made me use bowdencables, this works like a charm.

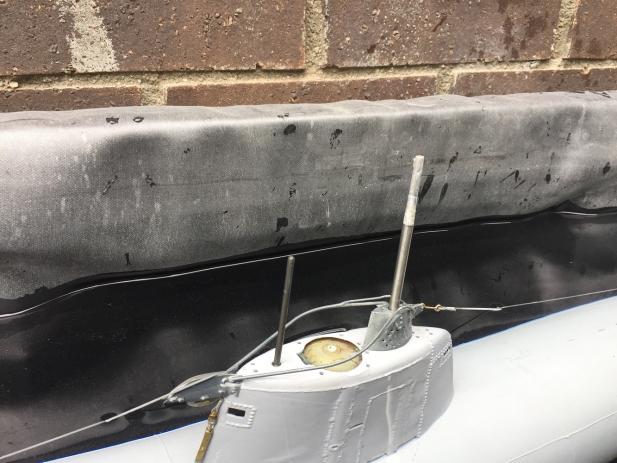

                          Next step will be. starting up the lathe for my schnorkelconnector, and modify my construction for holding down the resquebouy.

                          Manfred.

                          Fertig zum unterwasser.
