  • Thanks Yannis, it was a pleasure meeting you and get a peek inside your cave, i hope everything is well now?

    Manfred.
    Fertig zum unterwasser.

    Comment


    • Scope Up!!!, i'm back

      Talking about scope up, made a sidetrack to do a other fellowbuilder a pleasure, he goofed around with building a Bronco Type XXIII, met him a couple of times to see if i could be of help, he made it lately to run his XXIII in the wild, and more important, after diving she resurfaced again, hats off to him.
      He did have one request, wanted to have a scale scope instead of that blob of plastick on a stick, told him i could make this happen, took a scrappiece of aluminum and started turning,

      Click image for larger version

Name:	IMG_1626.JPG
Views:	65
Size:	73.7 KB
ID:	132726

      Stage one, some stainless steel tube, and a scarppiece of aluminum, i did had to recreate the dimensions of my german scope, now archived for the future.

      Click image for larger version

Name:	IMG_1627.JPG
Views:	62
Size:	664.5 KB
ID:	132727

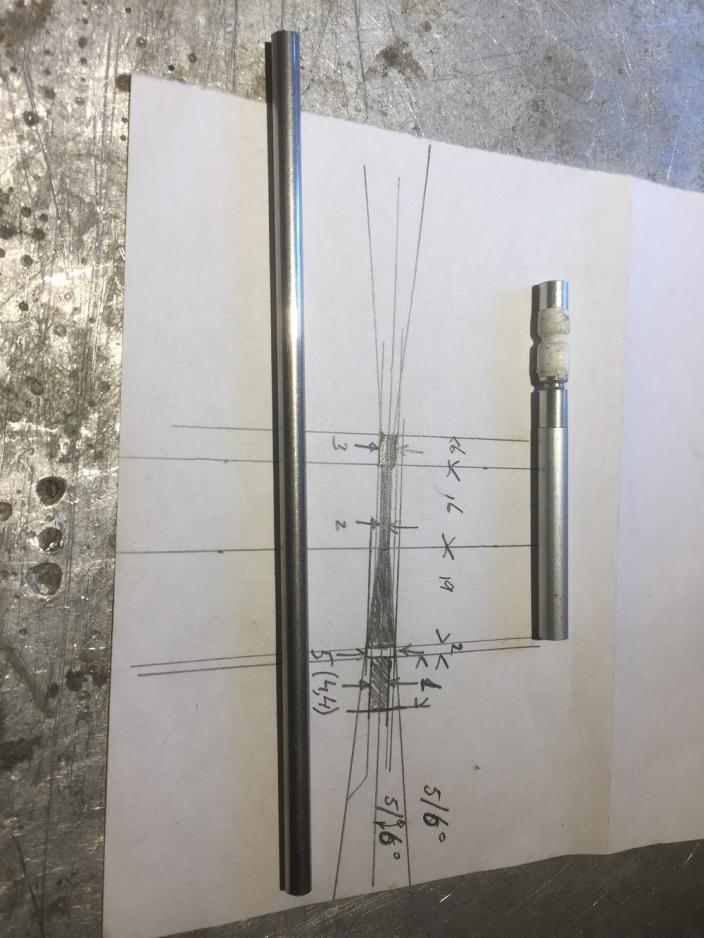

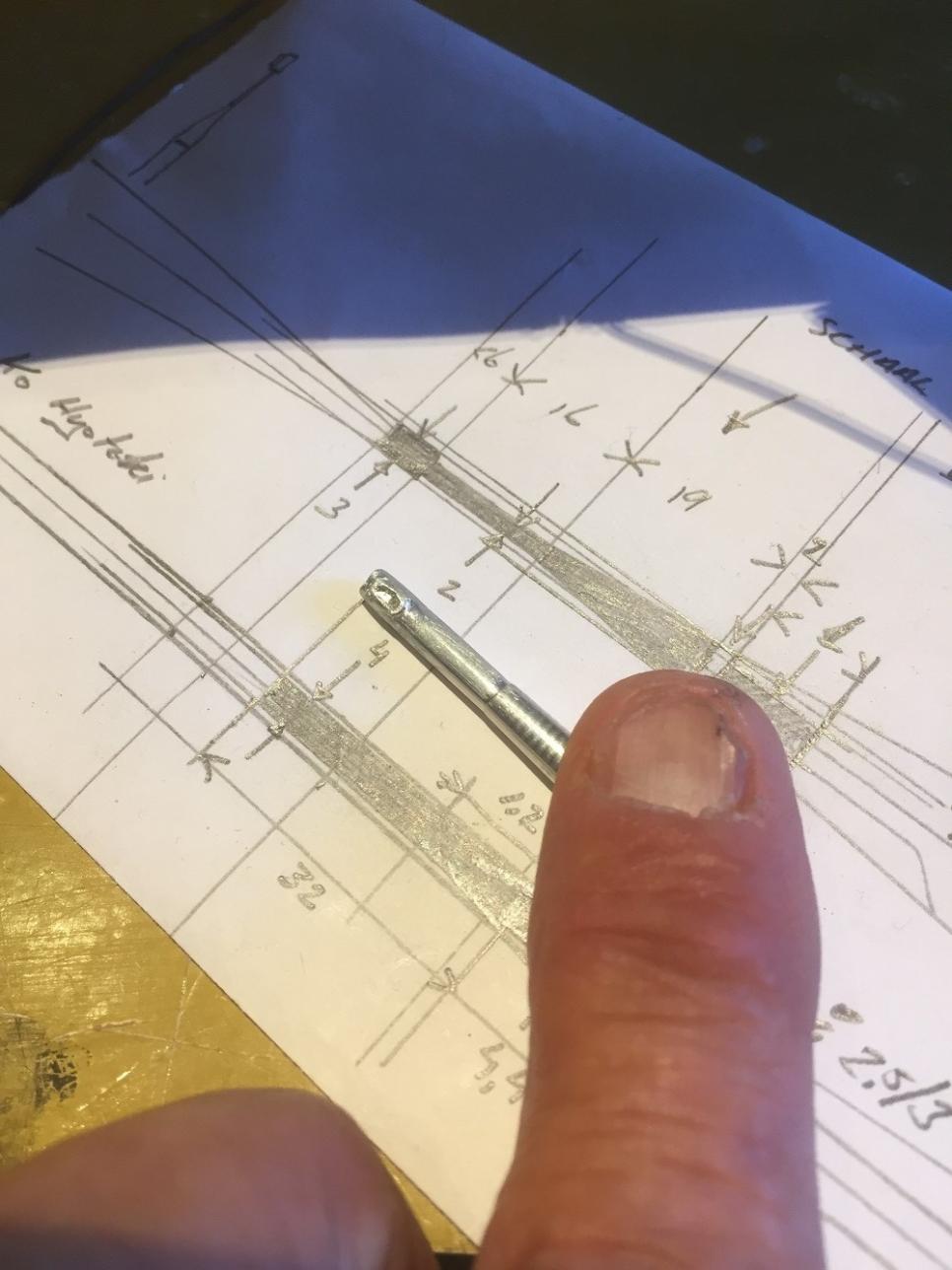

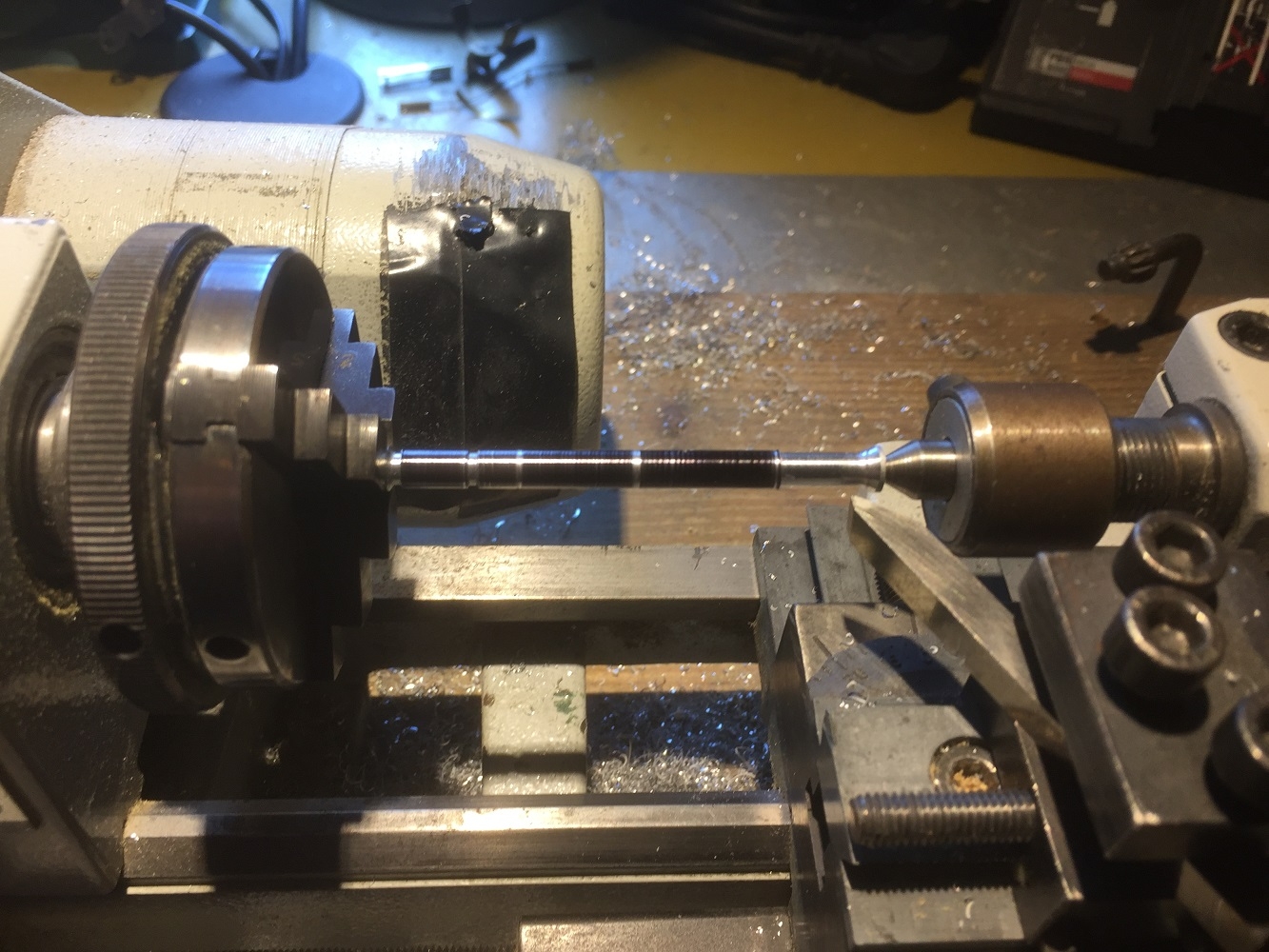

      Coloured the aluminum with a sharpie and marked out the first dimensions.

      Click image for larger version

Name:	IMG_1628.JPG
Views:	62
Size:	127.9 KB
ID:	132728

      Lower part has the right dimension for inside the stainless tube, working on the smallest part which contains the peroscopehead.

      Click image for larger version

Name:	IMG_1629.JPG
Views:	63
Size:	131.0 KB
ID:	132729

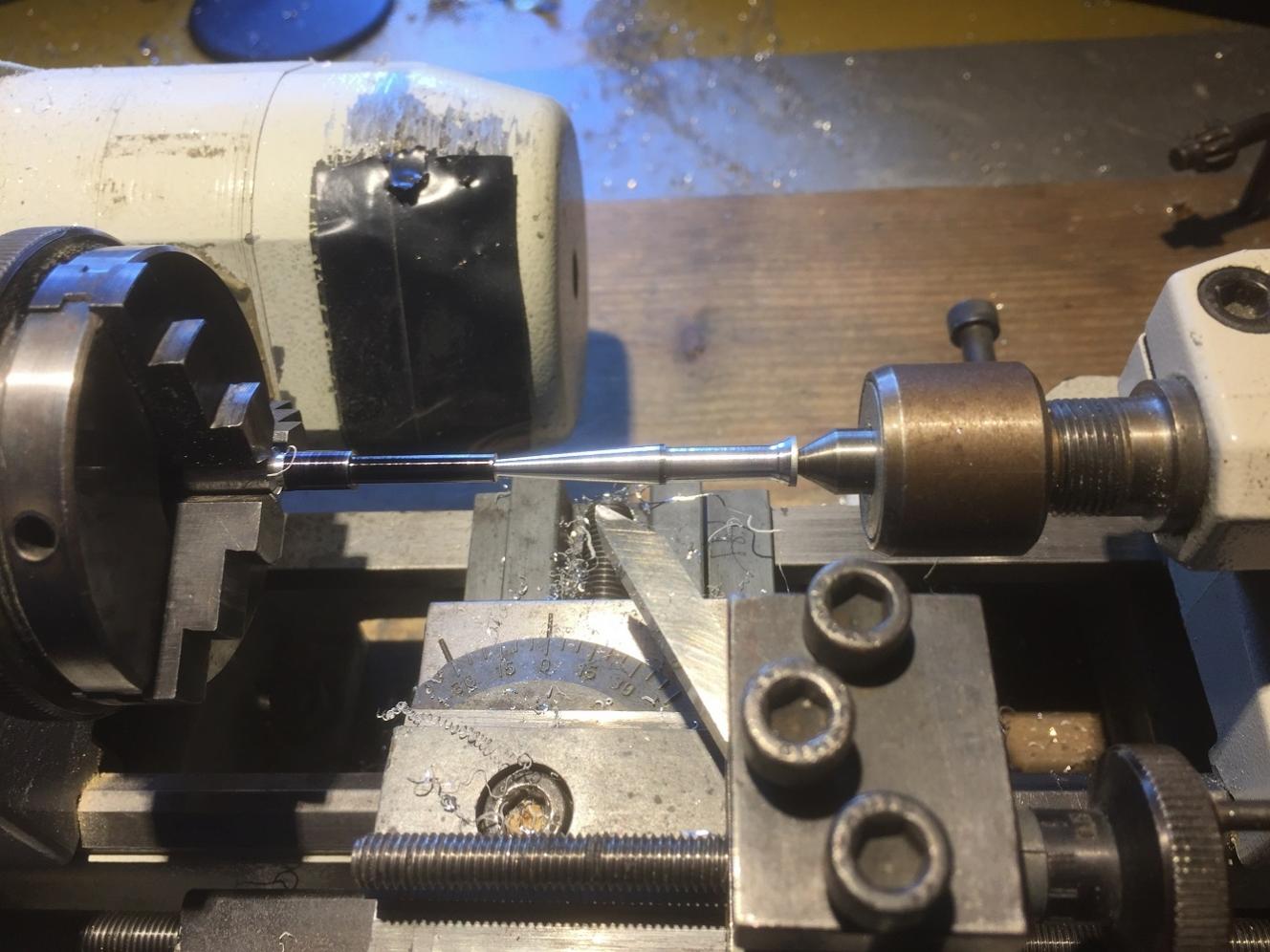

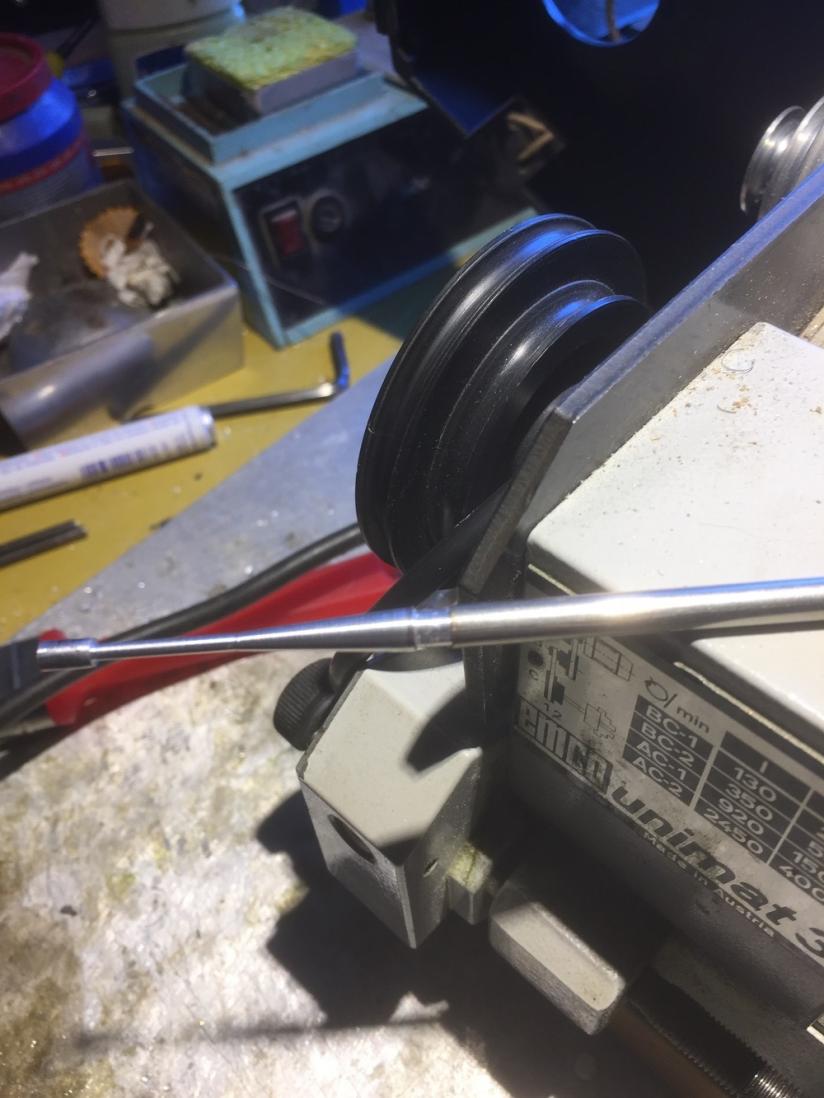

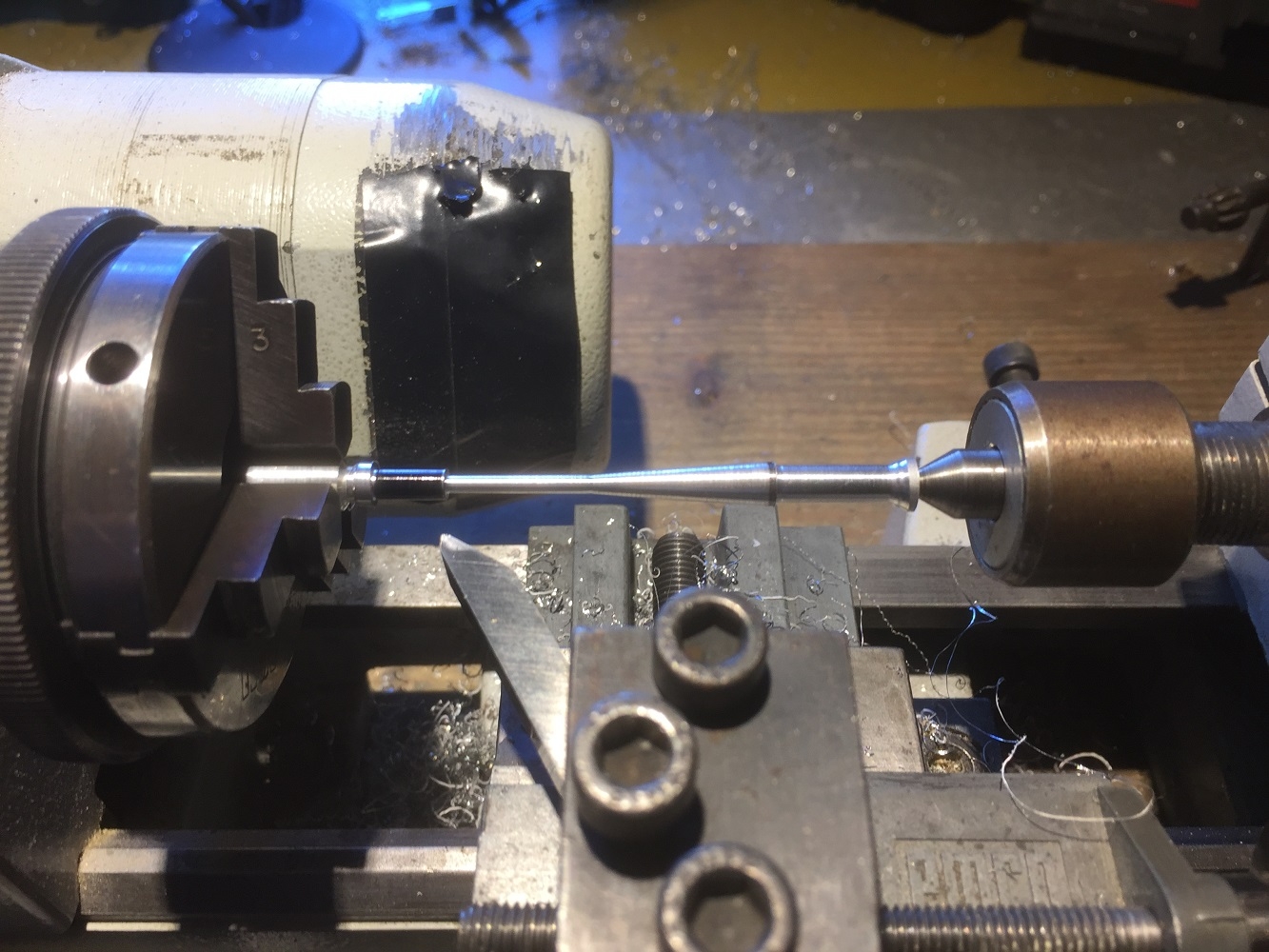

      Turning the conical part of the scope, note that the smaller part not yet is to dimension, this gives you room to tweak with the angle of the conical part.

      Click image for larger version

Name:	IMG_1630.JPG
Views:	64
Size:	616.8 KB
ID:	132730

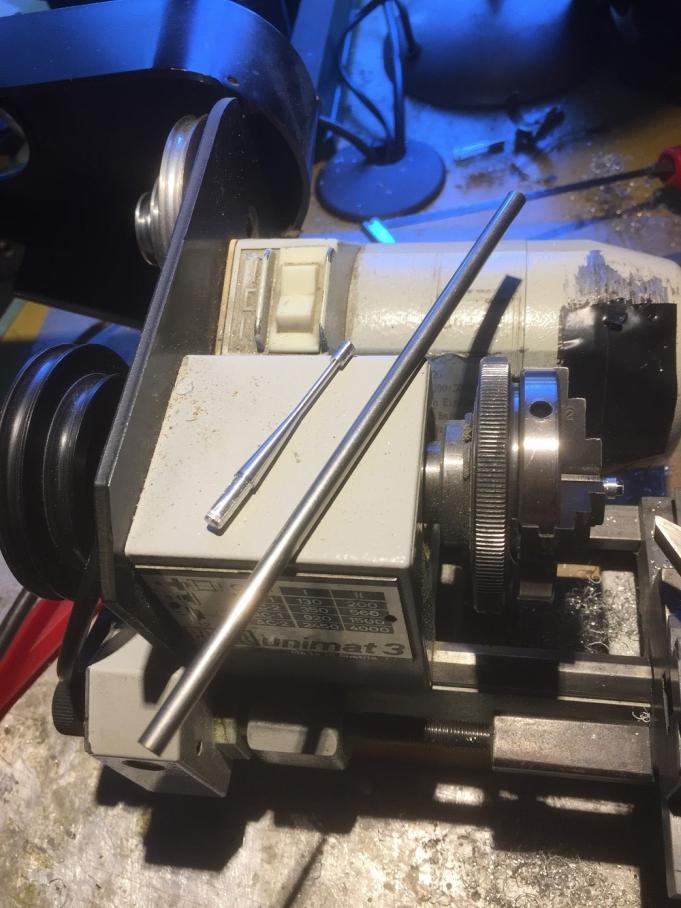

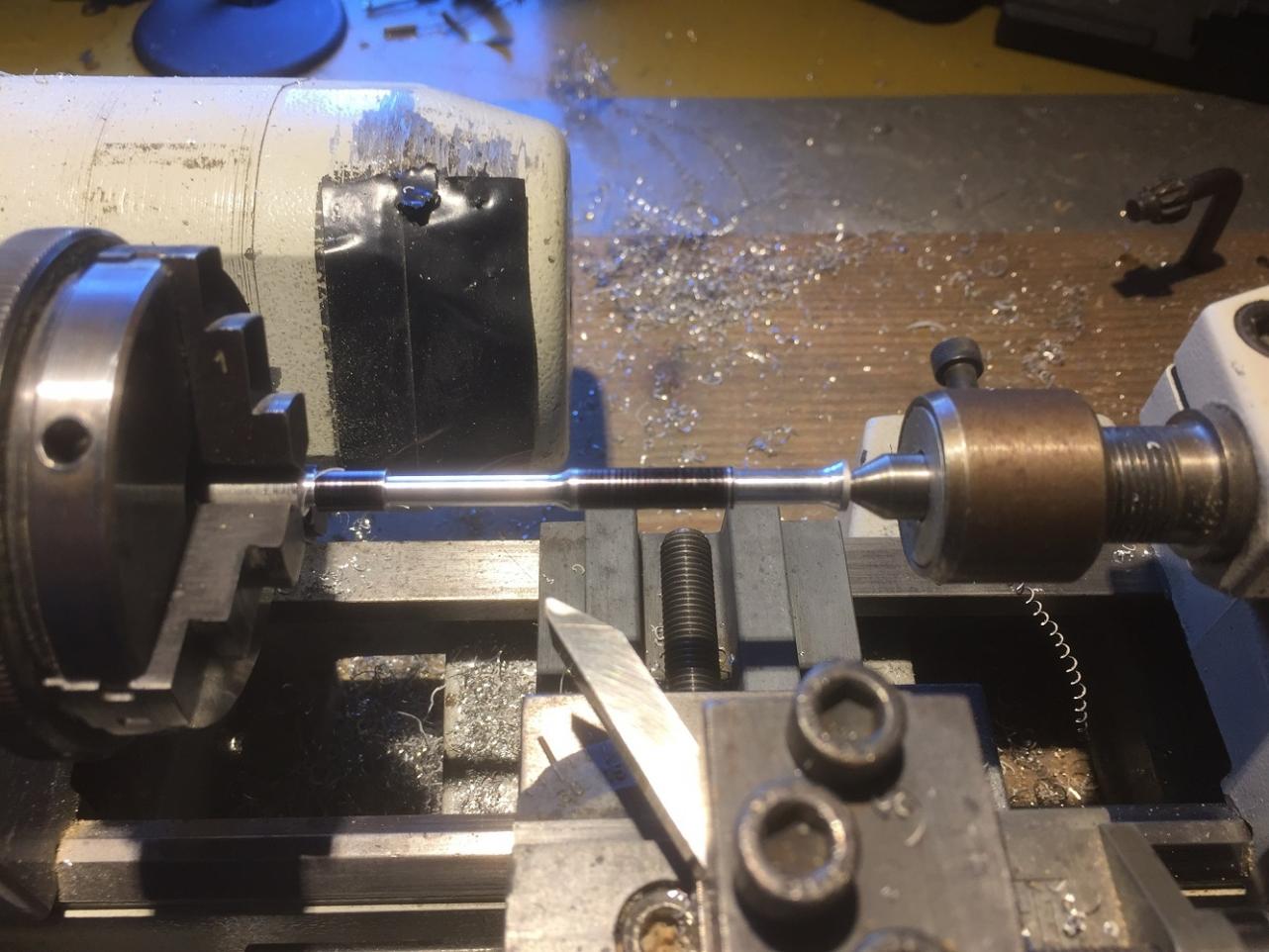

      When the conical part is done you can turn down the smaller part under the head to dimension.

      Click image for larger version

Name:	IMG_1631.JPG
Views:	62
Size:	80.7 KB
ID:	132731

      Finished product, ready for fitting it together.

      Click image for larger version

Name:	IMG_1632.JPG
Views:	64
Size:	87.1 KB
ID:	132732

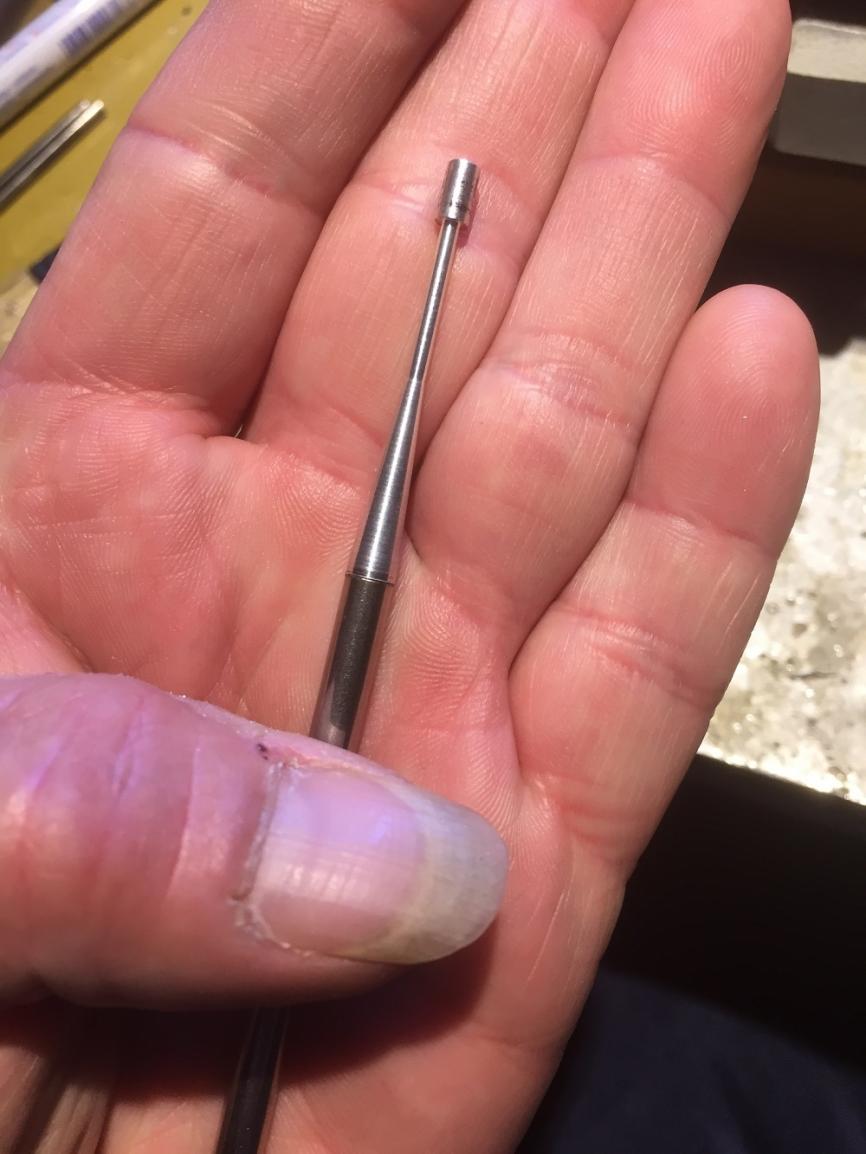

      As intended the scope slides into the tube with just enough clearance to add some glue.

      Click image for larger version

Name:	IMG_1633.JPG
Views:	61
Size:	81.2 KB
ID:	132733

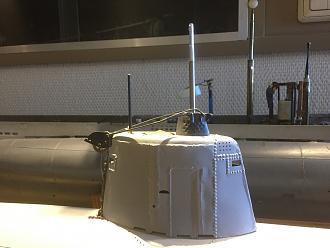

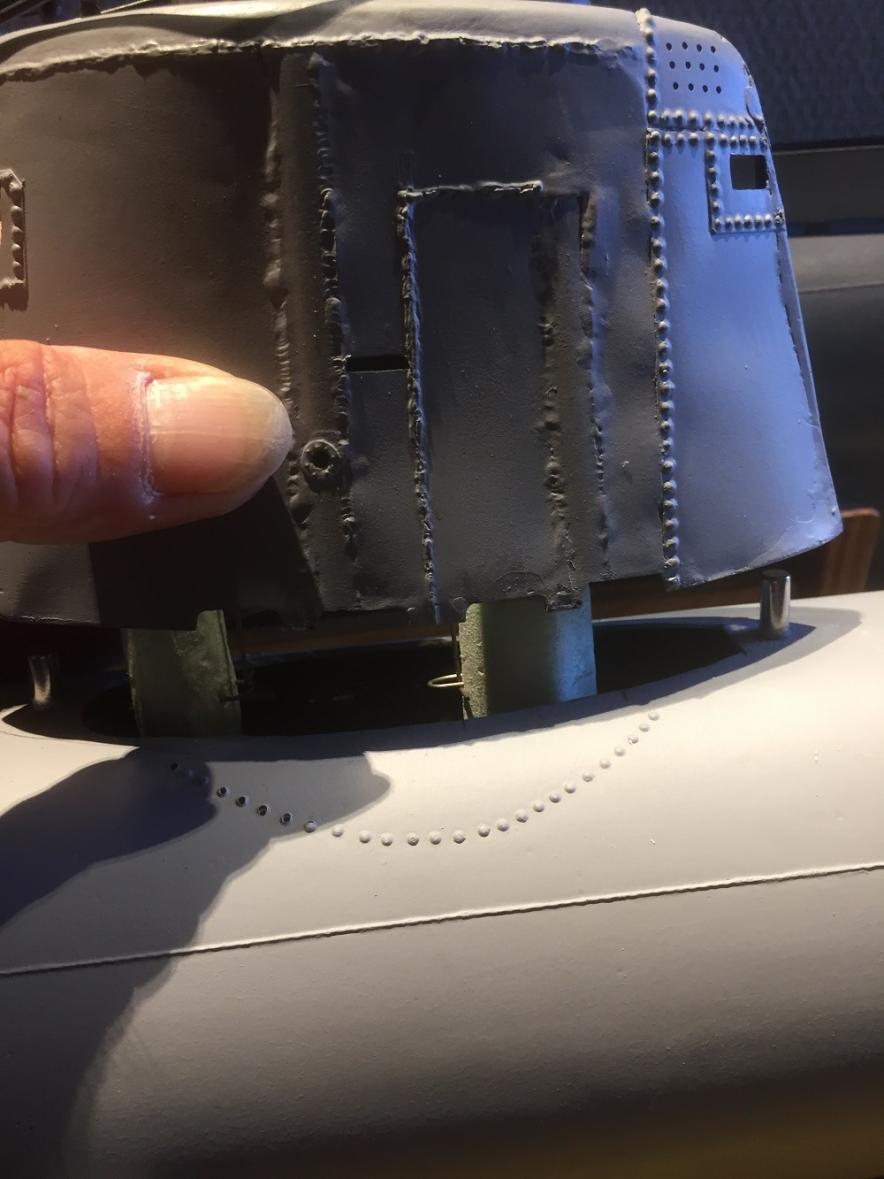

      To give a impression how big this part is, on my type VII those strange wires are also added, for some reason this was not added at the XXIII's scope.

      Click image for larger version

Name:	IMG_1634.JPG
Views:	62
Size:	116.2 KB
ID:	132734

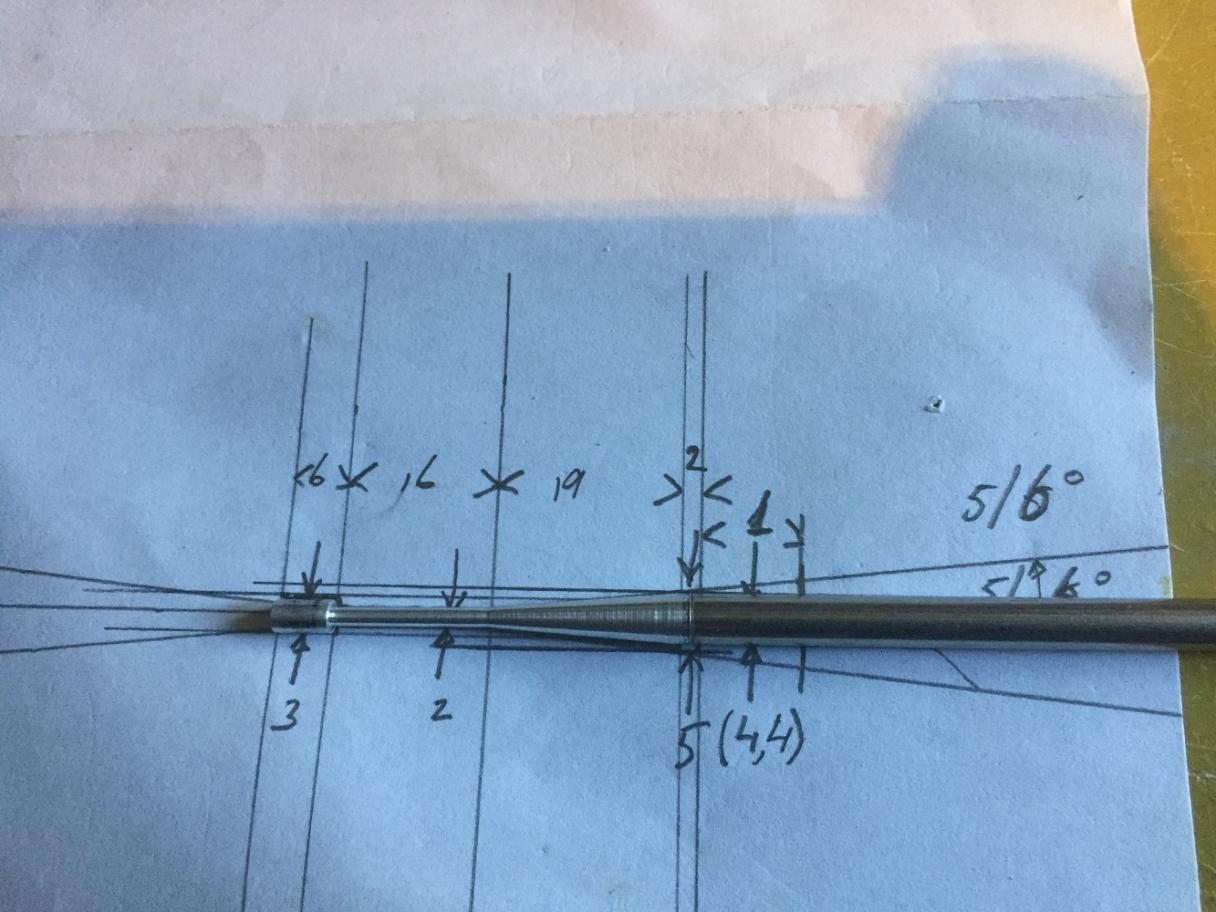

      Final check if i followed the right dimensions, after this i also added the scopesight and made a lens of epoxy for it, now this scope is his problem.

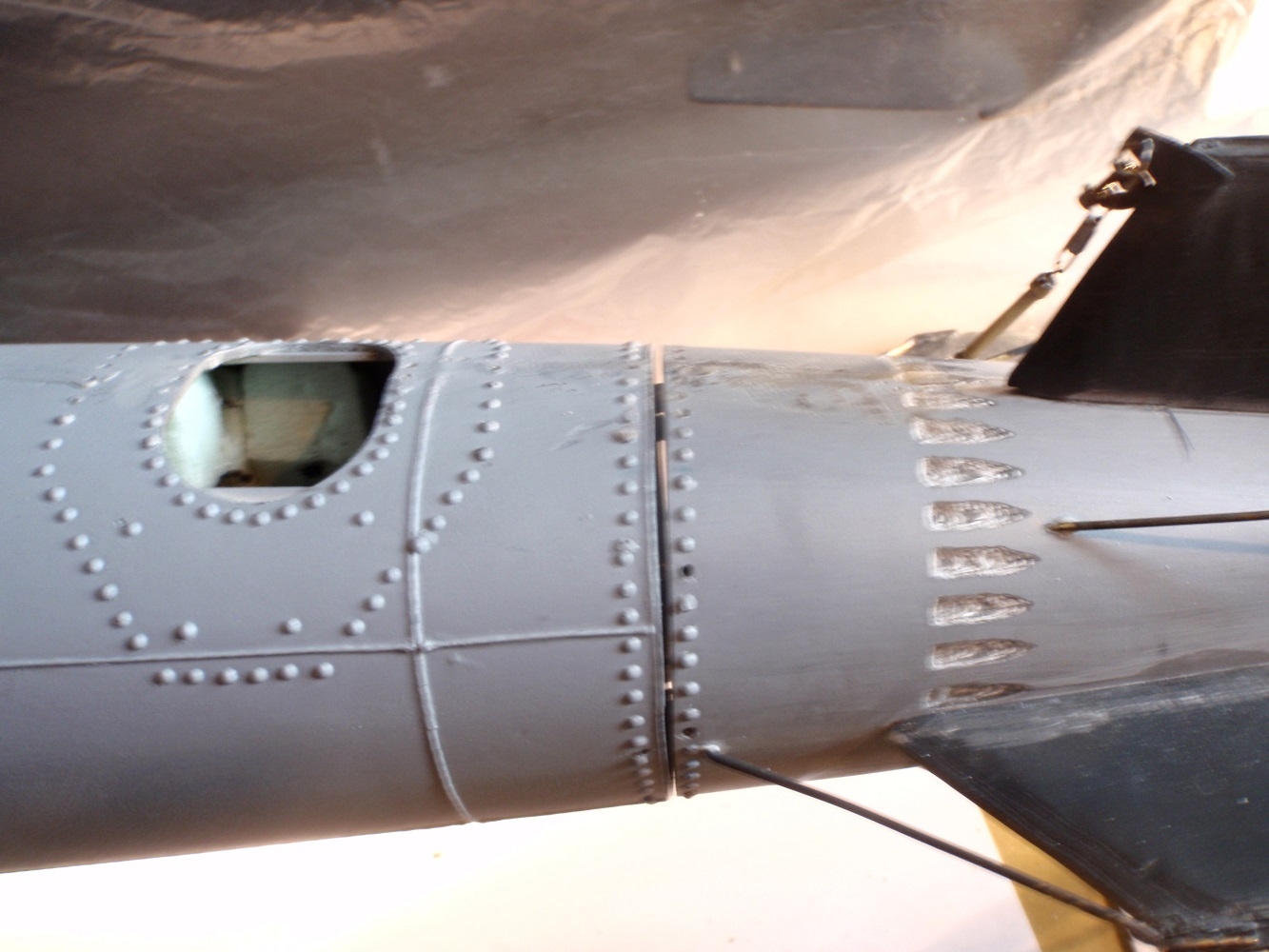

      You will wonder what about the Ko Hyoteki?, well, between some other issue's i managed to do some stuff, first i solved the minute gap at the tailpiece,

      Click image for larger version

Name:	PA070053.JPG
Views:	61
Size:	503.5 KB
ID:	132735

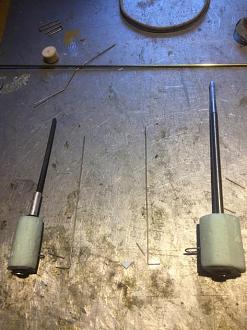

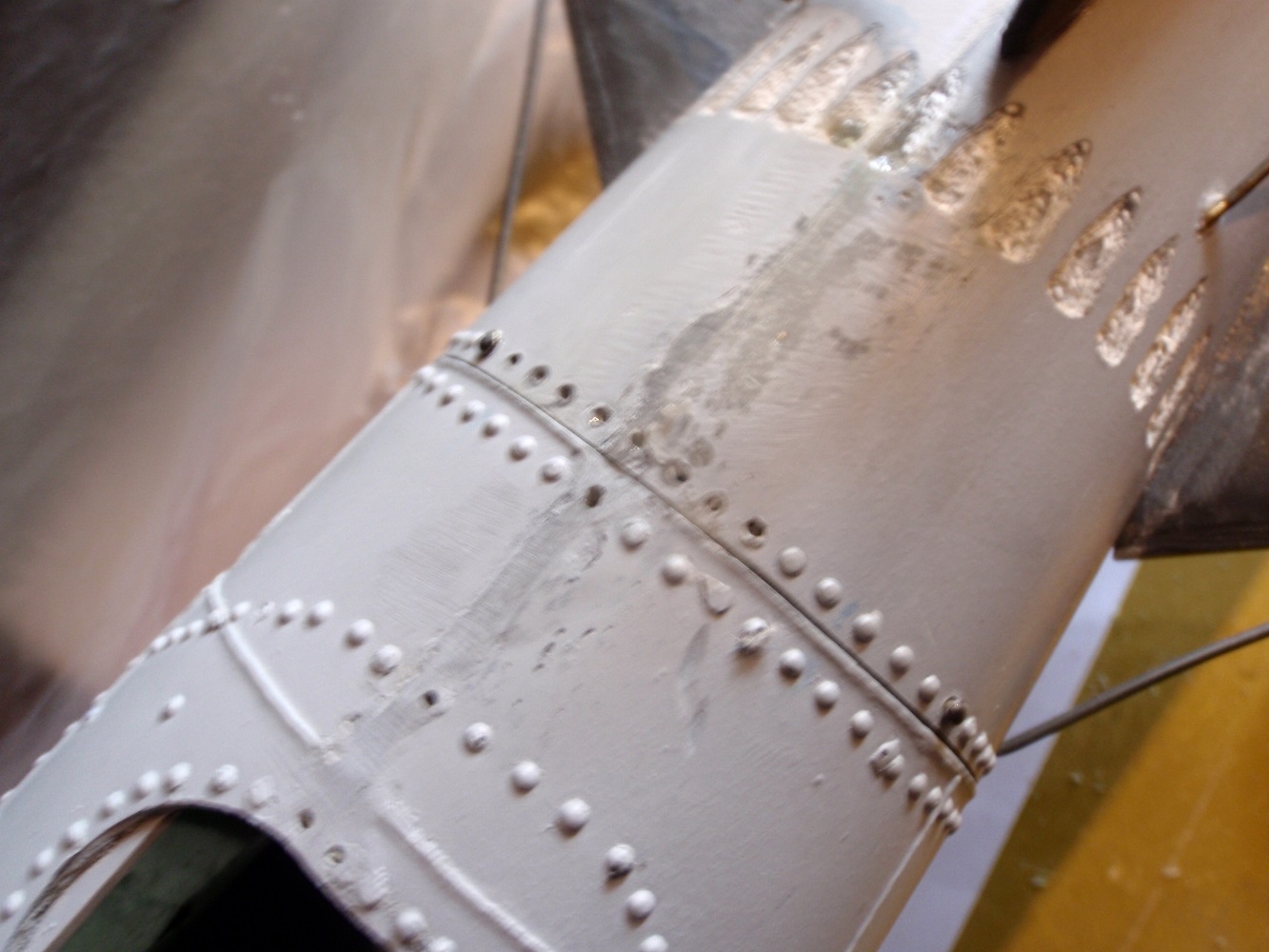

      This was my problem, due to the weight of the rearpart it sometimes wanted to separeate.

      Click image for larger version

Name:	PA070055.JPG
Views:	62
Size:	540.6 KB
ID:	132736

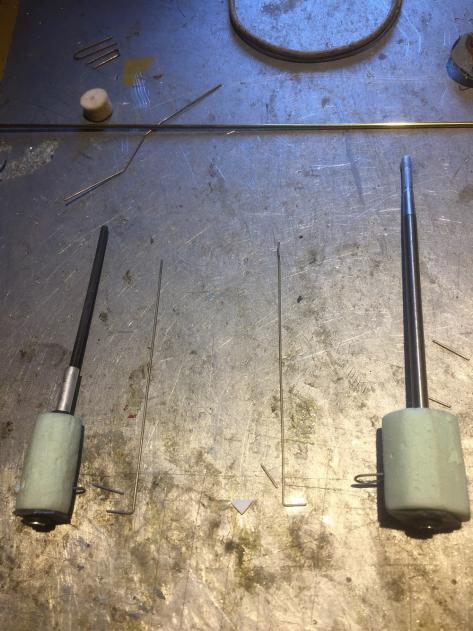

      Drilled some 1 mm holes straight through the tubes, added some 1 mm copper false rivets.

      Click image for larger version

Name:	PA070056.JPG
Views:	62
Size:	513.2 KB
ID:	132737

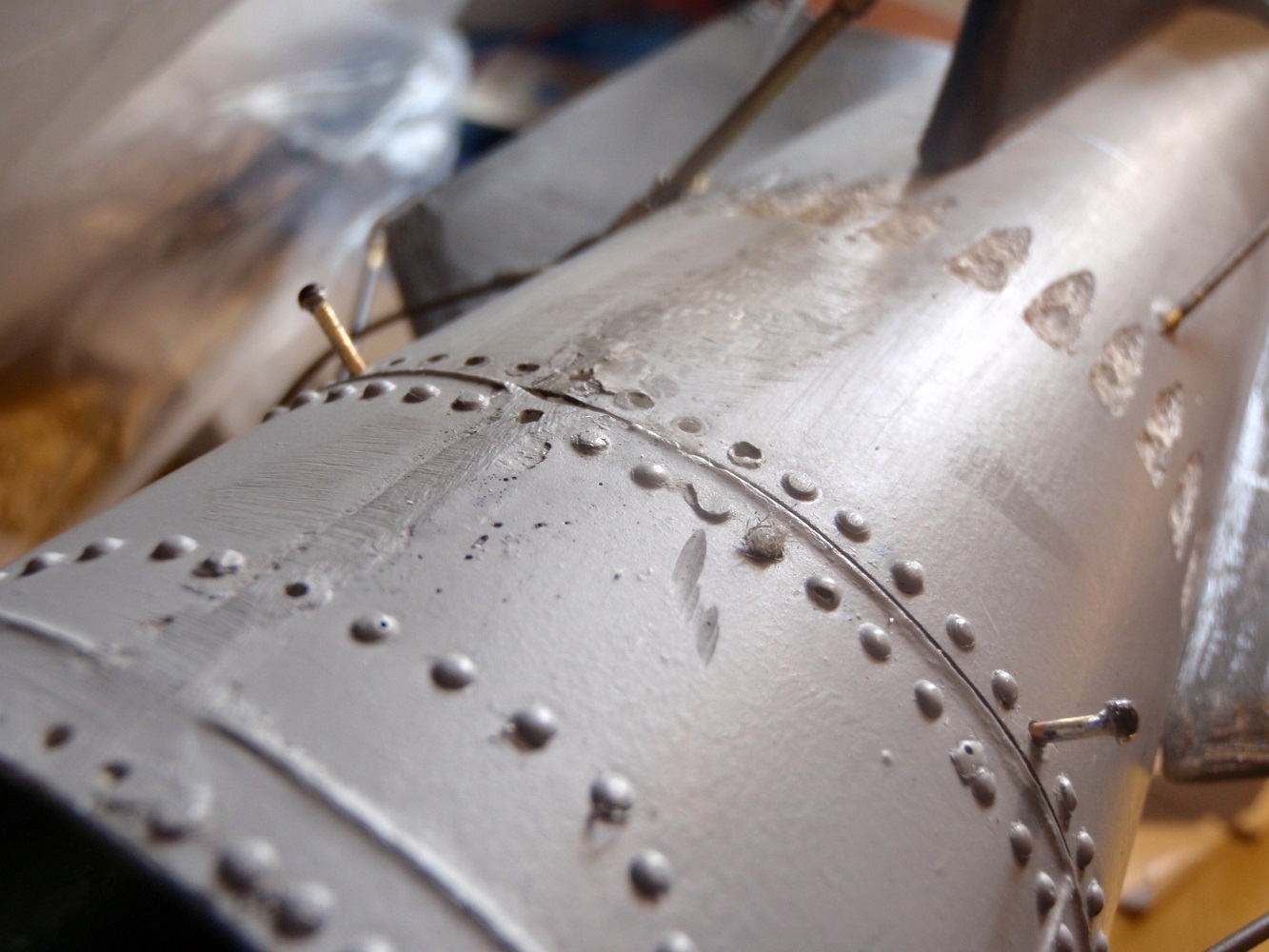

      Once pushed into their holes they secure the rearpart, when needed you can take them out.

      to be continued.


      Manfred.






















      Fertig zum unterwasser.

      Comment


      • Order of operations 101, how you going to attack a part…….so important…..nice work Manfred.

        Grtz,
        Bart
        Practical wisdom is only to be learned in the school of experience.
        "Samuel Smiles"
        http://scale-submarine.com/index.html

        Comment


        • Thanks Bart,

          Yup, especially when the stock of 6 mm aluminum rods is almost gone, since the lathe was spinning i also made the scope of the Ko Hyoteki, compared to the german scope it's simplicity all over,


          Click image for larger version

Name:	IMG_1641.JPG
Views:	64
Size:	91.5 KB
ID:	132762

          Pretty much the same approach, first measurements and have a go with the lathe.

          Click image for larger version

Name:	IMG_1640.JPG
Views:	63
Size:	596.9 KB
ID:	132763

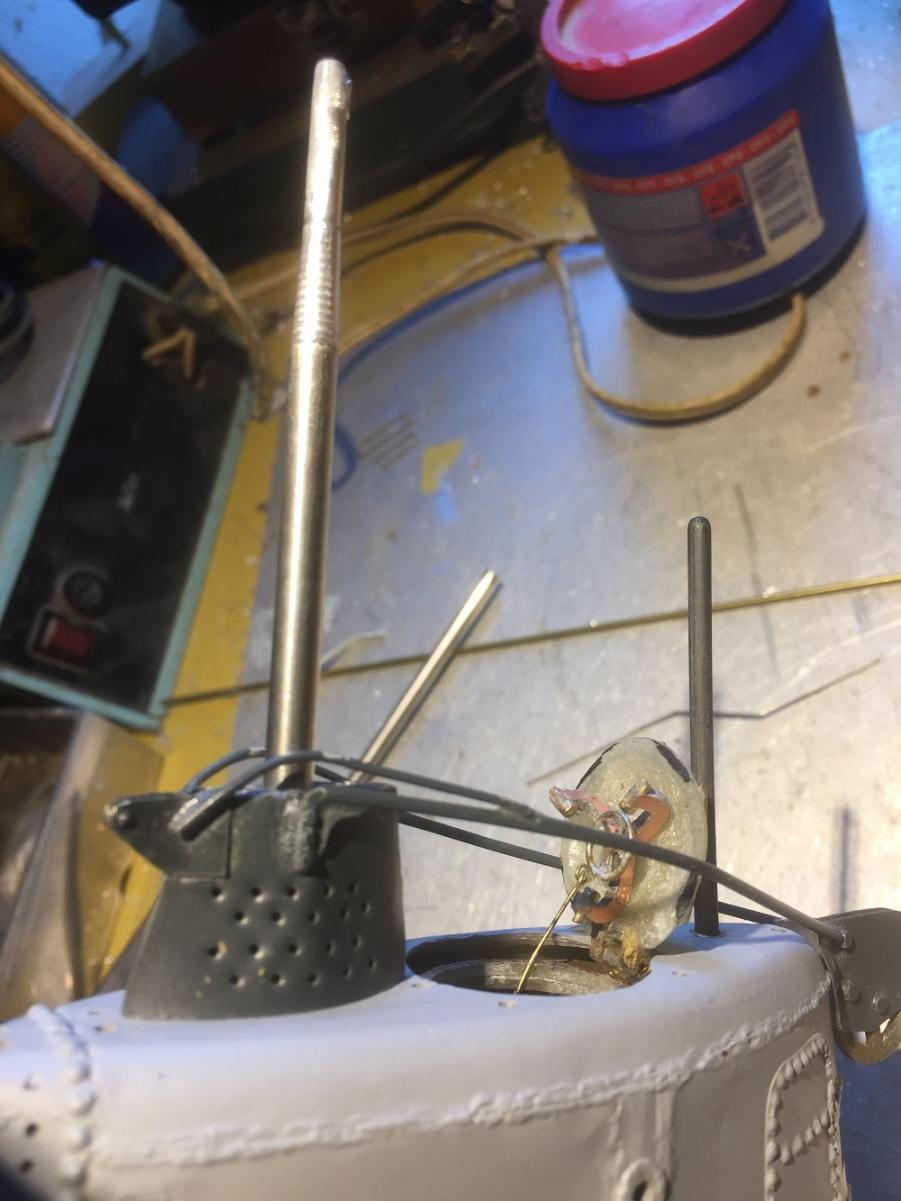

          For now she's standing like this on the bench, scope ready and the antenna present, next hurdle is, making the resquebouy mechanism, i decided to work from the back to the front of the boat.
          Still have to think about lifting the stuff, probably a KISS float system for both the scope as the antenna.


          Manfred.

          Fertig zum unterwasser.

          Comment


          • Manfred,
            I gotta say, it is good to see you posting again.
            Peace,
            Tom
            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

            Comment


            • Thanks Tom,

              The plate was full with other stuff, have some foundation problems with my house, but that will be taken care of during this year, before i can start with the house build it will take some time, so now it's back to building the Ko Hyoteki to relax.
              The upside of the house story is, if all goes well the Cave will be extended by four time the room i have now (think big cellar), wonder if David will still name it as a Pig-pen, we will see in the future.

              Manfred.
              Fertig zum unterwasser.

              Comment


              • Originally posted by MFR1964 View Post
                Thanks Tom,

                The plate was full with other stuff, have some foundation problems with my house, but that will be taken care of during this year, before i can start with the house build it will take some time, so now it's back to building the Ko Hyoteki to relax.
                The upside of the house story is, if all goes well the Cave will be extended by four time the room i have now (think big cellar), wonder if David will still name it as a Pig-pen, we will see in the future.

                Manfred.
                Productivity is disproportionate to shop cleanliness! Structured chaos is good.

                David
                "... well, that takes care of Jorgenson's theory!"

                Comment


                • Blah,blah,blah,blah

                  Manfred.
                  Last edited by MFR1964; 06-18-2019, 03:43 PM. Reason: forgot one extra blah to annoy you
                  Fertig zum unterwasser.

                  Comment

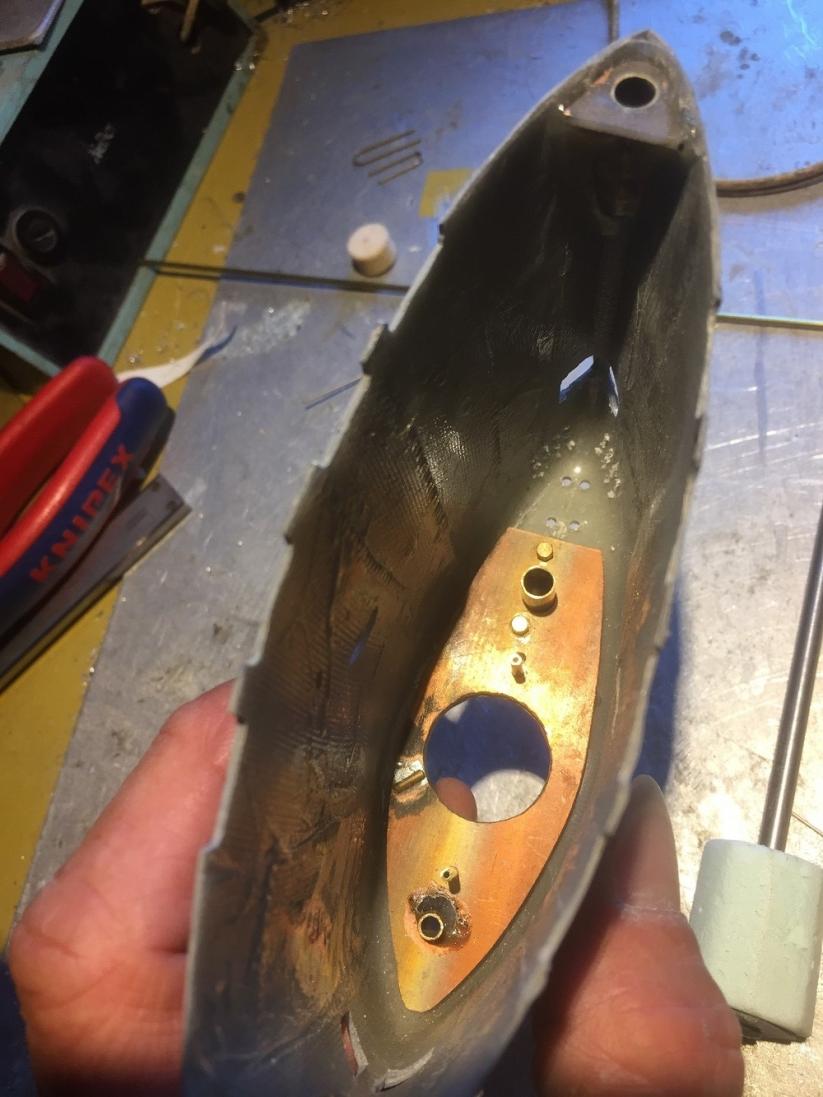

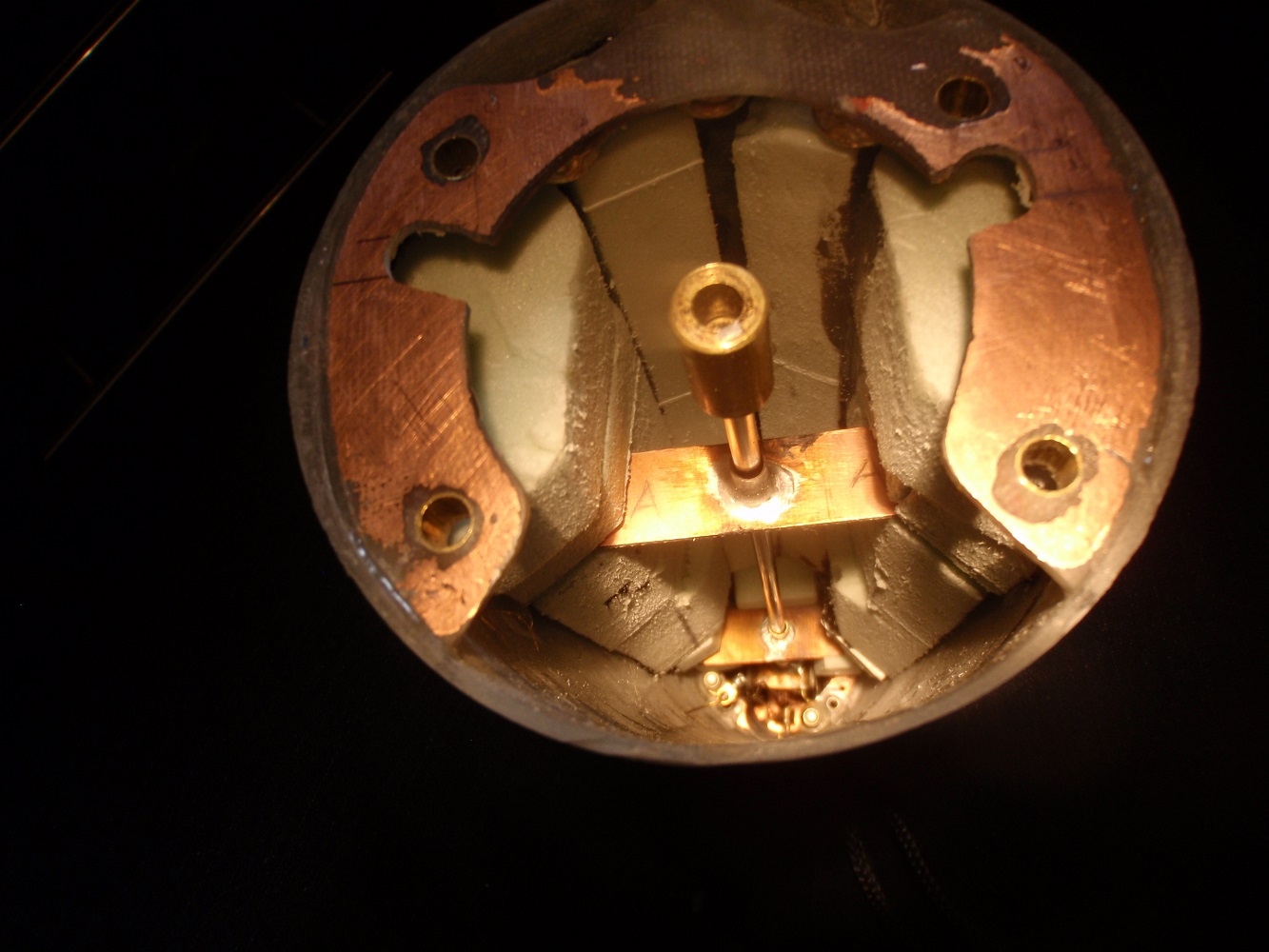

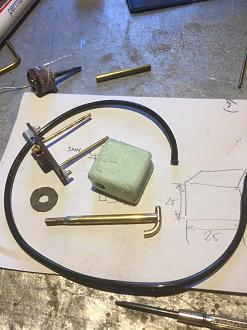

                  • Wanted to build my resquebouye system, but first had to do something else, David stated correctly that the conical shape of the stern would give problems with bouyency, you're not able to get enough foam inside, so i deciced to leave the last part of the stern alone and turned my attention to the second part of the stern.

                    Click image for larger version  Name:	PA070057.JPG Views:	1 Size:	473.0 KB ID:	132802

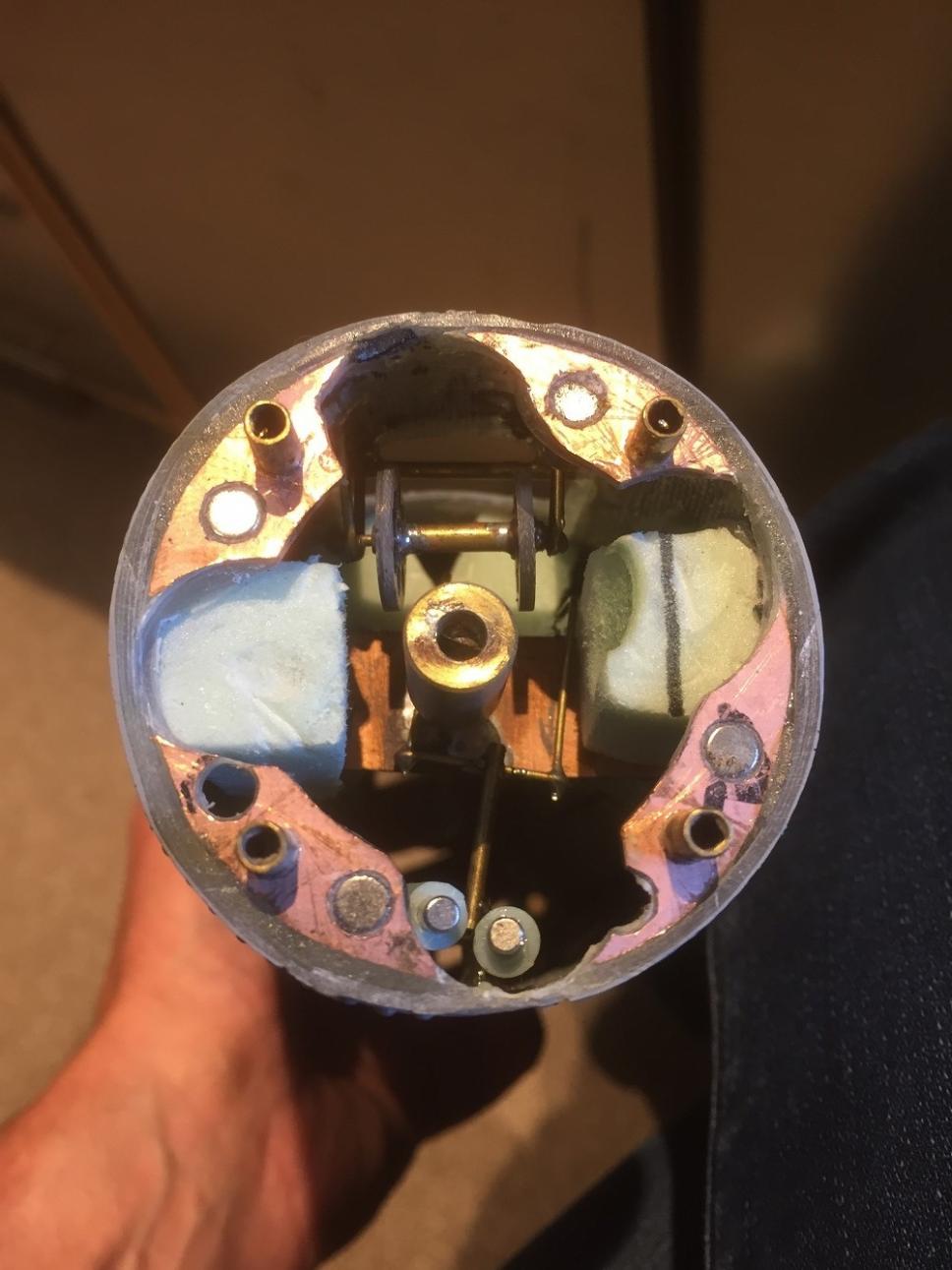

                    Stuffed in as much foam as i could, used the old ribs to follow the contours of the hull and glued them down with RTV

                    Click image for larger version  Name:	IMG_1642.JPG Views:	1 Size:	96.2 KB ID:	132803

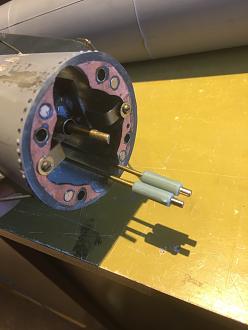

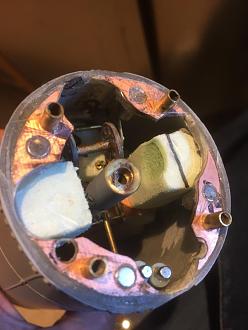

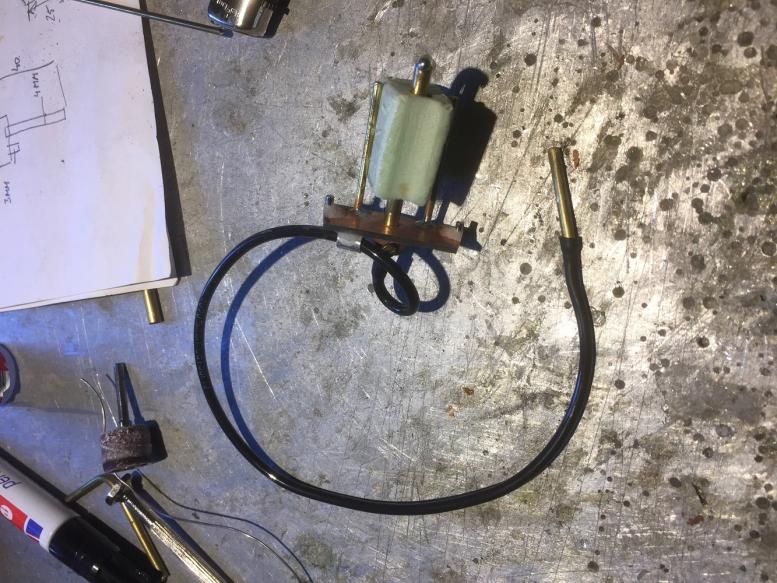

                    The other side of the business end, placed a small spindle inside and added a slidingbar near the hole of the hatch, this is done to give the wire a smooth ride without gettiing stuck.

                    Click image for larger version  Name:	IMG_1643.JPG Views:	1 Size:	97.0 KB ID:	132804

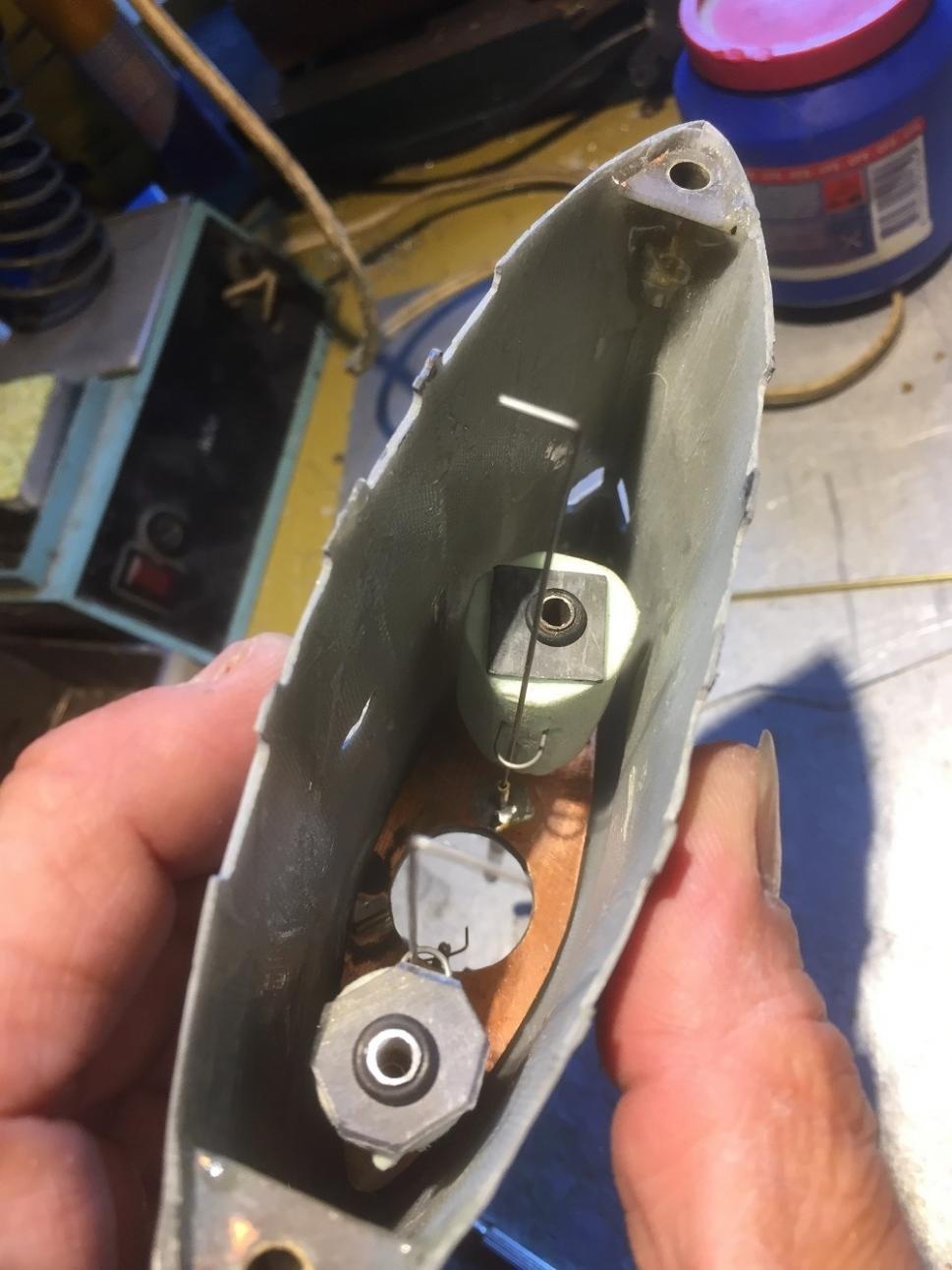

                    A better view on the slidingbar and you can see the hook which will hold the bouye on it's place.

                    Click image for larger version  Name:	IMG_1644.JPG Views:	1 Size:	91.9 KB ID:	132805

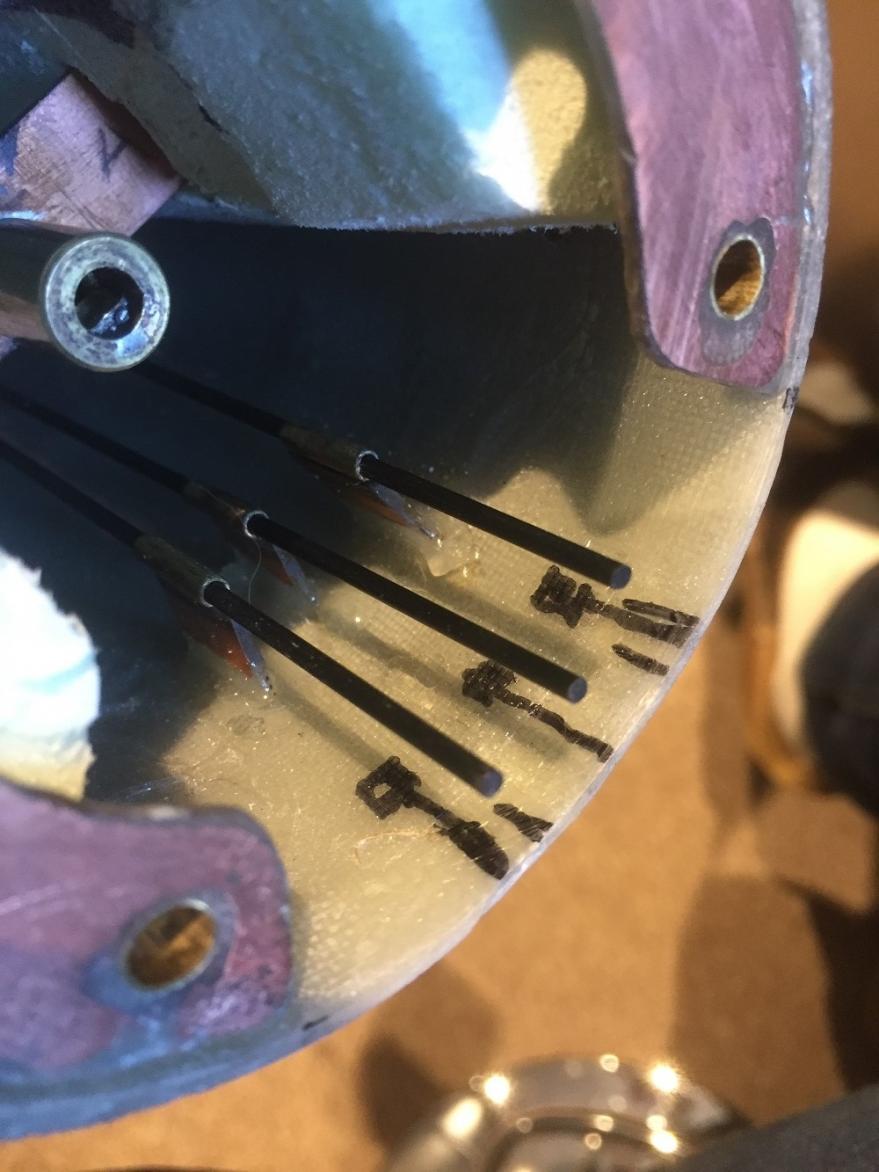

                    At the same time i could add the steeringrods with their guides, marked down the exact positions with the SD inside.

                    Click image for larger version  Name:	IMG_1645.JPG Views:	1 Size:	485.8 KB ID:	132806

                    Added the magnets at the last sternpart, this was also done at the second sternpart, when you "magnitize" them together i can control the propellors, rudders, divingplanes and resquebouye.

                    Next little project will be, building the floats for both the antenna and the scope, i've seen some nice examples on the forum and will follow that road.


                    Manfred.
                    Last edited by MFR1964; 06-21-2019, 03:38 PM.
                    Fertig zum unterwasser.

                    Comment


                    • Slowly, but surely coming together. That cone is a SOB to work in, isn't it?! Man, this is going to be one slick looking boat once you've get it into the water.

                      David
                      "... well, that takes care of Jorgenson's theory!"

                      Comment


                      • Yeah, it became a bit of a journey, but at the end i get my reward, that cone gave me some grey hairs, took me some effort to get it right, i ended up with the trusty design you allways use when you have a single shaft propulsion.
                        I know there is a guy on Youtube which has a working Ko Hyoteki, has some nice underwater video shots,so i know what the result will be, not sure if he has a working two shooter.
                        Follow the link, https://youtu.be/Hp5wOW73PrU

                        Manfred.
                        Fertig zum unterwasser.

                        Comment


                        • Goofed around this summer with the V80 and the type VII, now it's time to rapport some progress i made last weeks with the Ko Hyoteki.

                          Click image for larger version

Name:	IMG_1666.JPG
Views:	70
Size:	79.2 KB
ID:	134731

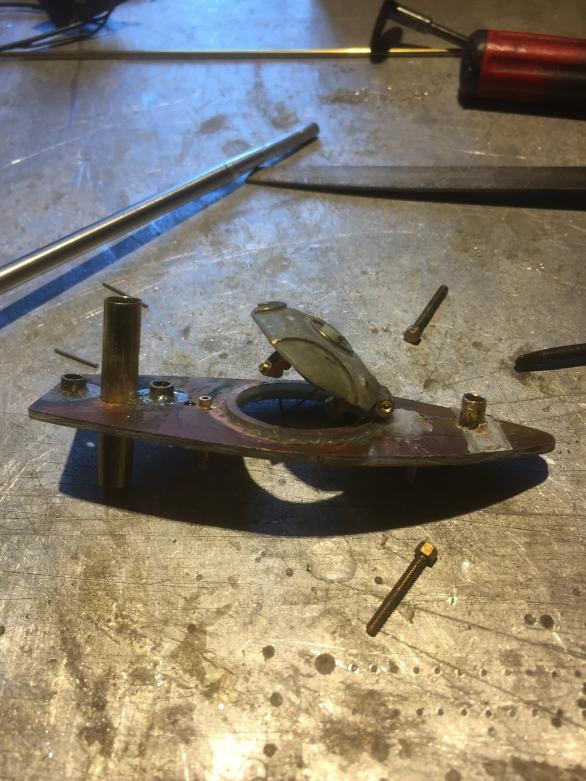

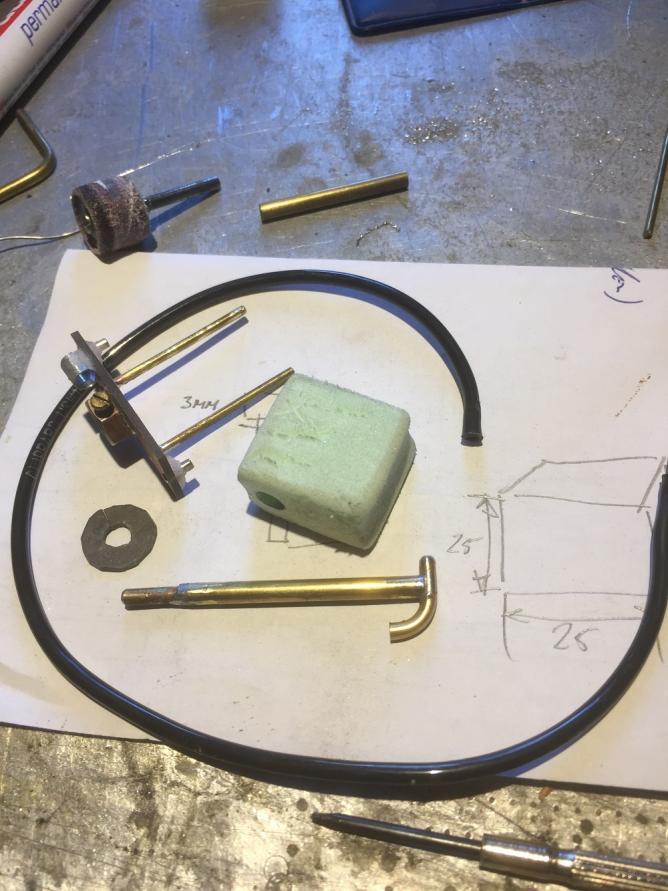

                          The loose parts to get me a SAS floater.

                          Click image for larger version

Name:	IMG_1665.JPG
Views:	64
Size:	95.9 KB
ID:	134732

                          Once put together you get this,

                          Click image for larger version

Name:	IMG_1661.JPG
Views:	63
Size:	429.5 KB
ID:	134733

                          Place on the hull at the right position,

                          Click image for larger version

Name:	IMG_1662.JPG
Views:	63
Size:	425.0 KB
ID:	134734

                          To make things easy, it's held on it's place by using neodine magnets, easy job for maintenance.

                          Click image for larger version

Name:	IMG_1650.JPG
Views:	63
Size:	52.5 KB
ID:	134735

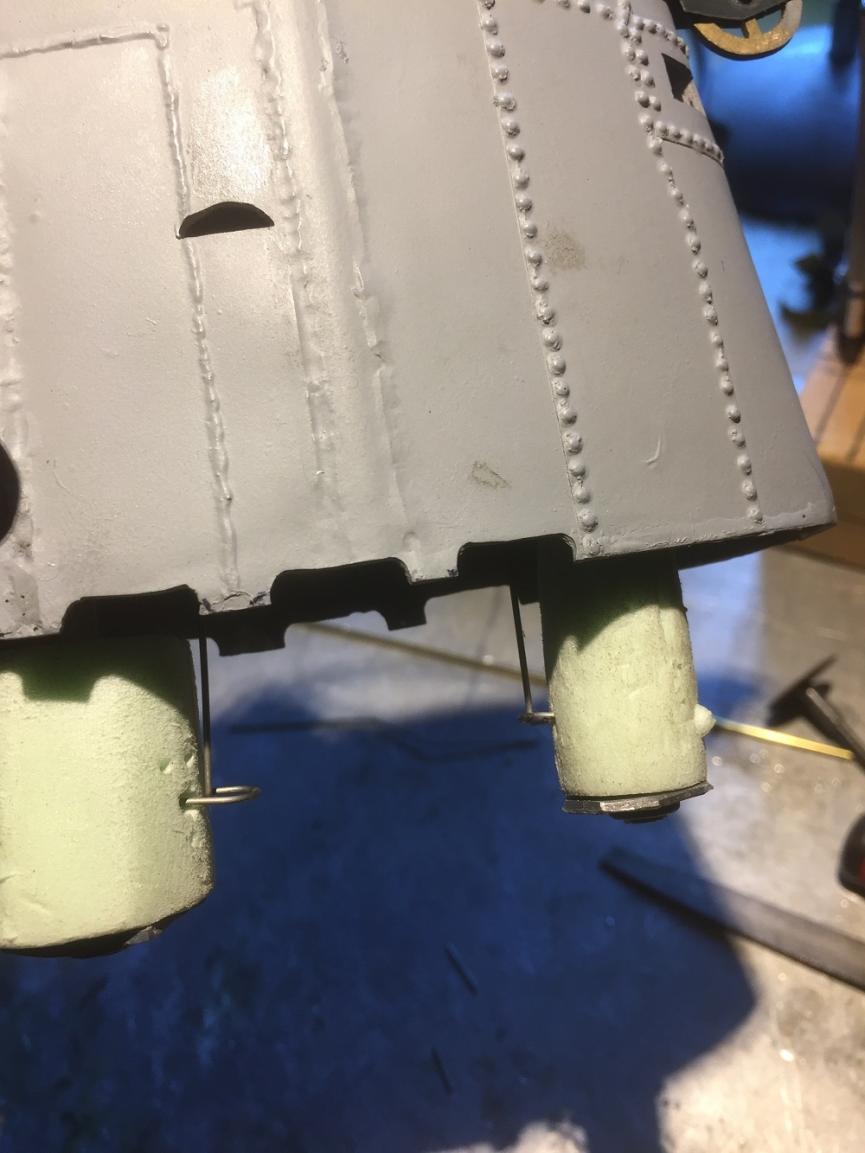

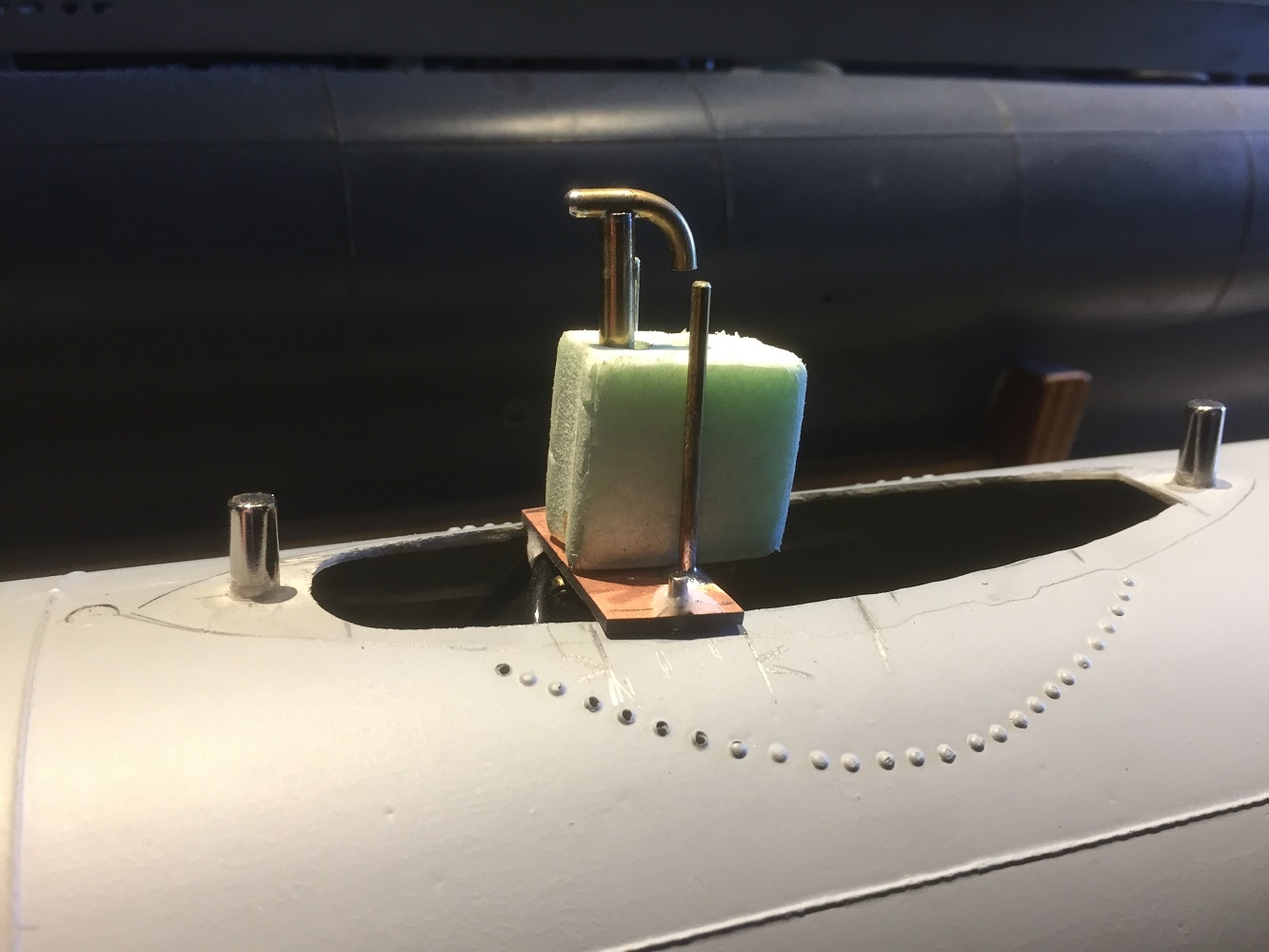

                          Another item on the list that had to be made, added some floats to both the scope and antenna.

                          Click image for larger version

Name:	IMG_1652.JPG
Views:	62
Size:	75.7 KB
ID:	134736

                          Had to made some guidingtubes in the upperpart with the hatch.

                          Click image for larger version

Name:	IMG_1651.JPG
Views:	63
Size:	87.7 KB
ID:	134737

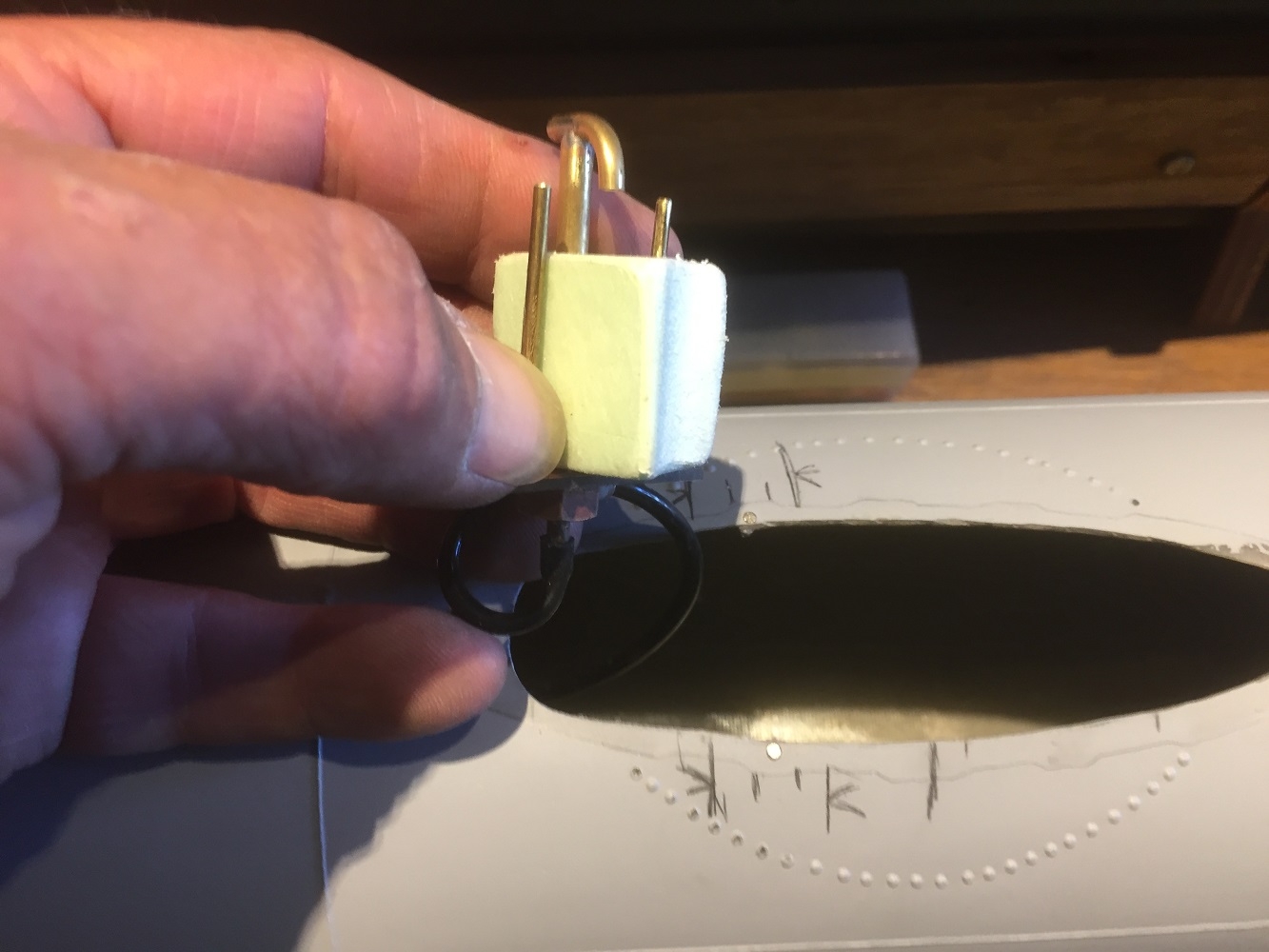

                          Once placed back, you get this, i like to have my parts removable, you never know when you need to do this.

                          Click image for larger version

Name:	IMG_1654.JPG
Views:	65
Size:	100.0 KB
ID:	134738

                          Placed both the antenna and the scope inside, those stainless steel rods are needed to restrict the movement of both devices.

                          Click image for larger version

Name:	IMG_1655.JPG
Views:	65
Size:	79.1 KB
ID:	134739

                          I measured up the maximum i could lower the parts untill i reach the SD inside.

                          Click image for larger version

Name:	IMG_1657.JPG
Views:	64
Size:	88.1 KB
ID:	134740

                          Extended to their maximum Heights.

                          Click image for larger version

Name:	IMG_1658.JPG
Views:	65
Size:	80.7 KB
ID:	134741

                          It barely fitts around the SAS float. here you can see the reserved space between both floats.

                          Click image for larger version

Name:	IMG_1792.JPG
Views:	66
Size:	517.0 KB
ID:	134742

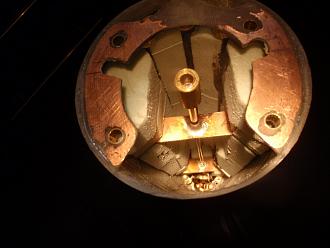

                          For now a teaser, working on this contraption to make my two shooter work, i´ll rapport back when there is progress.


                          Manfred.





                          Fertig zum unterwasser.

                          Comment


                          • Made a vid to show how far i got with the rest, also a small demonstration how the scope and antenna will work, if i remember right Tom had made such a contraption with the scope of his Skipjack.

                            Enjoy, https://youtu.be/8MHIb8MO2ZI

                            Manfred.
                            Fertig zum unterwasser.

                            Comment

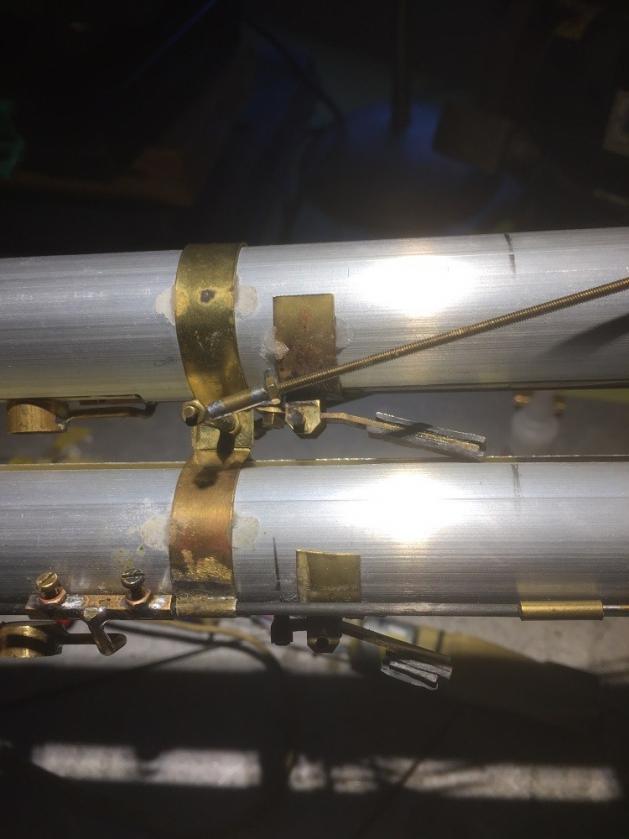

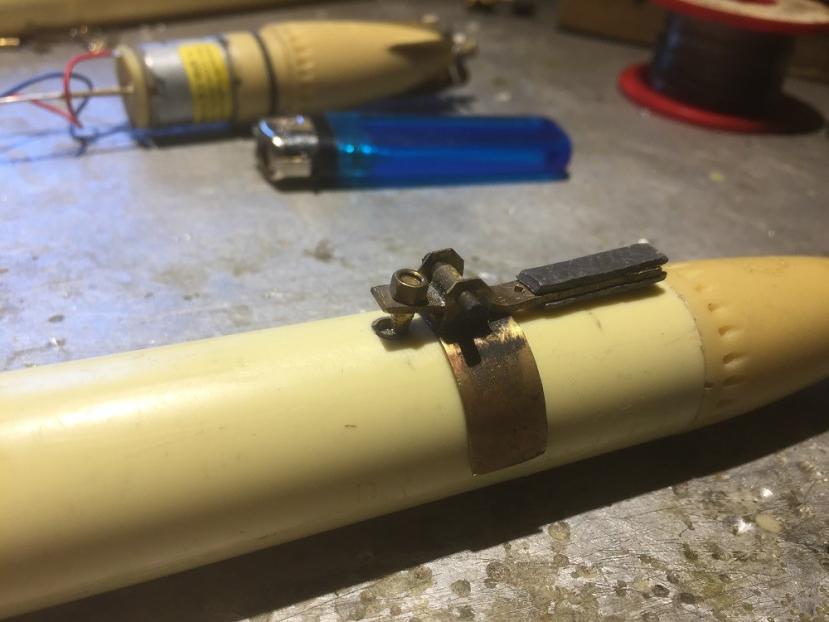

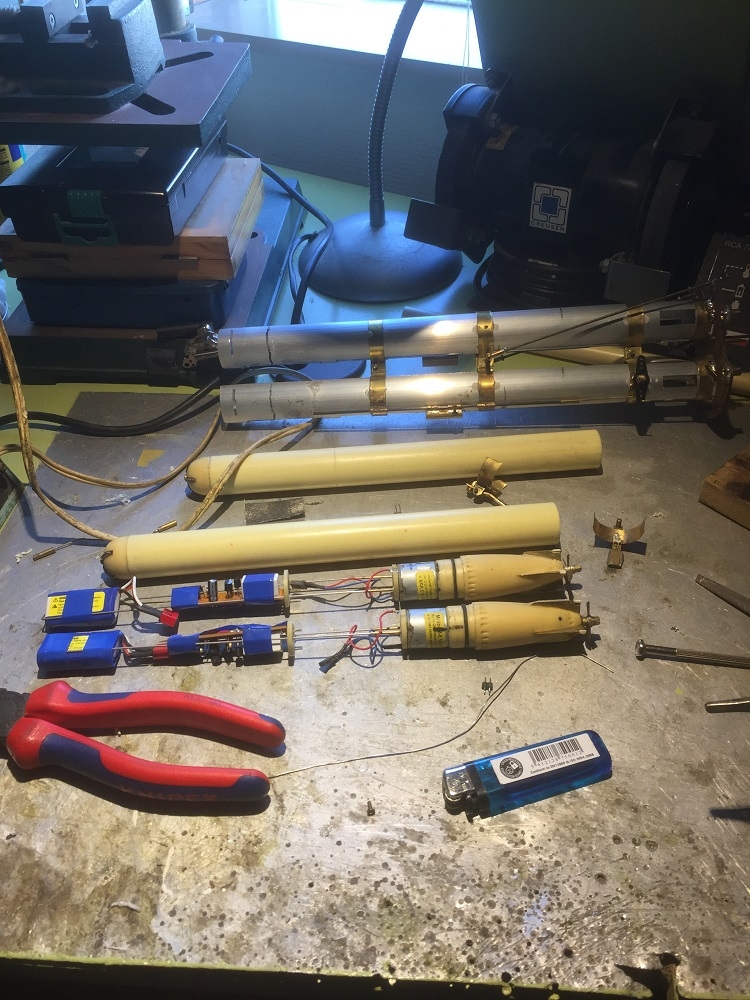

                            • It took some weeks to complete the launcher and the mechanics, pictures.

                              Click image for larger version

Name:	IMG_1803.JPG
Views:	52
Size:	54.2 KB
ID:	135078

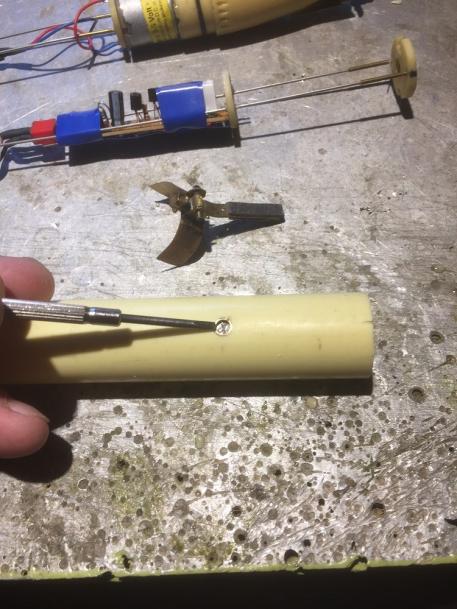

                              First i had to adapt the torpedo's, so i could use the lockingmechanisms, ended up with some tubes underneath the torpedo's.

                              Click image for larger version

Name:	IMG_1794.JPG
Views:	42
Size:	52.0 KB
ID:	135079

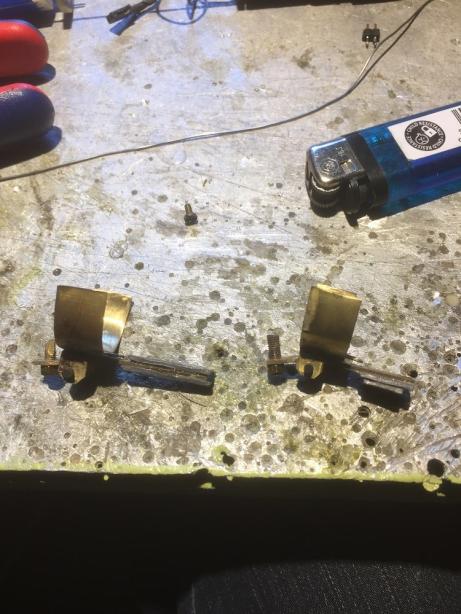

                              Made the hooks which will lock into those tubes.

                              Click image for larger version

Name:	IMG_1799.JPG
Views:	43
Size:	48.2 KB
ID:	135080

                              The hooks will fitt inside the tubes like this.

                              Click image for larger version

Name:	IMG_1798.JPG
Views:	43
Size:	46.3 KB
ID:	135081

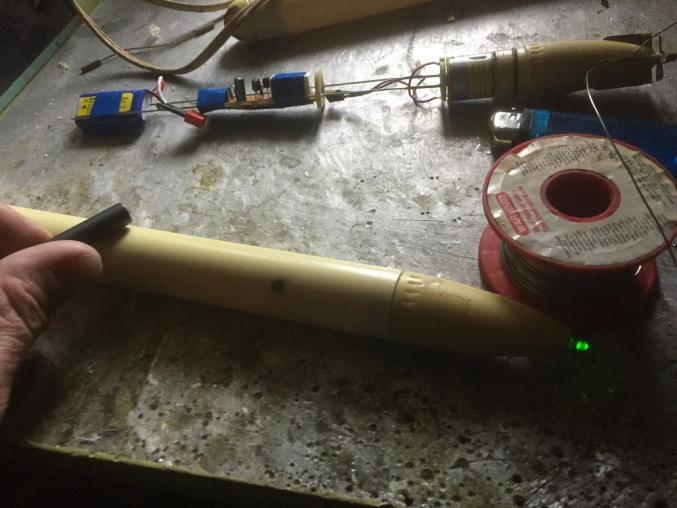

                              Took a spare rear-end and made a green led inside, this is done for adjusting the magnets so you will not burn up your motors.

                              Click image for larger version

Name:	IMG_1800.JPG
Views:	43
Size:	47.7 KB
ID:	135082

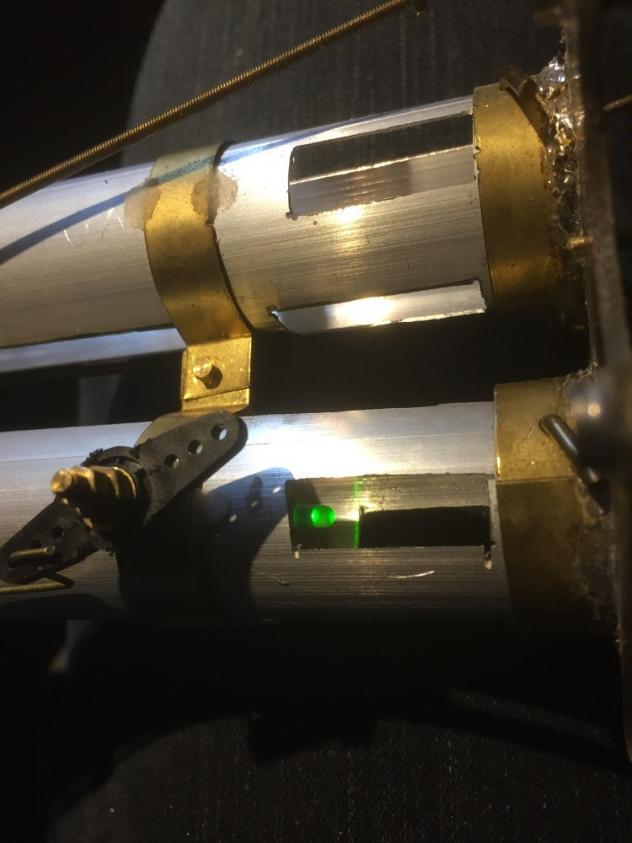

                              Peeking through the slits i can see when the torpedo is activated by the magnet.

                              Click image for larger version

Name:	IMG_1804.JPG
Views:	42
Size:	48.9 KB
ID:	135083

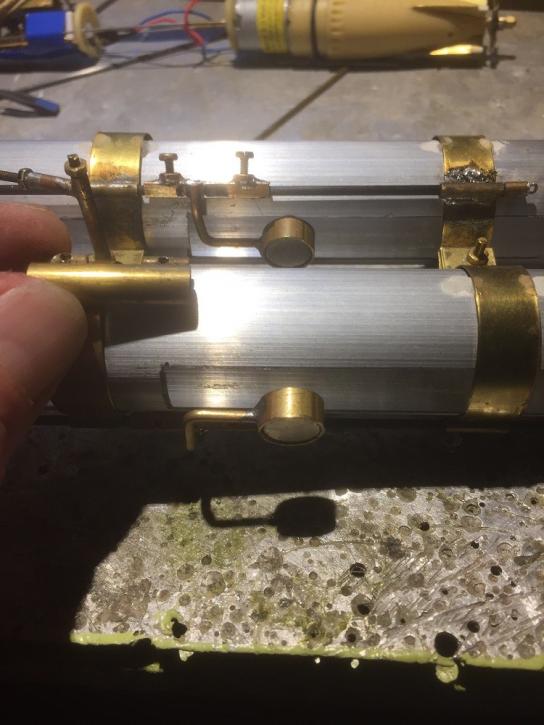

                              Had to change the magnets because the old configuration was too weak to get me a trusty launch.

                              Click image for larger version

Name:	IMG_1806.JPG
Views:	43
Size:	50.7 KB
ID:	135084

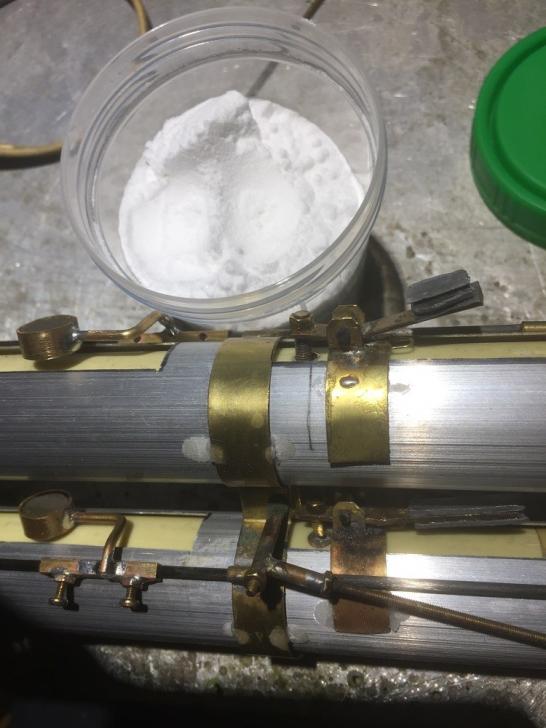

                              Had to find out at which place the locking device had to be placed, an glued them for the time being with some CA.

                              Click image for larger version

Name:	IMG_1807.JPG
Views:	44
Size:	43.9 KB
ID:	135085

                              Those pieces of lead ensure a firm lock inside the topedo's by gravity.

                              Last step was to make some wires attached to both the controle rods and the lockingdevices.

                              Made a vid to show how the whole concept works, enjoy

                              https://youtu.be/Xon6RBoR3u0

                              Next week i will have some testing inside the tub, which also will be documented, stay tuned


                              Manfred.





                              Fertig zum unterwasser.

                              Comment


                              • Oh, man! You've made Rube Goldberg proud, sir!
