Japanese Class A 1/16

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Excellent David, last week i got my grubby hands on that book with the nice pics, it had to come from Hawaii, finishing the detail works at the rearpart.<br />
    <br />
    Manfred.
    Fertig zum unterwasser.

    Comment


    • OK Guys, not much done on the sub lately, She Who Must Be Obeyed had some jobs on the list which had to be fixed, for now the rearpart is ready and i did something radical to the tower to solve a issue, pictures

      Click image for larger version

Name:	P2250004_zpscaspssez.jpg
Views:	9
Size:	51.8 KB
ID:	113407

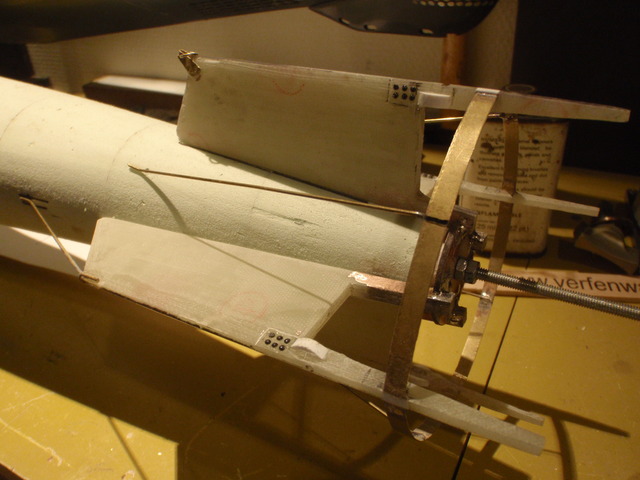

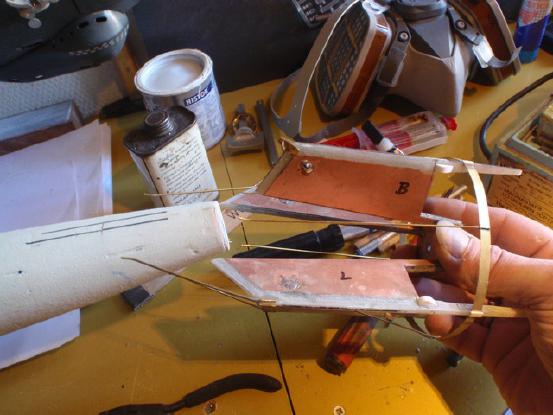

      Like the frontpart i can take off the rearpart by unscrewing it from the styrodure plug.

      Click image for larger version

Name:	P2250005_zpswhcstptb.jpg
Views:	9
Size:	47.6 KB
ID:	113408

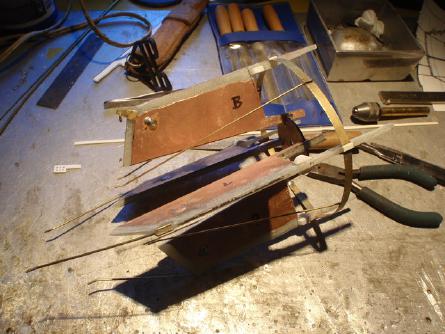

      Placed on the workingbench, much more easier handling for placing the rivets.

      Click image for larger version

Name:	P3010454_zps5v3vjsak.jpg
Views:	9
Size:	89.2 KB
ID:	113409

      48 rivets later and some scribing, you get this, i must say it was a bit of a learningcurve, at first i used the mold for drilling holes, had to cut the rivets to size before placing, it worked, but there was a catch, since you have to place the rivets on both sides i ran into trouble to get them even on their places.
      The solution was simple but tedious, had to cut off the head of the rivet and just glued the toppart on, more work, but it solved the issue i encountered first.

      Click image for larger version

Name:	P3020457_zpsfgzanoca.jpg
Views:	9
Size:	93.1 KB
ID:	113410

      My radical move on the tower asked for some demolitionwork, took the dremel cuttingdisk, and cutted away the rearpart of my tower, i never managed to get the shape right like i wanted, so i decided to go from scratch, it will take a piece of pine-wood to get me a better shape, the works will be continued on fixing this baby.

      Manfred.
      Fertig zum unterwasser.

      Comment


      • Manfred, what is the overall liength of your hull plug from the torpedo breach to the aft bulkhead ?

        Comment


        • Von, about 129 cm, just like my drawing<br />
          <br />
          Manfred
          Fertig zum unterwasser.

          Comment


          • Thanks, that's what I figured.. I didn't blow my drawings up to scale and was working proportionally, on the 1/19th scale model. Have to give Dave a shout out here. I got the package with the props today,, sir. there wonderful!. Both sets to boot. Resin and metal. Perhaps I will make another B type Sydney style.

            Comment


            • Last week the goodies from David arrived, i must say, some fine work on the props, he's still trying to pull me over to the imperial size, the props where locked with imperial sized grubscrews, thanks David!!!, has to buy a imperial size Allen Wrench, it was that or i couldn't remove the props.
              As you guys know, we in Europe are metric lunatics, so i had to rebuild them to metric for fitting on my drive-train, made 5 mm shims and the problem was solved, i tried this first on the white metal set, simply to learn how it would go, then switched to the resin set and did the same trick.
              At the end i will use the resin set because of the CG issue, David mentioned before that weight will be a issue on such a tapered hull, you don't have that much room inside to counteract with the foam parts, for now i've made a vid to show the progress and some fun with the props, enjoy

              https://youtu.be/2xylqUJDmsM

              Manfred.
              Fertig zum unterwasser.

              Comment


              • I did mentioned the tower in the vid, i'll show what i've done sofar,

                Click image for larger version

Name:	P3070458_zps51z1025v.jpg
Views:	9
Size:	73.9 KB
ID:	113959

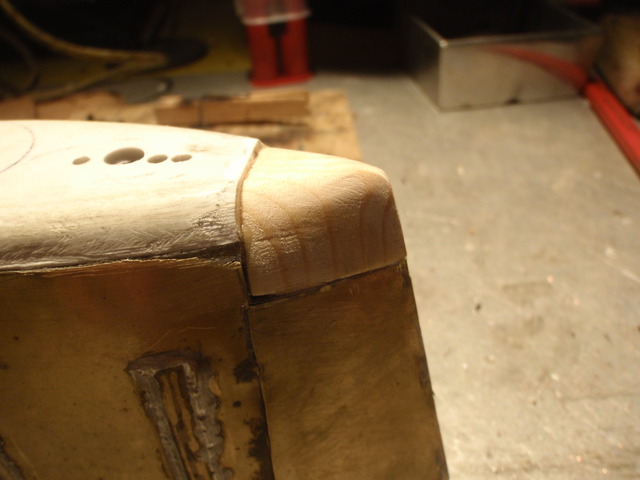

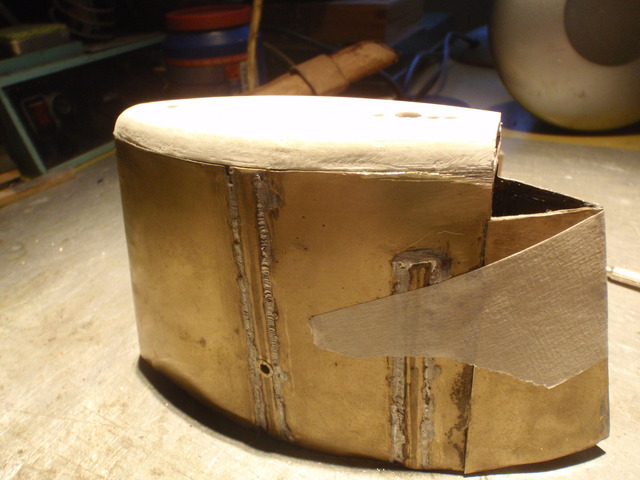

                That shape at the rear of the tower was a bit of a pain in the ass, took some pine-wood and made this piece, kept it a tad smaller as the towercladding, you have to account for the filler.

                Click image for larger version

Name:	P3080460_zpsnnnllkqg.jpg
Views:	9
Size:	54.1 KB
ID:	113960

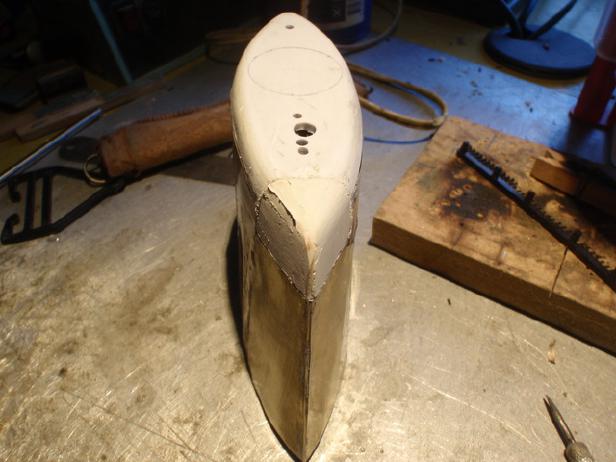

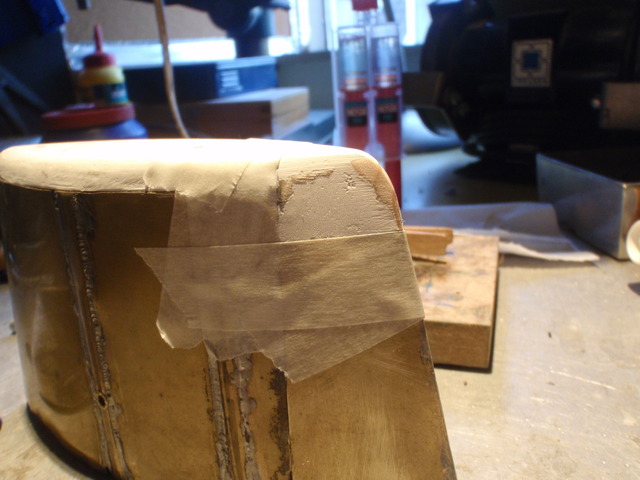

                Taped the surrounding and got me my first layer of filler.

                Click image for larger version

Name:	P3090462_zps4fmhzi7w.jpg
Views:	9
Size:	88.7 KB
ID:	113961

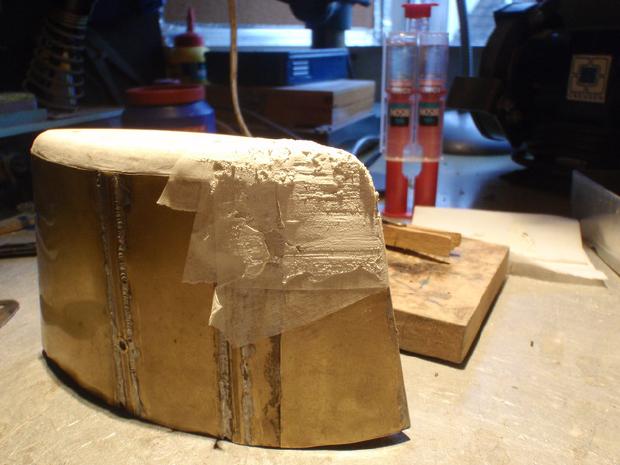

                Had to repeat this several times, so each time getting to the endresult, usually it will take three of four passes before you've got it right.

                Click image for larger version

Name:	P3100464_zps0xvgwekq.jpg
Views:	9
Size:	54.1 KB
ID:	113962

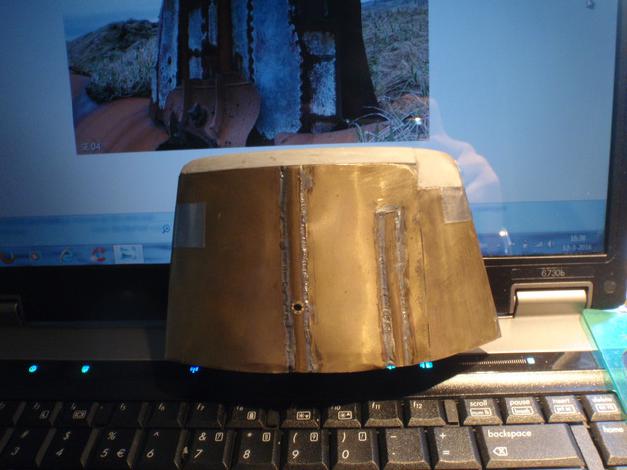

                Almost there, one last pass with filler and this little piece is ready, these kind of things consume loads of time, but if done properly you get a good result.

                Click image for larger version

Name:	P3120466_zps7mpdxm51.jpg
Views:	9
Size:	52.6 KB
ID:	113963

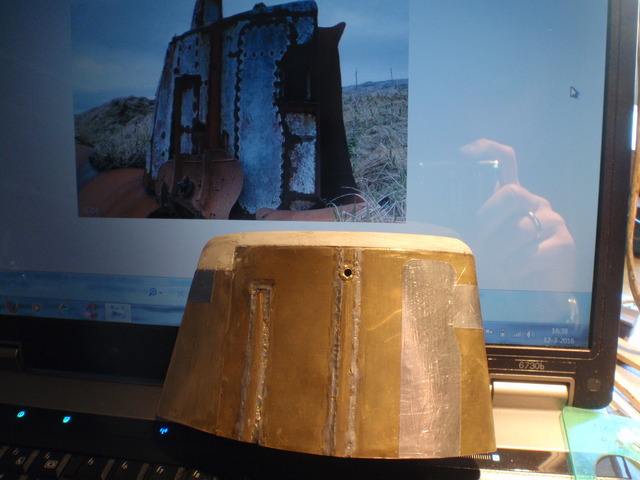

                Started with adding the panels for the navigationlights, used my aluminumtape to imitade the panels.

                Click image for larger version

Name:	P3120465_zps8bbssins.jpg
Views:	9
Size:	92.4 KB
ID:	113964

                Same story at the other side, now it's time to start with the rivets and weldinglines, it will take a week of so to get this right, goal is still this spring molding the tower.


                Manfred.
                Fertig zum unterwasser.

                Comment


                • Looks great Manfred. I have to get moving on my 1/16 boat soon.

                  Comment


                  • Thanks Von, this is the slow part, but it has to be done, once i've taken this hurdle i can speed things up by giving the plug a epoxy skin.

                    Manfred.
                    Fertig zum unterwasser.

                    Comment


                    • Manfred, Von, David,

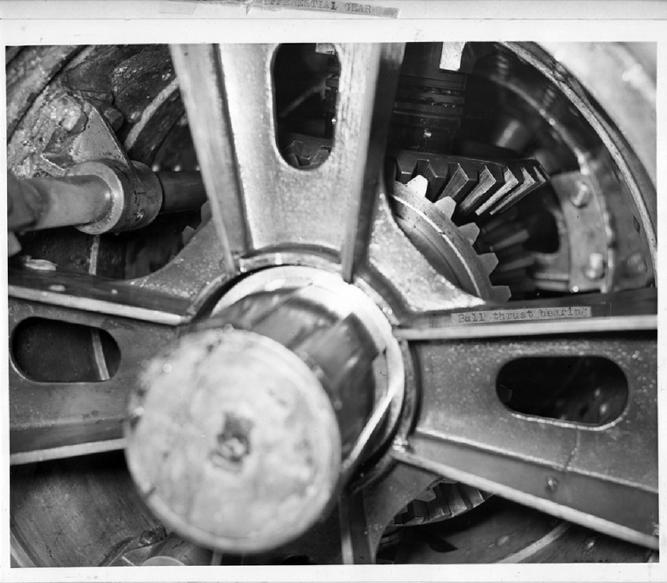

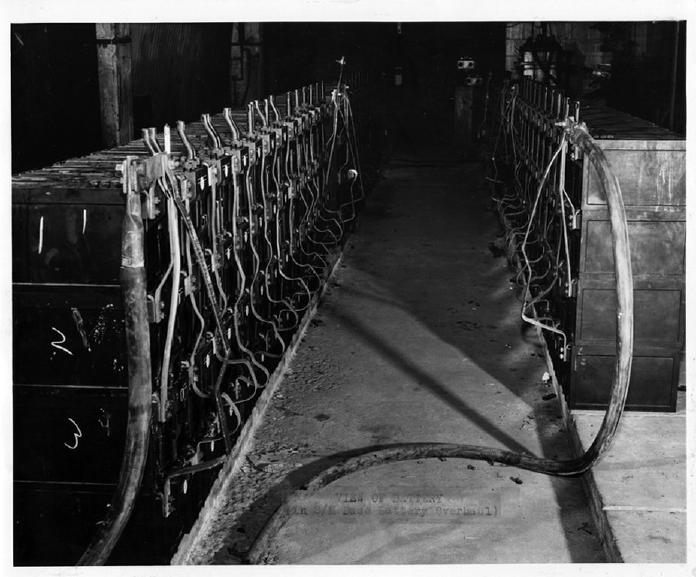

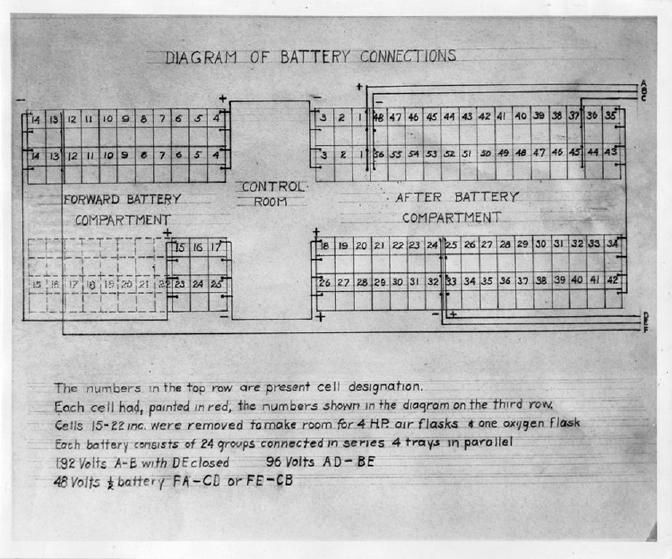

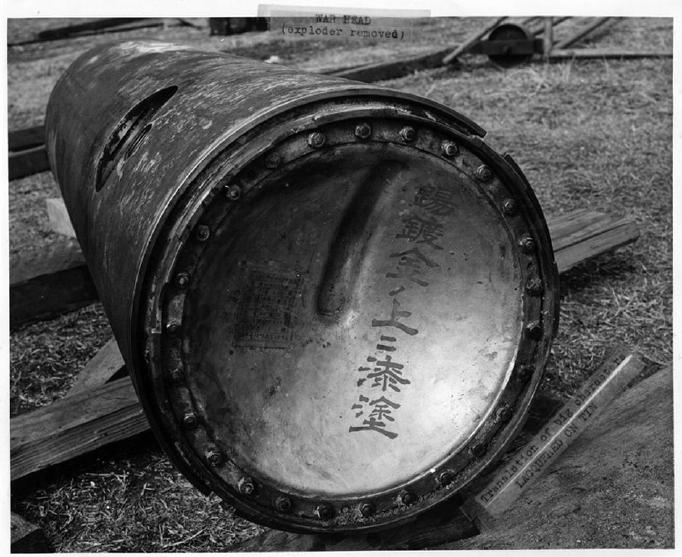

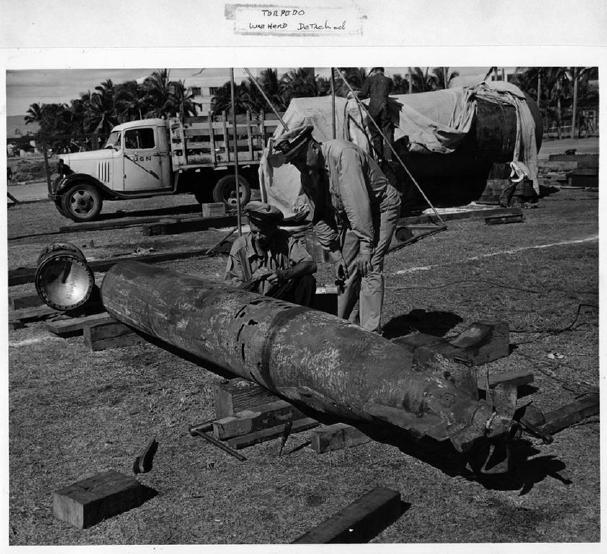

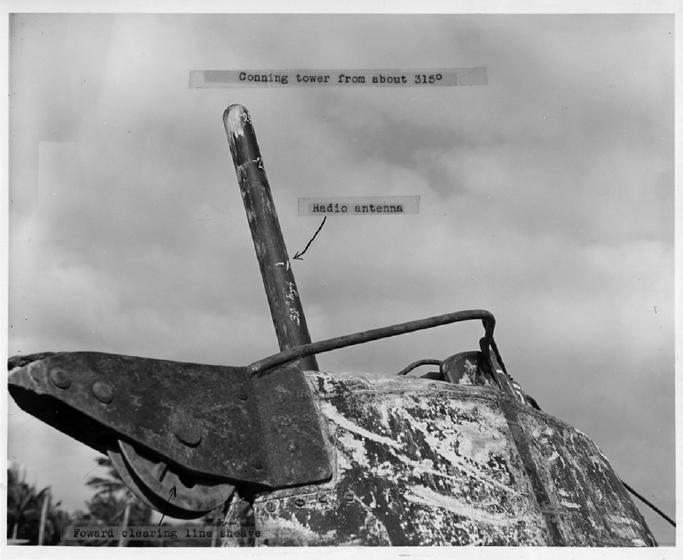

                      I thought I spent my some of my almost unlimited free time I have for the moment to dig in deep into the WWW for any information about your project........and guess what.......I .hit the jackpot all below pictures of the n19.

                      grtz,
                      Bart



                      Click image for larger version

Name:	Class A report 02425.jpg
Views:	9
Size:	44.4 KB
ID:	114451

                      Click image for larger version

Name:	Class A report 04546.jpg
Views:	9
Size:	55.0 KB
ID:	114452
                      Click image for larger version

Name:	Class A report 04748.jpg
Views:	9
Size:	70.4 KB
ID:	114453
                      Click image for larger version

Name:	Class A report 04849.jpg
Views:	9
Size:	70.7 KB
ID:	114454
                      Click image for larger version

Name:	Class A report 05253.jpg
Views:	9
Size:	61.9 KB
ID:	114455
                      Click image for larger version

Name:	Class A report 05354.jpg
Views:	9
Size:	69.9 KB
ID:	114456
                      Practical wisdom is only to be learned in the school of experience.
                      "Samuel Smiles"
                      http://scale-submarine.com/index.html

                      Comment


                      • Nice Bart, i allready have the book about the Ko Hyoteki, but more pics are allways welcome, for now i'm working on both bikes for maintenance, they will be ready at the end of the week for testing, after that i'm going to start up the cave for some work on the hull.
                        Fertig zum unterwasser.

                        Comment


                        • It has been some time, first had to finish up my second type VII, rebuilded the torpedo system and took my own type VII out of commision, took all hardware out of this boat, it will be re-used for the doomed Type XVIIb.
                          My own type VII is allready sold to another subbuilder, with plans to rebuild her in working order.
                          Let's pick up the thread where i stopped,


                          Click image for larger version

Name:	P5140483_zpsccq98wpa.jpg
Views:	13
Size:	198.4 KB
ID:	118070

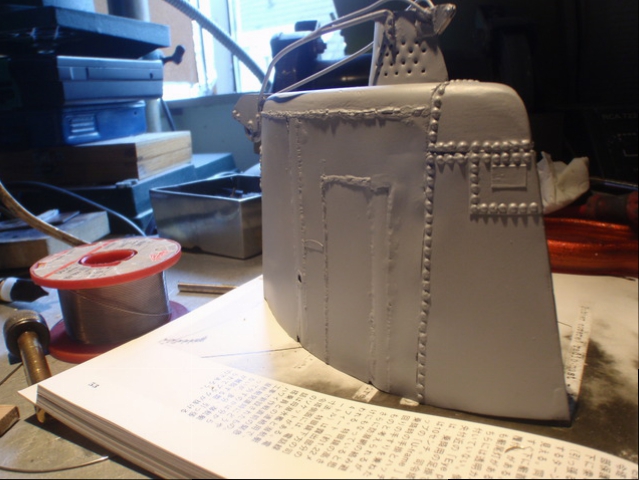

                          The conningtower itself is finished and ready to be molded, the plans are to do this next spring together with the hull.

                          Click image for larger version

Name:	P5140486_zpst3r2nwvj.jpg
Views:	17
Size:	206.1 KB
ID:	118071

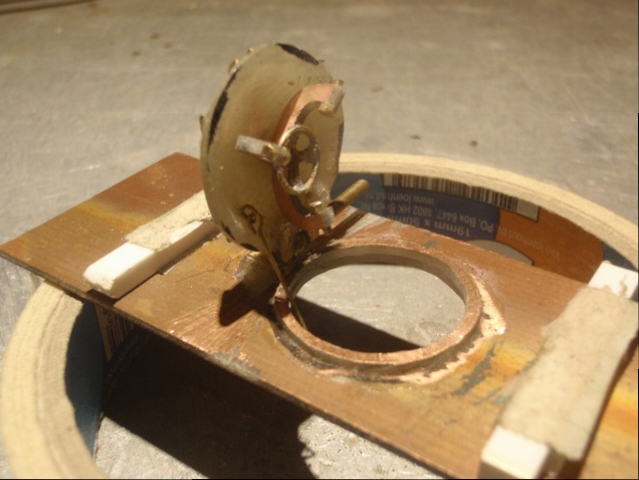

                          This is my second version of the hatch, the first one had a wheel on top, Von made a remark about the wheel, there wasn't suppose to be a wheel, so it was removed, later on i ordered a book about the Ko-Hyoteki, i've got me a slap in the face and had to alter more things.

                          Click image for larger version

Name:	PA130625_zpseow3q1k0.jpg
Views:	18
Size:	198.8 KB
ID:	118072

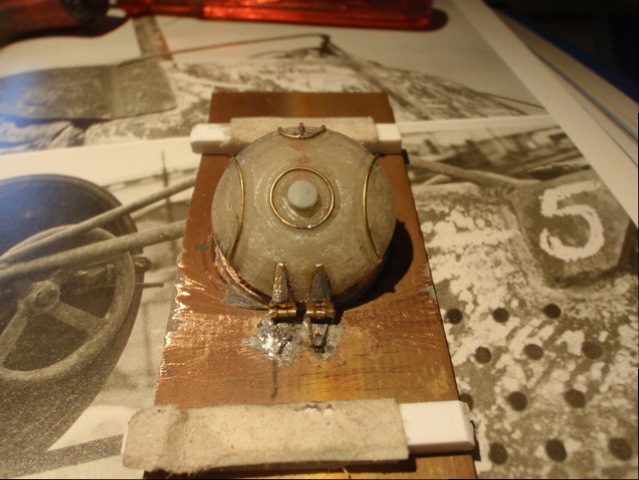

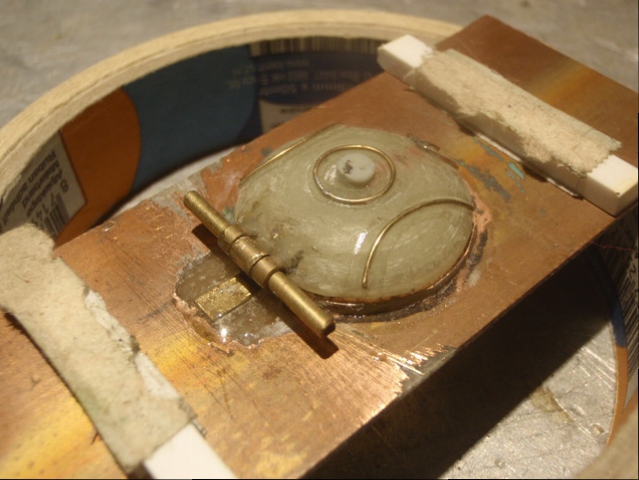

                          The third version was born, now with the correst hinge accourding to the pictures inside the book.

                          Click image for larger version

Name:	PA130624_zpslmpa8xka.jpg
Views:	18
Size:	181.3 KB
ID:	118073

                          Also had to modify the inside, i decided to start from scratch, i'm pleased with the result, added also the hook which kept it open when on the surface.

                          Click image for larger version

Name:	P4230474_zpsarj9mtoi.jpg
Views:	16
Size:	194.1 KB
ID:	118074

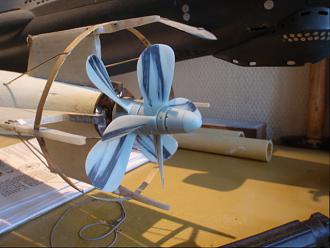

                          Not sure if i showed this pic before with the propellors David made for me, a dryfitt to see if the size was allright.

                          Click image for larger version

Name:	PA130620_zpsbehbavvo.jpg
Views:	15
Size:	193.1 KB
ID:	118075

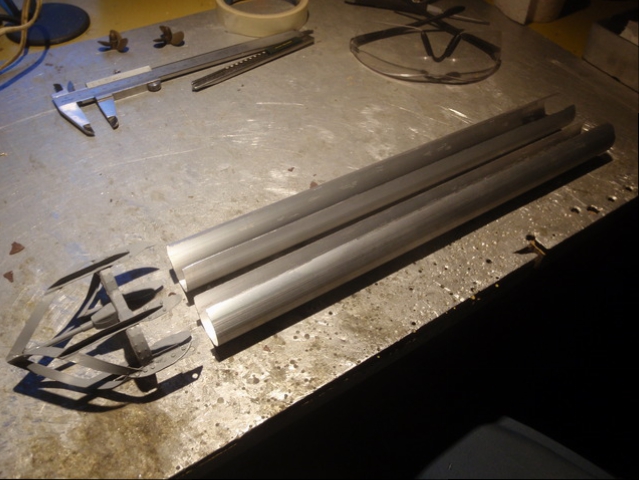

                          Since the tempartures where dropping overhere i decided to build me some other hardware, those tubes are from windowscreens.

                          Click image for larger version

Name:	PA130621_zpsolpbzaip.jpg
Views:	16
Size:	194.3 KB
ID:	118076

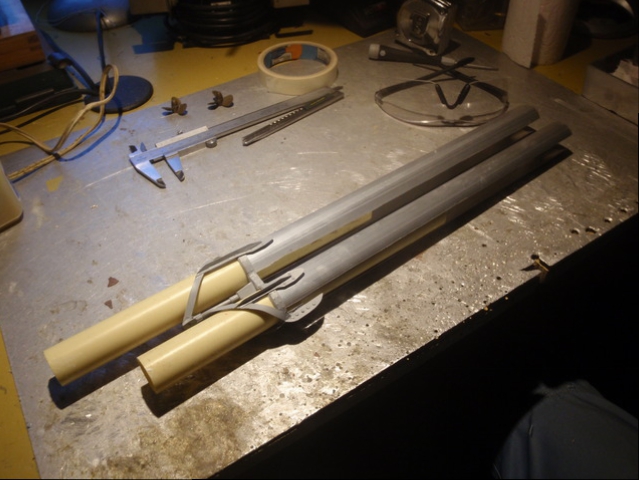

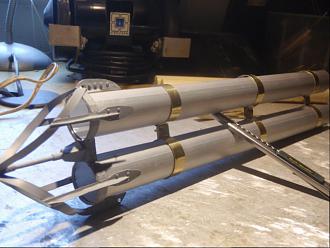

                          Dryfitting the netcutter and the future torps.

                          Click image for larger version

Name:	PA150626_zpsiijsl6su.jpg
Views:	16
Size:	203.4 KB
ID:	118077

                          Builded a frame to keep both tubes together, still had to make the rear bulkhead which will hold the entire contraption, to be continued.

                          Manfred.
                          Last edited by MFR1964; 12-11-2016, 04:02 PM.
                          Fertig zum unterwasser.

                          Comment


                          • Beautiful work as usual Manfred. Glad to hear your still kicking around in the Garage, up to no good.
                            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                            Comment


                            • Thanks Mark, yup, once you've got the itch it's hard not to scratch, right now i'm making some silicone molds, i'll post that adventure later on
                              Fertig zum unterwasser.

                              Comment


                              • Manfred,
                                Maybe it is time to change the term Manfredize to the Manfred Itch, no, that sounds more like a communicable disease. Anyways, wow, I can just sit back and learn from you. Thank you for posting. I know it takes a lot of time to post, I so appreciate those that do!
                                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.
