jims Tyhpoon TK-208 build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #46
    Originally posted by Subculture View Post
    Didnít the unit come with some instructions?
    Hi Subculture

    sadly too say no instructions . But I took your advice found a three bin socket on the side. I carefully tested it for possible meter response and found the correct 2 pins out of the 3 pins available to turn on the meter. I have it working now thanks for the help! Instructions would have helped its from china !
    Attached Files
    Last edited by deepseadiver; 12-21-2018, 10:32 PM.
    Put your mind to it. If there's a will there's a way!

    Comment


    • #47

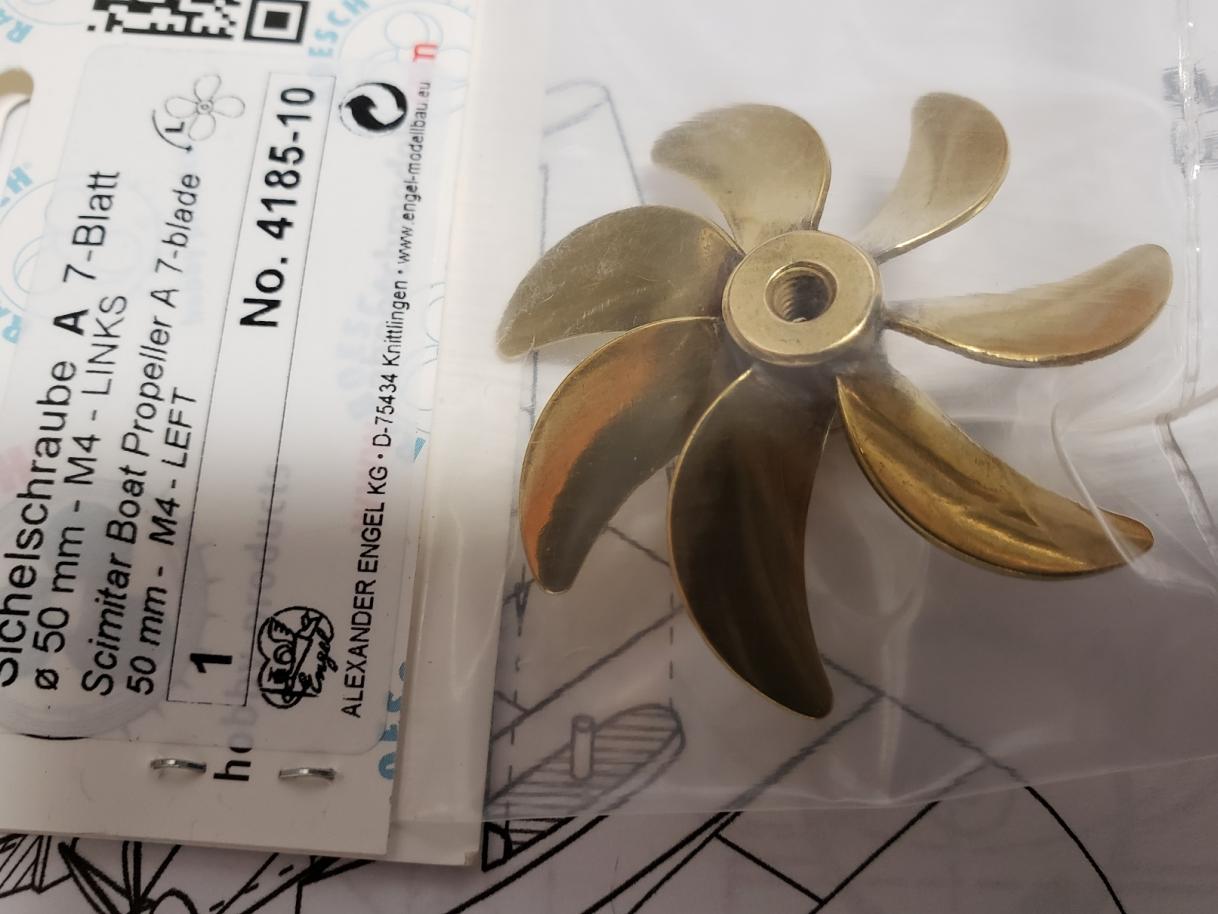

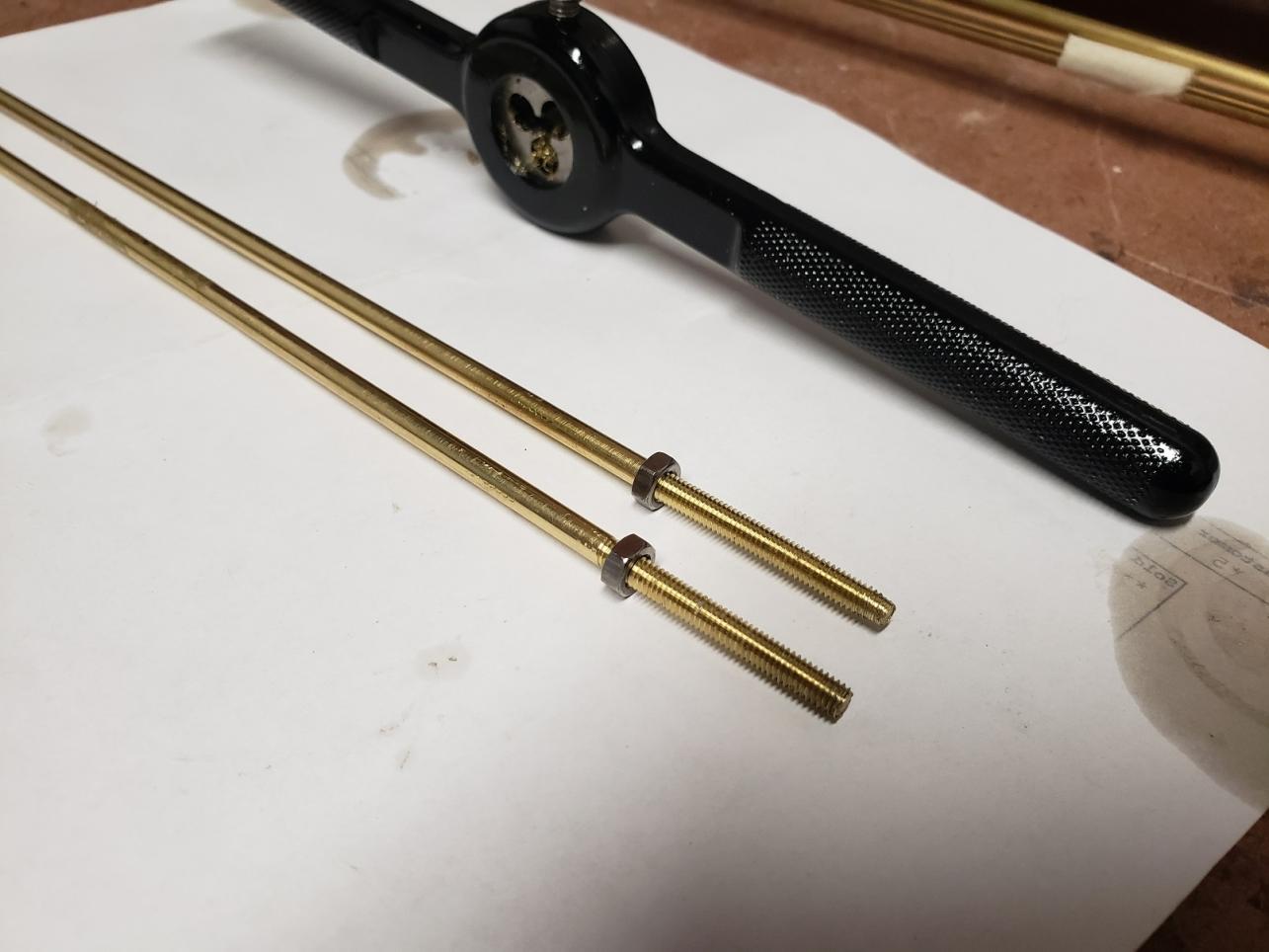

      prop shafts sent from Engel . great company
      Attached Files
      Last edited by deepseadiver; 12-26-2018, 05:43 AM.
      Put your mind to it. If there's a will there's a way!

      Comment


      • #48
        I drilled out the holes for the propeller shafts 115mm wide from each other
        Attached Files
        Last edited by deepseadiver; 12-21-2018, 10:51 PM.
        Put your mind to it. If there's a will there's a way!

        Comment


        • #49
          I haven't popped into this forum for a while and have missed this build. I put my Typhoon build on hold about 2 years ago following a house move but this has given me itchy fingers to start on her again. Great work so far. You have way more bolts on the lid than me :)

          Comment


          • #50
            Originally posted by Mankster View Post
            I haven't popped into this forum for a while and have missed this build. I put my Typhoon build on hold about 2 years ago following a house move but this has given me itchy fingers to start on her again. Great work so far. You have way more bolts on the lid than me :)
            Hi there ship mate

            I'm so glad you are getting back into it . I will be posting many more pictures soon of what I have done im collecting them before I post . So it should allow you to have more ideas how to approach this beast and she's a beautiful one indeed. I hope you get back into it so we can help each other out .

            Thanks for taking the time reaching out to say hello! Much appreciated let me know if anything comes up you need help, on because I may come to you for the same

            Jim
            Last edited by deepseadiver; 12-31-2018, 06:09 AM. Reason: spelling
            Put your mind to it. If there's a will there's a way!

            Comment


            • #51

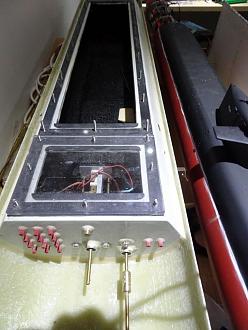

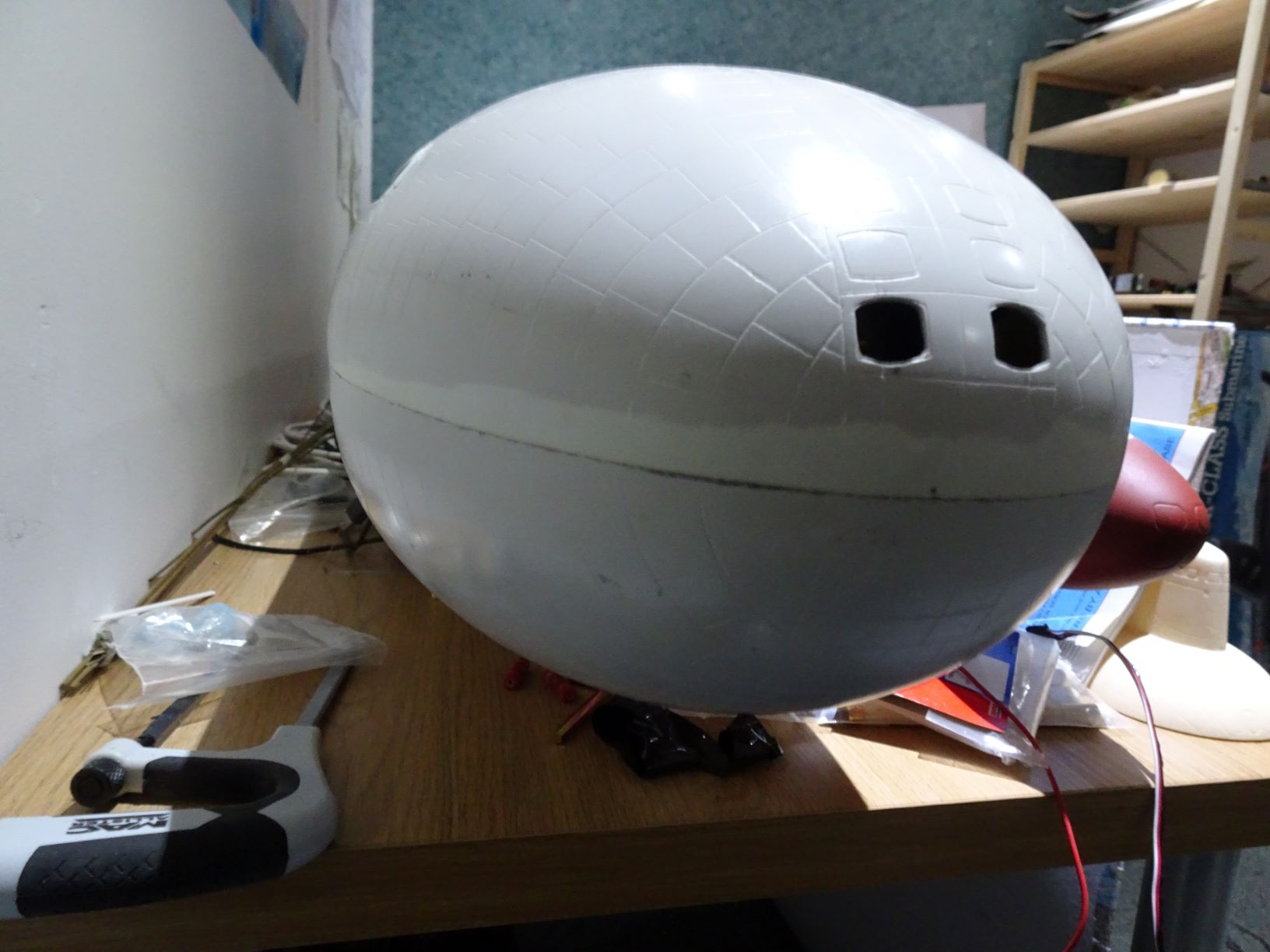

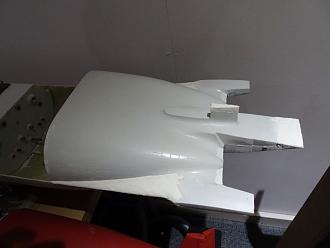

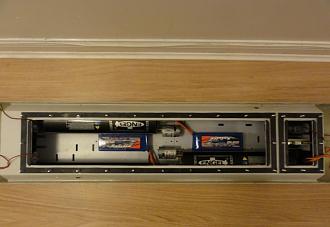

              This is my second Typhoon so I have a bit of an advantage.
              Some picture of mine of where I am at the moment
              Click image for larger version

Name:	DSC09819_zps4088cad4.JPG
Views:	7
Size:	218.7 KB
ID:	129214Click image for larger version

Name:	DSC01166-p.JPG
Views:	4
Size:	82.1 KB
ID:	129217
              Click image for larger version

Name:	DSC01163-p.JPG
Views:	7
Size:	426.5 KB
ID:	129215Click image for larger version

Name:	DSC01168-p.JPG
Views:	7
Size:	529.7 KB
ID:	129216

              Comment


              • #52
                [QUOTE=Mankster;n129213]This is my second Typhoon so I have a bit of an advantage.
                Some picture of mine of where I am at the moment


                I'm glad you already built one so if I get In a jam you may be able to help out it looks nice .

                Are you planning to make a torpedo system. I notice the torpedo holes are cut out . I am in the process of gathering all my materials to make a water pressured missile lunch system with open and close missile hatches . I have a gentleman in Germany I finally contacted been over 2 months . So far he is the only one that i have found that has design a water pressurized missile lunch system that's on YouTube . So once im all done I am going to focus on that. I would like to have some type of battery propelled torpedo system but I need to get it built first .

                Jim
                Last edited by deepseadiver; 12-31-2018, 06:28 AM.
                Put your mind to it. If there's a will there's a way!

                Comment


                • #53
                  I have a set of DM torpedos and they pretty close to 650mm torpedos in 1:100. Would love to see how you make those missiles.

                  Comment


                  • #54
                    Originally posted by Mankster View Post
                    I have a set of DM torpedos and they pretty close to 650mm torpedos in 1:100. Would love to see how you make those missiles.
                    yes I have the plans and the parts the biggest problem was finding out the mechanism witch took me 2 months to find out. That attaches to the bottom, of rocket, and you pressurized it from the top with a air pump, then it slides inside the chamber with a servo, which un locks the mechanism, that part stays inside at the bottom of missile chamber after it gets turned by servo . Then the rocket, shoots up and a way about 12 feet it will be cool system wants I get working on it.

                    The gentlemen made them all by hand in his work shop, from scratch I will have to make them from scratch myself . They release super easy from the servo which then releases all that water pressure all at once. Yes David Merriman is pretty smart he makes really cool stuff, like the Torpedo system.
                    here is a YouTube video of system im building this is not a kit .
                    Jim

                    https://www.youtube.com/watch?v=tK6JPa4SphA

                    Last edited by deepseadiver; 01-06-2019, 12:50 AM.
                    Put your mind to it. If there's a will there's a way!

                    Comment


                    • #55

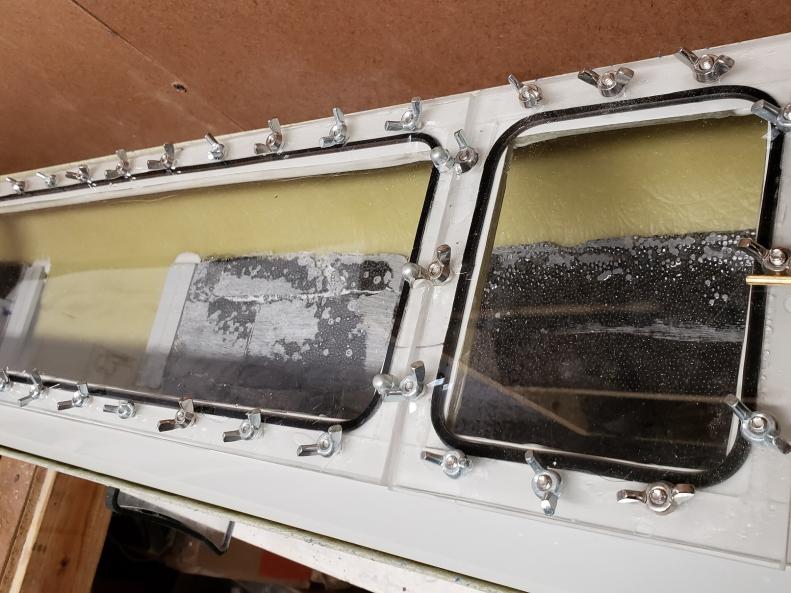

                      decided to go all wing nuts much easier to get in to WTC
                      Attached Files
                      Last edited by deepseadiver; 01-08-2019, 05:31 AM.
                      Put your mind to it. If there's a will there's a way!

                      Comment


                      • #56

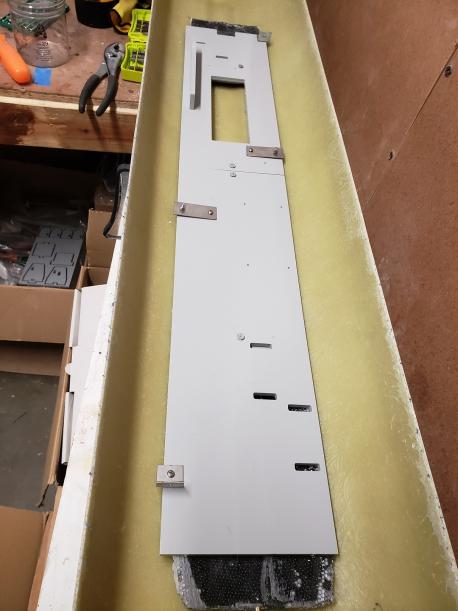

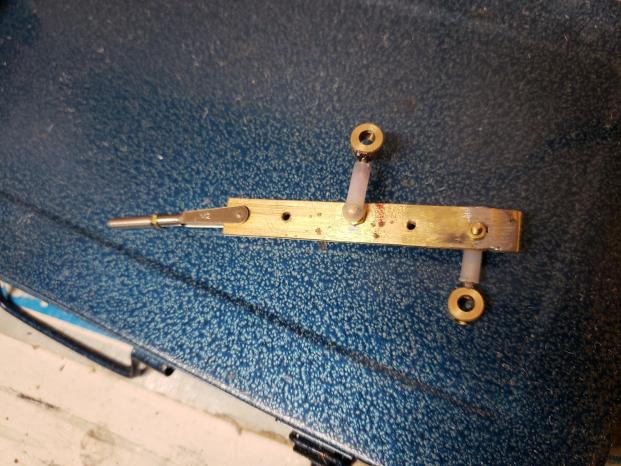

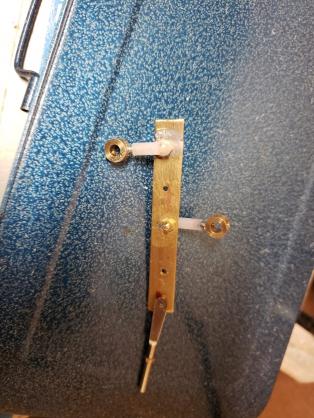

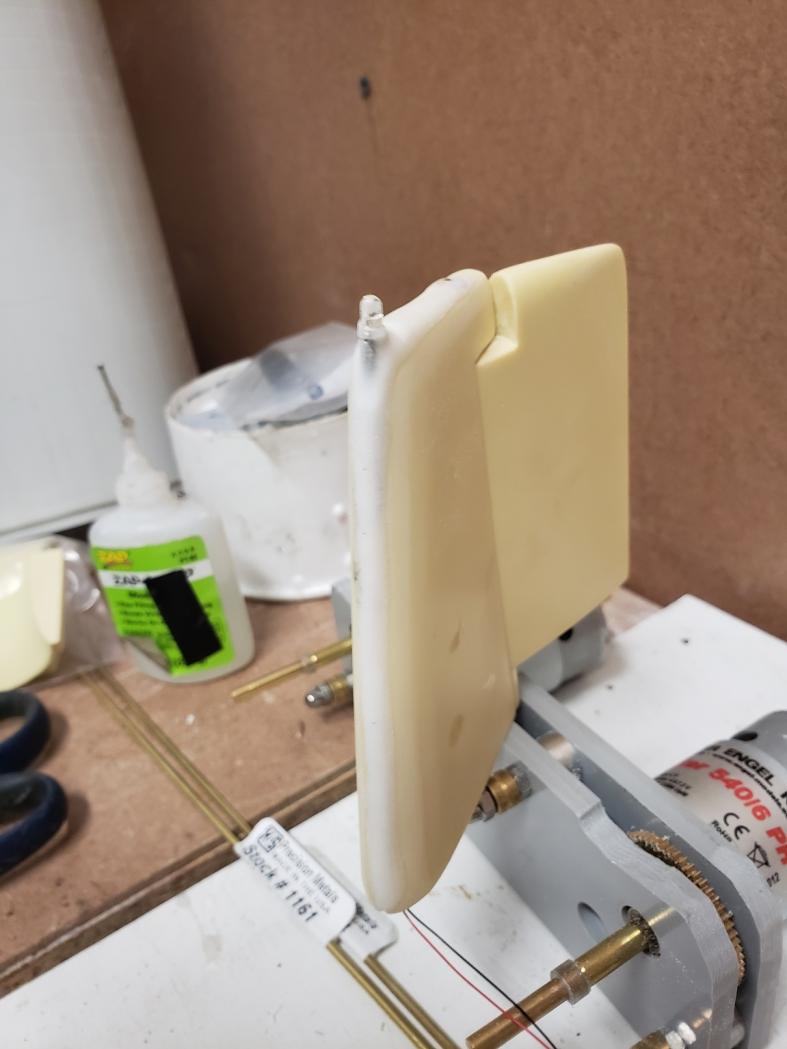

                        pic of the plats that go over the lead weights and pictures of my custom made tail fin rudder control unit
                        Attached Files
                        Last edited by deepseadiver; 01-09-2019, 07:06 AM.
                        Put your mind to it. If there's a will there's a way!

                        Comment


                        • #57

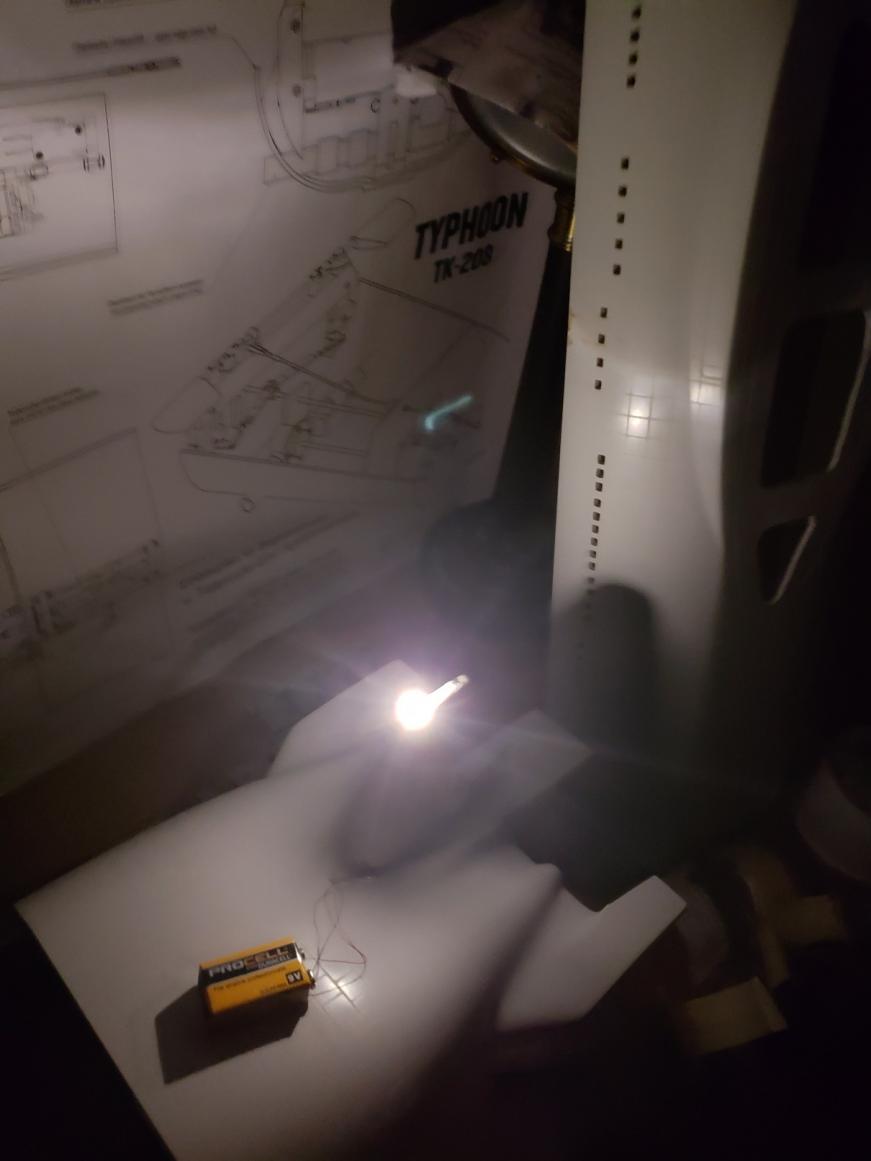

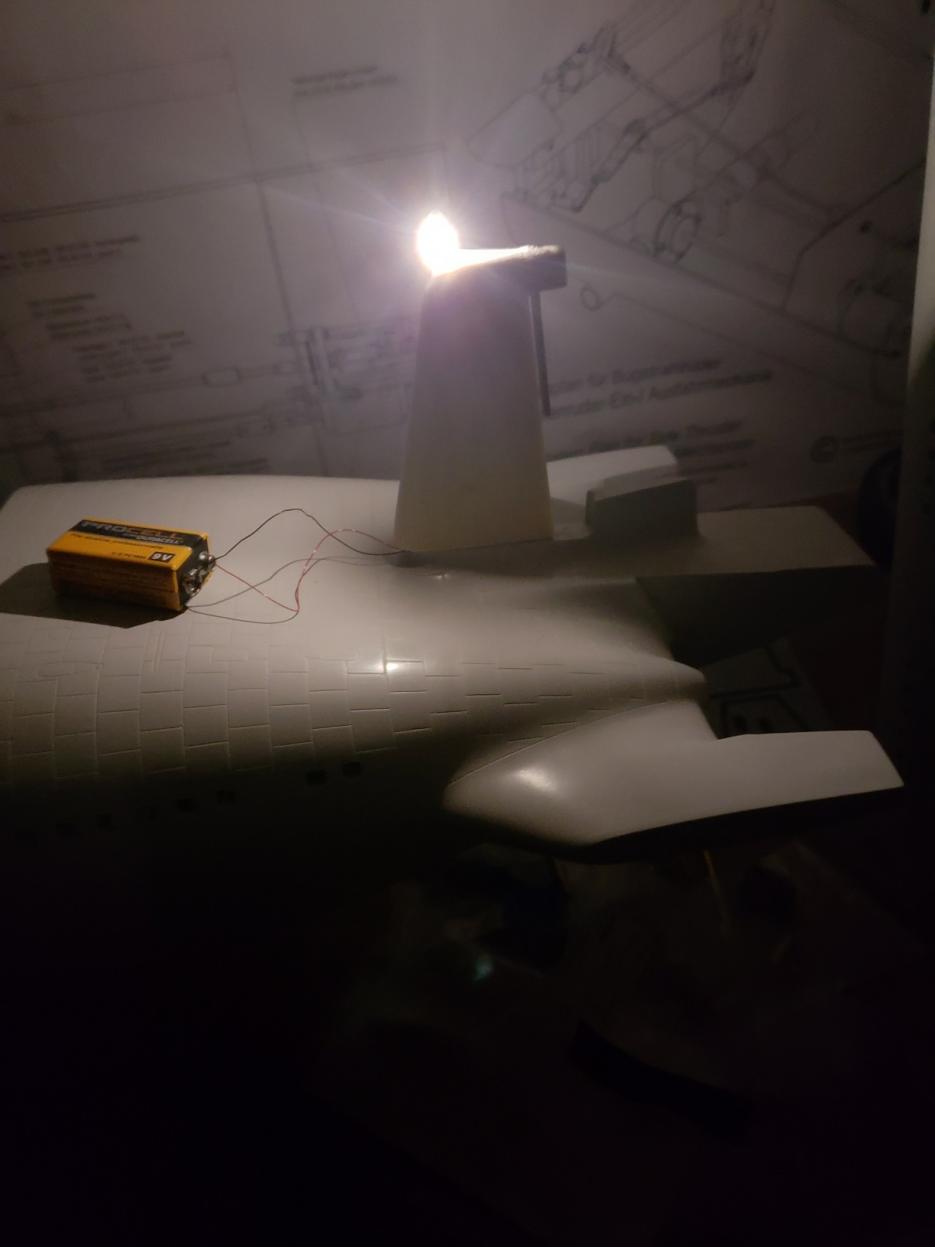

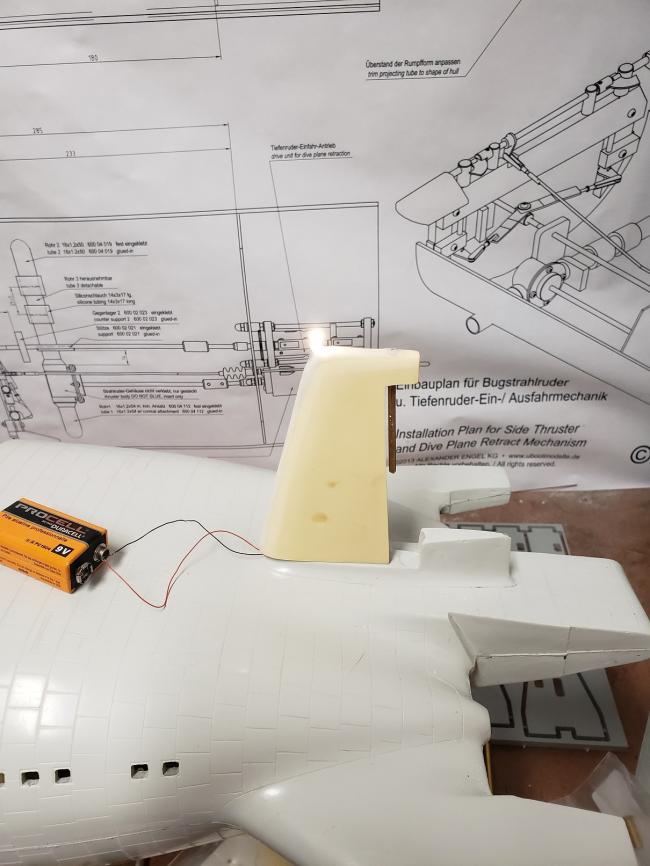

                          I decided to place a light on the tip of the tail fin boy these are bright nice
                          Attached Files
                          Last edited by deepseadiver; 01-09-2019, 07:06 AM.
                          Put your mind to it. If there's a will there's a way!

                          Comment


                          • #58

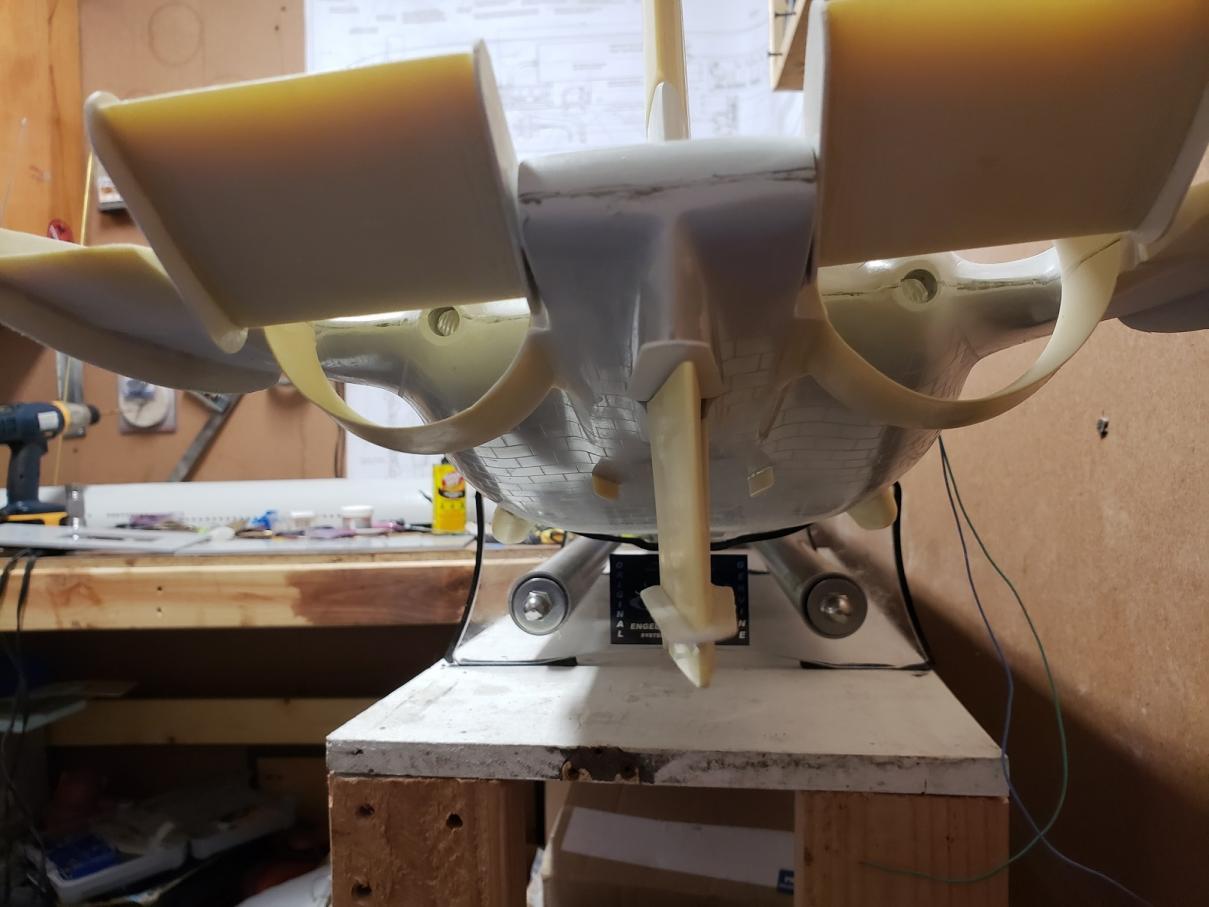

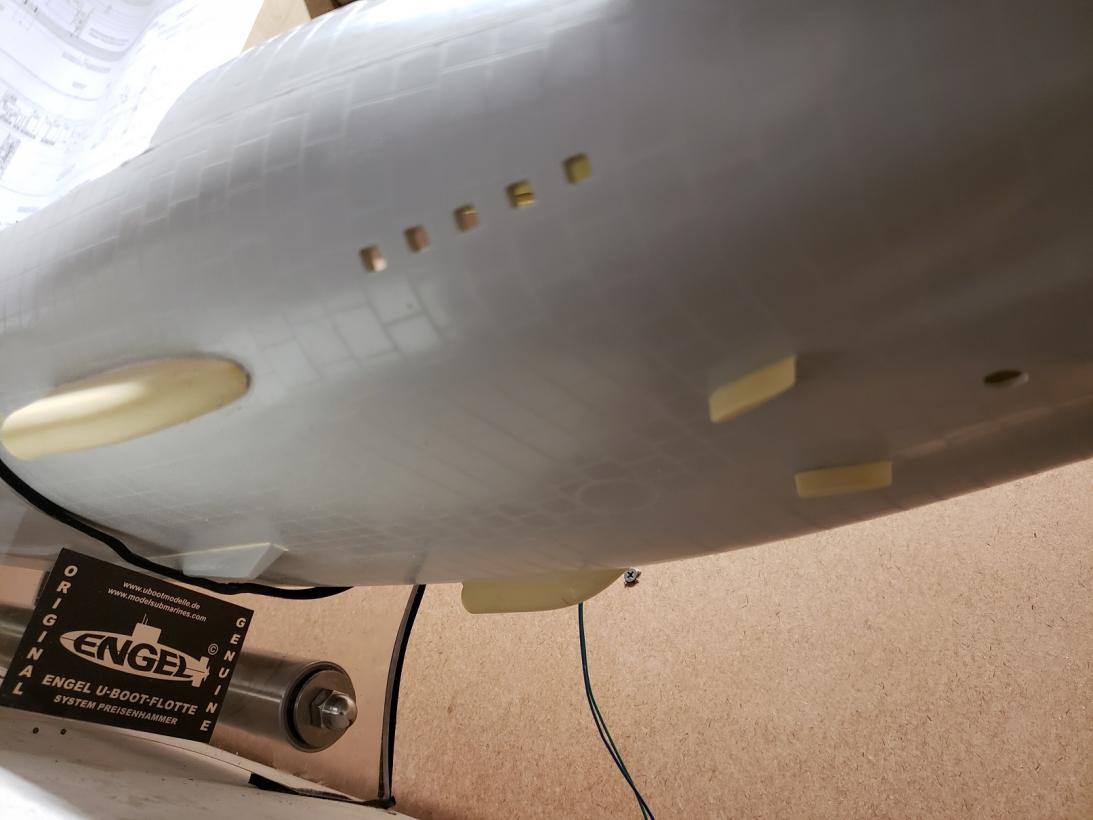

                            picture of the bottom turned out nice and pictures of the control unit installed for the rudder and rear dive plans that was some serious work do to being in a tight space but I have everything working perfectly
                            Attached Files
                            Put your mind to it. If there's a will there's a way!

                            Comment


                            • #59

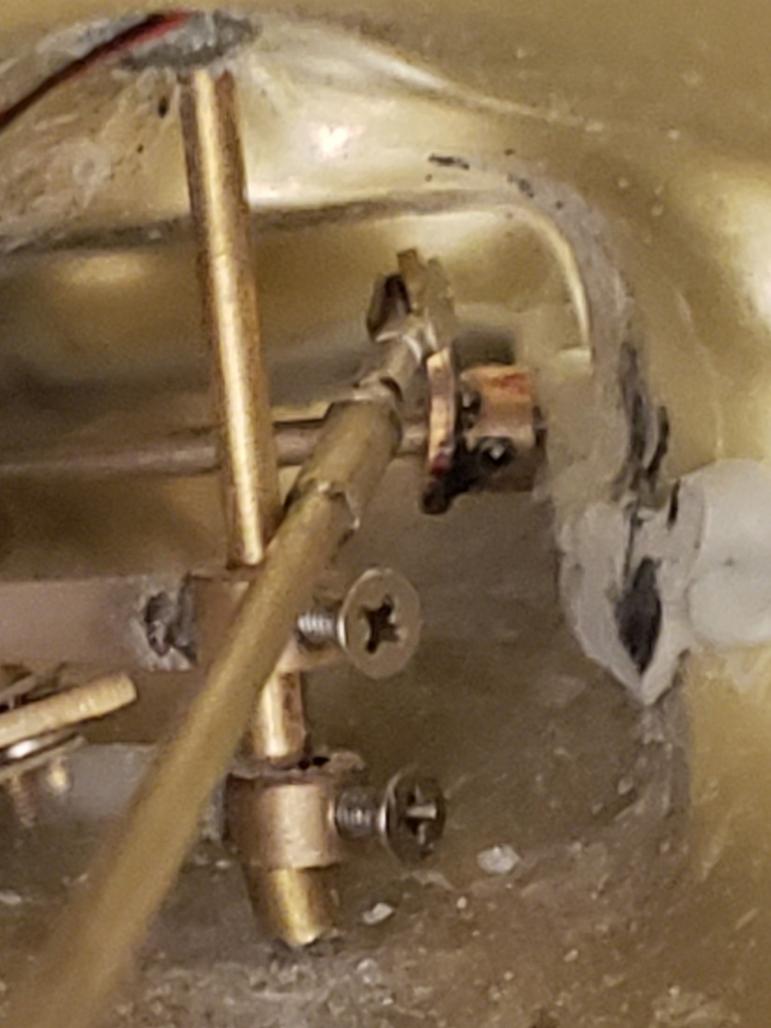

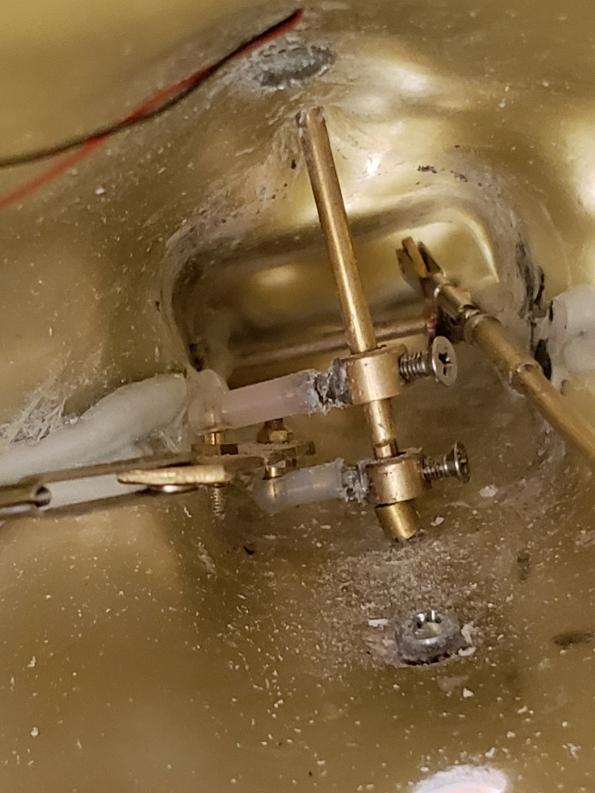

                              more pictures of the control rods for the rear rudder and rear dive plans . keep in mind these are very close up pictures so it looks like a dirty mess but its not I just forgot to wash out the back end after grinding off access material before taking pictures.
                              Attached Files
                              Put your mind to it. If there's a will there's a way!

                              Comment


                              • #60

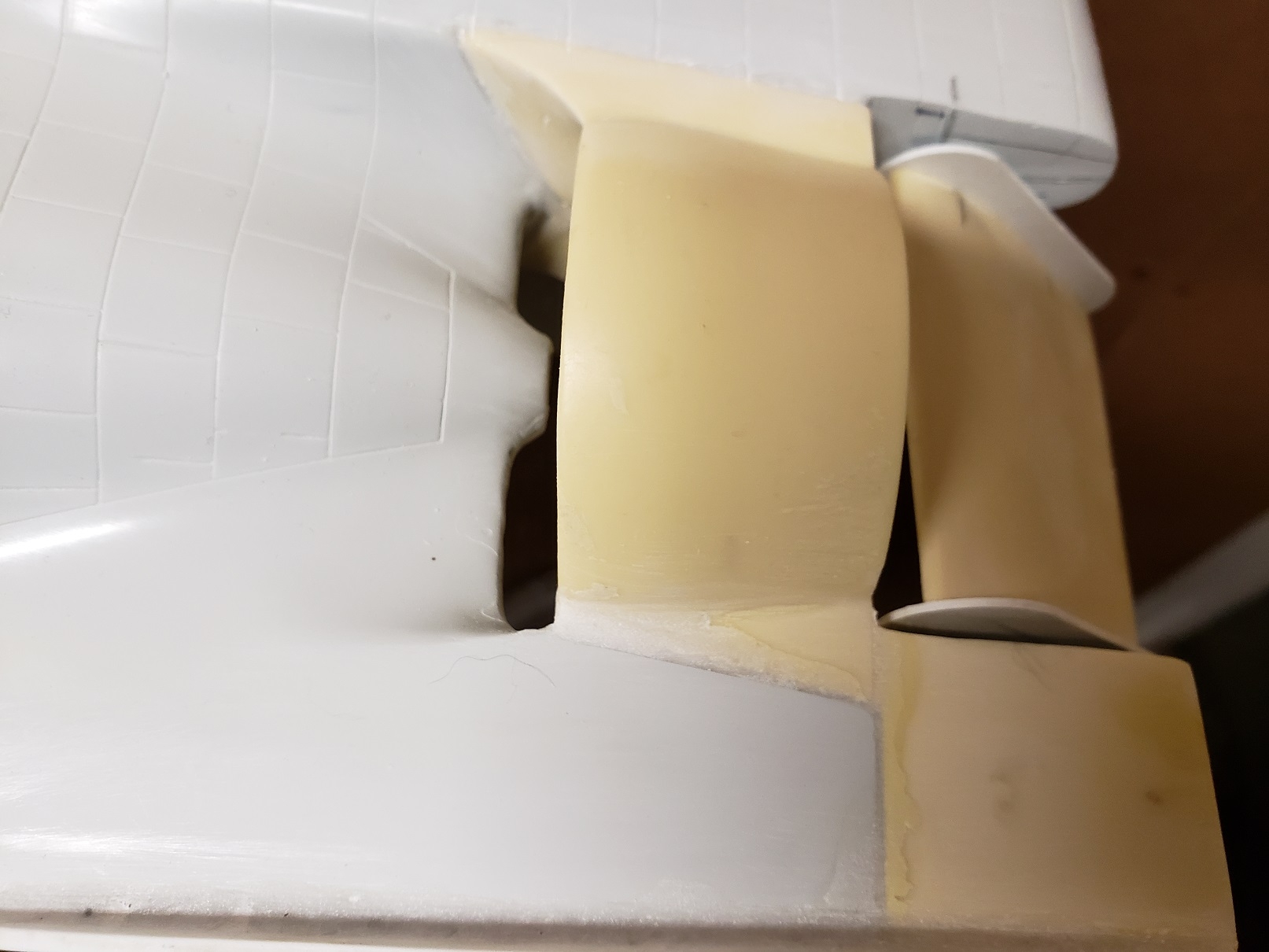

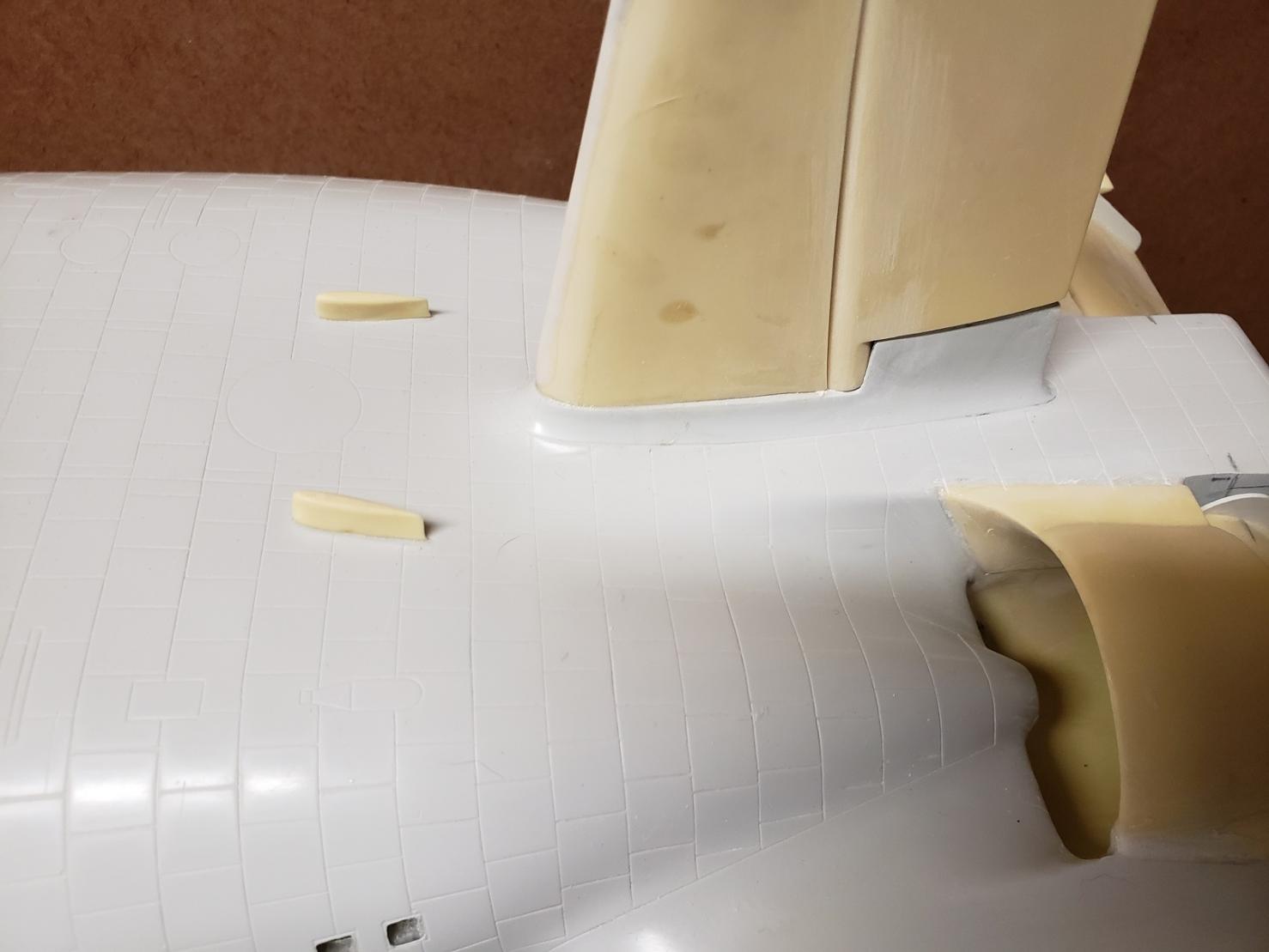

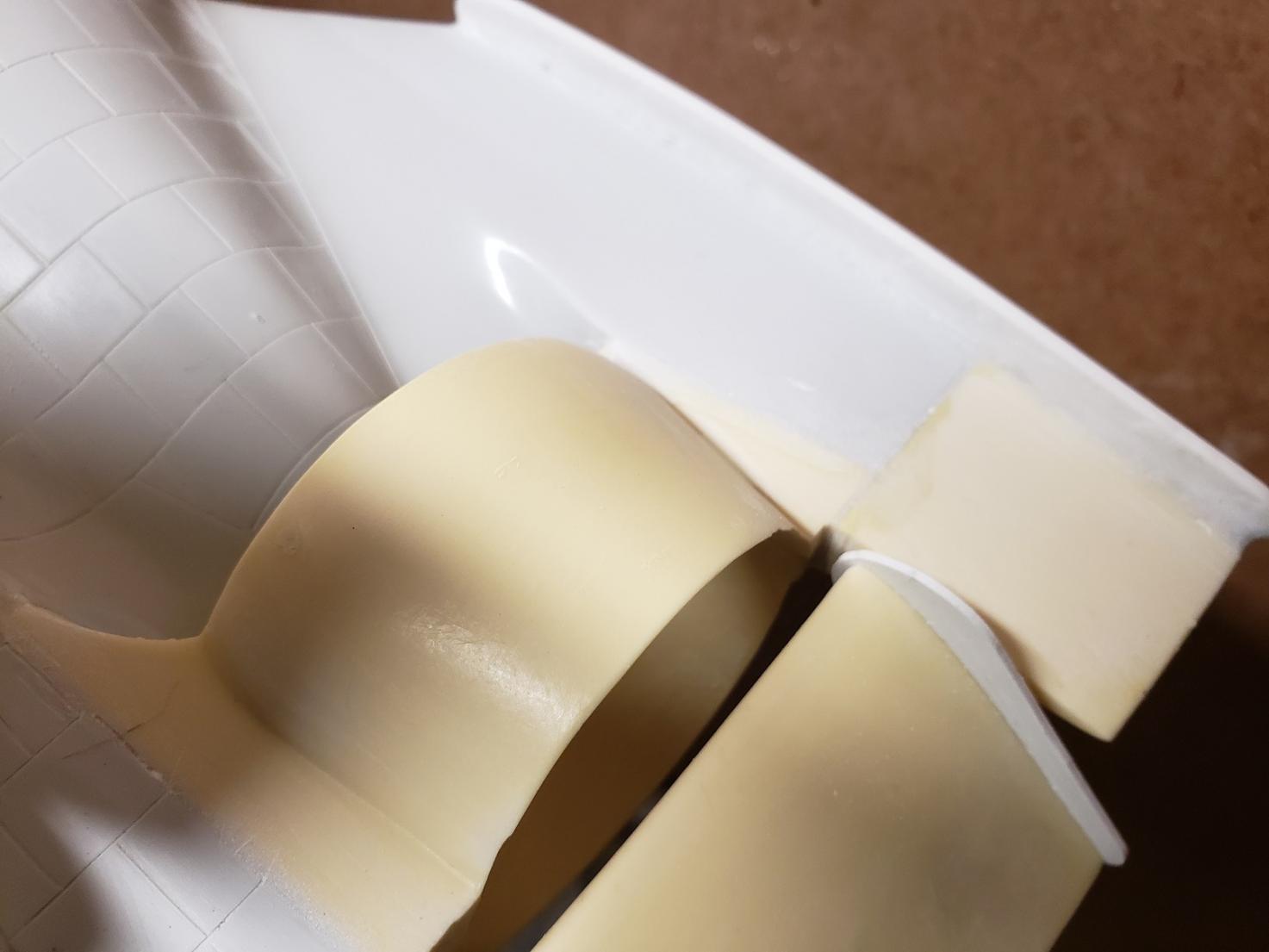

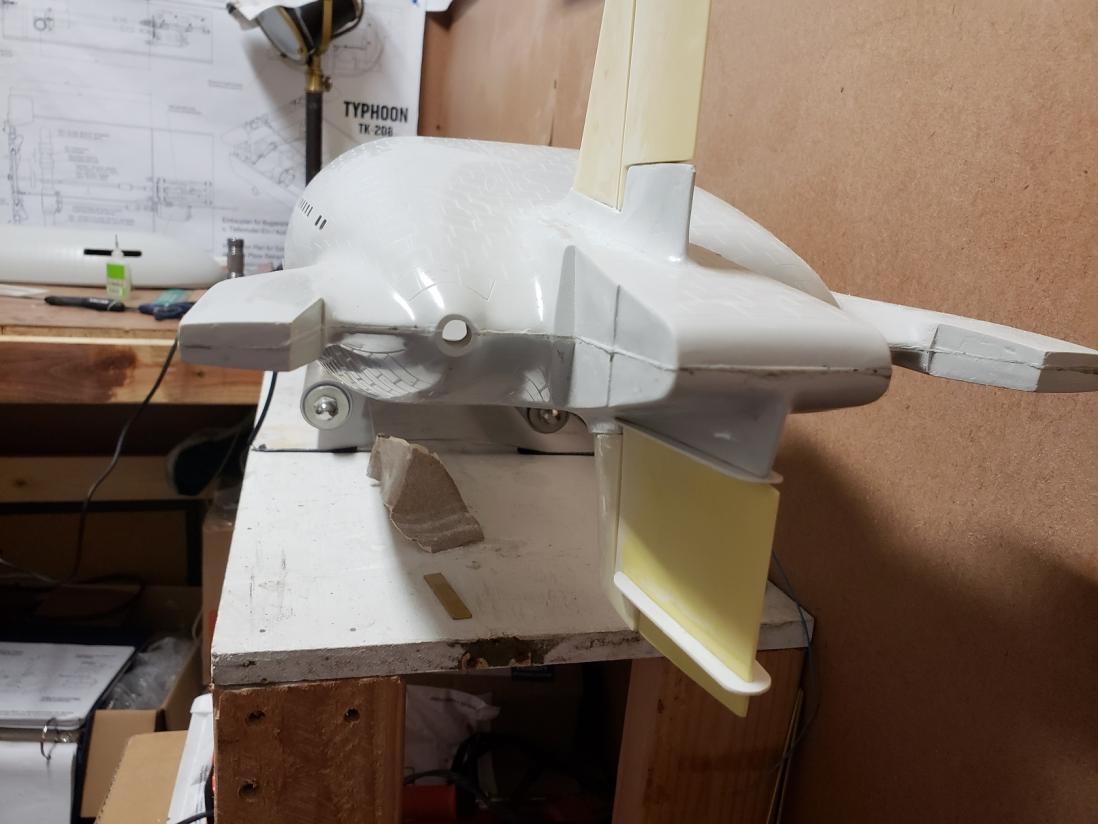

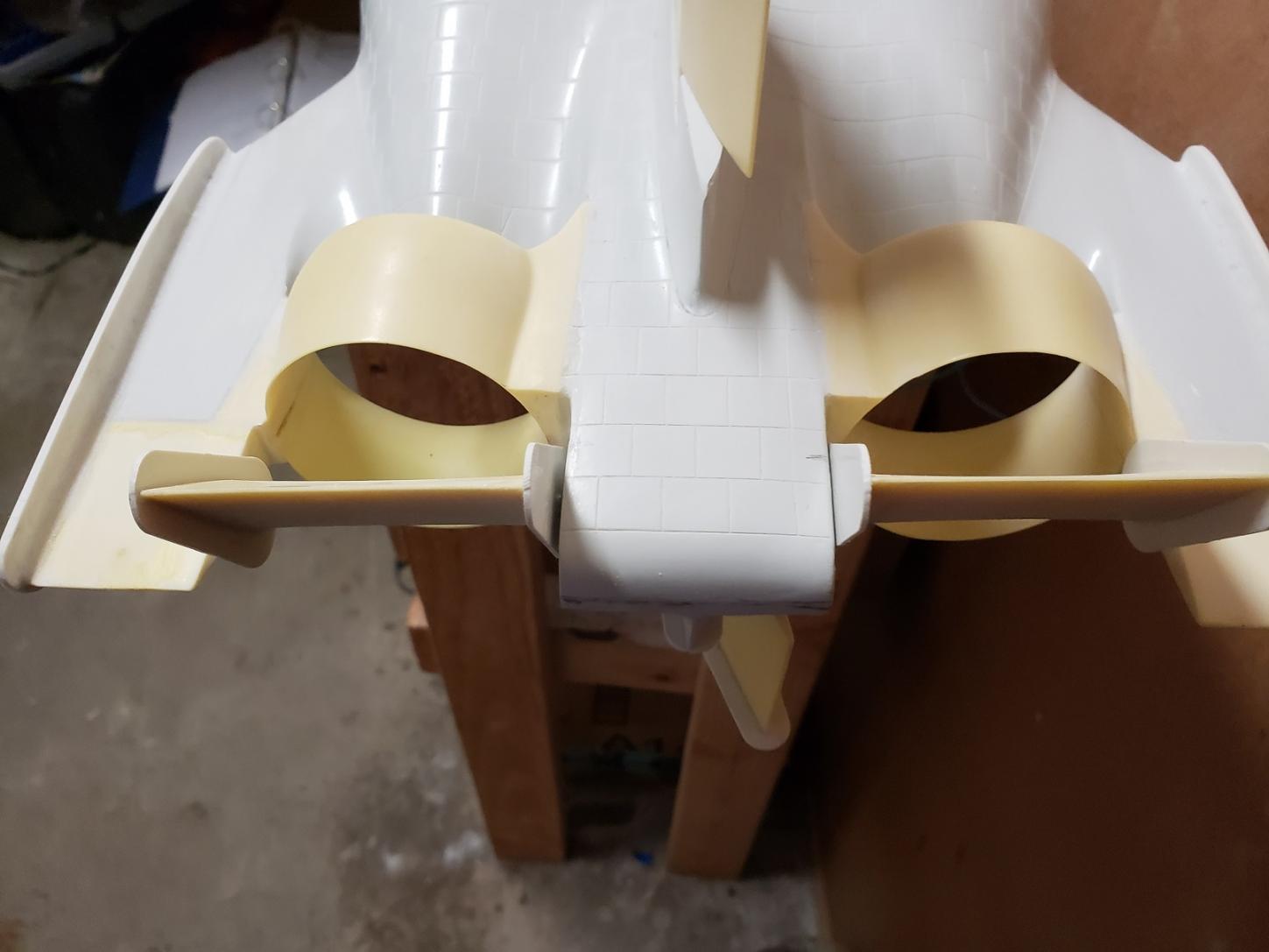

                                pictures of all of the rear prop housing and all fins resin on . I sanded everything real smooth labor of love
                                Attached Files
                                Put your mind to it. If there's a will there's a way!

                                Comment
