Oscar Continued

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Click image for larger version

Name:	oscar build 004.jpg
Views:	1
Size:	97.2 KB
ID:	60987

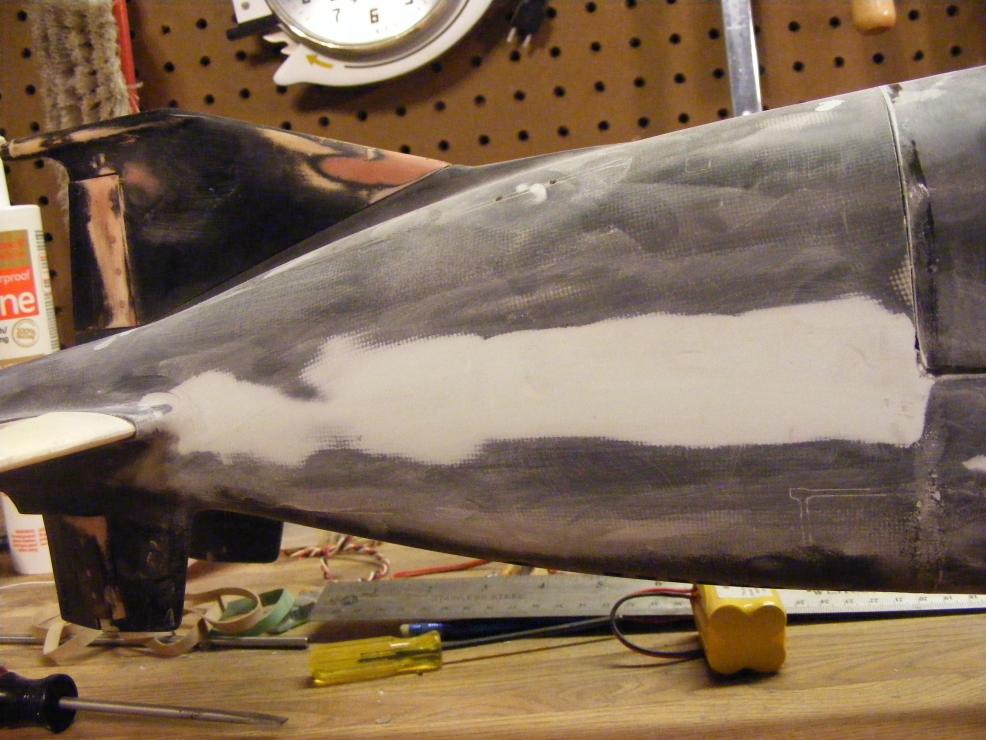

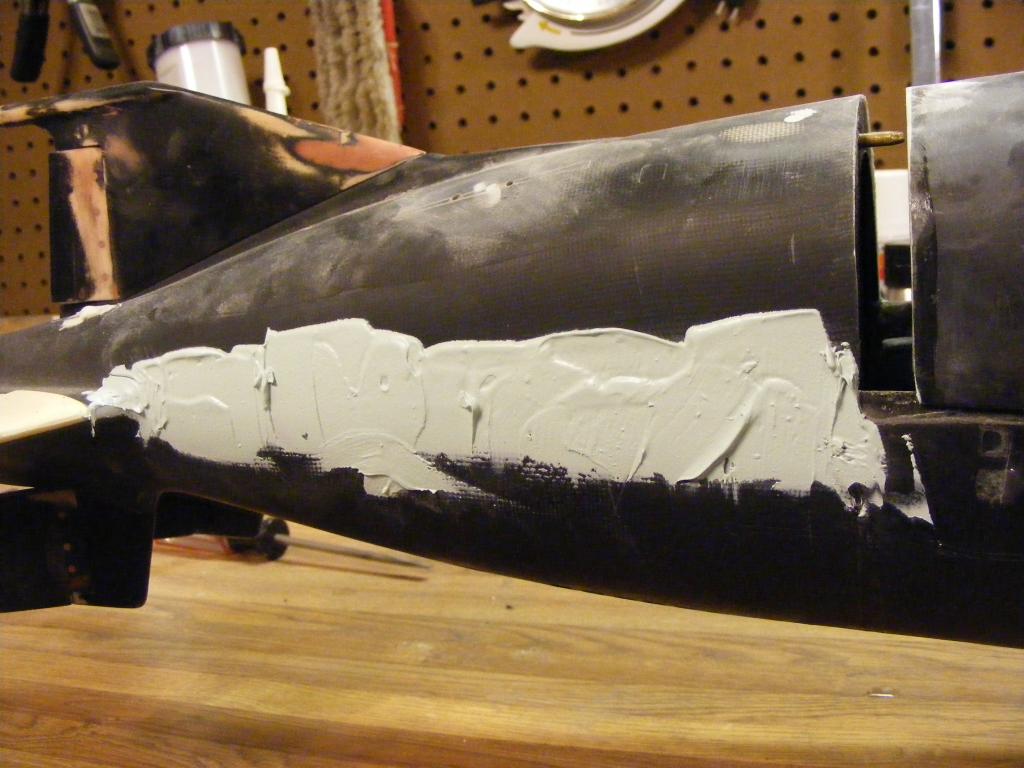

    Ok we start with the offending joint that has an 1/8" gap all along the port side shrinking down to nothing near the bow.Click image for larger version

Name:	oscar build 001.jpg
Views:	1
Size:	92.3 KB
ID:	60988

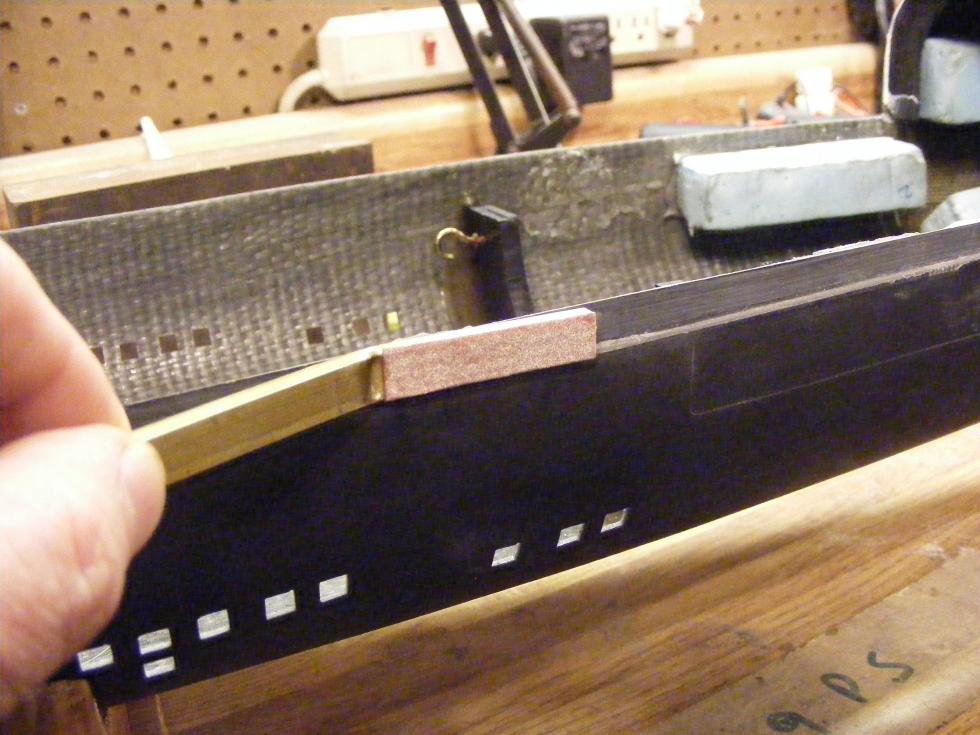

    I made this little tool out of rectangular brass tube and CAed sandpaper to it. Then I sanded the area that would recieve the Evercoat.Click image for larger version

Name:	oscar build 005.jpg
Views:	1
Size:	95.5 KB
ID:	60989

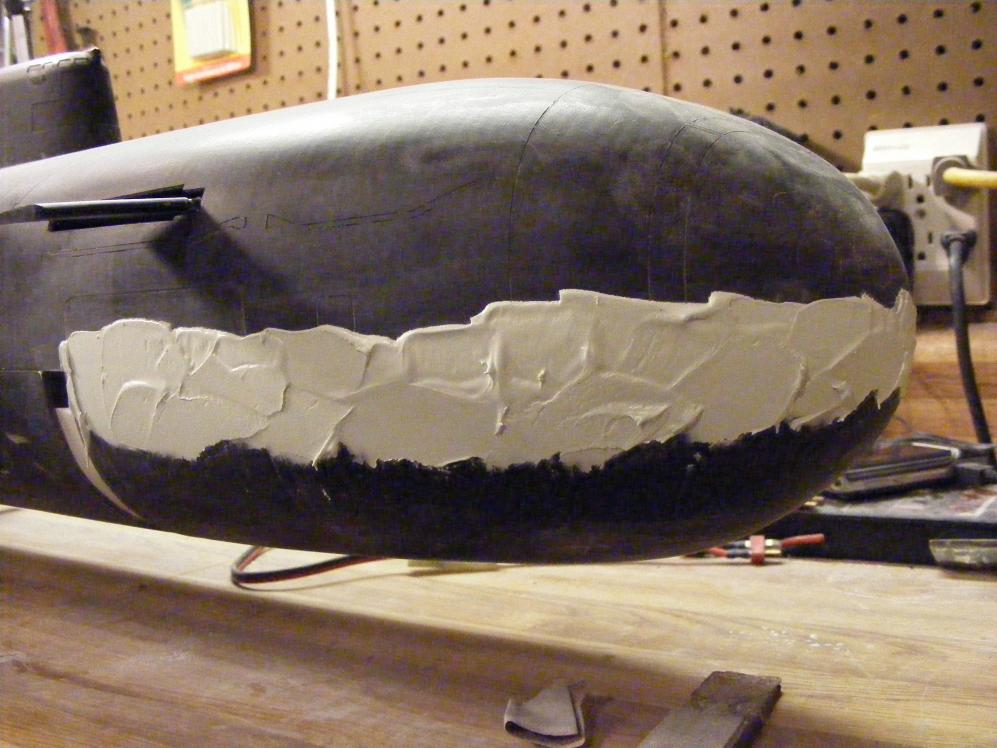

    Then using a putty knife I "smooshed" the filler inside and struck off the excess on the outside.BUT WAIT!! MARK! That bondo is going to stick to the upper hull. Nope. Dave, in his videos shows you how he uses a xacto knife and makes a seperation between the two surfaces. Well , I knew that I would mess that up so I employed an old painters trick. I coated the upper hulls surfaces that would come in contact with the filler with Petroleum jelly, just a thin coat. It kept the filler from sticking. Thats amazing because not only does the upper hull that you are using as a mold in this case have to come off, it also has to slide forward about 3/4" to disengage the indexing pins. Wont the Vaseline effect the filler? NOPE, I experimented beforehand. I also tried masking tape and masking tape coated with oil. The Vaseline works the best. How did it come out?Click image for larger version

Name:	oscar build 009.jpg
Views:	1
Size:	94.6 KB
ID:	60990Click image for larger version

Name:	oscar build 007.jpg
Views:	1
Size:	96.4 KB
ID:	60992Click image for larger version

Name:	oscar build 006.jpg
Views:	1
Size:	96.3 KB
ID:	60991

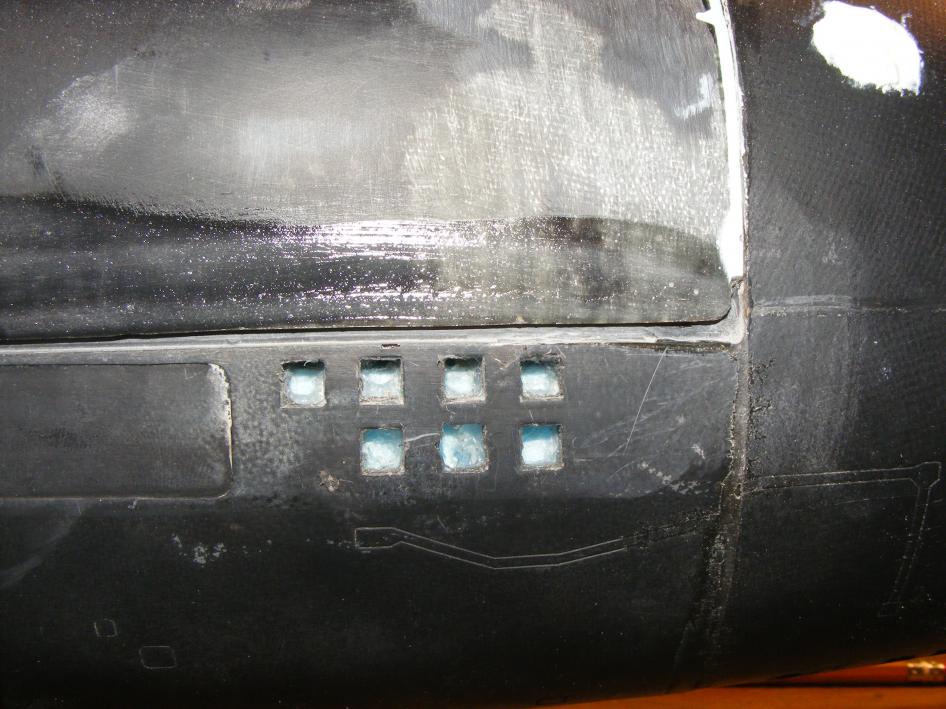

    After sanding I cant see a joint. Now I must continue on with this operation forward.Click image for larger version

Name:	oscar build 008.jpg
Views:	1
Size:	94.5 KB
ID:	60993
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment


    • #17
      Just a side note. I purchased from Caswell two products. The Evercoat Metal Glaze and the Easysand. I was quite surprised that I can not tell the difference between the two products. In appearance, flowability, sandability and strength they appear to be the same product.
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment


      • #18
        Subcultures sharp eye picked up on the fact that in the picture of the vertical joint in the back the factory scribing doesnt matchup. Thats where I had to compromise between port and starboard to get everything centered. When it comes time for detailing they will be filled and rescribed.
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment


        • #19
          Click image for larger version

Name:	oscar build 002.jpg
Views:	1
Size:	101.4 KB
ID:	61189

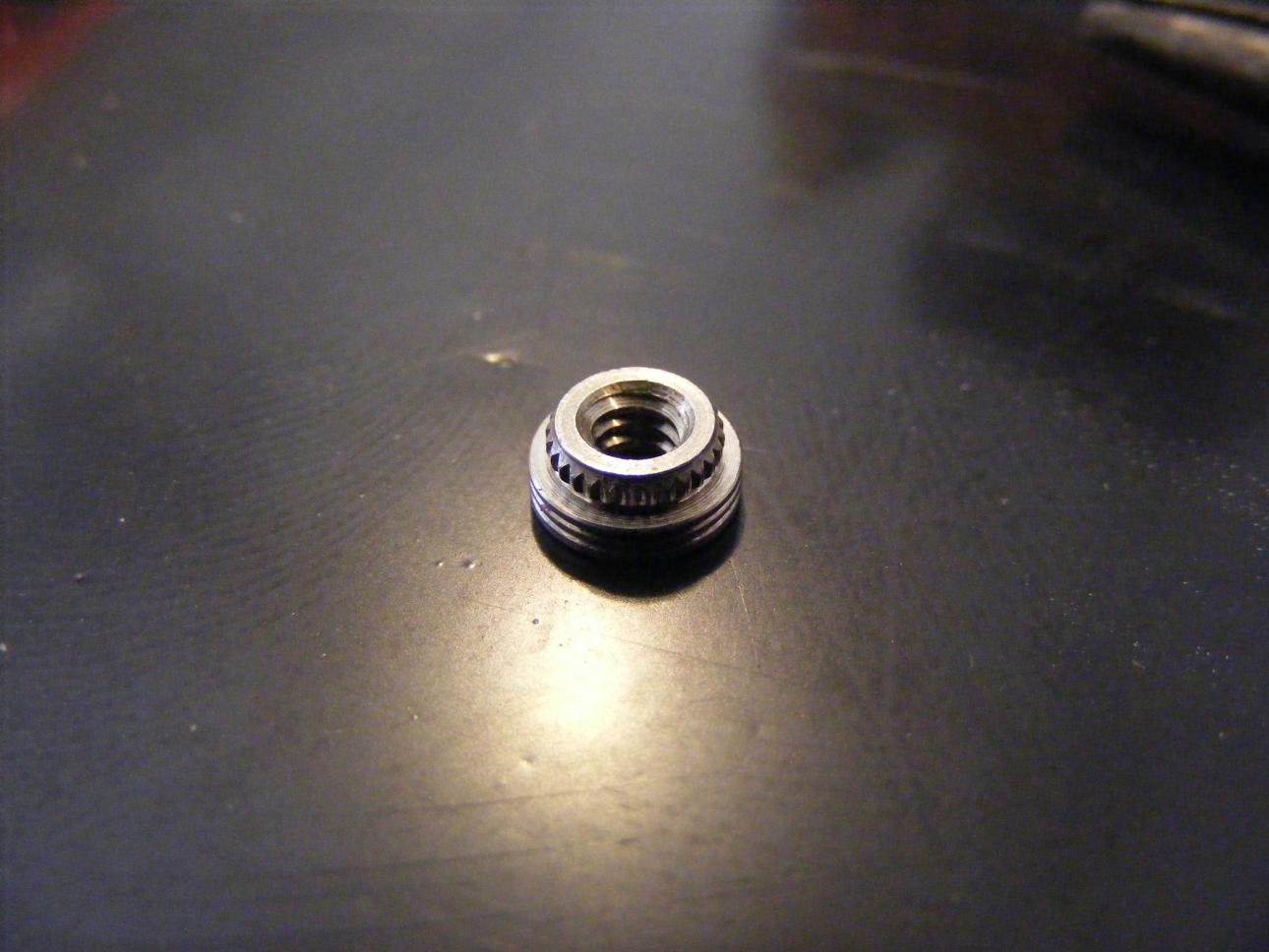

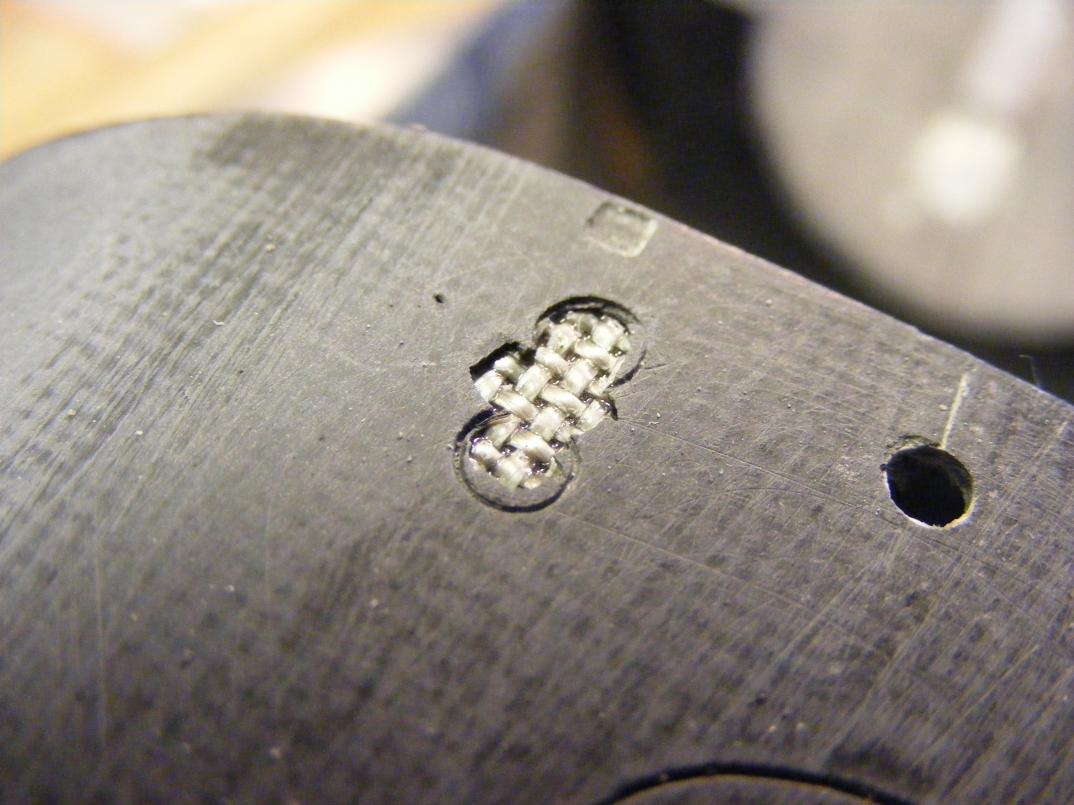

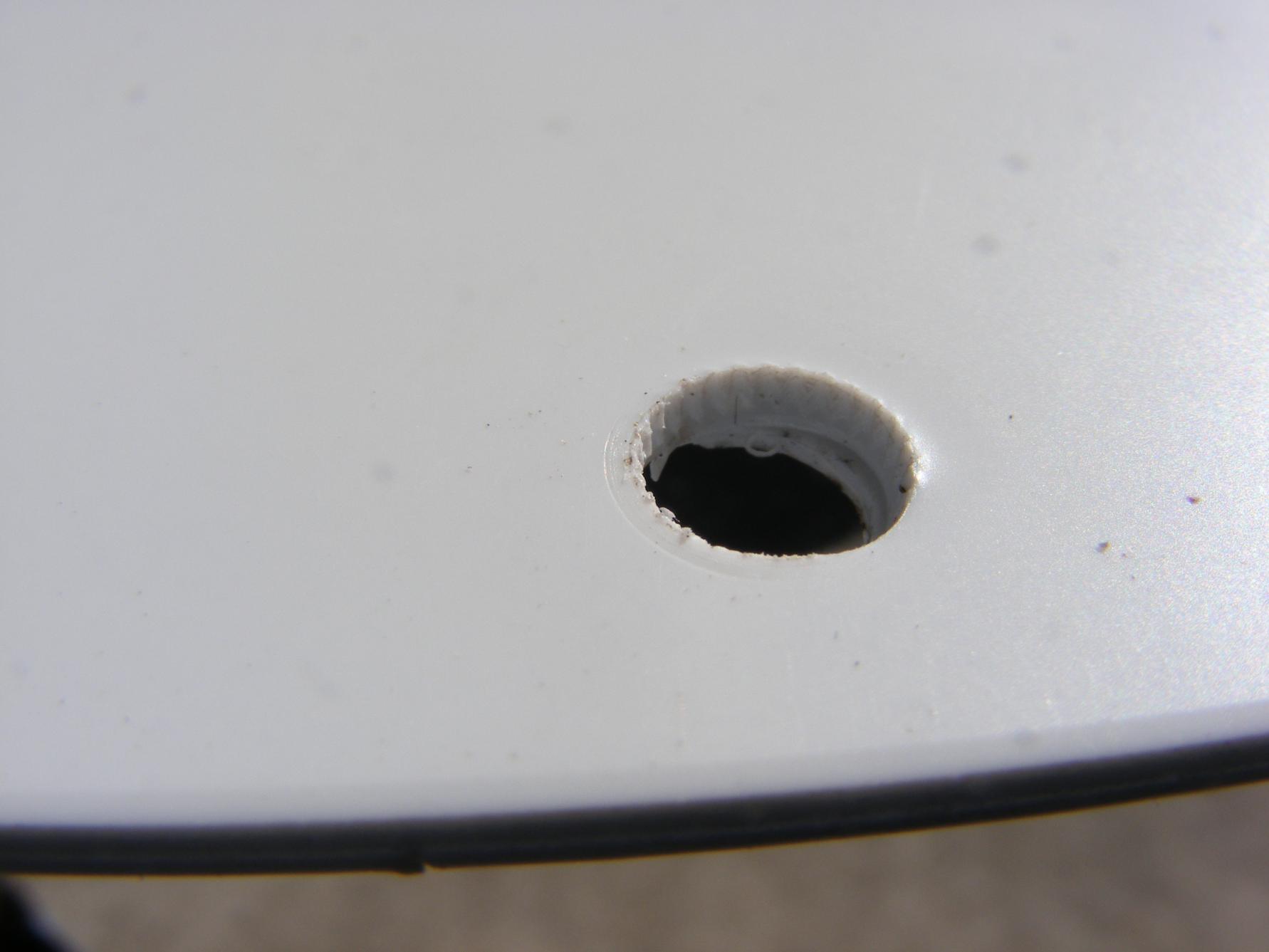

          Here we have a captive nut sold by McMaster&Carr. You can see the spline cut into the smaller outside dia. end. This area of the nut you install into your plastic or fiberglass or whatever.
          Click image for larger version

Name:	oscar build 001.jpg
Views:	1
Size:	92.9 KB
ID:	61187
          You can see after removal of the nut how it dug into the plastic for a good bond.
          Click image for larger version

Name:	oscar build 003.jpg
Views:	1
Size:	90.6 KB
ID:	61188
          I drilled a 13/64" hole and then used a screw to pull it into the material. Then a drop of thin CA will keep her there.
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment


          • #20
            Click image for larger version

Name:	oscar build 005.jpg
Views:	1
Size:	93.3 KB
ID:	61192

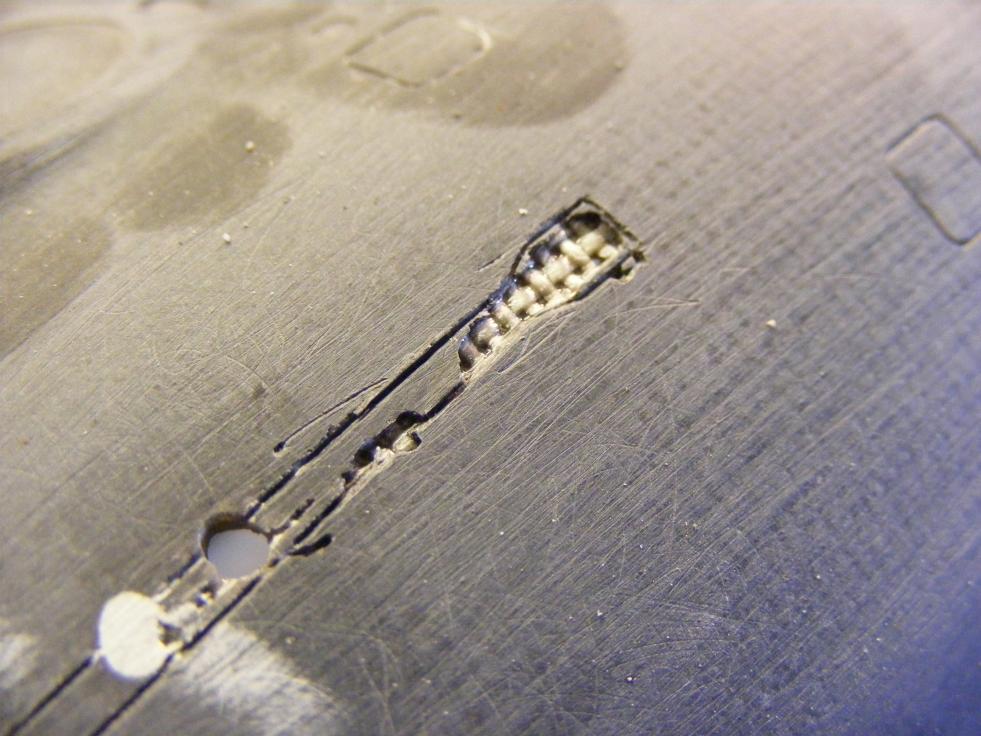

            The lower hull comes with indexing lips continuously all down the sides. Since I configured the hull already as a Z-cut and installed the home made indexer in the back with two brass pins, all I need to hold it together is one screw in front.
            Click image for larger version

Name:	oscar build 004.jpg
Views:	1
Size:	94.4 KB
ID:	61190
            The large plastic lip that I epoxied into the lower half at the front extends forward 3/4" of an inch. It prevents the hulls from seperating unless the top half slides forward.
            Click image for larger version

Name:	oscar build 006.jpg
Views:	1
Size:	91.8 KB
ID:	61191

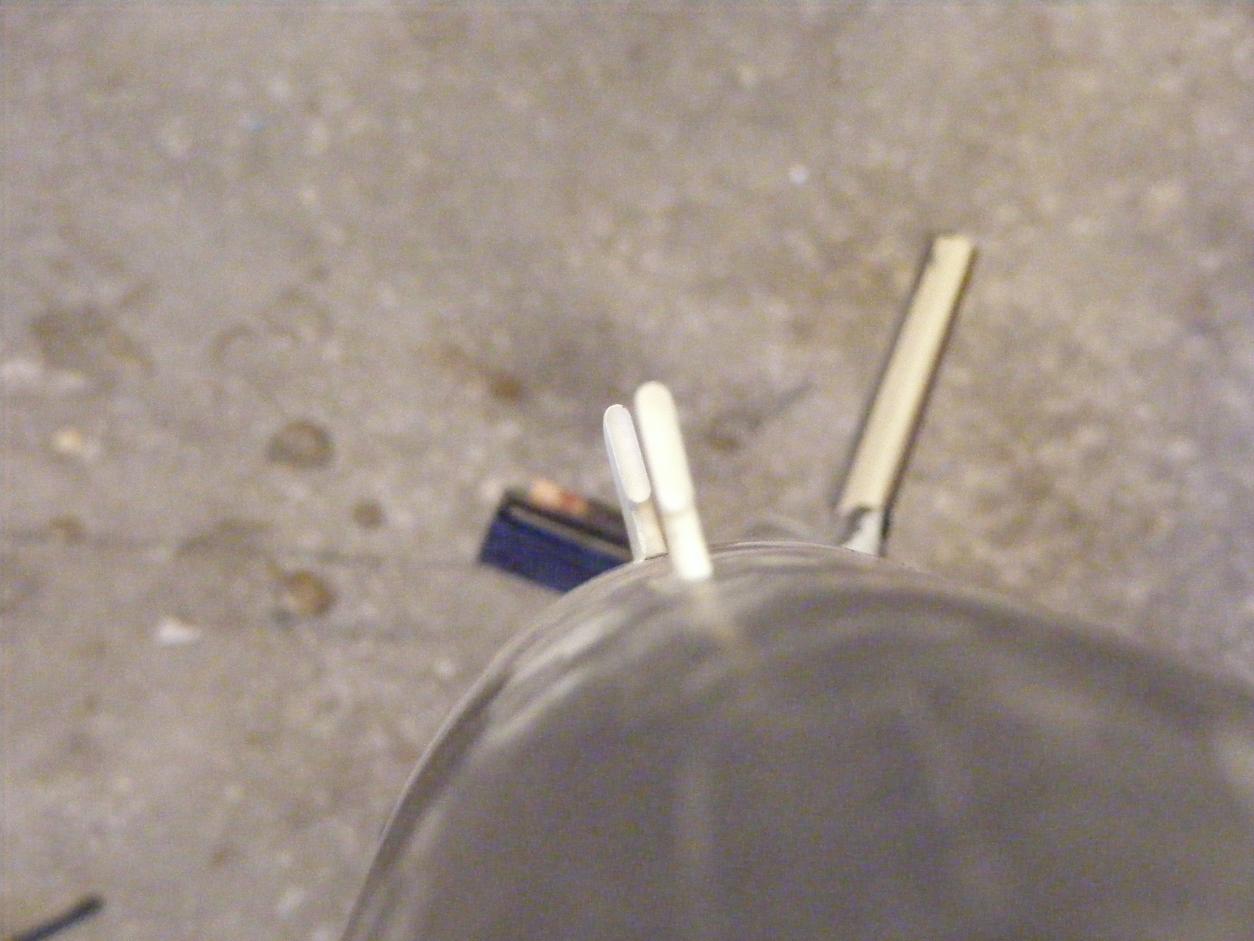

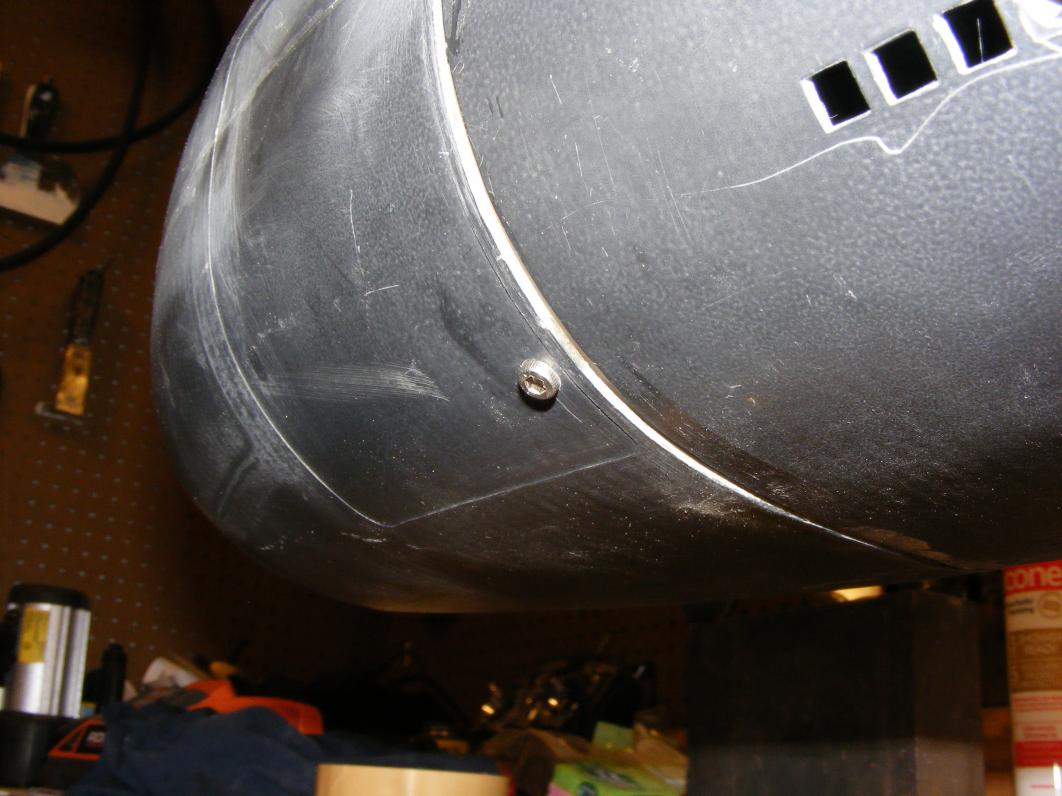

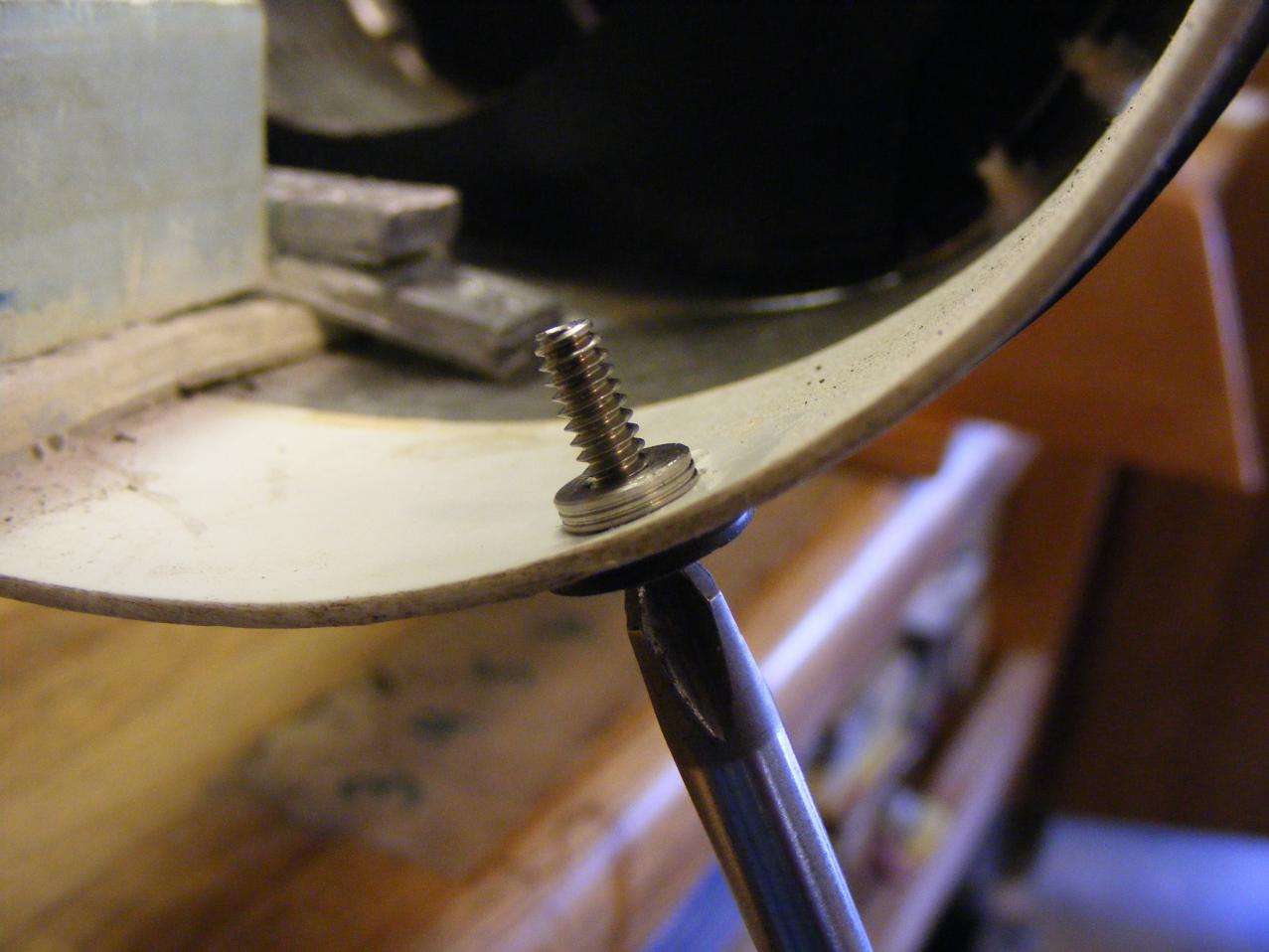

            Hence the screw installed in the bow underneath at a 45 degreee angle. I used an Allen screw so that you wouldnt see an unscale Phillips screw there. All thats left to do is grind it down so that its surface is flush wuth the hull. To access it I just roll the sub over about 45 degrees in its cradle and I can get right to it. When you roll it back it is out of sight.
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment


            • #21
              Ill bet you guys think that Ive been sloughing off on this build. Well just to prove you wrong, Ill update you.Click image for larger version

Name:	Transfer 006.jpg
Views:	1
Size:	91.8 KB
ID:	62113Click image for larger version

Name:	Transfer 005.jpg
Views:	1
Size:	93.2 KB
ID:	62112Click image for larger version

Name:	Transfer 001.jpg
Views:	1
Size:	92.3 KB
ID:	62109Click image for larger version

Name:	Transfer 007.jpg
Views:	1
Size:	94.6 KB
ID:	62115Click image for larger version

Name:	Transfer 008.jpg
Views:	1
Size:	92.6 KB
ID:	62110Click image for larger version

Name:	Transfer 013.jpg
Views:	1
Size:	91.8 KB
ID:	62111Click image for larger version

Name:	Transfer 009.jpg
Views:	1
Size:	91.2 KB
ID:	62114
              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

              Comment


              • #22
                Click image for larger version

Name:	Transfer 012.jpg
Views:	1
Size:	91.5 KB
ID:	62118Click image for larger version

Name:	Transfer 020.jpg
Views:	1
Size:	93.6 KB
ID:	62117Click image for larger version

Name:	Transfer 019.jpg
Views:	1
Size:	92.3 KB
ID:	62116

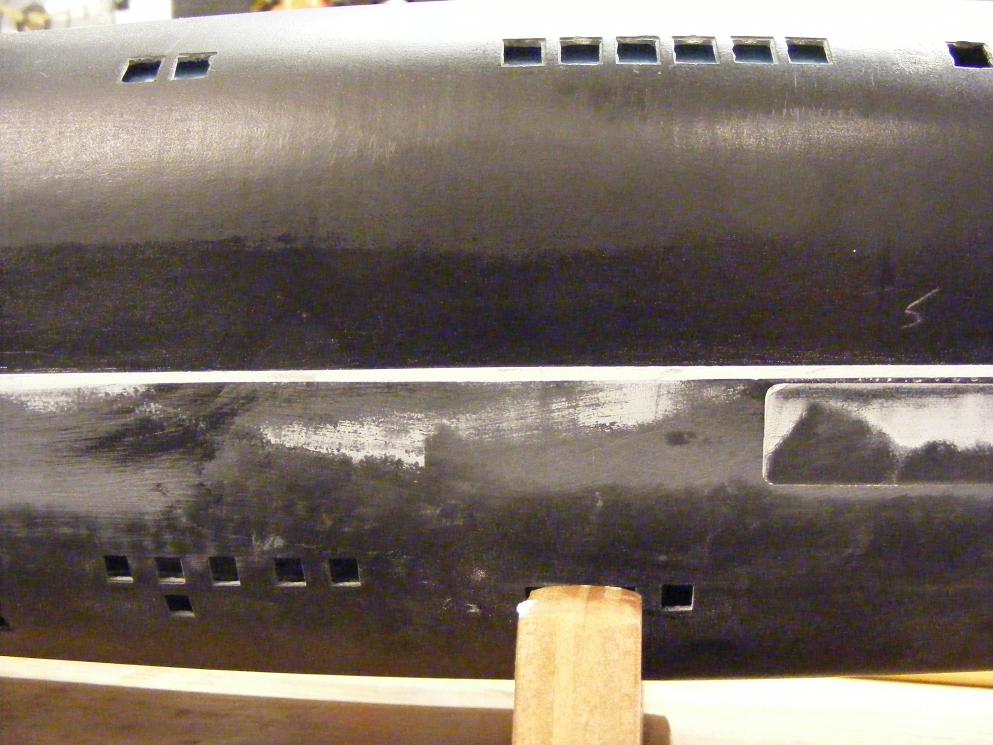

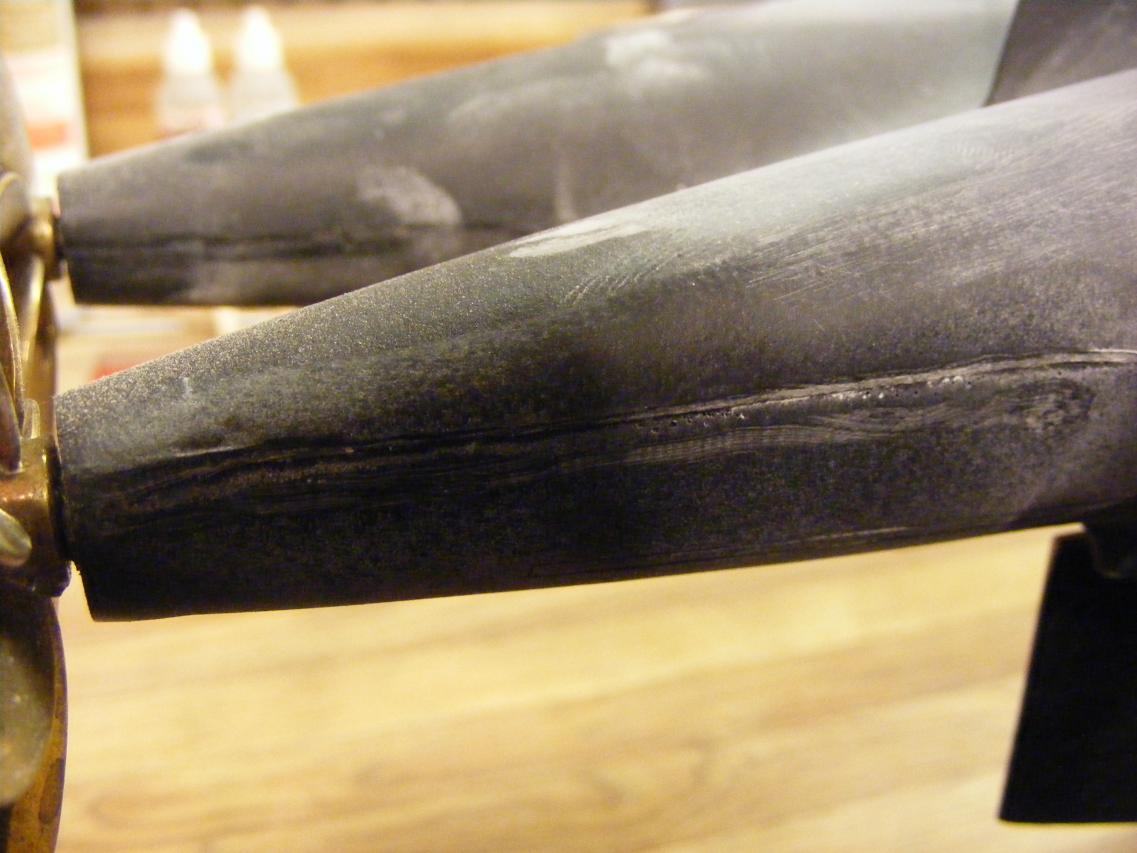

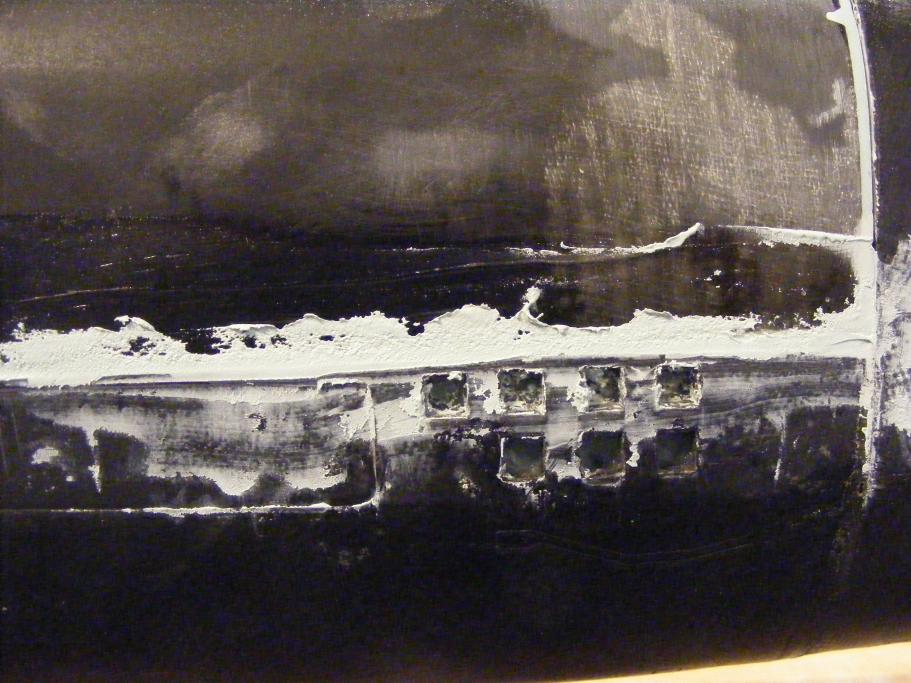

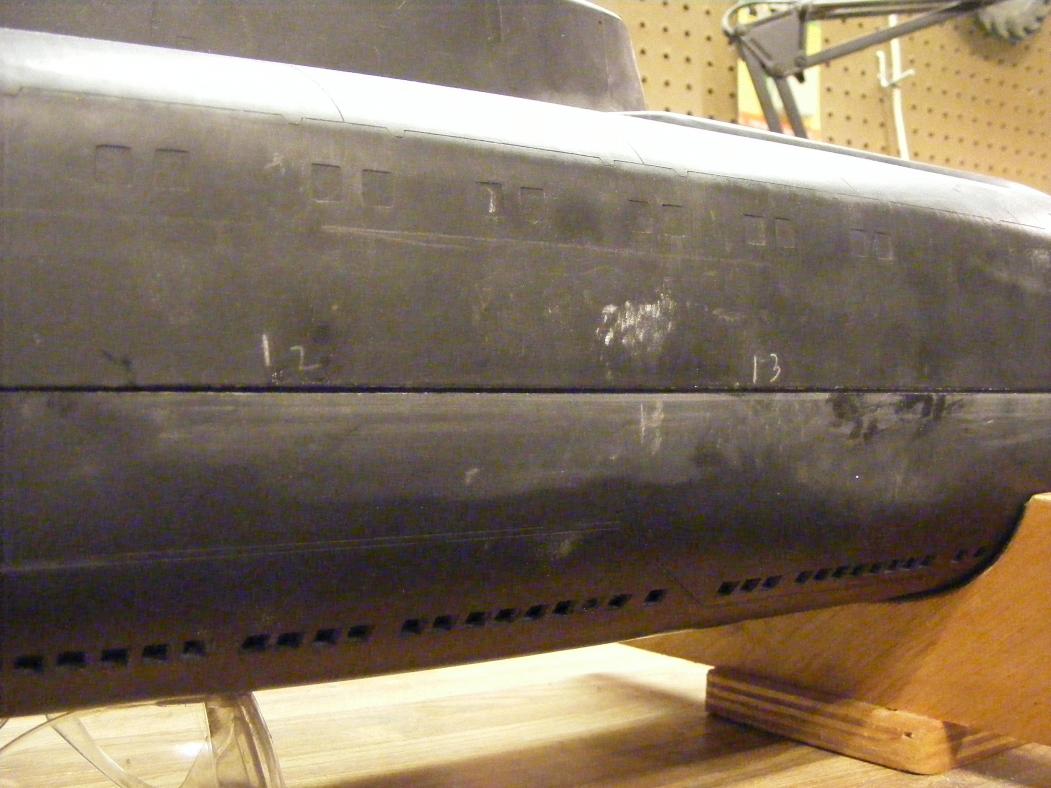

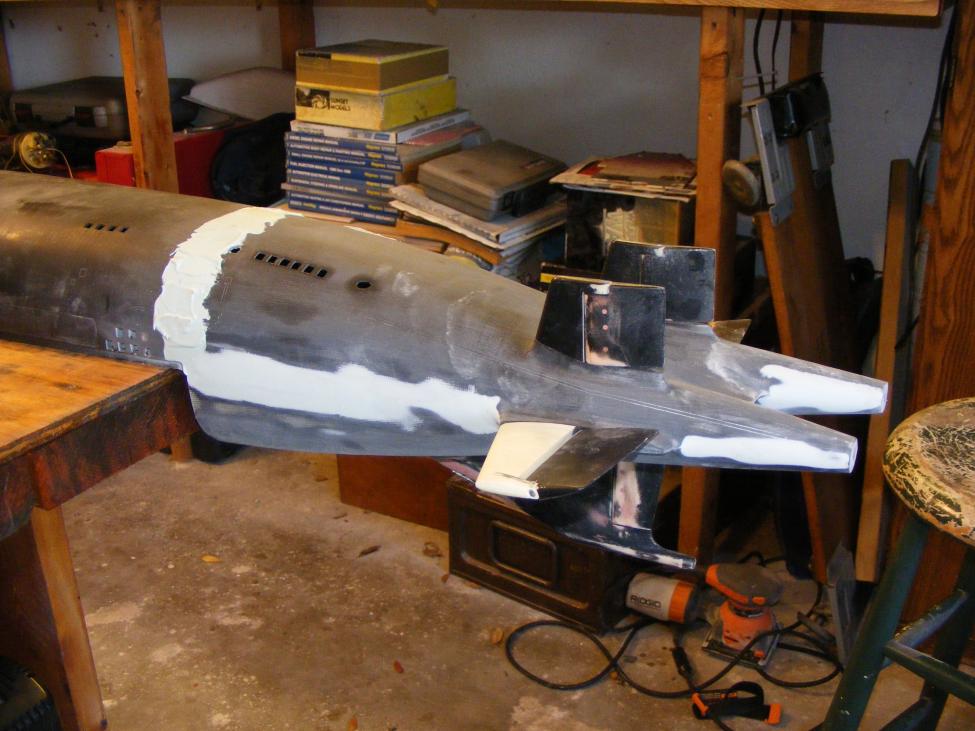

                There was a lot of mismatch at the seams and some delaminations that ive been taking care of with Evercoat and then sanding and contouring. It takes time. We are getting close to being able to put some paint on the bottom section.
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment


                • #23

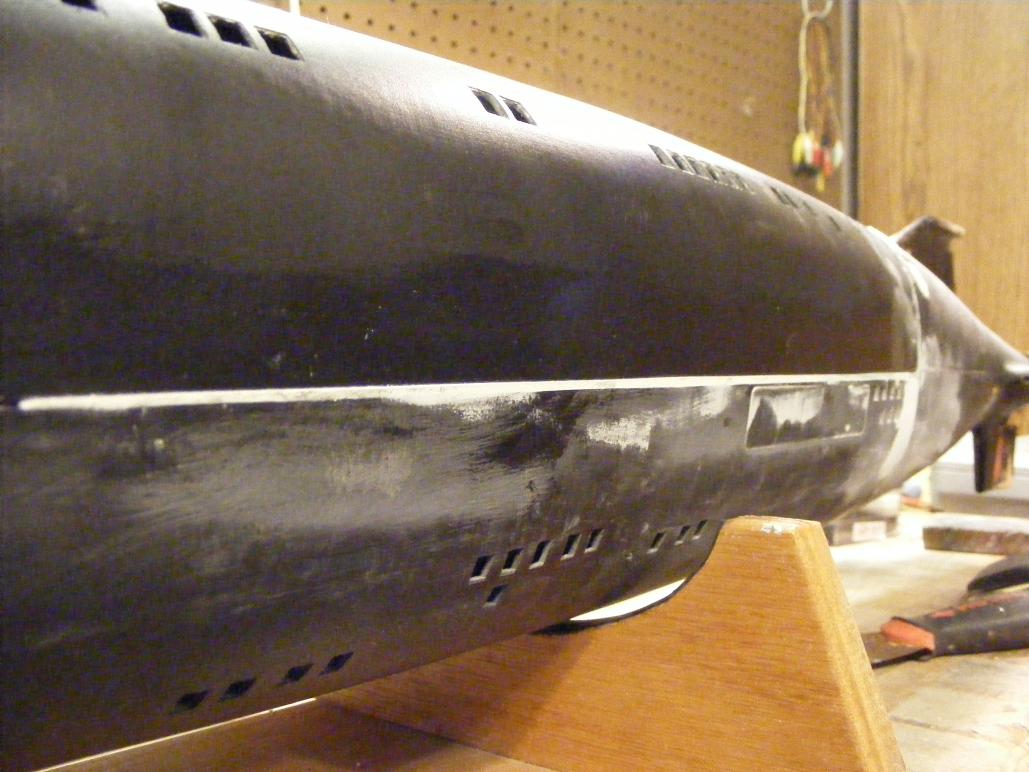

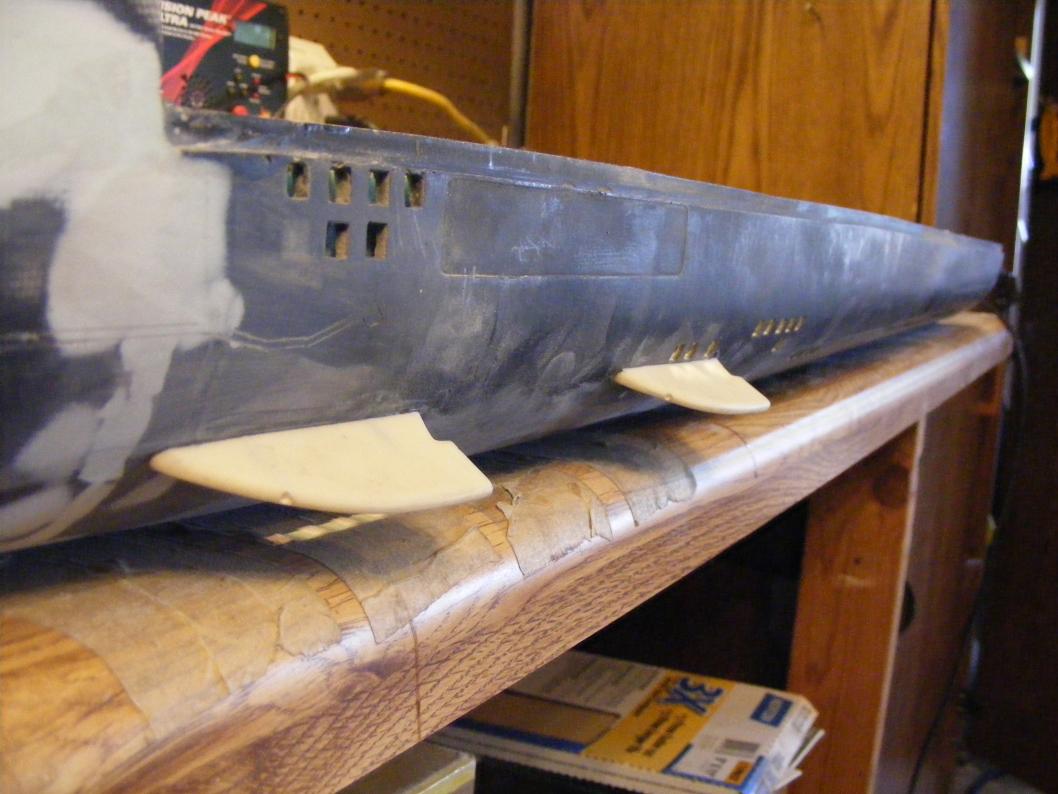

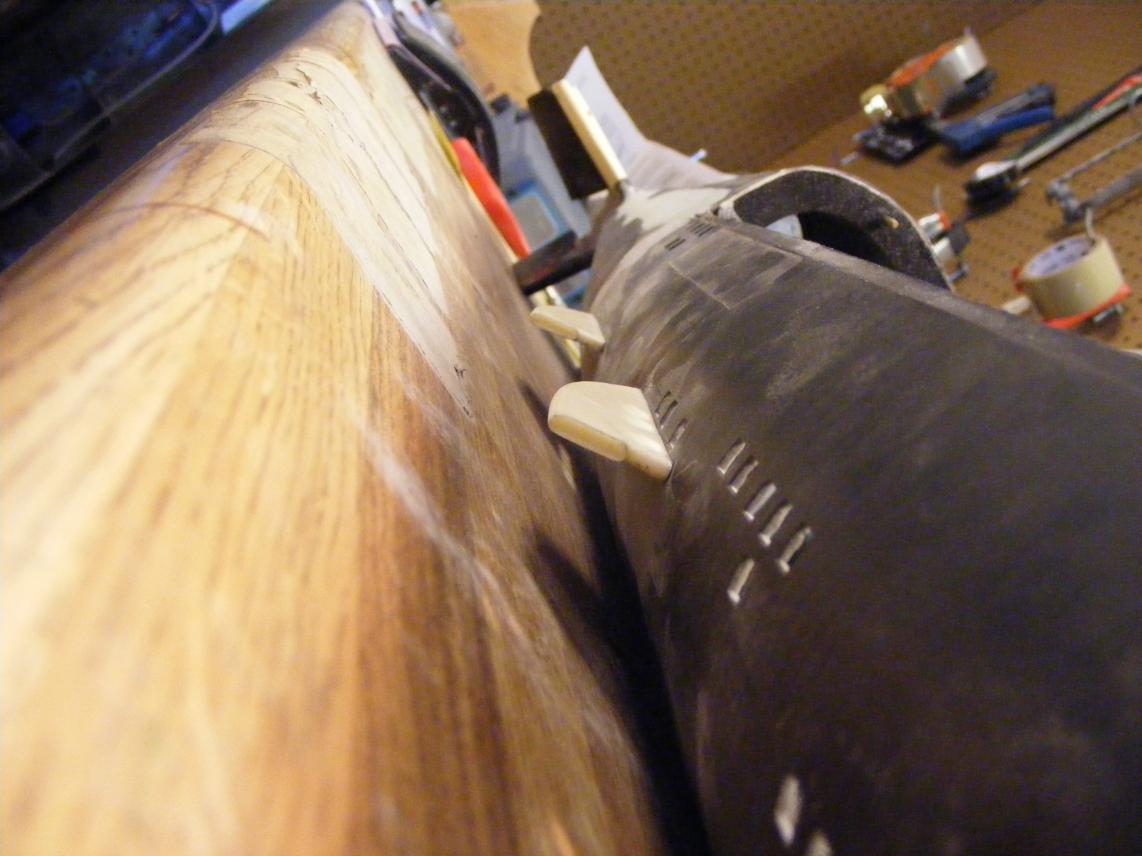

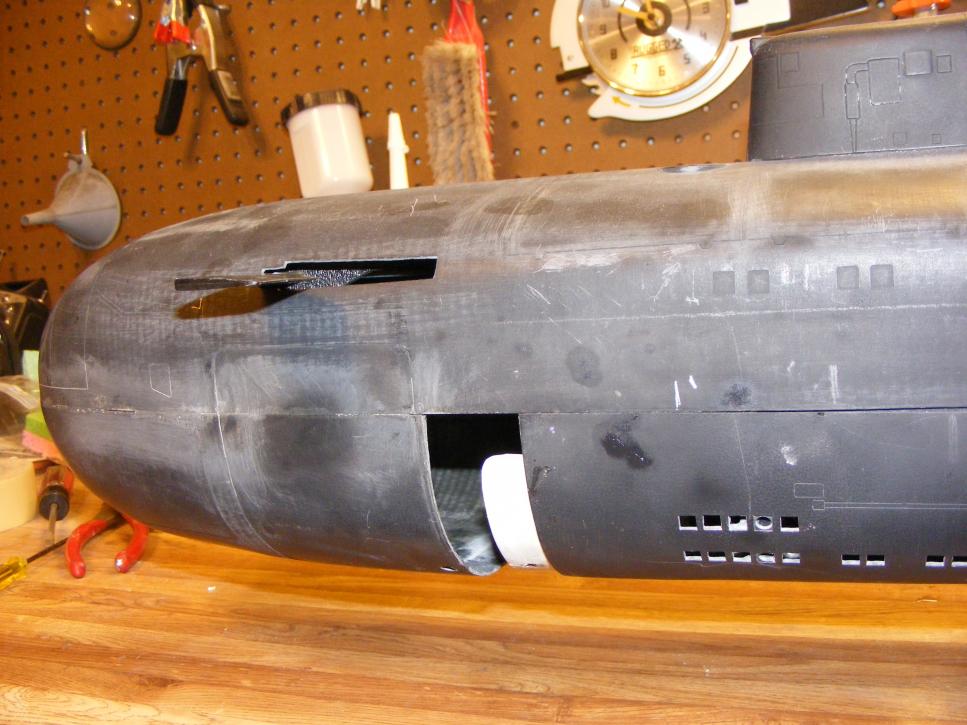

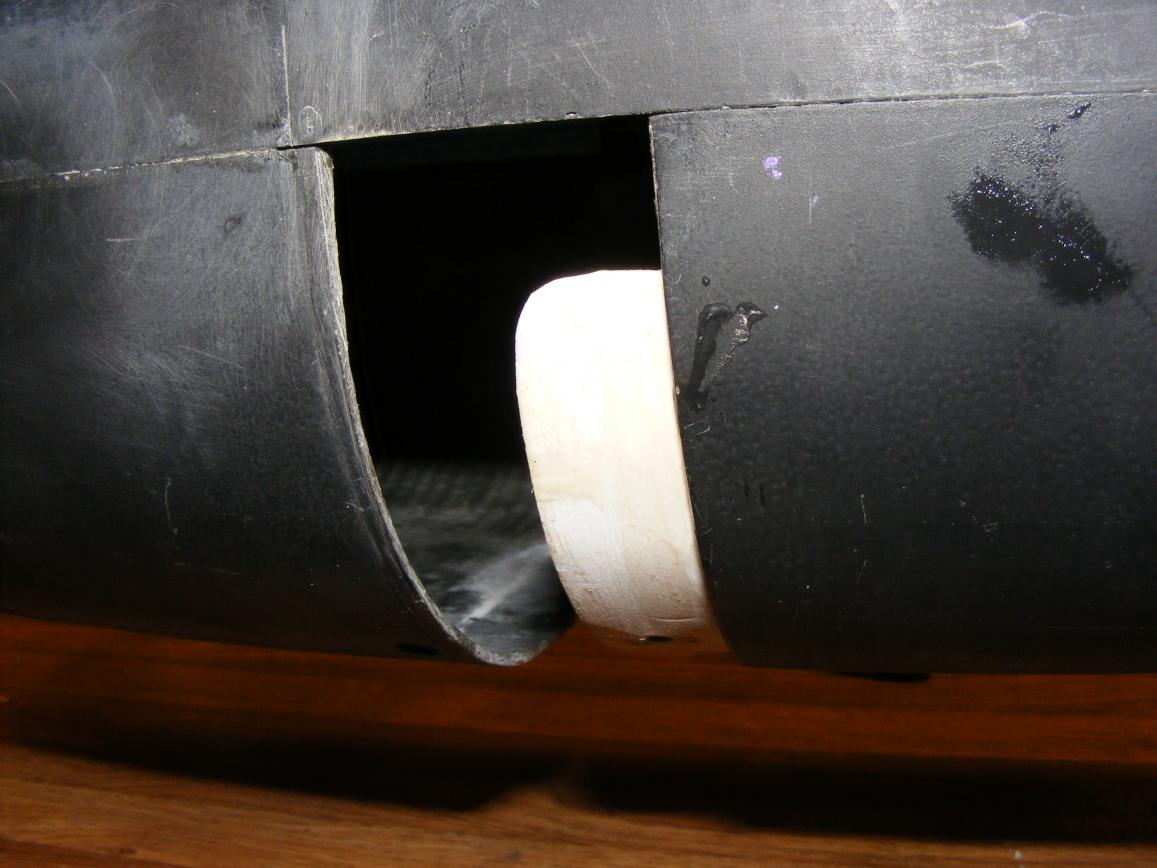

                  Before we can put paint to it we need to put on the cooling water scoops. There are four of them and they look somewhat delicate. I can just picture them getting knocked off and lost. The HORRIBLE customer service provided by Scaleships is another reason to anchor these things very securely. Using two number 4 screws in each they were drilled and attached from the inside and the base then sealed with CA. Where to put them on the model was the next step. These nice scale drawings that you can see in the picture can mislead you. The section of the hull where the scoops are attached is where the hull decreases in dia. So since there is no section cut drawing at the attachment points you have to Extrapolate(guess). The drawings show you accurately where they go measuring from the rear so that was the easy part. I found the center of the hull and marked it and measured from there. If you look at them from head on they are arranged so that they are not directly in line with each other but are offset their exact width as you can see in the drawingsClick image for larger version

Name:	Transfer 016.jpg
Views:	1
Size:	89.8 KB
ID:	62136Click image for larger version

Name:	Transfer 015.jpg
Views:	1
Size:	101.5 KB
ID:	62140Click image for larger version

Name:	Transfer 014.jpg
Views:	1
Size:	94.6 KB
ID:	62137

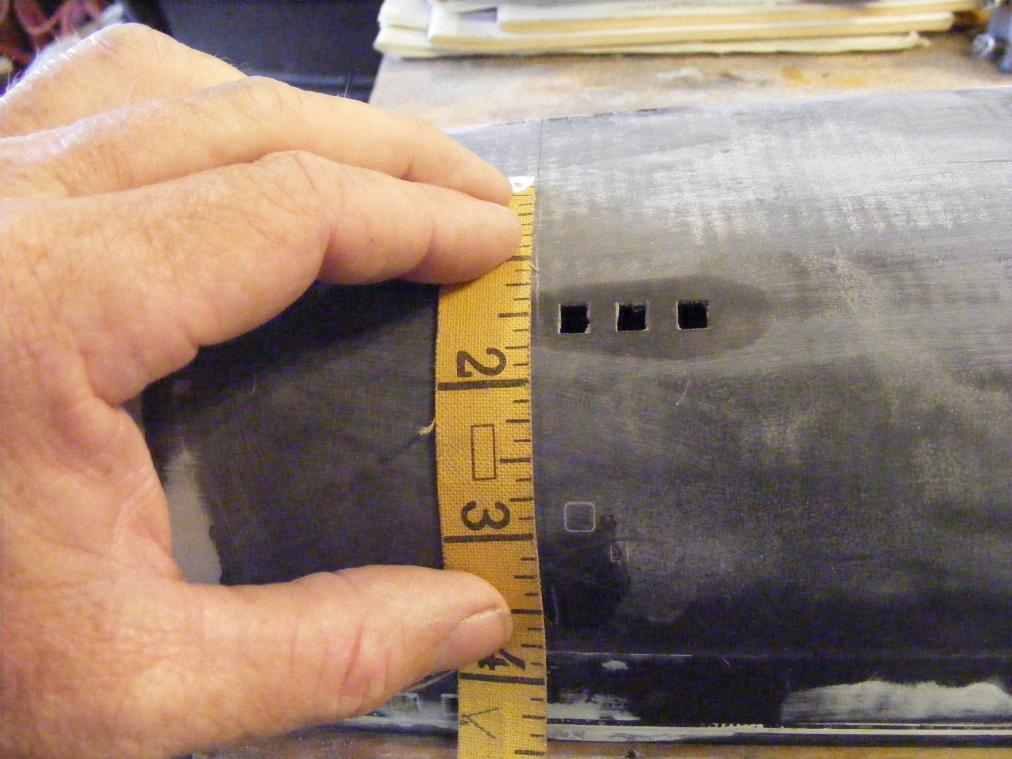

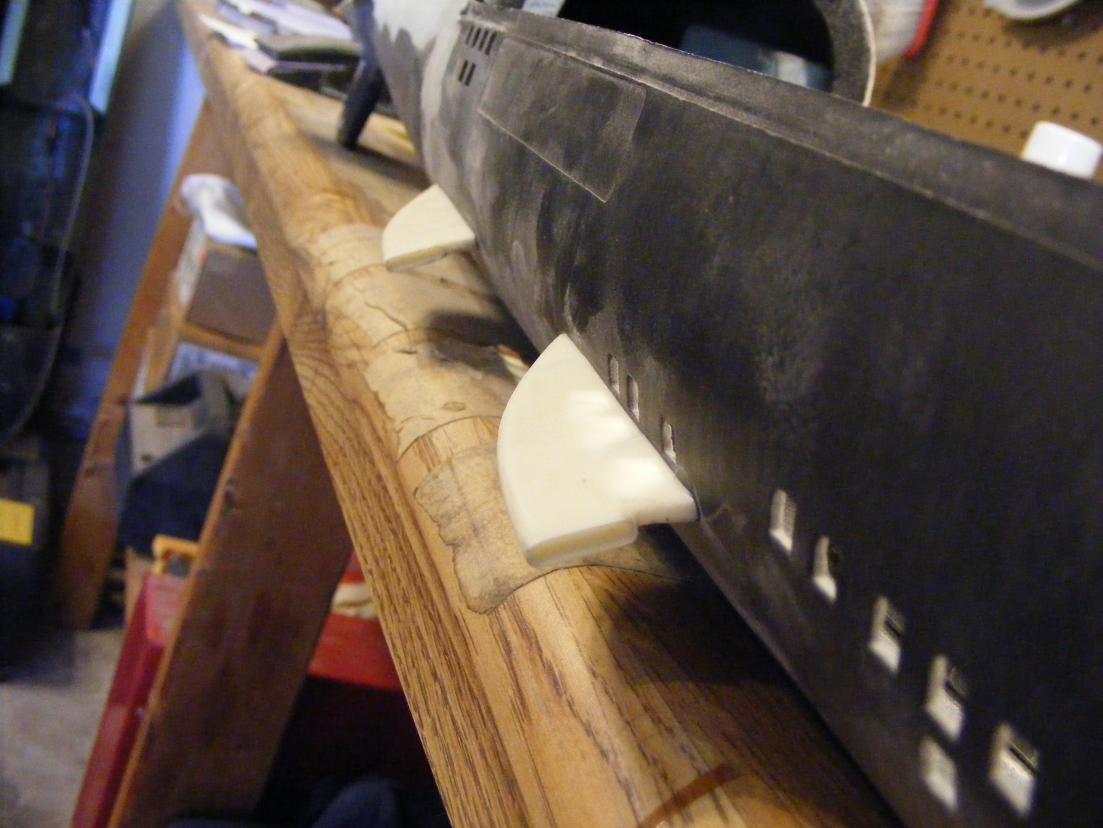

                  Using a flexible sewing tape works very well for following the contour of a submarine to transfer measurements
                  Click image for larger version

Name:	Transfer 024.jpg
Views:	1
Size:	90.7 KB
ID:	62134.Click image for larger version

Name:	Transfer 022.jpg
Views:	1
Size:	104.4 KB
ID:	62135Click image for larger version

Name:	Transfer 025.jpg
Views:	1
Size:	89.6 KB
ID:	62139Click image for larger version

Name:	Transfer 021.jpg
Views:	1
Size:	90.4 KB
ID:	62138
                  Last edited by greenman407; 04-28-2011, 01:07 PM.
                  IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                  Comment


                  • #24
                    Click image for larger version

Name:	Transfer 017.jpg
Views:	1
Size:	94.6 KB
ID:	62142Click image for larger version

Name:	Transfer 018.jpg
Views:	1
Size:	91.6 KB
ID:	62141

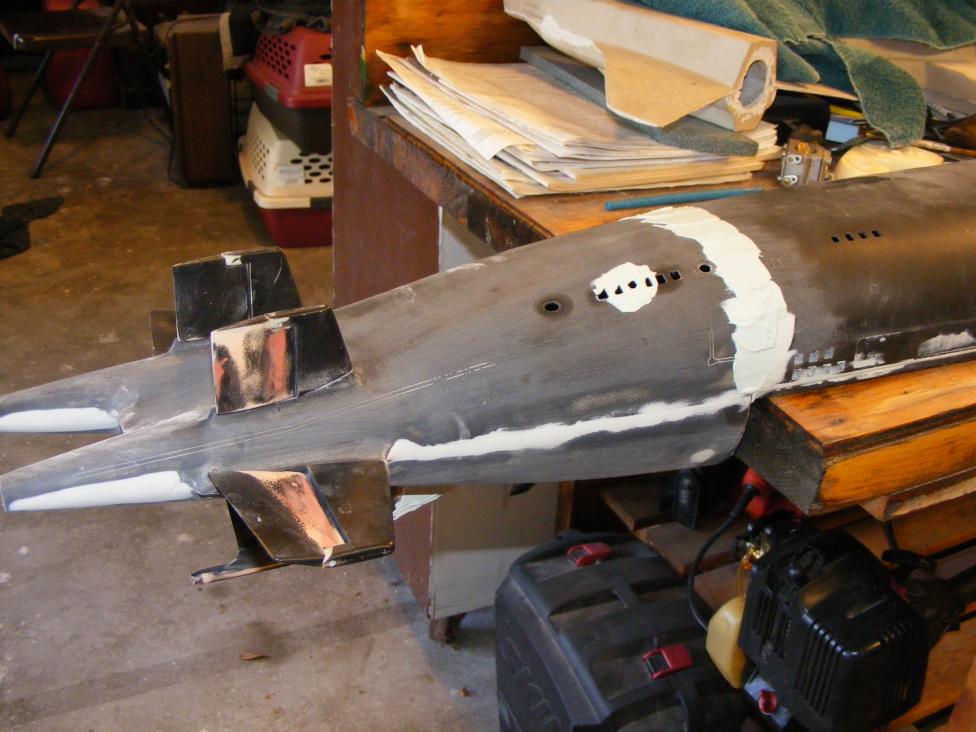

                    If you can see where I am pointing, this little doo dad looks like it might be some kind of scoop but I dont see it included in the detail parts. Does anyone have any idea what it is?
                    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                    Comment


                    • #25
                      Although I have no idea what the purpose of the sensor you're pointing out is, I've noticed it before as well. I actually managed to catch sight of it in a video clip, have a look at the upper left corner of this photo.
                      Click image for larger version

Name:	Sensor on bow.jpg
Views:	1
Size:	38.2 KB
ID:	62164
                      Kevin McLeod - Oscar II driver
                      KMc Designs

                      Comment


                      • #26
                        Thanks Kevin.
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment


                        • #27

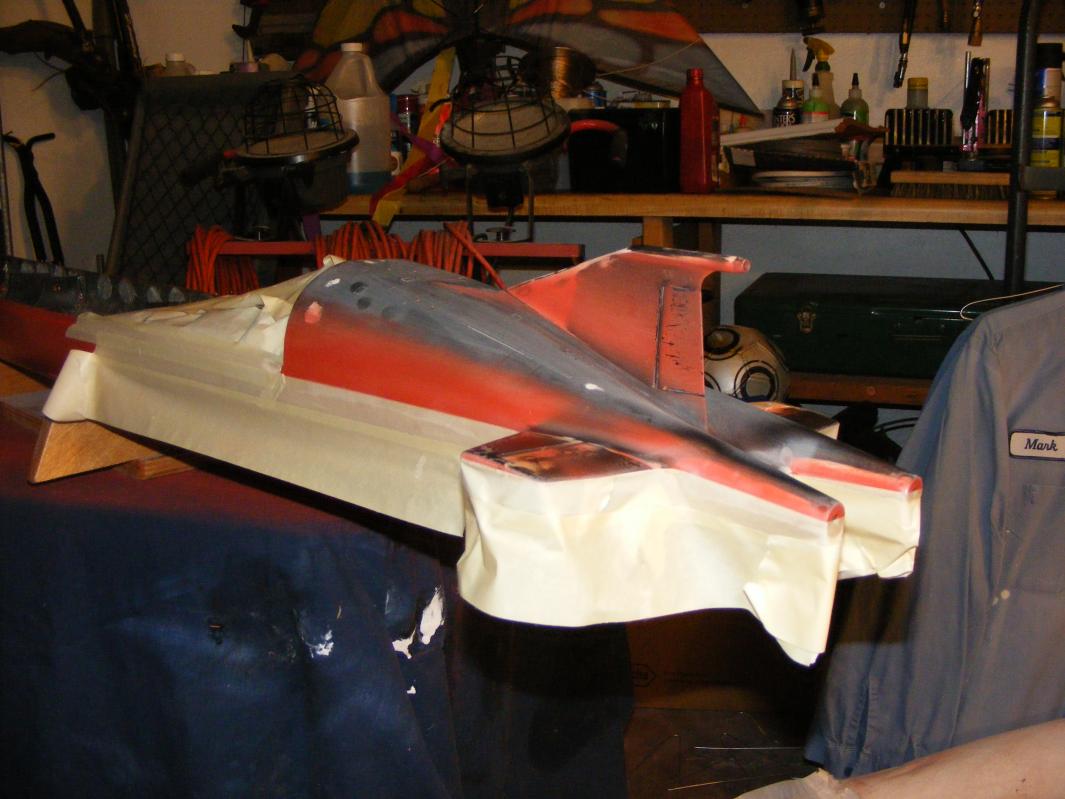

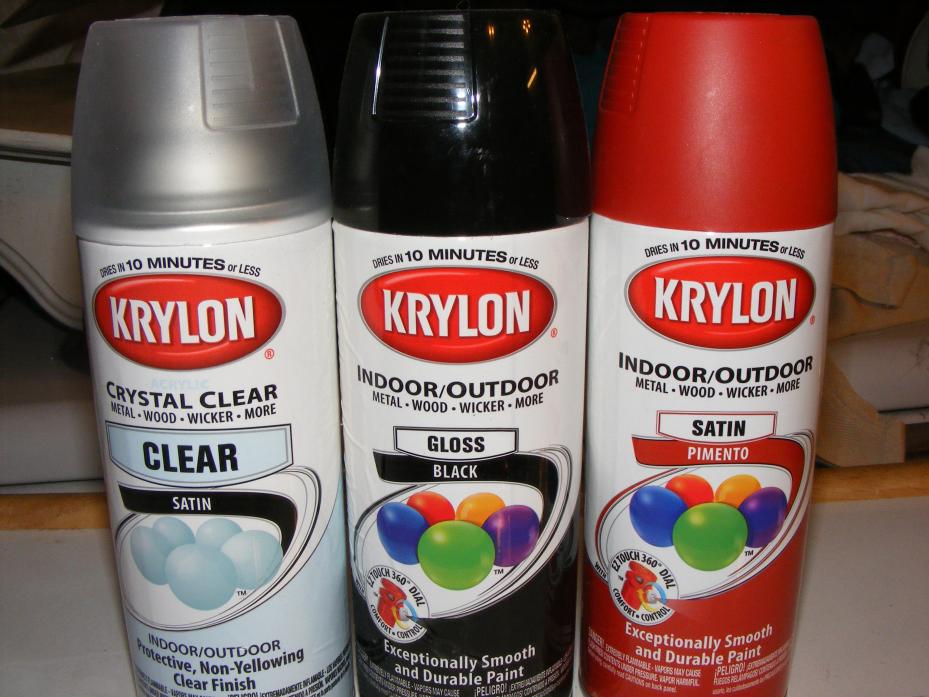

                          We are now ready to put some paint on the lower hull. Im pretty good with an airless and regular spray guns with machinery paint. But this automotive stuff that ive tried gives too much orange peel. Dave gave me some pointers but I havent spent anytime trying to work it out. So , out comes the tried and true rattle cans. I know I can lay that stuff on smooth. The next problem is color. Looking at some of the pictures, the lower hull is painted with what appears to be a brighter Red Oxide than what you see on American boats. So I found this.Click image for larger version

Name:	Transfer 004.jpg
Views:	1
Size:	92.9 KB
ID:	62551 The Pimento color seems to be a good match to this picture.Click image for larger version

Name:	20091102120659.jpg
Views:	2
Size:	95.6 KB
ID:	62552 And here is how it came out. The pictures color is decieving as the light doesnt display the color as it really is. It looks close in most light conditions.Click image for larger version

Name:	Transfer 010.jpg
Views:	1
Size:	92.5 KB
ID:	62553
                          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                          Comment


                          • #28

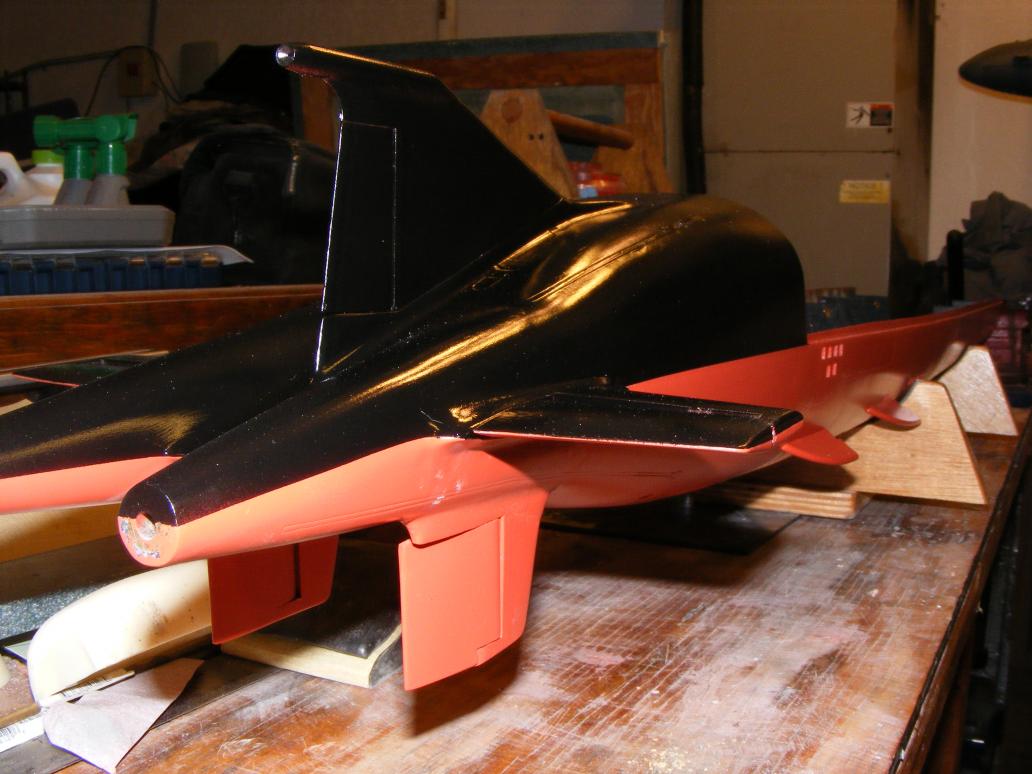

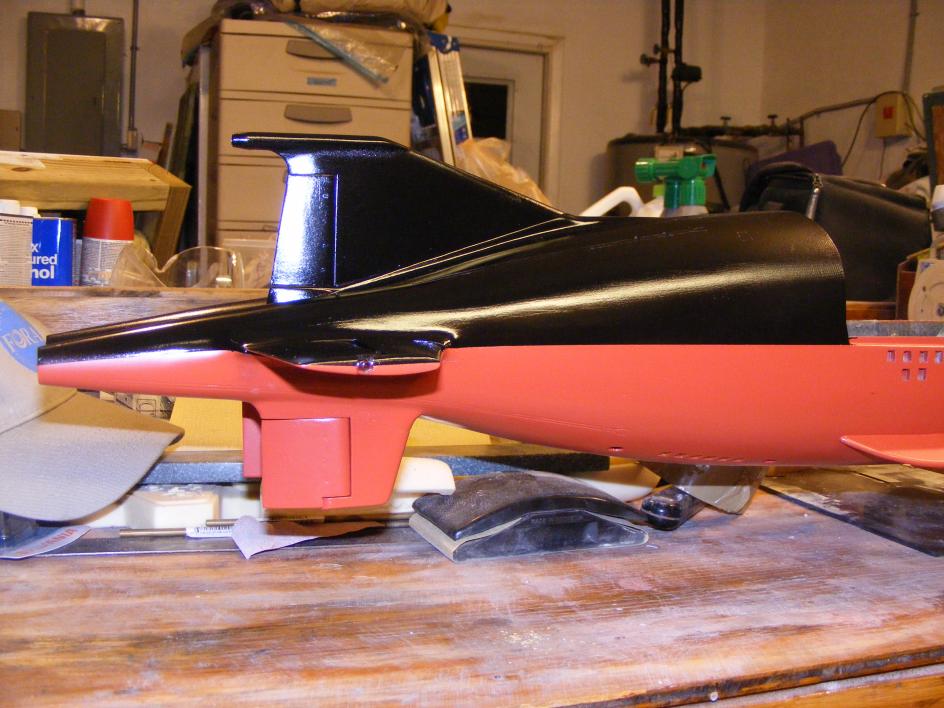

                            Continueing on with the painting. Next I choose to paint the upper section of the stern with Gloss Black.
                            Click image for larger version

Name:	Transfer 001.jpg
Views:	1
Size:	89.5 KB
ID:	62828Click image for larger version

Name:	Transfer 009.jpg
Views:	1
Size:	89.5 KB
ID:	62826Click image for larger version

Name:	Transfer 007.jpg
Views:	1
Size:	93.6 KB
ID:	62827
                            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                            Comment


                            • #29

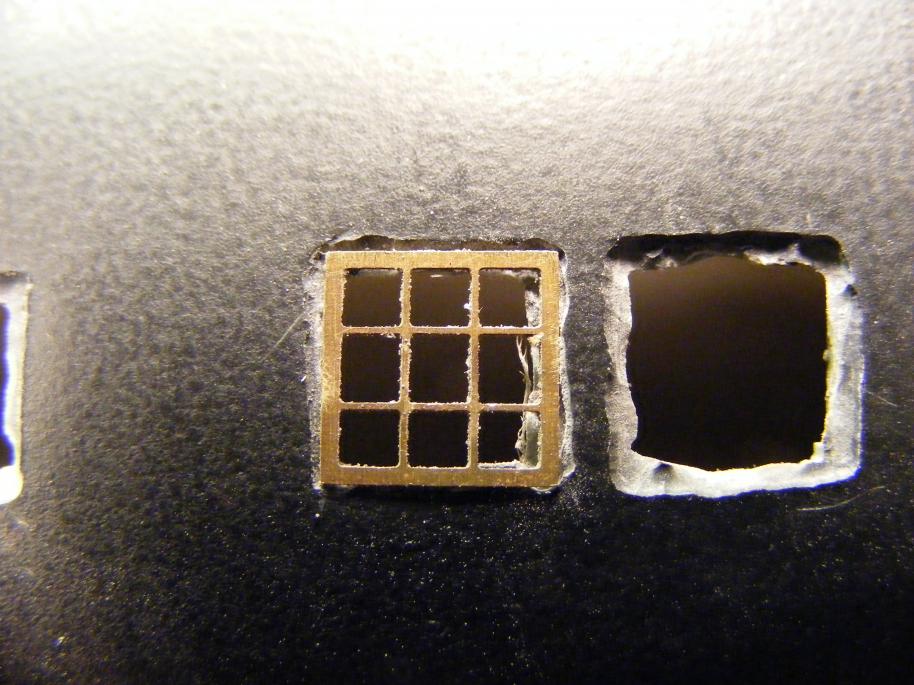

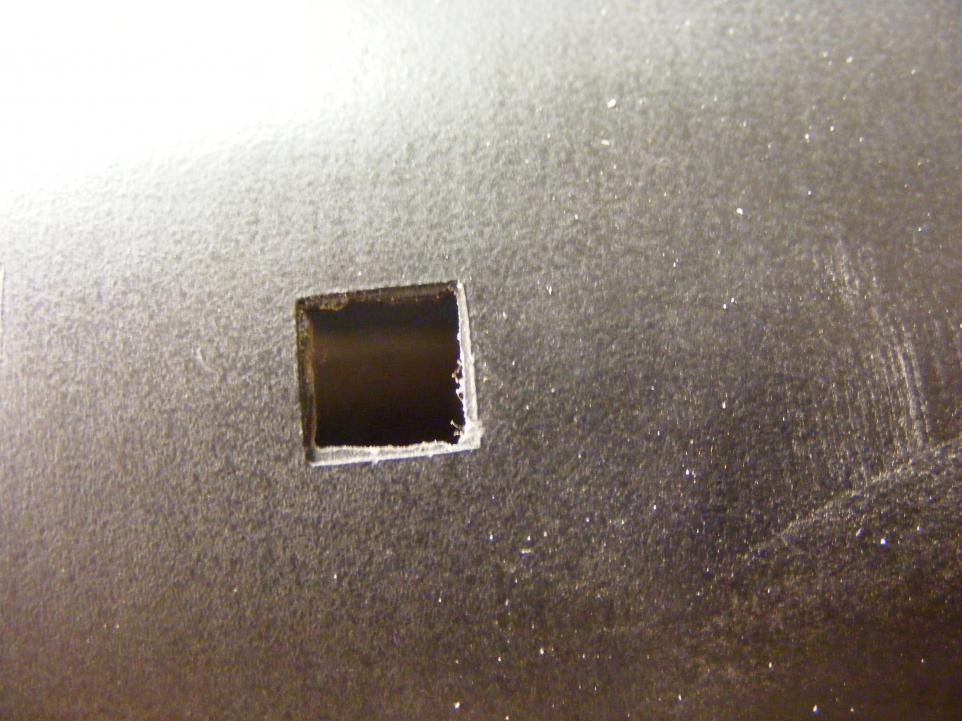

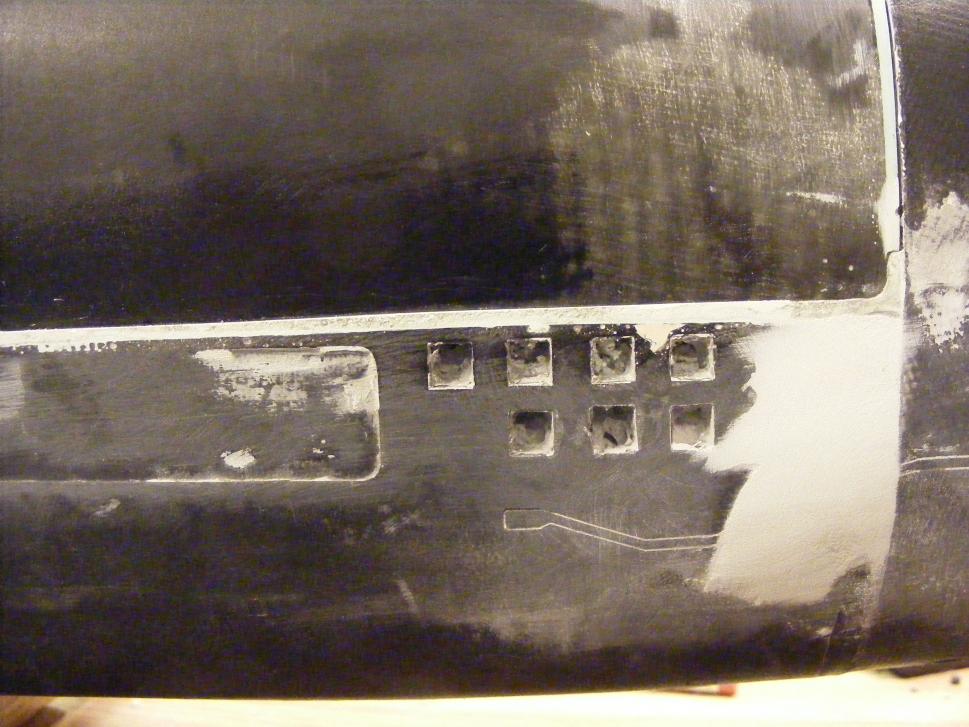

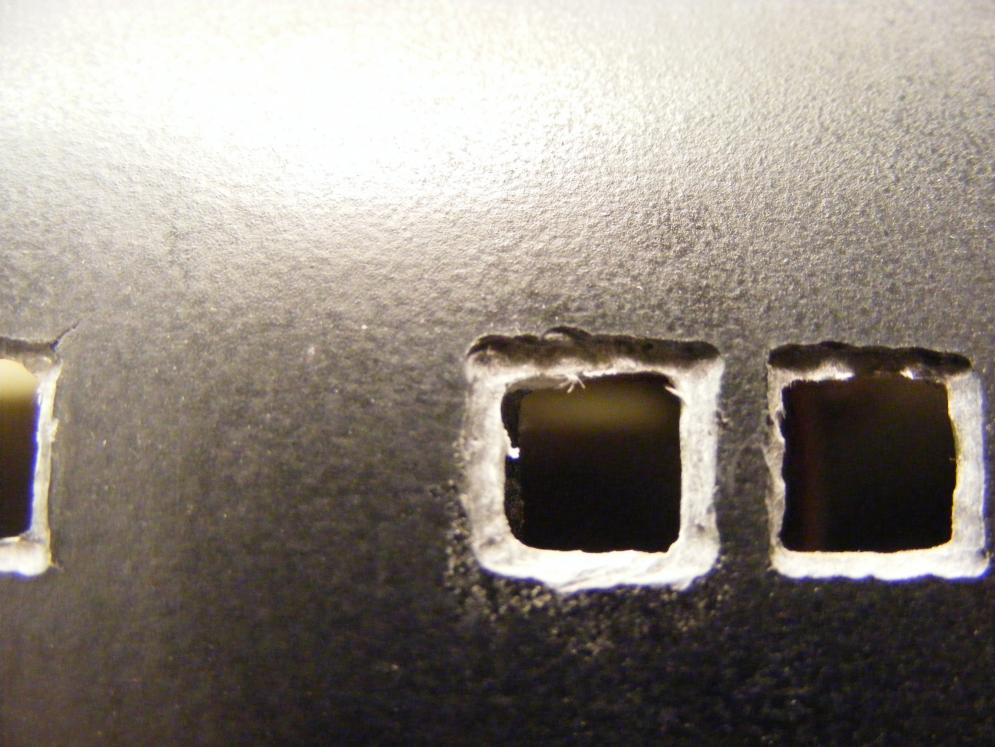

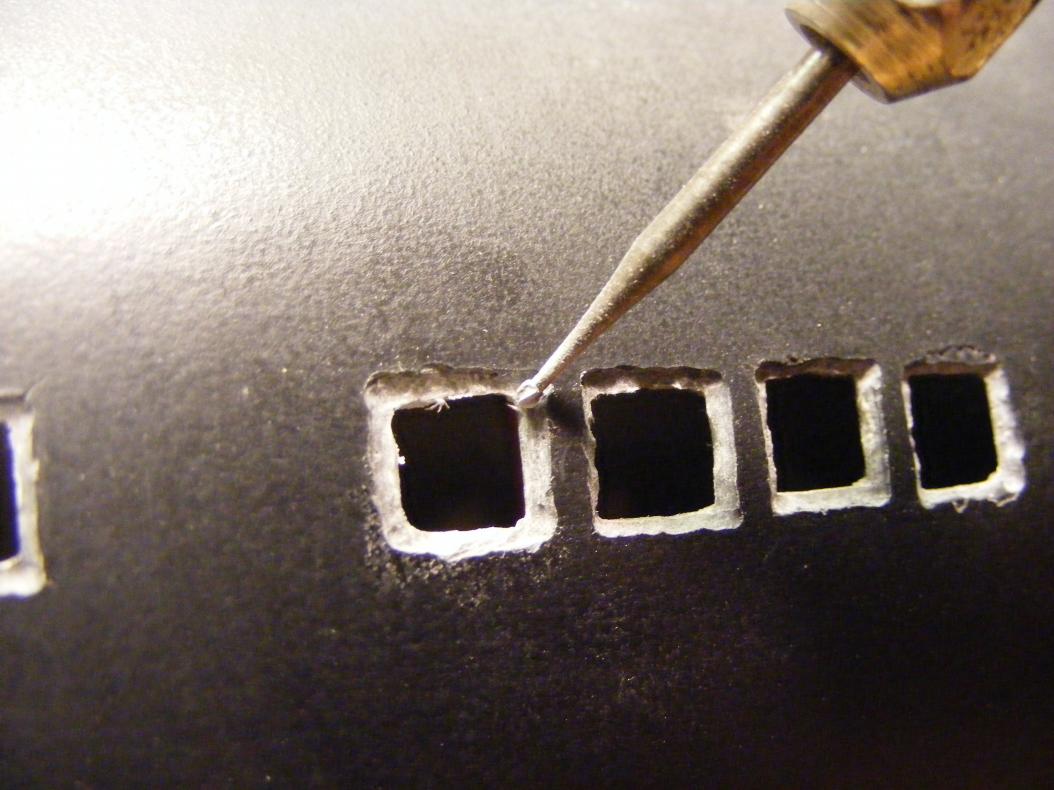

                              On the upper hull section I wanted to install the supplied limbar hole grates. Problem. The recessed cast in dap outs with a built in shelf are not big enough to properly recess the grate within it and make it flush. So out comes the Dremel to make them bigger with the smallest tool in my selection. Click image for larger version

Name:	Transfer 003.jpg
Views:	1
Size:	94.1 KB
ID:	62832Click image for larger version

Name:	Transfer 005.jpg
Views:	1
Size:	92.2 KB
ID:	62831Click image for larger version

Name:	Transfer 004.jpg
Views:	1
Size:	93.4 KB
ID:	62829Click image for larger version

Name:	Transfer 006.jpg
Views:	1
Size:	95.7 KB
ID:	62830
                              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                              Comment


                              • #30
                                Nice finish, Mark. The vents and other appendages adds a nice touch to the model, keep going you're almost there.
