  • 1/120 Akula

    Hi all,

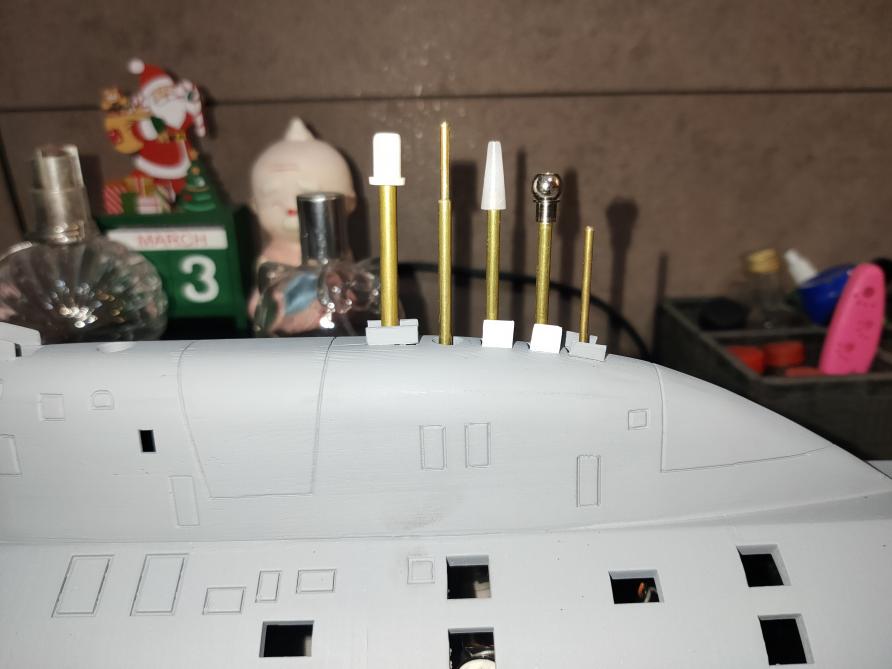

    Just want to show my first 3D printed Akula in 1/120 scale. Watertight compartments using waterproof junction boxes for the main engine room, ballast and battery compartment. Diving system utilizing Snort system with windshield pump. Also installed an airplane gyro for the level panes. Currently test system with 2.4ghz radio only. Below some pictures of progress. All comments welcome!

    Click image for larger version

Name:	IMG20220328210857.jpg
Views:	214
Size:	56.5 KB
ID:	161145Click image for larger version

Name:	IMG_20220418_150917.jpg
Views:	184
Size:	75.1 KB

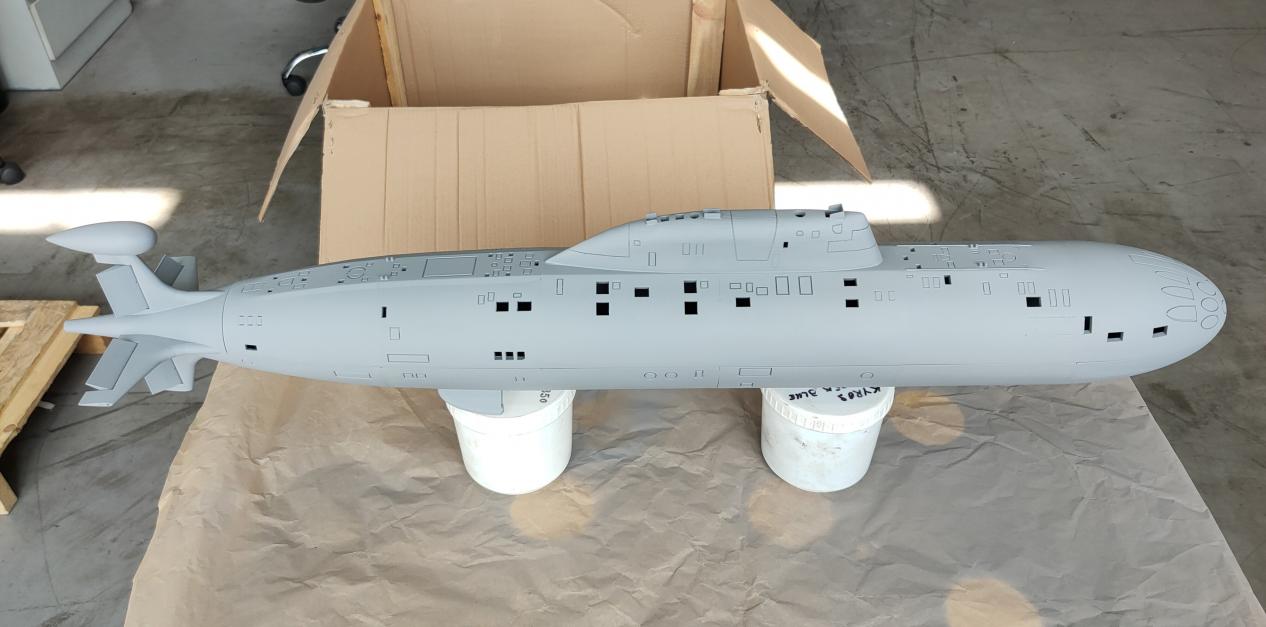

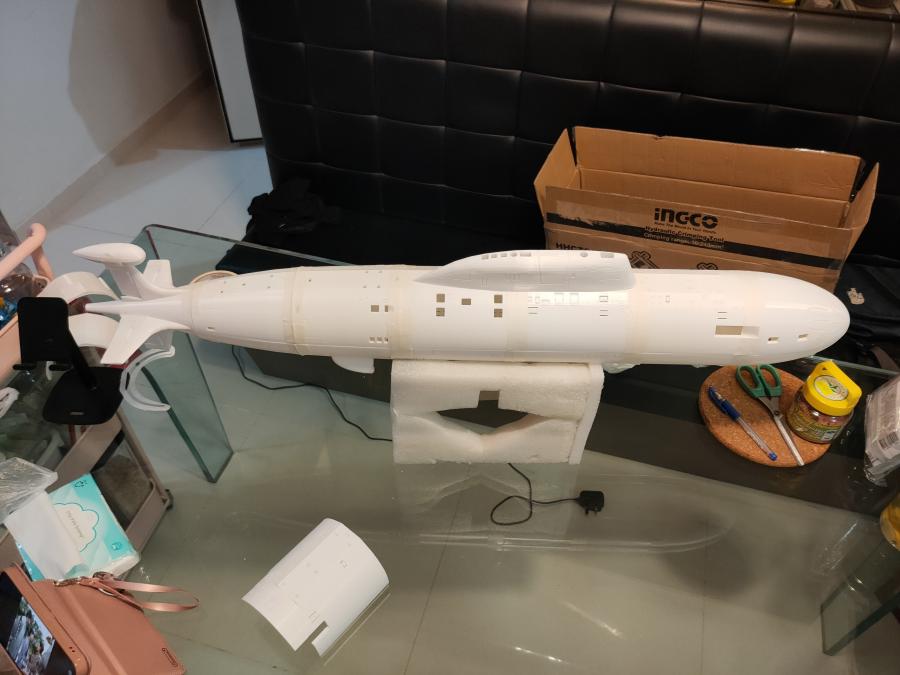

ID:	161146 Primed... Click image for larger version

Name:	IMG20220418181241.jpg
Views:	181
Size:	50.3 KB

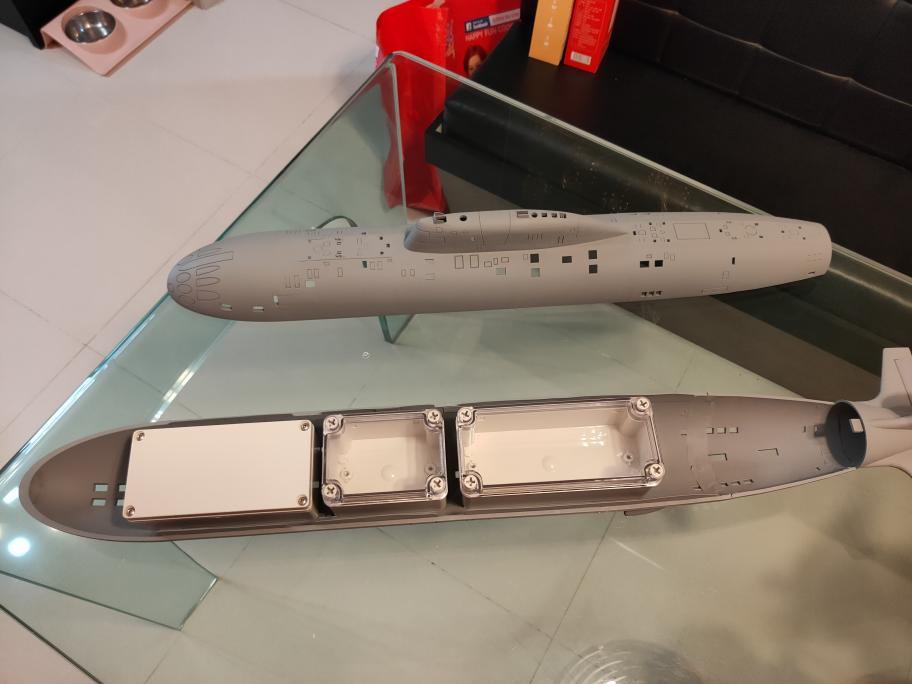

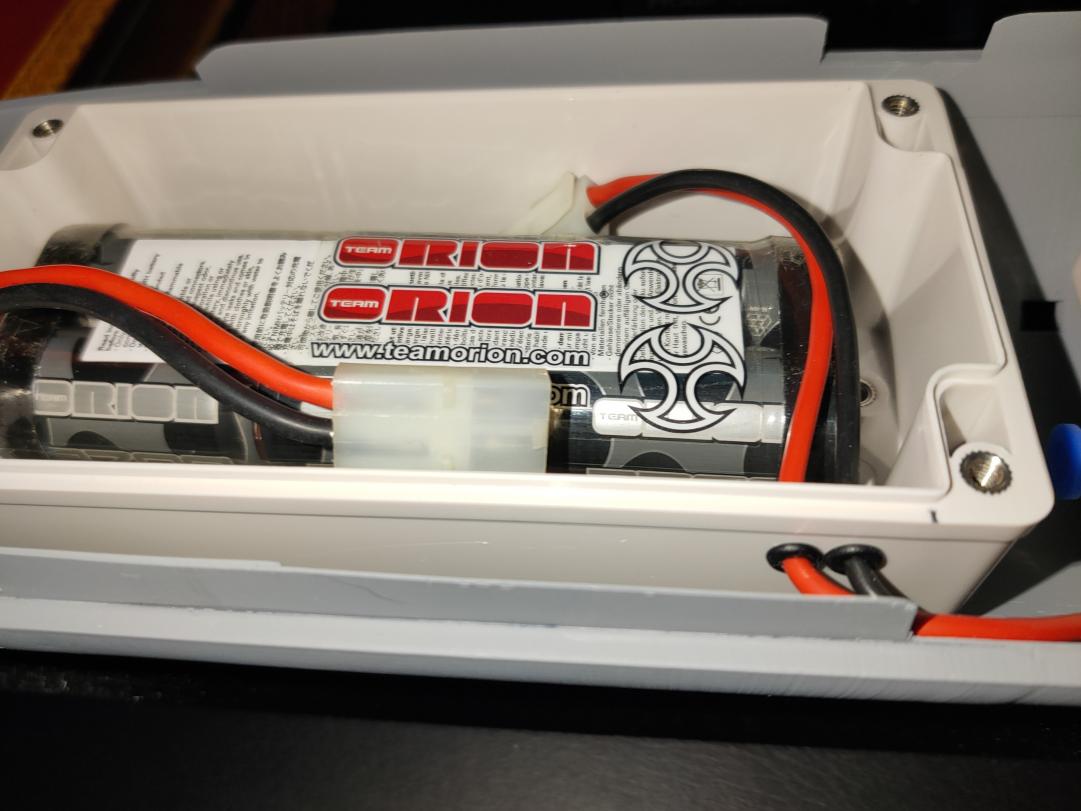

ID:	161147 Watertight junction boxes and were very cheap!!!
    Click image for larger version

Name:	IMG20220424222537.jpg
Views:	181
Size:	45.9 KB
ID:	161148Click image for larger version

Name:	IMG20220424222632.jpg
Views:	186
Size:	65.0 KB

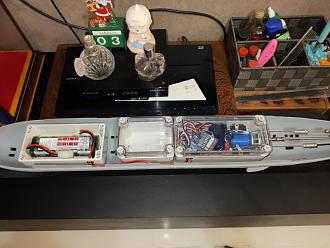

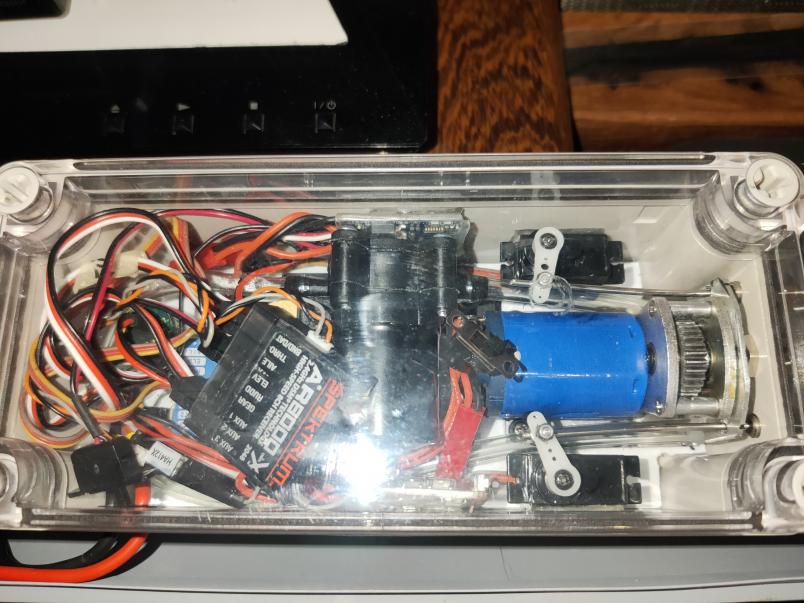

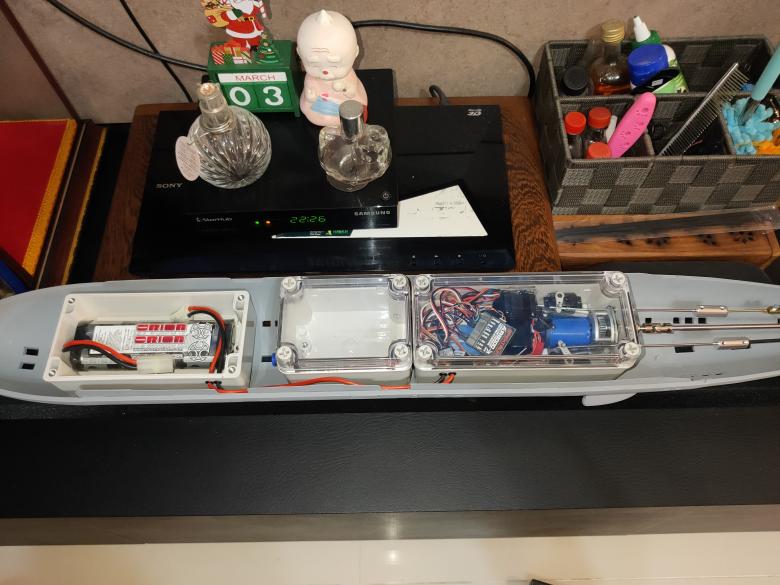

ID:	161150 Putting all together...
    Click image for larger version

Name:	IMG20220424222707.jpg
Views:	184
Size:	51.9 KB

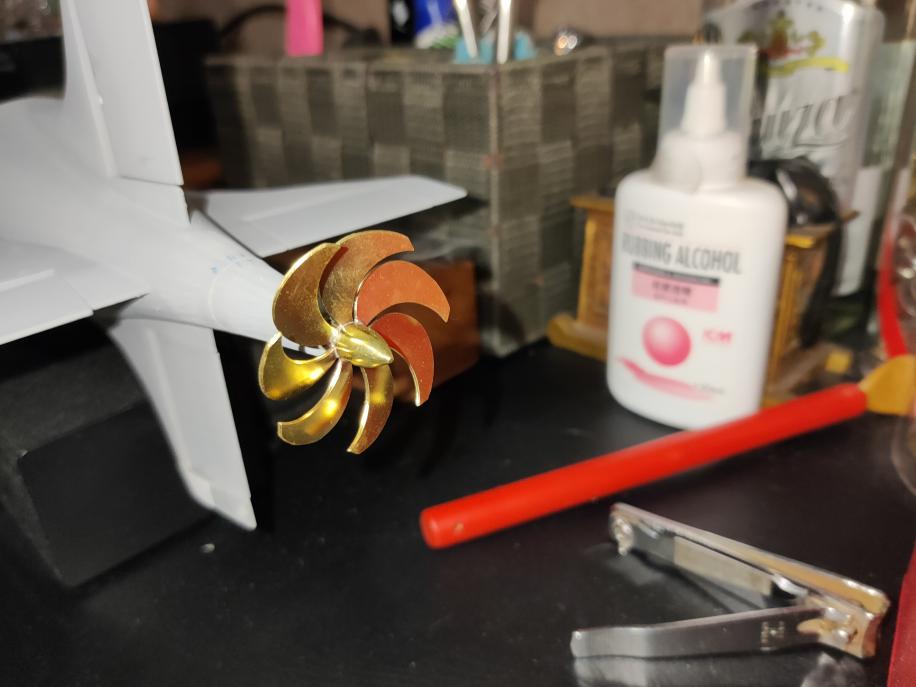

ID:	161151 Cheap Chinese 7-blade 42mm prop Click image for larger version

Name:	IMG20220424222713.jpg
Views:	187
Size:	70.4 KB

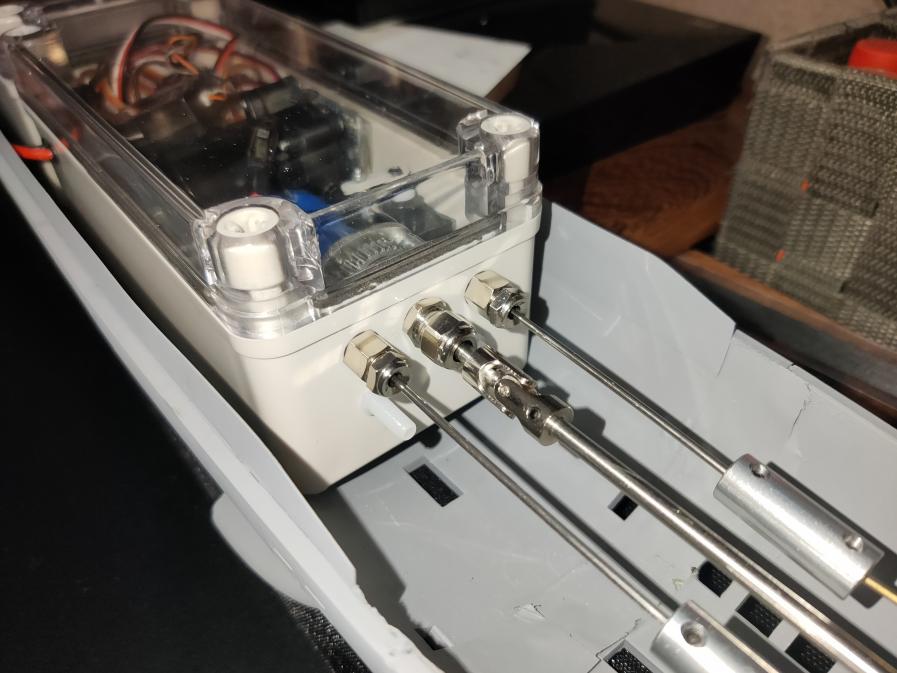

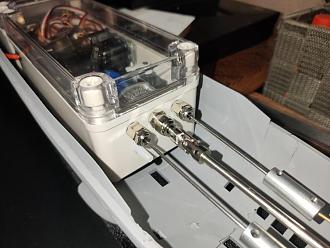

ID:	161152 Waterproof cable glands 2-4mm internally diameter seal.
    Click image for larger version

Name:	IMG20220424222728.jpg
Views:	180
Size:	81.8 KB
ID:	161153Click image for larger version

Name:	IMG20220424222758.jpg
Views:	181
Size:	79.3 KB
ID:	161154 to be continued....
    Attached Files

  • #2
    Nicely done! An not so common layout, yet tested in the water?
    interested on sering more progress of your build, mloo123!

    Thumbs up!

    Jörg

    Comment


    • #3
      Hello there. Thanks for comments.

      Concept deprived from the old skool dry hull method. What I liked is the ease of maintenance and thus came out with the junction box idea.

      Yes I have done some water testing at home at waterline trim and static diving and it seems working well keeping water out so far!

      ​​​​​​

      Comment


      • #4
        How's your Papa class boat built? I'm following up your progress as well. Maybe will add that to my next project as they were of same scale.

        Comment


        • #5
          mioo123!

          Very nice work. I am impressed with your 3D workmanship, and the WTC engineering!

          Rob
          "Firemen can stand the heat"

          Comment


          • #6
            Originally posted by mloo123 View Post
            How's your Papa class boat built? I'm following up your progress as well. Maybe will add that to my next project as they were of same scale.
            Am modifiing the assembly jig currently to make shaft and plane installation easier. Am simultaniously switching between the PAPA and a large 1/50 Whiskey long bin. Need to set up my ZB 1/2, too. The build reports are always behind current state.

            Stay tuned for updates!

            Jörg

            Comment


            • #7
              Originally posted by JHapprich View Post

              Am modifiing the assembly jig currently to make shaft and plane installation easier. Am simultaniously switching between the PAPA and a large 1/50 Whiskey long bin. Need to set up my ZB 1/2, too. The build reports are always behind current state.

              Stay tuned for updates!

              Jörg
              Jorg,

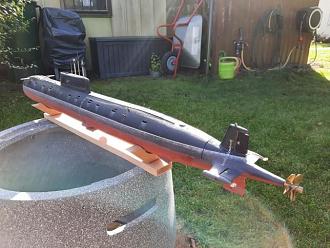

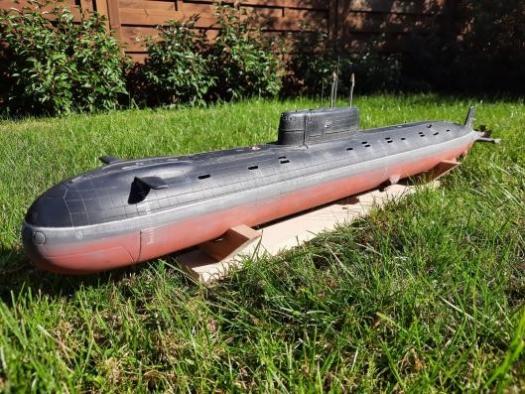

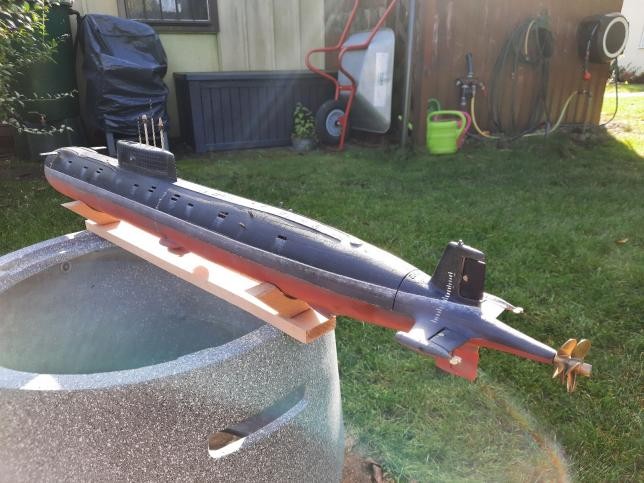

              Your PAPA class boat is a real piece of workmanship! I went back and looked at your work, you certainly have the weathering process down!

              Click image for larger version

Name:	JORG 2.jpg
Views:	157
Size:	82.7 KB
ID:	161165Click image for larger version

Name:	JORG 1.jpg
Views:	142
Size:	56.8 KB
ID:	161166

              Rob
              "Firemen can stand the heat"

              Comment


              • #8
                Where did you buy the boxes? Those should fit nicely into a 1/96 boat. Lastly, how did you bond them to the hull?
                Of the 40,000 men who served on German submarines, 30,000 never returned.”

                Comment


                • #9
                  Rob, thank you! However your pictures show the MIKE.

                  Jörg

                  Comment


                  • #10
                    Originally posted by JHapprich View Post
                    Rob, thank you! However your pictures show the MIKE.

                    Jörg
                    Sorry Jorg!

                    My newness to the hobby has reared its ugly heat again! None-the-less, it's beautiful looking boat and it shows your craftsmanship!

                    Rob
                    "Firemen can stand the heat"

                    Comment


                    • #11
                      Hi rwtdiver,

                      Thanks for your comments.

                      Its camera effects which makes the 3D hull looks good and in fact not so under the human eye...

                      For the WTC, i found it`s much easier to work with!
                      Last edited by mloo123; 04-24-2022, 11:32 PM.

                      Comment


                      • #12
                        Hi Das Boot,

                        You can get these boxes for example here: https://www.aliexpress.com/item/4000852737997.html

                        But im pretty sure you can get them cheaper in your local hardware shop, which i did for mine. Yes. a 1/96 scale boat should have enough room to fit them if they have a min 105-110mm ID beam width. i`m currently using 180 x 80 x 70 box for the engine compartment. Initially planned for direct 540size motor but changed to 380 geared for smaller footprint. These boxes will be perfect for twin screws boats like the Typhoon Papa and Oscar class submarines.

                        And lastly, I haven`t decided how to securely mount the boxes onto the bottom hull yet. Its either the rubber band strap down or permanently epoxied methods. Cons for the latter is you can`t add additional port holes onto the box base for upgrades in the future tho.

                        Comment


                        • #13
                          Originally posted by JHapprich View Post

                          Am modifiing the assembly jig currently to make shaft and plane installation easier. Am simultaniously switching between the PAPA and a large 1/50 Whiskey long bin. Need to set up my ZB 1/2, too. The build reports are always behind current state.

                          Stay tuned for updates!

                          Jörg
                          Looking forward to...

                          Comment


                          • #14
                            Mloo123,
                            May I know where you got the 3D files from. Thanks.
                            Make it simple, make strong, make it work!

                            Comment


                            • #15
                              Originally posted by redboat219 View Post
                              Mloo123,
                              May I know where you got the 3D files from. Thanks.
                              Hi, you may find it here: https://blog.naver.com/tiver21/221817524156

                              Point to note on the complete stern piece. It turned out approximately 2-3mm short facing towards the bow. Its better to modify the file before print.
                              Last edited by mloo123; 04-25-2022, 12:34 AM.
