ICTINCO ll Submarine Build

[RCSubGuy]

Looking great, Rob!

[rwtdiver]

Looking great, Rob!

Thanks Bob! Glade your home safe and sound, and I hope your trip went well!

I am turning my Submarine building to more of a pre-world war l time period. I really like the looks of those boats and their historical value as to their precursor to today's modern boats. Reading the histories of those who designed and built the boats of that period is very interesting as well.

Rob

[rwtdiver]

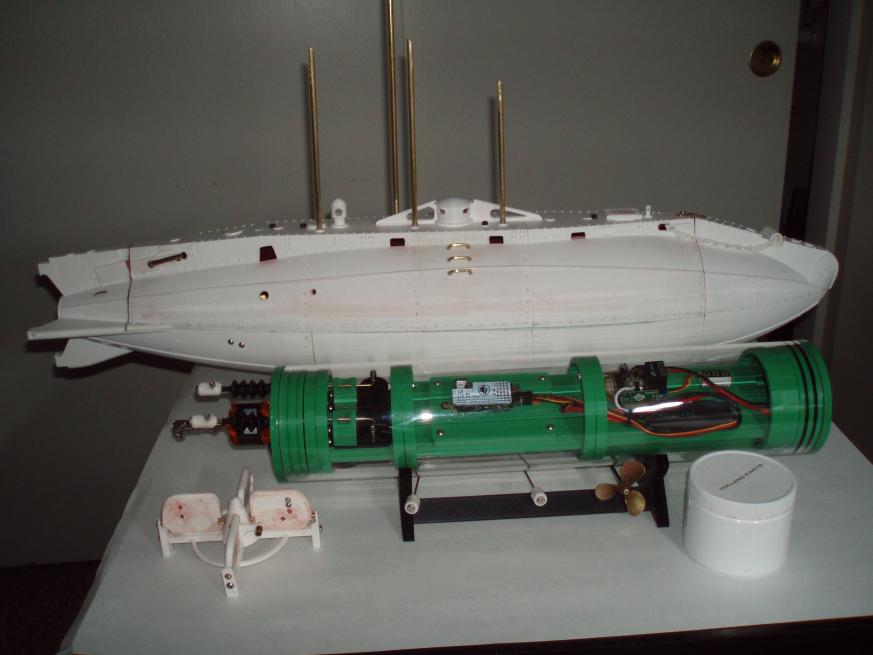

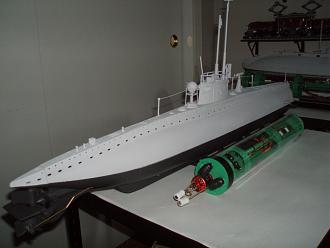

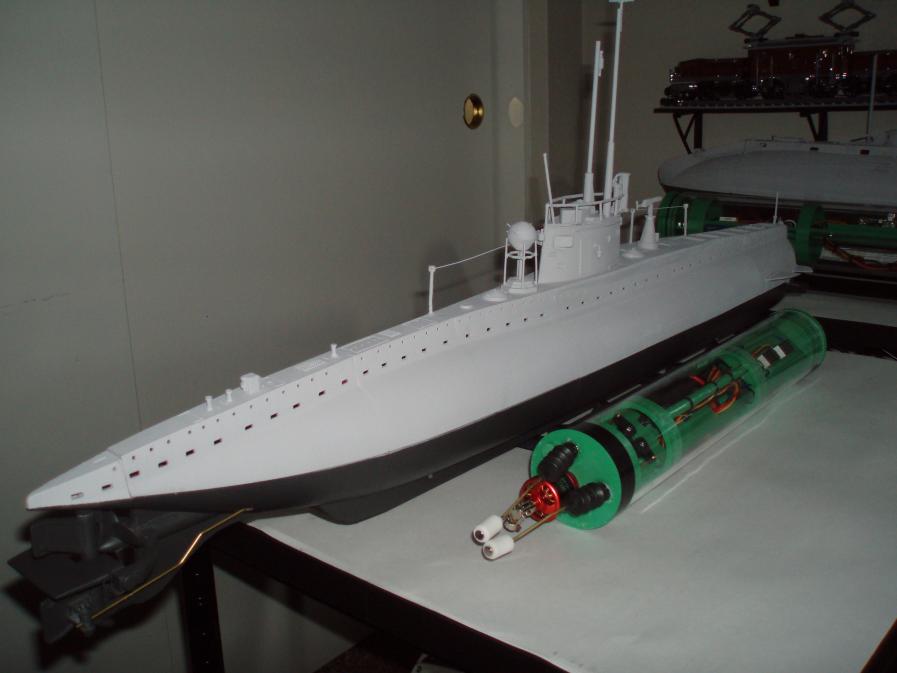

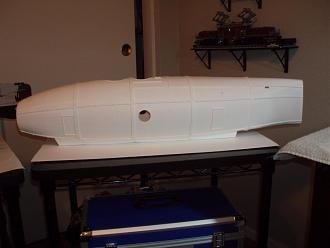

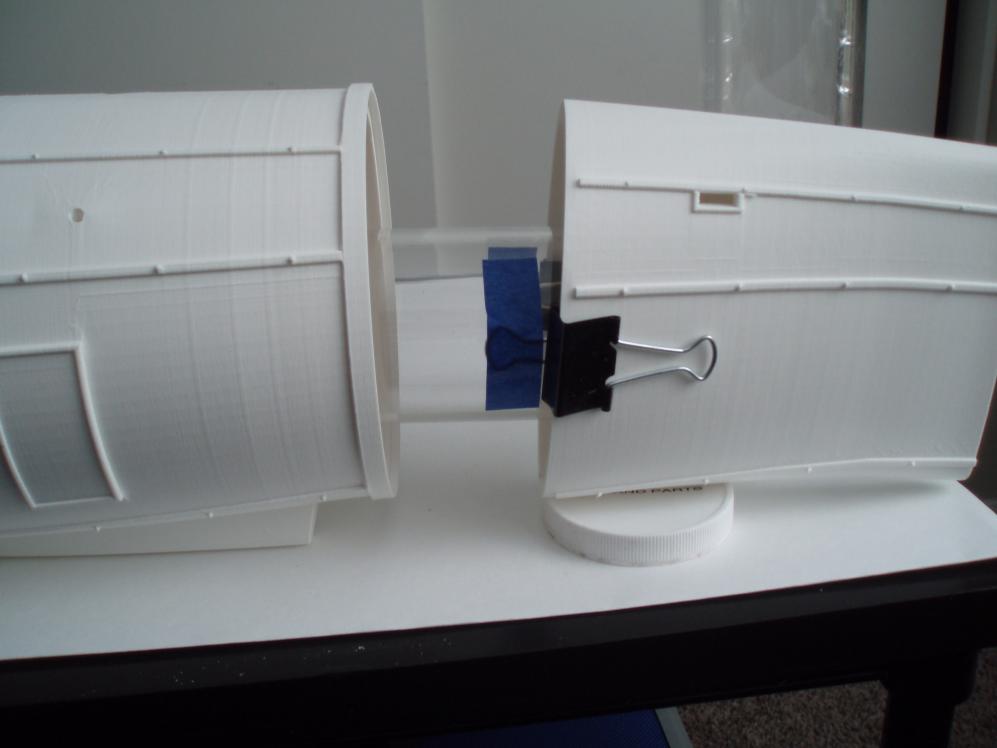

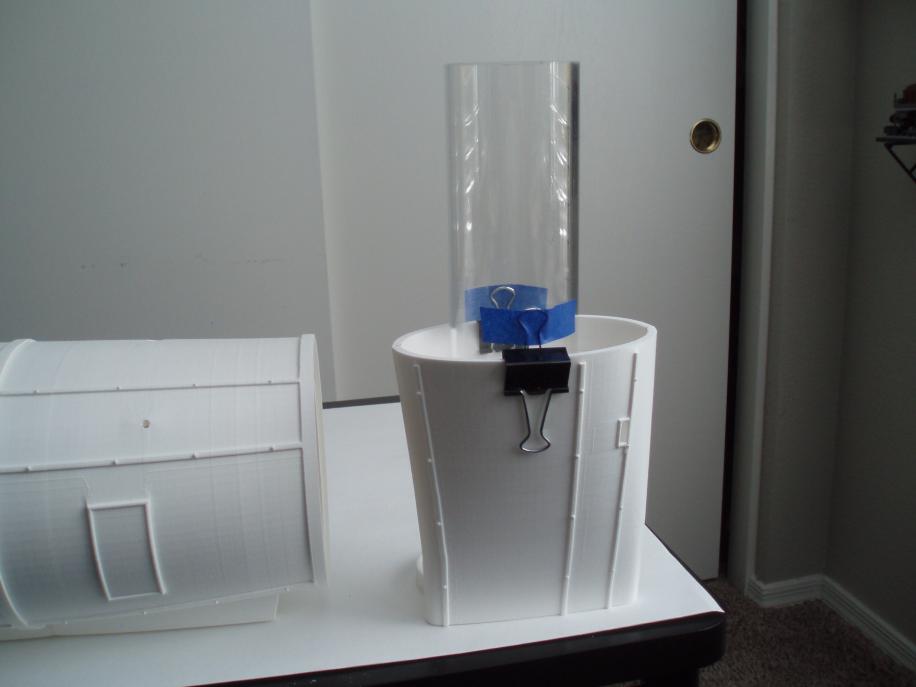

I have decided NOT to cut the hull into a top and bottom configuration.

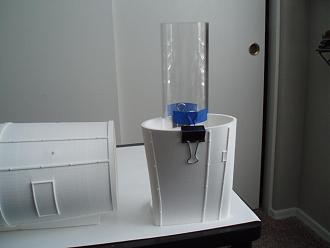

I am leaving the stern section to be used to house the WTC. I will be using a 2.75" OD acrylic tube for the WTC. I do not need a very large cylinder to house the 550 brushed motor and one Hitec standard servo for the rudder, plus the 7.2 NiMH battery.

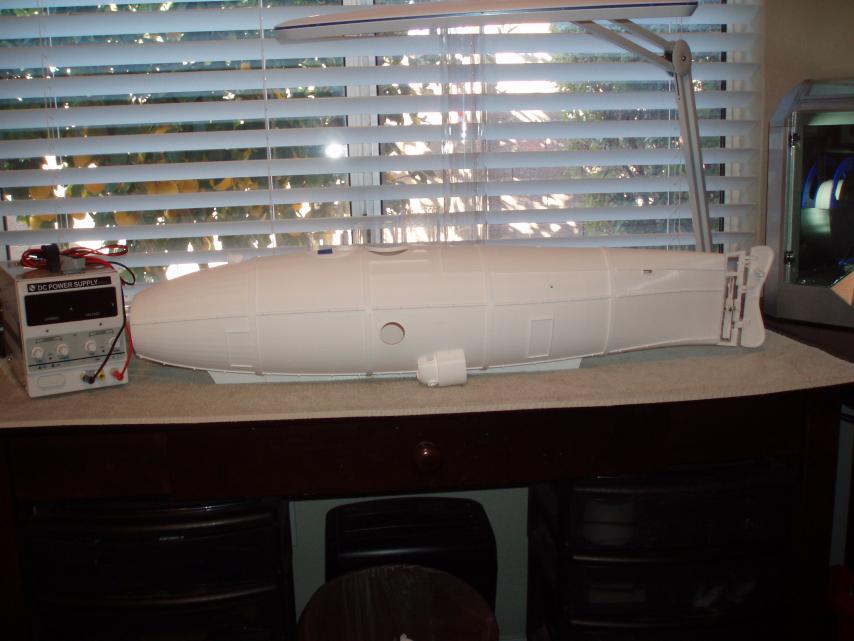

The WTC will be secured to the stern section and the entire assembly will slide out with the stern section.

Rob

[rwtdiver]

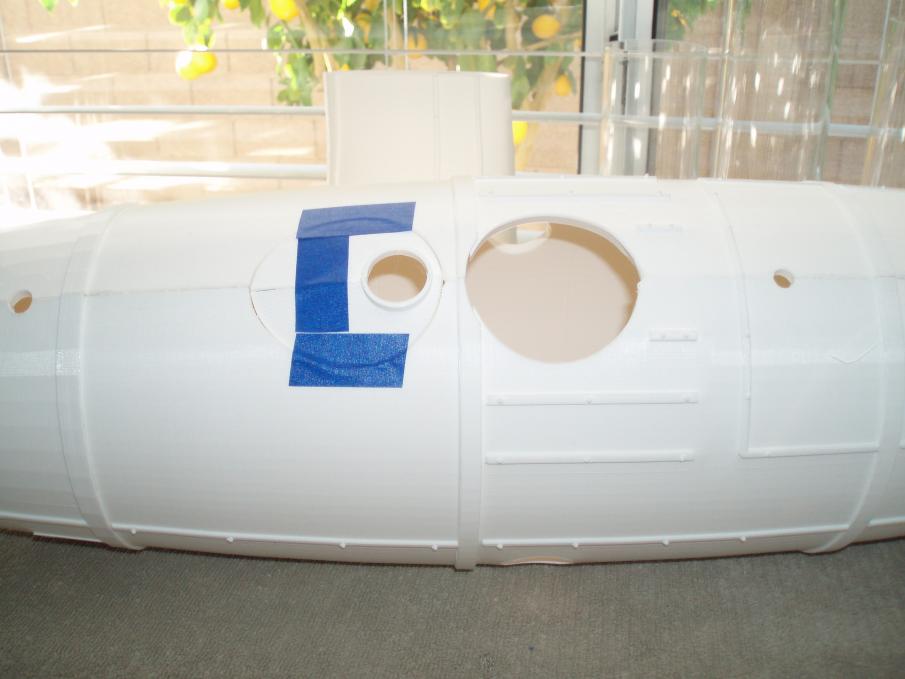

The Ictineo only has one hatch, why are there 2 holes on top?

Romel,

Here is the printed part that goes into the space that you were questioning.



There is a small cover plate that will go on as well.

Rob
"Firemen can stand the heat"

[redboat219]

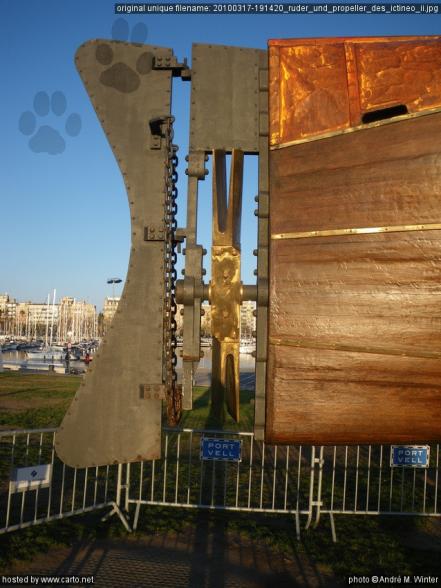

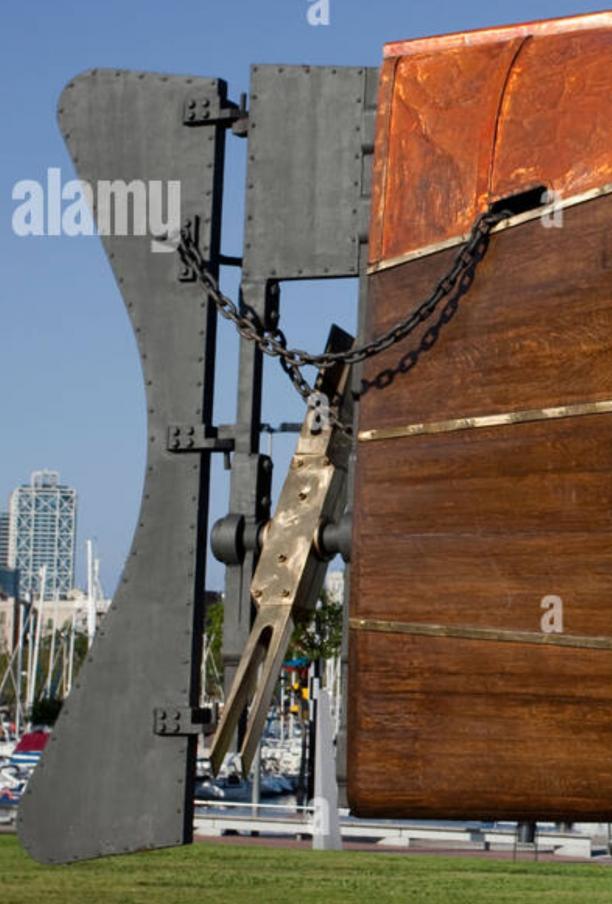

The Ictineo has a unique non-counterrotating twin tandem blade propeller ( reminds me of a Gillette razor) .
Both blades are parallel to each other and are separated by a V- shape gap.

[rwtdiver]

Romel,

Thanks for the great photos! It's going to be interesting to see how well that works!?

Rob
"Firemen can stand the heat"

[rwtdiver]

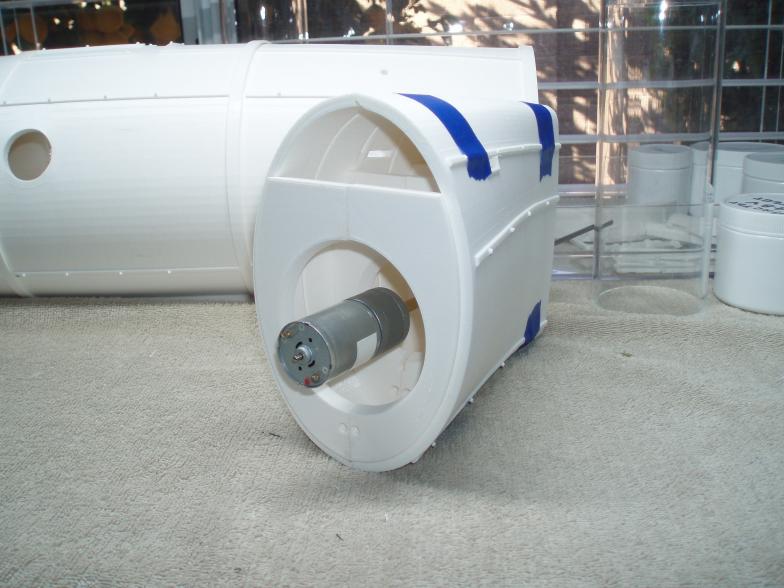

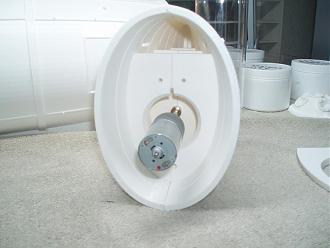

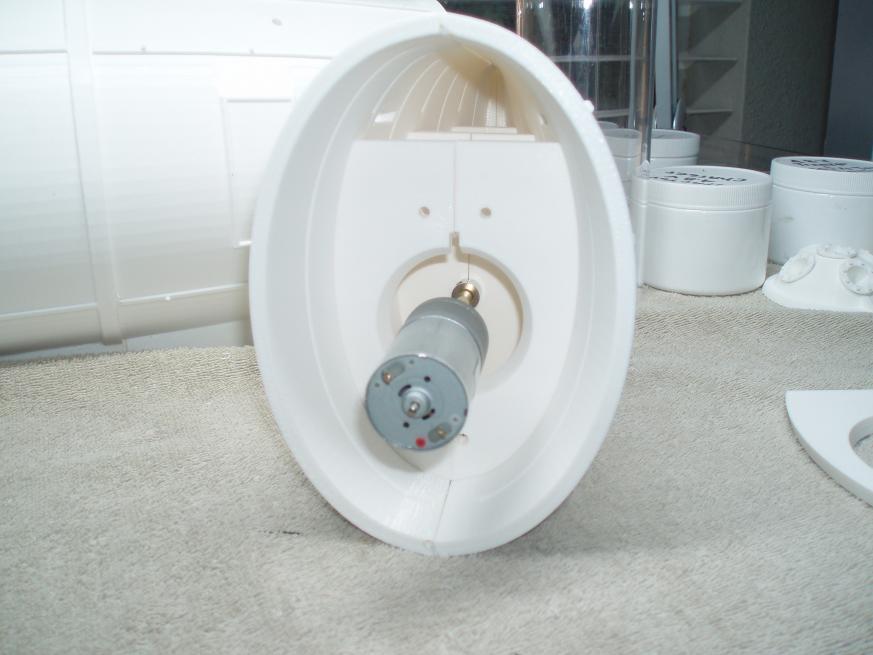

I have started to do some pre-design applications for the propulsion system on the ICTINEO.



These photos show a possible set up for the motor!? The stern section will be removable to gain access to the WTC.

Rob
"Firemen can stand the heat."

[JHapprich]

Id say the blades actually sat in between those forks and the prop looked more like the Jules Verne Nautilus

[rwtdiver]

I made a little head way as to my design and installation on the propulsion system (no set in stone as of yet)

https://youtu.be/_ZjXBTUZ1Ss

I took a video of how it might look and it's functionality at this point!

Rob
"Firemen can stand the heat."

[rwtdiver]

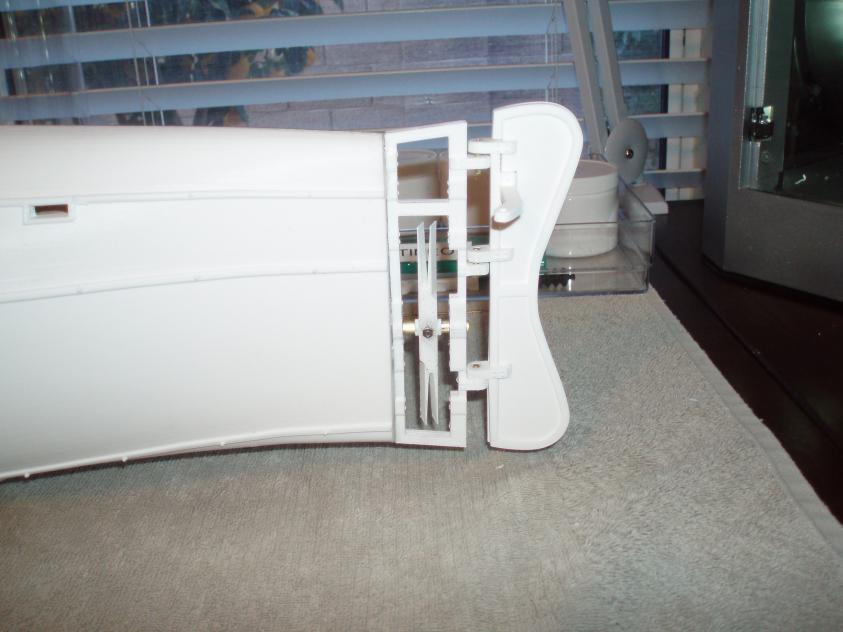

Tonight, I made some upgraded changes to the 3D printed rudder section.



I replaced the original 3D printed pin for the hinge with a brass pin and installed a brass sleeve in the hinge itself. This will be much stronger and operate with less slop and friction.

Rob
"Firemen can stand the heat."

[rwtdiver]

Tonight, I finally got the motor shaft and stern section lined up with the prop! The prop is mounted to the drive shaft with a pin which will allow the shaft to be dismantled from the prop so that if any repairs are required down the road the entire system with the motor will come out.

https://www.youtube.com/watch?v=C29XDw7zCTE

Next will be to permanently mount the completed drive system to the stern section of the hull. Next part of the stern will be to install the rudder and the control linkage.

Rob
"Firemen can stand the heat."

[vital.spark]

Rob, I saw and took a picture of both replicas in Barcelona back in 2006. Boy was impressed, especially with the engineering in II, Keep up the great work!

[rwtdiver]

Rob, I saw and took a picture of both replicas in Barcelona back in 2006. Boy was impressed, especially with the engineering in II, Keep up the great work!

vital.spark,

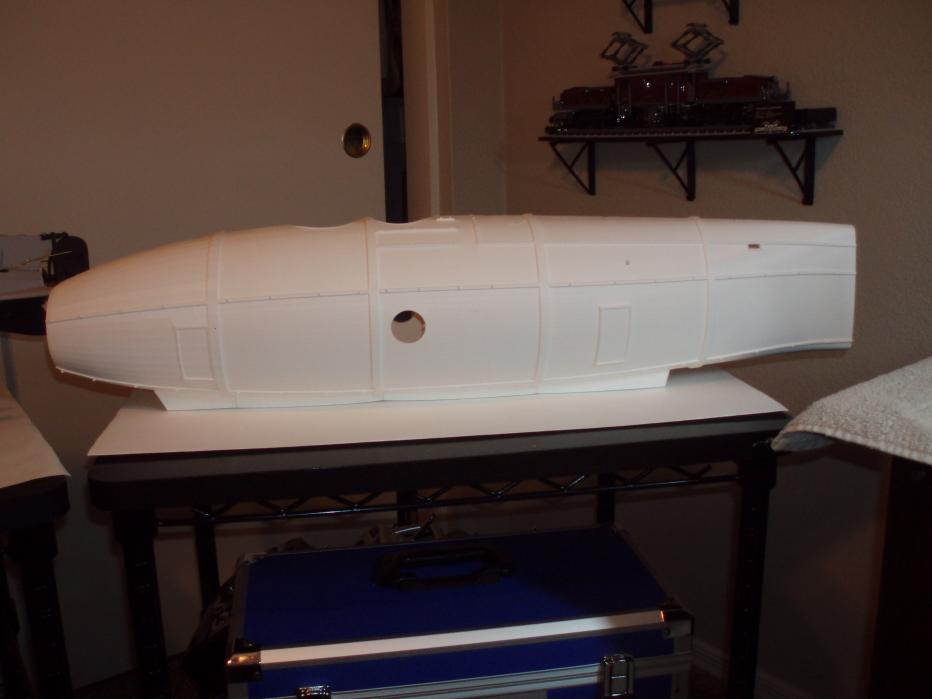

Thank you for your remarks! The Ictineo ll has been a real challenge from the start. The files for this boat where for a 1/2 cut-a-way static model showing the complete exterior and interior. Sizing the boat up to what I have (168%) and slicing so that I could have a complete hull and have the sections go through my Dremel 3D40 has been a time consuming challenge for sure.





I am really wanting to do more of the pre-WW 2 (1800's/1900's) type boats. I really like the looks of the older boats and there histories and the progression!

Rob
"Firemen can stand the heat."

[rwtdiver]

More progress on the OCTINEO ll today!

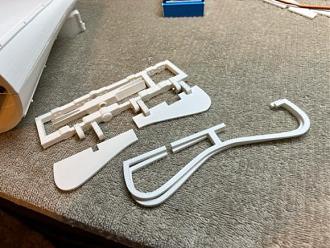

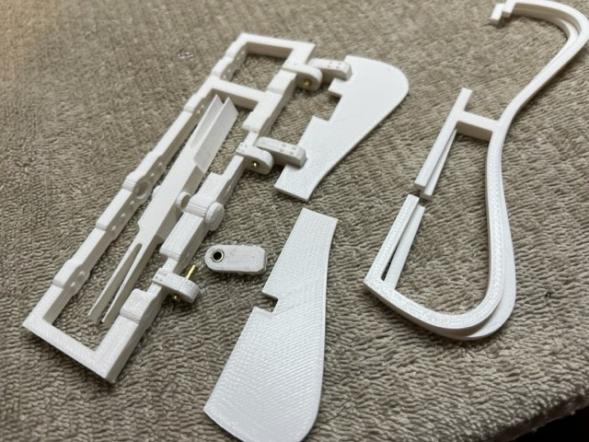

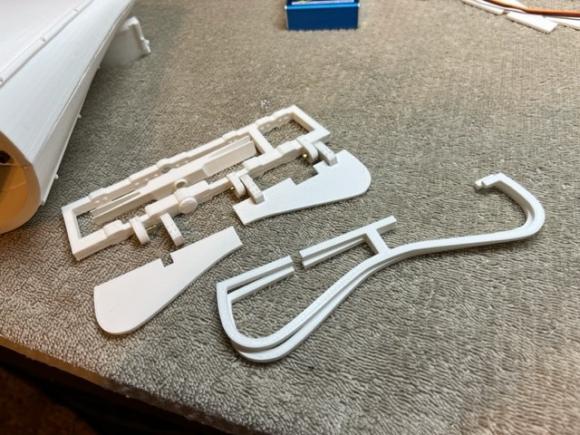

I have the preliminary rudder section printed out and a pre-fit check on the hinges.

Rob
"Firemen can stand the heat."

[RCSubGuy]

I'm not super-familiar with Ictineo... I assume it used ballast alone for depth control? No planes? What are your thoughts for depth and angle-keeping?

Oh, wait... did you say she was a surface runner only? I can't remember.


Bob
