    Lots going on at the Drydocks over the last few days!

    In conjunction with OTW, we're happy to announce the release of our new 1/96 Russian Oscar II kit. The master patterns were created by Kevin McLeod and they are amazing. The model measures a massive 1613 mm ( 63.5 inches) with a beam of 190 mm ( 7.48 inches). Layout drawings are included. I now have the model queued up for a prototype build in order to create instructions. If you are an experienced builder and don't need a walkthrough, it is up and ready for purchase on my site here.

    Click image for larger version

Name:	20201026_113956.jpg
Views:	503
Size:	58.4 KB
ID:	144758Click image for larger version

Name:	20201026_113842.jpg
Views:	490
Size:	64.1 KB
ID:	144760Click image for larger version

Name:	20201026_114015.jpg
Views:	502
Size:	60.8 KB
ID:	144762Click image for larger version

Name:	20201026_114019.jpg
Views:	499
Size:	54.7 KB
ID:	144763Click image for larger version

Name:	20201026_114038.jpg
Views:	484
Size:	58.0 KB
ID:	144759


    The Hunley is coming along nicely! I may throw in the towel trying to get the authentic rudder linkage to work. I gave it the ol' college try, but that setup is actually really dynamic with a lot of moving parts. I elected to go with a conventional linkage, which is working perfectly.

    Click image for larger version

Name:	20201026_154752.jpg
Views:	546
Size:	59.4 KB
ID:	144766Click image for larger version

Name:	20201026_154818.jpg
Views:	498
Size:	56.4 KB
ID:	144767

    Picking away at Typhoon. Lots of sanding for a perfectly smooth finish from the slightly grainy texture that the printing netted.


    Click image for larger version

Name:	20201026_154846.jpg
Views:	504
Size:	59.9 KB
ID:	144768

    The prototype cylinder is nearly complete! I encountered some issues getting a perfect valve built for opening and closing the snorkel air intake. I had a revelation last night that I feel is going to be ideal. I'll give it a shot today.

    Once done, this will get installed in the Hunley.


    Click image for larger version

Name:	20201026_154828.jpg
Views:	488
Size:	58.5 KB
ID:	144769

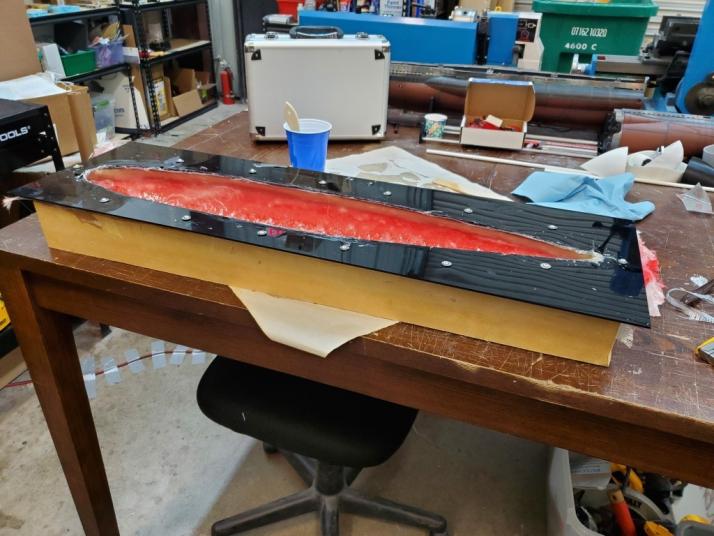

    The 1/6 Delphin first layup is in the molds and we will be de-molding this morning. The mold is symmetrical top and bottom, so one mold handles both.


    Click image for larger version

Name:	20201026_154743.jpg
Views:	489
Size:	61.9 KB
ID:	144770

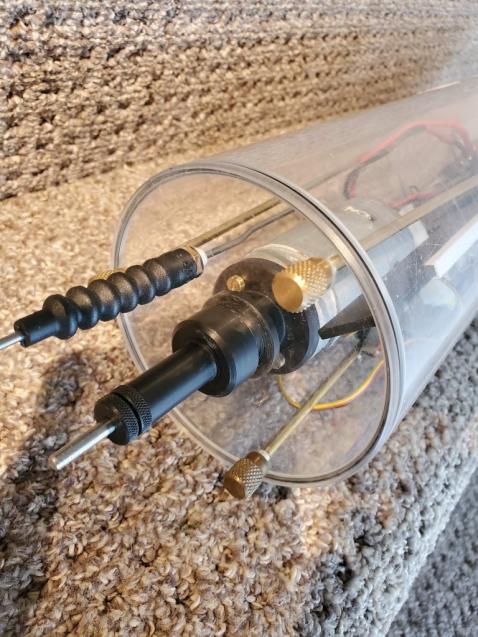

    This is the cylinder that I'll be modifying for use in the Arkmodel Type VII buildup for Ed. Bigger than the "stock" 2.5" unit with a stubbier tank for better water control.


    Click image for larger version

Name:	20201026_154825.jpg
Views:	506
Size:	59.7 KB
ID:	144771

    This was a weird one... I had an OTW cylinder come to me for refit. The owner said that the motor was "broken" and wouldn't spin. It just "grinded". It turns out that the seal assembly was completely melted and fused to the stainless drive shaft. I have NO IDEA how he did that. I couldn't figure out a way to do that if I TRIED! At any rate, Jason and I disassembled it, cleaned it up, machined new clean faces to the parts and installed a bigger seal. Working perfectly now and I'm pressure testing it this morning.

    Click image for larger version

Name:	20201026_154727.jpg
Views:	488
Size:	67.1 KB
ID:	144772
    Attached Files

    Leave a comment:


  • Monahan Steam Models
    replied
    Not sure if you’ve been following my posts in the torpedo section. I wasn’t gonna let this cat out of the bag until much later but the reason I’ve been hell bent on developing the torpedo launcher architecture that I have been sharing is it is capable of launching more than one type of munitions with the quick easy swapping of a couple small parts. In fact two types of torpedoes can be loaded at the same time Depending on how the tubes are configured. The electric counter rotating prop, piston launched torpedoes with no bubbles would be stealthy and the gas propelled torpedoes would just be fun for the reasons you pointed out. There you have it. Had to solve the electric torpedo first.

    Nick

    Leave a comment:


  • Monahan Steam Models
    replied
    Originally posted by SubHuman


    That said, I've already got functional 48th gas torpedo prototypes. Gas weapons are cheap, fast, easy to produce (and they make such cool bubbles when they fire!).

    Yup can’t argue with any of that! All great points indeed!

    Leave a comment:


  • RCSubGuy
    replied
    Originally posted by Monahan Steam Models
    What have you got in mind for adding torpedoes and launchers to that type VIIC
    It's not guaranteed that I'll add them at all. It was in the original scope, but as I don't have a commercially viable product out, there will be a lot of R&D to lock in the design, and that is time that I do not readily have available.

    That said, I've already got functional 48th gas torpedo prototypes. Gas weapons are cheap, fast, easy to produce (and they make such cool bubbles when they fire!).

    Most of yesterday was spend on customer orders and further assembly of the MKIII SubDriver assembly.

    Click image for larger version

Name:	20201021_145254.jpg
Views:	276
Size:	66.2 KB
ID:	144599Click image for larger version

Name:	20201021_145257.jpg
Views:	244
Size:	61.9 KB
ID:	144600

    Leave a comment:


  • Monahan Steam Models
    replied
    What have you got in mind for adding torpedoes and launchers to that type VIIC

    Leave a comment:


  • Monahan Steam Models
    replied
    Originally posted by SubHuman

    Standard cylinders run the linkage straight out the back of the unit, typically attached to a rudder arm. I could tear into the bulkhead and re-mount the servo, of course, but customers won't have the expertise to do that, so I want to keep the standard arrangement and work out a conversion of linear movement of the linkage rod to rotary movement of the rudder arm.

    Bob
    Makes sense now. I wasn’t considering the SD. Was just thinking of the motion. Bevel gear arrangement would do the trick.

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Originally posted by SubHuman

    Standard cylinders run the linkage straight out the back of the unit, typically attached to a rudder arm. I could tear into the bulkhead and re-mount the servo, of course, but customers won't have the expertise to do that, so I want to keep the standard arrangement and work out a conversion of linear movement of the linkage rod to rotary movement of the rudder arm.

    Bob
    Second illustration from the left. Just swap input-output sides and you have linear to rotary.

    Leave a comment:


  • redboat219
    replied
    Or you could go this route

    Leave a comment:


  • RCSubGuy
    replied
    Originally posted by Monahan Steam Models
    Confused. A standard servo is already a rotary motion. It becomes a linear movement when a arm and linkage is attached to it right?
    Standard cylinders run the linkage straight out the back of the unit, typically attached to a rudder arm. I could tear into the bulkhead and re-mount the servo, of course, but customers won't have the expertise to do that, so I want to keep the standard arrangement and work out a conversion of linear movement of the linkage rod to rotary movement of the rudder arm.

    Bob

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Boy! This takes me back to the rudder-only days!

    Leave a comment:


  • Monahan Steam Models
    replied
    Confused. A standard servo is already a rotary motion. It becomes a linear movement when a arm and linkage is attached to it right?

    Leave a comment:


  • redboat219
    replied
    Click image for larger version

Name:	rudder2.jpeg
Views:	286
Size:	10.1 KB
ID:	144586
    Originally posted by SubHuman


    More work on the Hunley prototype. Getting close to linkage installation. The challenge is going to be converting the linear action of the rear servo to rotary action for the unique rudder arrangement. Any ideas on a simple solution for this?

    Why try David Merriman's technique with the 1/72 Gato's bow plane retract/deploy mechanism. It converts the servo's linear motion to a rotary motion. As I recall the Hunley's rudder was actuated by a vertical swing arm.
    Last edited by redboat219; 10-21-2020, 12:23 PM.

    Leave a comment:


  • SubDude
    replied
    Might want to check these out... lots of them on ebay.



    https://www.google.com/url?q=https:/...SAv_59Kr-t6-Ho
    Last edited by SubDude; 10-21-2020, 10:39 AM.

    Leave a comment:


  • biggsgolf
    replied
    Did not know that

    Leave a comment:
