    A concept-design, the V60

    A while back i had contact with Stefan Schmitz from SONAR germany, he asked me if i was interested in the V60, the concept-design before they opted to build the V80, he had 3D files of this boat, he was willing to print this boat for me in the lenght of about 1 meter, i've got me a ASA printed boat which i want to build as a beach sub, pretty much the same story as the allready build V80
    V stands for Versuchsboote and the number for the tonnage, first some drawings

    Click image for larger version  Name:	IMG-20250509-WA0000.jpg Views:	0 Size:	58.1 KB ID:	188857

    Click image for larger version  Name:	IMG-20250509-WA0001.jpg Views:	0 Size:	59.1 KB ID:	188858

    Click image for larger version  Name:	IMG-20250509-WA0002.jpg Views:	0 Size:	54.1 KB ID:	188859

    Click image for larger version  Name:	IMG-20250509-WA0003.jpg Views:	0 Size:	59.8 KB ID:	188860

    Click image for larger version  Name:	IMG-20250509-WA0004.jpg Views:	0 Size:	57.6 KB ID:	188861
    As you can see there are some features the same as on the V80, diigged into the archives and found the molds of the V80 parts i made in the past, this will give me a sound base from which i can build this boat.

    Click image for larger version  Name:	IMG-20250509-WA0005.jpg Views:	0 Size:	65.8 KB ID:	188862

    Click image for larger version  Name:	IMG-20250509-WA0007.jpg Views:	0 Size:	67.4 KB ID:	188863

    Click image for larger version  Name:	IMG-20250509-WA0010.jpg Views:	0 Size:	70.5 KB ID:	188864

    In this state i've got the boat on the bench, i will use the radials cuts to snap this boat together with magnets, same story as with the XXIII and Ko Hyoteki, for now it's building a lot of bulkheads to get this puppy in one piece.

    Manfred.
    I went underground
  • rwtdiver
    Vice Admiral

    • Feb 2019
    • 1936

    #2
    Manfred,

    Looking forward to this project. Very unique design, and your Bambu likes it to. The printed pieces look great...

    Rob
    "Firemen can stand the heat."

    Comment

    • MFR1964
      Detail Nut of the First Order

      • Sep 2010
      • 1512

      #3
      Thanks Rob, yeah it is a unique design, just made as a proposal for a design, never build in the past.
      That printer is from Stefan, he made this hull for me.

      Manfred.
      I went underground

      Comment

      • redboat219
        Admiral

        • Dec 2008
        • 3381

        #4
        How's the ASA handling the heatwave.
        Here in Paris for the week. Temperature is around 36-40s.
        Make it simple, make strong, make it work!

        Comment

        • MFR1964
          Detail Nut of the First Order

          • Sep 2010
          • 1512

          #5
          With those same tempartures around here nothing will stand in this blistering heat, even epoxy doesn"t like that, as for the ASA, the model is inside the cave, which has a temparture around 21 degrees Celsius, so no worries.
          During sunny events i try to get my models in the shade, or protect them by covering them up during long periods when i don't drive them

          Manfred.

          I went underground

          Comment

          • Subculture
            Admiral

            • Feb 2009
            • 2414

            #6
            Printing it with radial splits rather than longitudinal/equatorial also helps enormously.

            Comment

            • MFR1964
              Detail Nut of the First Order

              • Sep 2010
              • 1512

              #7
              Agreed Andy, it makes live much easier to join all hull parts.

              Making the bulkheads is laborius work, have to repeat this at least ten times, to break things up between working on the bulkheads i decided to get me some resin and do some pours to get me some parts

              Click image for larger version

Name:	20250629_213105.jpg
Views:	228
Size:	49.1 KB
ID:	188952
              Retrieved the molds from the archives, secured them with rubber bands, allready poured the resin.

              Click image for larger version

Name:	20250629_220240.jpg
Views:	221
Size:	50.6 KB
ID:	188954
              Ready to be pulled out of the molds.

              Click image for larger version

Name:	20250629_213112.jpg
Views:	221
Size:	50.1 KB
ID:	188953

              Have to do some more pours, but i'm getting there, those are the same parts i used for my V80, have to de-flash them and shape them for the V60, because the hull is not exactly the same

              It will take some weeks for finishing the bulkheads, ordered the needed magnets and copper tube i need to join the hull parts

              Manfred.
              I went underground

              Comment

              • rwtdiver
                Vice Admiral

                • Feb 2019
                • 1936

                #8
                Originally posted by redboat219
                How's the ASA handling the heatwave.
                Here in Paris for the week. Temperature is around 36-40s.
                Romel,

                I guess that could be considered hot in Paris! Here in the great state of Arizona (Phoenix/Gilbert) we are looking at 110 deg. plus, and on Wednesday this week we have a real scorcher 117 to 129 deg. Certainly not great for my PLA boats or my body for that matter...

                Rob
                "Firemen can stand the heat."
                ​​​​​​

                Comment

                • MFR1964
                  Detail Nut of the First Order

                  • Sep 2010
                  • 1512

                  #9
                  Some more progress on the build of the V60, bulkheads are done, still have to add the magnets.

                  Click image for larger version

Name:	20250630_214947.jpg
Views:	189
Size:	46.3 KB
ID:	189059

                  Cleaned up the stabilisors, and cutted the upper and lower stabilisator to size.

                  Click image for larger version

Name:	20250630_215011.jpg
Views:	187
Size:	46.6 KB
ID:	189060

                  Dugged up this jigg from the archives, it will be used to line up all stabilisators.

                  Click image for larger version

Name:	20250705_135641.jpg
Views:	186
Size:	42.6 KB
ID:	189061

                  Modified the rudder, it's slightly different as the V80, had to pour some extra rudders to get all the parts.

                  Click image for larger version

Name:	20250706_121119.jpg
Views:	188
Size:	46.0 KB
ID:	189065

                  Click image for larger version

Name:	20250706_121127.jpg
Views:	191
Size:	46.4 KB
ID:	189066

                  The upperpart is also printed, Stefan was not sure if this was scale, it decided to get away the box part on top to get it more streamlined


                  Click image for larger version

Name:	20250706_121904.jpg
Views:	185
Size:	47.9 KB
ID:	189062

                  First step, cutting off this ringsupport for the hatch, too big and too high.

                  Click image for larger version

Name:	20250706_122330.jpg
Views:	185
Size:	46.9 KB
ID:	189063

                  Masked off the places not to be cut, want to make everything more streamlined.

                  Click image for larger version

Name:	20250706_132235.jpg
Views:	180
Size:	53.0 KB
ID:	189064

                  First coat of filler, it will take some passes to get everything smooth, in the end i want to reiinforge the topdeck with some layers of glass cloth and hollow out the upperstructure, i suspect it will need at least four passes to get everything smooth.

                  Click image for larger version

Name:	20250629_213746.jpg
Views:	185
Size:	48.0 KB
ID:	189067

                  Finished up the work on the bulkheads, for now they are tacked with some glue, this week the magnets arrived, so i can glue them in and glue the bulkheads all way around.

                  Click image for larger version

Name:	20250629_213604.jpg
Views:	187
Size:	44.8 KB
ID:	189068

                  Just for fun, snapped the boat together to give a impression how things look once together, still a lot of things todo before she can see water.

                  Manfred.
                  I went underground

                  Comment

                  • MFR1964
                    Detail Nut of the First Order

                    • Sep 2010
                    • 1512

                    #10
                    All bulkheads are glued all the way around, made some provisions to keep the SD inside the boat and did some serious work on the conningtower,

                    Click image for larger version

Name:	20250629_213932.jpg
Views:	179
Size:	45.9 KB
ID:	189291
                    I decided to keep things simple and will re-use the SD from the Ko Hyoteki in such way i can use it for both models.

                    Click image for larger version

Name:	20250629_214015.jpg
Views:	166
Size:	48.4 KB
ID:	189292
                    Designed the bulkheads in such way they will accept the SD by inserting it into the boat.

                    Click image for larger version

Name:	20250629_214029.jpg
Views:	166
Size:	51.2 KB
ID:	189293
                    Roughly at the position i want to have it, time to place the brackets with the pins, which will hold the SD at it's place.

                    Click image for larger version

Name:	20250705_190205.jpg
Views:	167
Size:	52.5 KB
ID:	189294

                    Click image for larger version

Name:	20250705_190219.jpg
Views:	169
Size:	52.3 KB
ID:	189295

                    Pretty much the same way on both ends of the SD, little tubes on the pins will keep the SD at the desired position.

                    Click image for larger version

Name:	20250706_121100.jpg
Views:	168
Size:	44.3 KB
ID:	189296
                    By keeping it upright in the vice the first bracket is glued down, when dried did the same with the front bracket.

                    Click image for larger version

Name:	20250709_201851.jpg
Views:	169
Size:	50.6 KB
ID:	189297
                    Used loads of filler to get the desired shape of the conningtower, this was done in several steps of filling and sanding.

                    Click image for larger version

Name:	20250710_215737.jpg
Views:	169
Size:	54.3 KB
ID:	189298
                    Click image for larger version

Name:	20250710_215811.jpg
Views:	168
Size:	54.8 KB
ID:	189299

                    Click image for larger version

Name:	20250710_215818.jpg
Views:	167
Size:	50.8 KB
ID:	189300
                    Using this device i was able to make a paper mold for the glass cloth.

                    Click image for larger version

Name:	20250711_160329.jpg
Views:	166
Size:	54.7 KB
ID:	189301

                    Cuttted out the opening and laid down a layer with epoxy.

                    Click image for larger version

Name:	20250712_150526.jpg
Views:	164
Size:	56.7 KB
ID:	189302
                    Trimmed it down and gave it a layer of pure epoxy, this way you will get rid of a lot of pin- holes and will give you a smooth surface to work on.

                    Click image for larger version

Name:	20250713_114816.jpg
Views:	168
Size:	48.7 KB
ID:	189303
                    First layer of primer to see where i have to put some more filler.

                    Click image for larger version

Name:	20250713_135021.jpg
Views:	167
Size:	51.4 KB
ID:	189304
                    Sanding the first layer of filler down, ready for the next layer of filler.

                    Click image for larger version

Name:	20250714_142744.jpg
Views:	169
Size:	50.2 KB
ID:	189305
                    Last layer of filler, when done i will give it a coat of primer, that will be my startingpoint.

                    This was done last two weeks, now i'm in the process of placing the stabilisers, to be continued.

                    Manfred.

                    I went underground

                    Comment

                    • JHapprich
                      Captain

                      • Oct 2017
                      • 883

                      #11
                      Cool stuff as always,Manfred!!!

                      Comment

                      • MFR1964
                        Detail Nut of the First Order

                        • Sep 2010
                        • 1512

                        #12


                        Thanks Jorg, this project needs some elbow-grease but i got a nice headstart because Stefan has printed the hull for me, this alone gives you a advantage of 6 months building a master to get you a hull.

                        Last week i've being playing around with glueing the stabilators and made me a hatch, pictures,

                        Click image for larger version

Name:	20250630_215128.jpg
Views:	135
Size:	39.0 KB
ID:	189386

                        Click image for larger version

Name:	20250630_215133.jpg
Views:	117
Size:	48.2 KB
ID:	189387
                        By using the jigg i was able to line up the first one, this one is critical and needed to be square in all directions, ensuring the rest will also be placed in the right direction.

                        Click image for larger version

Name:	20250709_201847.jpg
Views:	118
Size:	43.9 KB
ID:	189388

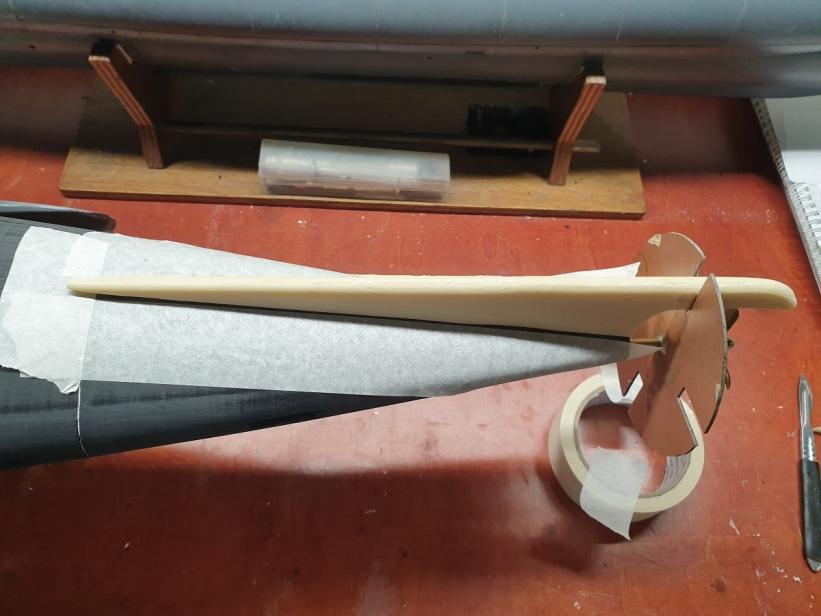

                        Taped off the hull against too much glue, and let her cure.

                        Click image for larger version

Name:	20250709_203243.jpg
Views:	118
Size:	46.0 KB
ID:	189390
                        Once the upper was cured i could start with the rest, by using the jigg and some markings on the hull.

                        Click image for larger version

Name:	20250709_220439.jpg
Views:	119
Size:	48.4 KB
ID:	189391
                        Two done, two to go, it goes pretty quick, just to be sure i made them cure for a day each.

                        Click image for larger version

Name:	20250712_150838.jpg
Views:	119
Size:	51.5 KB
ID:	189392
                        Once all four where done i could slide off the jigg and was able to place both the rudder and divingplane.

                        Click image for larger version

Name:	20250712_150933.jpg
Views:	117
Size:	43.6 KB
ID:	189393
                        It's looks pretty much the same way as with the V80, need to figure out how to control them without showing the steering-rods, the hull shape is slightly different , so i have to work with the space inside the hull, i can't copy the way i did this inside the V80.

                        Click image for larger version

Name:	20250713_141840.jpg
Views:	121
Size:	55.7 KB
ID:	189394

                        And now my slight disorder for hatches, first step in the process, took a glass dome from a bulb-light and cutted it to size, made the ring to accept this dome and soldered it on some scrap-piece printplate Click image for larger version

Name:	20250713_183255.jpg
Views:	119
Size:	51.3 KB
ID:	189395
                        Cutted out the upper ring and added a lower ring , placed a small hinge to keep them together.

                        Click image for larger version

Name:	20250715_215757.jpg
Views:	116
Size:	44.9 KB
ID:	189397

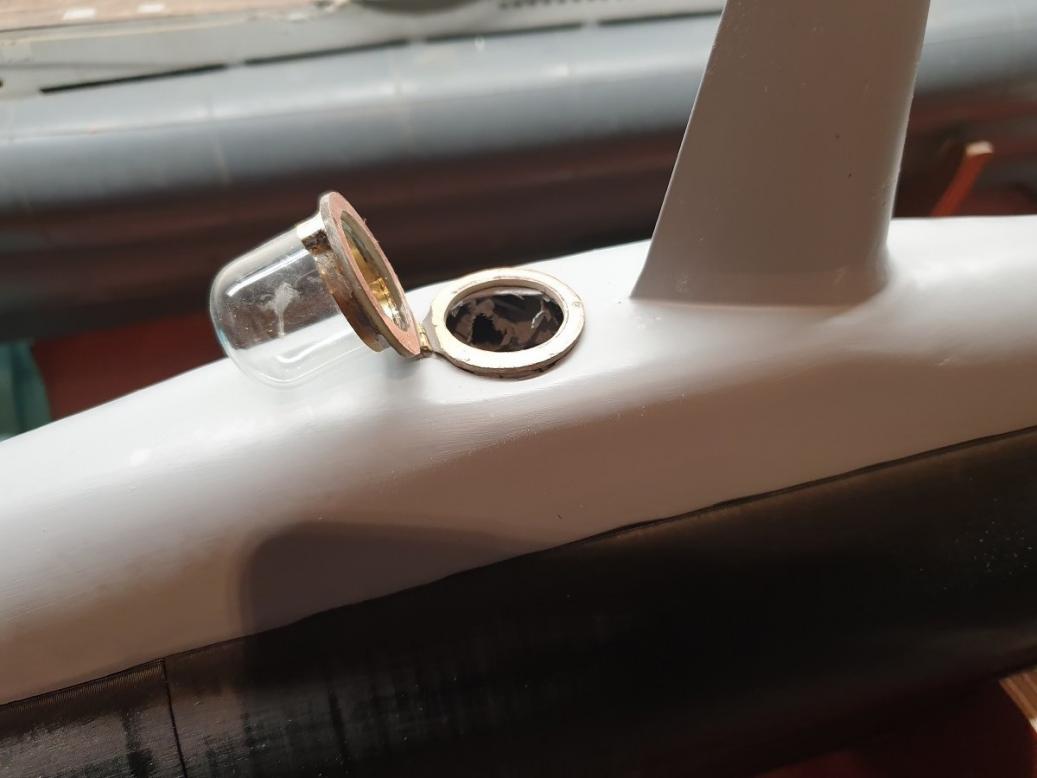

                        Made a hole in the upperstructure and added the hatch, on the right of the hatch you can see a small magnet in a housing, there is also a small magnet in the lower ring, this way the hatch will stay closed while diving.

                        Click image for larger version

Name:	20250715_215805.jpg
Views:	118
Size:	47.2 KB
ID:	189398
                        It can be opened by using some force, from the V80 i know there will be a airbubble inside during diving, hence the use of magnets, hopefully they are strong enough to keep the hatch closed during diving.

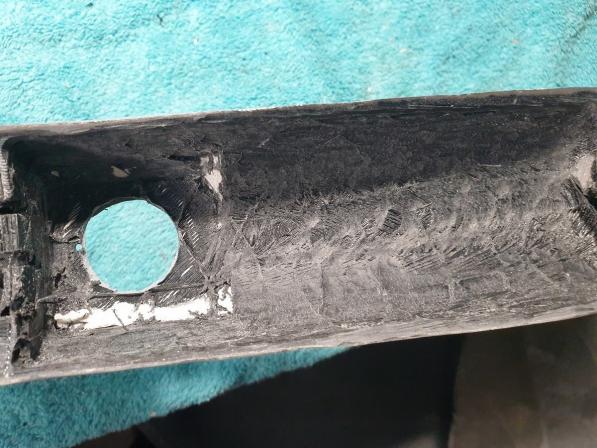

                        For now i have to hollow out the upper structure, there seems be a support structure inside which can collect water, this i want to rule out, found this out while drilling the hole for the hatch.

                        Manfred.





                        Attached Files
                        I went underground

                        Comment

                        • MFR1964
                          Detail Nut of the First Order

                          • Sep 2010
                          • 1512

                          #13
                          Some steps further in the process, made a snap-on solution for keeping the upperpart locked, pretty much the same solution for the keel, hollowed out the upperpart, started to get some filler on the backpart, rudder and diveplanes,

                          Click image for larger version

Name:	20250716_215743.jpg
Views:	99
Size:	44.8 KB
ID:	189521
                          First i made on the top and bottom tubes to hold the parts.

                          Click image for larger version

Name:	20250716_215813.jpg
Views:	86
Size:	44.0 KB
ID:	189522
                          When the tubes were placed i could dril the holes for the pins, using the allready placed tubes as a guide.

                          Click image for larger version

Name:	20250716_215835.jpg
Views:	88
Size:	49.8 KB
ID:	189523

                          Click image for larger version

Name:	20250716_215845.jpg
Views:	89
Size:	50.2 KB
ID:	189524

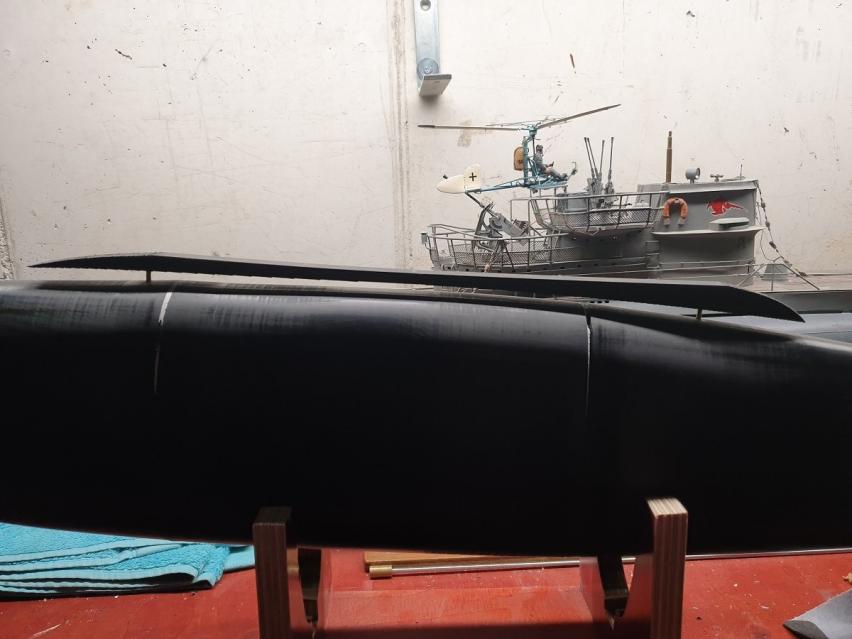

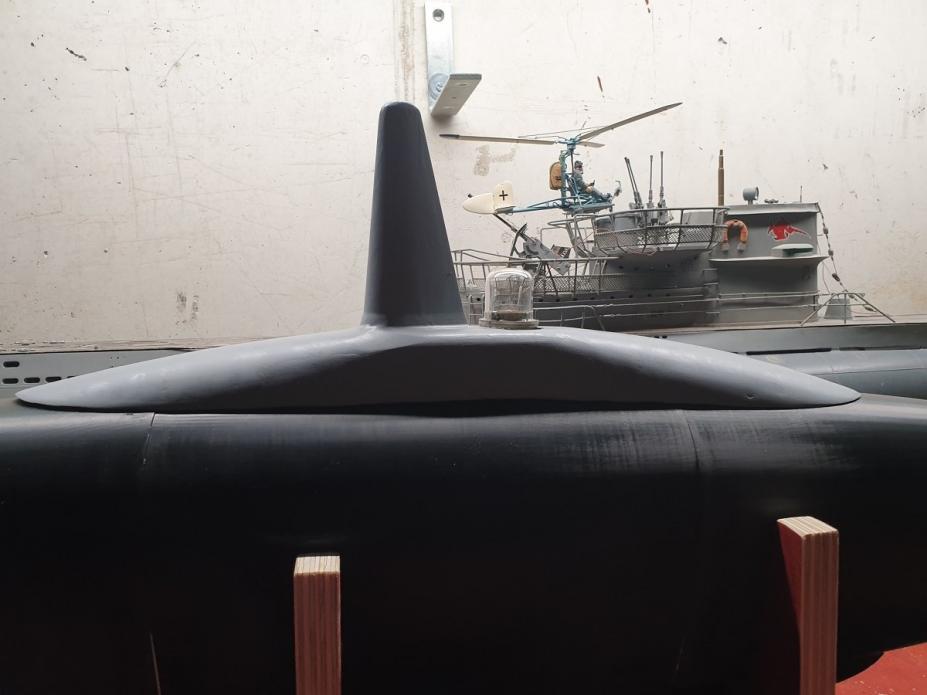

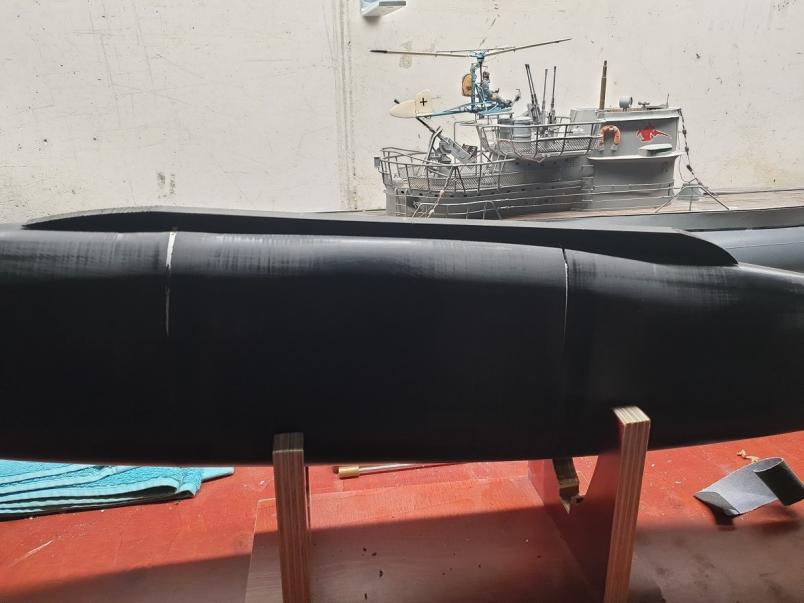

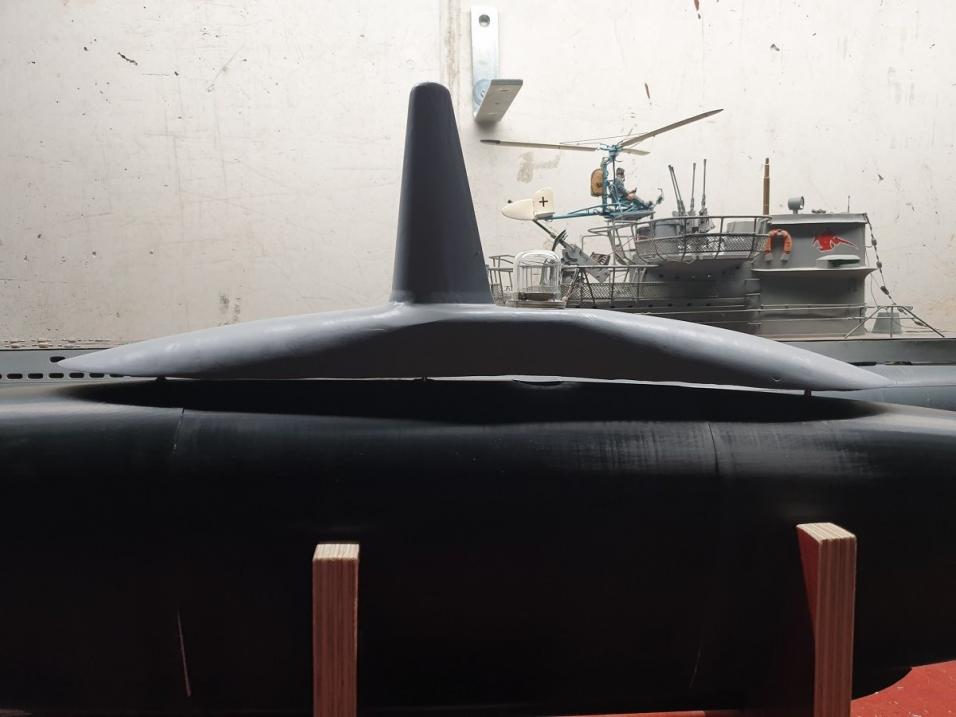

                          The action needed for placing the upperpart, it's a friction fit, tight enough to keep it at it's place.

                          Click image for larger version

Name:	20250716_215939.jpg
Views:	87
Size:	49.4 KB
ID:	189525

                          Click image for larger version

Name:	20250716_215956.jpg
Views:	86
Size:	47.9 KB
ID:	189526

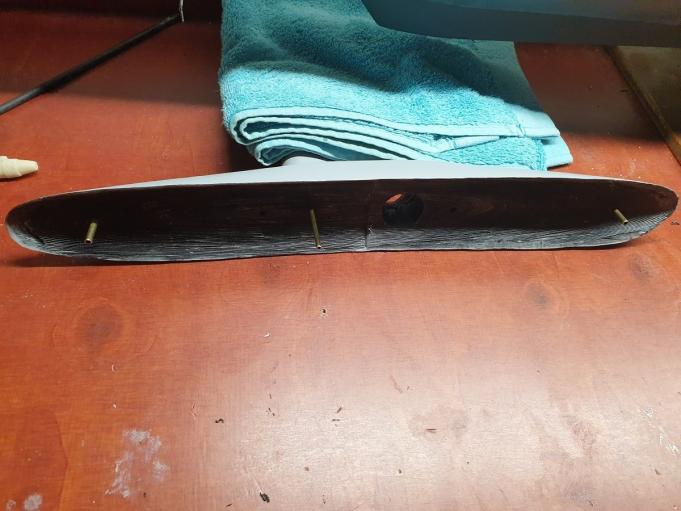

                          Pretty much the same action for the keel, by using both parts this way i can lock the hull even more, the pin and magnet approach is more then enough, but this way i don't need complicated contructions to keep all parts on the boat.

                          Click image for larger version

Name:	20250717_215413.jpg
Views:	87
Size:	52.3 KB
ID:	189527

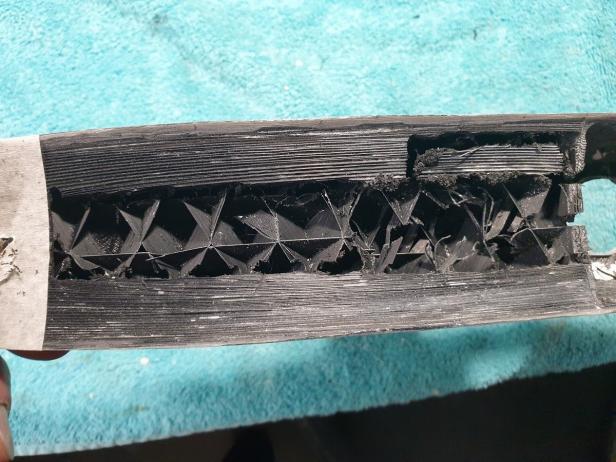

                          This is the support construction made during the 3D printing process, ASA is not watertight, so to avoid water inside the construction i had to hollow out most of the upperstructure.

                          Click image for larger version

Name:	20250717_215420.jpg
Views:	85
Size:	51.9 KB
ID:	189528

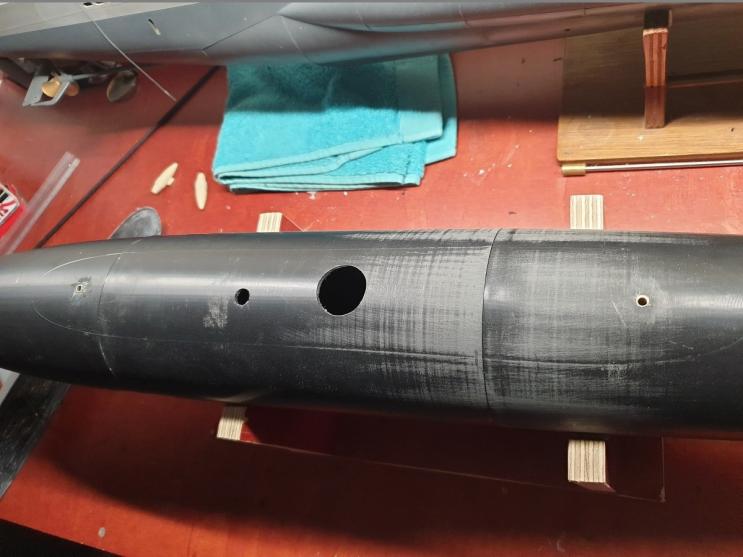

                          By using the Dremel with a little cutterwheel this was removed, in the end i will seal up everything with some resin.

                          Click image for larger version

Name:	20250727_154130.jpg
Views:	85
Size:	51.5 KB
ID:	189529

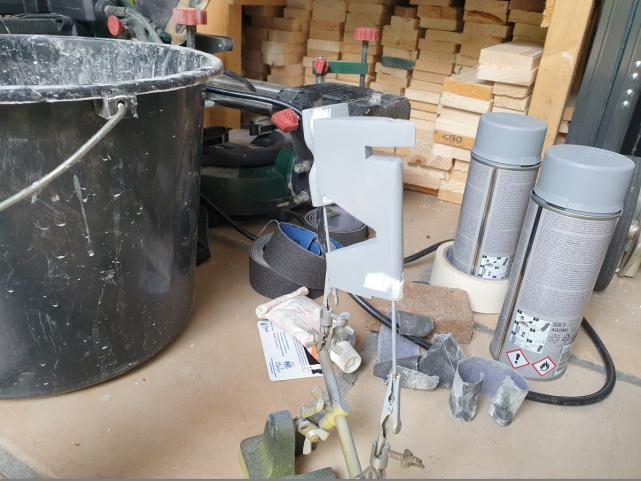

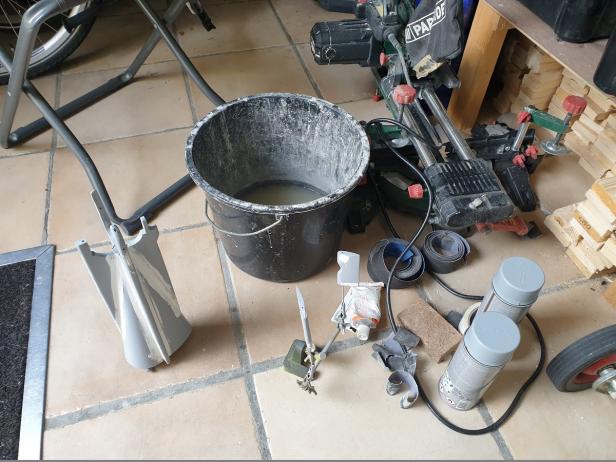

                          Applied first a coat of primer, sanded it down and added spray putty, to get the surface smooth you need at most two layers and sanding between those layers.

                          Click image for larger version

Name:	20250727_154136.jpg
Views:	86
Size:	51.1 KB
ID:	189530

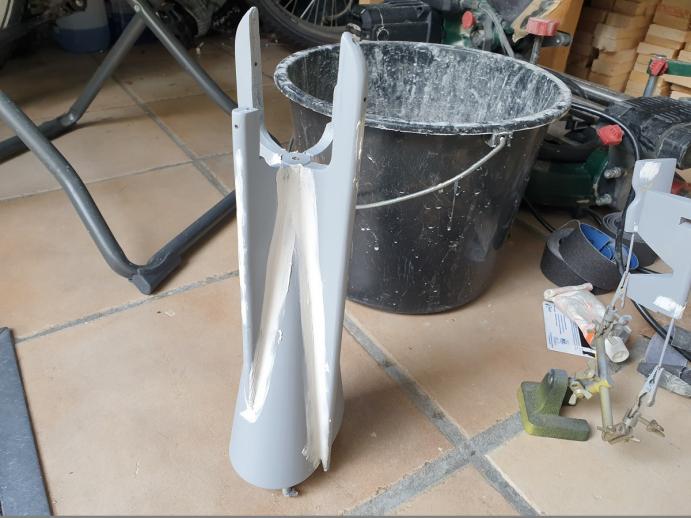

                          Closing the seems on the stabilisors with some filler, this was the second layer, for now i'm busy to give all hull parts the same procedures, learned that from playing with the rearpart, it will take some time to get all hull parts ready, plan of approach will be, give them all the first layer of spray putty, sand them down, next layer of putty, yet again sanding and see if i need some filler on other places.
                          My guess will be next week when i can put all parts in primer, from then i can think about the final colour for the boat

                          Manfred.



                          Attached Files
                          I went underground

                          Comment

                          • Ken_NJ
                            Captain

                            • Sep 2014
                            • 974

                            #14
                            For the 'sail' you have tubes that slide into the hull and that is a friction fit? Enough to hold the sail on? You mentioned locking it in place, how? Magnets?

                            I am considering something similar on the XXIII. The sail halves can be taken apart. When joined, using tubes to slide into the decking, and magnets to keep it attached. Or some type of mechanism to keep it attached. In the Marlin with a removable sail I used threaded studs fastened in the sail and brass thumb nuts on the deck underside.

                            Comment

                            • MFR1964
                              Detail Nut of the First Order

                              • Sep 2010
                              • 1512

                              #15
                              Ken, those pins are slightly off, which means, they fit inside the tubes but you need some force to place the upperpart, did a test how tight it was, i can lift the model by just holding the upperpart, it doesn't seperate at all, if needed in the future i can add some neodyne magnets.
                              My main goal is, taking the boat apart without any tool, tools tend to fall in the water, get lost or are forgotten to bring with yourself.

                              Manfred.
                              I went underground

                              Comment

                              Working...
