    Bronco 1:35 Type XXIII RC Build/ Conversion

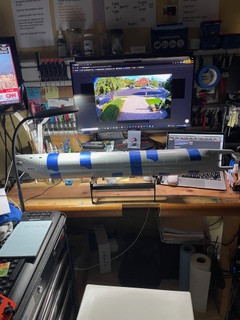

    Kit arrived undamaged, not sure if I will document full build on here as there are many already available. Here is the initial dry fit. Click image for larger version Name: IMG_1553.jpg Views: 904 Size: 32.8 KB ID: 174786
    Tags: None
    • biggsgolf
      Captain

      • Jan 2020
      • 767
      #2
      This will be my largest build yet. I will be purchasing the 250 Series Cylinder from Bob & Jason.
      250 Series SubDriver | Drydocks
      https://www.rc-submarine.com/product-page/250-series-subdriver
      Check out the Assembly Video for this cylinder on my YouTube Channel. NOTE: This product line has been discontinued in favor of our new 255 Series units, which will be open for orders Sept 14th, 2024. Thank you for your patience while we re-tool and set up for this awesome new product line. The 250 Series SubDriver has been designed by the Nautilus Drydocks to incorporate maximum flexibility and ease of assembly, maintenance and upgrade. It is the smaller version of the 300 Series unit, and measures 2.5" in outside diameter, perfect for any boat with a beam larger than 3.5".250 Series SubDriver V2 Features: 2.5" diameter electronics and battery compartments High strength plastic tubing High strength bulkheads Gas backup sub-system Low friction cup-style linkage seals with easy maintenance and replacement Metal gear servos for maximum torque and throw Two forward and two aft linkage outputs (rudder, rear planes, forward planes, spare) Single high-torque brushless motor power Optional dual shaft gearbox High capacity air pump Air ballast means the FULL capacity of the ballast tank is utilized, unlike pressure ballast systems Compartment lengths can easily be re-sized to suit nearly any boat of adequate beam NOTE: These units are built to order. Please allow 4 to 6 weeks for shipping. These cylinders ship fully assembled and tested for linkage and motor actuation as well as cylinder watertight integrity. Each one is certified prior to shipping. Some final installation of components such as radio gear, pitch controller, failsafe, remote switches, etc will be required on behalf of the builder. Cylinder Length: 16.5" plus ballast tank length (IE: a cylinder with an 8" tank would measure approximately 26" OAL) Cylinder Package includes: Forward Battery bulkhead with seals and servos installed and tested Battery Equipment Tray Rear Battery bulkhead Pump Bulkhead with air pump, pump controller, ballast servo, vent linkage and seals installed and tested Motor Bulkhead with seals, servos, motor, ESC installed and tested Optional dual shaft gearbox 4 sets of magnetic linkage connectors Main power cable 4 sets of servo extensions 2 sets of power distribution clips Power connector for battery connection 15A fuse and fuse holder 2 easy solder heat shrink tubes 2 wire clips for cable organization Spare seals for tubes and linkage seals BEC (Battery Eliminator Circuit) for receiver Optional Accessories available from the electronics section of our store: Heavy Duty remote on/off switch AD2 pitch controller BLM failsafe All Nautilus Drydocks cylinders come certified for operation of all linkages and motors and for watertight integrity.

      The cut will be horizontal following David Merriman​'s methods as best I can....

        Comment

        • He Who Shall Not Be Named
          Moderator

          • Aug 2008
          • 12808
          #3
          Enough chit-chat... GET TO IT!
          Who is John Galt?

            Comment

            • biggsgolf
              Captain

              • Jan 2020
              • 767
              #4
              Hahaha, yes sir!

                Comment

                • trout
                  Admiral

                  • Jul 2011
                  • 3613
                  #5
                  Originally posted by biggsgolf
                  Kit arrived undamaged, not sure if I will document full build on here as there are many already available. Here is the initial dry fit. Click image for larger version Name: IMG_1553.jpg Views: 904 Size: 32.8 KB ID: 174786
                  Please do a build. Even if there are 1000 already, you will add your own flair or seasoning. It helps the hobby as a whole.
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                    Comment

                    • redboat219
                      Admiral

                      • Dec 2008
                      • 3078
                      #6
                      Were you able to procure David's fittings kit or fabricating your own?
                      Make it simple, make strong, make it work!

                        Comment

                        • biggsgolf
                          Captain

                          • Jan 2020
                          • 767
                          #7
                          I will be fabricating some via 3D printer and have ordered some from Danny at Maximus

                            Comment

                            • biggsgolf
                              Captain

                              • Jan 2020
                              • 767
                              #8
                              Doing initial waterline and cutting board leveling and marking for tie downs per David. Waiting on Diamond cutting wheels I have ordered . I will cut away model inside supports, play with mounting torpedos with partially open doors in the meantime
                              ​​

                                Comment

                                • Das Boot
                                  Rear Admiral

                                  • Dec 2019
                                  • 1274
                                  #9
                                  Click image for larger version Name: IMG_5245.jpg Views: 869 Size: 53.2 KB ID: 174804
                                  Originally posted by biggsgolf
                                  Doing initial waterline and cutting board leveling and marking for tie downs per David. Waiting on Diamond cutting wheels I have ordered . I will cut away model inside supports, play with mounting torpedos with partially open doors in the meantime
                                  ​​

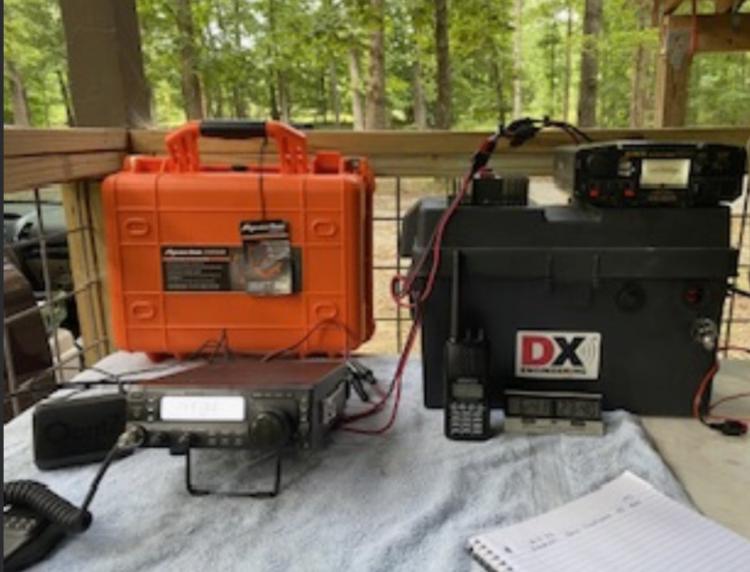

                                  As soon as my yearly ham radio camping expedition is over next weekend, I’ll be joining you in this endeavor. I have one new in the box. Let me know when the parts come in. I already got a prop and shaft from Bob.
                                  Last edited by Das Boot; 10-11-2023, 03:30 PM.
                                  “Of the 40,000 men who served on German submarines, 30,000 never returned.”

                                    Comment

                                    • biggsgolf
                                      Captain

                                      • Jan 2020
                                      • 767
                                      #10
                                      OK, Skoden!

                                        Comment

                                        • trout
                                          Admiral

                                          • Jul 2011
                                          • 3613
                                          #11
                                          I do have a build on my XXIII:
                                          Tom Chalfant - Bronco Type XXIII - The Sub-drivers Forum
                                          https://forum.rc-sub.com/forum/builder-competitions/2560-tom-chalfant-bronco-type-xxiii
                                          We hold regular competitions for anyone to participate, be they newcomers to the hobby or seasoned veterans.

                                          ​Maybe it will help.
                                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                                            Comment

                                            • biggsgolf
                                              Captain

                                              • Jan 2020
                                              • 767
                                              #12
                                              Originally posted by trout
                                              I do have a build on my XXIII:
                                              Tom Chalfant - Bronco Type XXIII - The Sub-drivers Forum
                                              https://forum.rc-sub.com/forum/builder-competitions/2560-tom-chalfant-bronco-type-xxiii
                                              We hold regular competitions for anyone to participate, be they newcomers to the hobby or seasoned veterans.

                                              ​Maybe it will help.
                                              And a great build! I will be referencing it! Thanks!

                                                Comment

                                                • redboat219
                                                  Admiral

                                                  • Dec 2008
                                                  • 3078
                                                  #13
                                                  Originally posted by biggsgolf
                                                  I will be fabricating some via 3D printer
                                                  Can you share the files?

                                                  Make it simple, make strong, make it work!

                                                    Comment

                                                    • biggsgolf
                                                      Captain

                                                      • Jan 2020
                                                      • 767
                                                      #14
                                                      Gosh, I had not gotten that far in my thinking, need to determine what I will be fabricating. The parts from Danny are not going to be duplicated, but he might sell to others as he did for me.

                                                        Comment

                                                        • biggsgolf
                                                          Captain

                                                          • Jan 2020
                                                          • 767
                                                          #15
                                                          Originally posted by redboat219

                                                          Can you share the files?
                                                          Which parts are you looking for?
