New Trumpeter Kilo 1:144 Build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • David, any of those 1.25” SD’s from about six years ago available anywhere? Click image for larger version

Name:	04F054AC-840C-4B42-9229-144658DE79B6.jpeg
Views:	61
Size:	66.5 KB
ID:	149468

    Comment


    • Originally posted by biggsgolf View Post
      David, any of those 1.25” SD’s from about six years ago available anywhere? Click image for larger version

Name:	04F054AC-840C-4B42-9229-144658DE79B6.jpeg
Views:	61
Size:	66.5 KB
ID:	149468
      I don't sell stuff anymore.

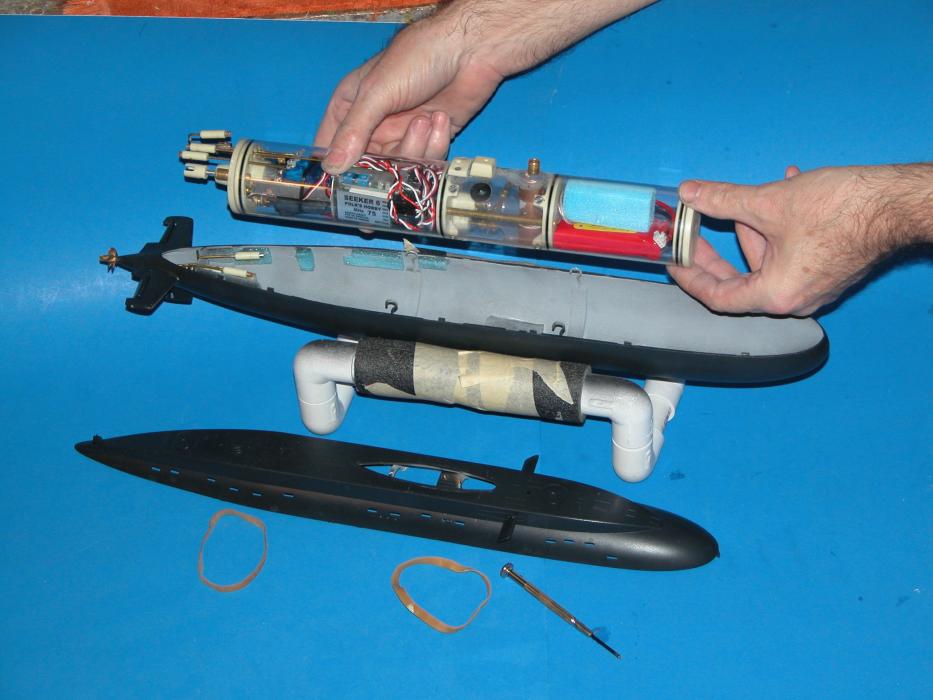

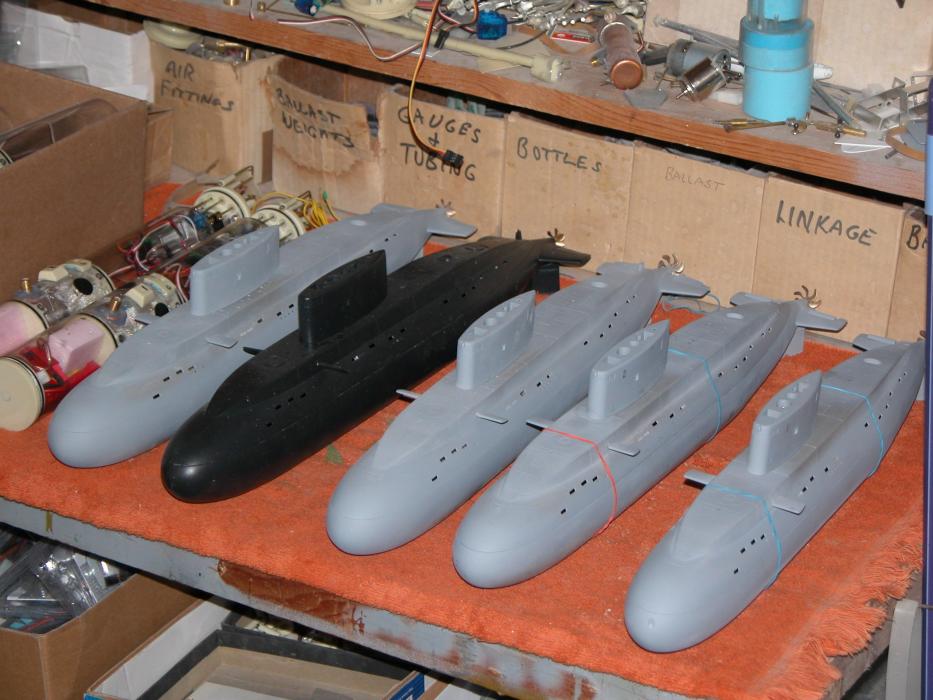

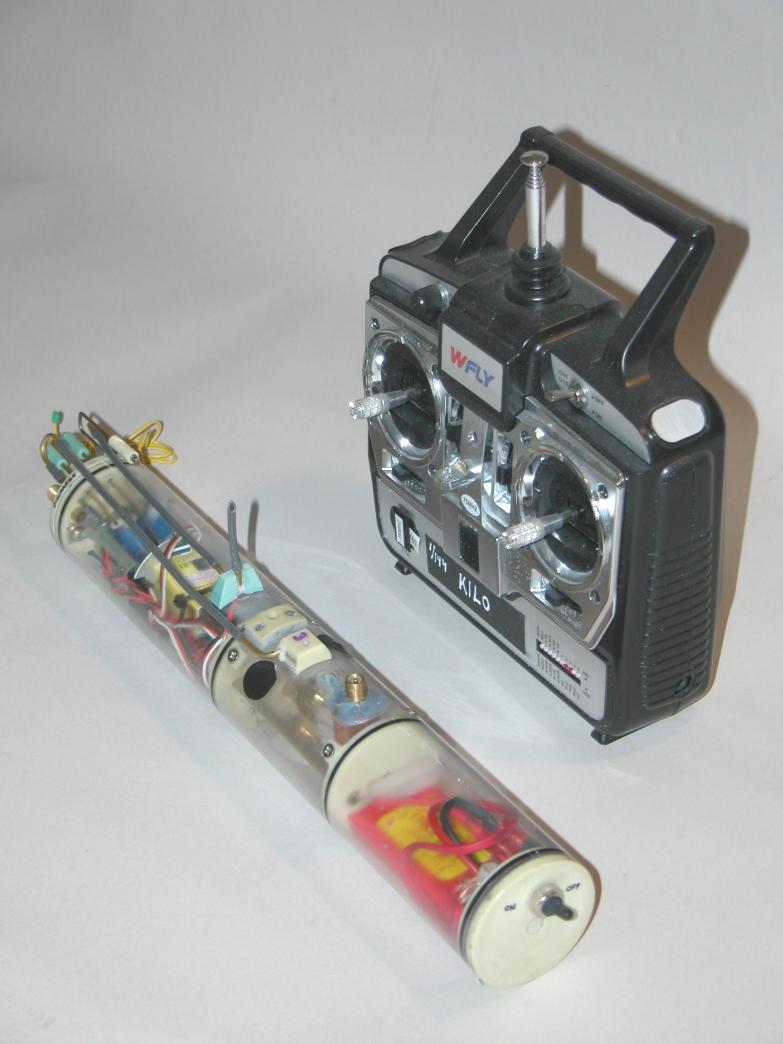

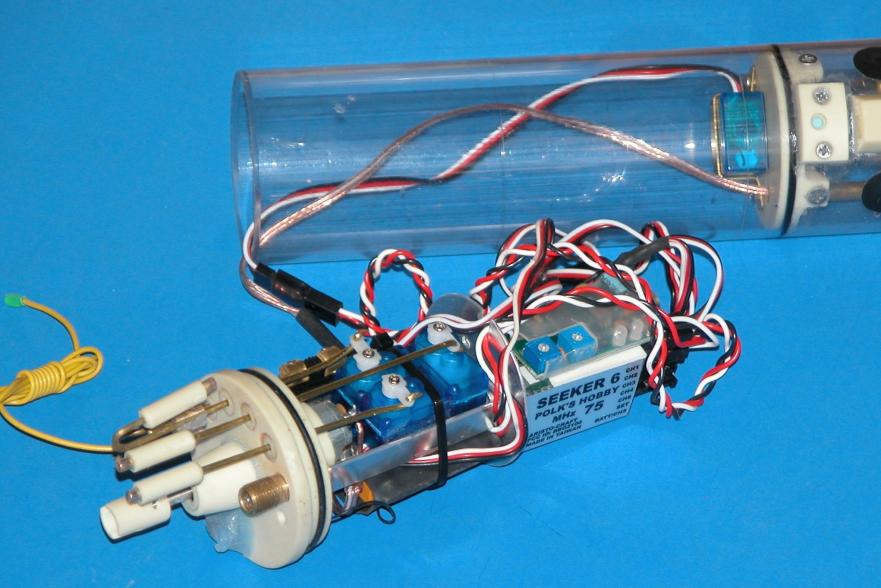

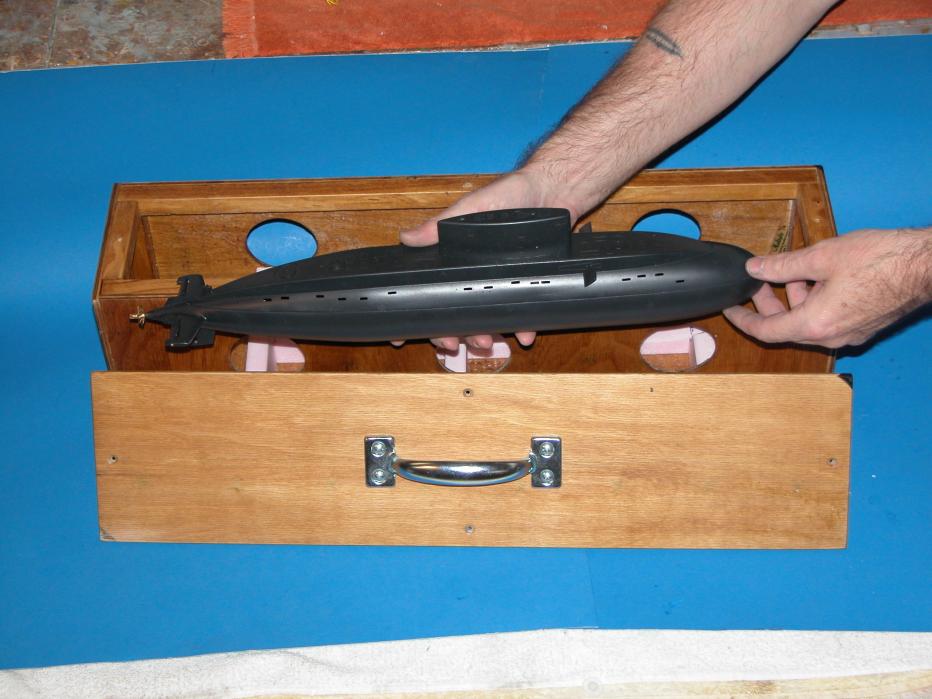

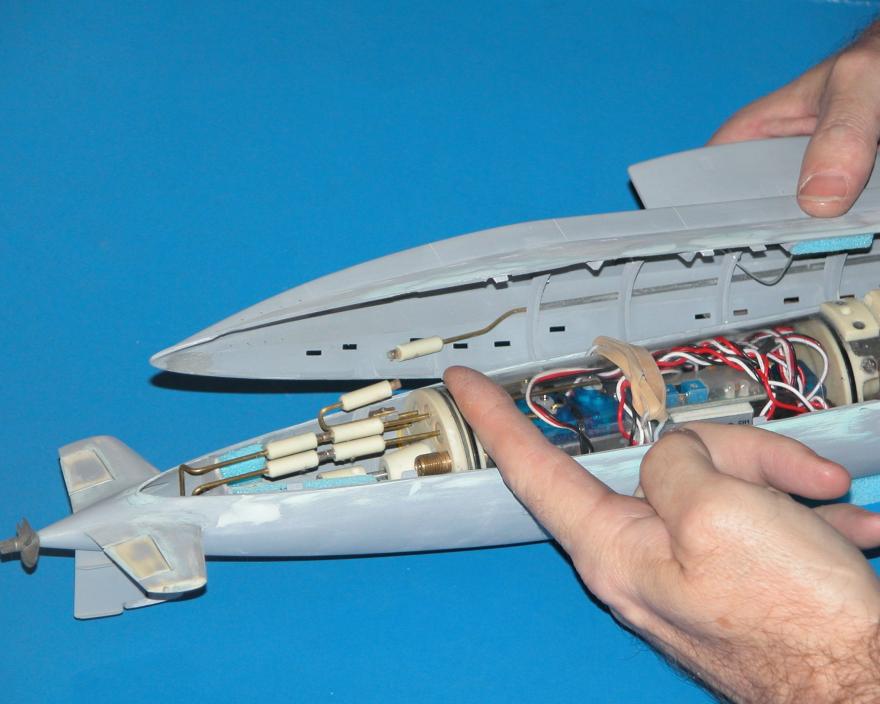

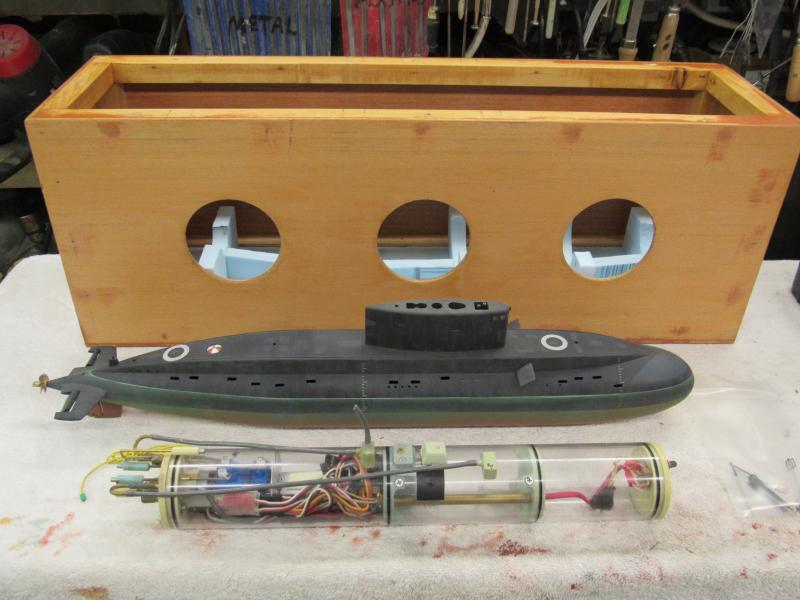

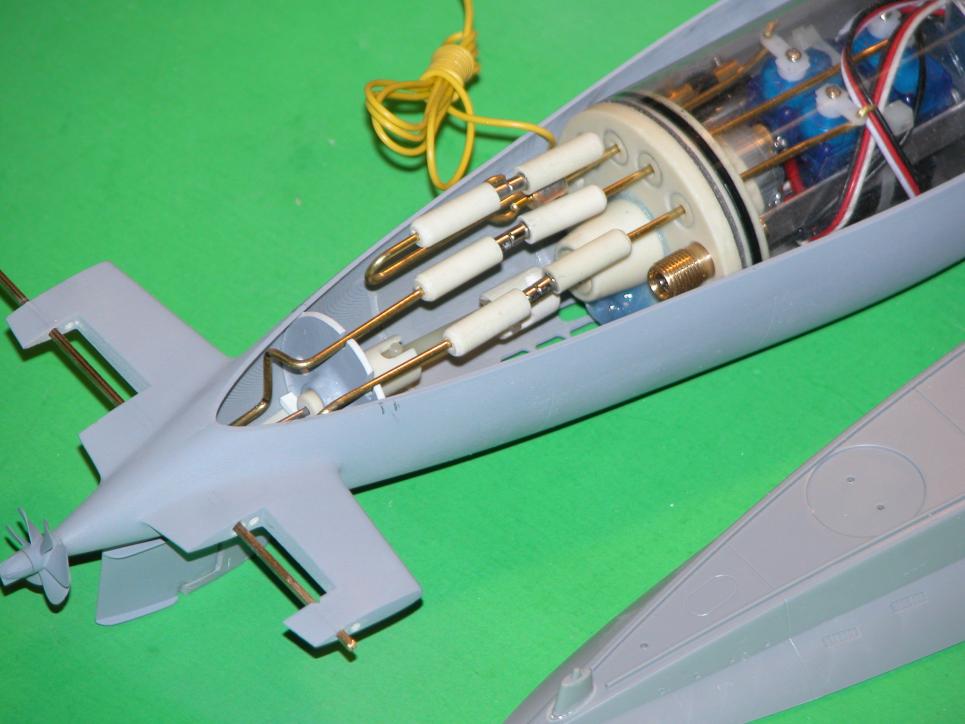

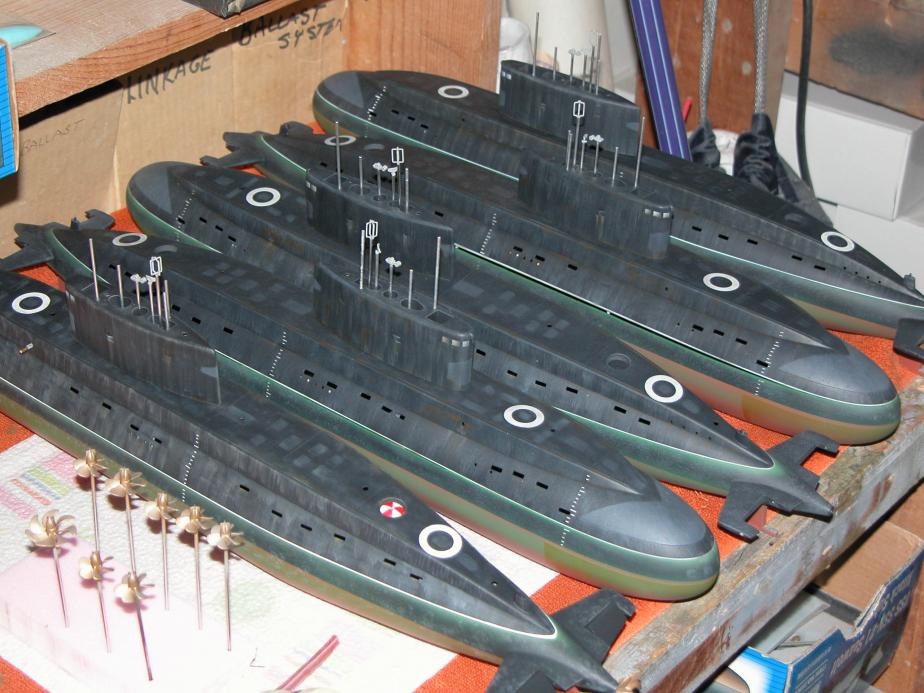

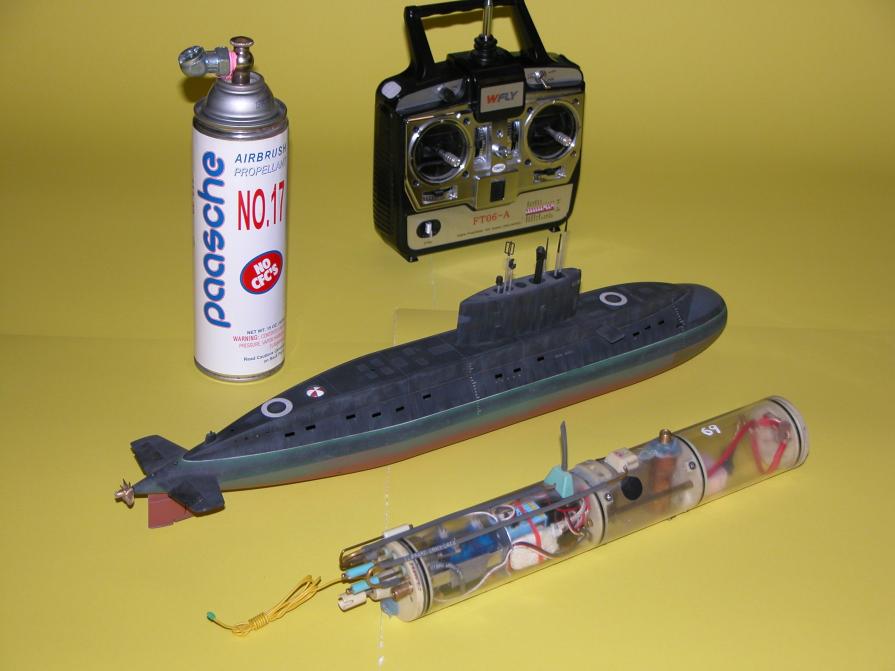

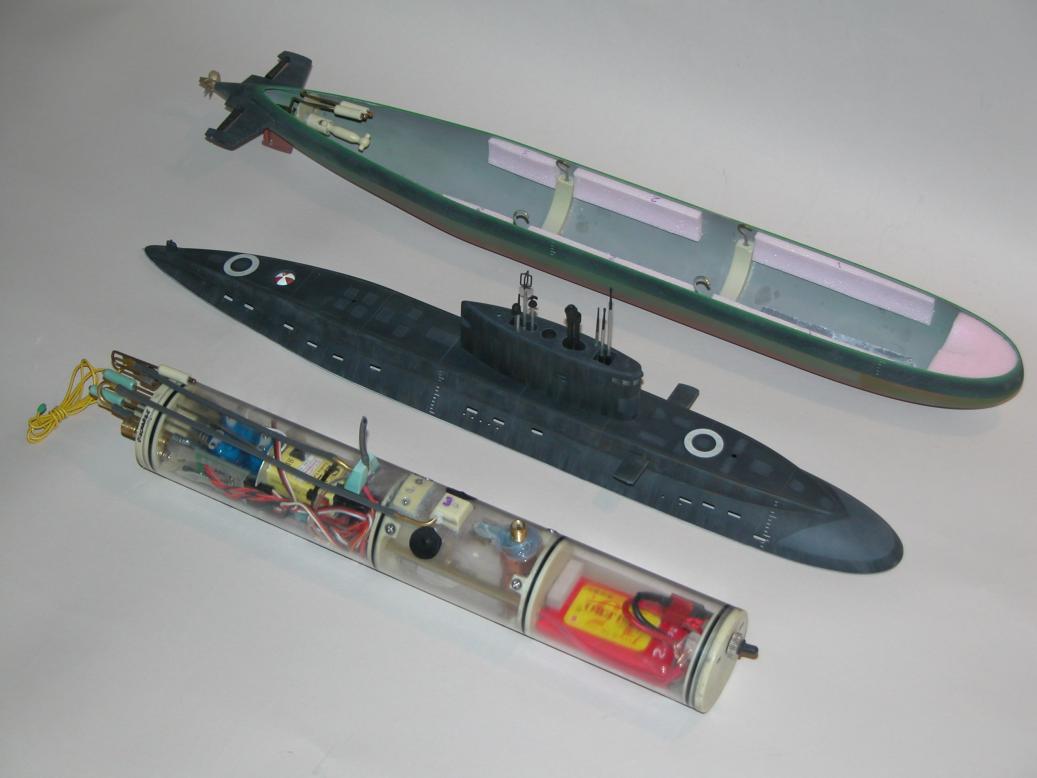

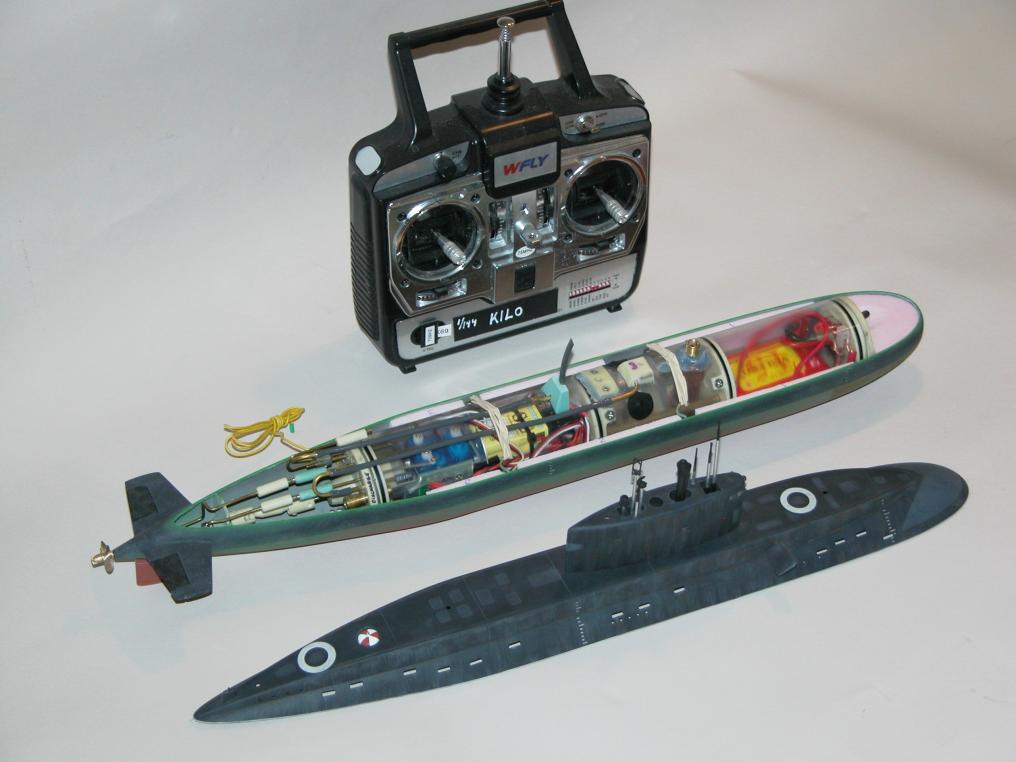

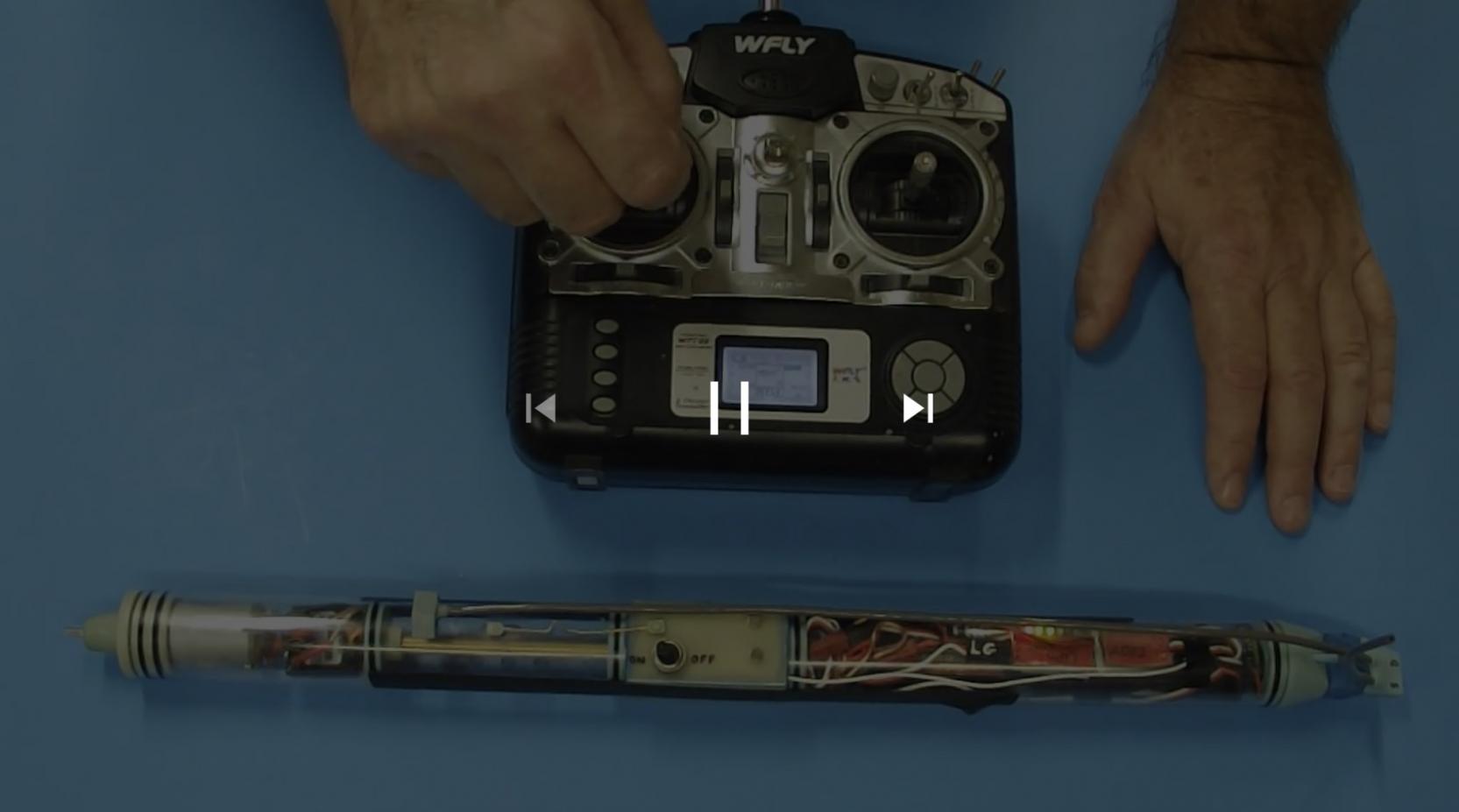

      However, if you're talking about a SD for the 1/144 Trumpeter KILO, then you're talking a 2" diameter SD. Such:

      Click image for larger version

Name:	022.JPG
Views:	69
Size:	51.2 KB
ID:	149470Click image for larger version

Name:	DSCF4970.JPG
Views:	58
Size:	52.9 KB
ID:	149471Click image for larger version

Name:	DSCN0001 (3).JPG
Views:	57
Size:	73.3 KB
ID:	149472Click image for larger version

Name:	DSCN0007_0001.JPG
Views:	58
Size:	88.5 KB
ID:	149473Click image for larger version

Name:	DSCN0008 (2).JPG
Views:	52
Size:	76.4 KB
ID:	149474Click image for larger version

Name:	DSCN0015 (2).JPG
Views:	59
Size:	65.7 KB
ID:	149475Click image for larger version

Name:	DSCN0052.JPG
Views:	57
Size:	68.1 KB
ID:	149476Click image for larger version

Name:	DSCN0053 (2).JPG
Views:	61
Size:	60.5 KB
ID:	149477Click image for larger version

Name:	DSCN0061 (2).JPG
Views:	58
Size:	56.3 KB
ID:	149478Click image for larger version

Name:	DSCN0064 (3).JPG
Views:	54
Size:	69.9 KB
ID:	149479Click image for larger version

Name:	DSCN0080 (3).JPG
Views:	57
Size:	63.3 KB
ID:	149480Click image for larger version

Name:	DSCN0093 (5).JPG
Views:	58
Size:	65.1 KB
ID:	149481Click image for larger version

Name:	DSCN0183.JPG
Views:	55
Size:	100.5 KB
ID:	149482Click image for larger version

Name:	DSCN0195.JPG
Views:	56
Size:	85.4 KB
ID:	149483Click image for larger version

Name:	DSCN0200.JPG
Views:	58
Size:	65.0 KB
ID:	149484Click image for larger version

Name:	IMG_0291.JPG
Views:	57
Size:	59.2 KB
ID:	149485
      Resident Luddite

      Comment


      • Yeah David I have a couple of 2” SD’s, want to convert a 1:144 Type Vll, so need a smaller one, lol

        Comment


        • Originally posted by biggsgolf View Post
          Yeah David I have a couple of 2” SD’s, want to convert a 1:144 Type Vll, so need a smaller one, lol

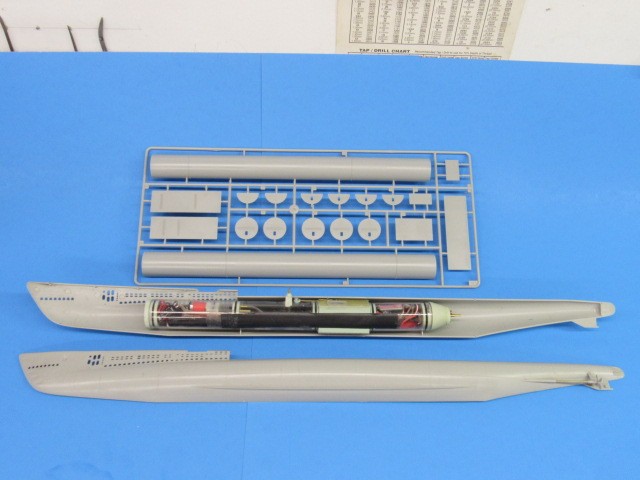

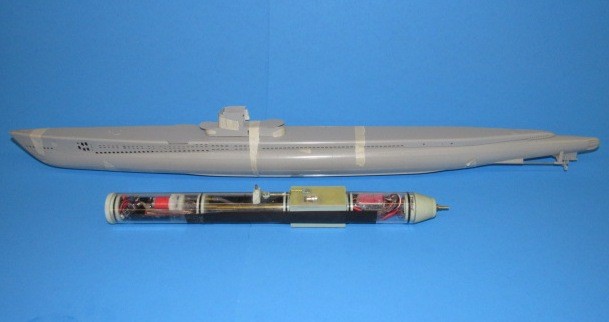

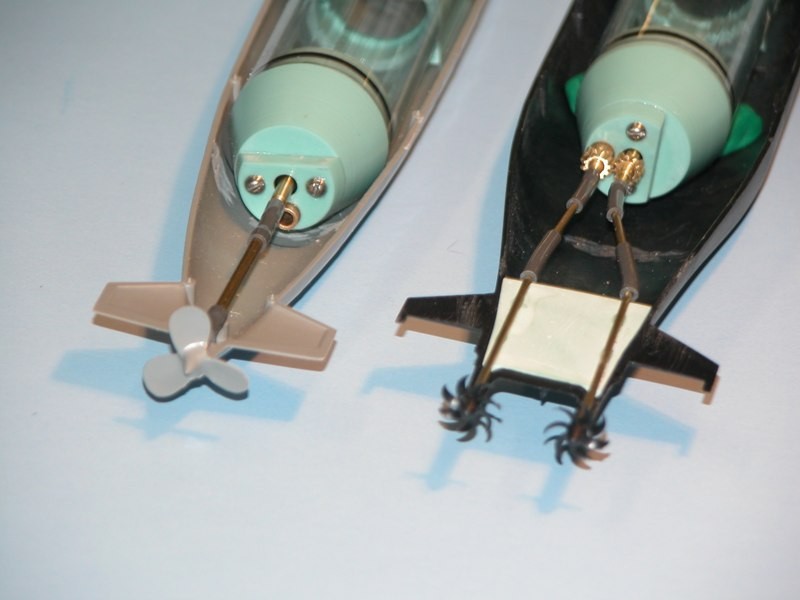

          Oohh! I see. That's supper small! Agreed, maybe you can get a 1.25" SD into that Type-7. Tight fit for the 1/144 GATO. I'll help if I can.


          Click image for larger version

Name:	IMG_1986.JPG
Views:	49
Size:	30.9 KB
ID:	149490Click image for larger version

Name:	IMG_1989.JPG
Views:	41
Size:	58.6 KB
ID:	149491Click image for larger version

Name:	015.JPG
Views:	44
Size:	56.2 KB
ID:	149492Click image for larger version

Name:	017.JPG
Views:	42
Size:	59.4 KB
ID:	149493
          Resident Luddite

          Comment


          • Thanks David for the eye candy! Is that a single drive shaft converted to dual with the gears? How do they attach to the prop shafts, I see what looks like tubing, I assume for illustration? Any thoughts on a submarine that would accomodate a 2” that turns sharply? Maybe a boat with the props forward of the planes & Rubber(s). Most seem to be dual props so would need to convert single shaft to dual ising gears.

            Comment


            • Great job.
              Last edited by Das Boot; 05-01-2021, 05:23 PM.

              Comment


              • [QUOTE=He Who Shall Not Be Named;n149489]

                Oohh! I see. That's supper small! Agreed, maybe you can get a 1.25" SD into that Type-7. Tight fit for the 1/144 GATO. I'll help if I can.



                How do you get your fat fingers in that little cylinder?

                Comment


                • Originally posted by biggsgolf View Post
                  Thanks David for the eye candy! Is that a single drive shaft converted to dual with the gears? How do they attach to the prop shafts, I see what looks like tubing, I assume for illustration? Any thoughts on a submarine that would accomodate a 2” that turns sharply? Maybe a boat with the props forward of the planes & Rubber(s). Most seem to be dual props so would need to convert single shaft to dual ising gears.

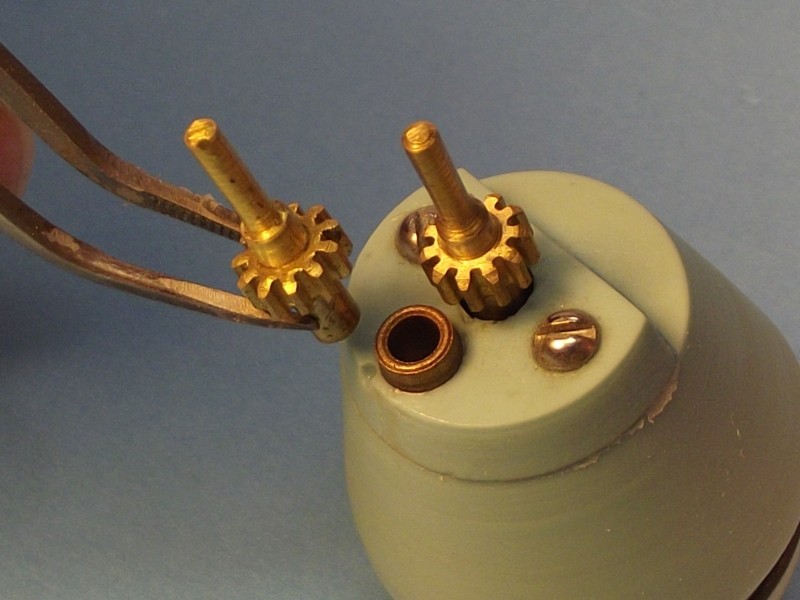

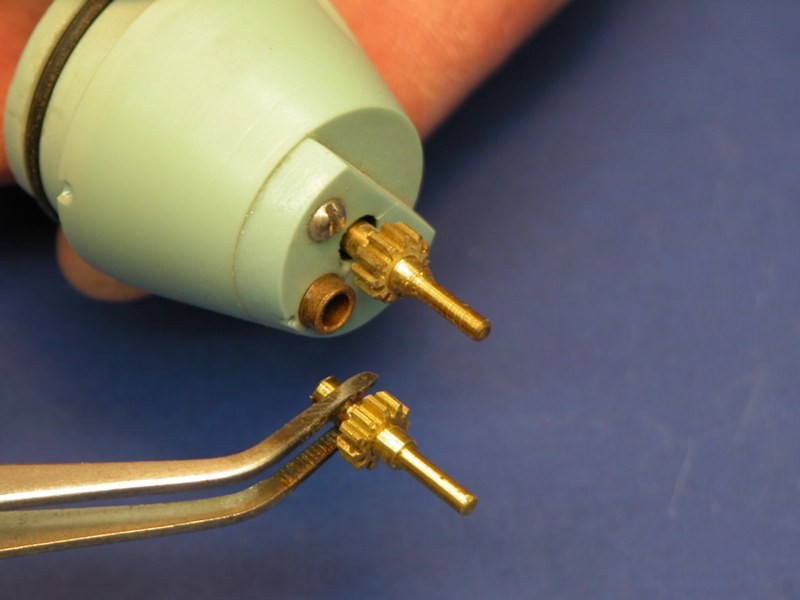

                  Conversion from a single output to two counter-rotating outputs is done with the simple addition of an opposing gear that meshes with the single output shaft gear. Like so:

                  Click image for larger version  Name:	030.JPG Views:	0 Size:	52.6 KB ID:	149504Click image for larger version  Name:	021.JPG Views:	0 Size:	79.1 KB ID:	149505

                  Here you see the only difference with the 1.25" SD motor-bulkhead is the inclusion of the opposing gear to drive the second propeller shaft.

                  Click image for larger version  Name:	DSCN0059.JPG Views:	0 Size:	59.4 KB ID:	149506

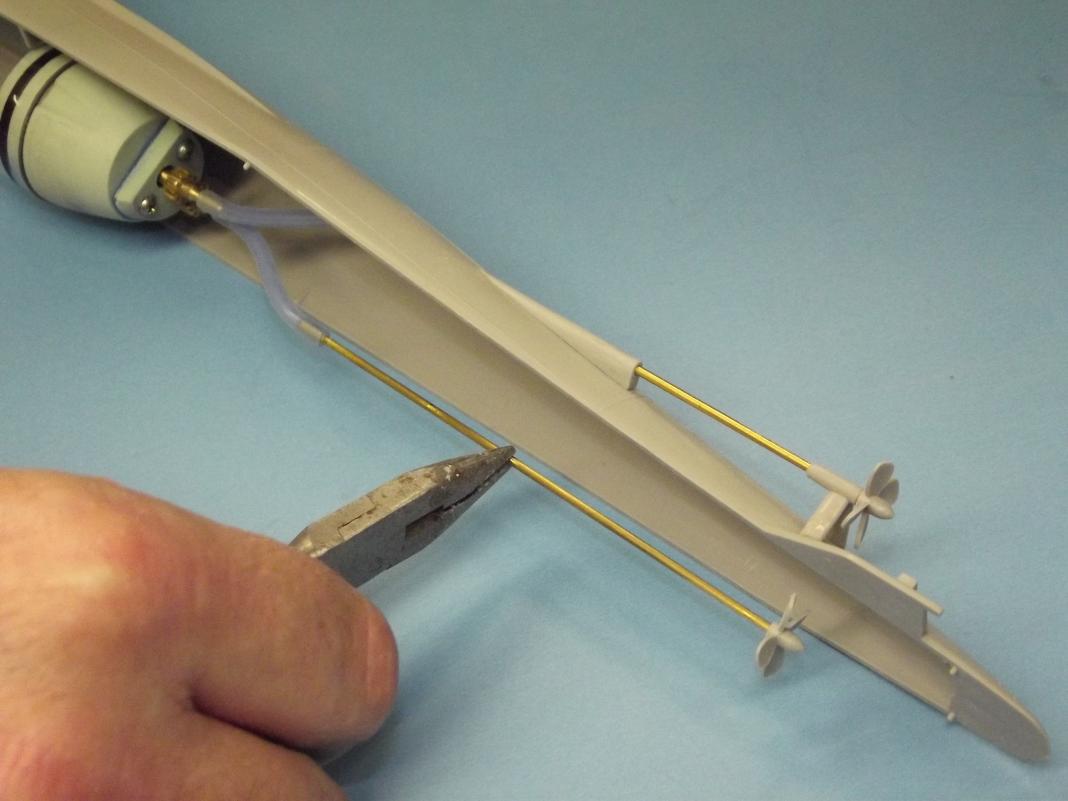

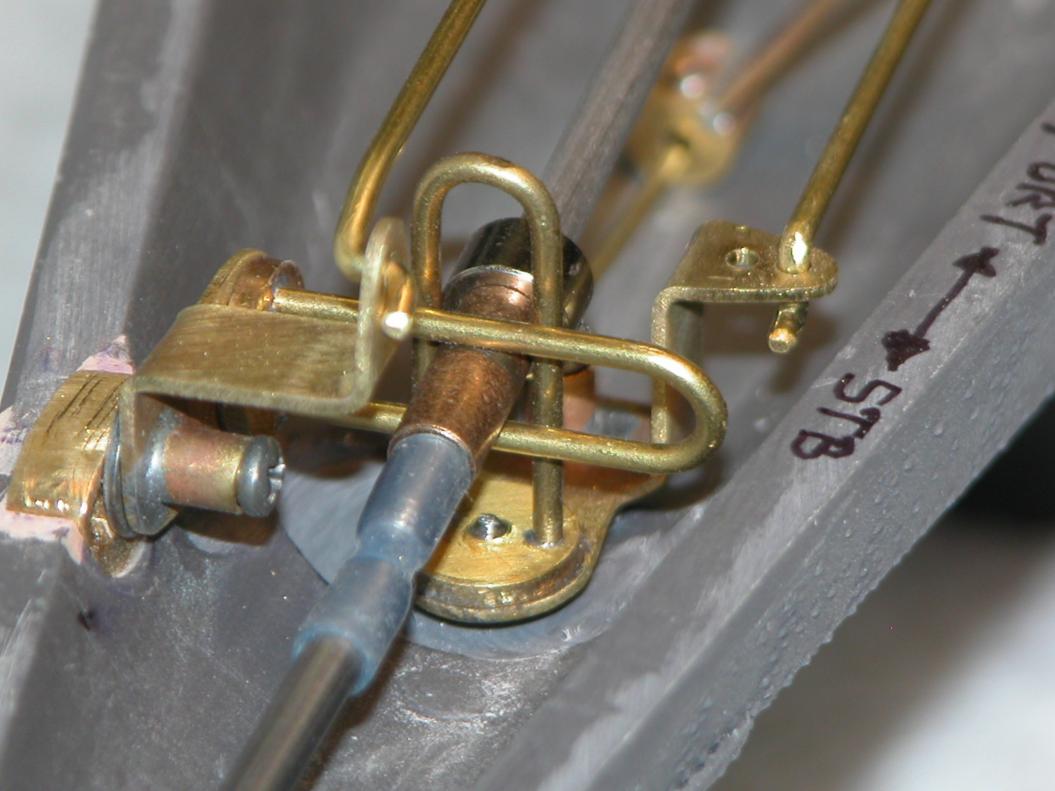

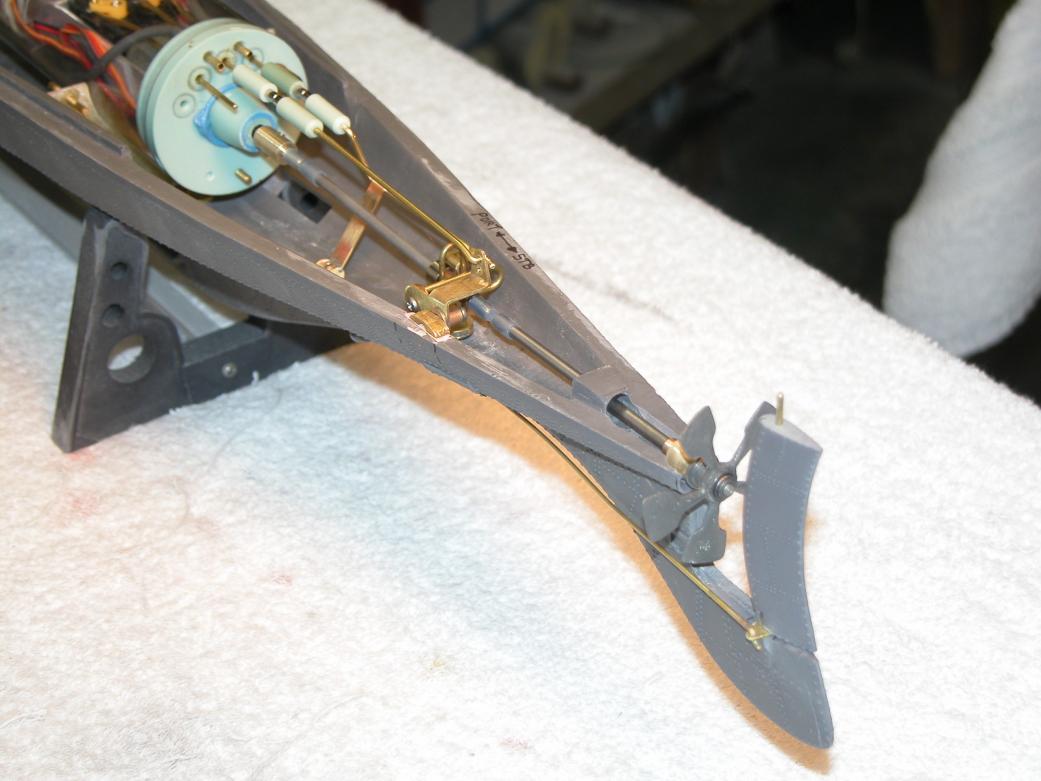

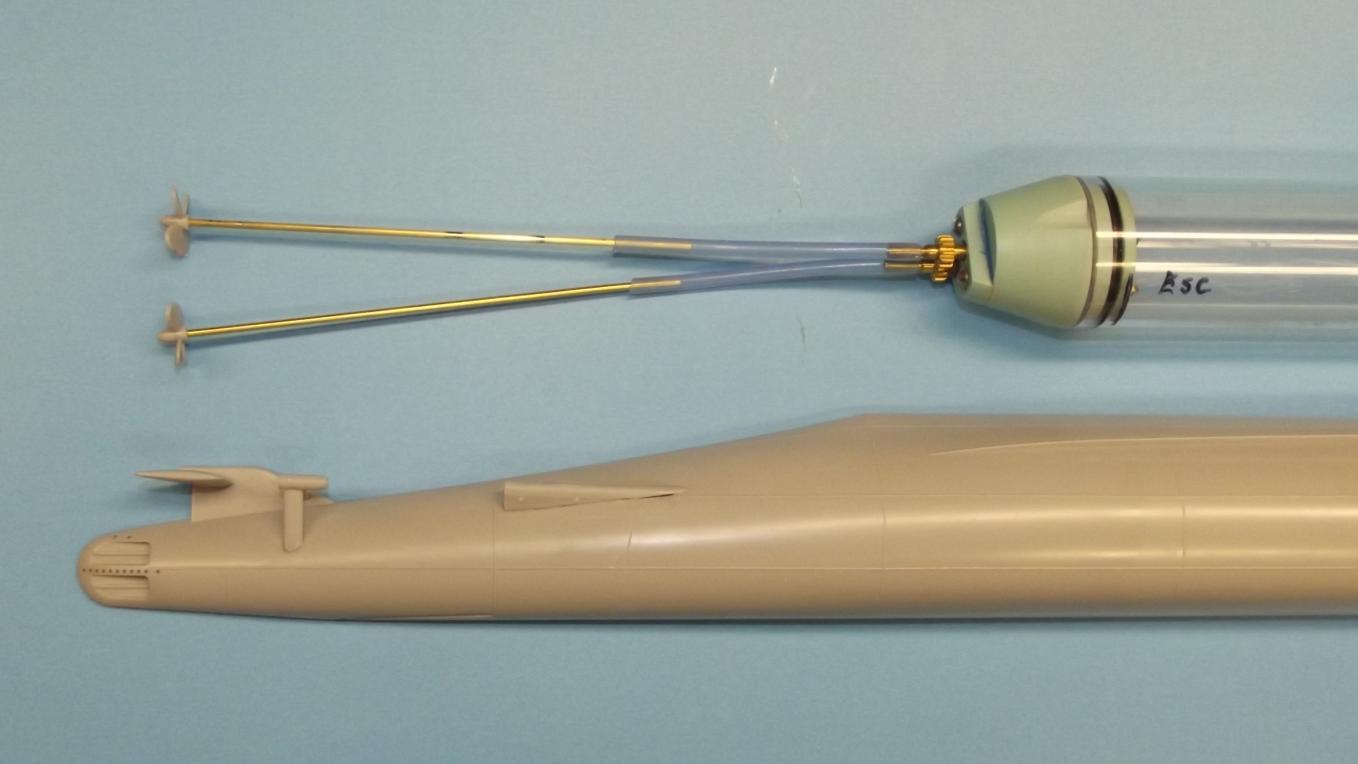

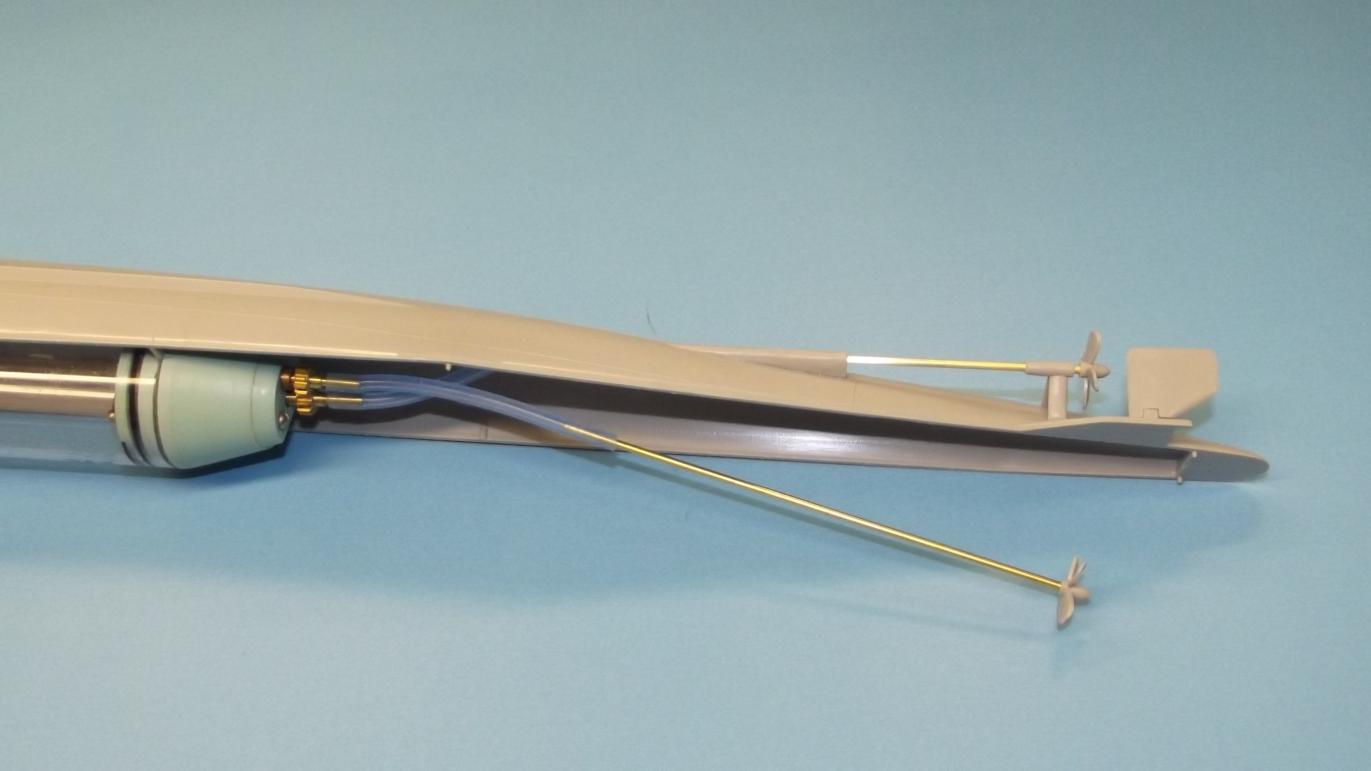

                  The soft rubber tubing (silicon or latex) forms a poor-mans universal joint between drive chain elements. However, using this means of correcting for running gear off-set mandates that the thrust loads be absorbed at the after-most bearing points: The shaft strut bearings on the GATO; and the ball type gimbal on the Disney NAUTILUS.

                  Click image for larger version  Name:	DSCF4353.JPG Views:	0 Size:	64.1 KB ID:	149507Click image for larger version  Name:	044 (3).JPG Views:	0 Size:	79.4 KB ID:	149508Click image for larger version  Name:	042.JPG Views:	0 Size:	79.7 KB ID:	149509

                  That little KILO turns just fine! https://youtu.be/oc4XLg79QDI

                  Don't over-think this project!

                  David
                  Last edited by He Who Shall Not Be Named; 05-01-2021, 05:41 PM.
                  Resident Luddite

                  Comment


                  • Thankyou “my lord”, invaluable information! The photos with your descriptions always tell the story, even for numb nuts like me!

                    Comment


                    • So my 1:144 Kilo Pool Trials went well on surface maneuvers, however, ballast pump was inoperable. Upon my return to my shop I found that my Tx settings had been changed. I mapped my ballast channel five to switch C. Somehow that got changed…..grrrrrrr. Will return for pool runs in 10 days.

                      Comment


                      • David, silly but I cannot figure how the second driveshaft with the opposing gear is anchored to the endcap? Hooe this makes sense.
