Oscar Continued

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #76

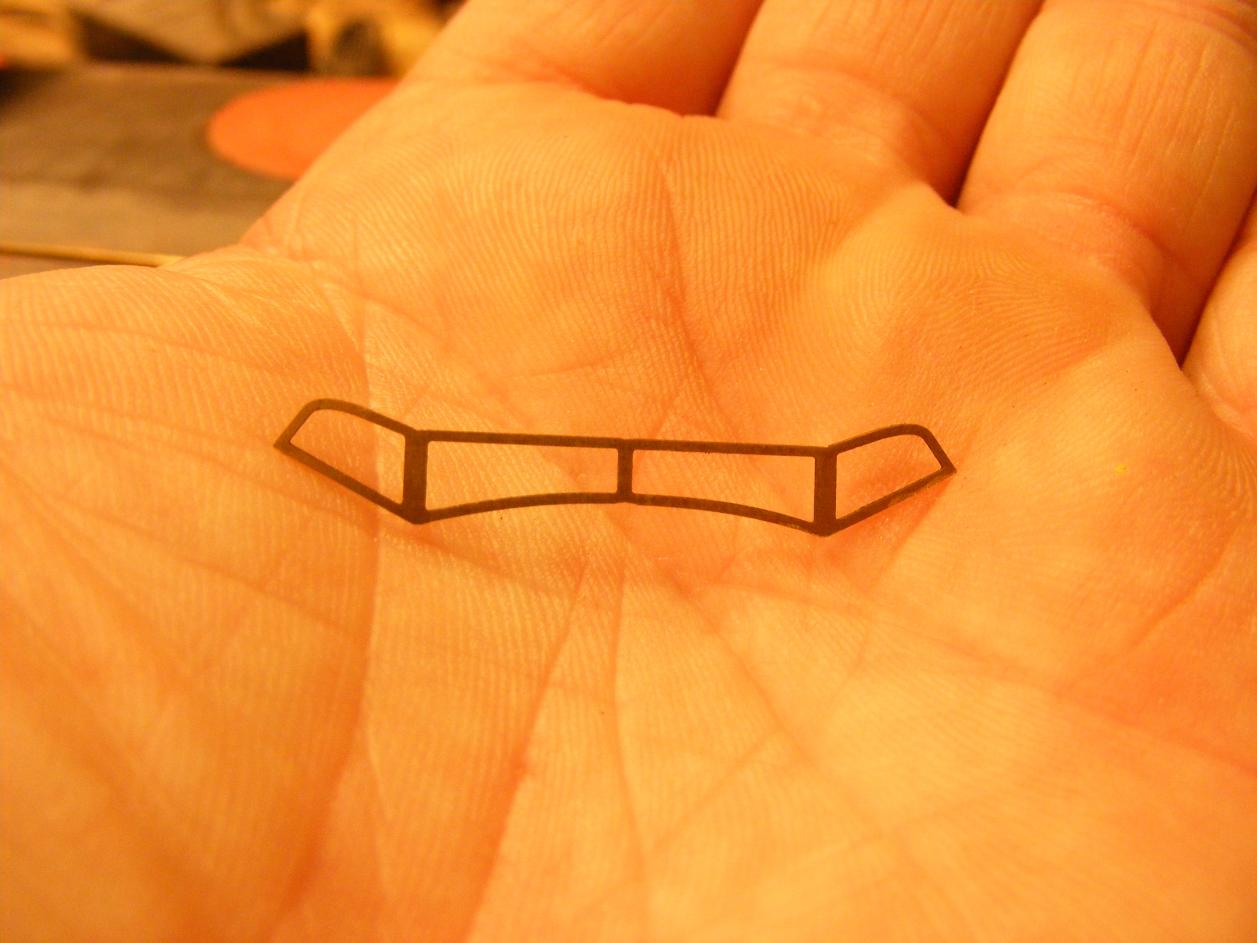

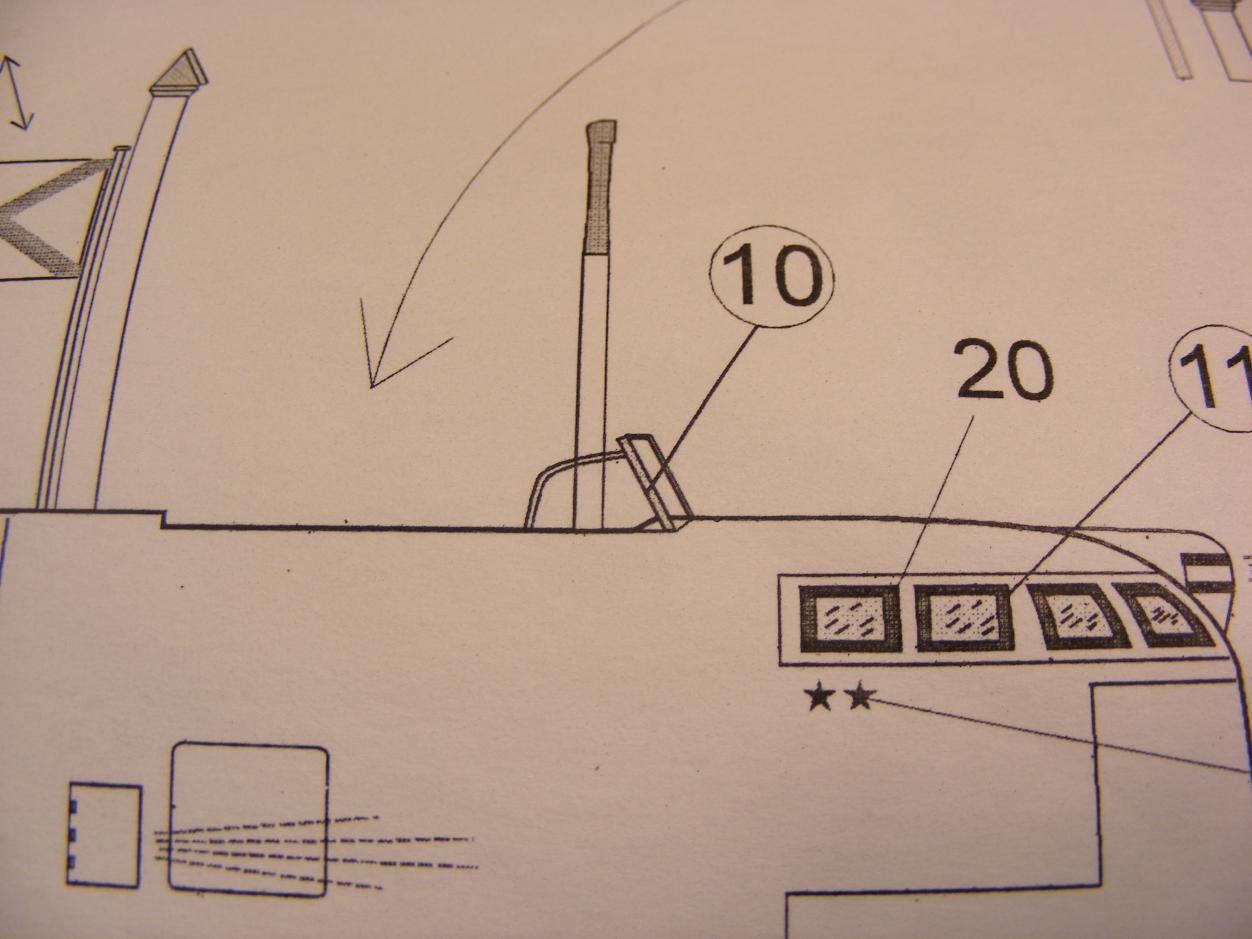

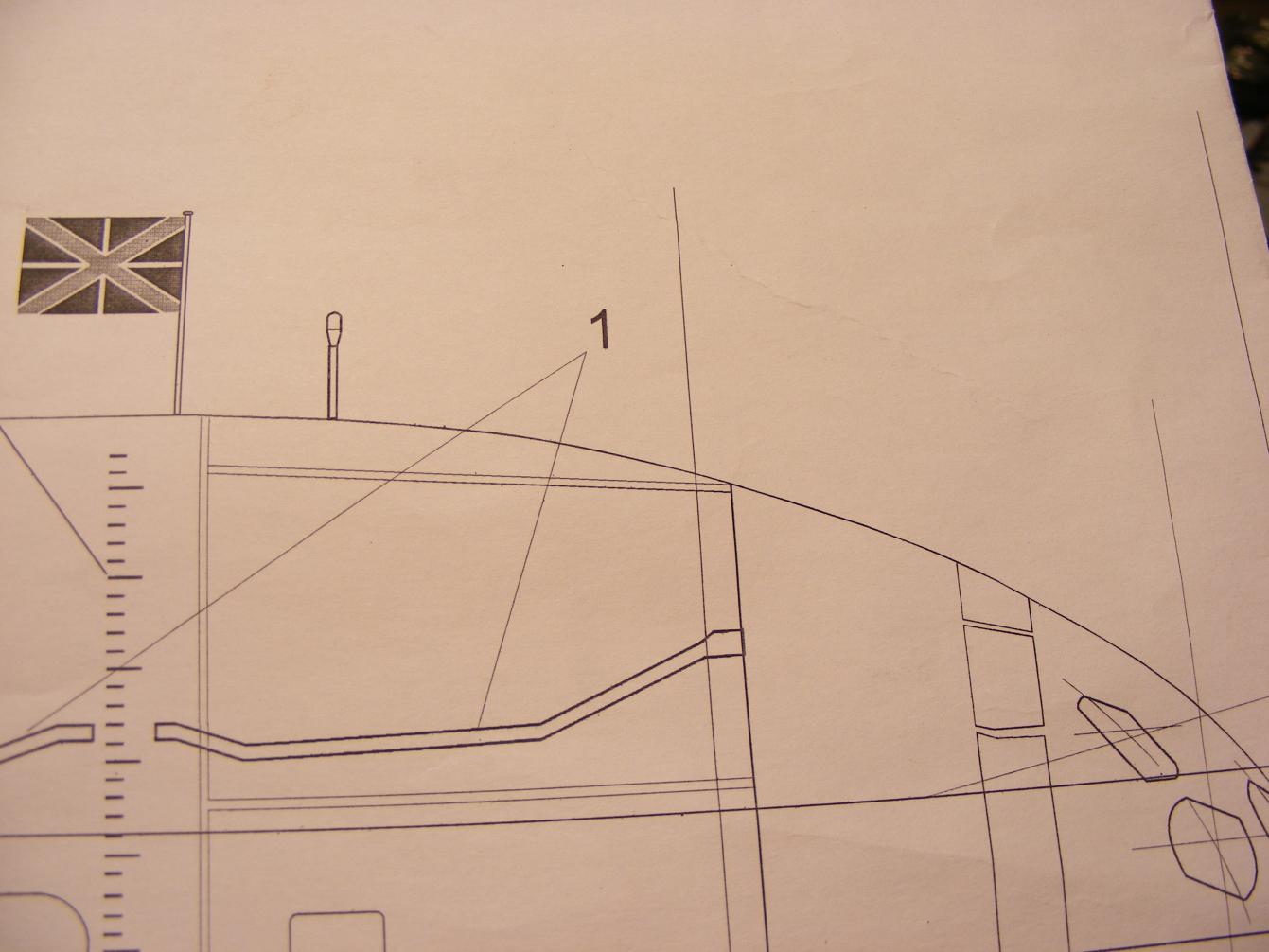

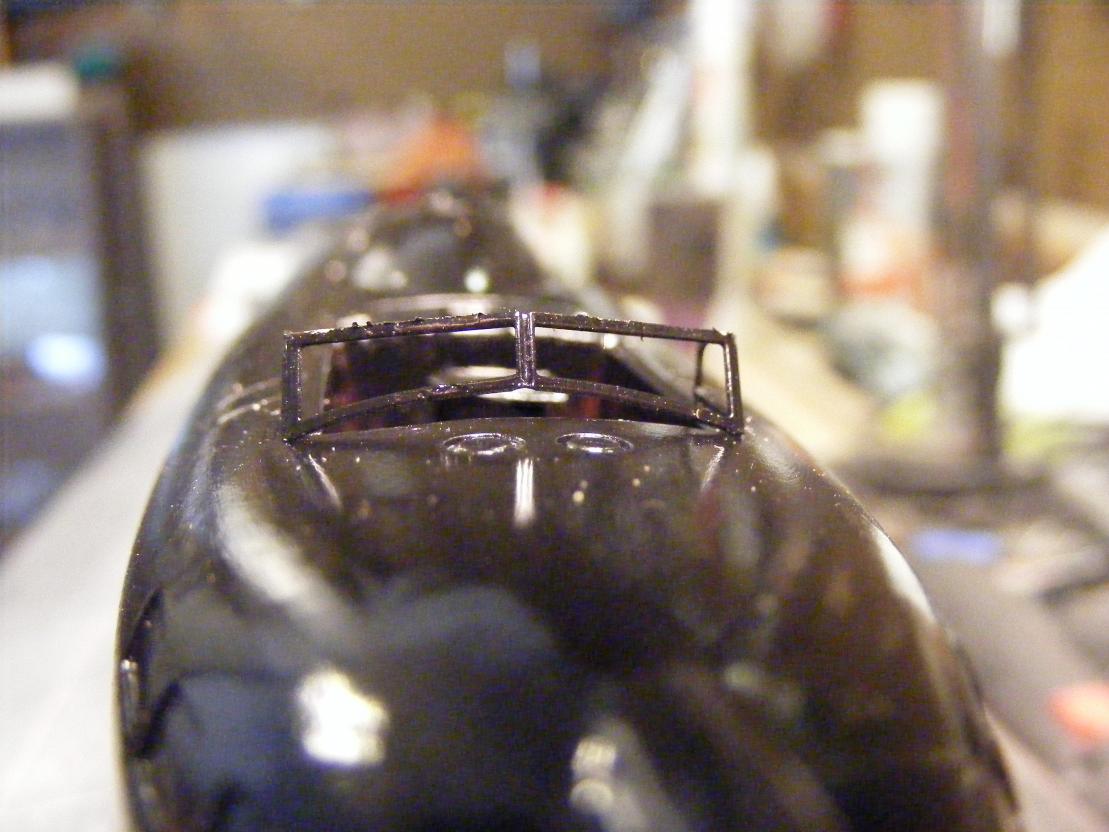

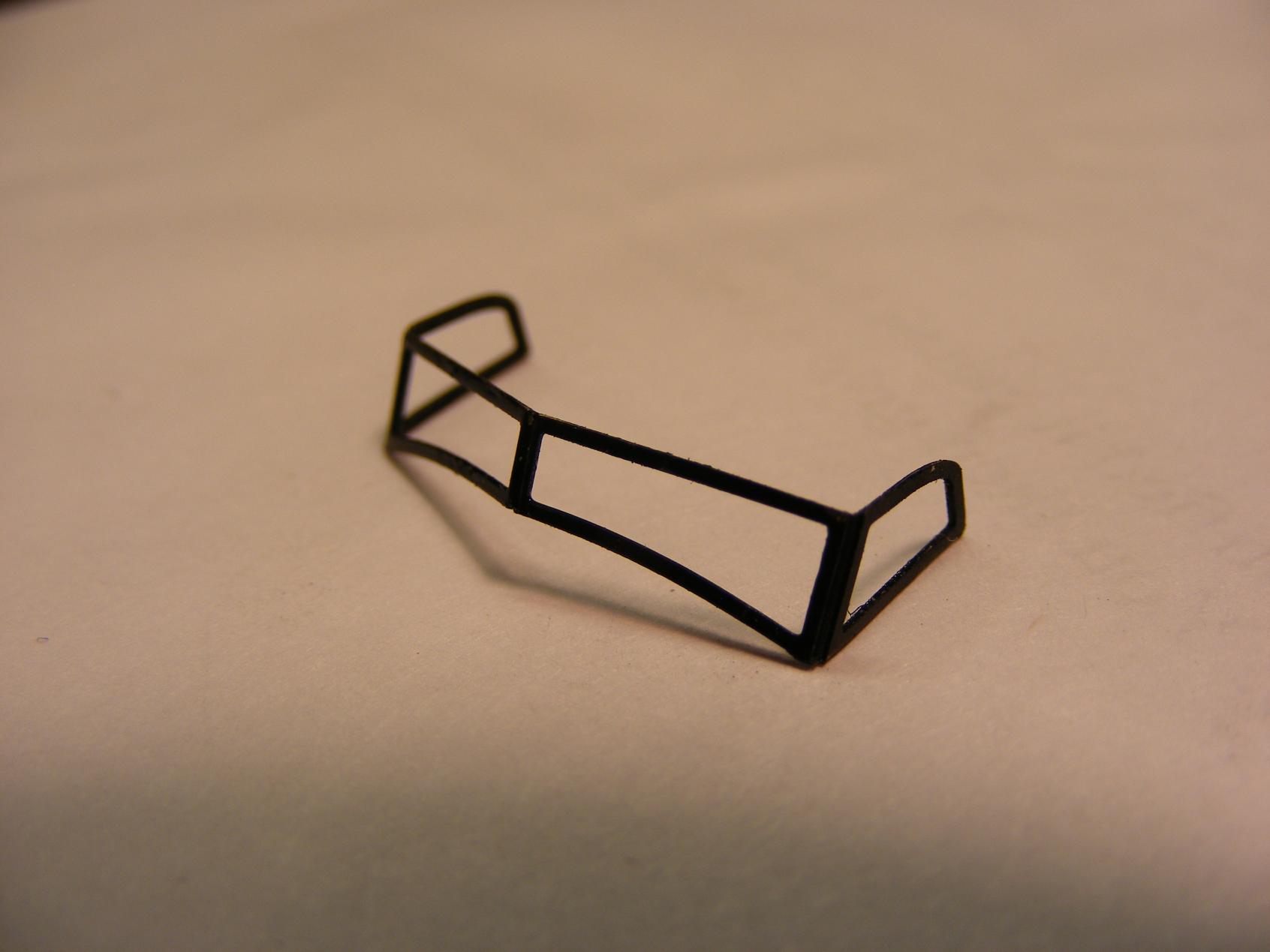

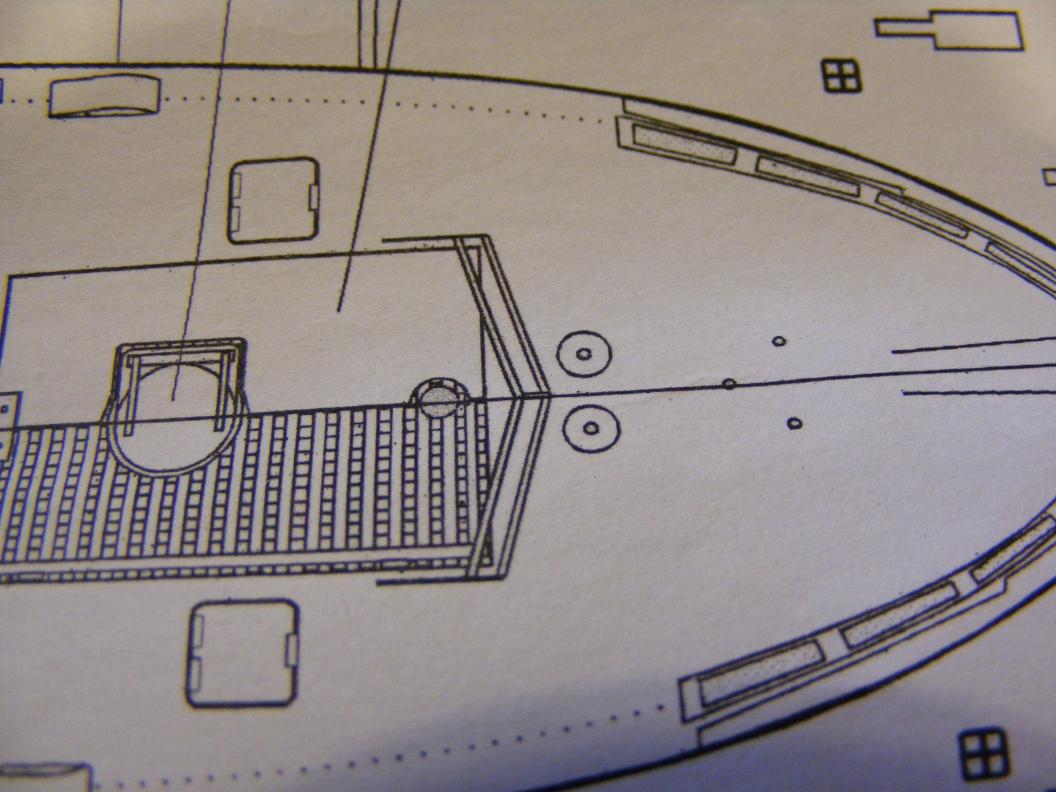

    The windshield for the bridge is seen here in the drawings and is showed installed. Unfortunately it doesnt fit the contour of the top of the sail. Another example of where Scaleships has not done their homework. Hopefully its so small nobody will notice. Once again the gloss paint interferes with a good look at it.Click image for larger version

Name:	Transfer 127.jpg
Views:	1
Size:	89.1 KB
ID:	63775Click image for larger version

Name:	Transfer 128.jpg
Views:	1
Size:	90.6 KB
ID:	63776Click image for larger version

Name:	Transfer 129.jpg
Views:	1
Size:	87.8 KB
ID:	63777Click image for larger version

Name:	Transfer 130.jpg
Views:	1
Size:	93.9 KB
ID:	63778Click image for larger version

Name:	Transfer 131.jpg
Views:	1
Size:	94.4 KB
ID:	63779Click image for larger version

Name:	Transfer 137.jpg
Views:	1
Size:	83.4 KB
ID:	63780
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment


    • #77

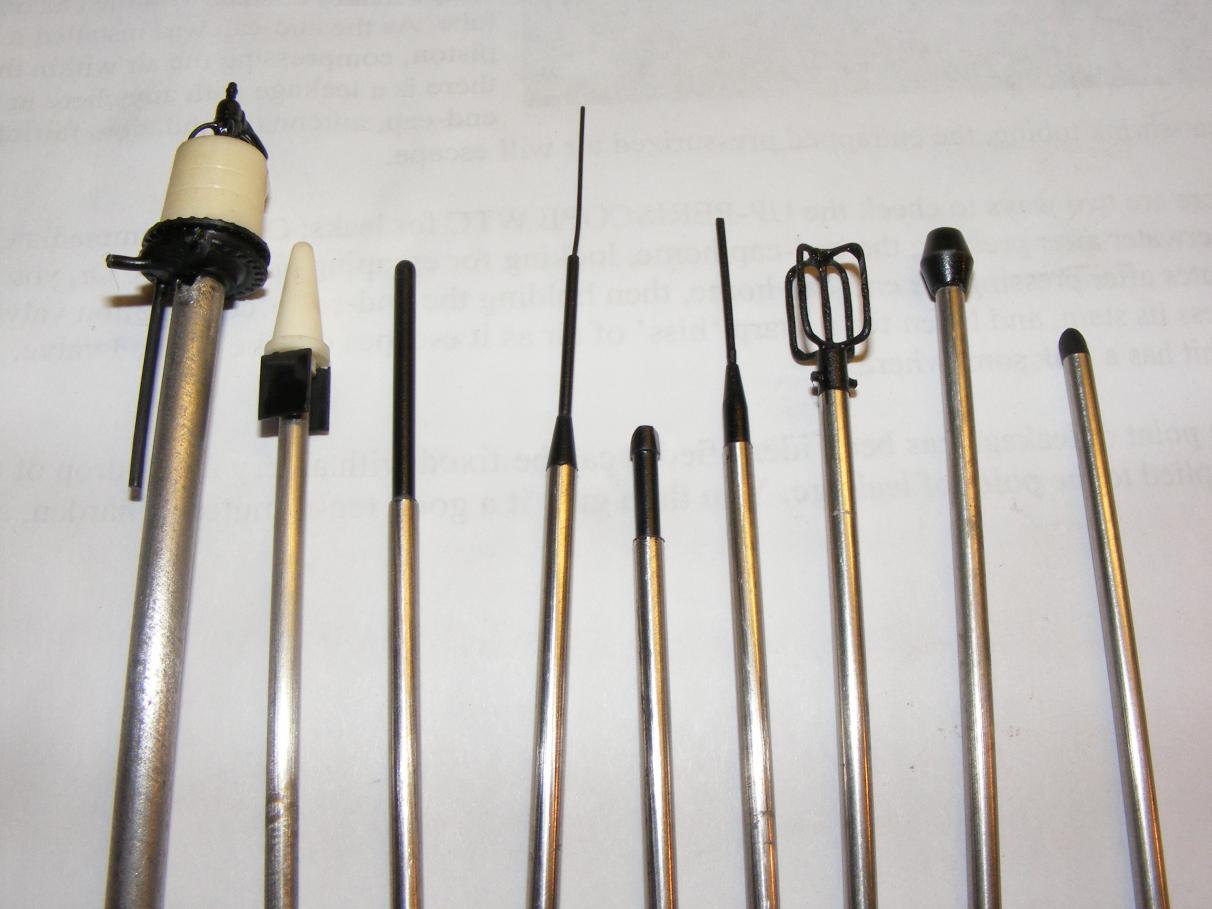

      Masts painted and ready for installClick image for larger version

Name:	Transfer 136.jpg
Views:	1
Size:	88.1 KB
ID:	63781
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment


      • #78

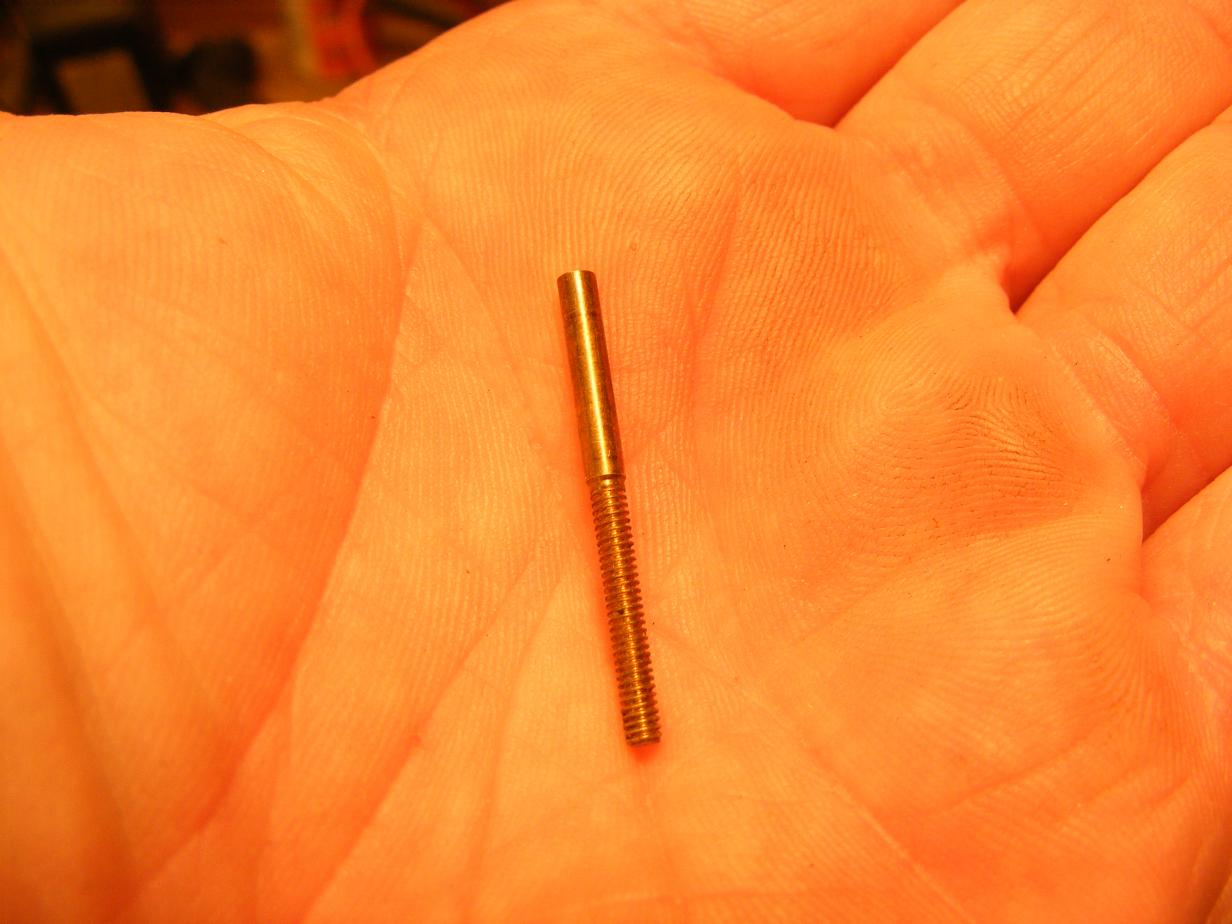

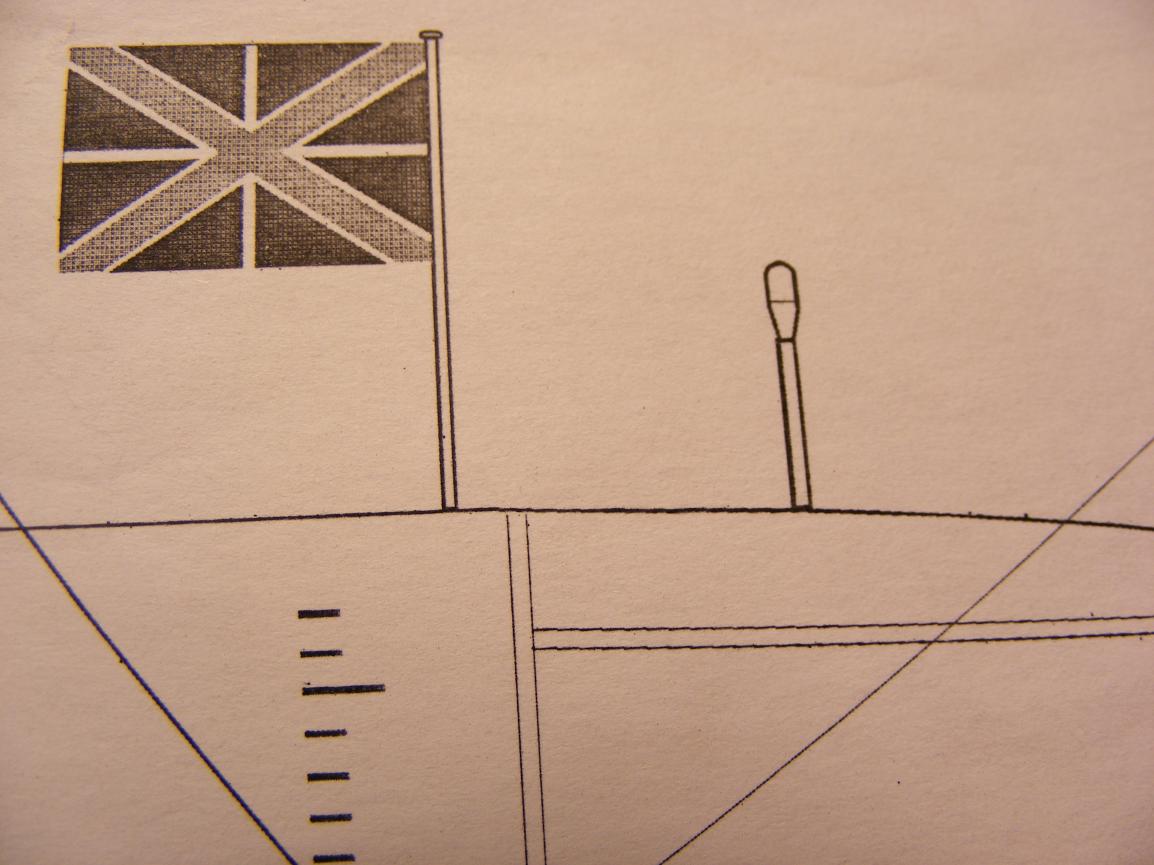

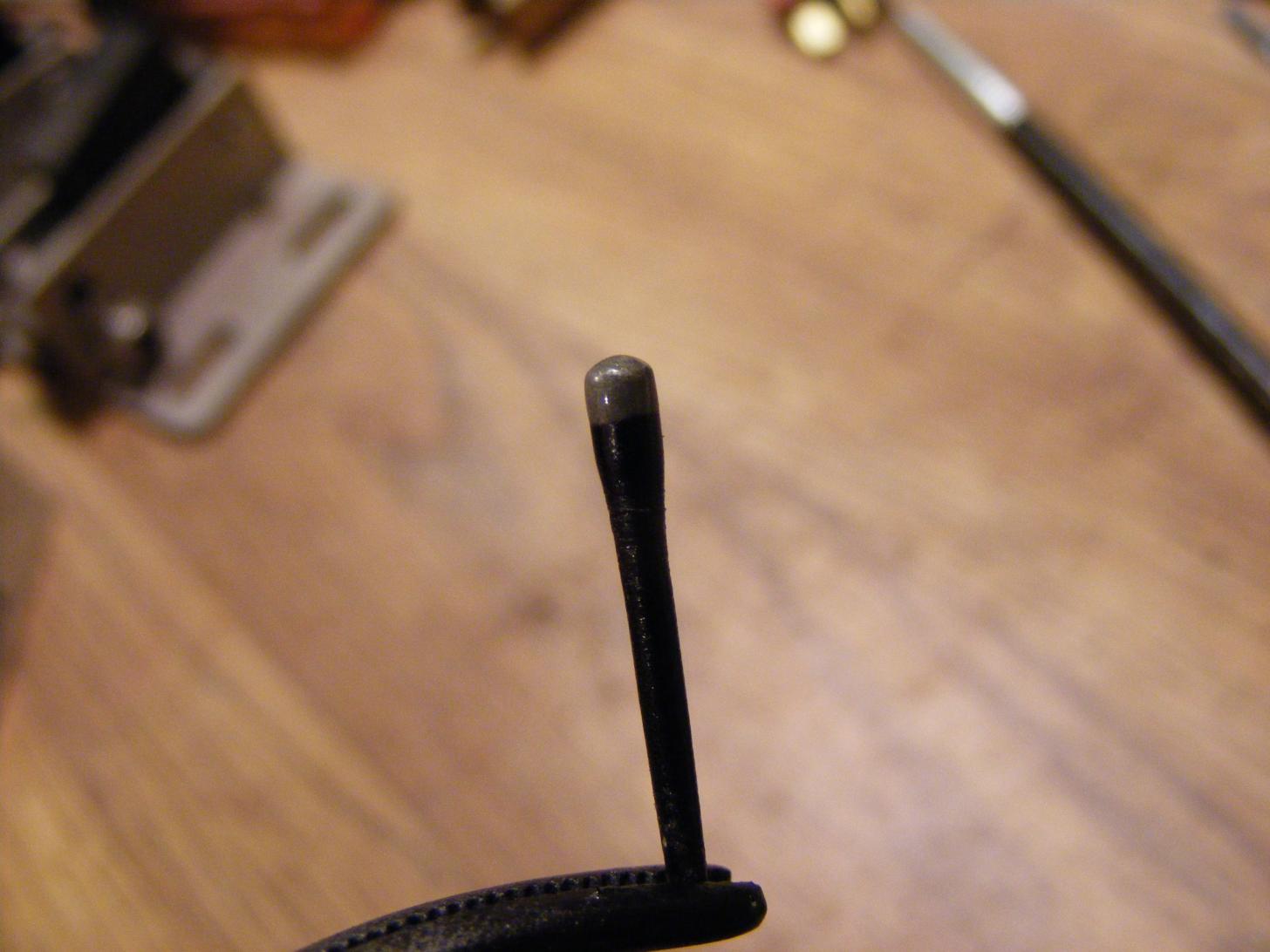

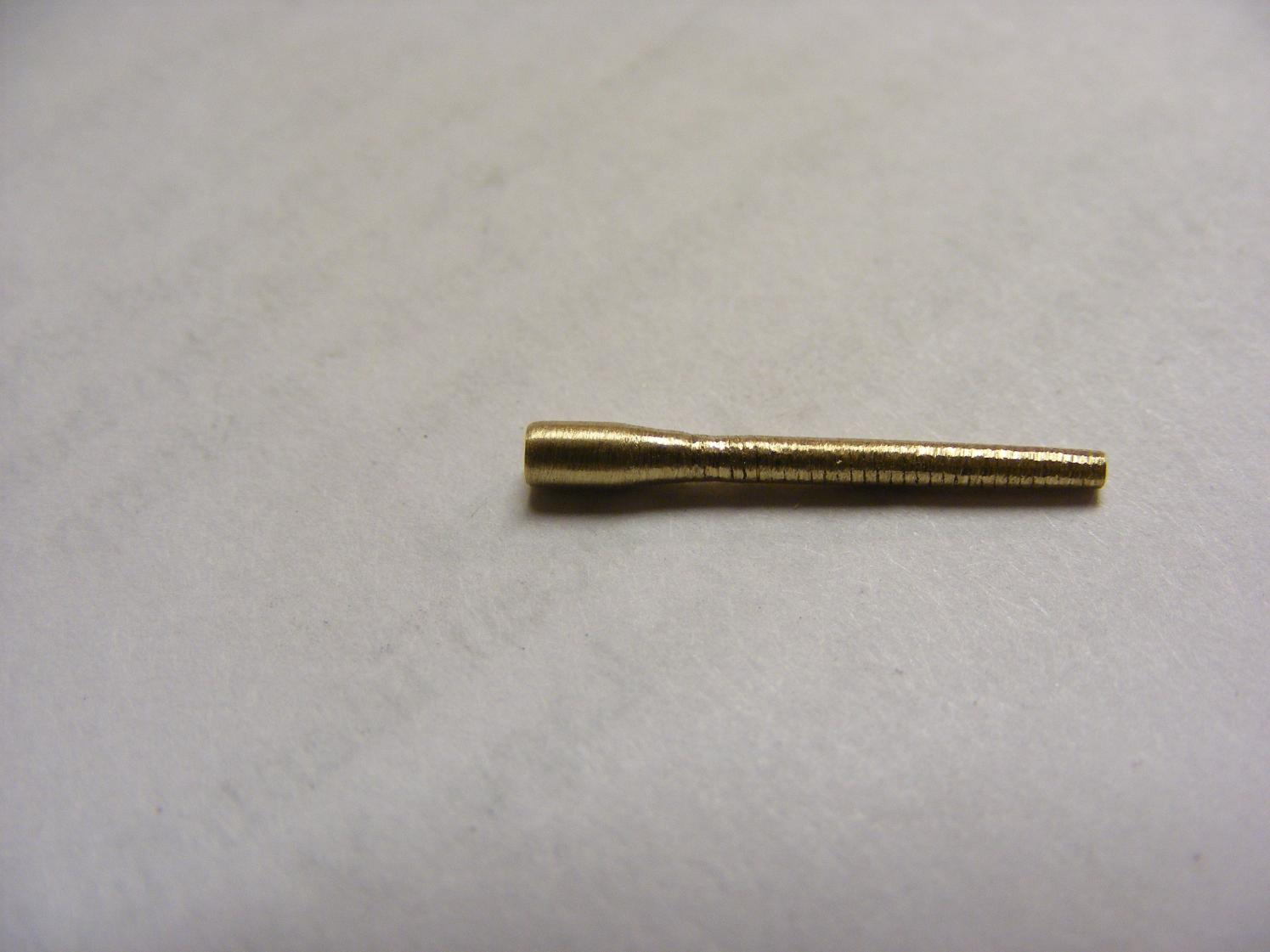

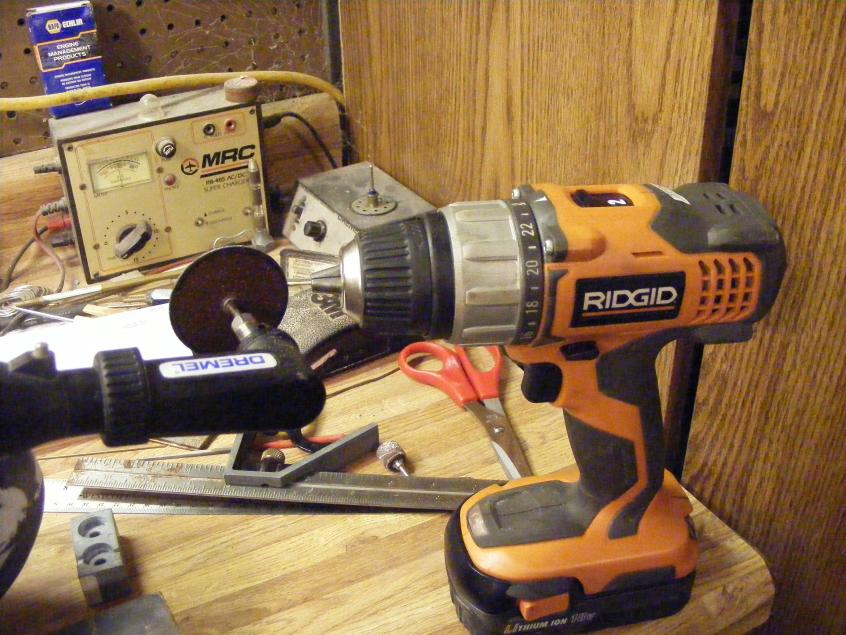

        On the front end of the sub there is a neat looking little antenna. You can see it here in the drawings. To reproduce it you would normally cut one out on a lathe. I dont have one. So, I improvised. I found this threaded brass coupler. Chucking it up in my drill, I used a dremel to cut it down to length and then taper it to the right shape. Later , a little bit of putty to fill in the imperfections and we will be good.Click image for larger version

Name:	Transfer 133.jpg
Views:	1
Size:	89.9 KB
ID:	63782Click image for larger version

Name:	Transfer 134.jpg
Views:	2
Size:	94.6 KB
ID:	63783Click image for larger version

Name:	Transfer 135.jpg
Views:	1
Size:	90.4 KB
ID:	63784Click image for larger version

Name:	Transfer 146.jpg
Views:	1
Size:	96.6 KB
ID:	63785Click image for larger version

Name:	Transfer 145.jpg
Views:	1
Size:	99.0 KB
ID:	63786
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment


        • #79

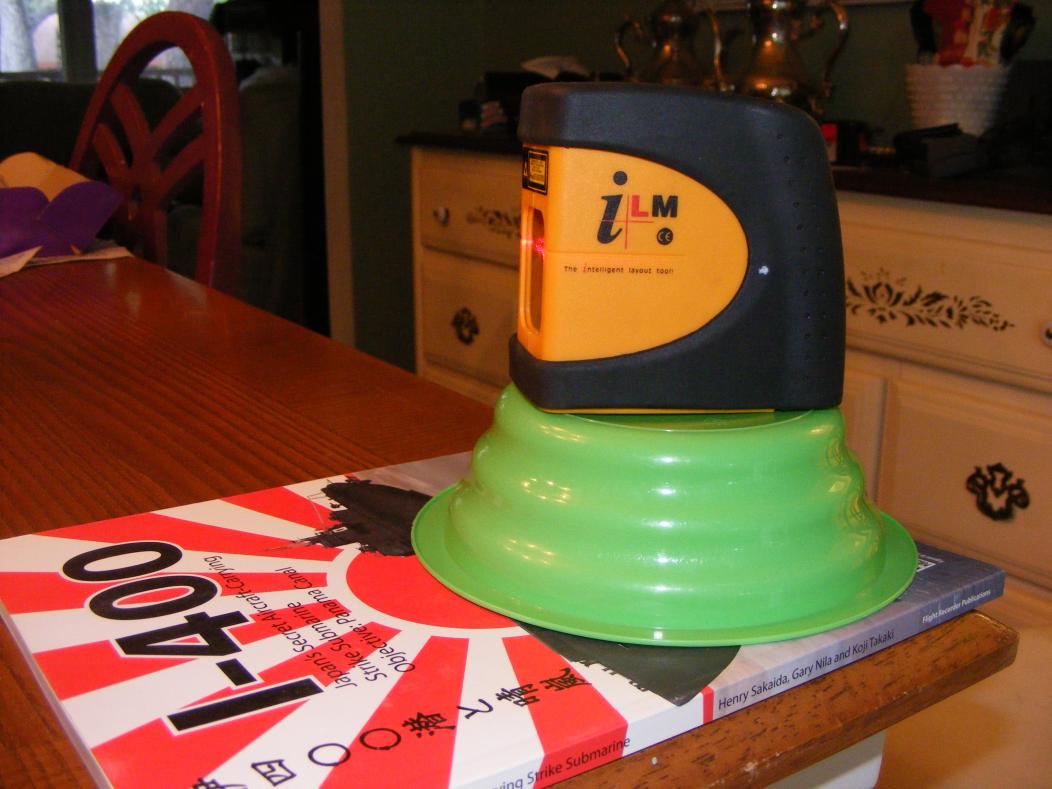

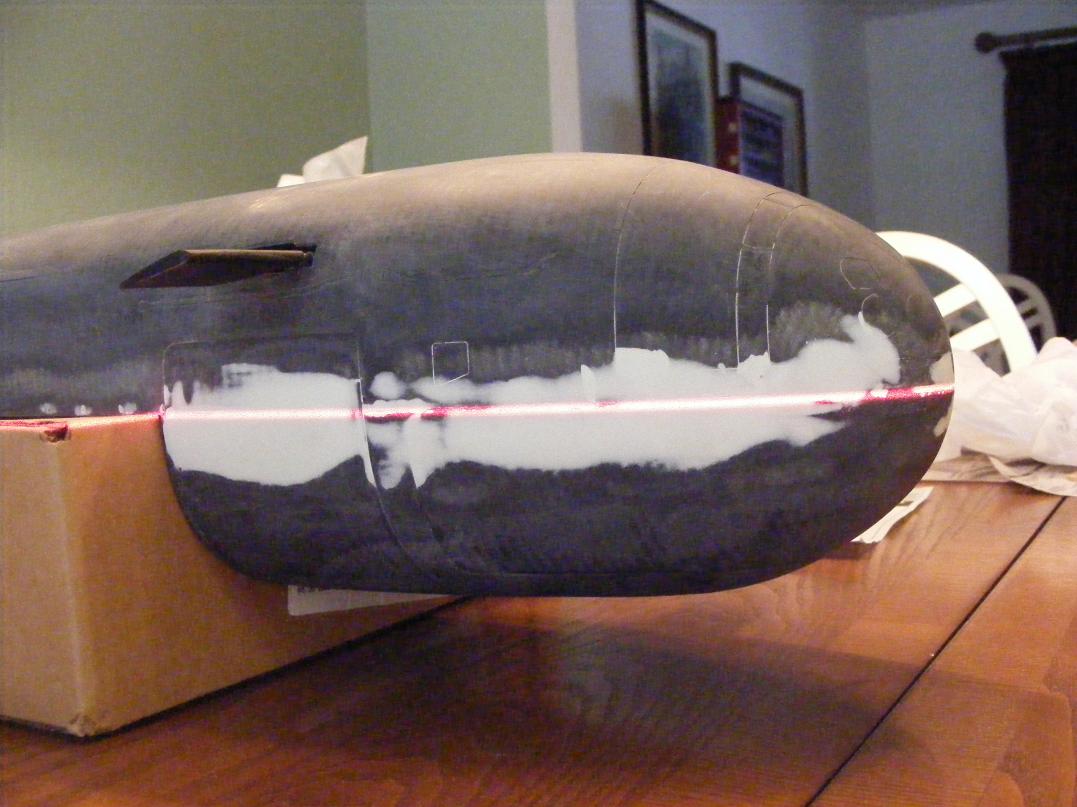

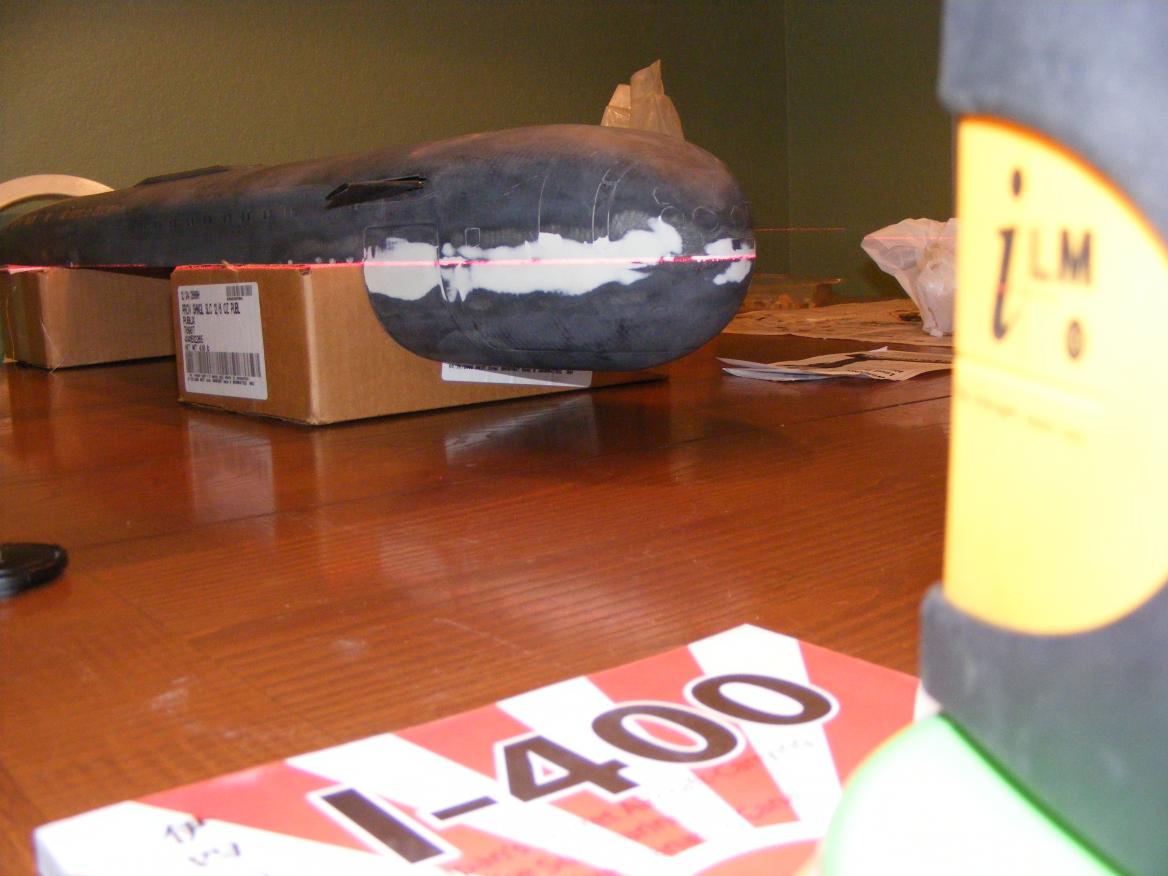

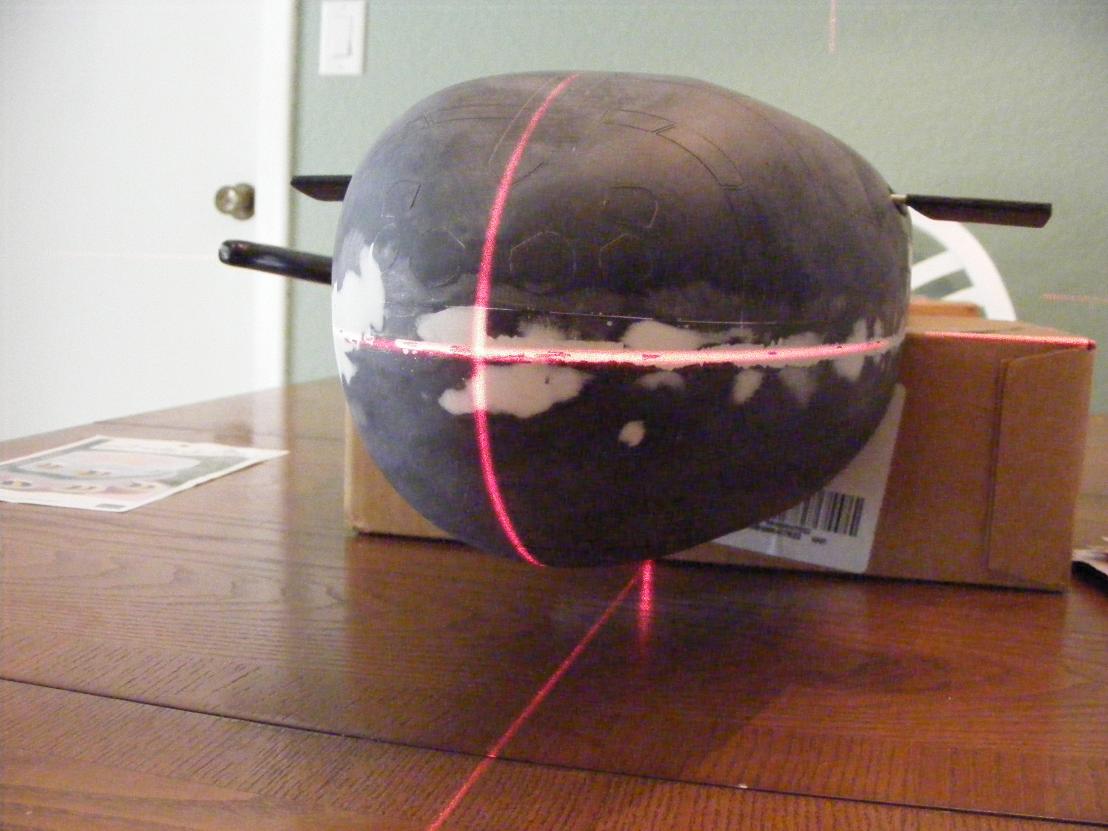

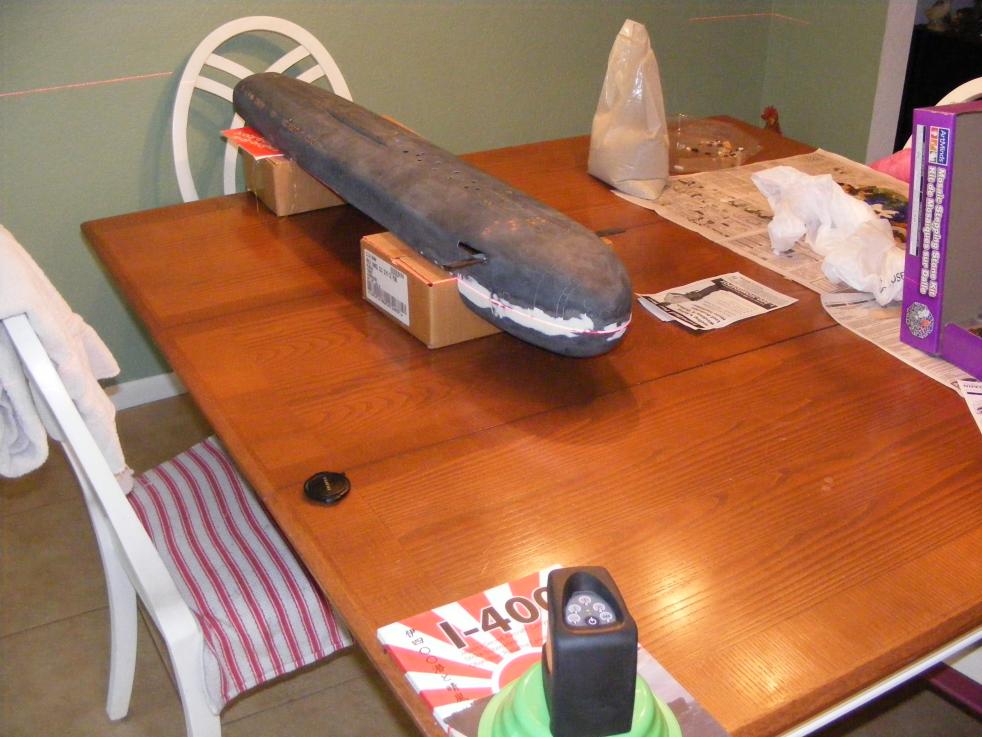

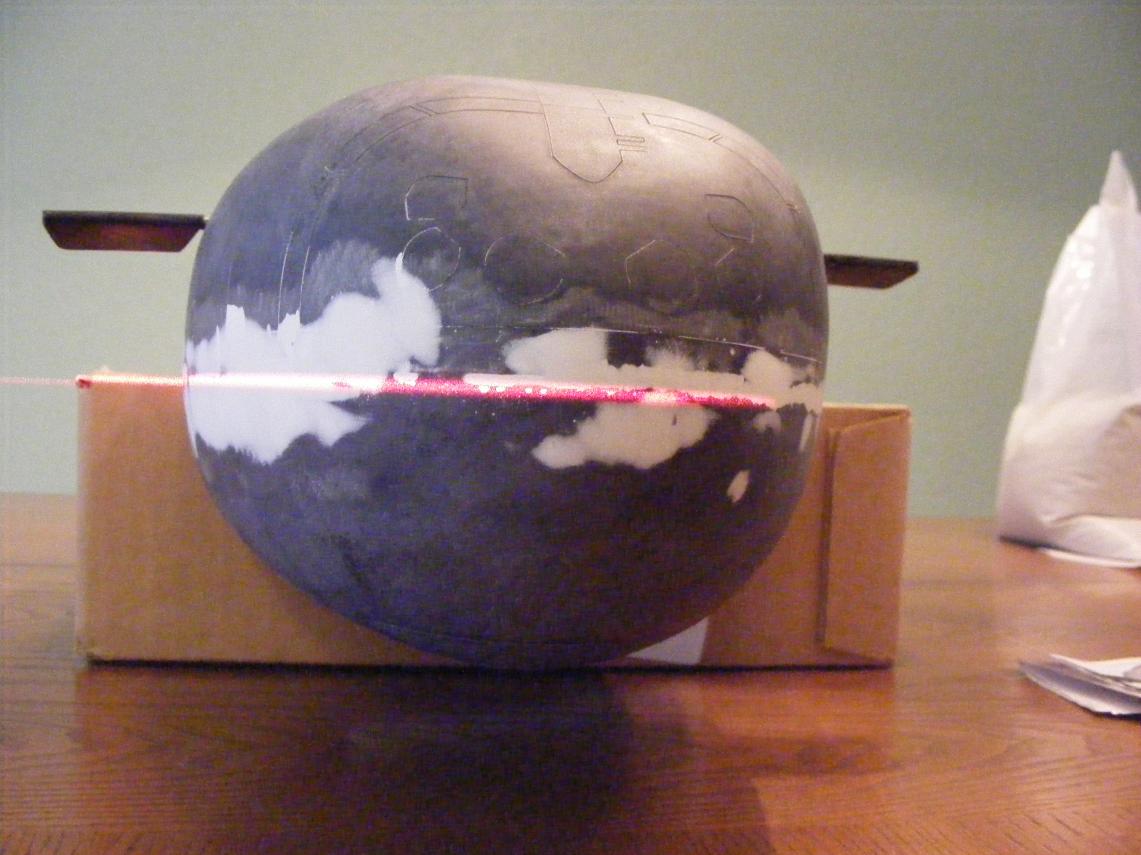

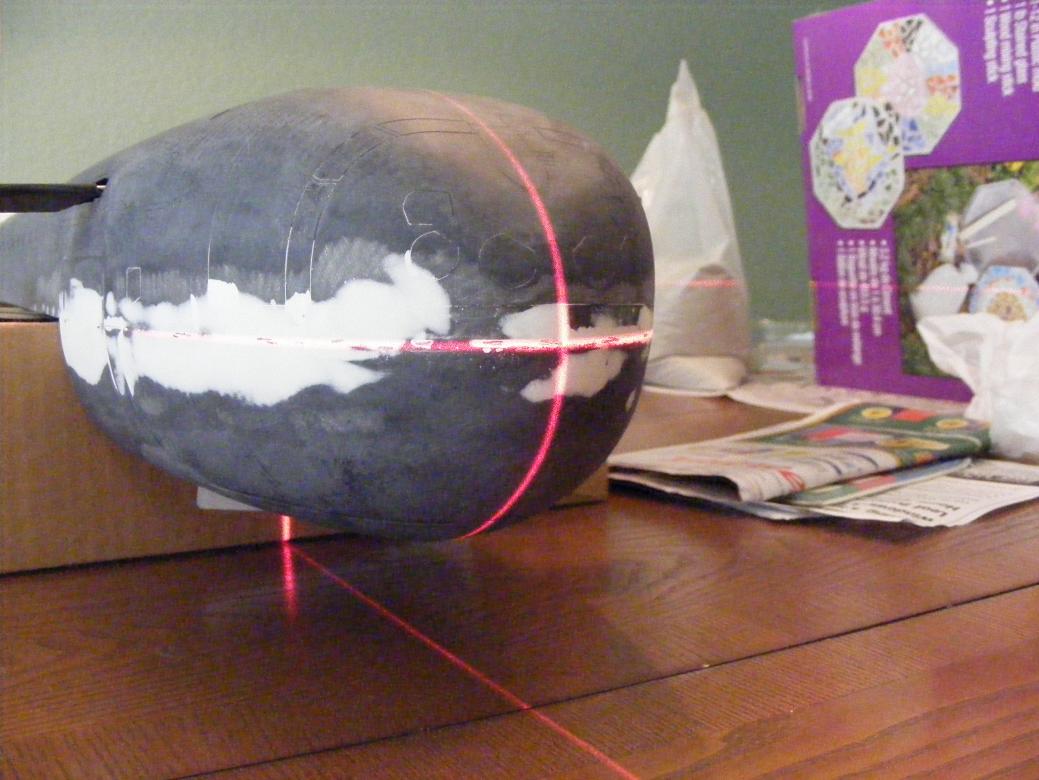

          After filing in the seam of the upper and lower bow halves, guess what? I can no longer see where to mask for painting. So, using a Laser level I put some marks on the model to mask from. Here you can see it on the kitchen table and I have already leveled the model. After shimming both the model and the height of the level I have a accurate line that I used to make my reference marks.Click image for larger version

Name:	Transfer 138.jpg
Views:	1
Size:	89.0 KB
ID:	63888Click image for larger version

Name:	Transfer 139.jpg
Views:	1
Size:	89.3 KB
ID:	63889Click image for larger version

Name:	Transfer 140.jpg
Views:	1
Size:	93.6 KB
ID:	63890Click image for larger version

Name:	Transfer 141.jpg
Views:	1
Size:	97.2 KB
ID:	63891Click image for larger version

Name:	Transfer 142.jpg
Views:	1
Size:	95.0 KB
ID:	63892Click image for larger version

Name:	Transfer 143.jpg
Views:	1
Size:	94.5 KB
ID:	63893Click image for larger version

Name:	Transfer 144.jpg
Views:	1
Size:	93.3 KB
ID:	63894
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment


          • #80

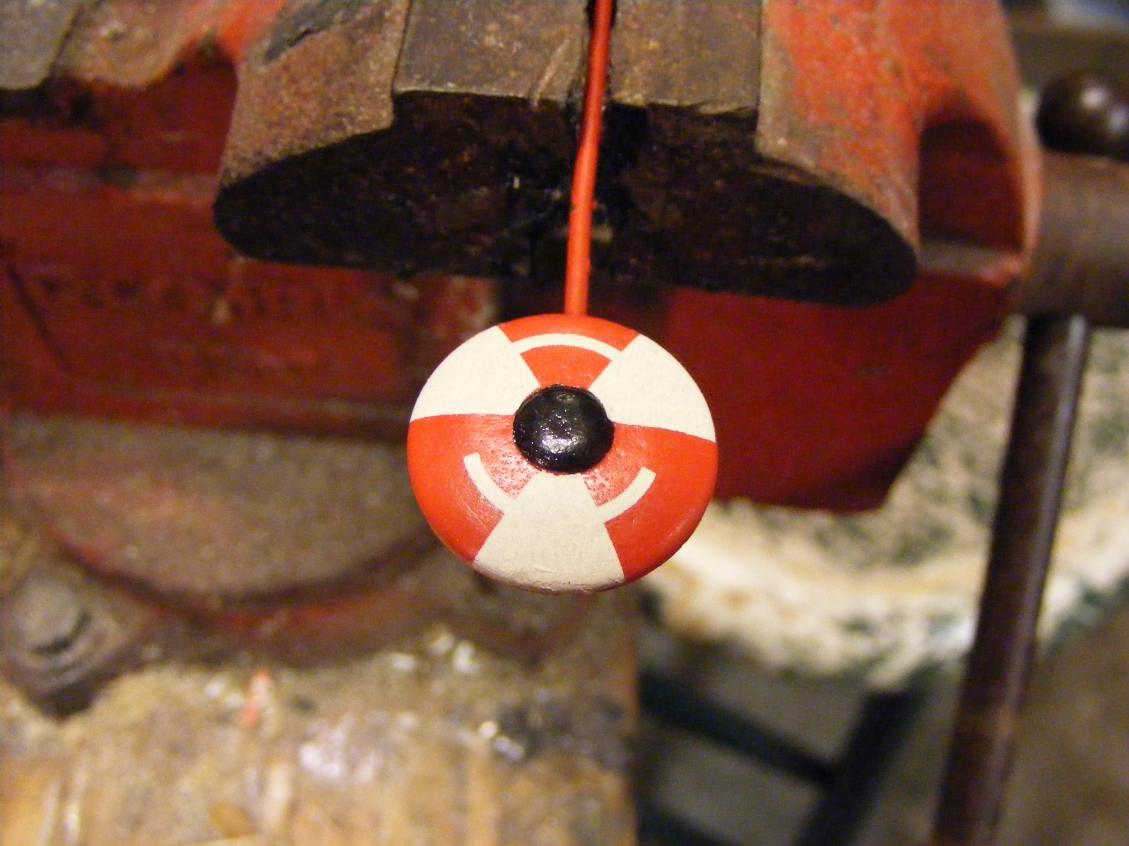

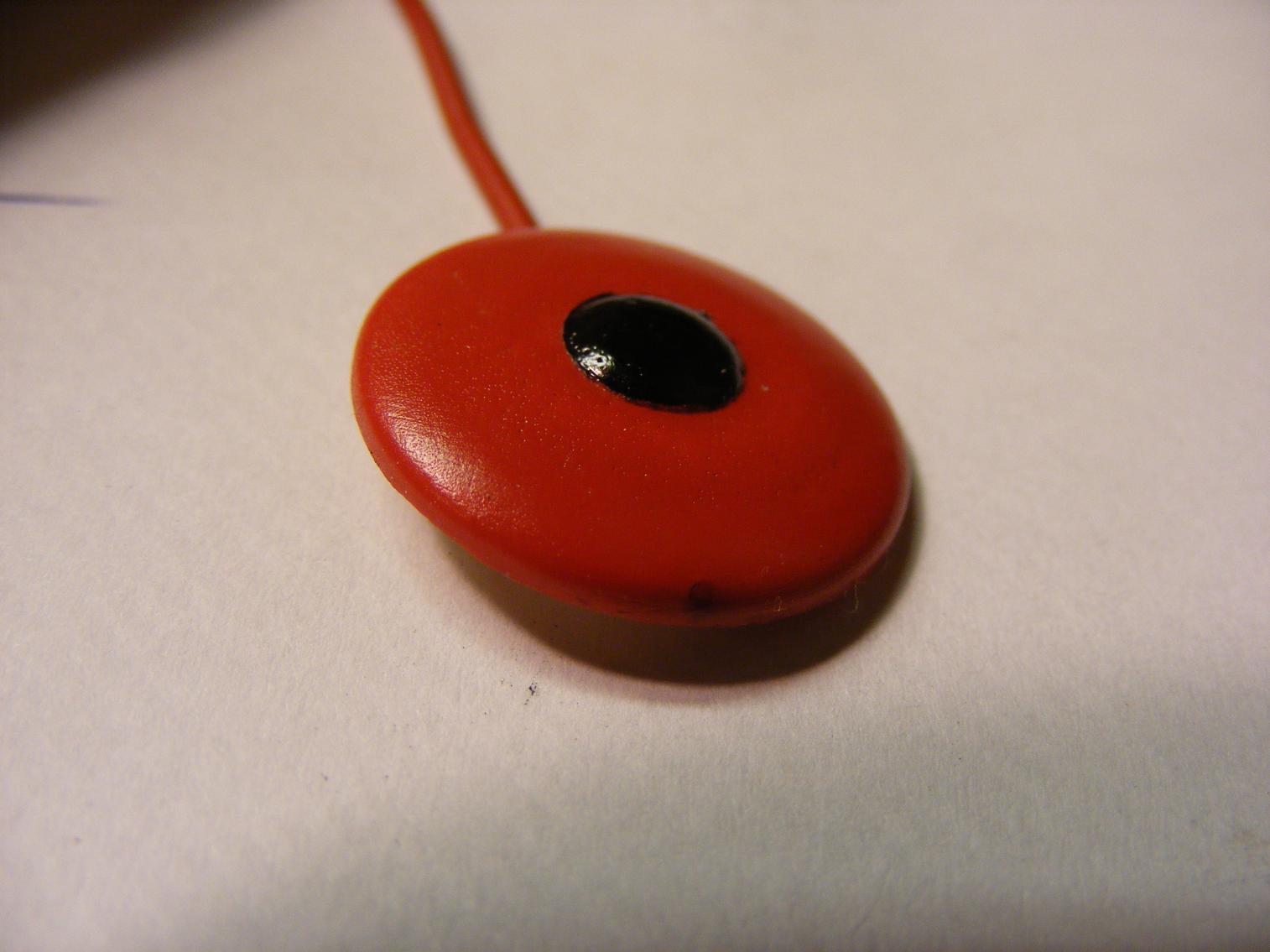

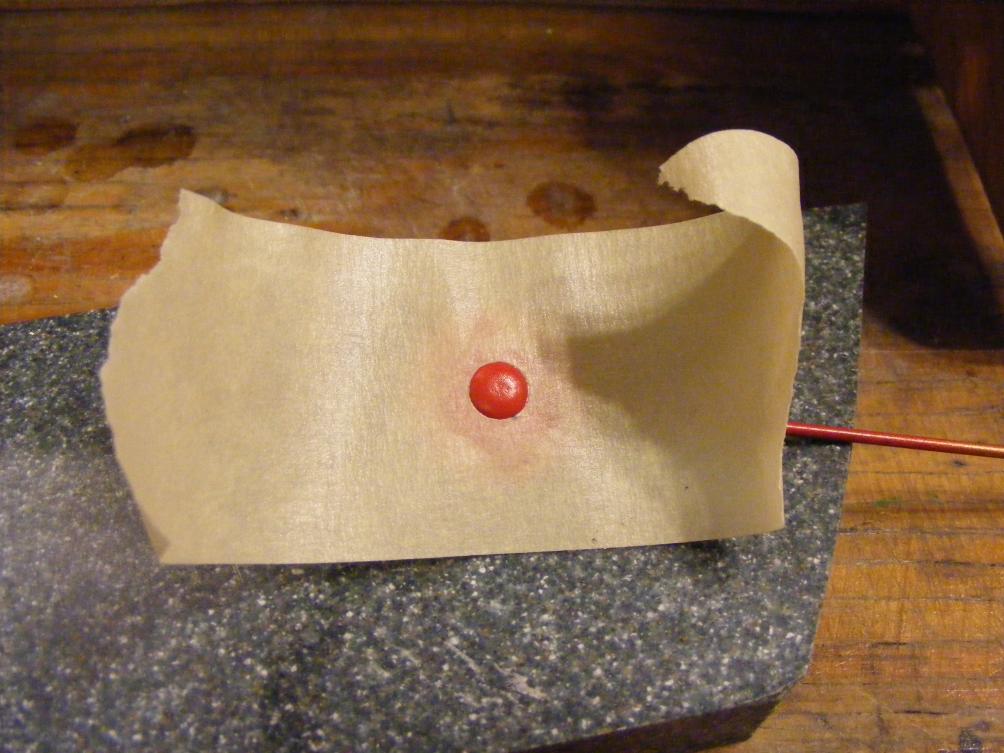

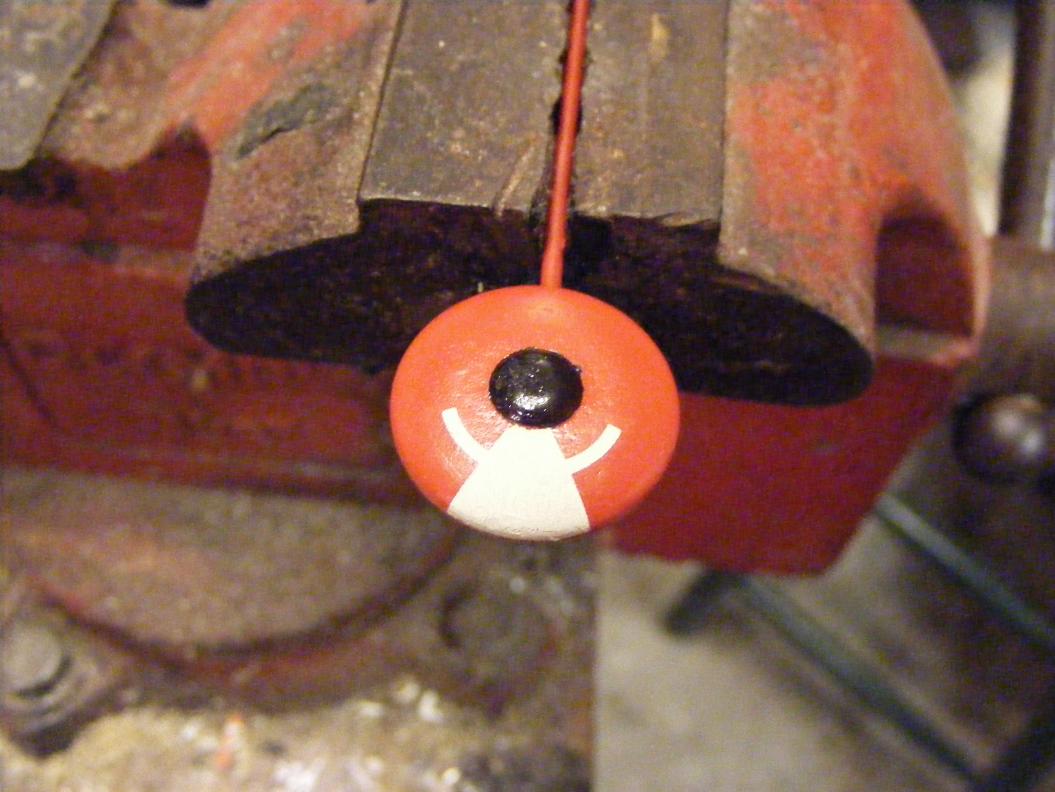

            Here is the escape bouy marker in various stages of masking and painting. Came out pretty good. Thanks again Kevin, its perfect.Click image for larger version

Name:	Transfer 161.jpg
Views:	1
Size:	91.0 KB
ID:	63903Click image for larger version

Name:	Transfer 162.jpg
Views:	1
Size:	89.8 KB
ID:	63904Click image for larger version

Name:	Transfer 163.jpg
Views:	1
Size:	94.4 KB
ID:	63905Click image for larger version

Name:	Transfer 164.jpg
Views:	1
Size:	93.9 KB
ID:	63906Click image for larger version

Name:	Transfer 165.jpg
Views:	1
Size:	97.8 KB
ID:	63907Click image for larger version

Name:	Transfer 169.jpg
Views:	1
Size:	93.6 KB
ID:	63908Click image for larger version

Name:	Transfer 170.jpg
Views:	1
Size:	91.2 KB
ID:	63909
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment


            • #81

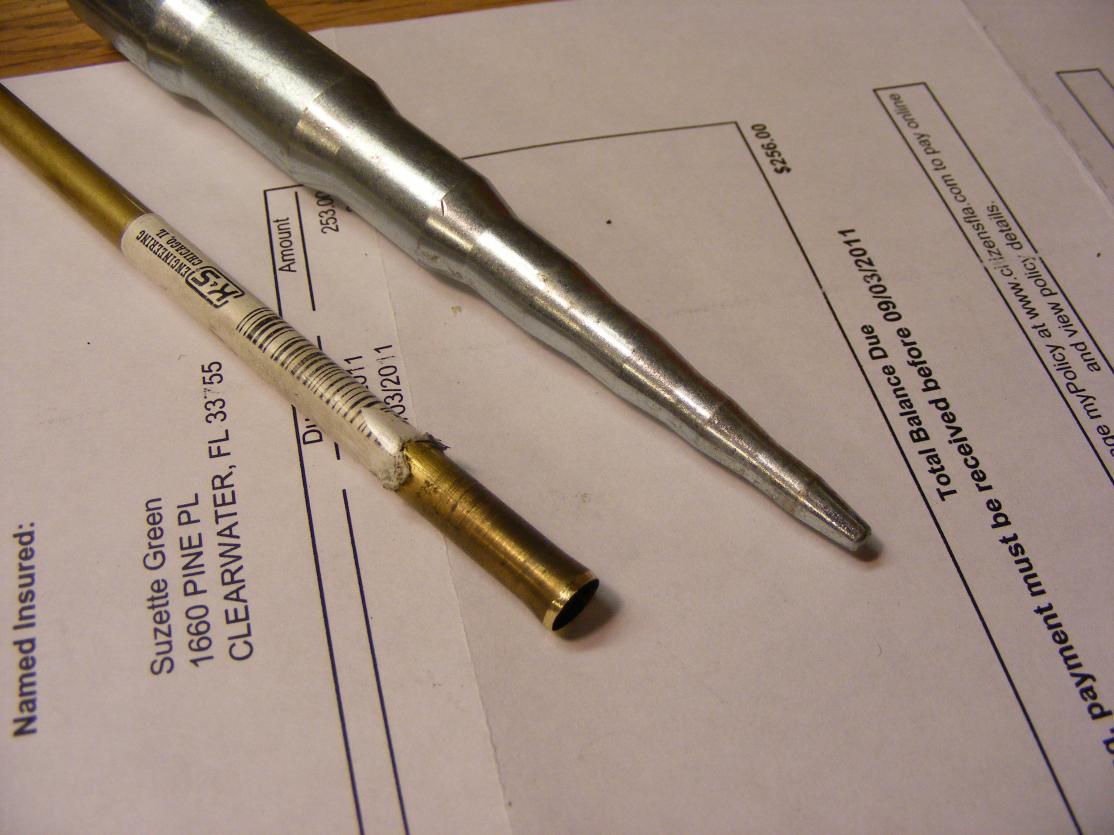

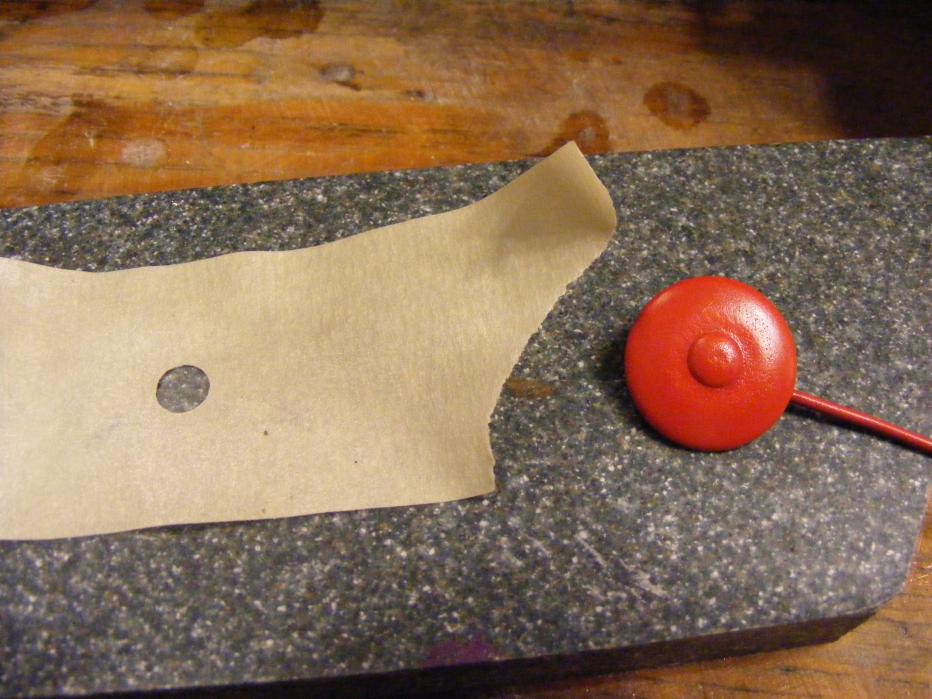

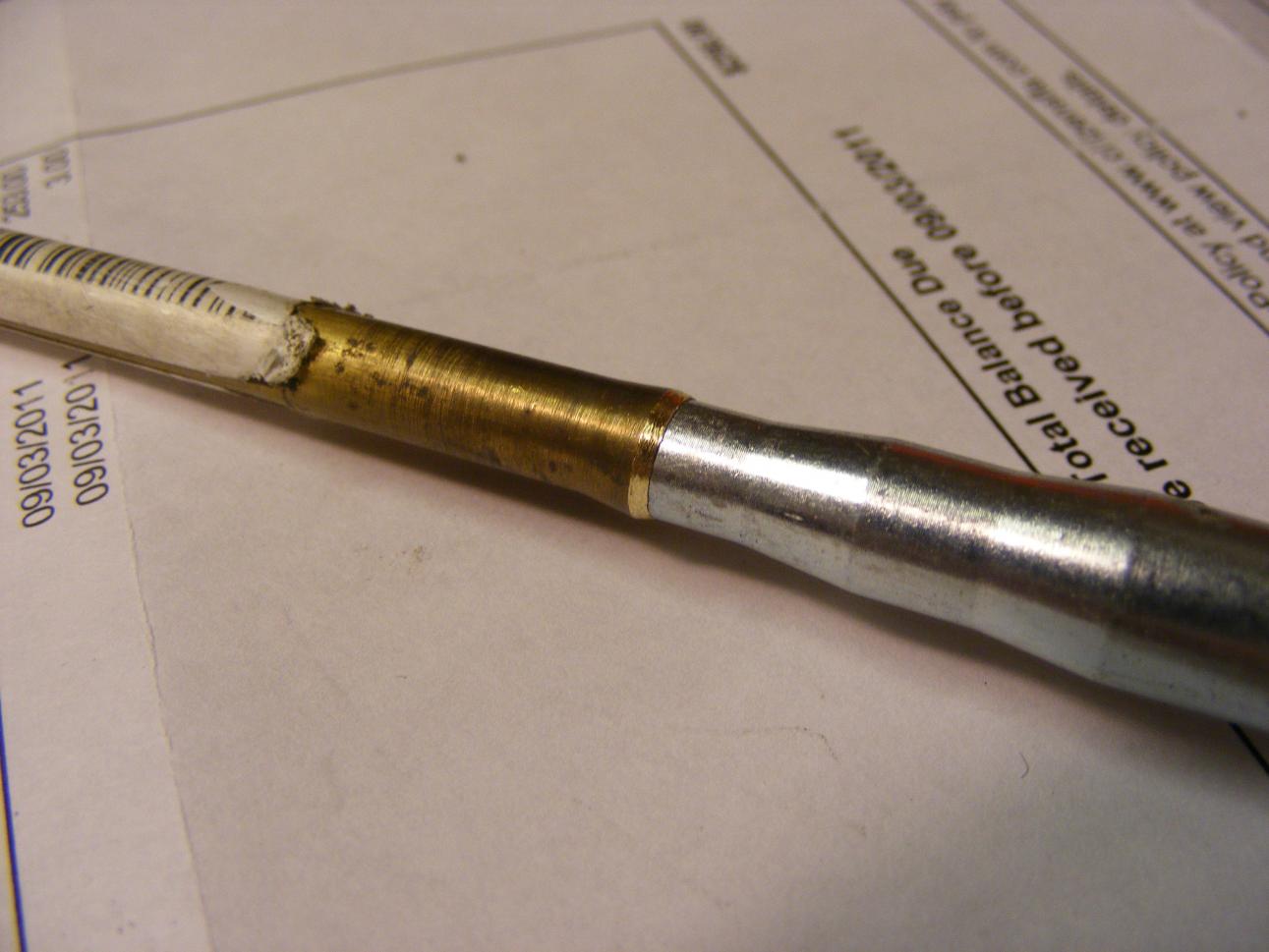

              The top two pictures show a 1/4" brass tube and the expansion tool that I used to flare the end just a little to make it the right size to cut out a hole in the masking tape to properly mask the center button on the part so I could paint it black. After these shots were taken I went back over it with a needle sharp paint brush to touch up that button as there were a couple of spots where the black paint bled thru onto the red.
              Last edited by greenman407; 08-30-2011, 10:48 AM.
              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

              Comment


              • #82

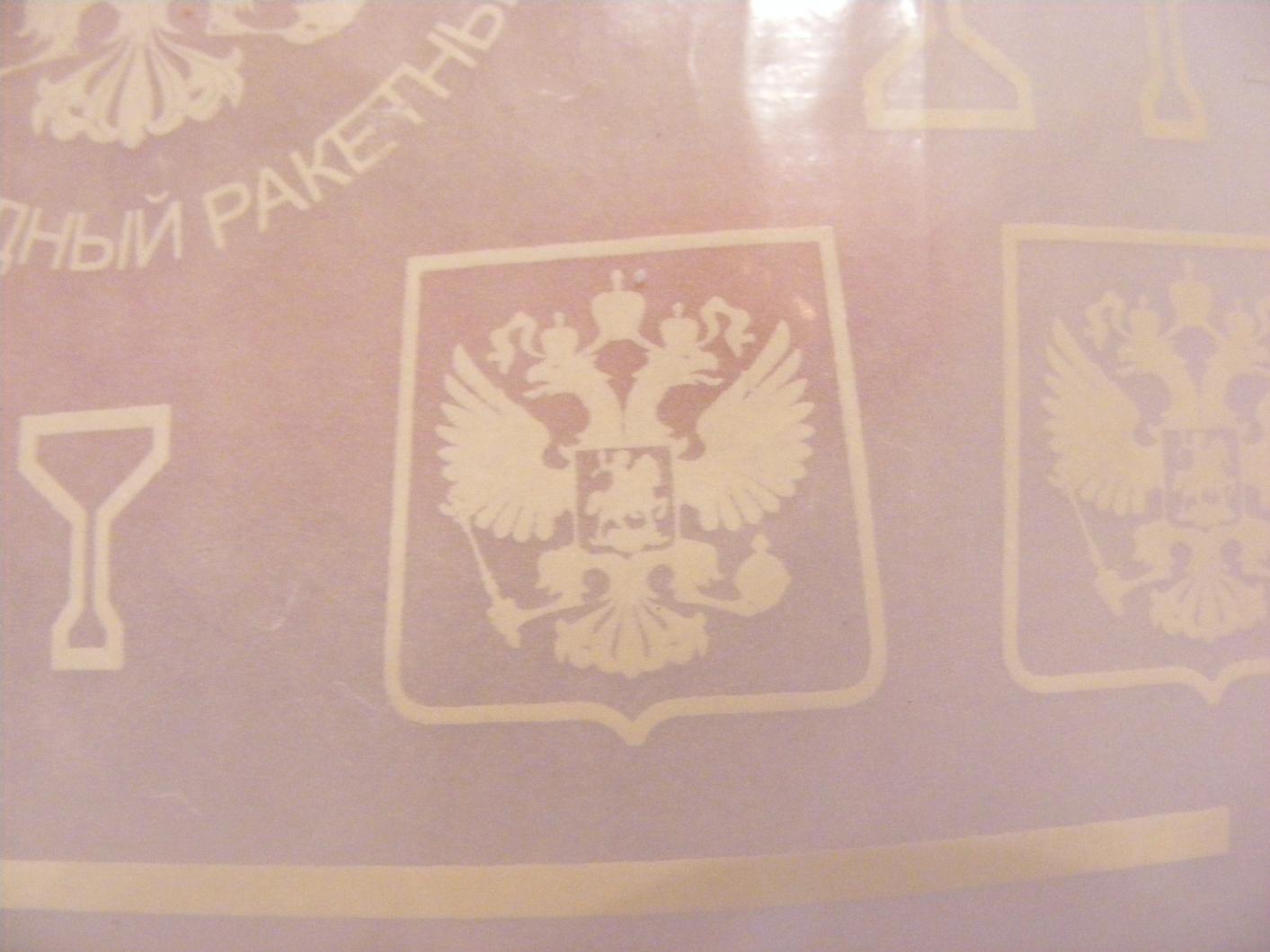

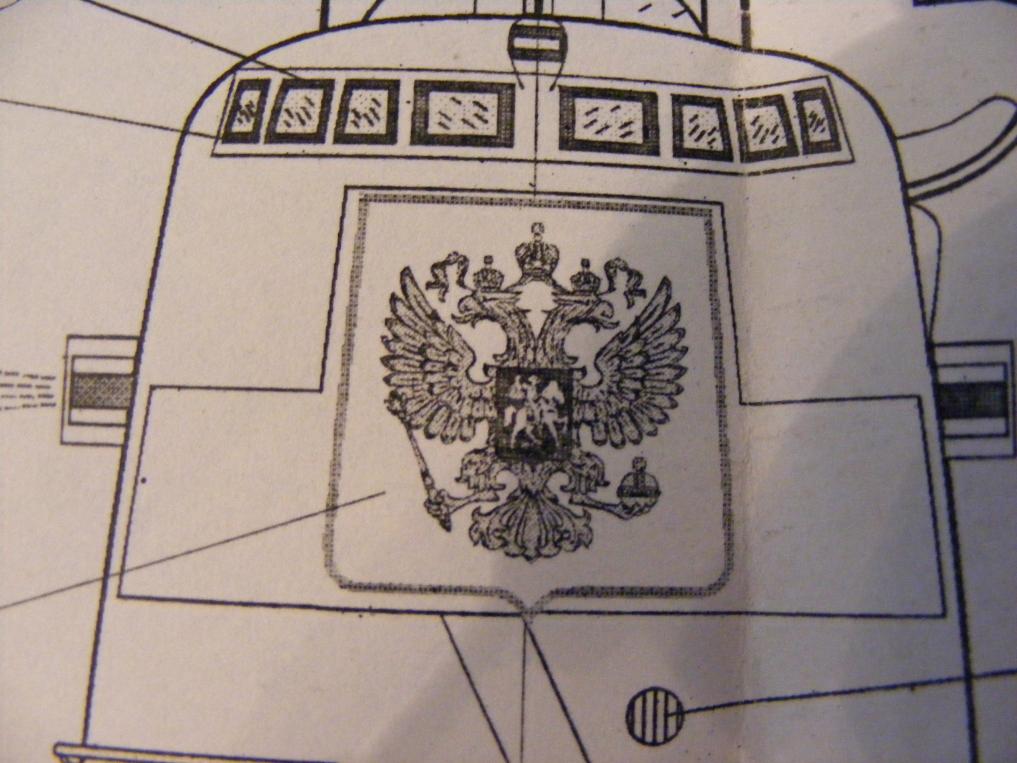

                In order to do this front crest I needed to paint a red background the exact size as the drytransfer decal. Here it is pictured in the drawing.Click image for larger version

Name:	Transfer 007.jpg
Views:	2
Size:	91.2 KB
ID:	63910Click image for larger version

Name:	Transfer 008.jpg
Views:	2
Size:	99.0 KB

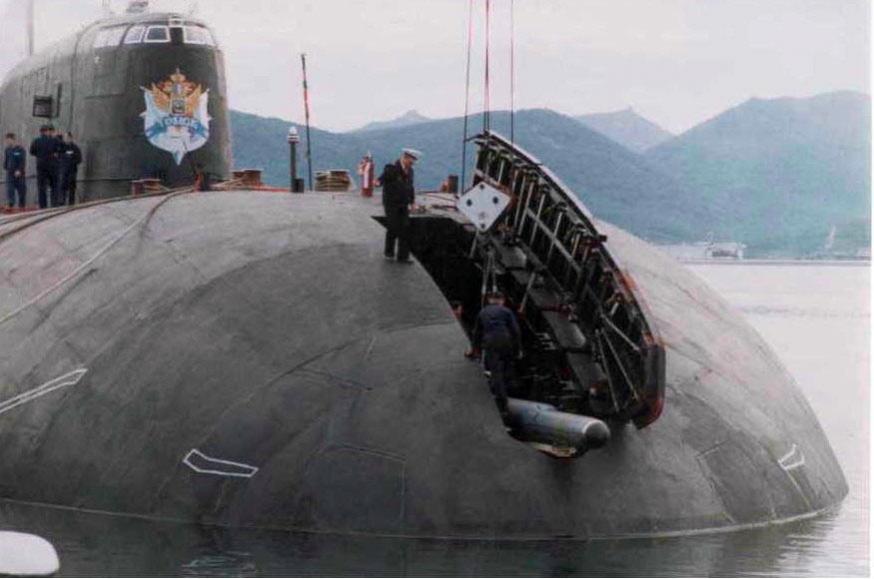

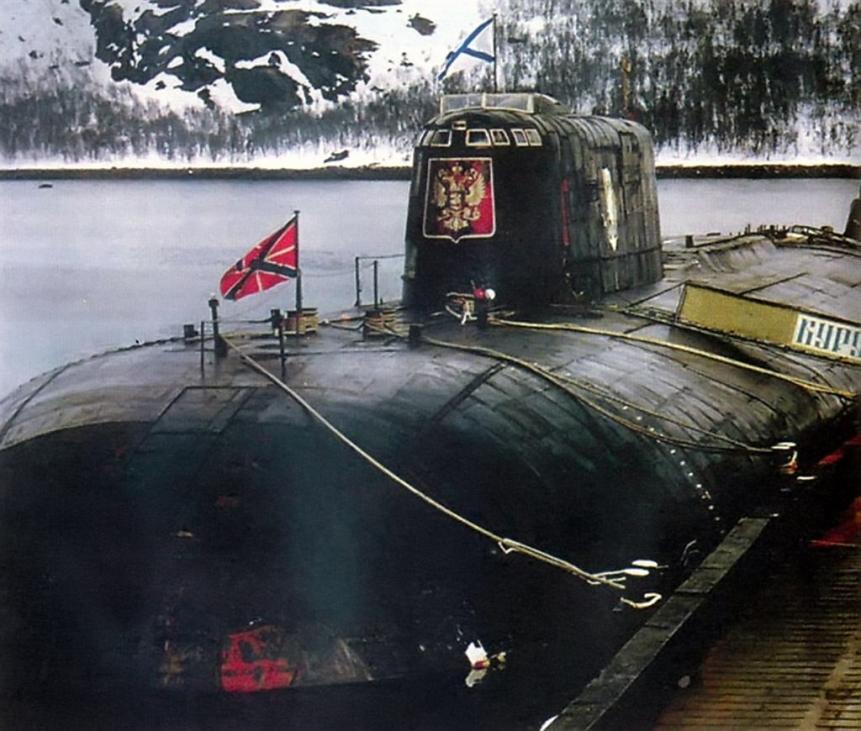

ID:	63911 And here are a couple of pics on the Kursk.Click image for larger version

Name:	kursk2.jpg
Views:	2
Size:	91.0 KB
ID:	63912Click image for larger version

Name:	kursk sail.jpg
Views:	1
Size:	93.3 KB
ID:	63913
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment


                • #83

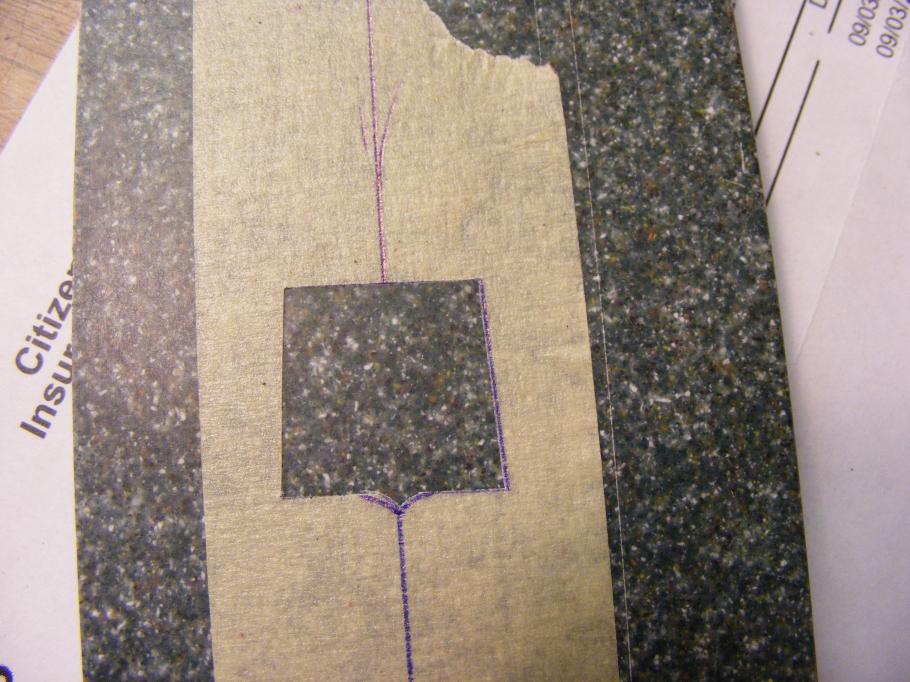

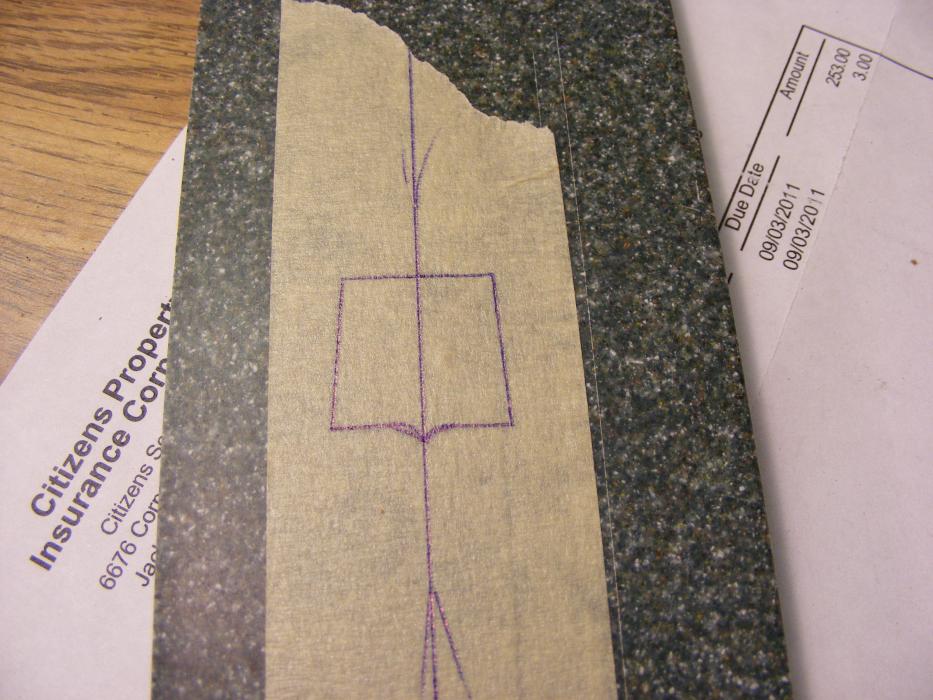

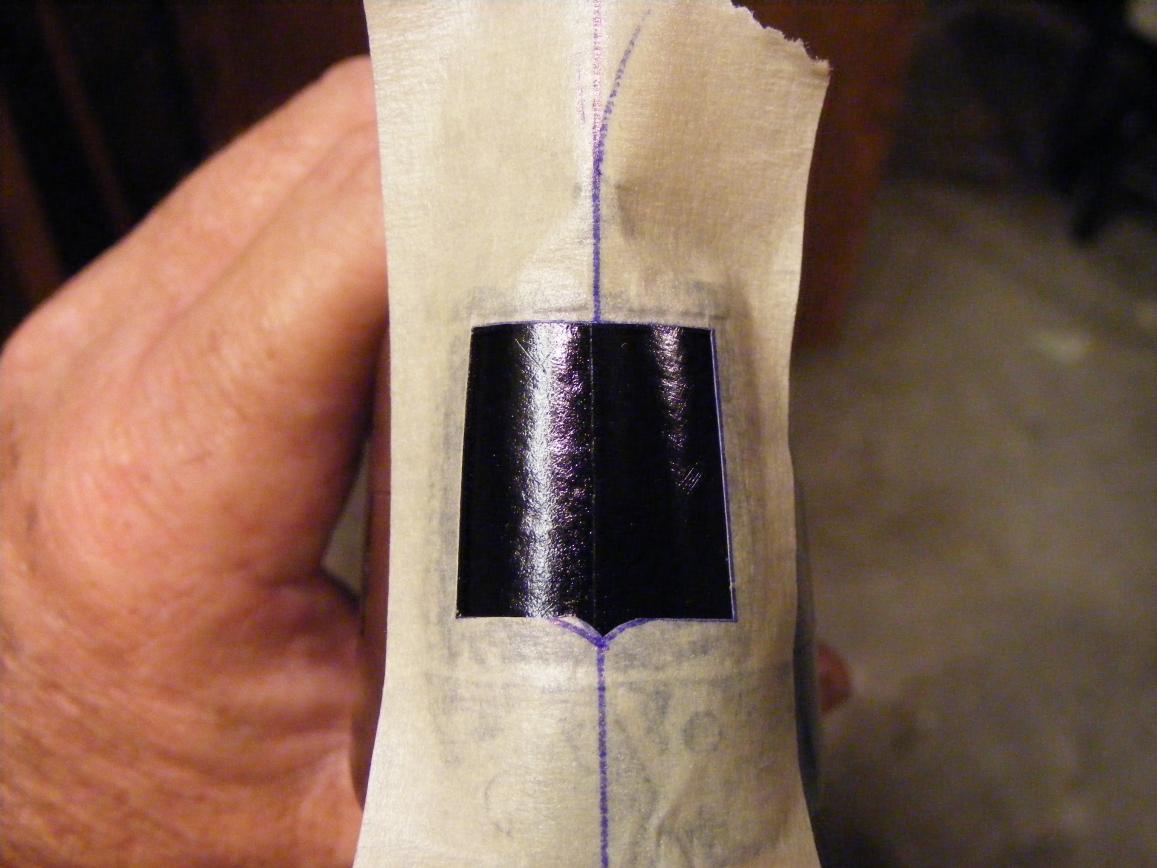

                  So, first I carefully measured the dry transfer and marked it out on a piece of paper , along with a centerline. After cutting it out with an xacto blade I lined it up on top of a piece of fresh masking tape and transferred the cutout. Then I cut that out and applied that to the front of the sail, lining up the centerline marks. I used Krylon Banner red.Click image for larger version

Name:	Transfer 166.jpg
Views:	1
Size:	95.3 KB
ID:	63914Click image for larger version

Name:	Transfer 167.jpg
Views:	1
Size:	95.8 KB
ID:	63915Click image for larger version

Name:	Transfer 168.jpg
Views:	1
Size:	95.4 KB
ID:	63916Click image for larger version

Name:	Transfer 171.jpg
Views:	1
Size:	89.3 KB
ID:	63917
                  IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                  Comment


                  • #84

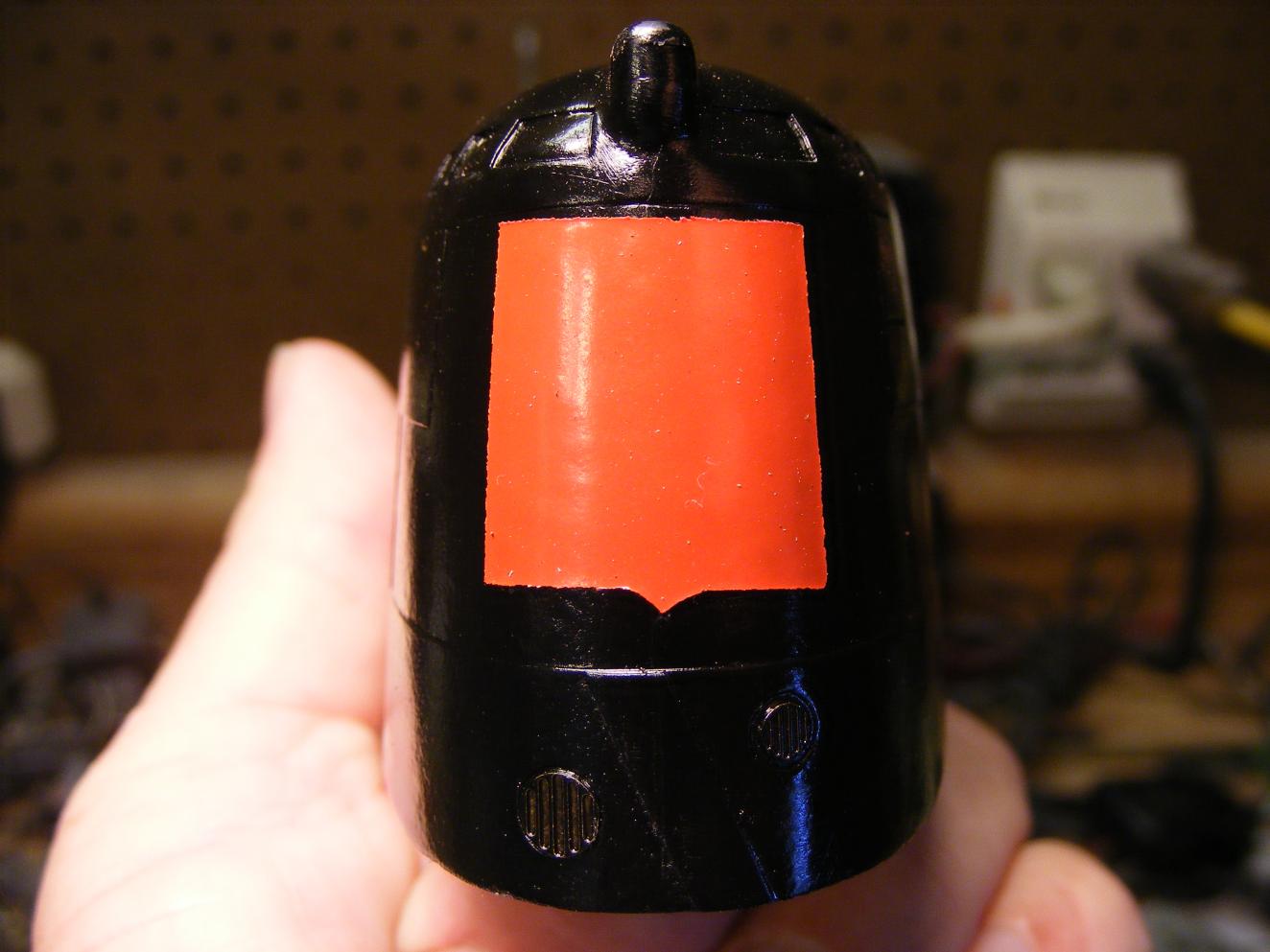

                    Its not perfect but keep in mind that these are closeups, which make small errors standout like a sore thumb. Considering my limited abilitys, I think that its pretty good. After posting this I realize that I forgot to round the two bottom corners. Oh well, what is done is done.
                    Last edited by greenman407; 08-30-2011, 01:26 PM.
                    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                    Comment


                    • #85

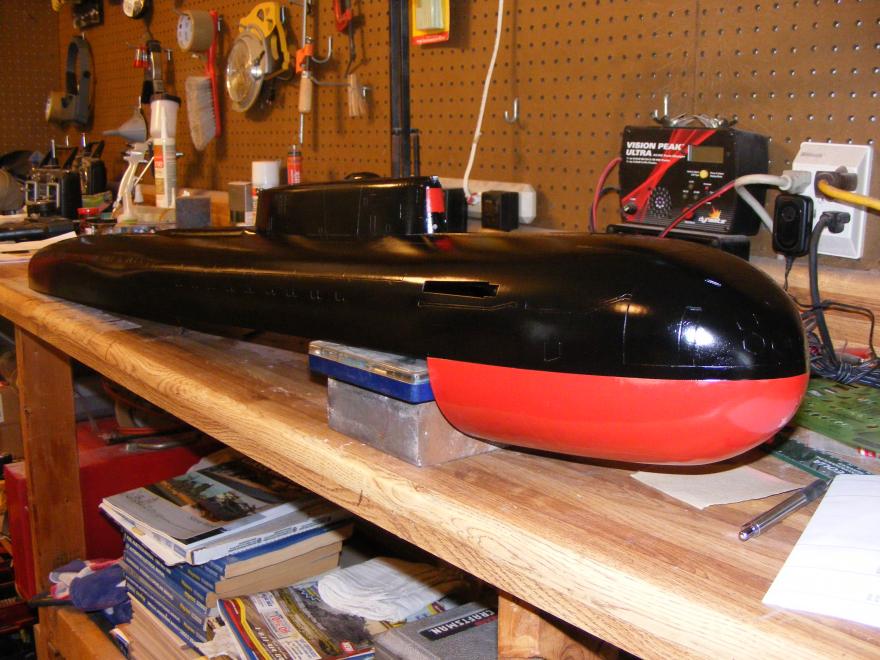

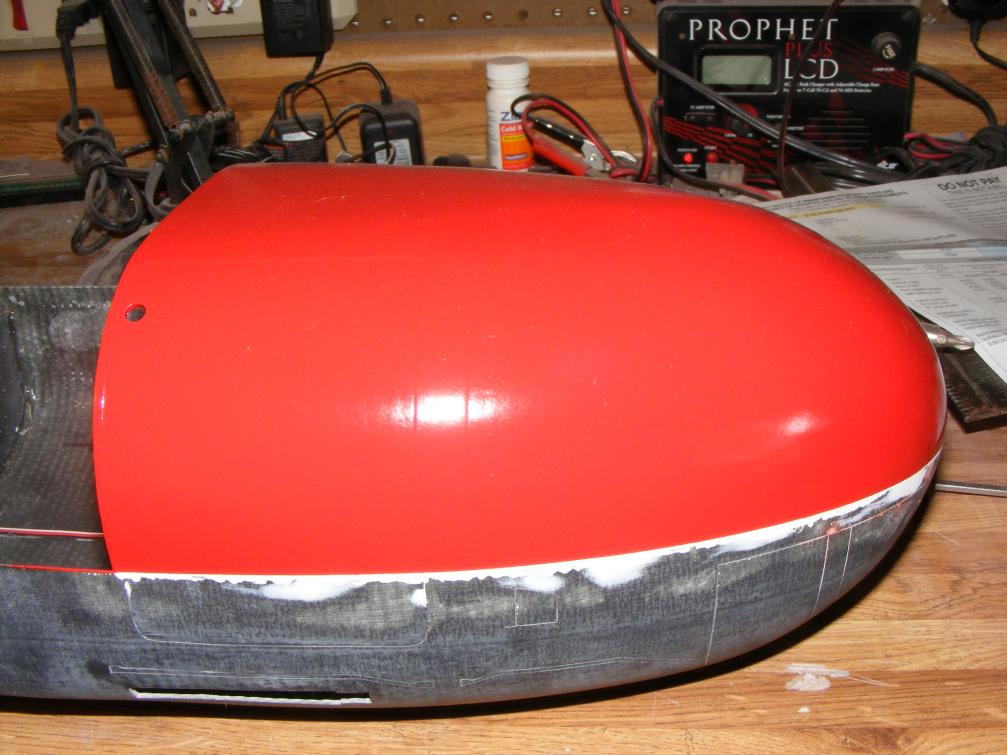

                      After masking off the laser imposed masking lines,Click image for larger version

Name:	Transfer 175.jpg
Views:	1
Size:	91.5 KB
ID:	63918Click image for larger version

Name:	Transfer 176.jpg
Views:	1
Size:	92.2 KB

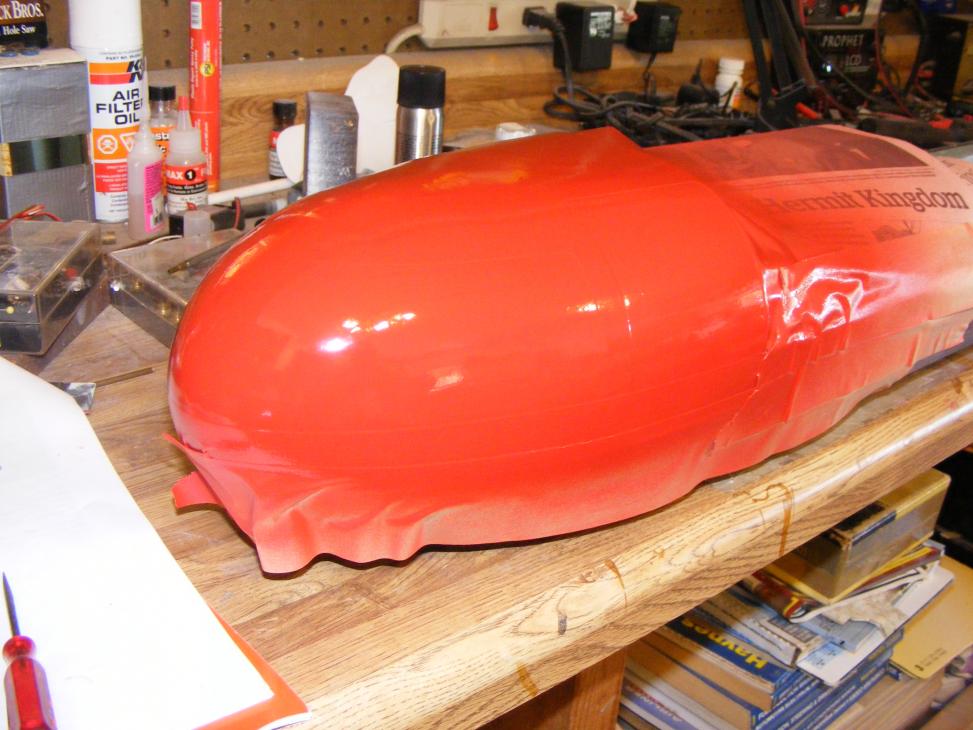

ID:	63919 the lower part of the bow was also painted Banner red.
                      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                      Comment


                      • #86

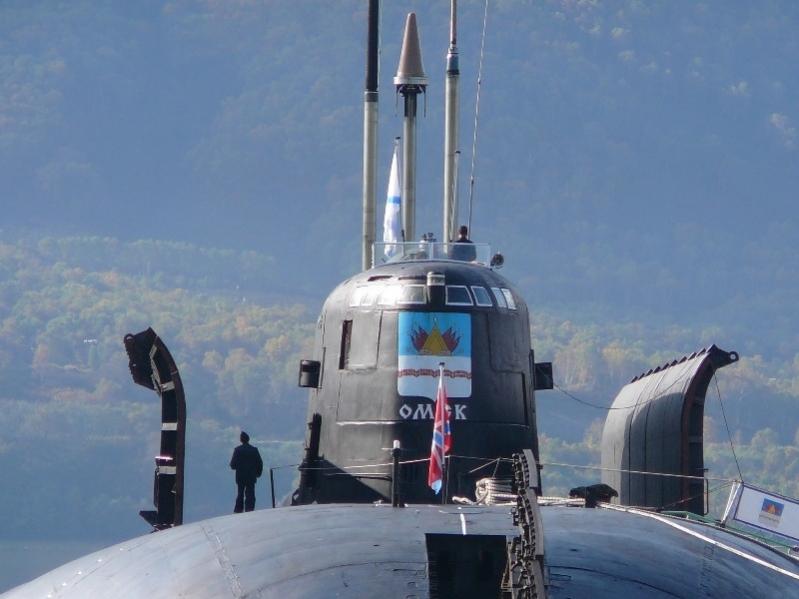

                        As far as this antenna of unknown use is concerned, I believe it is a navigation light. On the Kursk I dont have a picture of it but on other Oscars it can be seen in the following pictures but a little different in shape, Note:
                        Click image for larger version

Name:	Transfer 134.jpg
Views:	2
Size:	94.6 KB
ID:	63950Click image for larger version

Name:	0_4c42d_95f0ac34_XL.jpg
Views:	2
Size:	46.9 KB
ID:	63951
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment


                        • #87
                          Heres afew more.
                          Click image for larger version

Name:	1MGEA9-f33334a482dd12d495b91857b0ec9389.jpg
Views:	2
Size:	69.6 KB
ID:	63952Click image for larger version

Name:	1MGzAS-f33334a482dd12d495b91857b0ec9389.jpg
Views:	1
Size:	53.2 KB
ID:	63953
                          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                          Comment


                          • #88
                            I found this picture of the Kursk and its light also doesnt match my drawing!!!!
                            Click image for larger version

Name:	kursk2.jpg
Views:	2
Size:	91.0 KB
ID:	63954
                            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                            Comment


                            • #89

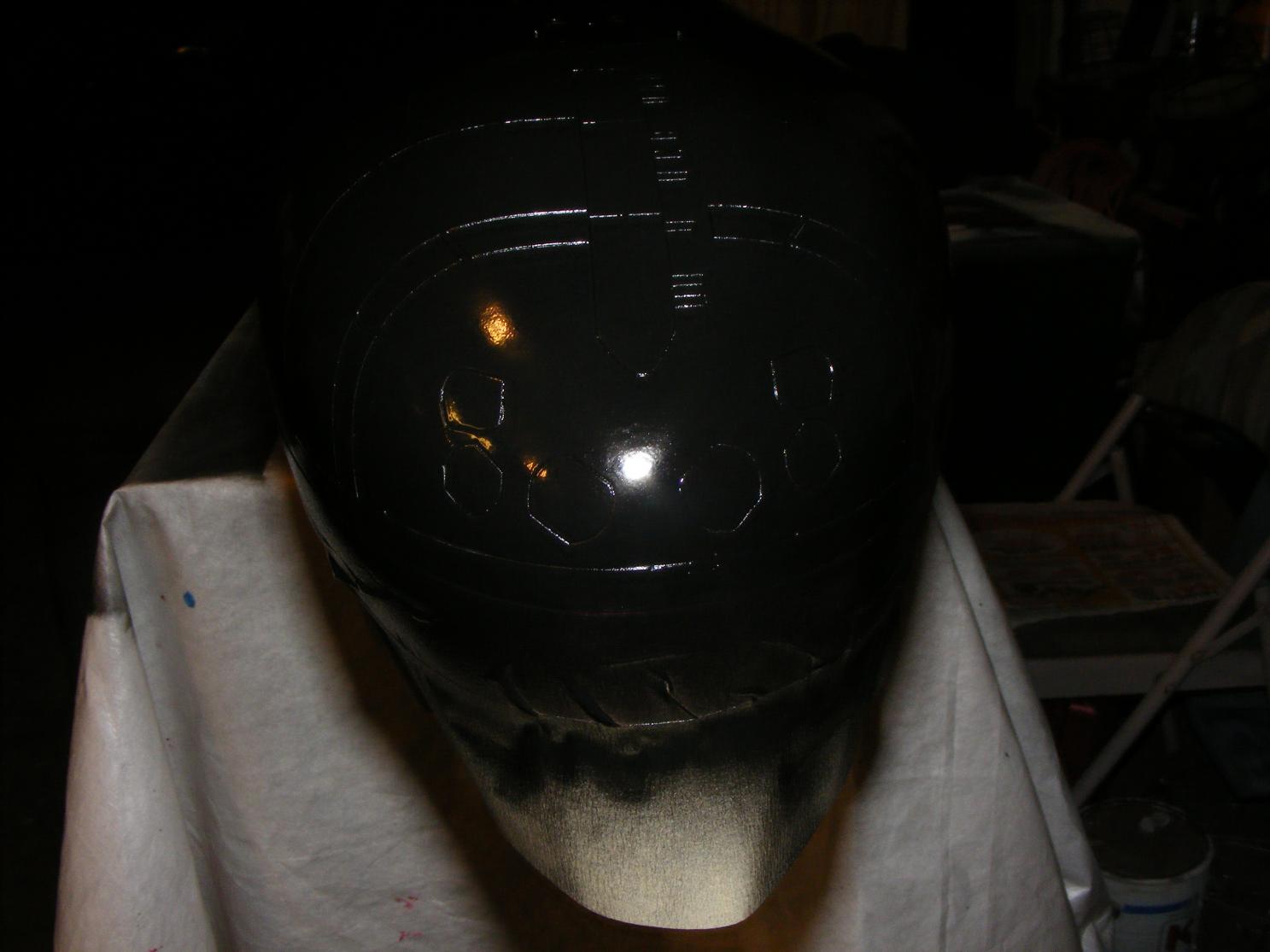

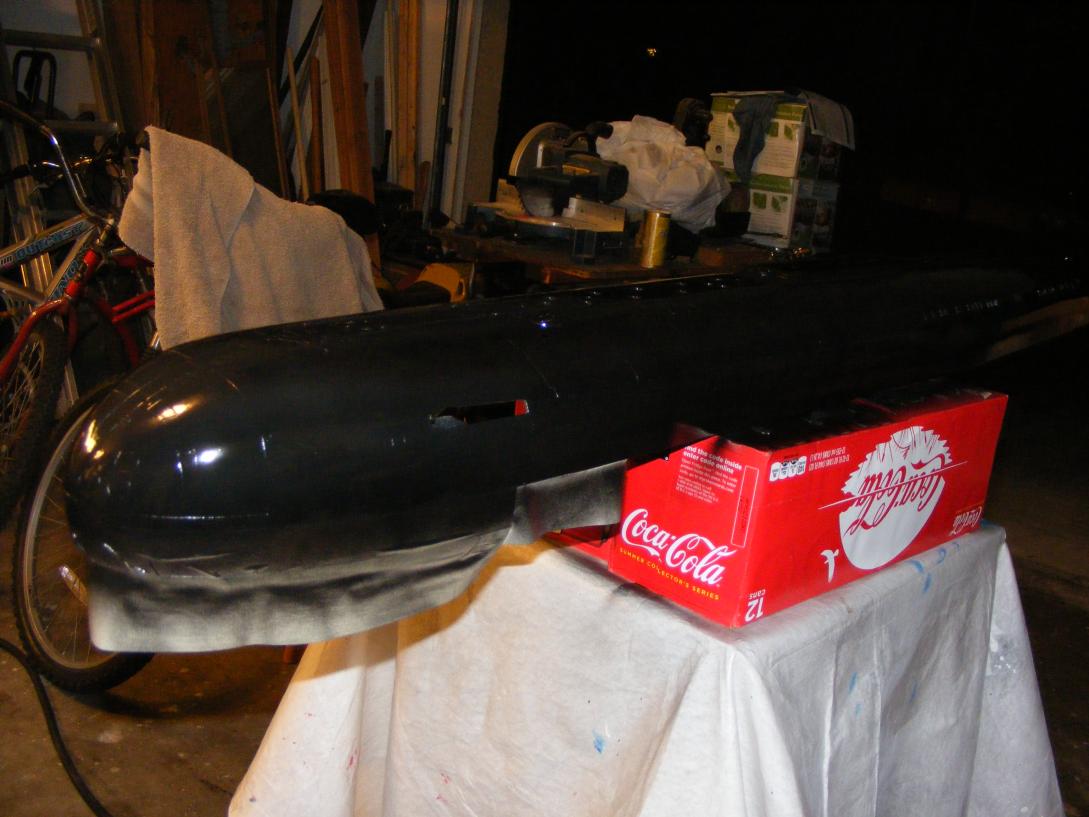

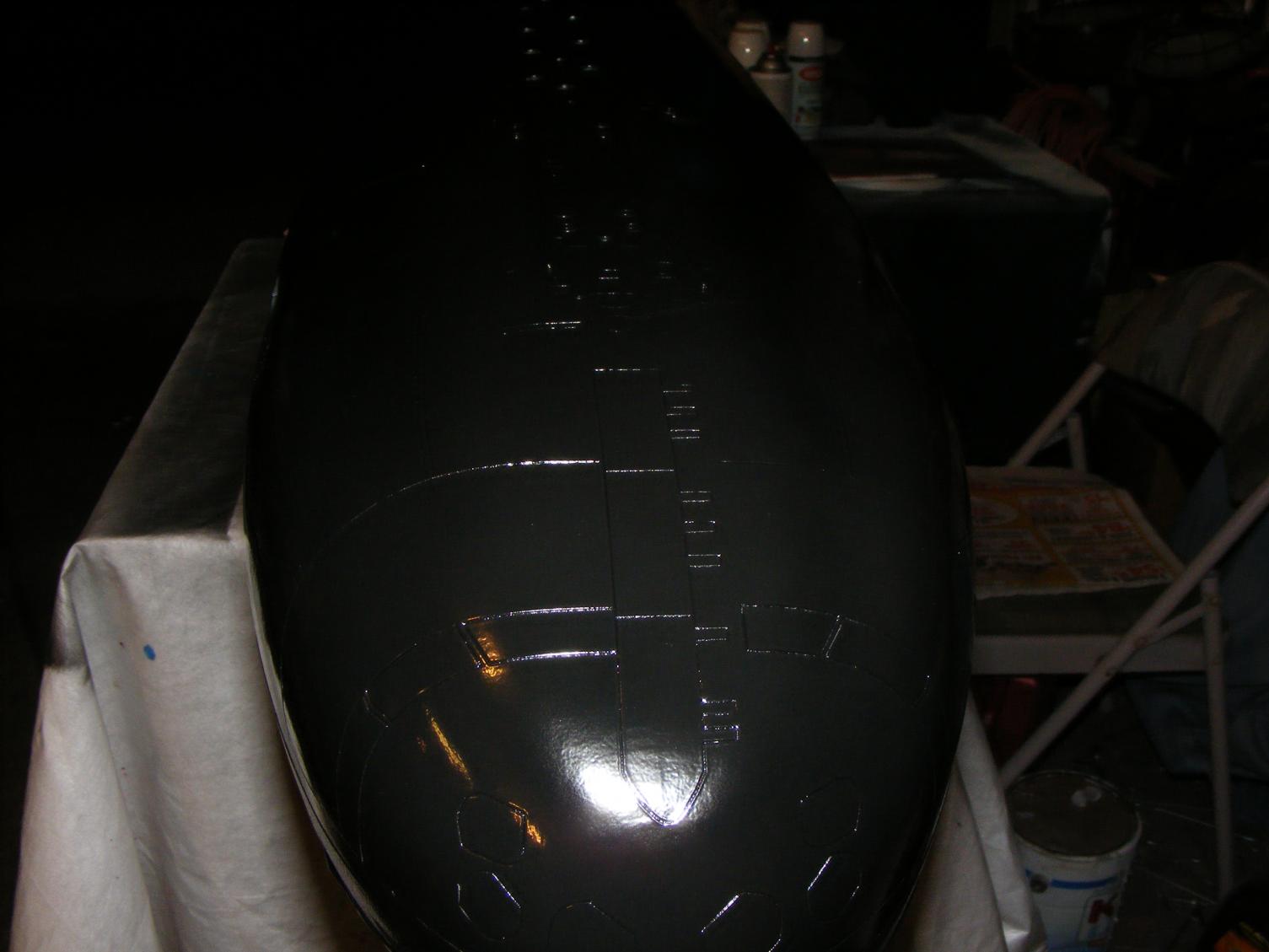

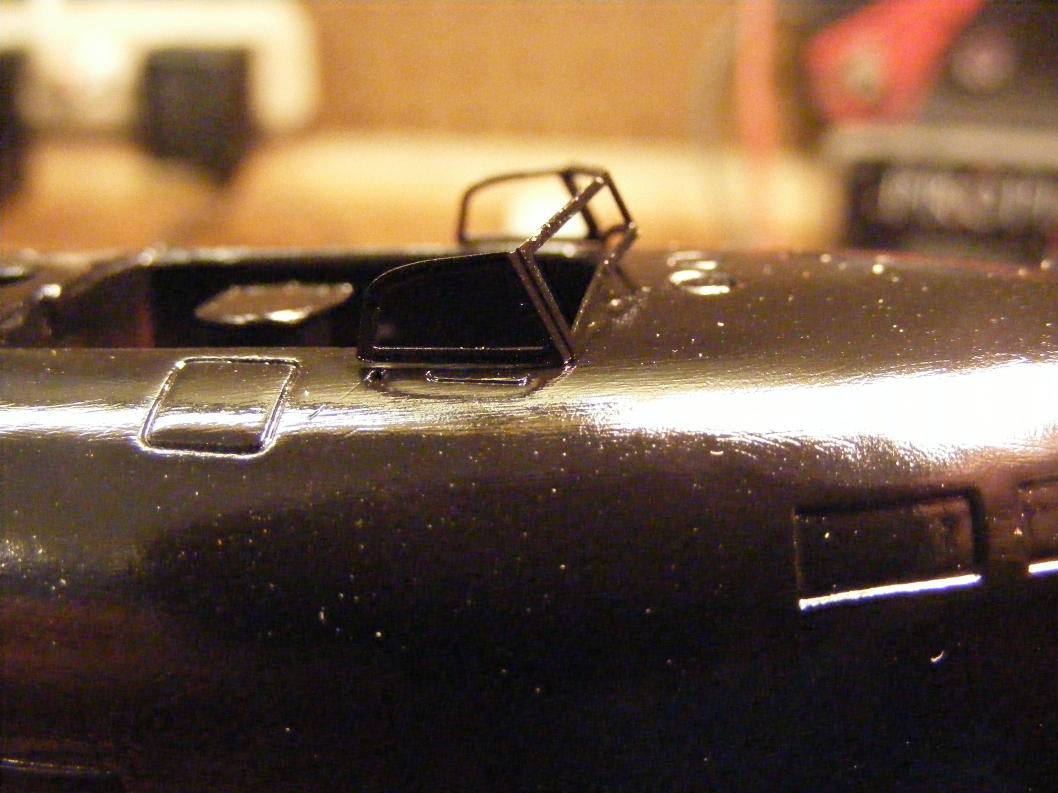

                              These pictures are not very good but here they are as they are all Ive got. The first one is the finished Marker light. The second and third is the upper hull just painted gloss black and its still wet at the time of the picture. Look at all the detail. This hull has more scribing than you can believe. It took a lot of extra time because I needed to go over all the scribing to deepen them up and clean them out of all the sanding debris. As I was doing that I would come across soft areas that would let go. Large air bubbles below the surface. I had to dig them all out and fill them with Evercoat metal glaze, sand and rescribe. The last one is the finished upper hull. Now I can apply the Dry transfers.
                              Click image for larger version

Name:	Transfer 177.jpg
Views:	1
Size:	105.8 KB
ID:	64057Click image for larger version

Name:	Transfer 178.jpg
Views:	1
Size:	90.3 KB
ID:	64058Click image for larger version

Name:	Transfer 179.jpg
Views:	1
Size:	82.9 KB
ID:	64059Click image for larger version

Name:	Transfer 180.jpg
Views:	1
Size:	84.6 KB
ID:	64060Click image for larger version

Name:	Transfer 181.jpg
Views:	1
Size:	95.1 KB
ID:	64061
                              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                              Comment


                              • #90
                                The latest update from the evil chamber. After all the dry transfers are in place it must be clear coated to protect them and at the same time tone down the gloss. Al Nuci just expressed his concern that clear satin will not get rid of the gloss. I took another look at it and I believe that he is right. So, I just placed an order for 3 cans of Floquil clear flat and we will experiment with that. My concern is that the overlap of your painting strokes with the clear will be visible as lighter areas. It will give it a striped look, subtle but striped nonetheless. So first I will experiment on s**** first. The project continues......................................... ....................
                                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                                Comment
