Launch mechanisms?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    unable to see any pictures in post 9 BUT the youtube link works and I am signed in ????????

    Comment


    • #17
      Click image for larger version

Name:	Screenshot_20201012-111456_Chrome.jpg
Views:	73
Size:	70.7 KB

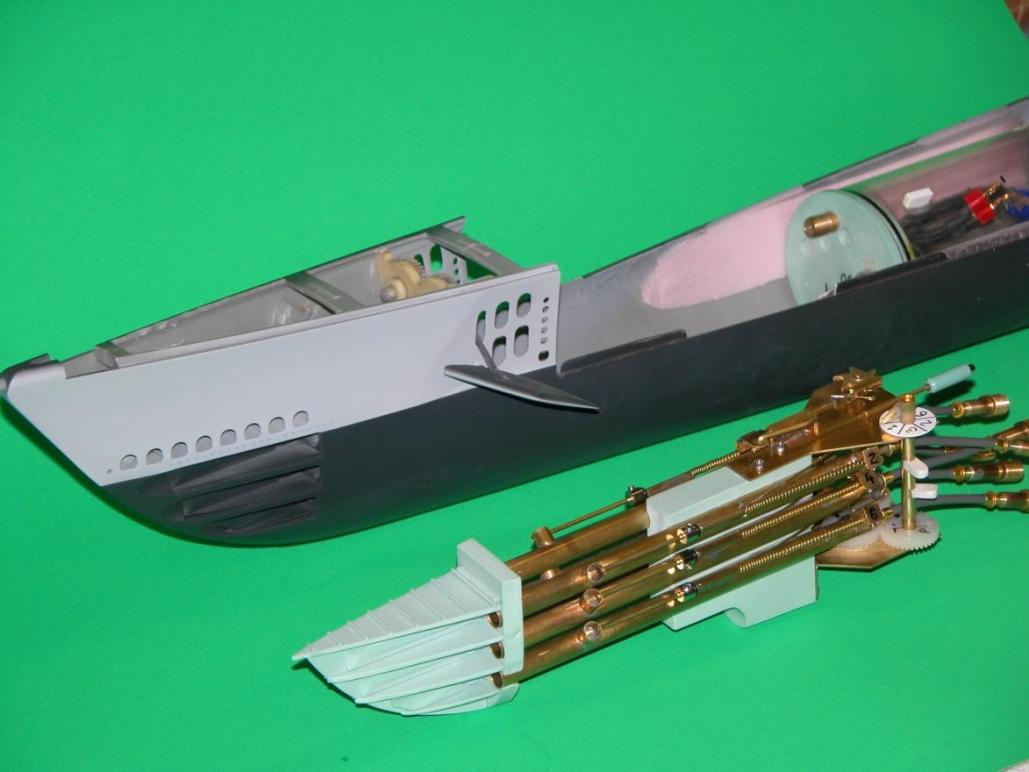

ID:	144356 Here you go. Found it in your 1/48 G7 thread. I guess you could go electronically using an arduino to initiate launch sequences.
      Make it simple, make strong, make it work!

      Comment


      • #18

        Redboat219,

        Yup, you found them. How awesome are those mechanisms!!! Super clean craftsmanship!

        George,

        I noticed that something went wrong with the attached photos too. I usually post from my phone but for some reason that day the forum software was hell bent on making it difficult. I gave up and finished the post on the computer which finally let me attach the photos. The next day they were no longer showing up.

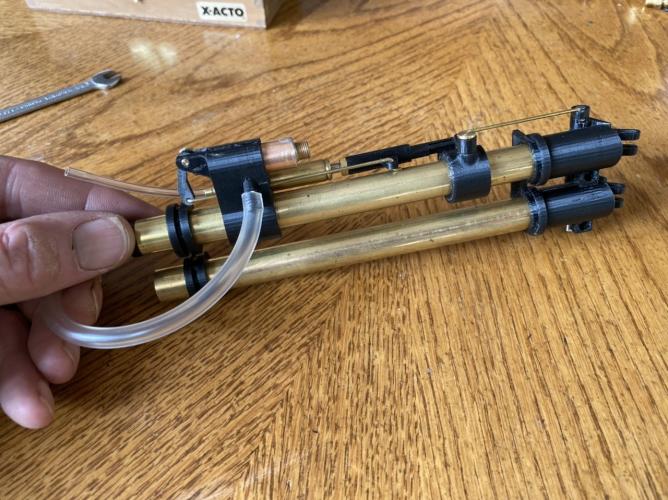

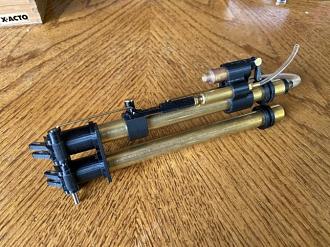

        I’ll try to post them again here.

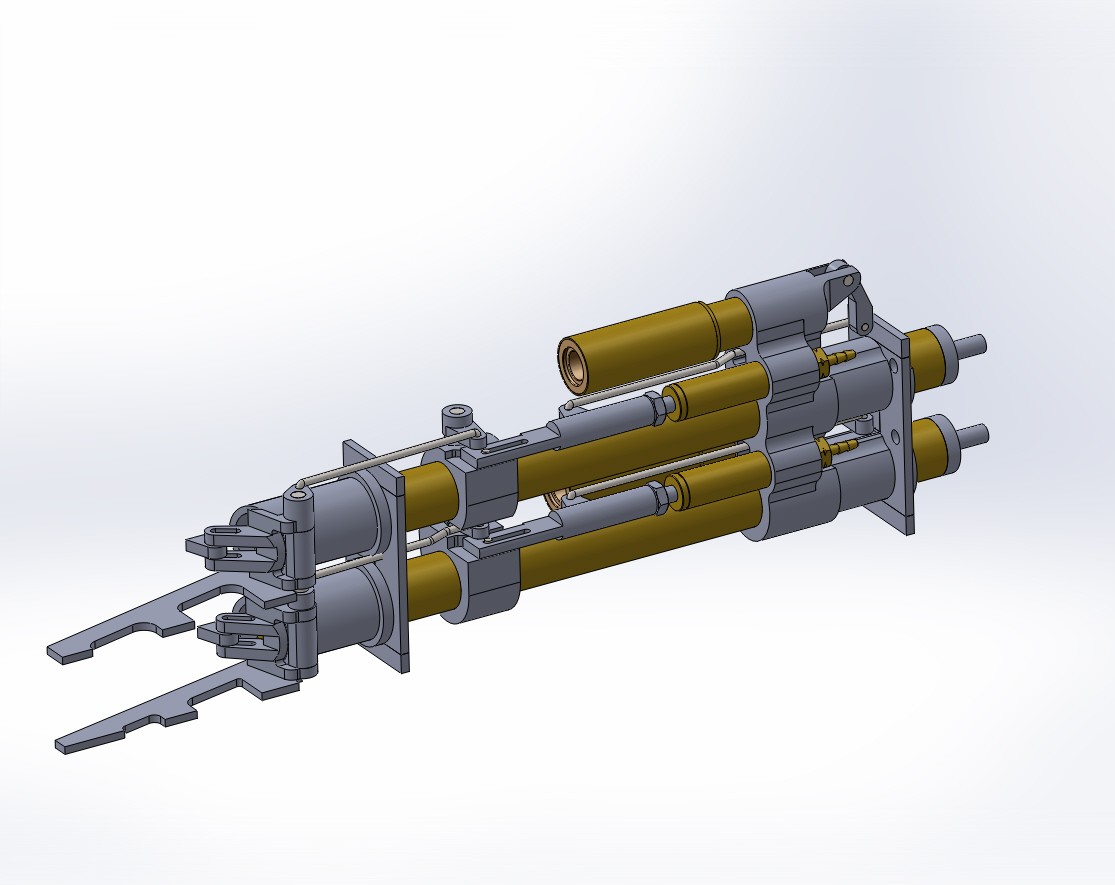

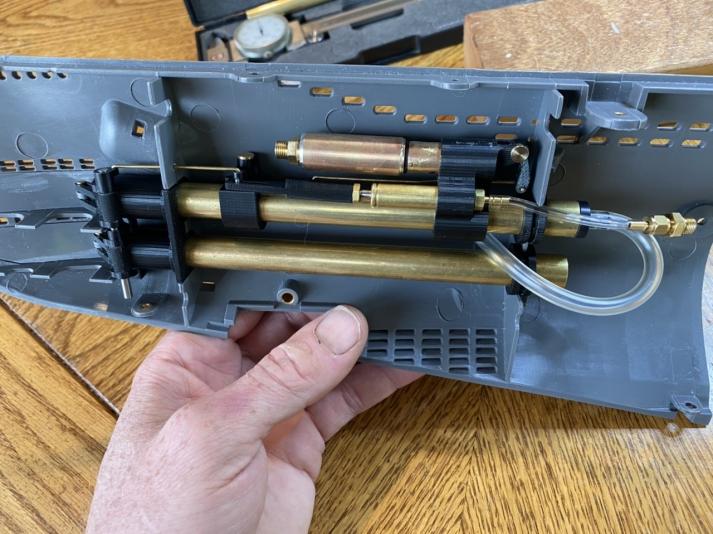

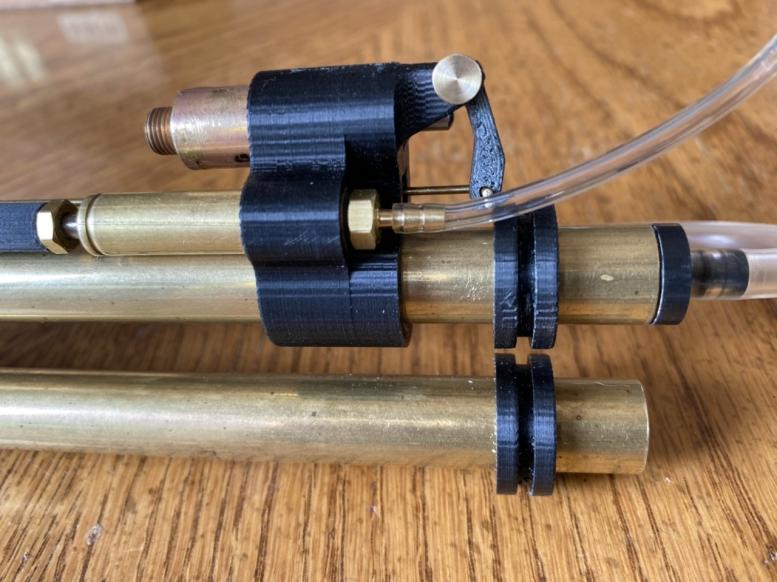

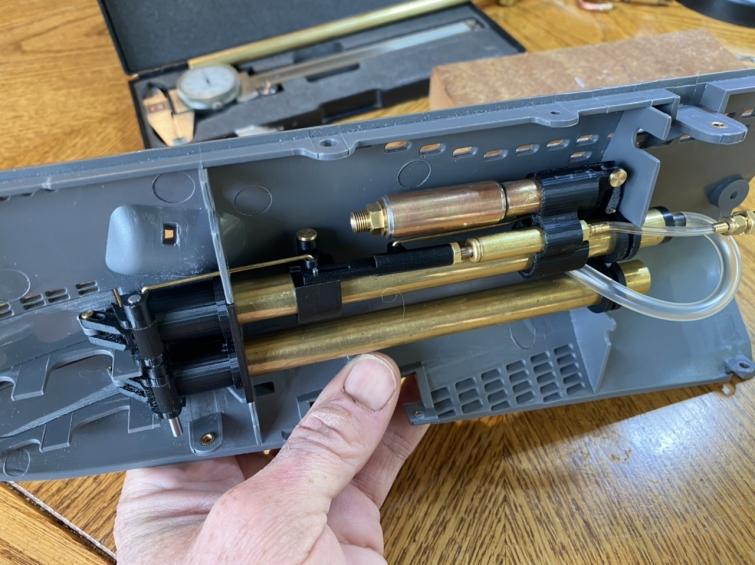

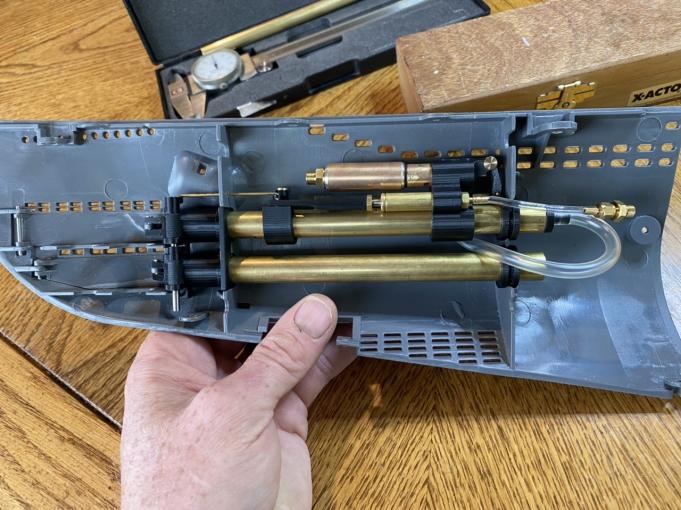

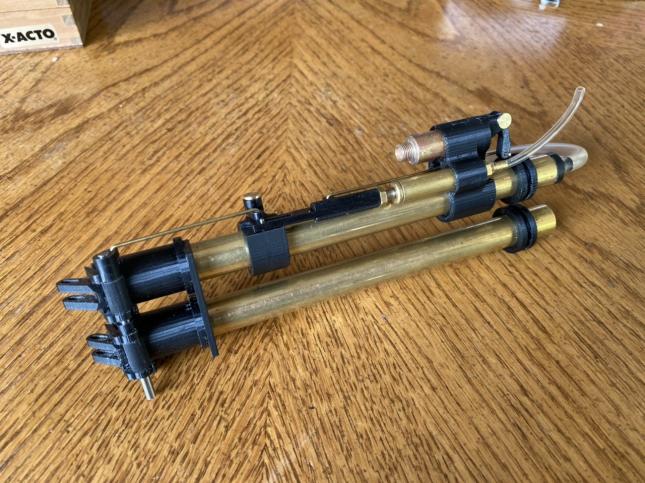

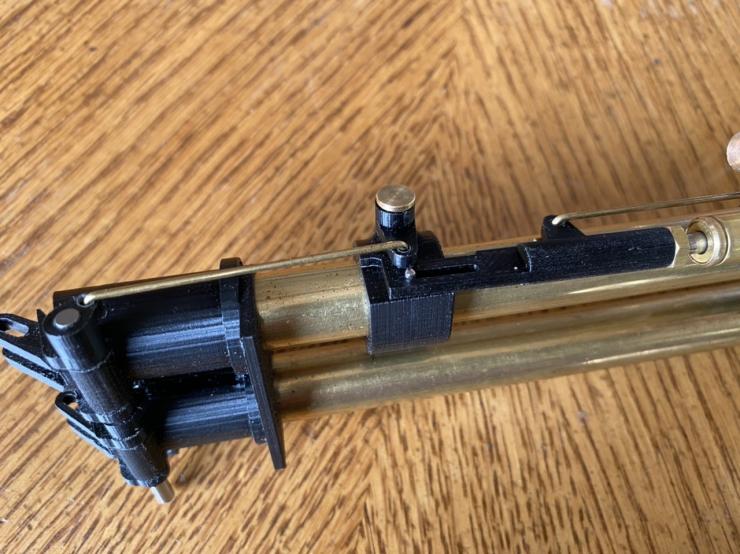

        Click image for larger version  Name:	D5A53DE1-8D60-4D62-8C01-E700EB1B386B.jpeg Views:	0 Size:	68.8 KB ID:	144365Click image for larger version  Name:	DD645DF1-0EB5-43E6-810B-6518B107B502.jpeg Views:	0 Size:	68.5 KB ID:	144363Click image for larger version  Name:	7FD5B041-EC99-4964-9C50-027327C6F8DB.jpeg Views:	0 Size:	67.8 KB ID:	144362Click image for larger version  Name:	9BB3BF8A-C01E-4D57-B9CF-120AB9ECEAF4.jpeg Views:	0 Size:	70.6 KB ID:	144366Click image for larger version  Name:	AB1EF6D7-412C-4975-BBE6-8362467BFD53.jpeg Views:	0 Size:	70.2 KB ID:	144368Click image for larger version  Name:	88F57728-5537-43B0-9ED2-FB972057486D.jpeg Views:	0 Size:	70.2 KB ID:	144367Click image for larger version  Name:	AB1EF6D7-412C-4975-BBE6-8362467BFD53.jpeg Views:	0 Size:	70.2 KB ID:	144364Click image for larger version  Name:	123B18E0-8565-4D21-AC3A-60811111A55B.jpeg Views:	0 Size:	64.8 KB ID:	144361Click image for larger version  Name:	398F4223-A439-4209-909E-4D6C8EF9D247.jpeg Views:	0 Size:	69.2 KB ID:	144360
        Last edited by Monahan Steam Models; 10-12-2020, 08:50 AM.

        Comment


        • #19
          All I have to say is Thanks for the pictures and WOW looks nice.
          Are you using any part of HWSNBN`s 1/72 launcher design?
          If so can you explain what and how?
          Thanks again
          George

          Comment


          • #20
            Click image for larger version

Name:	6FEA06E6-CB3F-4D2A-BD3F-80CD81F33925.jpeg
Views:	58
Size:	91.2 KB
ID:	144380

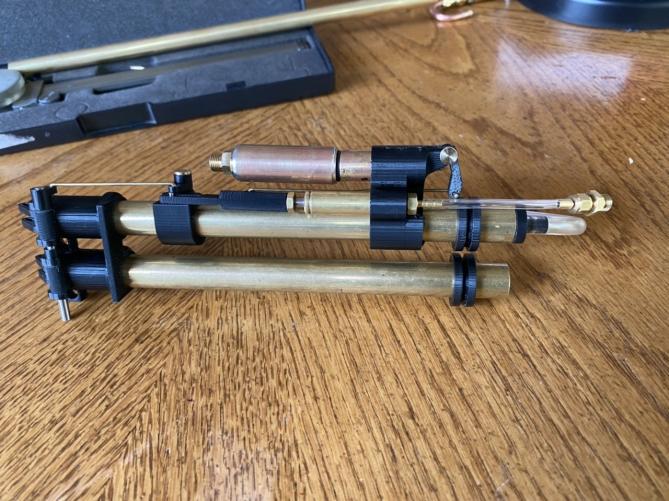

            Now that each part of the assembly has been tested, I can move on to building what I had designed for the starboard side launch tubes. The port side is the mirror opposite of this. I have most of the parts already completed just need to make a couple more small bits. Maybe later this week depending on how busy things are at work this week.

            Comment


            • #21
              Originally posted by george View Post
              All I have to say is Thanks for the pictures and WOW looks nice.
              Are you using any part of HWSNBN`s 1/72 launcher design?
              If so can you explain what and how?
              Thanks again
              George
              Thanks George,

              As far as I am aware of this launcher design is a bit different than the launchers David has built but I haven’t been around enough to know each and every design that he has crafted. He has built many. David would have the best eye for pointing that out if it shared any similarities. The parts that I know of that it will be using later which are the same as David’s are the miniature gas solenoid valves and the TCP unit to control them.

              Nick

              Comment


              • #22
                Thanks for sharing your work here.

                Comment


                • #23
                  Really like the door actuator a lot.

                  Comment


                  • #24
                    Thanks guys

                    Comment


                    • #25
                      Originally posted by Scott T View Post
                      Really like the door actuator a lot.
                      Scott,

                      Thank you. The pneumatic cylinders I’m using for the door actuators are made by Clippard. The part number is sm-6. If I recall it has a .250” bore and a .375” stroke. Through Physical testing in hand, the stroke actually works out to .356”. The poppet valves I’m using are also made by Clippard. Part number mav-2c. Hope that helps

                      Nick

                      Comment


                      • #26
                        So the lower door requires just a bit more travel from the pneumatic piston to fully open before the launch occurs. What I like about this design is that increased travel is easily programmed in to the profile of the launch ram that actuates the door. The travel of the ram is the same as the upper door for the most part but the effect it has on the door travel can be adjusted by the height of the lift designed into the ram. This is all well before the launch poppet valve is triggered

                        Comment


                        • #27
                          Thanks for the explanation of the operation. I mentioned using water to expel the torpedo.
                          I was thinking of using a revolving valve to port water behind the fish from a water pump.
                          I will try and CAD it up and see what you think. Your door actuator is helping me understand
                          a way to open the doors.

                          Click image for larger version

Name:	OIP.KDw8UjdiPESyac-Y5Snl0AHaFj?w=220&h=180&c=7&o=5&dpr=1.16&pid=1.7.jpg
Views:	20
Size:	15.9 KB
ID:	144420

                          Comment


                          • #28
                            Scott-if you engineer the revolver method of launch-would you be shooting only one torpedo from one tube?

                            Comment


                            • #29
                              https://warisboring.com/swedens-neve...been-a-hazard/
                              "... well, that takes care of Jorgenson's theory!"

                              Comment


                              • #30

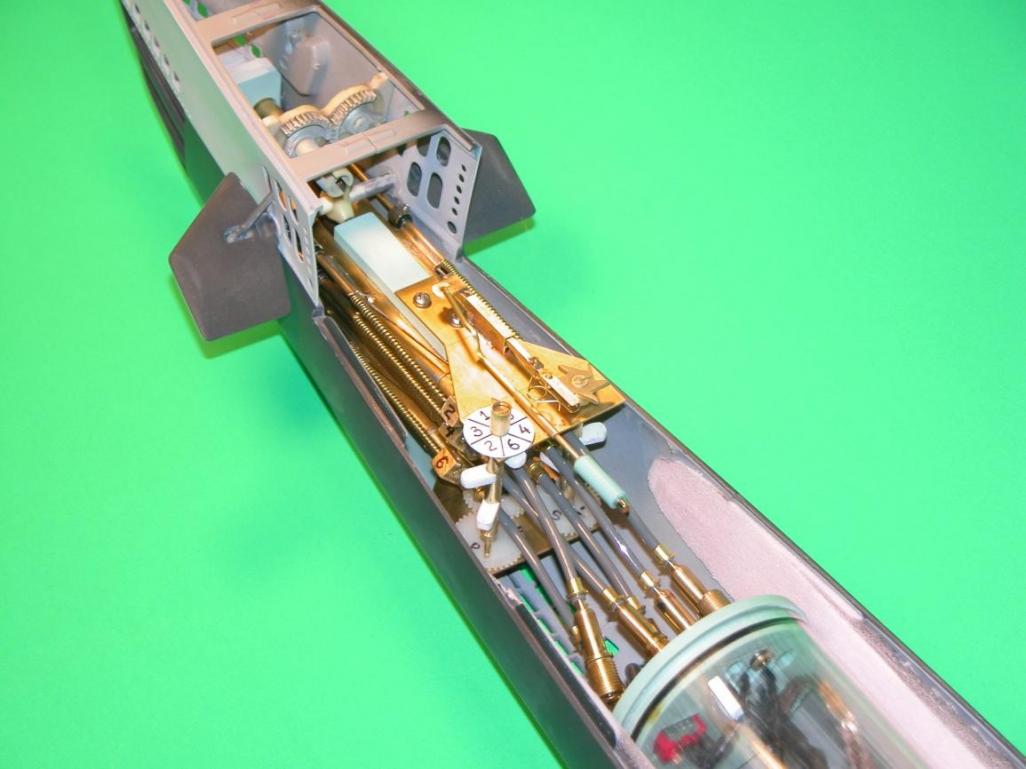

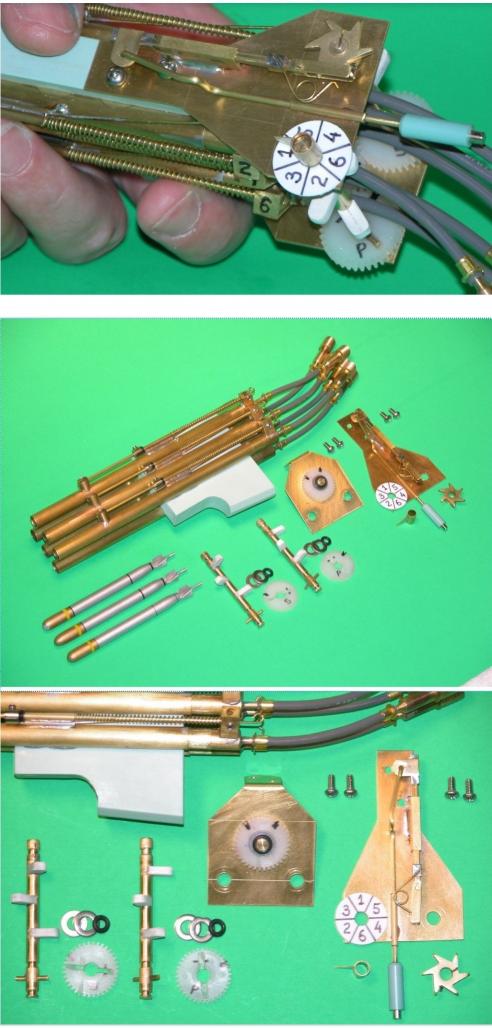

                                I have those photos.....
                                Click image for larger version

Name:	image_4367.jpg
Views:	49
Size:	66.5 KB
ID:	144431Click image for larger version

Name:	image_10554.jpg
Views:	47
Size:	67.6 KB
ID:	144432
                                It is a work of art. If anyone has this mechanical setup and does not want it, I do!
                                Peace,
                                Tom
                                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                                Comment
