    HMS X-Class Stickleback Midget Submarine

    I am starting a new 3D printed submarine build.

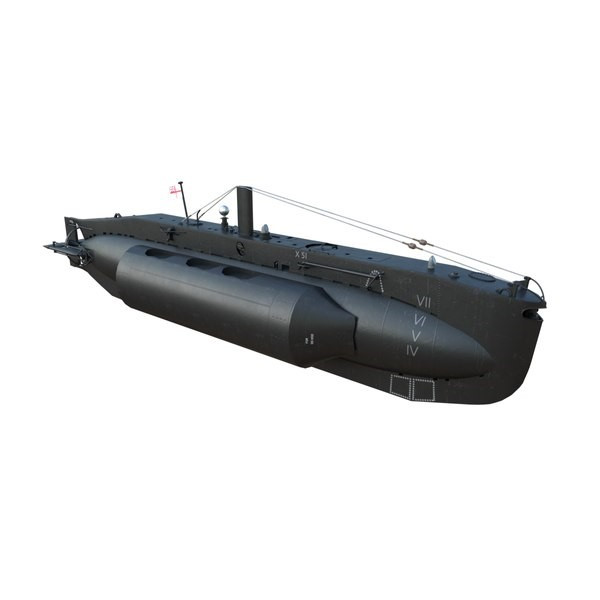

    Click image for larger version  Name:	HMS STICKLEBACK 6.jpg Views:	0 Size:	27.3 KB ID:	177151

    This will be a 1:24 plus scale RC submarine. I will be using my Dremel 3D40 printer with white PLA filament.



    The above is some more information on the full scale sub and its history.

    Rob
    "Firemen can stand the heat."
  • rwtdiver
    Vice Admiral

    • Feb 2019
    • 1922

    #2

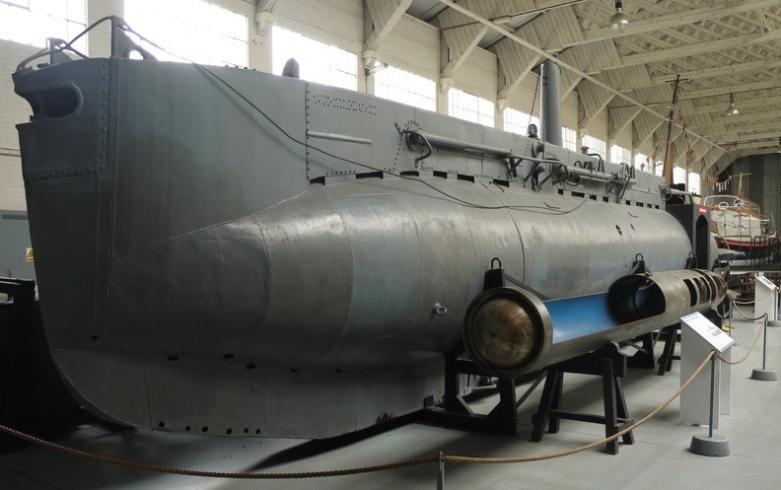

    Here are a few more photos of the HMS Stickleback.

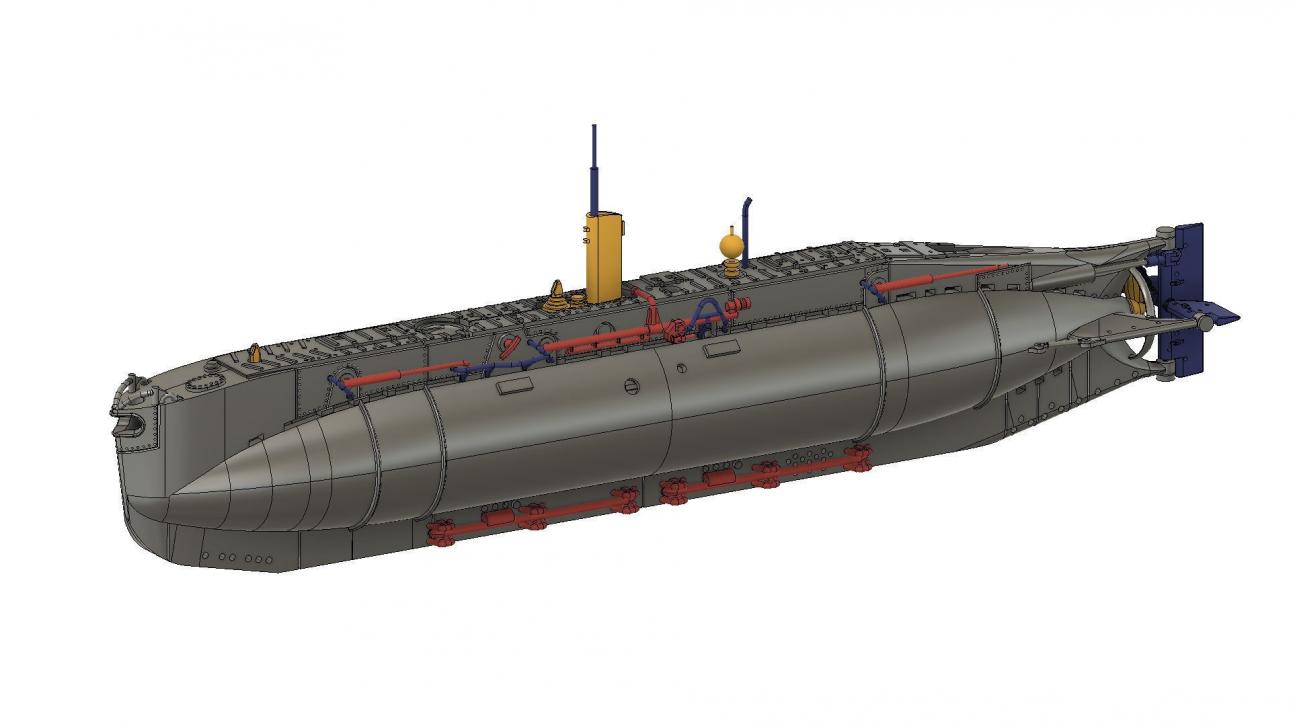

    Click image for larger version

Name:	HMS Stickleback 4.jpg
Views:	495
Size:	67.3 KB

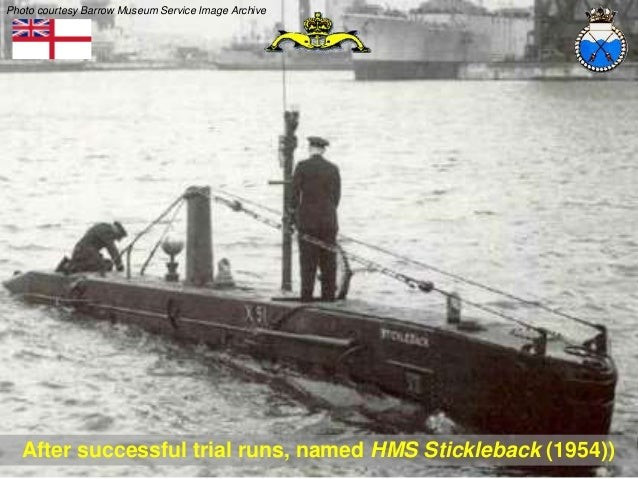

ID:	177158 Click image for larger version

Name:	HMS Stickleback.jpg
Views:	480
Size:	56.4 KB
ID:	177159

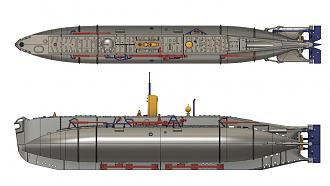

    Click image for larger version

Name:	STICKLEBACK 2.jpg
Views:	470
Size:	44.5 KB

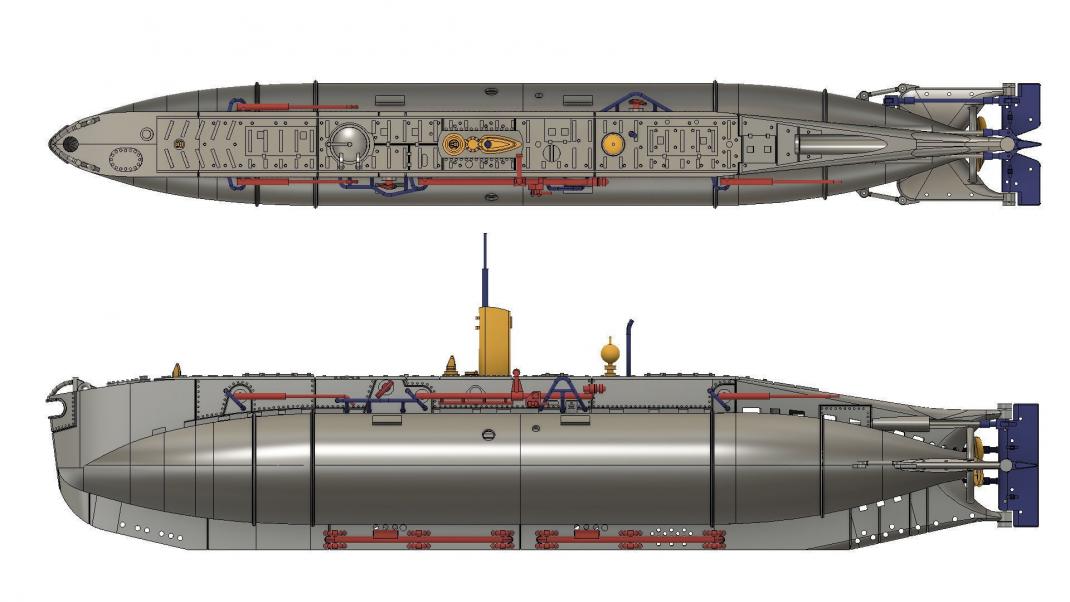

ID:	177160 Click image for larger version

Name:	STICKLEBACK 3.jpg
Views:	482
Size:	75.6 KB
ID:	177161

    My plane with this boat is to take it all the way to full diving capability (WTC/SD) and also do some weather on the final finish. The other good thing about this boat if I getit operational is, it will be a great boat for the pool. Every other boat I have built except for the 1:77 scale Nautilus were just to big for the pool.

    Rob
    "Fire3men can stand the heat."

    Comment

    • redboat219
      Admiral

      • Dec 2008
      • 3089

      #3
      Make it simple, make strong, make it work!

      Comment

      • rwtdiver
        Vice Admiral

        • Feb 2019
        • 1922

        #4
        Romel,

        How did you know that I really like to have a bowl of popcorn on my work bench while I am building. Great site with some good recipes.

        Rob
        "Firemen can stand the heat."

        Comment

        • biggsgolf
          Captain

          • Jan 2020
          • 768

          #5
          Originally posted by rwtdiver
          Here are a few more photos of the HMS Stickleback.

          Click image for larger version

Name:	HMS Stickleback 4.jpg
Views:	495
Size:	67.3 KB
ID:	177158 Click image for larger version

Name:	HMS Stickleback.jpg
Views:	480
Size:	56.4 KB
ID:	177159

          Click image for larger version

Name:	STICKLEBACK 2.jpg
Views:	470
Size:	44.5 KB
ID:	177160 Click image for larger version

Name:	STICKLEBACK 3.jpg
Views:	482
Size:	75.6 KB
ID:	177161

          My plane with this boat is to take it all the way to full diving capability (WTC/SD) and also do some weather on the final finish. The other good thing about this boat if I getit operational is, it will be a great boat for the pool. Every other boat I have built except for the 1:77 scale Nautilus were just to big for the pool.

          Rob
          "Fire3men can stand the heat."

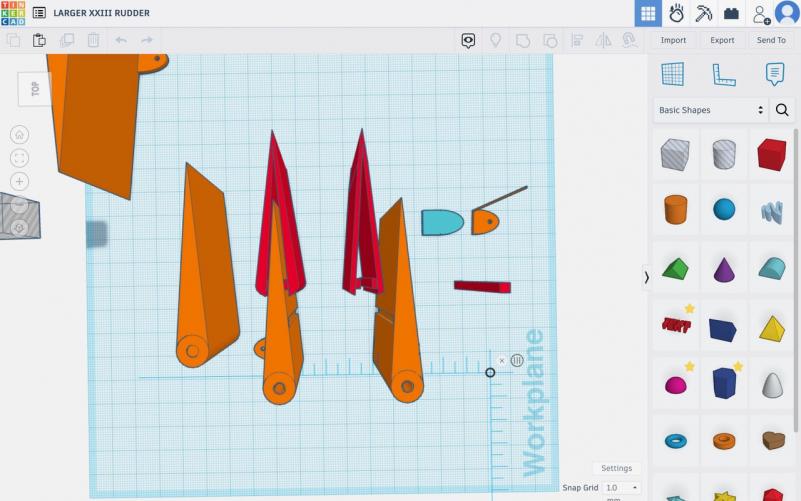

          Rob, nice addition. I also drive my subs in my pool, I I often print the rudders larger or add a rudder extender to increase the turning ability. Happy to share my STL files so you can see what I design.
          Bruce
          Click image for larger version

Name:	IMG_2291.jpg
Views:	409
Size:	83.7 KB
ID:	177169 Click image for larger version

Name:	IMG_2293.jpg
Views:	399
Size:	80.3 KB
ID:	177171 Click image for larger version

Name:	Image 12-31-23 at 6.04 PM.jpg
Views:	403
Size:	51.1 KB
ID:	177172
          Attached Files

          Comment

          • rwtdiver
            Vice Admiral

            • Feb 2019
            • 1922

            #6
            Thank you for the files. I have used these type extenders on some of my boats. The majority of my boats are over 36" long, and in my pool even with the extender, all I can say is I am glad I have reverse. I see you use Autodesk Tinkercad. It's very simple to use and you do get great results.

            Thanks Bruce.

            Rob
            "Firemen can stand the heat."
            Last edited by rwtdiver; 12-31-2023, 07:38 PM.

            Comment

            • biggsgolf
              Captain

              • Jan 2020
              • 768

              #7
              So around 673MM in length, what size cylinder are you employing? Where did you purchase the files?

              Comment

              • rwtdiver
                Vice Admiral

                • Feb 2019
                • 1922

                #8
                Originally posted by biggsgolf
                So around 673MM in length, what size cylinder are you employing? Where did you purchase the files?
                Hi Bruce,

                I got the files from CGTraders. STL files at 1:24 scale at 100% size. I increased the size to 110% and that is the max that I can go with my Dremel. With that in mind I will be going with a 2" cylinder. That means I will have to pull off a David M. cylinder build. Going to be interesting! But, I will make it work!

                Rob
                "Firemen can stand the heat."

                Comment

                • biggsgolf
                  Captain

                  • Jan 2020
                  • 768

                  #9
                  Originally posted by rwtdiver

                  Hi Bruce,

                  I got the files from CGTraders. STL files at 1:24 scale at 100% size. I increased the size to 110% and that is the max that I can go with my Dremel. With that in mind I will be going with a 2" cylinder. That means I will have to pull off a David M. cylinder build. Going to be interesting! But, I will make it work!

                  Rob
                  "Firemen can stand the heat."
                  Yes you will!

                  Comment

                  • rwtdiver
                    Vice Admiral

                    • Feb 2019
                    • 1922

                    #10

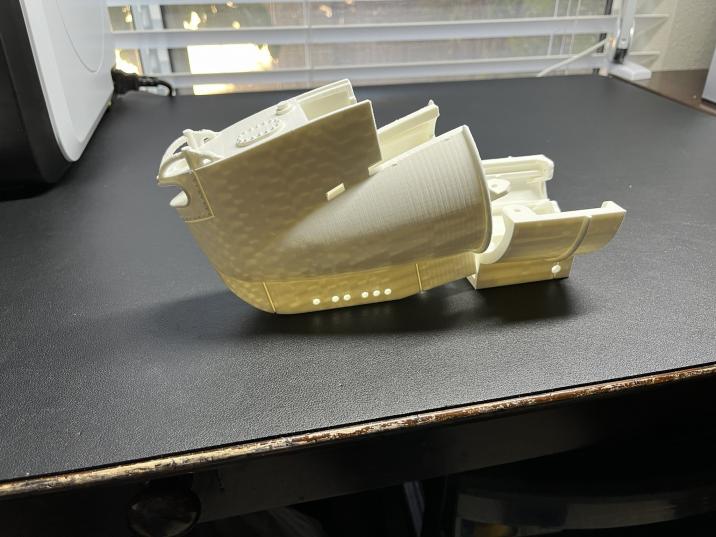

                    I have started to print the main hull for the Stickleback!

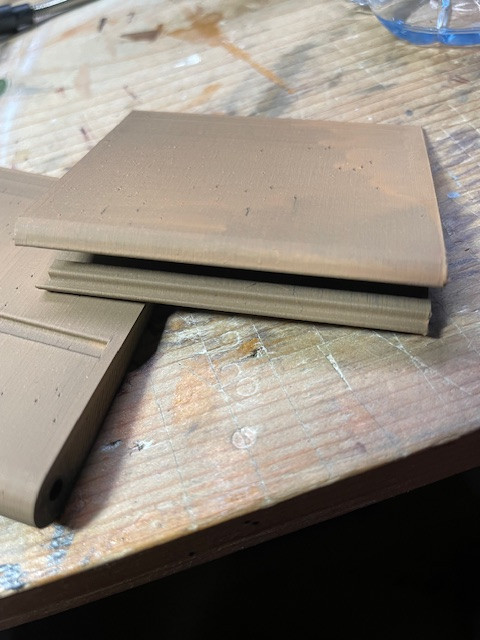

                    Click image for larger version

Name:	HMS STICKLEBACK 7.jpg
Views:	379
Size:	50.1 KB
ID:	177219

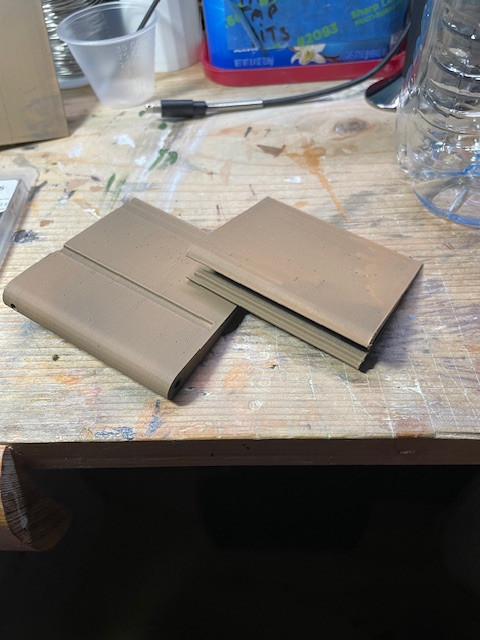

                    Click image for larger version

Name:	HMS STICKLEBACK 8.jpg
Views:	367
Size:	50.7 KB
ID:	177220

                    The above two photos show the first two bottom bow sections.

                    Rob
                    "Firemen can stand the heat."

                    Comment

                    • rwtdiver
                      Vice Admiral

                      • Feb 2019
                      • 1922

                      #11

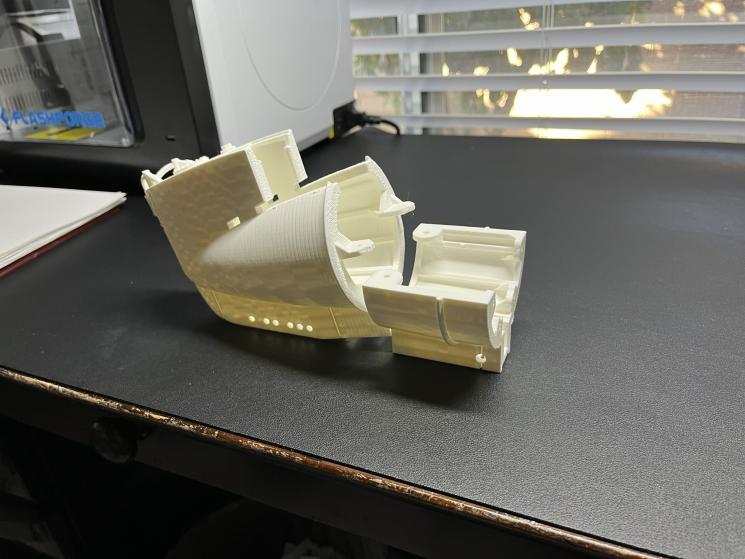

                      Making more progress on the Stickleback.

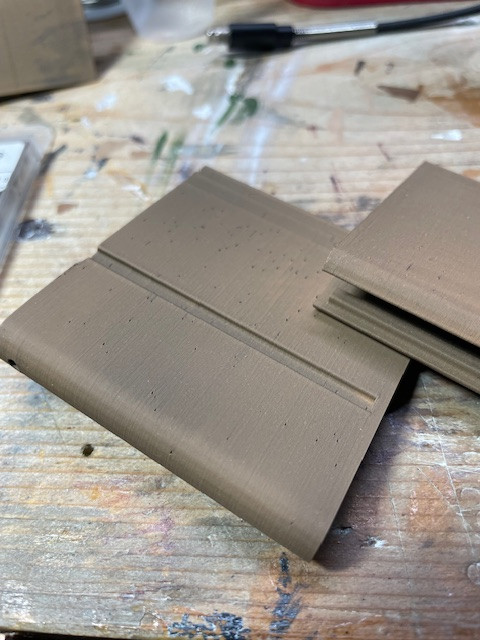

                      Click image for larger version

Name:	STICKLEBACK 5.jpg
Views:	343
Size:	50.9 KB
ID:	177258

                      Click image for larger version

Name:	STICKLEBACK 4.jpg
Views:	334
Size:	35.9 KB
ID:	177259

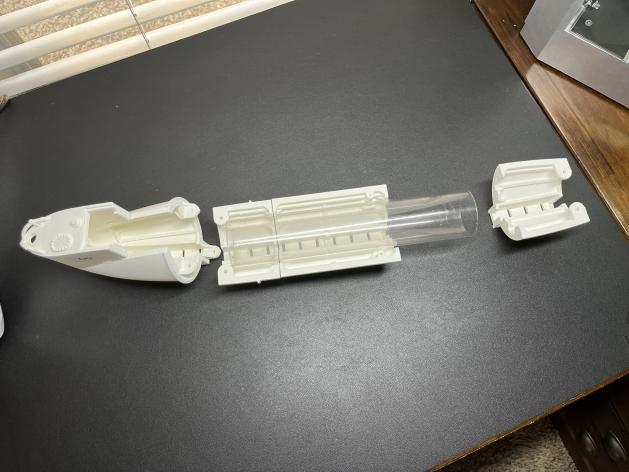

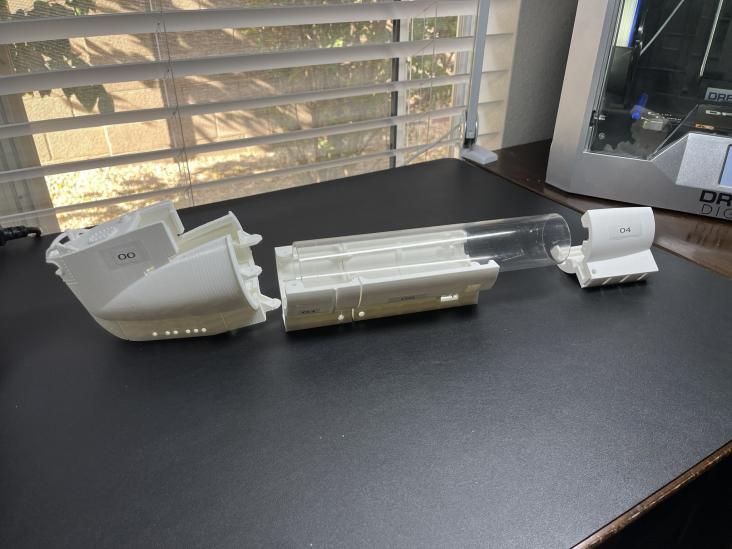

                      The photos show additional lower hull sections, and also the 2" cylinder that I will be using for the WTC.

                      Rob
                      "Firemen can stand the heat."

                      Comment

                      • rwtdiver
                        Vice Admiral

                        • Feb 2019
                        • 1922

                        #12

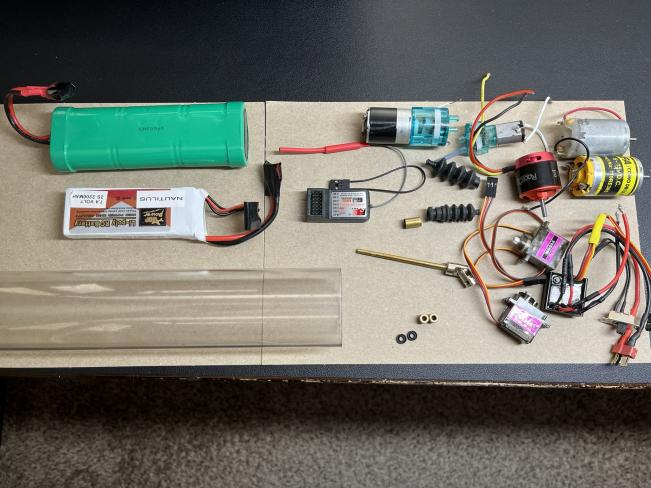

                        I have been going through some of the accumulated parts from previous builds.

                        Click image for larger version  Name:	STICKLEBACK 6.jpg Views:	0 Size:	54.2 KB ID:	177264

                        These are just a few of what I have that I could use on the Stickleback. At this point I am not sure if I will incorporate a simple low pressure ballast system for this boat, or go with just a partial submersible surface runner!? It's just going to be a fun boat for the pool! I have a lot of David M. photos and ideas as to how to install all this into a 2" cylinder.

                        Time will tell...

                        Rob
                        Firemen can stand the heat."
                        Last edited by rwtdiver; 01-04-2024, 05:07 PM.

                        Comment

                        • redboat219
                          Admiral

                          • Dec 2008
                          • 3089

                          #13
                          Make it simple, make strong, make it work!

                          Comment

                          • rwtdiver
                            Vice Admiral

                            • Feb 2019
                            • 1922

                            #14
                            Thanks Romel!

                            That video gives me an idea where I need to be as far as how it is set up for water operation underway.

                            Rob
                            "Firemen can stand the heat."

                            Comment

                            • rwtdiver
                              Vice Admiral

                              • Feb 2019
                              • 1922

                              #15
                              Originally posted by redboat219
                              Romel,

                              Well after watching the great video you put up, what to my surprise was a YouTube video that came next.

                              1:12 Scale British X Craft RC Submarine (youtube.com)

                              It was a video that Bob Martin put up about 5 plus years ago of the X-Class submarine that he had. His video will be extremely helpful as I start the build up of my Stickleback.

                              So! Thank you again for providing me with all this great information. And thanks to Bob for doing the video on his X-Class.

                              Rob
                              "Firemen can stand the heat."

                              Comment
