The "TURTLE" Submarine Build

[RCSubGuy]

Rob,


Well... I'll be snookered. I could have sworn that these were posted up for sale YEARS ago.

Here is the link to the download. Huge shoutout to Randy Sanders for creating these superb files:

https://www.rc-submarine.com/product-page/bushnell-turtle-3d-files-stl

[rwtdiver]

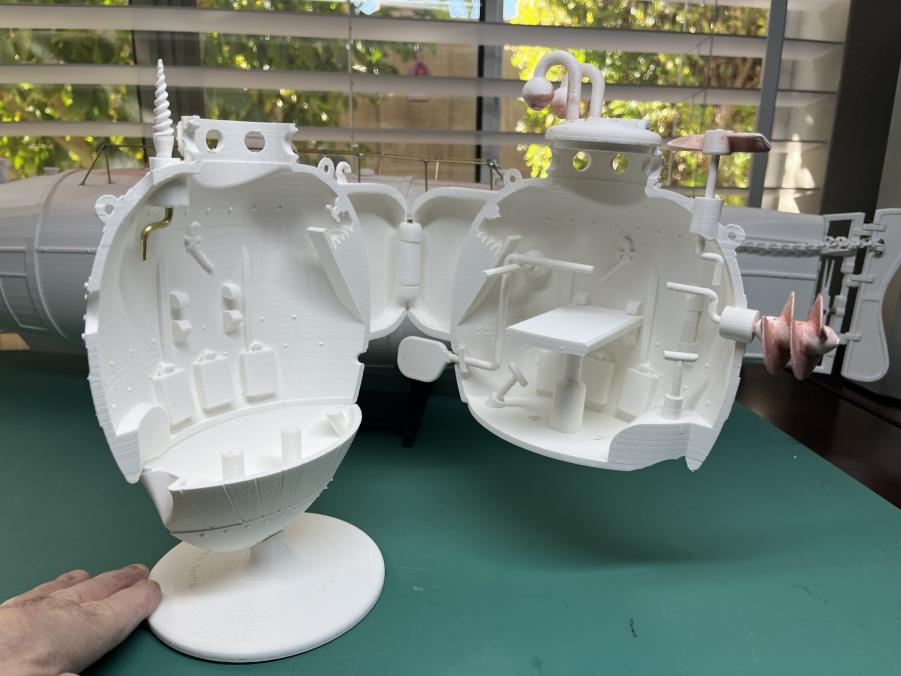

Today I finished putting my rendition of the TURTLE submarine together.





This build has turned out to be just a static model. The files that used do not give a correct rendition of the original Turtle. It dose however show a pretty close rendition of the interior. There are a couple of photos posted on this blog that show the actual correct version of this boat.



I will most likely do the color scheme similar to the one posted above. I am going to set it up so that I do both the TURTLE and the ICTINEO ll at the same time.

Rob
"Firemen can stand the heat."

[Subculture]

I don't think any of the Turtle drawings and recreations are regarded anything more than a best guess based on descriptions of the prototype, so lots of artistic license with this boat.

I do find it puzzling that pretty much all the renditions I've seen seem to show construction like a cask/barrel, which are designed to keep fluid and pressure from within rather than external pressure out.

[He Who Shall Not Be Named]

I don't think any of the Turtle drawings and recreations are regarded anything more than a best guess based on descriptions of the prototype, so lots of artistic license with this boat.

I do find it puzzling that pretty much all the renditions I've seen seem to show construction like a cask/barrel, which are designed to keep fluid and pressure from within rather than external pressure out.

I've done a fair amount of reading on this boat, and in some correspondence between Bushnell and Jeferson the hull was described as two hollowed out tree halves banded together with iron hoops. Not the work of a Cooper; not a traditional 'barrel'.

[Subculture]

That method of construction would make a lot more sense.

[rwtdiver]

That method of construction would make a lot more sense.

Subculture,

There is certainly a lot of different methods of Contruction of the Turtle. The STL files that I used was more of a look inside version, so he needed space to install the hinge for opening which certainly had some effect on the back side of the Turtle!?

Rob
"Firemen can stand the heat."

[rwtdiver]

Yesterday I applied the flat primer to the Turtle.



After the primer dries I will apply the Rust-Oleum Chalked Cocoa Bean as my base color. After that has cured I will start on the final trim colors.

Rob
"Firemen can stand the heat."

[rwtdiver]

I found time today to apply the final base color coat on the Turtle.



Once the base brown coat has cured I will do a little trim finish work as well. Then comes the final clear flat coat and this project is complete!

Rob
"Firemen can stand the heat."

[Bob Gato]

It looks great Rob... Years back I learned something from the model railroad guys.. I don't know if it could be applied to your project but they take India ink and dilute it down . Then they put it in a spray bottle and spray it over the surface of what they're building... It could be a locomotive, box car maybe even rocks and mountains ... the India ink settles into all the cracks and crevices and they just pop out into reality
... Maybe something to experiment with on your trial prints..BG

[rwtdiver]

It looks great Rob... Years back I learned something from the model railroad guys.. I don't know if it could be applied to your project but they take India ink and dilute it down . Then they put it in a spray bottle and spray it over the surface of what they're building... It could be a locomotive, box car maybe even rocks and mountains ... the Indian ink settles into all the cracks and crevices and they just pop out into reality
... Maybe something to experiment with on your trial prints..BG

Thank you for the tip Bob!

https://www.amazon.com/Dr-Ph-Martins-Bombay-India/dp/B0026I10AI/ref=sr_1_2?keywords=india+ink&qid=1675799820&sr=8-2

You are talking about something like this Ink? And then just experiment with the dilution strength!?

I am about to embark on the weathering and accent applications, which is going to be a whole new learning process for this old geezer! I am pumping through a lot of Davids work to gain some knowledge.

Rob
"Firemen can stand the heat."

[Bob Gato]

Yes, Rob...that's the stuff. They dilute it with iso alcohol. I have pump sprayed it on or/ and brushed it...This vid will give you the idea... sorry, I'm on an airliner with sketchy wifi and can't search for the best YouTube... but it should help- BG

https://youtu.be/wPqqrbuoYVw

[wlambing]

Rob,

You could also use a thinned wash of either Testor's flat black enamel, Testor's flat black acrylic, or Tamiya "panel line" acrylic paint. All of this will accomplish the "pop" to bring out your details.
Have fun!!

Bill

[rwtdiver]

Thank you guys! (Bob & Bill)

I will give both a try! All my indoor paint has got to be with water base, and I do Prefer acrylics. I will certainly try both suggestions.

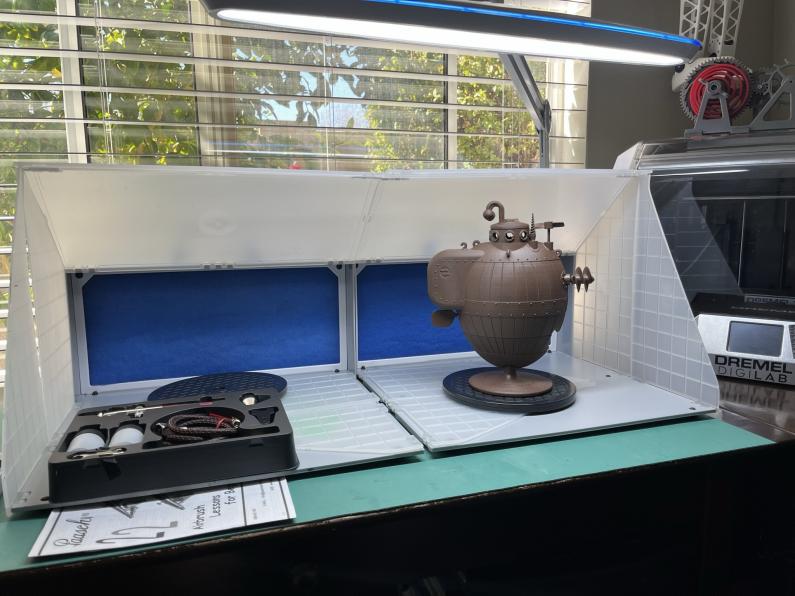

I have just set up my air brush spraying station, which is ideal for water base acrylics. This will all be new stuff for me! Lots of learning will be needed.

Bob! Thank you for taking time out of your flight to post up the YouTube video link. Hope you are having a good trip. Thanks again!

Rob
"Firemen can stand the heat."

[He Who Shall Not Be Named]

Rob! Before you start blasting away on that poor little TURTLE, first experiment on a discarded hull you're never going to finish (or -- if you've lost your will to live -- your spouse's Hummel figure collection). Slather the test article with your painting/weathering ideas. And, once you have a handle on it, direct your wrath onto the TURTLE.

I have spoken!








David

[rwtdiver]

Rob! Before you start blasting away on that poor little TURTLE, first experiment on a discarded hull you're never going to finish (or -- if you've lost your will to live -- your spouse's Hummel figure collection). Slather the test article with your painting/weathering ideas. And, once you have a handle on it, direct your wrath onto the TURTLE.

I have spoken!








David

I don't know if you recall or not, but you worked with me on my HL HUNLEY finish work!





Your taking the time to work with me on this project really made the Hunley! My best finish job yet!

Thanks David,

Rob
"Firemen can stand the heat."
