**rwtdiver** · 10-14-2022, 01:25 PM

Andreas,

Looks like you have found a 2D plan that will work to create your model of the HMS Holland 1! I am sure looking forward to this build!

Rob
"Firemen can stand the heat"

**Subculture** · 10-14-2022, 01:41 PM

That's sheet 2 of the John Lambert plan.

You can get a full copy from-

Hollandi MM1378 Submarine Plan - Sarik Hobbies - for the Model Builder

https://www.sarikhobbies.com/product/hollandi-mm1378-submarine-plan/

Designer: John Lambert Star Rating: *** Very detailed external and internal drawings of the Navy's first submarine drawn at 25.5in length. The drawings are very detailed and annotated and make interesting study in addition to their value to a modeller. No model construction details are included. Please note that all plans are printed to order […]

**DrSchmidt** · 10-14-2022, 02:09 PM

Excellent…. that's what I was looking for.

I ordered the plans, and if they are good, I'll get them scanned and then I'll work of them. Better than internet material, no matter how good it is...

So I'm putting a hold on the project till the plans are here.

Cheers Andreas

**DrSchmidt** · 11-12-2022, 10:52 AM

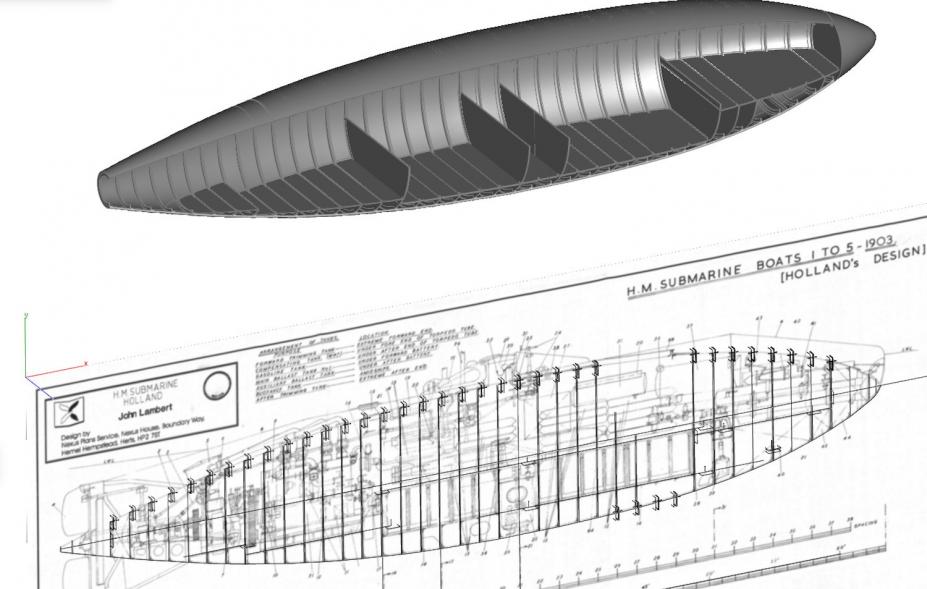

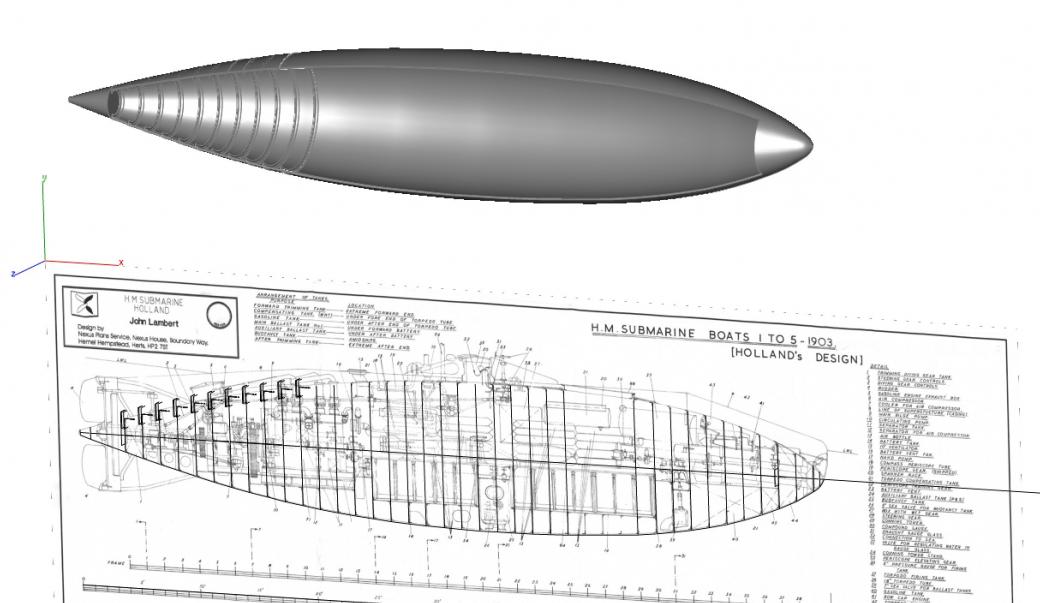

Took a while, but thank to the nice hint by Mr. Subculture I got hands on the John Lambert pans of the HMS Holland, got them scanned and now I'm good to go....

Attached Files

**DrSchmidt** · 11-13-2022, 01:04 PM

Getting the bulkheads and floors done....

**DrSchmidt** · 11-16-2022, 05:27 AM

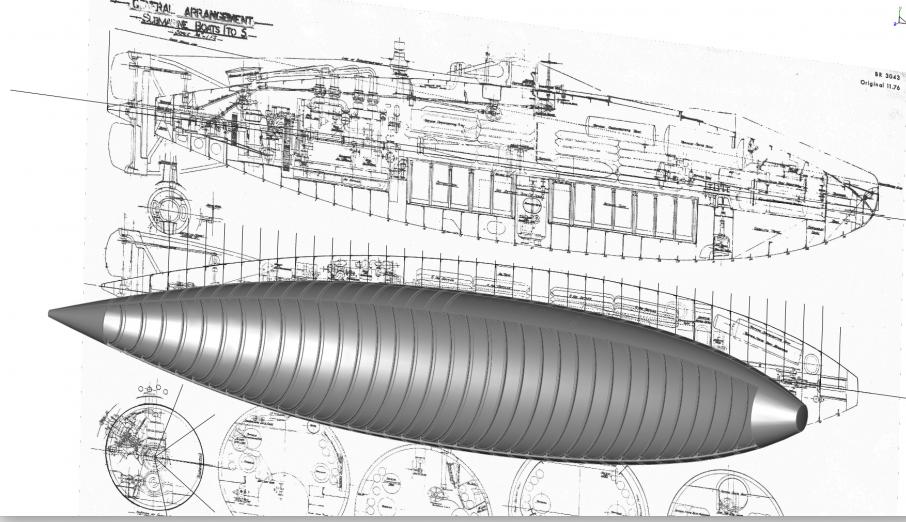

More progress on the internal structure....

**DrSchmidt** · 11-16-2022, 09:29 AM

And some more....

**DrSchmidt** · 06-18-2023, 08:25 AM

Nice Sunday aftrenoon....some European League Football and drawing the Otto-Engine of the H.M.S. Holland

**DrSchmidt** · 06-24-2023, 01:05 AM

Slow progress...

**DrSchmidt** · 06-30-2023, 12:49 PM

I ran into this excellent 3D model of the HMS Holland by Mark Alloway:

HMS Holland

https://blenderartists.org/t/hms-holland/1100038

Old model that I’ve redone using the Filmic color management settings and the new Principled shader.

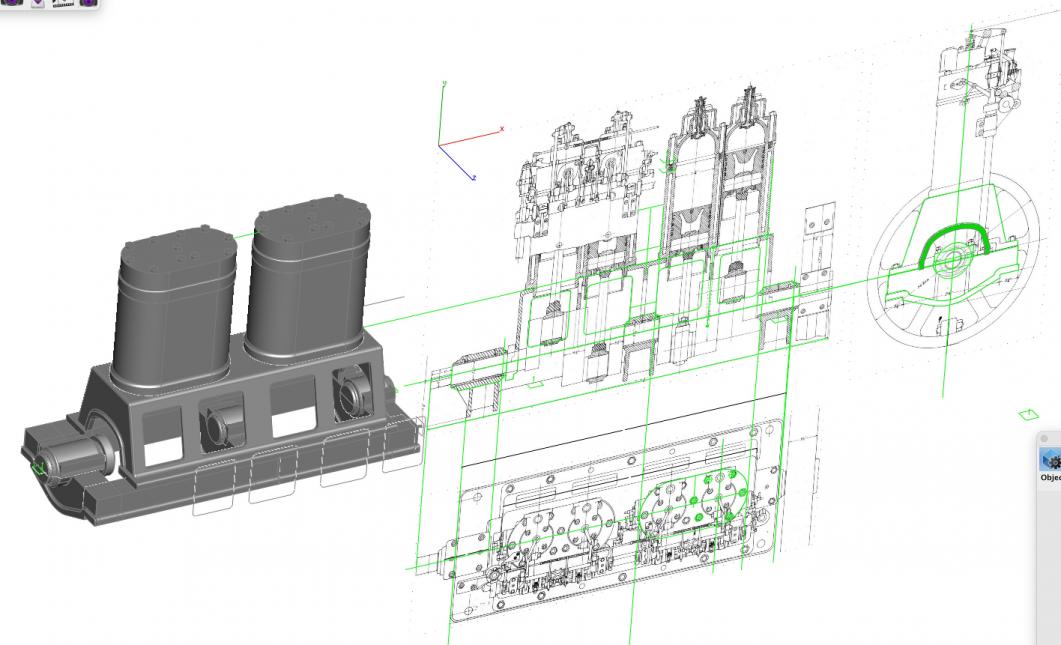

As I'm missing source material for the Engine I contacted him to learn where he got his information. He was very helpfull, and I'm happy to say, that I got some very accurate draw�ngs of the Otto engine . That's a big differenece,....

Attached Files
