  • Navy Seal Delivery Vehicle Mk-8

    Going to start on another project, the Mk-8!

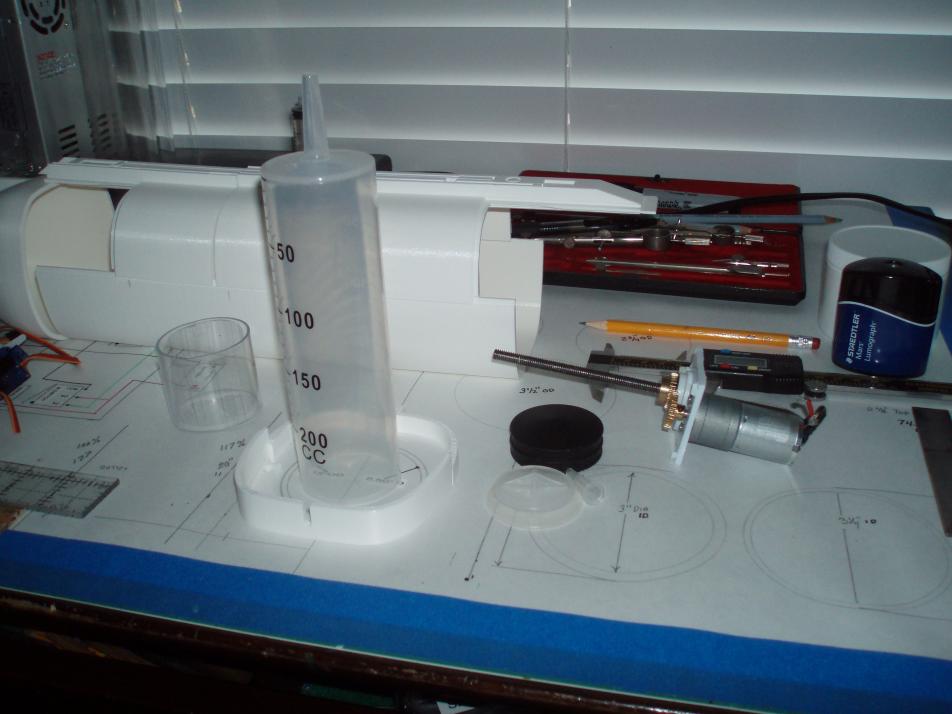

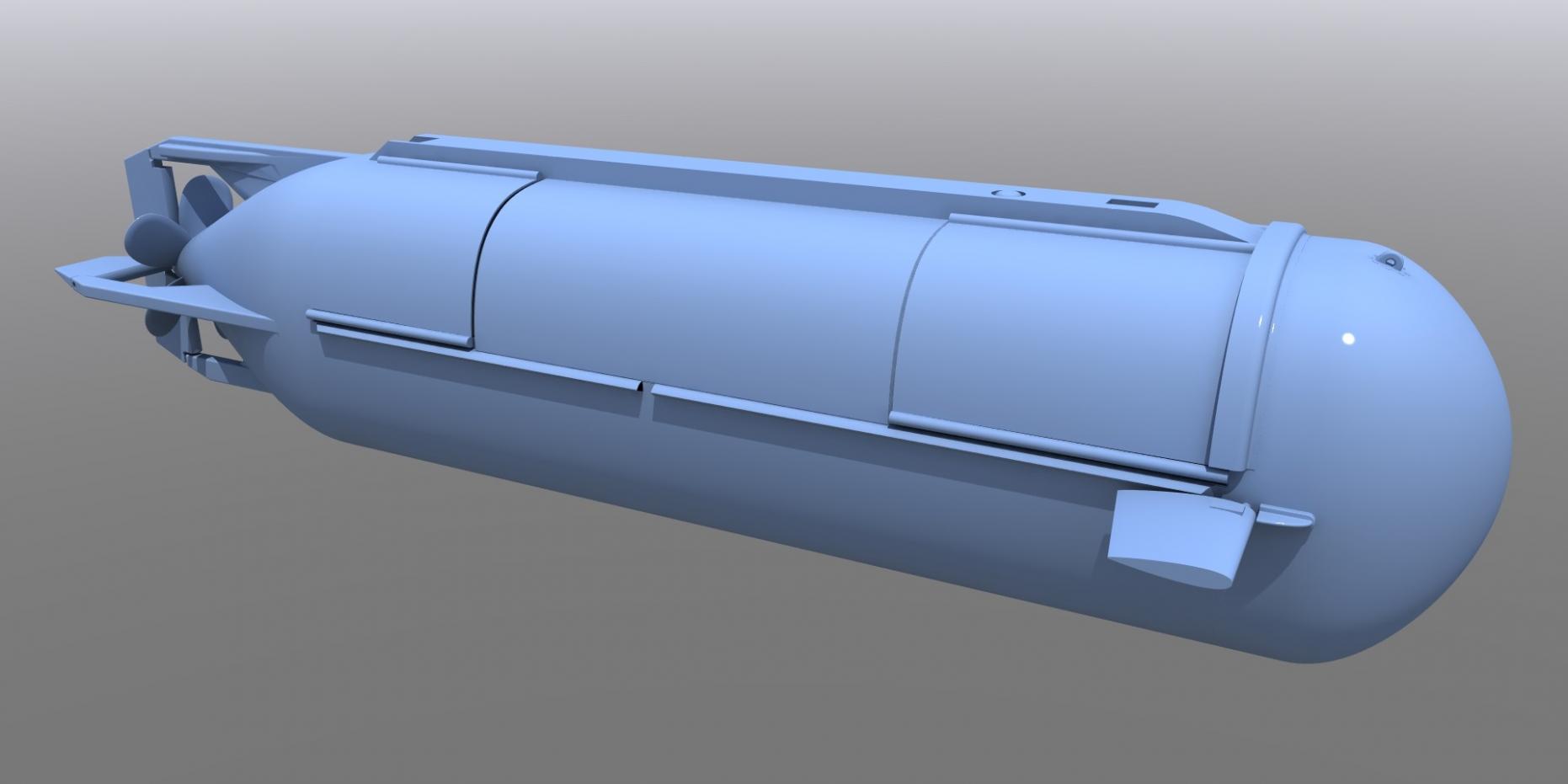

    Click image for larger version

Name:	Finished1.jpg
Views:	228
Size:	23.5 KB
ID:	151664
    This is going to be a somewhat modified build in that I am resizing and re-designing the interior in order to install a WTC and a ballast diving system! (my design and fabrication)

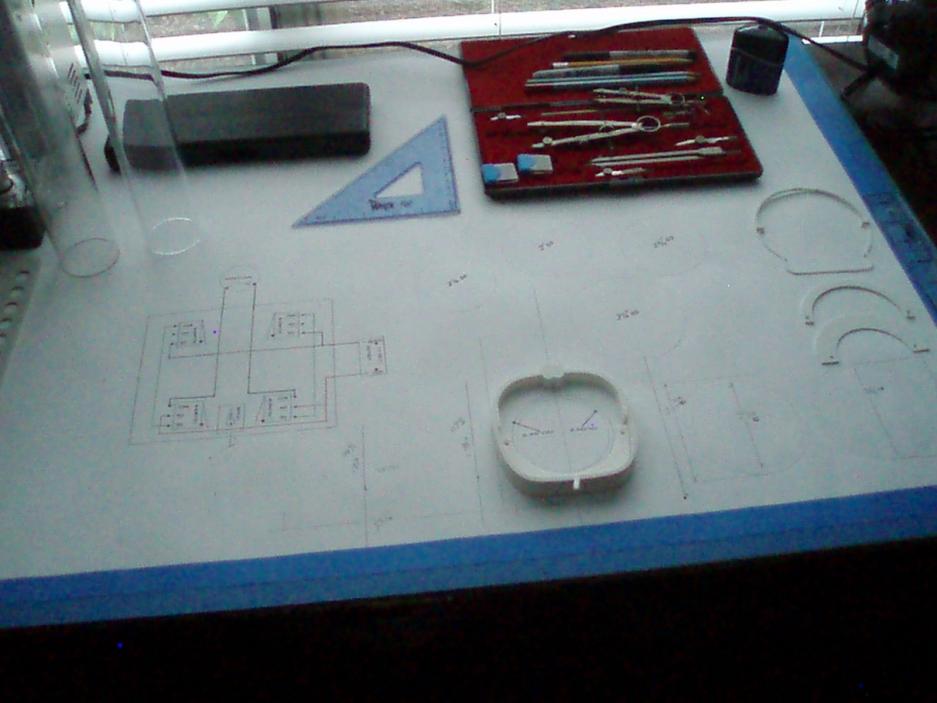

    Click image for larger version

Name:	P1000005.jpg
Views:	149
Size:	57.9 KB
ID:	151665Click image for larger version

Name:	P1010117.jpg
Views:	154
Size:	54.4 KB
ID:	151666

    Click image for larger version

Name:	P1010118.jpg
Views:	155
Size:	54.8 KB
ID:	151667

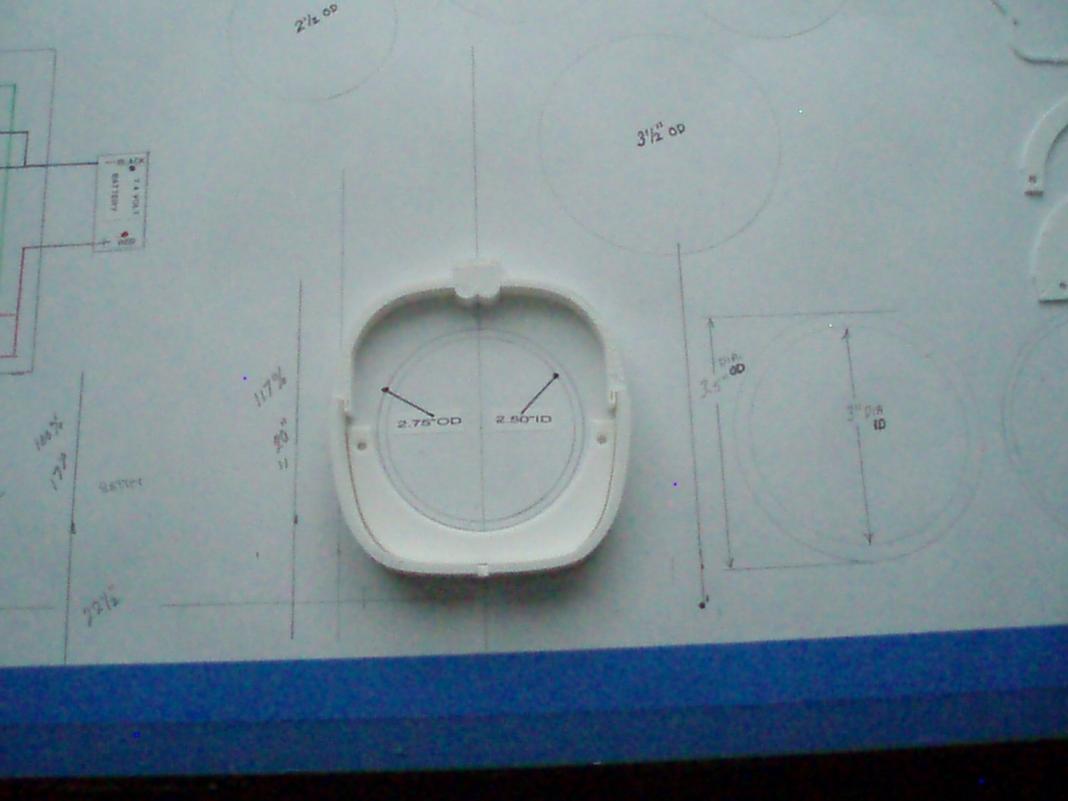

    Based on what I have right now it will be between 20" to 24" long. The WTC (SD) will be 2.75" OD with a 2.50 ID size. More design work and layout needed to sure things up! My hope is to make this a full diving sub!

    Rob
    "Firemen can stand the heat"


  • #2
    This will be fun!

    Comment


    • #3

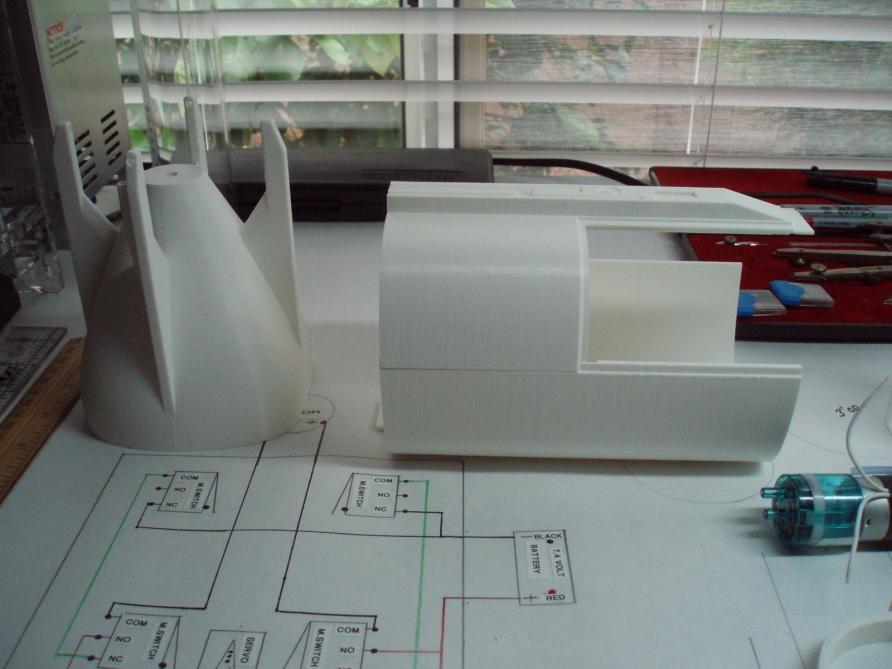

      Making some head-way on the hull sections! Using Dremel Digilab PLA white on this project, and I am very pleased with print quality at this point!

      Click image for larger version

Name:	P1000044.jpg
Views:	137
Size:	59.3 KB
ID:	151708Click image for larger version

Name:	P1000055.jpg
Views:	119
Size:	64.7 KB
ID:	151709

      Not totally sure which way I am going to go with the ballast system on this project! I do not have a lot of space in the WTC, because the hull will only be open for about an 18" to 20" long 2.75" OD cylinder! One idea will be a piston type system, or using a water in and out pump system! Going to be interesting for sure, but most of all a fun learning process!

      Rob
      "Firemen can stand the heat"

      Comment


      • #4

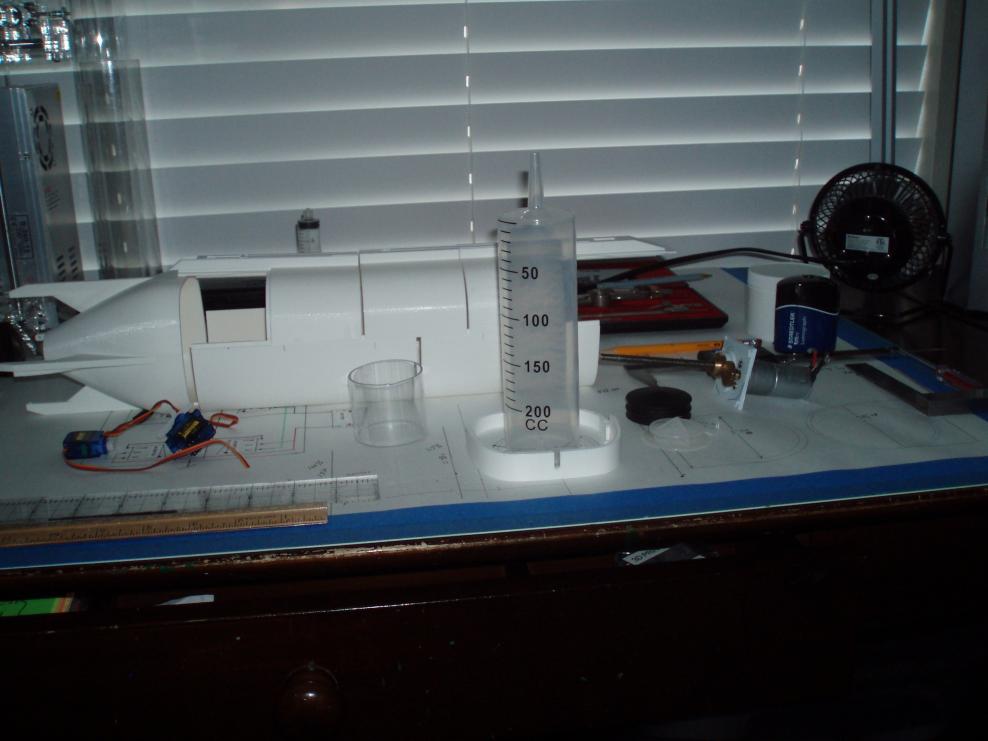

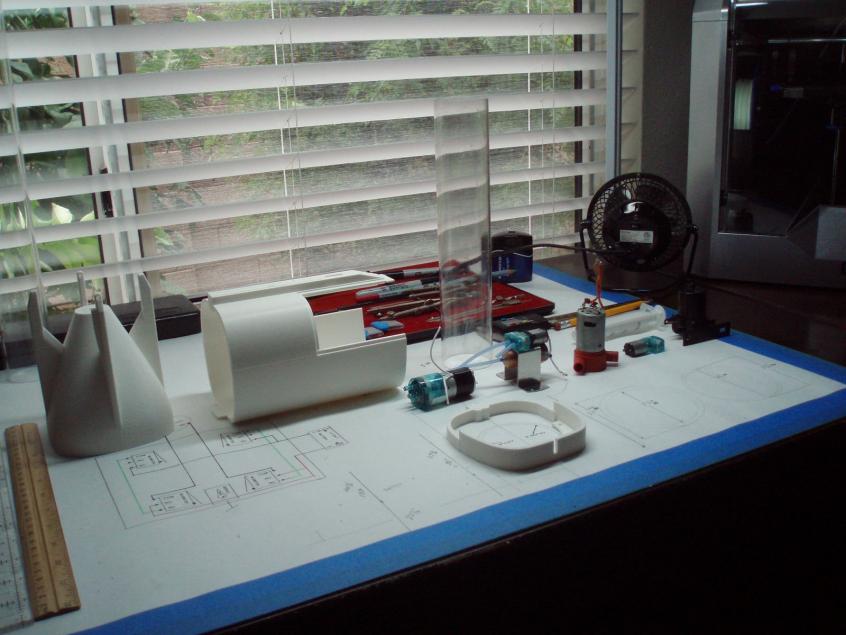

        Today I was able to do some experimenting on a possible ballast tank system design!

        Click image for larger version

Name:	P1017657.jpg
Views:	122
Size:	60.1 KB
ID:	151757Click image for larger version

Name:	Syringe MK-8.jpg
Views:	107
Size:	60.4 KB
ID:	151758

        the only problem that I can see with this design is space! So to compensate for the extra space needed I am adding one more hull section to the sub! I have already increased the beam size, so some extra length will not make any difference, it not being built to any specific scale anyway!

        Rob
        "Firemen can stand the heat"

        Comment


        • #5

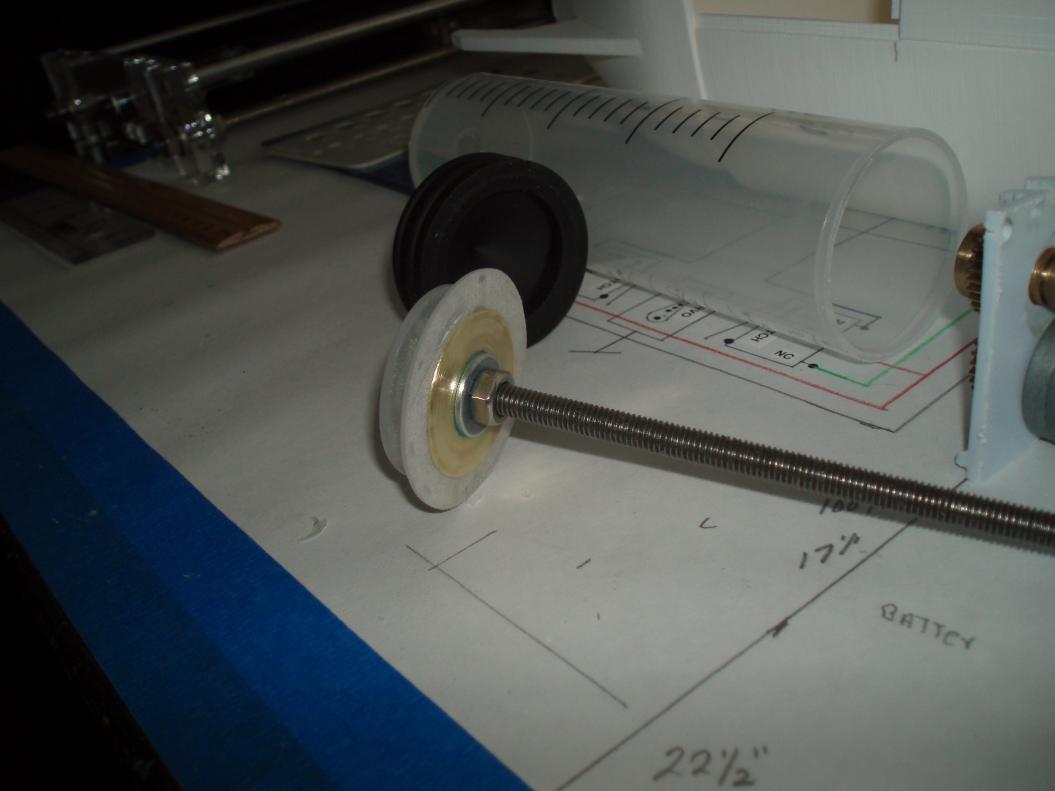

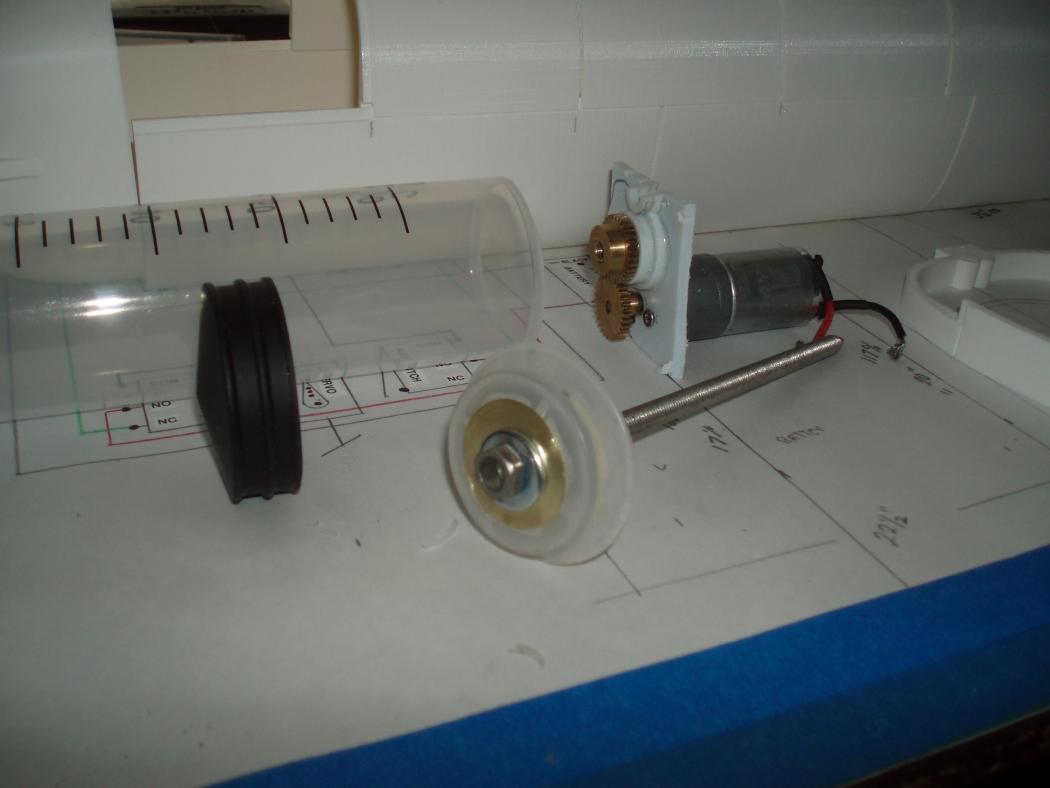

          In the process to design and fabricate the adaptor for the plunger unit! I took the plunger apart and built up a back plate using the existing plastic and making two brass washers to attach the plunger and rubber seal to the main screw shaft!

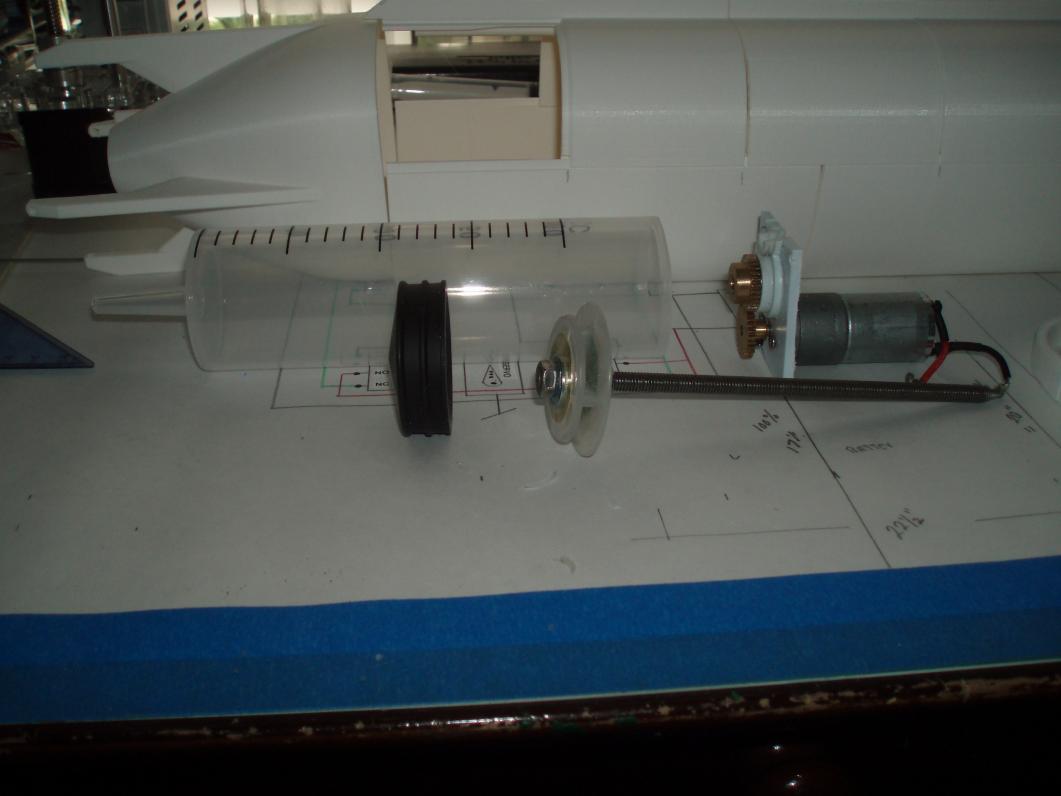

          Click image for larger version

Name:	Syringe Four.jpg
Views:	104
Size:	61.9 KB
ID:	151766Click image for larger version

Name:	Syringe One.jpg
Views:	96
Size:	48.0 KB
ID:	151767

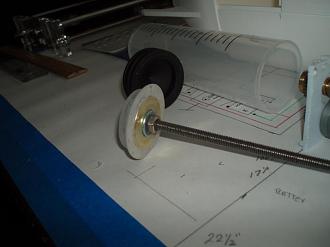

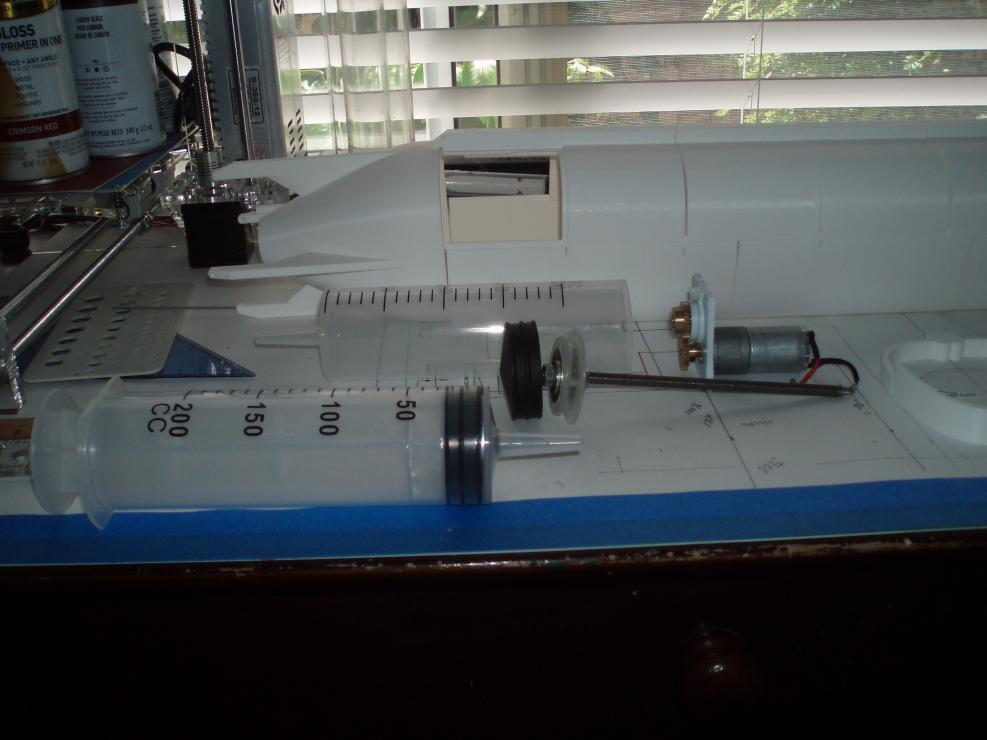

          Click image for larger version

Name:	Syringe Two.jpg
Views:	102
Size:	52.2 KB
ID:	151768Click image for larger version

Name:	Syringe Three.jpg
Views:	98
Size:	51.5 KB
ID:	151769

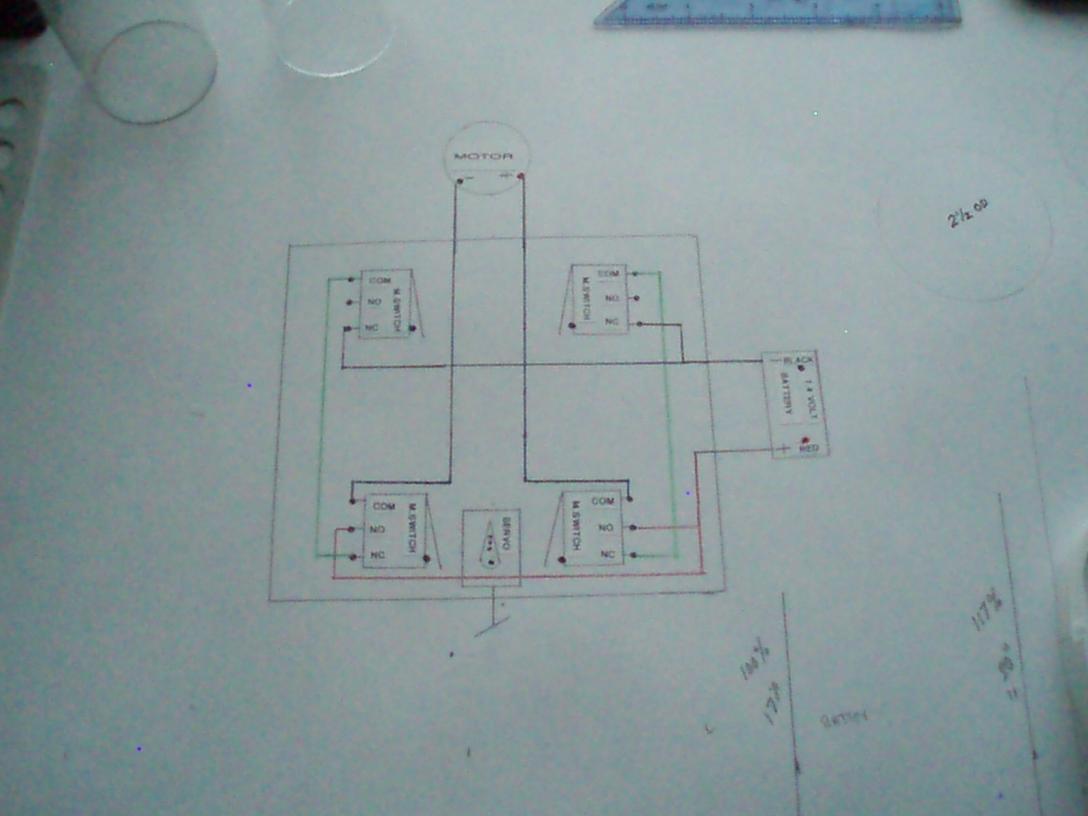

          Now on to the design and fabrication of the housing for the motor and the screw drive unit!

          Rob
          "Firemen can stand the heat"

          Comment


          • #6

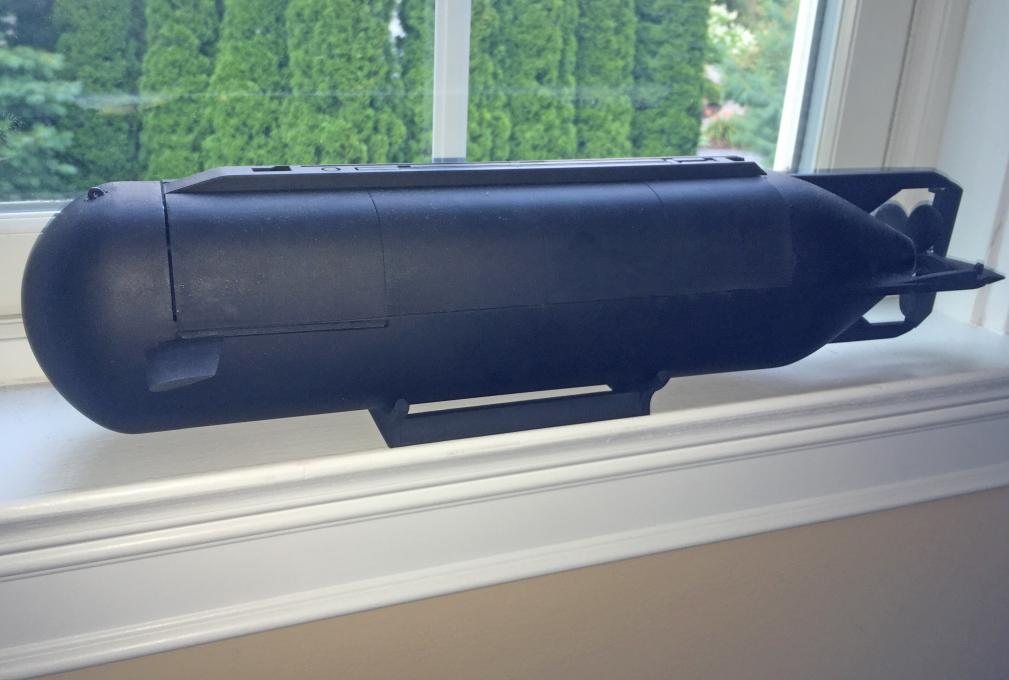

            I printed Carl's SDV last year and have slowly added additional interior and exterior detail, with new masts that will be lever-operated on the next print. It's a nice little boat and a fun project. The SEALS often drive the thing with their heads above the front end (poor man's PD) during practice runs, though the optical mast works quite fine.

            Click image for larger version

Name:	MK-VIII Proto.jpg
Views:	99
Size:	61.0 KB
ID:	151771

            Comment


            • #7
              Originally posted by CC Clarke View Post
              I printed Carl's SDV last year and have slowly added additional interior and exterior detail, with new masts that will be lever-operated on the next print. It's a nice little boat and a fun project. The SEALS often drive the thing with their heads above the front end (poor man's PD) during practice runs, though the optical mast works quite fine.

              Click image for larger version

Name:	MK-VIII Proto.jpg
Views:	99
Size:	61.0 KB
ID:	151771
              CC Clarke

              Nice looking model!

              Ounce I get the sub I am currently working on completed, I would like to Print out a scale model like yours for the book case, just to have as a static display! In order to get everything to make this sub operative, I needed to change the scale to make this happen! I might have been able to do it at true scale, but to install all the mech. and electrical components into that size would make a truly tough project!

              If this project works out, I may attempt to scale down all the components and install them into the scale SDV model!

              Rob
              "Firemen can stand the heat"

              Comment


              • #8

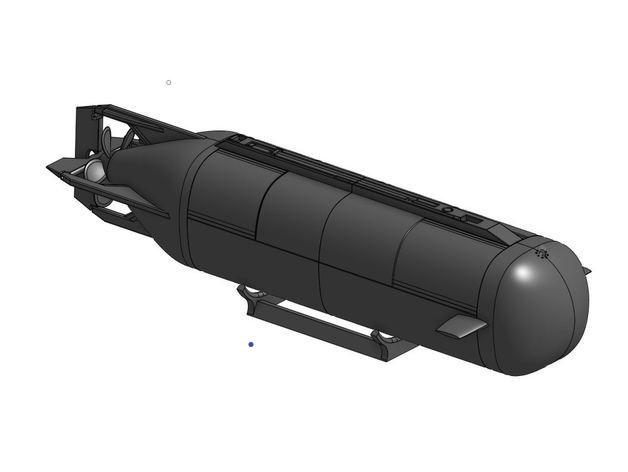

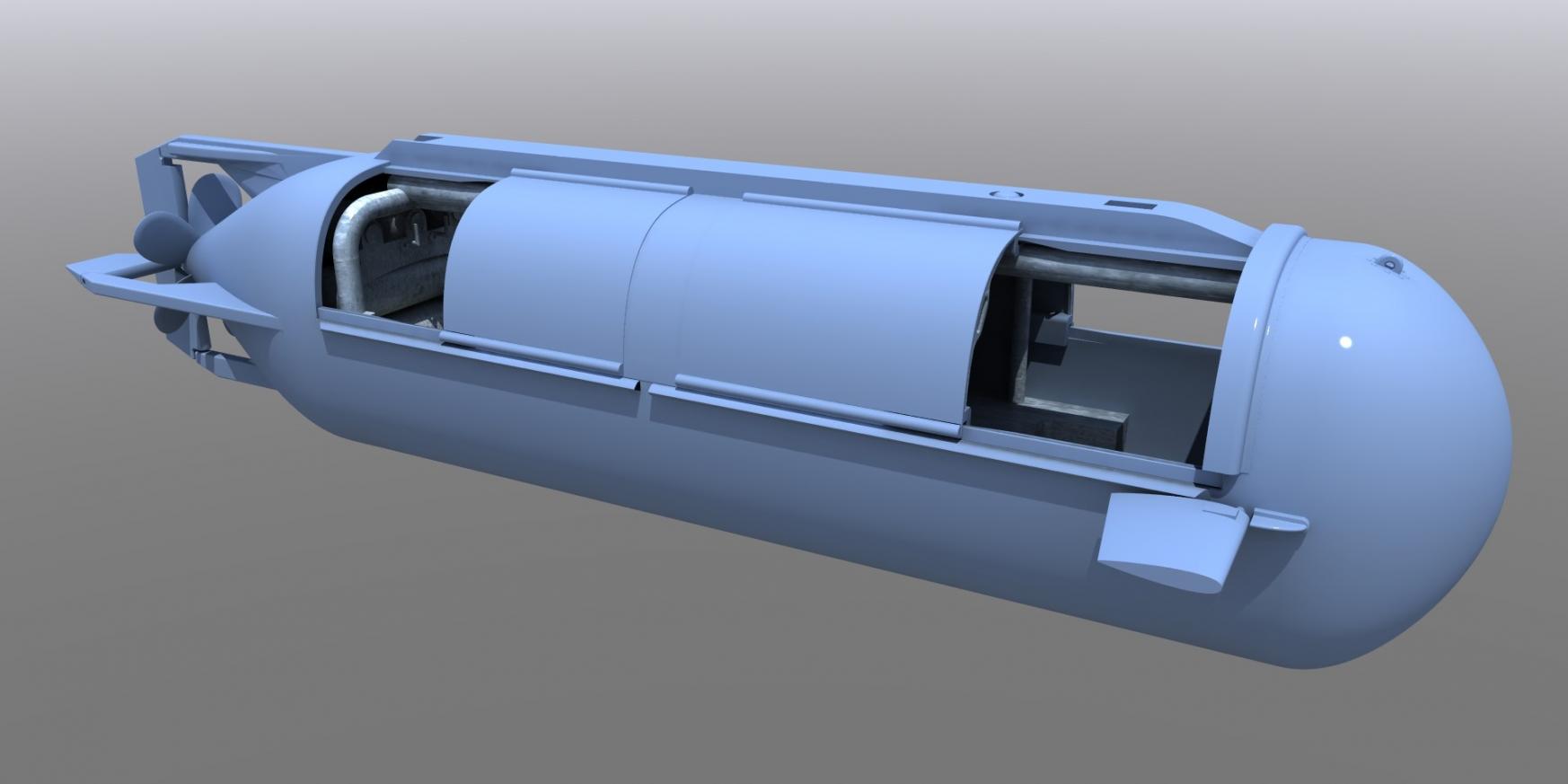

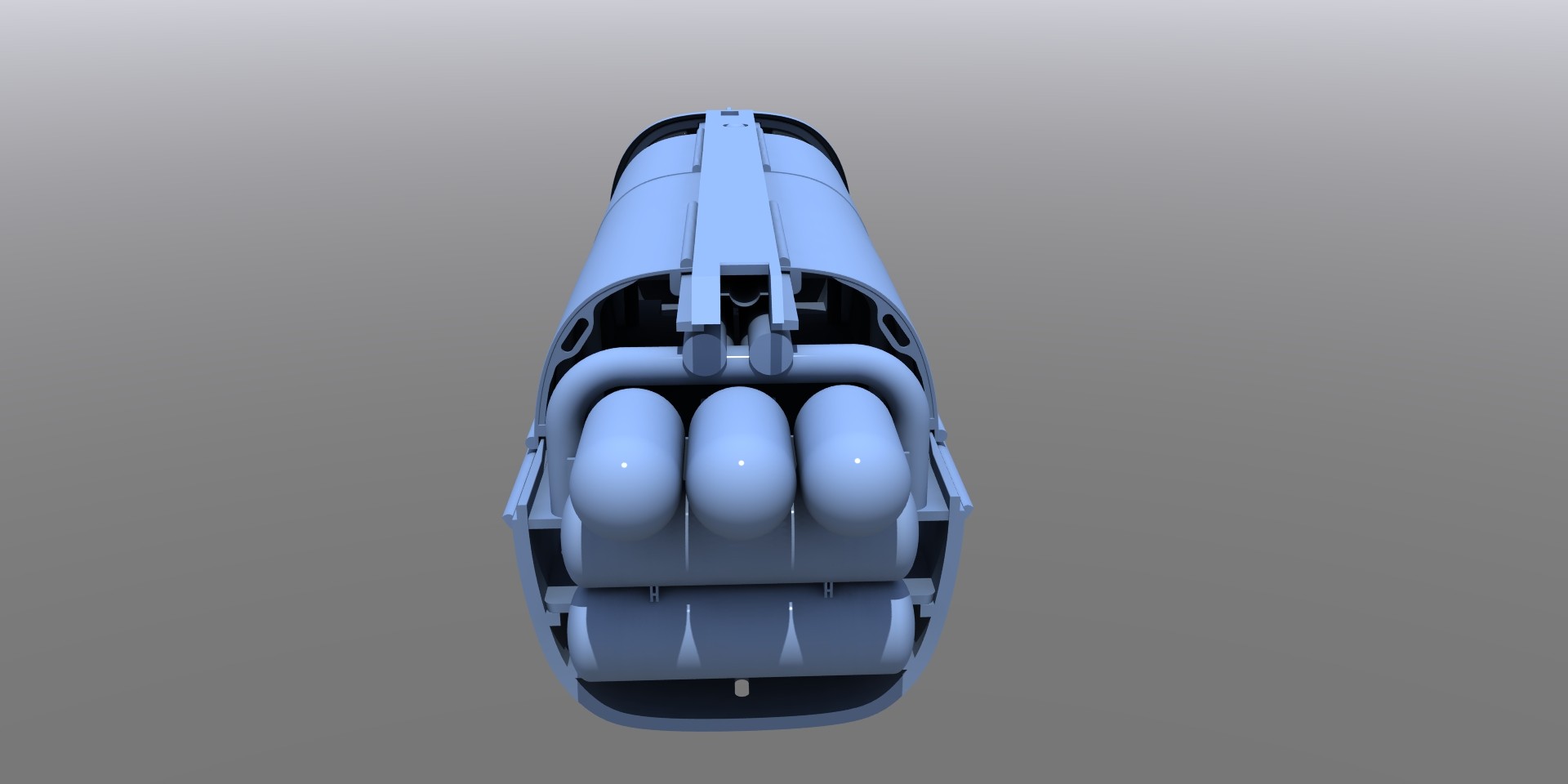

                A couple of renders during the re-design.

                Click image for larger version

Name:	Build Progress 03.jpg
Views:	90
Size:	63.8 KB
ID:	151781
                Attached Files

                Comment


                • #9

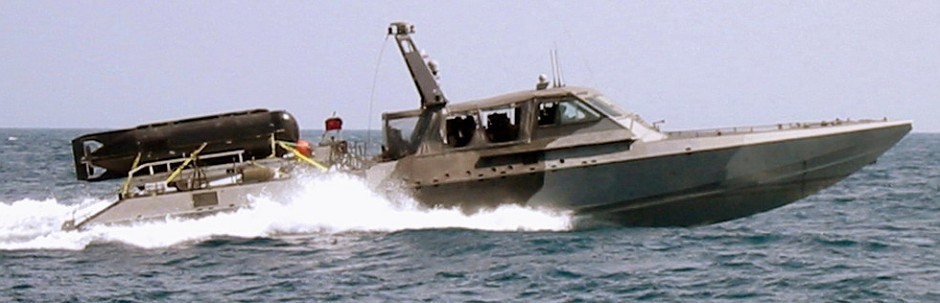

                  Very Cool! LOL your Navy Seal delivery vehicle on the back of my Navy Seal delivery vehicle...(the very same s/n boat that I chose to build)
                  Nice Job-BG

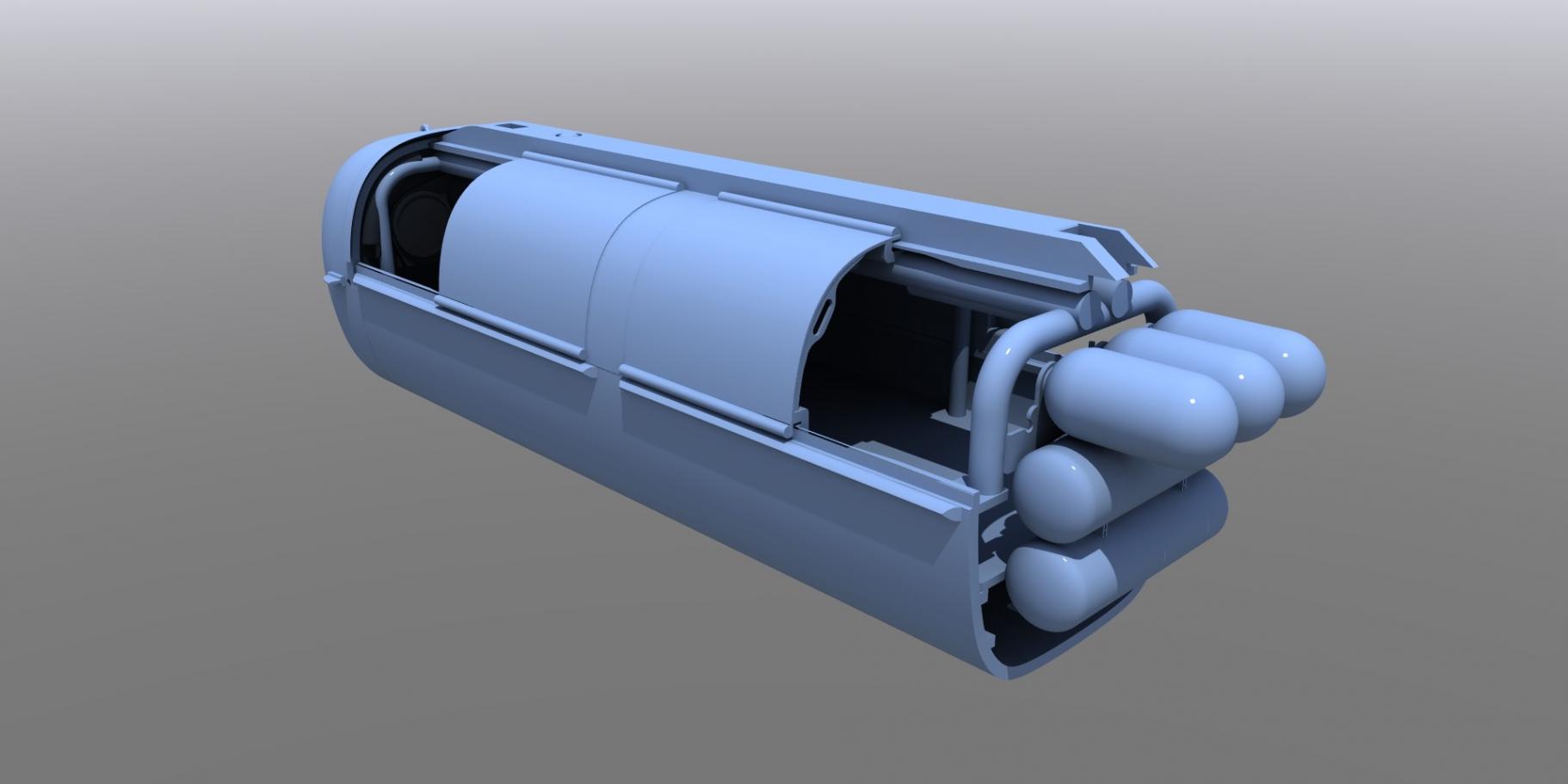

                  Click image for larger version  Name:	SOC_MkV_SDV.jpg Views:	0 Size:	62.9 KB ID:	152208 https://www.rcgroups.com/forums/show...-Craft-in-1-24
                  Click image for larger version

Name:	f2pELmcA.jpg
Views:	63
Size:	39.6 KB
ID:	152209












                  Last edited by Bob Gato; 08-08-2021, 07:00 PM.

                  Comment


                  • #10
                    Rob Thanks for sharing your MK8 Build with us.

                    Question about your MK8, is that 3D file your creation OR did you find it somewhere?

                    If yours` would you consider sharing?

                    Thanks again

                    George

                    Comment


                    • #11
                      Originally posted by rwtdiver

                      George,

                      I got the files for the MK 8 from "Thingiverse" Go to heading submarine. Go to page #8 and it was right at the bottom of the page! Great files!

                      Rob
                      "Firemen can stand the heat"
                      To get those files to print in the size you have what enlargement factor did you use?
                      Thanks again for posting this here.
                      George

                      Comment
