Japanese Class A 1/16

Collapse
X

  • Time
  • Show
Clear All
new posts

  • MFR1964
    replied
    Thanks for the info Von, weldinglines will always create problems, unless you have the original shipyard drawings, even then you can go wrong, i hope David can do me a pleasure by digging up the master they made and take pics from all sides, giving me a accurate view.
    Let's hope he can find the time for doing that, i know his plate is fully overloaded with Mike jumping on his back screaming "more, more, build more ******, and faster!!!!,.
    For now i'm still covered by foamdust, within a few days all parts will be ready for glueing, i want to build her at first in three parts, front section, middle section and rearsection, when every section is ready i will marry them into one piece, this way i have some room for adjusting her symmetrical, with foam you don't have a choice, the best way of building this boat is the way David did, some nice straight pieces of wood.

    Manfred.

    Leave a comment:


  • Von Hilde
    replied
    Manfred, the weld lines that I used were an interpilation of sources, mostly from photos. Relying on the drawings, only for a guide. You are correct in fact the actual boats differed individually, as well. The 5 Pearl Harbor boats were unique in a class, by themselves. They were almost identicle, except for markings. All other boats after Dec 10 were up graded, because the IJN thought they all failed due to possible design flaws.( Dec 10 was the rondevous date for any survivors that could possiblly be left, could hook up with a waiting Mother ship, south of Oahu.) Originally the designers assumed it was the net antifowling guards. (Not Net Cutters, as most people call them.) They wern't for cutting, but diflecting the Cables that held the buoys for the anti torpedo netting that was suspended below the surface, So various mods were made on all the type As in the rigging as well as the armor on the towers. So basiclly saying that if you rely on existing drawings, from anyone, they will be based on a surviving relic that is most likley a display. These displays are all cobbed together from various war torn boats off the bottom. None are compleet except for Kazuo Sakamaki's Ha19, and that is not even absolutly correct after it was revovered, on Dec 8. The Prop cage antifowling apparatus had been run over by a destroyer, and then ran aground on the reef after it broke free of the rocks, they made it to the beach on the east shore of Oahu. The USN recovery team the nest day dragged it off the beach with tow cables hooked up to the jumper wire. This further dammaged the original rigging and fowling system. No one cared it was just a hunk of beaced junk. Somebody in the war department. thought it would be a good War Bond project. Restoration for the war bond tour at Mare Island shipyard in 42 left off the end of the prop guard, and it still missing. When it was sitting at the base in Key West, I spoke with Kazuo about the condition of the relic as it sat in 1990, and he said many details were overlooked, one being the antifowling and the other was the color. So, the only surviving prop guard in good shape is on the ha8 which Gene based his drawings on. The h19 had drewings made by a US Navy Commander that took the measurements off the boat as it sat at the KW merritime museum its last resting place where it was still all together. Shortly the Nimitz museum, aquired it and took it completely apart for shipping from KW to Texas by barge. I purchased a 1/72 scale model of the H19 that was made from those drawings the Naval Architect drew. Fine Models, a Japanese company produces this boat. Listed as A-Target, IJN Type A midget(Pearl Harbor) Very good representation, and detailing of hatch and deck plate placement. Well worth the investment and a wealth of knowledge. Even in the instructions not just for the drawings but the text as well. (If you understand Japanese) or know a local Sushi Chef, as I do both. Very interisting tacticle information on the attack and positions of where and when all the boats were accounted for, Things the history books had all wrong, as to what happened. Happy New Year BTW I could be a good one.

    Leave a comment:


  • MFR1964
    replied
    Von,

    The same story for me, sometimes it's good to step back from making models, gives you a fresh look for the future, as for the To Do list, i don't mind, it will return every year, gives me a excuse for not building models.
    Building the plug was something i delayed too long, have to do this in the winter so i can laminate her with a epoxy skin in the spring.

    I do have a question for Gene, as i look at the drawing, the weldinglines are different to the model you've made, is there a reason for that?, or do the weldinglines differ by boat?, i also wonder if there are pictures how the boat is being split up, i prefer the vertical split into three parts, so transport will be much easier, it even gives me more access to all parts.

    Manfred.

    Leave a comment:


  • Von Hilde
    replied
    good to see your progressing on that now. I have been taking a long break from the models these last few months, as well. My wife doesnt give me a To Do list. The reason no need for a list , because I have to fix everthing thats broke. She said just keep working till I dont see anything left to do. You know if there is a list and you cross one off, two more amazeingly appear.

    Leave a comment:


  • MFR1964
    replied
    For now i'm playing around with foam, i don't own a woodlathe so i went the foam way, did this before with the type XVIIb,

    Click image for larger version

Name:	PC180340_zps3s2prwg6.jpg
Views:	163
Size:	81.9 KB
ID:	111881

    At first i took some measurements to get me the right diameters, this was depending on the thickness of the foam, about 6 cm, took the complete package and drilled a hole right in the center, by using a threaded bar with nuts i can clamp the foam between both ribs.
    Used a sawblade to get the rough shape and a sandingblock to get the part smooth,it also could be done with a melting wire, but once again, it's not in my toolbox, i've got to improvice.

    Click image for larger version

Name:	PC180342_zpsq0wac5yn.jpg
Views:	152
Size:	88.8 KB
ID:	111882

    After a few evenings you get this, started to build up the rearpart, those lines on the foam are used to place them in line.

    Click image for larger version

Name:	PC190343_zpsrzjfpvfg.jpg
Views:	164
Size:	91.9 KB
ID:	111883

    The middle section was easy, made five equal parts, used the drawing for checking the length.

    Click image for larger version

Name:	PC190344_zpshxdolmku.jpg
Views:	157
Size:	92.3 KB
ID:	111884

    All parts in line for a dryfitt, next week i'll start with the frontpart, got myself some days free from the office, so it should go fast, unless She Who Must Be Obeyed has some jobs to do, ssstttt!!!!!, never mentioned that, if you know what i mean, wink,wink,notch,notch!!!

    Manfred.
    Attached Files

    Leave a comment:


  • MFR1964
    replied
    Scope up!!!!

    There is dust in the Cave, wait and see

    Scope down!!!

    Leave a comment:


  • Von Hilde
    replied
    Excelent as would be expected from you Manfred. That is beautiful. I havent done much on mine, except research on the type A. and hull detale differances. I have changed the scale on my project boat to 1/19th to keep the model under 48inches, so basiclly now have two towers. one is the 1/16th that I started with and a slightly different version in 1/19th, which is spacific to the H-19, Mr Sakamaki's boat. I dont want to hijack this thread, so I will be posting the progress on the hull on a new thread, under 1/19th scale Pearl Harbor Miget.

    Leave a comment:


  • MFR1964
    replied
    It has been a while, but i'm back on the track, She Who Must Be Obeyed is pleased with her new garden, and i can focus me again on the build,

    Click image for larger version

Name:	P3210085.jpg
Views:	1
Size:	88.0 KB
ID:	98661

    Click image for larger version

Name:	P3210086.jpg
Views:	1
Size:	84.0 KB
ID:	98662

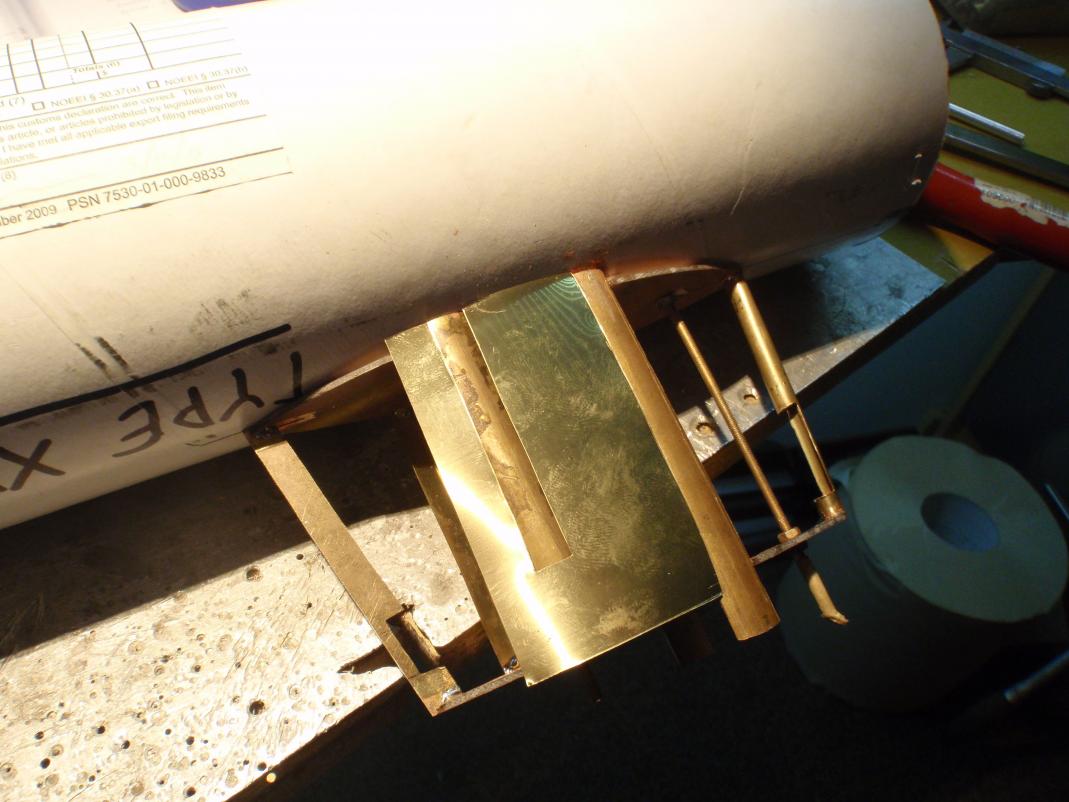

    Added the reinforcement strip at the back, and used some half cutted tubes to imitate both the periscope housing and the entry tube under the conningtower hatch.


    Click image for larger version

Name:	P3210087.jpg
Views:	1
Size:	85.8 KB
ID:	98658

    Made a beginning with the copper sheeting, instead of using glue i went mad with the soldering iron, giving me a real live weld.

    Click image for larger version

Name:	P3210088.jpg
Views:	1
Size:	89.7 KB
ID:	98659

    The other side was pretty much the same, first the dryfitting before i could start with the soldering.

    Click image for larger version

Name:	P3220089.jpg
Views:	1
Size:	83.5 KB
ID:	98660

    I went ahead with making those reinforcement ribs, and drilled all holes for fastening the rear plating, for now i have to make the rear plating, crawling ahead.


    Manfred.

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Originally posted by george
    Hello
    Question for: He Who Shall Not be named. Still waiting for the plan/drawing you said you sent me.

    Please let me know.

    Thanks
    George
    Thanks for the reminder, George.

    M

    Leave a comment:


  • george
    replied
    Hello
    Question for: He Who Shall Not be named. Still waiting for the plan/drawing you said you sent me.

    Please let me know.

    Thanks
    George

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Excellent, excellent work, Dave. You have no fear!

    M

    Leave a comment:


  • Von Hilde
    replied
    Little more progress on the hull and tower. Made a wire frame for the front section and covered it with aluminium. Made the hinge for the hatch. Don't really know why I made it operational, except that it was just there. I'm to the point of thinking functional torpedoes. Or at least the option of them later. Making the tubes and mounts while it's still accessible. This will take some research and ingenuity. The bow will be fun to bend. First have to figure out how the split will operate. Magnets or fasteners.Click image for larger version

Name:	image.jpg
Views:	1
Size:	85.0 KB
ID:	98223Click image for larger version

Name:	image.jpg
Views:	1
Size:	65.6 KB
ID:	98224Click image for larger version

Name:	image.jpg
Views:	1
Size:	73.9 KB
ID:	98225

    Leave a comment:


  • Von Hilde
    replied
    Transmission/gear box access hatch, with the actual hatch, plus boiler plate cover, underneath. The aft lifting eye, is the hold down screw. Soldered a tab with hole, made from flattened wire and drilled to the brass screw. Tapped a hole in a cross piece in the hull. Boiler plate, is a scrap piece of 1/24th scale plate from some old armor model, long gone. Rivet ring is beer can, hand tooled. Weld seams are copper wire strands for the lateral seam and steel electric guitar E first string. .010 gauge. CA tacked, then JB weld, and sandedClick image for larger version

Name:	image.jpg
Views:	1
Size:	68.9 KB
ID:	98212Click image for larger version

Name:	image.jpg
Views:	1
Size:	61.1 KB
ID:	98213Click image for larger version

Name:	image.jpg
Views:	1
Size:	58.1 KB
ID:	98214

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Exceptional stuff, Dave. Most impressive.

    M

    Leave a comment:


  • Von Hilde
    replied
    Update on my Ko Hyo Teki . Had to make a scale adjustment. Initially was to be 1/16th when I built the first tower. Didn't want a model that big, so decided 1/24 would be ok. That didn't happen. The hull was already a tad large for a true 1/24 so I put a skim coat of bondo on the center section to increase the OD and blew up the tower plans on the computer to keep the overall length under four feet. So, it came out to 1/19th scale. 47.5 inches from bow to stern.Click image for larger version

Name:	image.jpg
Views:	1
Size:	67.3 KB
ID:	98203slightly smaller towerClick image for larger version

Name:	image.jpg
Views:	2
Size:	65.5 KB
ID:	98204still needs a few details, yet.Click image for larger version

Name:	image.jpg
Views:	1
Size:	80.1 KB
ID:	98205l worked on the rudder and planes and cone sectionClick image for larger version

Name:	image.jpg
Views:	1
Size:	83.1 KB
ID:	98207the bolt holes where the actual boat is separated were drilled and filed then lined with some wire insulation, stripped off 16 gauge wire, then glued and clipped and trimmed.Click image for larger version

Name:	image.jpg
Views:	1
Size:	86.0 KB
ID:	98208Click image for larger version

Name:	image.jpg
Views:	1
Size:	89.8 KB
ID:	98209Click image for larger version

Name:	image.jpg
Views:	1
Size:	74.7 KB
ID:	98210Click image for larger version

Name:	image.jpg
Views:	1
Size:	67.4 KB
ID:	98211
    Attached Files

    Leave a comment:
