Trumpeter 1/144 Gato build

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • Originally posted by small sub guy View Post



    Click image for larger version

Name:	IMG_0277.JPG
Views:	1
Size:	7.3 KB
ID:	126145

    Forgot this one
    Good looking stuff. Can you make these pictures larger for these old, tired eyes?

    David
    "... well, that takes care of Jorgenson's theory!"

    Comment


    • Please forgive me for the temporary hijacking of this thread.
      I bult a 1.5 dia sub driver based 99.99% on, He Who Shall Not Be Named's design, (we hope he does not mind).
      The Sub Driver is not complete yet, but it should be soon, (lets hope it works I don't want to do that again).

      Click image for larger version

Name:	IMG_0278.JPG
Views:	1
Size:	6.9 KB
ID:	126149

      Close up of the forward control surface. I have not figured out the next step.

      Comment


      • Click image for larger version

Name:	IMG_0282.JPG
Views:	1
Size:	7.2 KB
ID:	126151

        This is a view from the inside unsure if I should make the control surfaces move or fold.

        Comment


        • Click image for larger version

Name:	IMG_0280.jpg
Views:	1
Size:	12.1 KB
ID:	126153

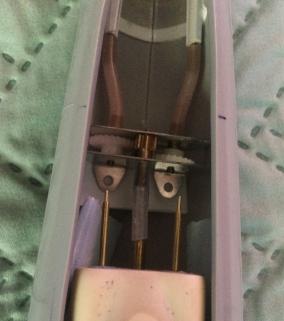

          I used the motor assy from the Nichimo model I19. I wanted to use a single motor to drive two screws.

          Comment


          • Click image for larger version

Name:	IMG_0285.JPG
Views:	1
Size:	8.5 KB
ID:	126155

            The start of the conning tower. the Sea Tiger had stairs.
            Only one set of rails, too lazy to make a second set.

            Comment


            • Click image for larger version

Name:	IMG_0281.JPG
Views:	1
Size:	9.0 KB
ID:	126157

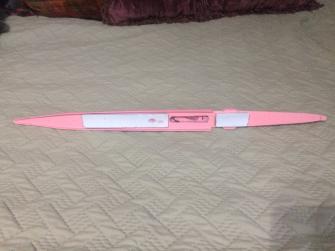

              The 1.5 dia sub driver in place.
              I have not cut the flood holes yet.
              I have the lead weight shaped to the hull and the foam shaped to the sides of the sub.

              Comment


              • Click image for larger version  Name:	IMG_0284.JPG Views:	1 Size:	7.6 KB ID:	126159


                Showing the placement of the fill valve of the ballast tank.
                I decided to use gas, but I did make SAS system (Don't tell H.W.S.N.B.N.).
                Last edited by small sub guy; 05-03-2018, 07:09 PM.

                Comment


                • We now return you to your regularly scheduled thread.

                  Comment


                  • Originally posted by small sub guy View Post
                    Click image for larger version Name:	IMG_0284.JPG Views:	1 Size:	7.6 KB ID:	126159


                    Showing the placement of the fill valve of the ballast tank.
                    I decided to use gas, but I did make SAS system (Don't tell H.W.S.N.B.N.).
                    Nice work, sir! Will Seaman Hornsby be featured as guest at the party on deck? Good sound engineering on display here.

                    But, damn! get bigger pictures up there! Are you using a photo hosting site for these? If so, change the file size to fill the screen when you post. Please!

                    David
                    "... well, that takes care of Jorgenson's theory!"

                    Comment


                    • Very impressive work, and in that scale ! 14

                      Comment


                      • I forgot to post the latest updates
                        Click image for larger version

Name:	IMG_0297.JPG
Views:	1
Size:	13.1 KB
ID:	128891

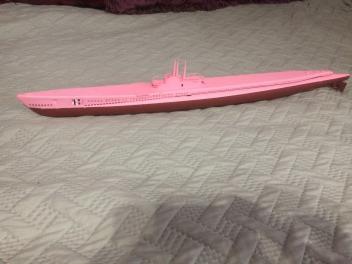

                        Sea Tiger (way too clean)
                        ​​​​​​​
                        Click image for larger version

Name:	IMG_0298.JPG
Views:	1
Size:	6.8 KB
ID:	128892
                        ​​​​​​​
                        opened the rear tubes to eliminate trapped air

                        Click image for larger version

Name:	IMG_0300.JPG
Views:	1
Size:	10.4 KB
ID:	128893
                        ​​​​​​​
                        Cutting flood holes

                        Click image for larger version

Name:	IMG_0301.JPG
Views:	1
Size:	8.3 KB
ID:	128894
                        ​​​​​​​
                        Flotation foam in the bow (if you look closely you can see the 1/2oz weight in the starboard inner wall)

                        Click image for larger version

Name:	IMG_0303.JPG
Views:	1
Size:	8.6 KB
ID:	128895
                        ​​​​​​​
                        Stern flotation foam (the linkage is yet to be connected)

                        Click image for larger version

Name:	IMG_0305.JPG
Views:	1
Size:	10.8 KB
ID:	128896
                        ​​​​​​​
                        The underside of the deck floatation
                        Last edited by small sub guy; 12-14-2018, 10:42 PM.

                        Comment


                        • mark,
                          the photos do not show for me.
                          peace,
                          tom
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment
