Thanks folks. There was little to none info about that storage space. So this is the realm of my fantasy. It's not finished yet. A bit more cargo and the ladder to climb down are still missing.
-
-
I can only only imagine what the future holds for 3D display models.“Of the 40,000 men who served on German submarines, 30,000 never returned.”Comment
-

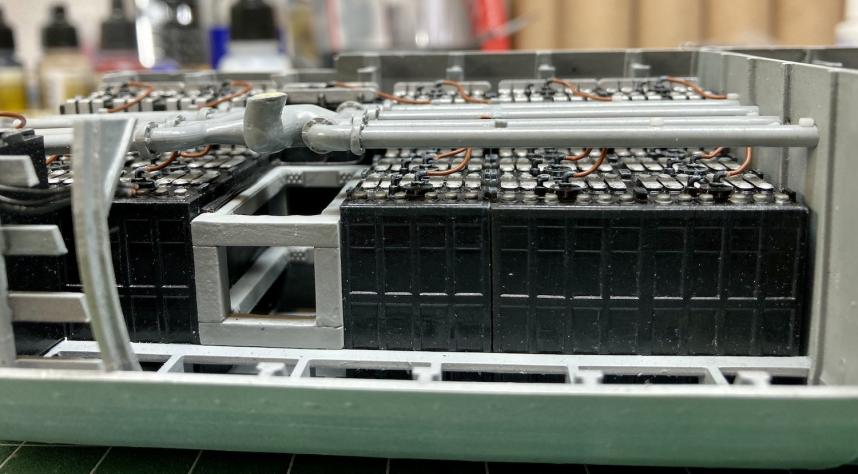

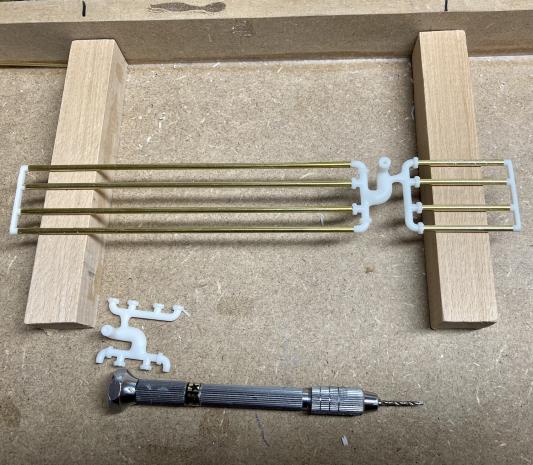

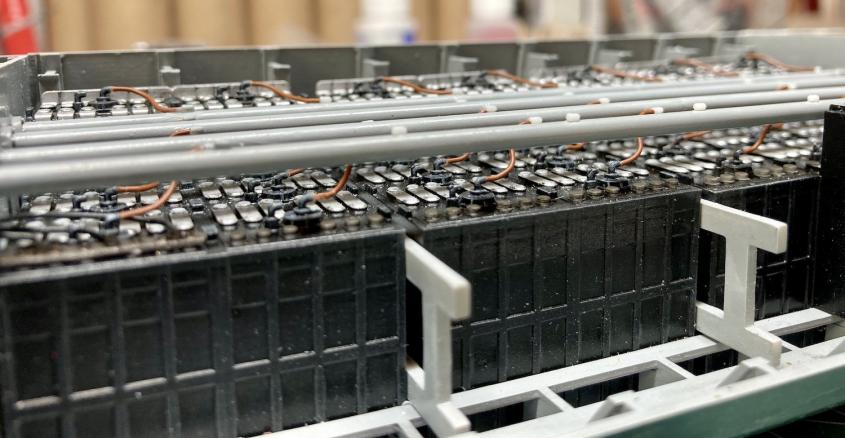

Continued with building the ventilation manifold for the batteries. While being charged, the cells produced oxyhydrogen gas that had to be removed befor building up resulting in an explosion hazard. For that every cell was connected to a ventilation duct. The manifold is 3D printed and the ducts are made of 2,5 mm brass tube:

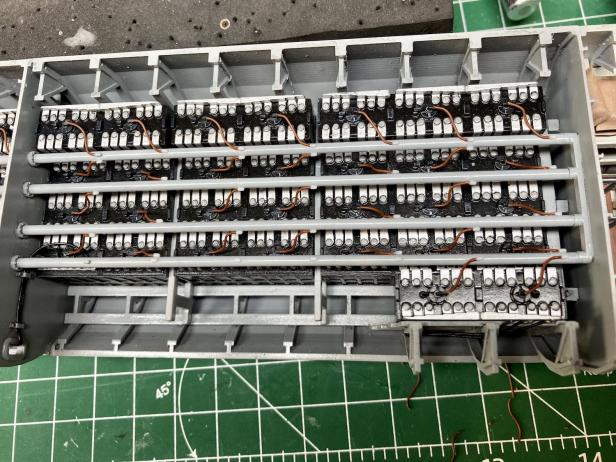

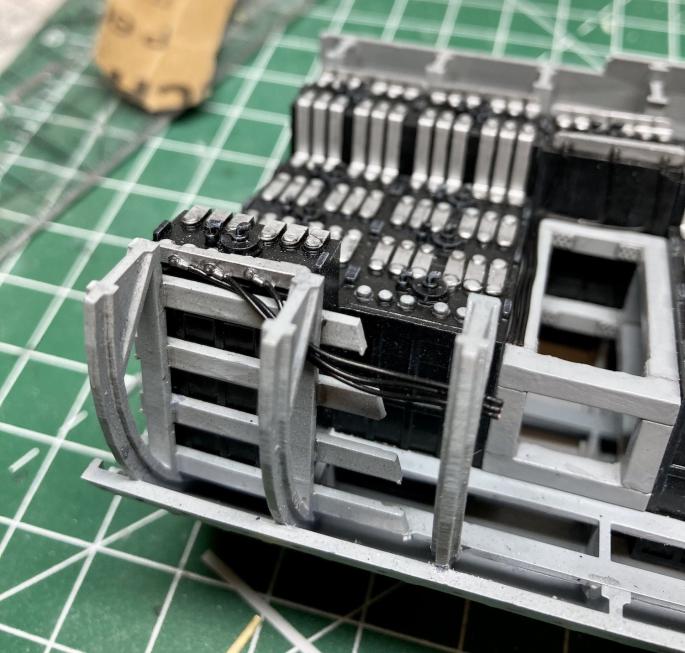

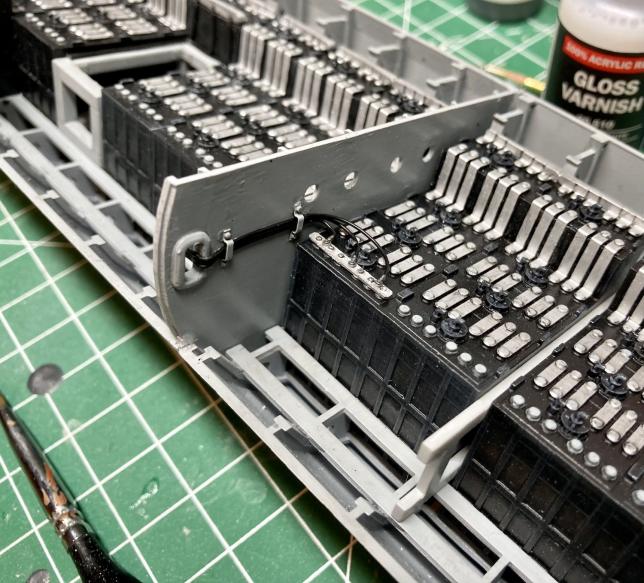

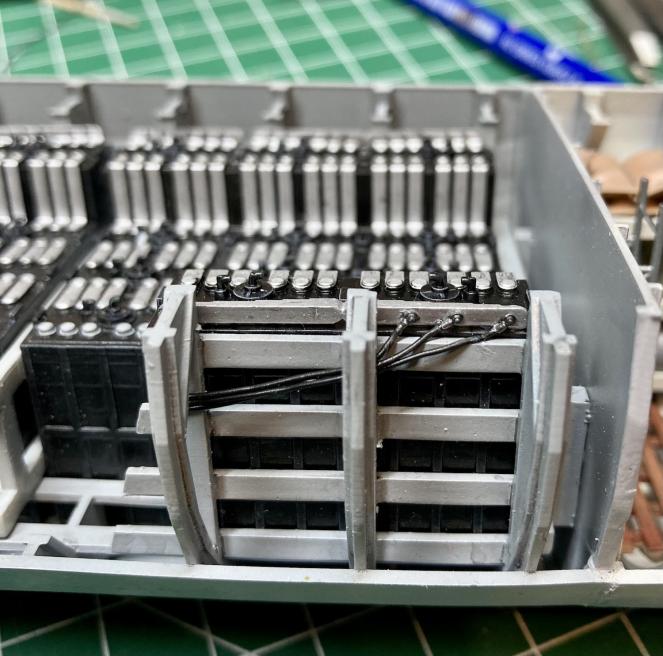

In addition I added the power lines to the cells:
Comment
-

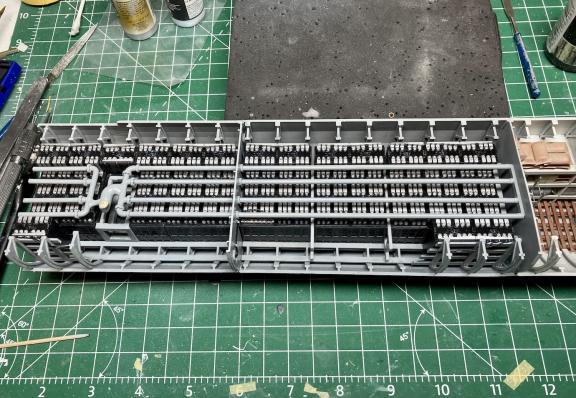

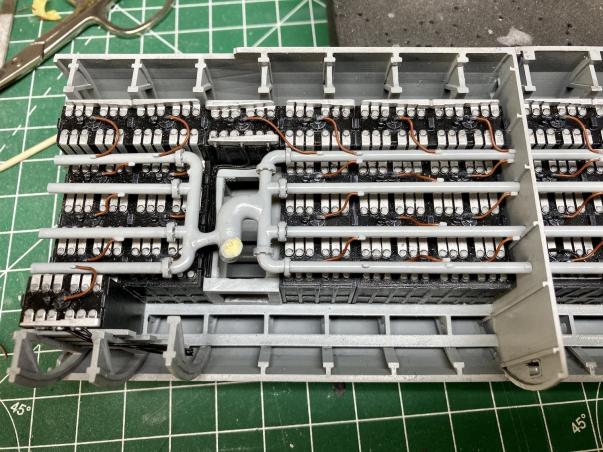

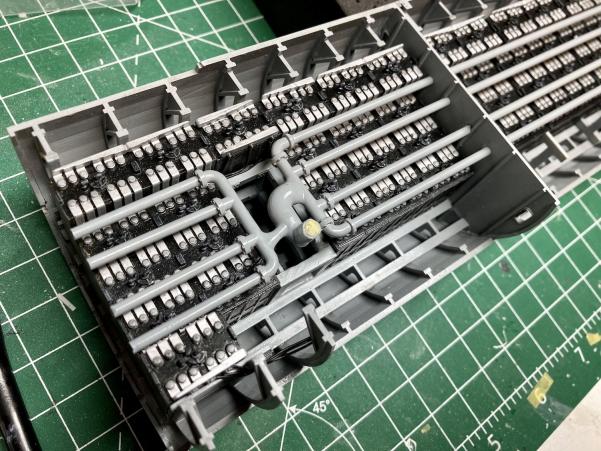

O.K., the ventilation ducts for the explosive gas, that is created when the batteries are charged, are in place. Tedious job, but I'm quite pleased how it turned out. Now I have to decide if I want to submit myself to the torture of hooking up every battery cell with a tiny hose to the ducts. We will see....
Comment
-

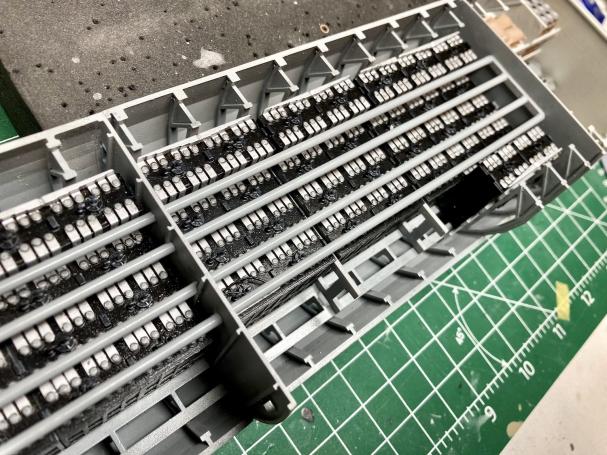

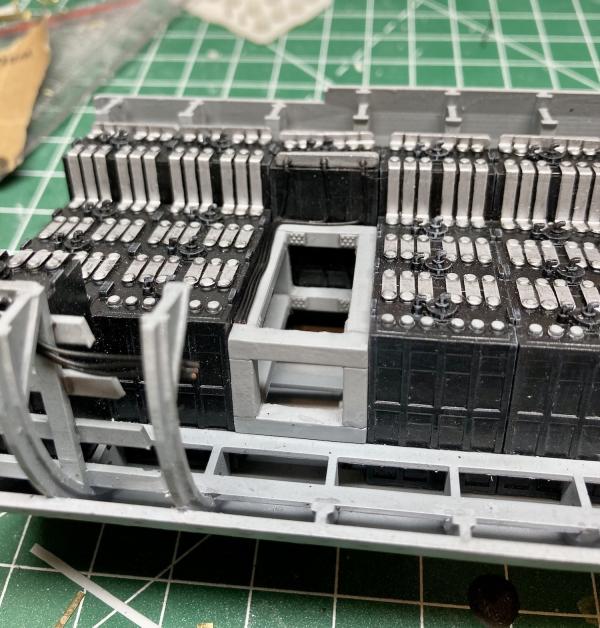

I've invented a new sport: apnoea building. Take some parts so tiny you can easily inhale them and glue about 70 of them to 2,5 mm diameter brass tubes. Then connect them with 0,5 mm wire to the battery cells. Start breathing again....
Comment
-
May I suggest that the piping is air pumped into the cells to also agitate the electrolyte via bubble-pumps which helps keep sediment from clinging to the plates, while at the same time the air bubbling to the surface of a cells electrolyte displaces and pushes Hydrogen gas out of the cells to eventually be pumped out of the boat (or diluted if submerged and not snorkeling) by the boats air circulation fans or diesel engine.Who is John Galt?Comment
-
Well, the hoses connect to the ducts which are connected to the main ventilation duct that runs through the boat. My understanding of the drawings is that this duct sucks the air out of the compartments (and the cells) via a blower and expels it into the air inlet of the diesel.Comment
-

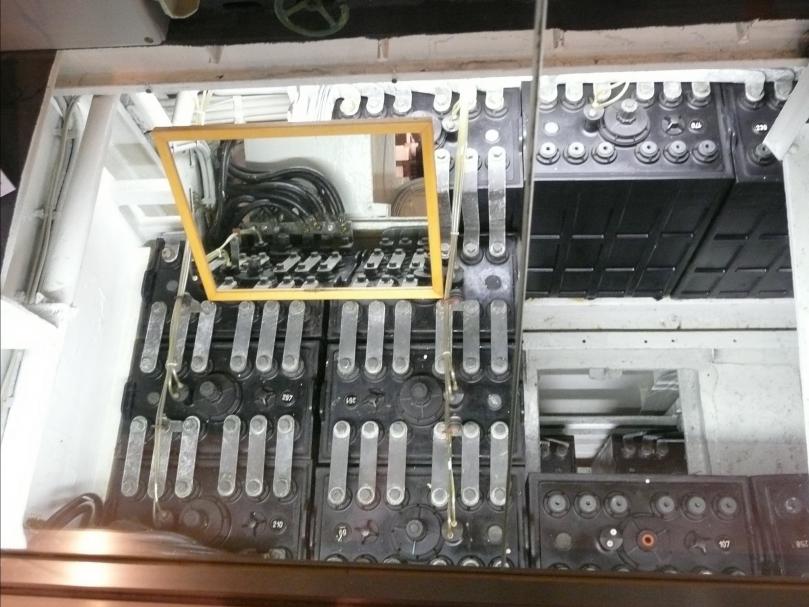

There must have been additional hoses. If hydrogen-oxygen gas is generated during charging, the batteries loose water and that has to be replaced. There are only a few pictures that I'm aware of. The battery room in a VIIc where you can see the ventialtion ducts and the hoses that connect them to the cells. But no hint of bubble or refill lines. Same on a single cell mock up pic:
But: In a picture from the last remaining Type XXI in Bremerhaven (U-2540) one can see two hoses connecting to the cell. That might be it....as these hoses are tiny in diameter, they might not show in the old black&white pictures.

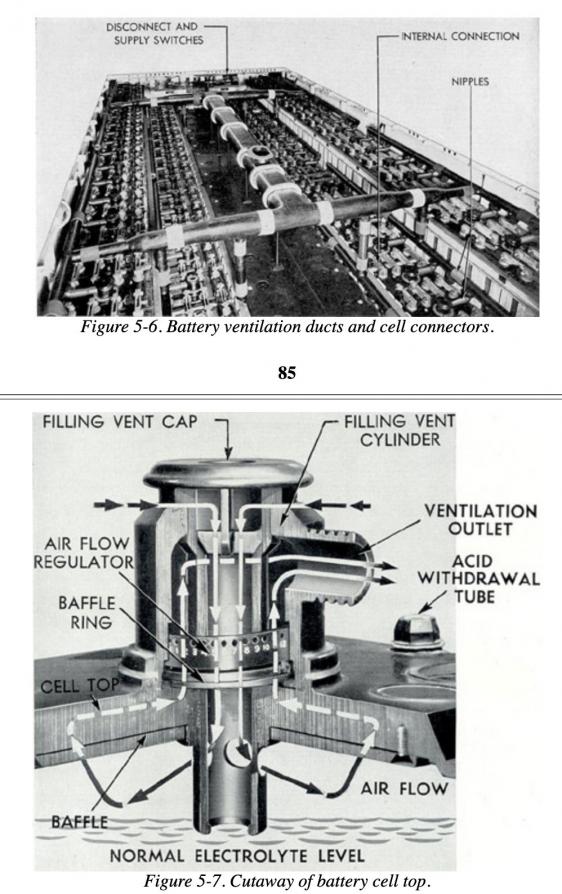

Btw.: The fleet boat arrangement seems to be quite similar to the German design:
Last edited by DrSchmidt; 02-21-2022, 09:03 AM.Comment
-
Thank you for the deep-dive with the battery ventilation/arrangement presentation. You've taken us all to school here. Very, very good stuff, sir.
DavidWho is John Galt?Comment
-

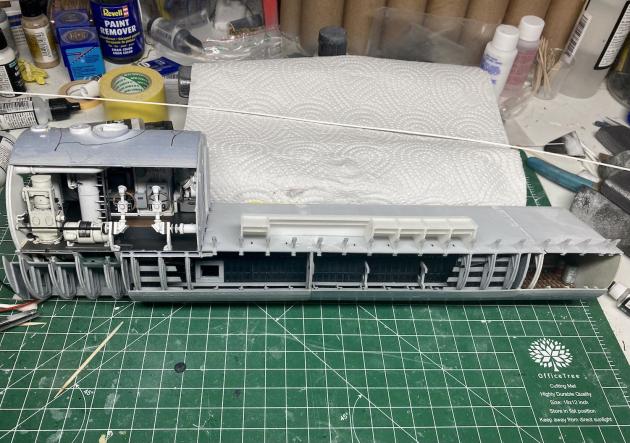

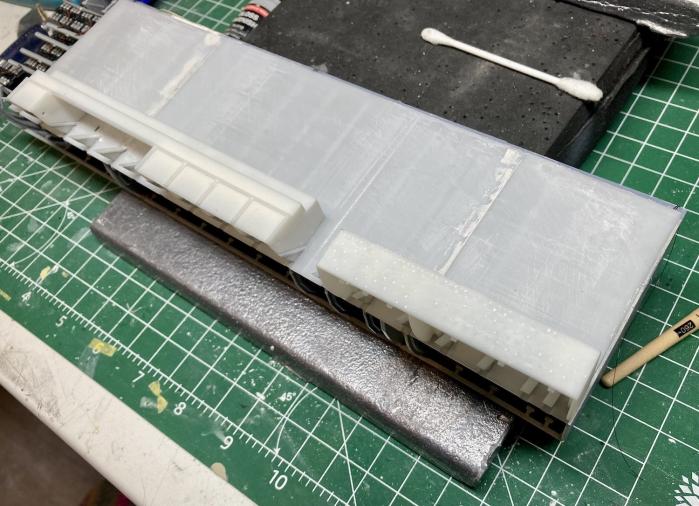

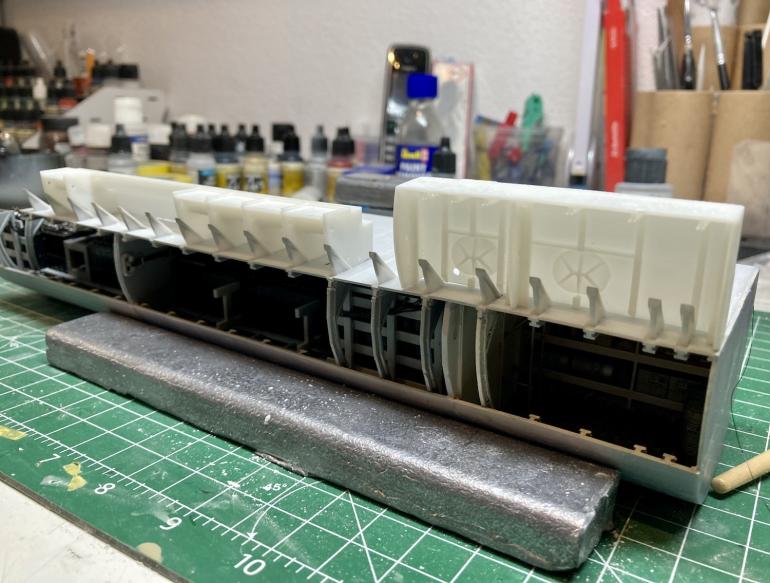

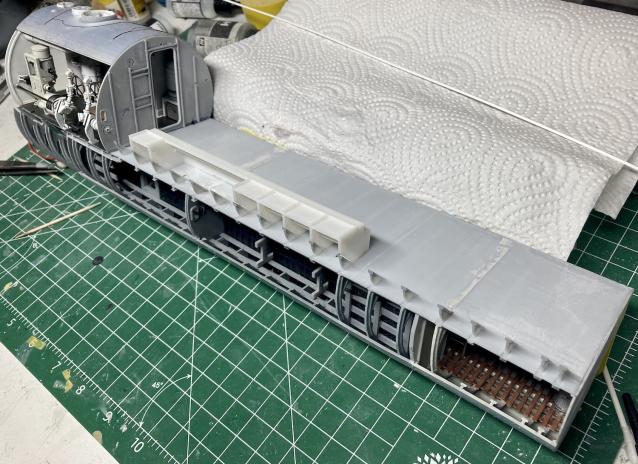

Doesn't look to psectatcular but was quite a bit of work...the deck is on. Consists of three segments that fit quite well with only small adjustments needed. The most importatnt thing: It's straight. That would have been the point where major flaws would have shown up.

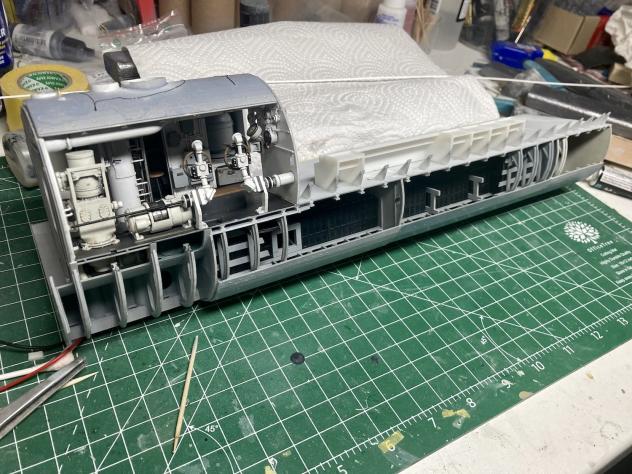

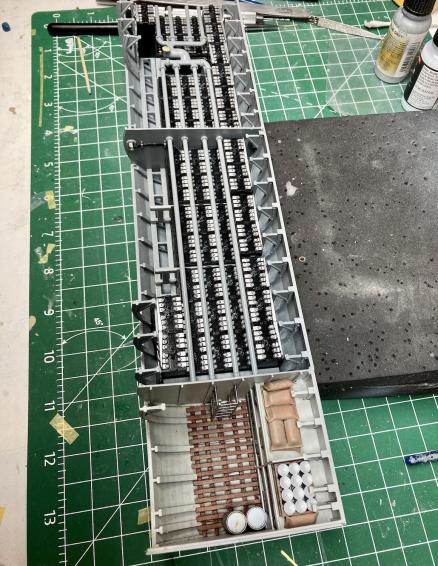

The dry fit of the starboard wood construction (only part of it are going to be displayed) and the torpedo/trimm cell are looking promising as well.
Comment
-
When things come together that belong together....
Comment
-

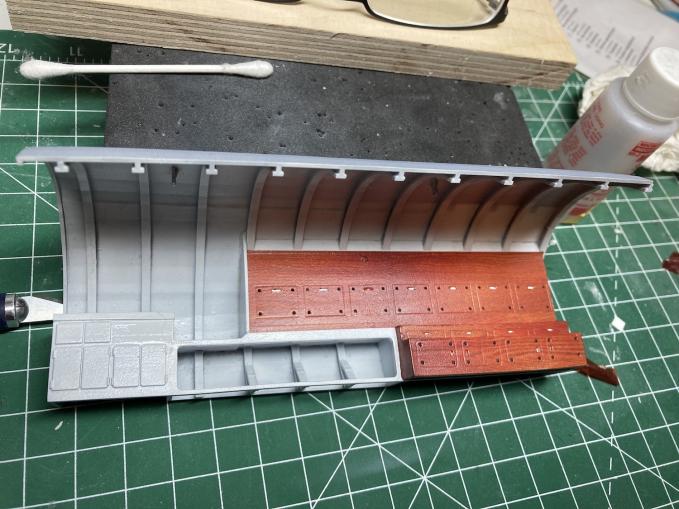

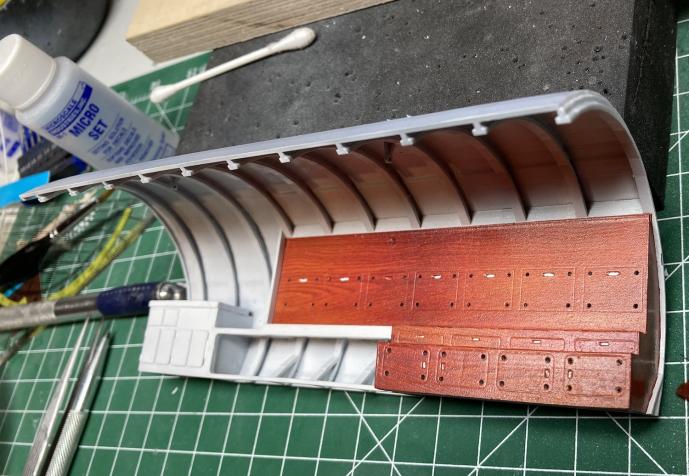

Printing the structural parts for the bow torpedo room took some time and optimization loops. But I got there. Then I took on the challenge of imitating the wooden panels of the crew's lockers. The classical approach using oils didn't satisfy me, so I went with decals by HGW. These 1:32 scale semi transparent decals are beautiful but require a white base coat. Good timing: I ran out or white...a few days later I was finally set to make the first tries, and I'm quite pleased with the results. And that's before gloss clear coat.
Comment
-

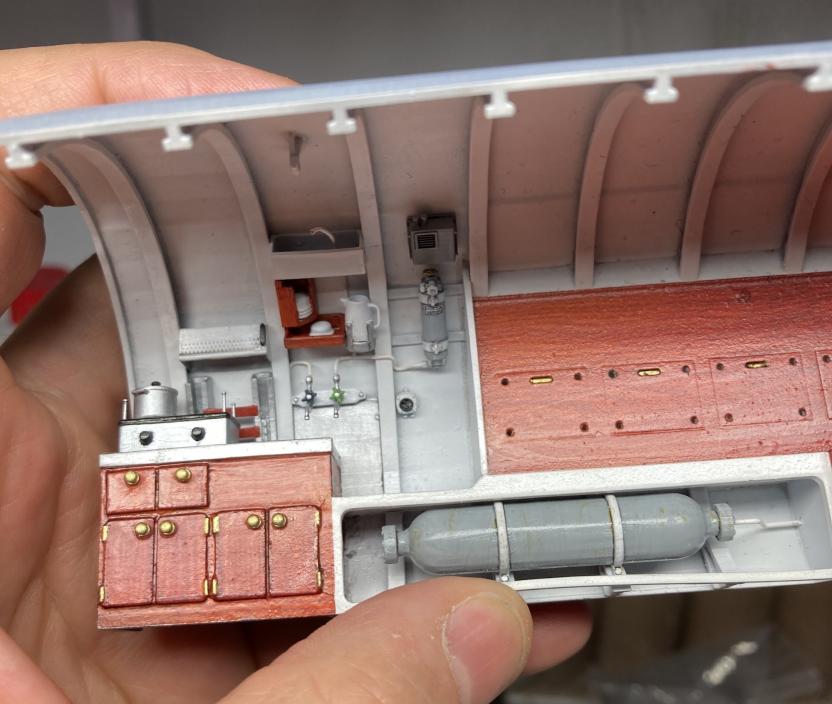

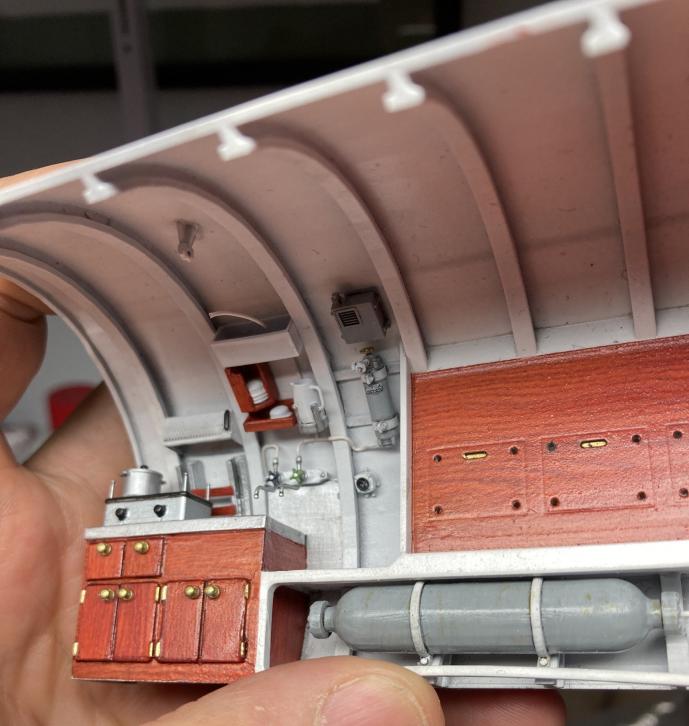

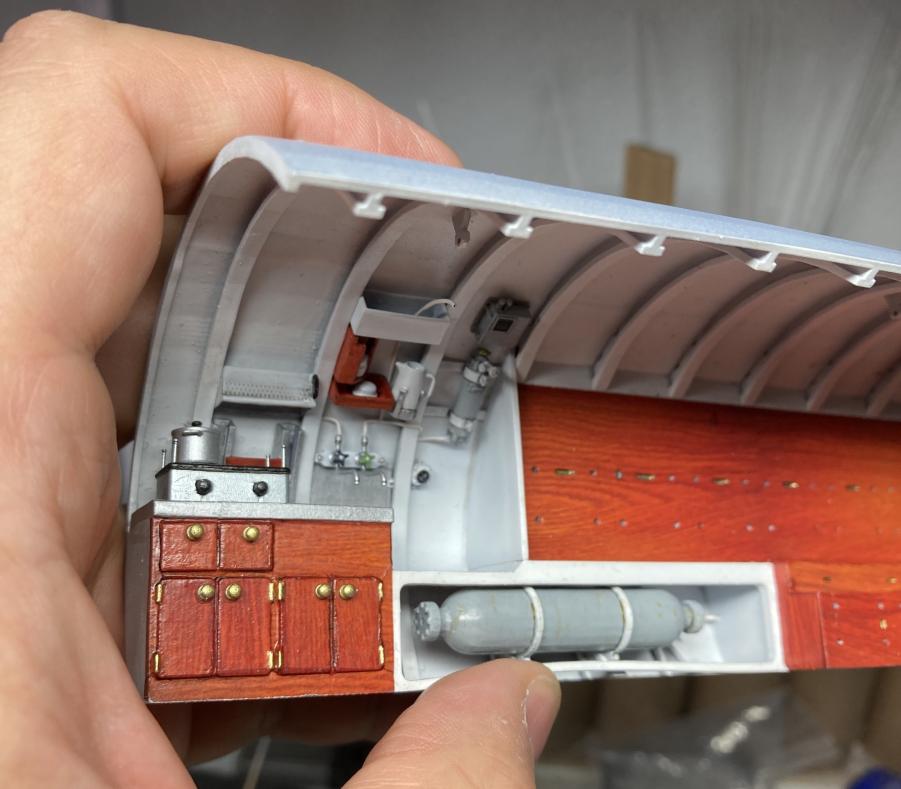

Making progress on the galley of my Type XXIII. One can see the counter with the electric stove on top. On the right side was the sink with the salt and freshwater faucets. behind the stove were two storage compartments for cups. Above the stove is the fume cupboard, and above the faucets a cupboard for plates and a pot holder right of it. Most of the plates are stored in a wooden rail above the cupboard and above the plates you can find another storage box. Right of the sink is the active charcoal filter for the fresh water and a radiator.
