atic: 1:35 Bronco XXIII with interior

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • DrSchmidt
    replied
    Then I'm pretty sure, my boat was deployed in the mediterranean sea :-)

    Leave a comment:


  • goshawk823
    replied
    Looks spectacular!
    way back in the 90s, I built OTW’s 1/24 scale Type XXIII, and when I talked to David M about weathering and waterline “scum”, he reminded me that these were cold water boats, and that scum line would have less greens, and more gray/gray browns than green. Take that for what it’s worth; I did mine using more raw umber/payee’s gray/white with some greens around the diesel exhaust area.
    I can’t wait to see it done and lit up. Amazing work.

    Leave a comment:


  • DrSchmidt
    replied
    Worked on the paint job. The upper part got a base coat in Vallejo neutral gray and the bottom in Vallejo blue gray. The weathering of the immersed parts was done with David's tooth paste approach. I stippled tooth paste with a brush on the hull, let it dry, put a mist of white across, removed the tooth paste with a damp sponge and then blended the pattern with another mist of white. The waterline (not the line between the two grays) got a hint of green algae overgrowth. Done....

    The upped deck got a bit more variation using a gray filter and the everything was accentuated with gray, white and black washes. The white wash was also used to make the running marks at the limber holes. A bit of dry brushing here, a hint of rust there....I like it.

    Click image for larger version

Name:	XXIII-388.jpg
Views:	48
Size:	58.1 KB
ID:	170302

    Click image for larger version

Name:	XXIII-389.jpg
Views:	48
Size:	55.1 KB
ID:	170303Click image for larger version

Name:	XXIII-390.jpg
Views:	48
Size:	54.9 KB
ID:	170304Click image for larger version

Name:	XXIII-391.jpg
Views:	45
Size:	51.6 KB
ID:	170305Click image for larger version

Name:	XXIII-393.jpg
Views:	45
Size:	62.4 KB
ID:	170307
    Attached Files

    Leave a comment:


  • SubDude
    replied
    Getting close now. Exciting to see it nearing completion.

    Leave a comment:


  • DrSchmidt
    replied

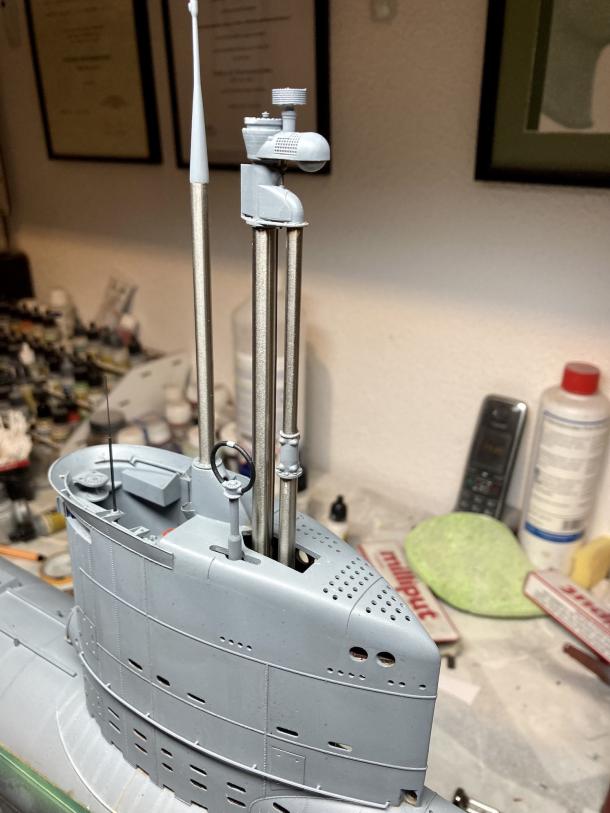

    Thought a bit about the paint scheme of the boat. What I found irritating is that the paint instructions of the kit as well as many models in the net show a distinct black line between the light gray upper hull and the dark gray bottom. I don't know any German boat from that time with a water line marking like that and at that time, at the end of the war, time was limited and I have a hard time thinking that they did those artful lines back then. So I looked for some references and surprise....no lines. So I'll skip the line busyness and go for a simple two tone paint job. b.t.w.: Primer is on....

    Click image for larger version

Name:	XXIII-383.jpg
Views:	76
Size:	40.2 KB
ID:	170176

    Click image for larger version

Name:	XXIII-384.jpg
Views:	79
Size:	62.9 KB
ID:	170177

    Click image for larger version

Name:	XXIII-385.jpg
Views:	77
Size:	94.2 KB
ID:	170178

    Click image for larger version

Name:	XXIII-386.jpg
Views:	76
Size:	54.3 KB
ID:	170179

    Click image for larger version

Name:	XXIII-387.jpg
Views:	76
Size:	49.9 KB
ID:	170180

    Leave a comment:


  • DrSchmidt
    replied
    Getting ready for the paint job. Sealing all the openings with putty, faom, paper, and masking tape took me two day and there are still some holes to shut. I also added some rivets and restored some weld lines using Archer Fine Transfer surface detail decals.

    Click image for larger version

Name:	XXIII-382.jpg
Views:	89
Size:	57.5 KB
ID:	170159

    Leave a comment:


  • DrSchmidt
    replied
    Thanks....painting the hull will be a major pain in the ass. With all the openings it's like painting a swiss cheese while trying to avoid the holes.

    Leave a comment:


  • goshawk823
    replied
    I watch every day for your updates on this boat. I can’t wait to see it with paint. Just awesome work.

    Leave a comment:


  • DrSchmidt
    replied
    Allot of work went into filling and sanding the hull. Building it with interior does not necessarily imply that you can assemble everything in the best sequence. This I had to put quite some work, especially in the keel. But now it's all pretty much were I want it. Then I added plenty of little details. The threaded studs next to the anti skid rails, poller, cleats, the grating above the aft vent valve, the steps up the sail (3D-printed as I neither liked the ones in the kit nor the ones from rcsubs), the mount and the ceramic isolator for the wire antenna....so it's about 90% there and I can start thinking about painting the hull.

    Click image for larger version

Name:	XXIII-378.jpg
Views:	129
Size:	58.2 KB
ID:	170063
    Click image for larger version

Name:	XXIII-379.jpg
Views:	129
Size:	47.8 KB
ID:	170064

    Click image for larger version

Name:	XXIII-380.jpg
Views:	128
Size:	62.1 KB
ID:	170065

    Click image for larger version

Name:	XXIII-381.jpg
Views:	129
Size:	57.0 KB
ID:	170066

    Leave a comment:


  • DrSchmidt
    replied
    These boats were made at the end of the war when resources became increasingly scarce and time for manufacturing also became shorter and shorter. Looking at many photos I came to the conclusion that no two boats were the same. Antennas, steps, skid rails, location of limber, hatch for pressure tight compartment, all that could be different. So I basically work on the version that later on became U-Hecht (S 170), the first sub of the Bundesmarine (the German Federal Navy).

    Leave a comment:


  • redboat219
    replied
    Note this Type XXIII with short intermittent deck rail. Click image for larger version

Name:	Screenshot_20230227_063159_Chrome.jpg
Views:	106
Size:	67.6 KB
ID:	169969Click image for larger version

Name:	Screenshot_20230227_063131_Chrome.jpg
Views:	86
Size:	69.0 KB
ID:	169970

    could it be that the wooden deck in the Bronco kit was based off this particular sub? You could just cut off the wood grate and use the rails in the kit. Click image for larger version

Name:	DSCN4783.jpg
Views:	84
Size:	40.9 KB
ID:	169971

    Leave a comment:


  • DrSchmidt
    replied
    That was m,y guess too. Fixing points.....that will go on as well, but at the stage when I add the final fine details. In the moment I'm filling and sanding the keel. Too much danger to rip stuff off.

    Leave a comment:


  • redboat219
    replied
    Found this. Looks like those tube are on the outside the wooden deck to keep it from sliding off. Click image for larger version

Name:	20230227_091531.jpg
Views:	92
Size:	42.5 KB
ID:	169962
    Attached Files
    Last edited by redboat219; 02-26-2023, 08:18 PM.

    Leave a comment:


  • redboat219
    replied
    Click image for larger version  Name:	Screenshot_20230227_062745_Chrome.jpg Views:	0 Size:	81.7 KB ID:	169953Click image for larger version  Name:	Screenshot_20230227_063428_Chrome.jpg Views:	0 Size:	73.7 KB ID:	169954Click image for larger version  Name:	Screenshot_20230227_062859_Chrome.jpg Views:	0 Size:	81.1 KB ID:	169955
    Found these photos of U-171 (ex-U2367) on Pinterest

    There seems to be a small locker next to the vent grating.

    With the closeup of the deck you can see there are short tubular stand offs. There must be some pins underneath the wood deck that plug into these.

    The twin capstan at the bow are also offset to the left. On the model it's molded exactly midline.
    Last edited by redboat219; 02-26-2023, 06:05 PM.

    Leave a comment:


  • DrSchmidt
    replied
    Could be space issues.....here's the internal structure of the ballast tank. The round plate in the upper middle ist the valve. I guess there was just not enough room in the middle. of the roof of the tank. That said, the valve is off center, but reaches over the center line, so the tank can be vented completely.



    Here's the grill in on the real thing...

    Attached Files
    Last edited by DrSchmidt; 02-26-2023, 07:01 AM.
