    Seaview

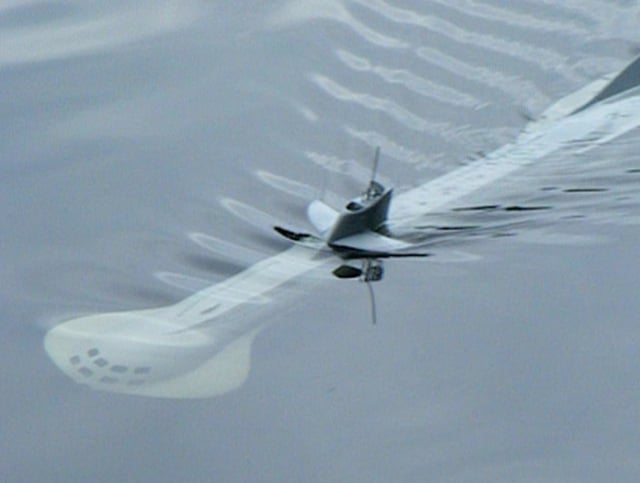

    I in no way consider myself in the same class as some who visit this forum. However my second submarine, the Seaview, came out pretty well
    Click image for larger version

Name:	flash drive 4 099.jpg
Views:	1
Size:	94.9 KB
ID:	99754
    I purchased the raw hull from Rick Teskey from Canada. It is 52" long and shes really a show stopper. It is much bigger than the Moebius yet smaller than the Deboer. Along with the WTC that I purchased from Dave Merriman before he joined up with Mike Caswell I also purchased some other goodies to make building it easier. Two impellors that are driven from inside the two nacelles. Also a real jewel in itself, the sail. Its a real work of art. Here are some early construction photos
    Click image for larger version

Name:	flash drive 1 694.jpg
Views:	1
Size:	85.2 KB
ID:	99755
    Last edited by greenman407; 10-20-2011, 04:15 PM.
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!
  • greenman407
    Admiral
    • Feb 2009
    • 7530

    #2
    It obviously required much assembly
    Click image for larger version

Name:	flash drive 1 706.jpg
Views:	1
Size:	84.8 KB
ID:	58034
    Last edited by greenman407; 04-10-2012, 12:23 PM.
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #3
      As well as cutting in the windows. This I felt was very important as the windows dominate your attention and its what most people focus in on first. To get them absolutely perfect I used a laser projecter from work. After careful setup it cast red lines on the bow that I could then mark with a pencil to establish the proper location of the windows. In the movie the Seaview had square cornered windows but I rounded mine for a more pleasing and believable appearance(in my opinion).
      Click image for larger version

Name:	flash drive 1 715.jpg
Views:	1
Size:	90.2 KB
ID:	58035
      Last edited by greenman407; 10-20-2011, 04:15 PM.
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • greenman407
        Admiral
        • Feb 2009
        • 7530

        #4
        Another modifacation that I made was to modify the stationary horizontal rear planes and cut them and install a portion of it on the same shaft as the internal dive planes to give it greater responsivness. I highly recommend it.
        Click image for larger version

Name:	flash drive 1 757.jpg
Views:	1
Size:	84.1 KB
ID:	58036
        Also in order to get reverse I installed propulsion bulkheads and NACA style inlets for the nacelles.
        Click image for larger version

Name:	flash drive 1 771.jpg
Views:	1
Size:	90.9 KB
ID:	58037
        Last edited by greenman407; 10-20-2011, 04:16 PM.
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment

        • greenman407
          Admiral
          • Feb 2009
          • 7530

          #5
          Here are the inlets that I had to cut in with my trusty Dremel.
          Click image for larger version

Name:	flash drive 1 014.jpg
Views:	1
Size:	86.3 KB
ID:	58038
          And here is another view.
          Click image for larger version

Name:	flash drive 1 015.jpg
Views:	1
Size:	101.1 KB
ID:	58039
          Last edited by greenman407; 10-20-2011, 04:17 PM.
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment

          • greenman407
            Admiral
            • Feb 2009
            • 7530

            #6
            To allow more water in I fabricated a scoop on the underside of the nacelle. Not exactly a scale item to be sure , just a retrofit that I found would enhance propulsion.
            Click image for larger version

Name:	flash drive 2 358.jpg
Views:	1
Size:	41.4 KB
ID:	58040
            Here is a view from the stern.
            Click image for larger version

Name:	flash drive 2 360.jpg
Views:	1
Size:	49.8 KB
ID:	58041
            Last edited by greenman407; 10-20-2011, 04:18 PM.
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment

            • greenman407
              Admiral
              • Feb 2009
              • 7530

              #7
              Click image for larger version

Name:	flash drive 2 367.jpg
Views:	1
Size:	78.2 KB
ID:	58042 Here is another shot looking back over the missle deck. On that note the missle hatches are stainless steel washers with the holes filled in with epoxy.
              And here we have a view from the sail showing periscope and radar antenna.
              Click image for larger version

Name:	flash drive 2 365.jpg
Views:	1
Size:	76.7 KB
ID:	58043
              Last edited by greenman407; 11-08-2011, 08:28 AM.
              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

              Comment

              • greenman407
                Admiral
                • Feb 2009
                • 7530

                #8
                Click image for larger version

Name:	flash drive 4 077.jpg
Views:	1
Size:	89.4 KB
ID:	58044Here are some shots of it just after a dip in the pool.
                And another view.
                Click image for larger version

Name:	flash drive 4 079.jpg
Views:	1
Size:	94.1 KB
ID:	58045
                Last edited by greenman407; 11-08-2011, 08:28 AM.
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment

                • greenman407
                  Admiral
                  • Feb 2009
                  • 7530

                  #9
                  Click image for larger version

Name:	flash drive 1 798.jpg
Views:	1
Size:	85.6 KB
ID:	58046And here we go again. During her maiden voyage in St. Marys Georgia she was lost at the bottom of the sea er lake and had to be rescued by yours truly.
                  Click image for larger version

Name:	flash drive 1 799.jpg
Views:	1
Size:	96.4 KB
ID:	58047
                  Last edited by greenman407; 11-08-2011, 08:29 AM.
                  IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                  Comment

                  • greenman407
                    Admiral
                    • Feb 2009
                    • 7530

                    #10
                    Click image for larger version

Name:	flash drive 1 981.jpg
Views:	1
Size:	98.0 KB
ID:	58048At the same meet a few other angles were explored.
                    Here it is with my Albacore a fellow stable mate.
                    Click image for larger version

Name:	flash drive 1 1072.jpg
Views:	1
Size:	91.9 KB
ID:	58049
                    Last edited by greenman407; 11-08-2011, 08:29 AM.
                    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                    Comment

                    • greenman407
                      Admiral
                      • Feb 2009
                      • 7530

                      #11
                      In addition to this I use a 9 channel radio and 2 motor electronic speed control for independent thrust control. Operation at night is a sight to behold as it is equipped with 1 bright headlight in the front and lights that shine through the windows as well as navigation lights and lights shining rearward out of the Cadillac fins. Here is a video of it in operation.
                      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                      Comment

                      • greenman407
                        Admiral
                        • Feb 2009
                        • 7530

                        #12
                        Click image for larger version

Name:	flash drive 4 059.jpg
Views:	1
Size:	83.3 KB
ID:	58131One challenge I did face was trying to get the sub to float as high as possible in the water with with very little room to install floatation foam.You have to use every available nook and crany. You can see the WTC installed here with the drive shafts hooked up.
                        And here is a view of the same wtc from the front.
                        Click image for larger version

Name:	flash drive 4 056.jpg
Views:	1
Size:	92.9 KB
ID:	58132
                        Last edited by greenman407; 04-10-2012, 12:27 PM.
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment

                        • greenman407
                          Admiral
                          • Feb 2009
                          • 7530

                          #13
                          Click image for larger version

Name:	flash drive 1 380.jpg
Views:	1
Size:	60.8 KB
ID:	58133Here are some pics of a photo shoot I did in my pool at night early on in the build.
                          And another at a different angle with the boat surfaced.
                          Click image for larger version

Name:	flash drive 1 384.jpg
Views:	1
Size:	57.4 KB
ID:	58134
                          Last edited by greenman407; 11-08-2011, 08:30 AM.
                          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                          Comment

                          • RonP-UK
                            Lieutenant
                            • Feb 2010
                            • 67

                            #14
                            I must be honest here and say I was never a fan of fantasy models but this is really a superb bit of kit, well done chap.
                            RonP

                            Comment

                            • greenman407
                              Admiral
                              • Feb 2009
                              • 7530

                              #15
                              Thanks Ron!
