    EthOS Tips and Tricks

    I hope this is the right place to start some conversations around what might be possible in EthOS. Things like novel mixes, uses of logical switches and the like.
  • Nathan
    Lieutenant, Junior Grade

    • Jan 2023
    • 37

    #2
    I recently experienced my linkage magnet re-engaging as I am removing my cylinder. To help avoid this I figured it'd be smart to actuate the servos as far in as possible to create as much clearance as possible. This could be done with the sticks prior to turning off the cylinder - or I could have the radio do it... I programmed mixes on the channels that move them in for 5 seconds when I push the button on the back of my radio when the throttle is at 0 (stop). Simple and clean. And the 5 second de-activation should prevent accidents if I hit the button at the wrong time.

    Here is how to set this up:
    Once your channel mixes and outputs are set up, you'll need to set up a logical switch - this will be used to combine the throttle off and rear switch into a single switch for the mixes (which will be defined next):
    Click image for larger version  Name:	Logical Switch.png Views:	6 Size:	66.6 KB ID:	179809
    Note the 5 second "Delay before inactive" setting. You can use any physical switch or other criteria that makes sense for your model.

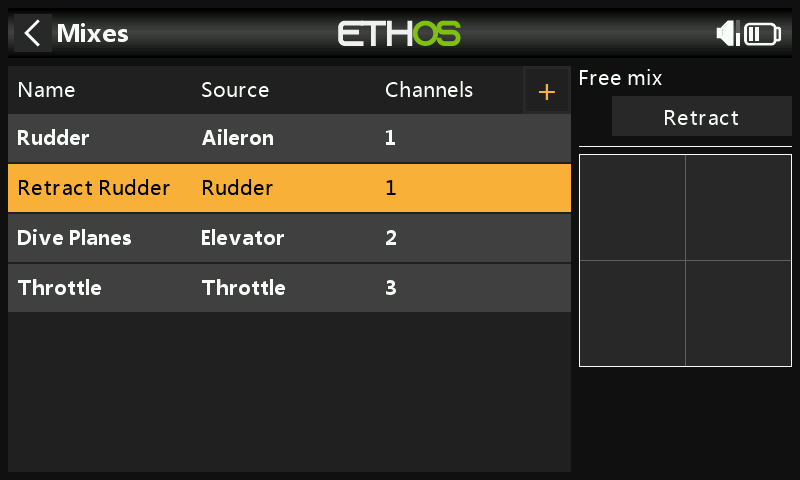

    And then you add an Offset mix for each surface you want to move. Here is a picture of the final mix, next I'll show you the actual mix:
    Click image for larger version

Name:	Mixes.png
Views:	354
Size:	17.8 KB
ID:	179914

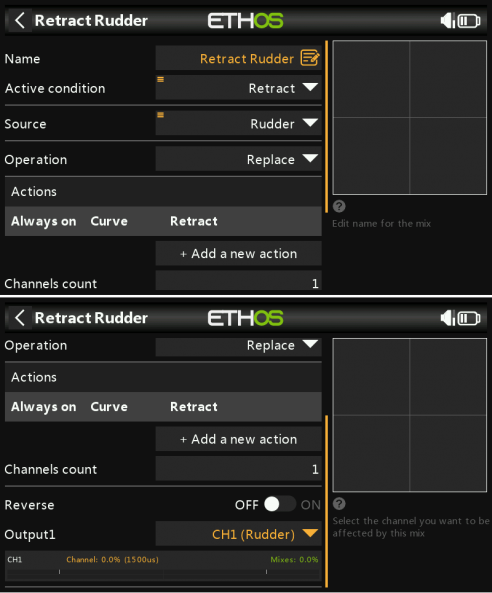

    And here is the detail of the mix:
    Click image for larger version

Name:	Retract Mix.png
Views:	361
Size:	86.6 KB
ID:	179915
    If you need the servo to move the other way or a different amount then change the offset. The Active Condition is your logical switch.

    The mixes will need to be repeated for each channel you want to move.

    Once this is set up all you have to do after getting your model out of the water and ready to break down, is to move the throttle to 0, push the button, and power off the cylinder.

    I hope this helps!

    Nathan
    Attached Files
    Last edited by Nathan; 05-07-2024, 07:03 PM.

    Comment

    • Nathan
      Lieutenant, Junior Grade

      • Jan 2023
      • 37

      #3
      Bow Plane Retract Lockout

      IMPORTANT: before testing this be sure you have disconnected any linkages that could cause damage if anything goes wrong, or if any outputs need to be reversed.

      When you have retracting planes it is important to be sure of 2 things. One, that the planes will centered before they retract, and two, that they cannot be operated while retracted. If you have an EthOS radio you can set this up right in the radio. Here is how.

      There is one thing that it is important to note about EthOS in order for this to work - EthOS only tracks the "sweep" of a channel if there is a slow set in the mix. If you don't use a slow you will see the channel move direct to the endpoint (for example, 100% right to -100%) even though you see the servo is still moving. With the slow enabled, EthOS, and you, will see all the values (for example, 100% to 98% to 96%, etc.) This sweep is important because it keeps the logical switch in time with the retract servo. Though if there is a mechanical problem with the servo the radio won't know. A closed loop system will have to be left up to the Reader, sorry.

      Okay, here we go.

      Planes Enabled Logical Switch
      You first need to create a Logical Switch to identify when the planes are enabled. Note that the source is the retract servo channel. That is the "sweep" we need. The delay gives a second for the servo to finish deploying the planes before activating the planes. It should be a "just in case" but your physical configuration may require a longer delay before becoming active.

      Click image for larger version

Name:	LS1a.jpg
Views:	115
Size:	39.3 KB
ID:	185960Click image for larger version  Name:	LS1b.jpg Views:	236 Size:	59.5 KB ID:	181646

      You will use this logical switch in the planes mix.

      Planes Mix

      Note the active condition is the logical switch, meaning the planes can only move when the logical switch is on. When the active condition is false the channel is set to 0, which is centered position (works well for us!) Be sure you factor in the logical switch if you add extra mixes for the planes.

      Click image for larger version  Name:	Mix Planes_a.jpg Views:	229 Size:	58.5 KB ID:	181647Click image for larger version  Name:	Mix Planes_b.jpg Views:	225 Size:	60.7 KB ID:	181648

      Retract Mix

      Finally, you need the mix for the retract channel. This is where the slow goes.

      Click image for larger version  Name:	Mix Retract_a.jpg Views:	228 Size:	66.7 KB ID:	181649Click image for larger version  Name:	Mix Retract_b.jpg Views:	227 Size:	70.2 KB ID:	181650

      You will have to reverse the channels, maybe adjust the slow on the retract mix, or the delay on the planes mix, but this should get you on the right path.

      Nathan
      Last edited by Nathan; 02-10-2025, 07:03 PM.

      Comment

      • RCSubGuy
        Welcome to my underwater realm!

        • Aug 2009
        • 1896

        #4
        Awesome stuff, Nathan! Thanks for putting this information in here for us.

        Comment

        • Nathan
          Lieutenant, Junior Grade

          • Jan 2023
          • 37

          #5
          Differential Throttle / "Tank" Control

          Differential throttle is a common need on subs with multiple props and it is actually really easy to set up in EthOS. The configuration below will set the left stick (for Mode 2 radios) up and down for the forward/backward power, and the left stick left and right for the differential throttle. Any inputs can be chosen, such as a dial for speed and a stick for differential. The mixes don't change, only the inputs.

          The first step is to configure your throttle input and mix to all motors as normal:
          Click image for larger version

Name:	Outputs.png
Views:	270
Size:	79.8 KB
ID:	183586
          And the Mix
          Click image for larger version

Name:	Throttle Mix 1.png
Views:	254
Size:	10.7 KB
ID:	183587
          Click image for larger version

Name:	Throttle Mix 2.png
Views:	259
Size:	15.7 KB
ID:	183588
          And don't forget to set a throttle cut - could save your fingers and your props!
          Click image for larger version

Name:	Throttle Mix 3 - Cut.png
Views:	258
Size:	18.6 KB
ID:	183589

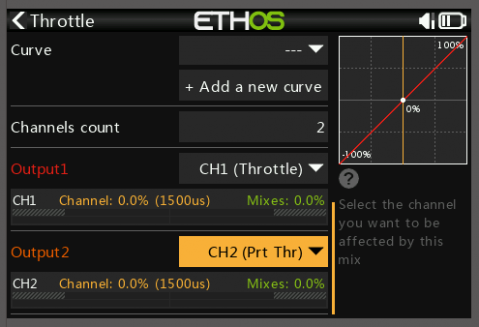

          And, finally, the outputs (this is vary based on your set up and chosen channels)
          Click image for larger version

Name:	Throttle Mix 4.png
Views:	262
Size:	76.6 KB
ID:	183591

          Okay, and now that the throttle is set up we need to add the mix to add/remove throttle based on the other stick.
          Click image for larger version

Name:	Diff Mix 1.png
Views:	254
Size:	10.9 KB
ID:	183592
          Click image for larger version

Name:	Diff Mix 2.png
Views:	256
Size:	12.7 KB
ID:	183593
          Set your source. Also, you could set an "Active condition" to only have differential when, say, a switch is flipped.
          Click image for larger version

Name:	Diff Mix 3.png
Views:	259
Size:	17.8 KB
ID:	183594

          And then set up the 2 (or more) outputs and note that each can be reversed to get the direction of change you need based upon your setup. If you just can't get it to do what you want with a single mix then set up 1 mix per output, that will give you maximum flexibility.
          Click image for larger version

Name:	Diff Mix 4.png
Views:	261
Size:	72.0 KB
ID:	183595

          Two other things to note:
          You can change the "Weight" of the mix to alter the amount of change introduced. The outputs will never go above the min/max set in the actual output, but you can reduce the total amount of change if you need.

          If you find that you need a different amount of, say, forward than reverse you can set the "Weight" to "Differential" to reduce one half of the curve.
          Click image for larger version

Name:	Extra 1.png
Views:	267
Size:	12.0 KB
ID:	183596

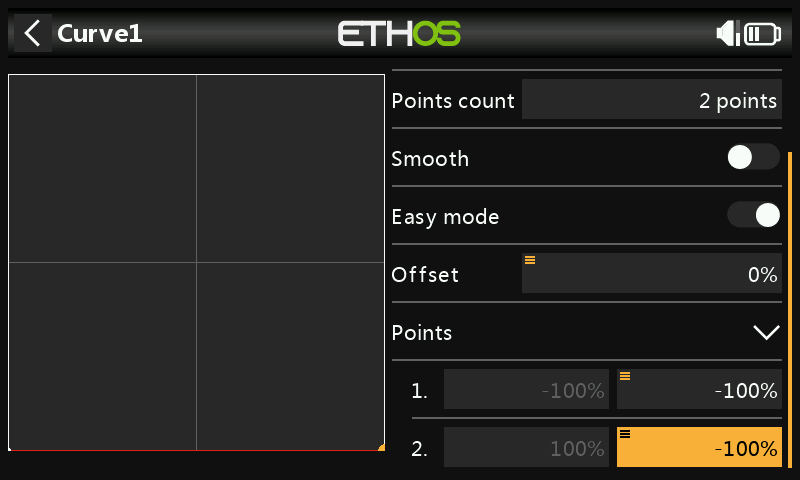

          The same interface also lets you apply a curve for full configurability, if you find you need it.
          Click image for larger version

Name:	Extra 2.png
Views:	251
Size:	12.5 KB
ID:	183597

          Hopefully this helps!

          Nathan
          Attached Files

          Comment

          • rwtdiver
            Vice Admiral

            • Feb 2019
            • 1902

            #6
            Nathan,

            I am assuming that this set up would work on my shark!? I have left and right thrusters that would require right and left turn on one stick and forward and reverse on another stick.

            Thanks Nathan!

            Rob
            "Firemen can stand the heat."

            Comment

            • He Who Shall Not Be Named
              Moderator

              • Aug 2008
              • 13094

              #7
              Nathan and Bob: Thank you so much for spoon-feeding old luddite's like me theses set-up and operational tips for this whiz-bang-works-fine-failsafe-drains-to-the-bilge wonder r/c system. This **** I need to know if I'm to continue this hobby into the 24 1/2 Century!

              Click image for larger version

Name:	image.png
Views:	263
Size:	25.2 KB
ID:	183650
              Who is John Galt?

              Comment

              • RCSubGuy
                Welcome to my underwater realm!

                • Aug 2009
                • 1896

                #8
                Originally posted by rwtdiver
                Nathan,

                I am assuming that this set up would work on my shark!? I have left and right thrusters that would require right and left turn on one stick and forward and reverse on another stick.

                Thanks Nathan!

                Rob
                "Firemen can stand the heat."
                Should be just the thing, Rob! You can either have it all on one stick or separate them into two. Completely up to you!

                Comment

                • trout
                  Admiral

                  • Jul 2011
                  • 3639

                  #9
                  This is a great thread. This will be a reference I will be visiting over and over.
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                  Comment

                  • neitosub
                    Lieutenant Commander

                    • Nov 2021
                    • 137

                    #10
                    Originally posted by Nathan
                    Bow Plane Retract Lockout

                    IMPORTANT: before testing this be sure you have disconnected any linkages that could cause damage if anything goes wrong, or if any outputs need to be reversed.

                    When you have retracting planes it is important to be sure of 2 things. One, that the planes will centered before they retract, and two, that they cannot be operated while retracted. If you have an EthOS radio you can set this up right in the radio. Here is how.

                    There is one thing that it is important to note about EthOS in order for this to work - EthOS only tracks the "sweep" of a channel if there is a slow set in the mix. If you don't use a slow you will see the channel move direct to the endpoint (for example, 100% right to -100%) even though you see the servo is still moving. With the slow enabled, EthOS, and you, will see all the values (for example, 100% to 98% to 96%, etc.) This sweep is important because it keeps the logical switch in time with the retract servo. Though if there is a mechanical problem with the servo the radio won't know. A closed loop system will have to be left up to the Reader, sorry.

                    Okay, here we go.

                    Planes Enabled Logical Switch
                    You first need to create a Logical Switch to identify when the planes are enabled. Note that the source is the retract servo channel. That is the "sweep" we need. The delay gives a second for the servo to finish deploying the planes before activating the planes. It should be a "just in case" but your physical configuration may require a longer delay before becoming active.

                    Click image for larger version

Name:	LS1b.jpg
Views:	343
Size:	59.5 KB
ID:	181646

                    You will use this logical switch in the planes mix.

                    Planes Mix

                    Note the active condition is the logical switch, meaning the planes can only move when the logical switch is on. When the active condition is false the channel is set to 0, which is centered position (works well for us!) Be sure you factor in the logical switch if you add extra mixes for the planes.

                    Click image for larger version

Name:	Mix Planes_a.jpg
Views:	336
Size:	58.5 KB
ID:	181647Click image for larger version

Name:	Mix Planes_b.jpg
Views:	333
Size:	60.7 KB
ID:	181648

                    Retract Mix

                    Finally, you need the mix for the retract channel. This is where the slow goes.

                    Click image for larger version

Name:	Mix Retract_a.jpg
Views:	335
Size:	66.7 KB
ID:	181649Click image for larger version

Name:	Mix Retract_b.jpg
Views:	333
Size:	70.2 KB
ID:	181650

                    You will have to reverse the channels, maybe adjust the slow on the retract mix, or the delay on the planes mix, but this should get you on the right path.

                    Nathan
                    Just wanted to get some clarifications on this feature, it appears that one of the screenshots is missing. Any chance you could repost it? Just wanted to know the logical switch settings in EthOS.
                    ​​​​​
                    Thanks!

                    Comment

                    • neitosub
                      Lieutenant Commander

                      • Nov 2021
                      • 137

                      #11
                      OP doesn't seem to be active on this forum anymore, so here's the answer to my question earlier in case anyone is looking for how to set up the bow plane lock out:



                      It's pretty much like the video above, the functions we are looking for are similar to the nose landing gear steering lockouts in RC airplanes.

                      Comment

                      • rwtdiver
                        Vice Admiral

                        • Feb 2019
                        • 1902

                        #12
                        Originally posted by RCSubGuy

                        Should be just the thing, Rob! You can either have it all on one stick or separate them into two. Completely up to you!
                        I see your point, Bob! I am going to try that set up next. I can see where it might be a smoother operation having both on one stick...

                        Thank you for your input..

                        Rob
                        "Firemen can stand the heat."

                        Comment

                        • Nathan
                          Lieutenant, Junior Grade

                          • Jan 2023
                          • 37

                          #13
                          Originally posted by neitosub

                          Just wanted to get some clarifications on this feature, it appears that one of the screenshots is missing. Any chance you could repost it? Just wanted to know the logical switch settings in EthOS.
                          ​​​​​
                          Thanks!
                          Sorry that picture didn't come through. I recreated it because I couldn't find the original.

                          Someday I need to figure out why the forum won't email me when people make a reply...

                          Nathan

                          Comment

                          • Nathan
                            Lieutenant, Junior Grade

                            • Jan 2023
                            • 37

                            #14
                            Setting Up Ballast Control Using the 6-Position Switch

                            If anyone wants to use the 6 position switch as momentary switches to control your ballast with 3 different modes, this should get you started. In this example we are using the left most set of buttons to control three ballast actions:
                            • Venting the tank (actuated by a switch driving power to a solenoid)
                            • Normal blowing of the ballast (actuated by opening the valve for surface air and powering the air pump)
                            • Emergency blow (actuated by powering the air pump only)
                            NOTE: opening the vent and turning on the air pump use the same channel (a dual relay board driven by a single receiver channel)
                            NOTE: this is a system that scavenges air from the dry compartment for emergency blow with a valve to allow surface air in for normal blow

                            To start, set up a state table like this showing the states of the channels you need (this case has 2 channels, but yours may have 3. Even more could be possible by extending this example.)
                            Switch Action Channel 1
                            (surface air valve)
                            Channel 2
                            (Air Pump & Vent)
                            Upper (FS1) Snorkel Blow -100 -100
                            Middle (FS2) Emergency Blow 100 -100
                            Lower (FS3) Vent 100 100
                            This table will help you be sure you are setting the right values at the right time. Be sure to test each value to be sure (we had swapped the pump and vent and nearly burned up a solenoid because we were driving it when we thought we weren't!)

                            Once you have your state table set up we need to configure the transmitter 6-position switch. This is a 2 step process.

                            The first step is to tell the transmitter how to treat the switch
                            In Edit Model set the "Function Switches" to "Momentary" - this makes each button an independent momentary switch (this transmitter is awesome!!)
                            Click image for larger version  Name:	Function Switch.png Views:	11 Size:	15.8 KB ID:	186880

                            Now that we have 6 more switches we have to set up Variables to actually use them. For this set up we'll use 3 vars, one for each button.
                            We are going to work our way from the bottom of our state table to the top because venting and emergency blowing is "easier" because they each impact only a single channel.
                            Click image for larger version  Name:	Var1.png Views:	11 Size:	12.1 KB ID:	186882
                            The Range isn't critical in our setup, but be sure it includes the values you are setting. The Values section:
                            • Sets the default value (-100)
                            • We added the FS3 switch which sets the value to 0
                            • (for THIS setup, we need a default value of -100, your model may be different)
                            In operation, the value will be 0 until the switch is pressed. And it will be 100 as long as the switch is down.
                            Now we'll repeat 2 more times.
                            Click image for larger version  Name:	Var2.png Views:	11 Size:	12.7 KB ID:	186881
                            Click image for larger version  Name:	Var3.png Views:	11 Size:	12.9 KB ID:	186883
                            These variables now become the "switches" in our mixes

                            Vent Mix - actuating the venting solenoid
                            Click image for larger version  Name:	Vent Mix 1.png Views:	11 Size:	18.5 KB ID:	186884
                            Click image for larger version  Name:	Vent Mix 2.png Views:	11 Size:	66.6 KB ID:	186885

                            Pump Mix - actuating just the air pump
                            Click image for larger version  Name:	Emerg Mix 1.png Views:	11 Size:	18.0 KB ID:	186886
                            Click image for larger version  Name:	Emerg Mix 2.png Views:	11 Size:	69.5 KB ID:	186887

                            And finally the slightly more complicated state, the Snorkel Blow both opens the valve and actuates the pump
                            So this is actually 2 mixes actuated by the same switch. (okay, not ALL that complicated...)
                            We start with opening the valve
                            Click image for larger version  Name:	Snorkel Mix A1.png Views:	11 Size:	18.6 KB ID:	186888
                            Click image for larger version  Name:	Snorkel Mix A2.png Views:	11 Size:	68.3 KB ID:	186889

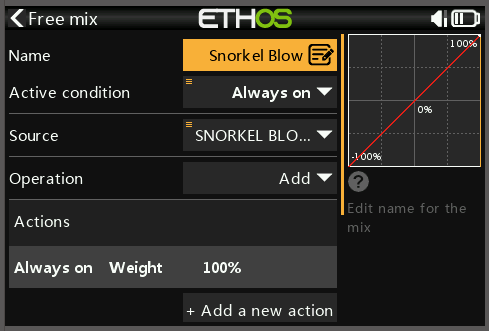

                            And then we turn on the pump
                            Click image for larger version

Name:	Snorkel Mix B1.png
Views:	69
Size:	19.3 KB
ID:	186904
                            Click image for larger version

Name:	Snorkel Mix B2.png
Views:	64
Size:	67.8 KB
ID:	186905

                            And that does it.

                            Of course your exact values, channels, and output reverses may differ, but the idea can be applied across many functions.

                            Nathan
                            Last edited by Nathan; 03-23-2025, 09:35 AM.

                            Comment

                            • biggsgolf
                              Captain

                              • Jan 2020
                              • 839

                              #15
                              Originally posted by Nathan
                              Setting Up Ballast Control Using the 6-Position Switch

                              If anyone wants to use the 6 position switch as momentary switches to control your ballast with 3 different modes, this should get you started. In this example we are using the left most set of buttons to control three ballast actions:
                              • Venting the tank (actuated by a switch driving power to a solenoid)
                              • Normal blowing of the ballast (actuated by opening the valve for surface air and powering the air pump)
                              • Emergency blow (actuated by powering the air pump only)
                              NOTE: opening the vent and turning on the air pump use the same channel (a dual relay board driven by a single receiver channel)
                              NOTE: this is a system that scavenges air from the dry compartment for emergency blow with a valve to allow surface air in for normal blow

                              To start, set up a state table like this showing the states of the channels you need (this case has 2 channels, but yours may have 3. Even more could be possible by extending this example.)
                              Switch Action Channel 1
                              (surface air valve)
                              Channel 2
                              (Air Pump & Vent)
                              Upper (FS1) Snorkel Blow -100 -100
                              Middle (FS2) Emergency Blow 100 -100
                              Lower (FS3) Vent 100 100
                              This table will help you be sure you are setting the right values at the right time. Be sure to test each value to be sure (we had swapped the pump and vent and nearly burned up a solenoid because we were driving it when we thought we weren't!)

                              Once you have your state table set up we need to configure the transmitter 6-position switch. This is a 2 step process.

                              The first step is to tell the transmitter how to treat the switch
                              In Edit Model set the "Function Switches" to "Momentary" - this makes each button an independent momentary switch (this transmitter is awesome!!)
                              Click image for larger version Name:	Function Switch.png Views:	11 Size:	15.8 KB ID:	186880

                              Now that we have 6 more switches we have to set up Variables to actually use them. For this set up we'll use 3 vars, one for each button.
                              We are going to work our way from the bottom of our state table to the top because venting and emergency blowing is "easier" because they each impact only a single channel.
                              Click image for larger version Name:	Var1.png Views:	11 Size:	12.1 KB ID:	186882
                              The Range isn't critical in our setup, but be sure it includes the values you are setting. The Values section:
                              • Sets the default value (-100)
                              • We added the FS3 switch which sets the value to 0
                              • (for THIS setup, we need a default value of -100, your model may be different)
                              In operation, the value will be 0 until the switch is pressed. And it will be 100 as long as the switch is down.
                              Now we'll repeat 2 more times.
                              Click image for larger version Name:	Var2.png Views:	11 Size:	12.7 KB ID:	186881
                              Click image for larger version Name:	Var3.png Views:	11 Size:	12.9 KB ID:	186883
                              These variables now become the "switches" in our mixes

                              Vent Mix - actuating the venting solenoid
                              Click image for larger version Name:	Vent Mix 1.png Views:	11 Size:	18.5 KB ID:	186884
                              Click image for larger version Name:	Vent Mix 2.png Views:	11 Size:	66.6 KB ID:	186885

                              Pump Mix - actuating just the air pump
                              Click image for larger version Name:	Emerg Mix 1.png Views:	11 Size:	18.0 KB ID:	186886
                              Click image for larger version Name:	Emerg Mix 2.png Views:	11 Size:	69.5 KB ID:	186887

                              And finally the slightly more complicated state, the Snorkel Blow both opens the valve and actuates the pump
                              So this is actually 2 mixes actuated by the same switch. (okay, not ALL that complicated...)
                              We start with opening the valve
                              Click image for larger version Name:	Snorkel Mix A1.png Views:	11 Size:	18.6 KB ID:	186888
                              Click image for larger version Name:	Snorkel Mix A2.png Views:	11 Size:	68.3 KB ID:	186889

                              And then we turn on the pump
                              Click image for larger version

Name:	Snorkel Mix B1.png
Views:	69
Size:	19.3 KB
ID:	186904
                              Click image for larger version

Name:	Snorkel Mix B2.png
Views:	64
Size:	67.8 KB
ID:	186905

                              And that does it.

                              Of course your exact values, channels, and output reverses may differ, but the idea can be applied across many functions.

                              Nathan
                              Nathan, great posts, have you come up with or seen how to use the Flsky XR18 pitch control? I also want to figure out how to program for the Planes to offset each other to stop sub listing in turns, any idea about that? Thanks Nathan

                              Comment

                              Working...
