    Hi everyone this is my first post to the forums, but I am not new to rc controlled vehicles. Has anyone tried TBS crossfire in a submarine? It operates at 915 Mhz and will also automatically increase transmitter power based on the signal connection, up to 2000mw. They have receivers with diversity antennae, allowing for the antennae to be placed at a different orientations to handle relative positional changes between the model and the Tx avoiding null spots. Another cool feature is telemetry allowing for all sorts of data to be sent back the transmitter for display. The antennae are not large (easily fit inside a cylinder) and the receivers can be standard size or as small as a quarter, depending on how many physical outputs you need to use. This equipment is usually used in model aircraft for flight beyond visual range with the pilot using live video to fly the aircraft, commonly referred to as FPV (first person view). Aircraft using this setup can fly miles away and the pilot can still maintain rc control. It would be interesting to see how it would work under water. Also you can use any transmitter with it as it piggybacks on any radio with a trainer port or ppm out. Unless you all already know about this in which I've wasted everyone's time and sorry lol!
    Last edited by billyd; 02-11-2024, 05:58 PM.

    Leave a comment:


  • rwtdiver
    replied
    For me, its 75 Mhz, if I can find them, and if not, 2.4 all the way. Just do not need all that tech stuff to run submarines. But, if that is your cup of tea, coffee, coke, or what ever. Go for it!

    Rob
    "Firemen can stand the heat."

    Leave a comment:


  • QuarterMaster
    replied
    Originally posted by Nathan

    That is exactly what I was contemplating
    GFL making it reach! Boy I wanna see that!

    Now REREAD Bobs analysis!

    But feel free to make extra work for yourself with an additional point of failure for 5-10% increase!

    FWIW. no worries on anymore comments from me, I'm done here. Moving away from this subject at A/A Flank. Ping away boys!!
    Last edited by QuarterMaster; 12-31-2023, 01:23 PM.

    Leave a comment:


  • Nathan
    replied
    Originally posted by redboat219
    How about disguising the antennae as one of the mast?
    Click image for larger version

Name:	Notes_231231_202729.jpg
Views:	130
Size:	50.9 KB
ID:	177132
    That is exactly what I was contemplating

    Leave a comment:


  • redboat219
    replied

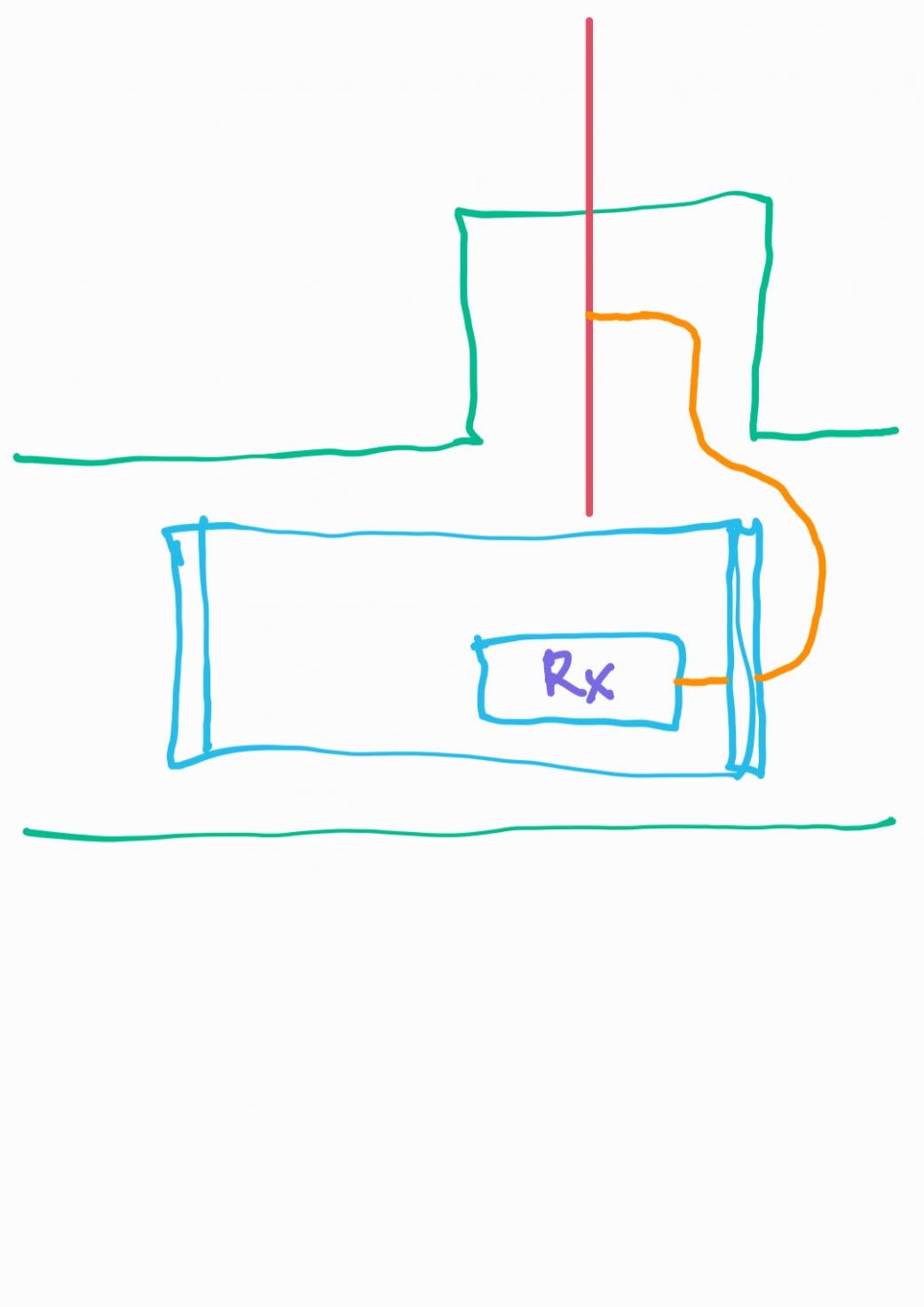

    How about disguising the antennae as one of the mast?
    Click image for larger version

Name:	Notes_231231_202729.jpg
Views:	130
Size:	50.9 KB
ID:	177132

    Leave a comment:


  • Nathan
    replied
    I definitely get what you are saying, Ed, and you are right that most of the time alignment within the cylinder will be just fine. The angle within the cylinder idea is very good, but still not always possible. And then the sail and periscopes just sit there staring at you... And as you said, people may have a requirement for a vertical placement - a search on "IPEX 4" got me some results on Amazon, if anyone needs to go that route.

    Nathan

    Leave a comment:


  • QuarterMaster
    replied
    Originally posted by Nathan
    Sounds like we need a way to extend the antenna outside the WTC with a waterproof connector. Any ideas on where to start to source such a thing? What are these connectors and cables called?
    Nathan, I think your missing the point of Bob's test. Depending on your needs, there may be NO NEED to do anything like that. If you spend 90% of your time at PD in our Texas mud, which I suspect you do, "GOOD" will work for you. Read Takeaway #4. Even at that beautiful Sylvan Rodriguez Park, you really can only run at depth 20-30 ft out before feeling "concerned".

    So unless you have ALVIN and like to explore the depths of your swimming pool, or local quarry, or Cohutta/Carmel (1 weekend a year). OR you run below PD > 80' away (GFLWT) you need not penetrate the hull with 900Mhz. 2.4 is a different story.

    Who out here wants another hull penetration to "feed"?

    Look, it's about performance, what you need vs what you want. In my not so humble opinion, in a WTC you need to mount the RX near a BH anyway unless you purchase a custom IPx connector. Why do that unless you REALLY need to. I have a paycheck that states 80% of the users out there either don't care, or their needs don't warrant that.

    I've been repeating the above long enough now (what are YOUR requirements??), so for those who care, read this....

    In fact BOOK MARK it.

    How to Mount/Position Transmitter and Receiver Antenna on FPV Drone

    That being read, my recommendations are (for 80% of you).
    Or go ahead and pop a hole offering another potential leak point.

    Click image for larger version  Name:	Screenshot 2023-12-29 085730.png Views:	0 Size:	62.9 KB ID:	177059

    I have spoken.
    Last edited by QuarterMaster; 12-29-2023, 11:08 AM.

    Leave a comment:


  • Nathan
    replied
    Sounds like we need a way to extend the antenna outside the WTC with a waterproof connector. Any ideas on where to start to source such a thing? What are these connectors and cables called?

    Leave a comment:


  • RCSubGuy
    replied
    Video will post up later today as part of my weekly update, but here are the results. Really interesting results.

    Our testing methodology involved the creation of a watertight enclosure that would allow for orientation of the dipole antenna underwater in relation to the transmitter. Testing equipment included a FrSky X18 Tandem radio paired to a TDR10 Tandem receiver. Output power was set at 250mW of a possible 1W (25%).

    Two test series were conducted, one with the watertight box in about 18" of water behind a concrete lip in my pool spa. Interested in seeing how much the concrete affected signal strength, we conducted a second series with clear line of sight between the RX and TX. Due to constraints of my yard, the first tests were conducted at a distance of approximately 80ft from the receiver, and the second set was at about 40ft. We used the relative signal strength telemetry read at the transmitter (a built in feature of these radios), which is a value between 0 (no signal) and 100 (full signal strength) to get the following data:


    RX in spa behind a 16" thick concrete/stone berm - 18" water depth - 80ft distance:
    Description Antenna aligned to TX Antenna 90deg to TX Antenna 45deg to TX Antenna Vertically aligned
    RX in open air 90 95 100 100
    RX submerged 40 38 37 43
    TX facing 90deg to RX 0 0 0 36
    RX in pool with clear line of sight to TX - 24" water depth - 40ft distance:
    Description Antenna aligned to TX Antenna 90deg to TX Antenna 45deg to TX Antenna Vertically aligned
    RX in open air 95 100 100 100
    RX submerged 40 45 46 50
    TX facing 90deg to RX 0 39 37 40

    Takeaways:
    1. I don't see a significant difference in signal strength based upon the orientation of the receiver dipole antenna and the transmitter
    2. There is a significant reduction in signal strength when the transmitter is not operated facing directly toward the receiver
    3. There may be a large difference in signal strength when the distance between the TX and RX is increased far beyond the constraints of my test environment for this experiment, however, in my experience, most RC sub skippers operate their subs at a distance within 80ft from themselves. Any further out, and submerged operation becomes problematic and/or foolhardy. Operation while surfaced means that the built in 2.4ghz antennas are in play, and vast distances are achievable with high signal strength

      SO
    4. When setting up the antenna in your sub, align the 900mhz dipole antenna vertically if you can.
    5. If you cannot align the antenna vertically, avoid operation of your sub with the antenna aligned with your position
    BEST:
    Click image for larger version

Name:	vert.png
Views:	127
Size:	176.7 KB
ID:	177053


    GOOD:
    Click image for larger version

Name:	Horiz_90degto.png
Views:	129
Size:	190.8 KB
ID:	177054

    NOT IDEAL:
    Click image for larger version

Name:	Horiz_toward.png
Views:	131
Size:	156.8 KB
ID:	177055
    Attached Files

    Leave a comment:
