  • JHapprich
    Captain

    • Oct 2017
    • 785

    #46
    Very cool. That boat looks HUGE!

    Comment

    • Albacore 569
      Commander

      • Sep 2020
      • 428

      #47
      Originally posted by JHapprich
      Very cool. That boat looks HUGE!
      Thanks, If it will fit in the car trunk - fine. It is smaller than the Argonaute but she's 1/32 scale. The Dolphin 2 is 56.25 inches long and is 1/48.. It makes a nicer bow wave moving through the water when its larger. Many of the subs around in my area are 1/48 or 1/96. Dwayne Hill subs are also all 1/48 I believe. It would be an honor & fun to sail at the pond with hm someday. But first in line would be to sail models with Mr Merriman!

      In the more traditional methods, changing scales to larger is a lot more in time cost materials to make larger patterns, molds and material and a lot more time in sanding finishing labor.

      By contrast I think as long as you have a PVC pipe that will match the models' shape and scale requirements, 3 D printing has allowed much more freedom of choice of scales and more in cost, 1/96 parts are not that much more in cost and time than if they were printed in 1/48. Just a bit more time to print, (1-2 days more?) and material and if the printer has an adequate base to print larger parts. It's not that much more in cost going to a larger scale within limits.

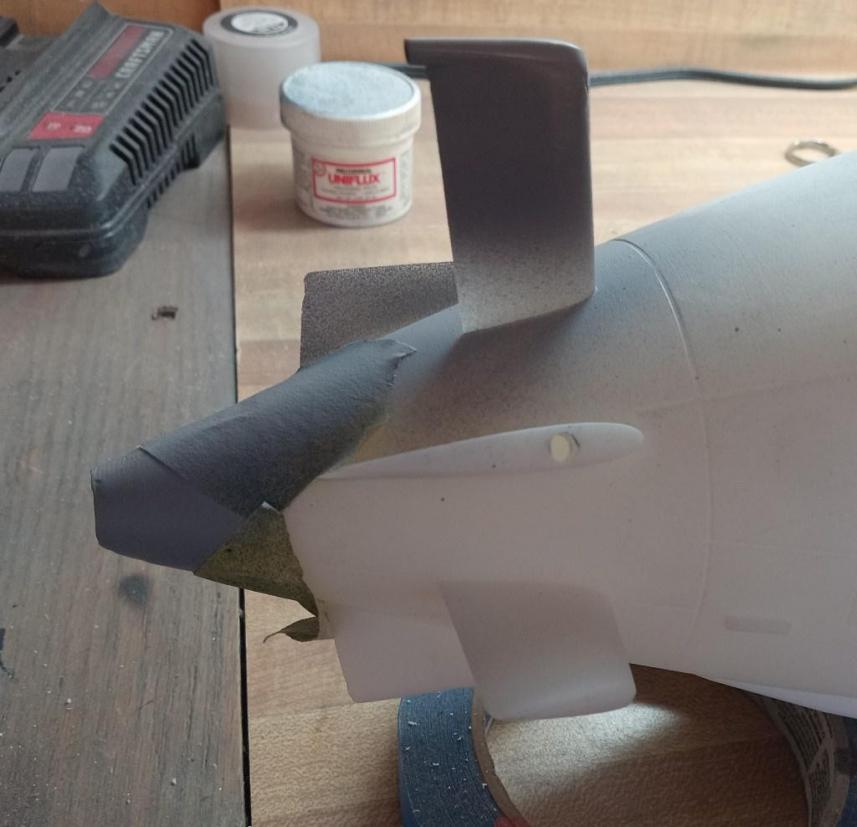

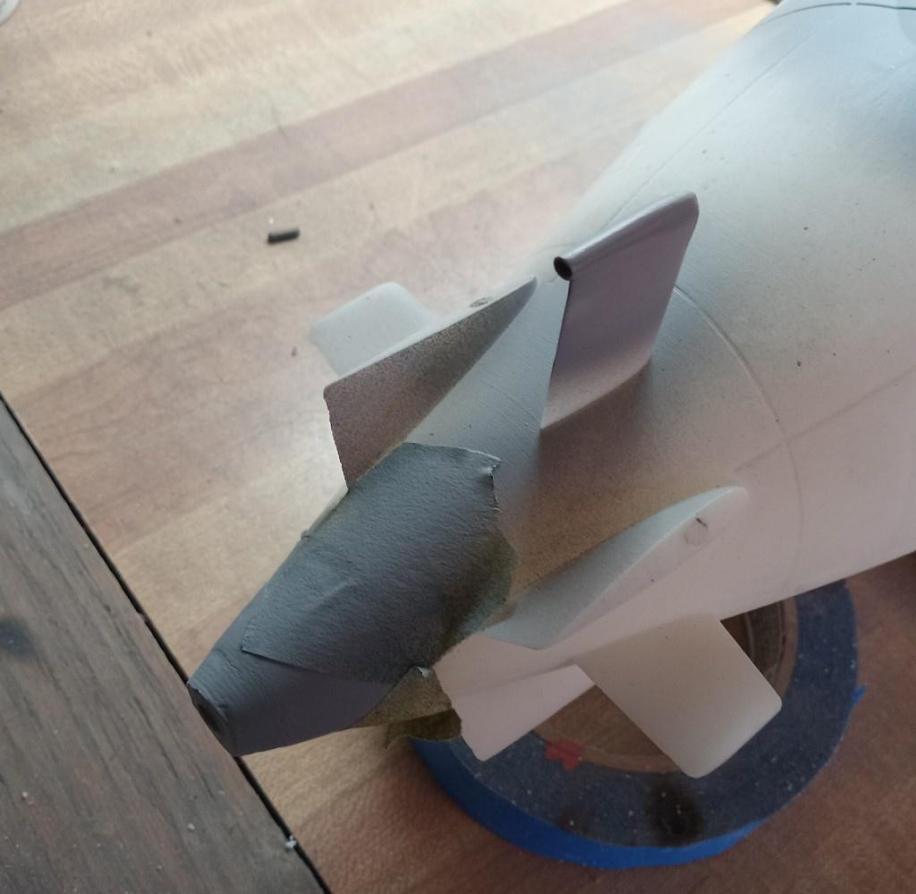

      Adding the towed array to the fixed centerline stern fin. Most research photos do not show this It was either not added when the photos at yard were taken or censored out.

      Naval photos or most public builders' photos do not show this array, but some photos I guess for lack of a be better term third party photo sources (civilian photos from a sailboat in the same harbor) show something. The other secret thing added was the scribing for the large vertical deck hatch midships for a mission package for various missions and weapons and gadgets. I wouldn't be surprised if there were many more secrets, it is a submarine after al damn it. lol but for the model to be accurately represented visually it is all we need and not compromise the real boats and their sailors (except for the Russians ...lol). Fuc* 'm

      The towed array on top is Brass rod turned on a lathe into a bullet shape, with the back OD reduced in diameter to except a small section of brass tubing of same outside diameter. epoxied, puttied, sanded & primmed.

      The last illustration should hint what I'm tackling next.


      Click image for larger version  Name:	MxehcUZ.jpg Views:	0 Size:	59.7 KB ID:	178461

      Click image for larger version  Name:	067eEXt.jpg Views:	0 Size:	57.2 KB ID:	178464


      Click image for larger version  Name:	YR9vBcC.jpg Views:	0 Size:	58.8 KB ID:	178462

      Click image for larger version  Name:	YPzoFoc.jpg Views:	0 Size:	60.6 KB ID:	178463
      Last edited by Albacore 569; 02-26-2024, 02:28 PM.

      Comment

      • He Who Shall Not Be Named
        Moderator

        • Aug 2008
        • 12818

        #48
        Yeah. Agreed. At some time, before one of use assumes room-temperature, we gotta hook up at a venue somewhere and show these other bum's how it's done, Steve.

        David
        Who is John Galt?

        Comment

        • Albacore 569
          Commander

          • Sep 2020
          • 428

          #49

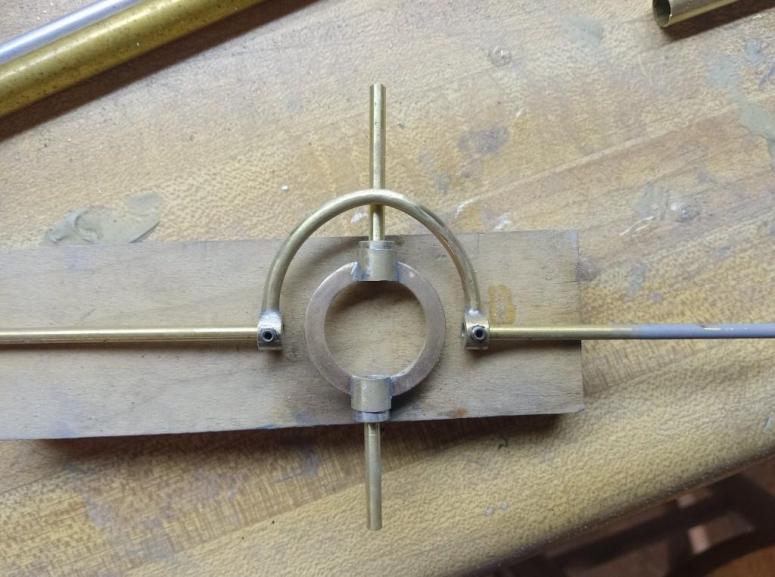

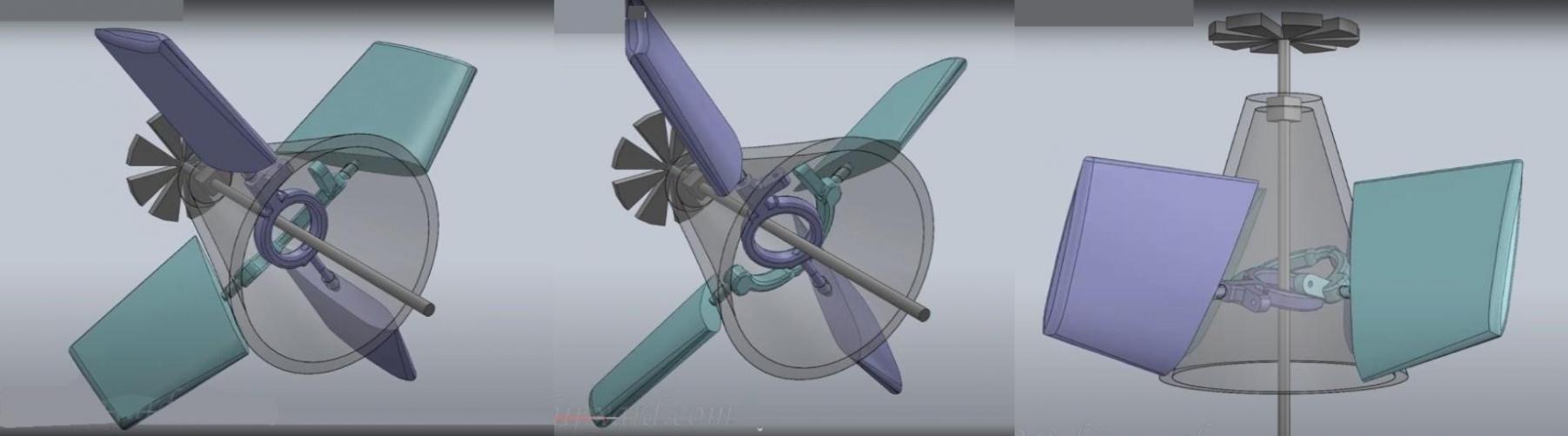

          Been in garage at bench making a x stern arrangement out of K&S 1/8th inch brass rod stock, A bronze bushing sleave from the hardware store, and some 4 mm wheel collars and locking nuts. Silver soldered with flux and a small hand torch in a vice.

          Brass washers for the inner ring were considered but are not really all brass, but an alloy mix and had a lot of metal inside to remove, but a bronze bushing looked perfect. Cutting disk removed the cylinder to leave the flange as a bronze brass ring, so its heating properties would be close enough to the 5/16-inch diameter brass tubing to be silver soldered to it aligned to accept the 4 mm wheel inserts.

          Aligning the outside U connector used 1/8th inch aluminum tubing to keep all aligned.

          The two Rudder arms, one for each part should be arriving tomorrow. Super strong.

          Click image for larger version  Name:	IacZsbv.jpg Views:	0 Size:	19.7 KB ID:	178519

          Click image for larger version  Name:	Nl5rJJl.jpg Views:	0 Size:	10.9 KB ID:	178520

          Click image for larger version  Name:	iplreIO.jpg Views:	0 Size:	2.5 KB ID:	178523

          Click image for larger version  Name:	CLqgfzK.jpg Views:	0 Size:	62.8 KB ID:	178521

          Click image for larger version  Name:	qb9jyqz.jpg Views:	0 Size:	60.6 KB ID:	178522
          Last edited by Albacore 569; 02-29-2024, 02:59 AM.

          Comment

          • Albacore 569
            Commander

            • Sep 2020
            • 428

            #50

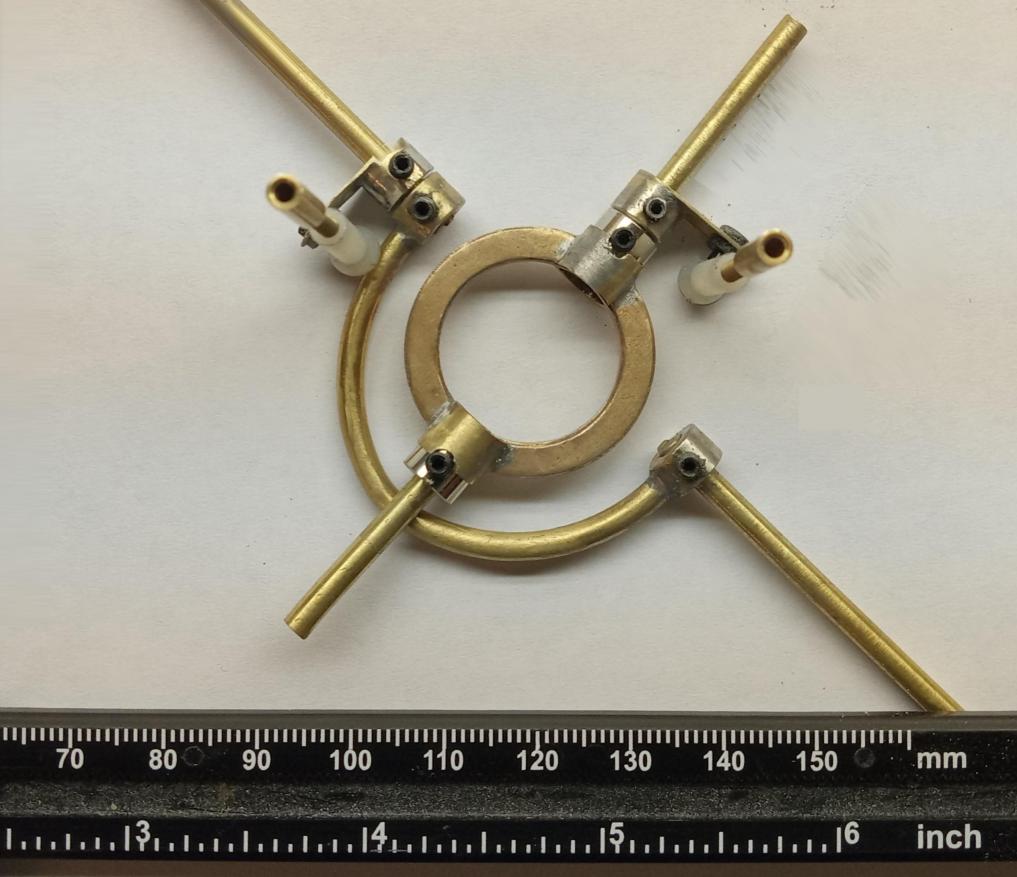

            Completed X stern linkages ready for clearance testing and installation. I used a lot of Du-Bro 1/8 inch Dura collars. The smallest Clevises online I bought were still too large, so I soldered up my own making sure the dimensions of both arms were identical. Seeing as an example Merriman's use of Aluminum tubing for alignment purposes while soldering was a big help


            Click image for larger version

Name:	n4BlXeZ.jpg
Views:	241
Size:	86.5 KB
ID:	178810
            Last edited by Albacore 569; 03-14-2024, 01:19 PM.

            Comment

            • rwtdiver
              Vice Admiral

              • Feb 2019
              • 1922

              #51
              Steven,

              I am really impressed with your design and soldering ability on your X tail linkage design. If you are OK with it, I may make an attempt to fabricate a similar system for my 212!? I am starting to have some issues with my eyesight now (Macular Degeneration) I am having to work around the peripherals of the line of sight. Stupid black mass right in the center of sight. Always something when you get old. But we deal with it and MOVE ON!! :-))

              Rob
              "Firemen can stand the heat."

              Comment

              • Albacore 569
                Commander

                • Sep 2020
                • 428

                #52
                Originally posted by rwtdiver
                Steven,

                I am really impressed with your design and soldering ability on your X tail linkage design. If you are OK with it, I may make an attempt to fabricate a similar system for my 212!? I am starting to have some issues with my eyesight now (Macular Degeneration) I am having to work around the peripherals of the line of sight. Stupid black mass right in the center of sight. Always something when you get old. But we deal with it and MOVE ON!! :-))

                Rob
                "Firemen can stand the heat."
                Sure, you can make a duplicate of your own. I am flattered, but I did post here so others could learn from me (or my mistakes...lol) . I am just following others designs too after all. Importantly I would change the overall size and sizes of the same parts to fit into your smaller 212A or there will be clearances issues in a area cramped already.

                The first thing in your model is determine (as what I followed first) what is the largest reasonable diameter solid brass rod for the rudder posts possible that slides into the rudders. Smaller will fit but largest you can use will be the more robust. That will determine the Dubro locking collars sizes (the diameters).

                If you run out of brass solid rod stock, buy more or if have to wait again ordering online delivery, if you have similar sized brass hollow tubing, then slide in concentric tubes inside the larger and solder together. Just as strong, hell same principle worked well for the Supermarine Spitfire's wing spars.

                It took me several tries of making the components to get the soldering down after practice. I used a normal soldering flux, and then silver solder and a small hand torch and a vice, with aluminum tubing acting as fixtures to maintain alignment (critical). I then used rubber wheels in a hand piece to clean up the parts after soldered and smooth out the silver solder. 'Merriman and Martin' have illustrations and you tube videos in various places to help guide you.

                Years ago, a suitable anti flux while soldering (creating a barrier where you don't want the solder to flow) could be used with Pencil lead (graphite). Scribble over the area with a pencil. But I noticed that didn't work this time, so I think the pencils graphite must have changed or I have...lol.

                Du-Bro nickel plated shaft wheel collars sizes. In my Dolphin 2, I used 1/8". That was the maximum diameter possible in my case on the Dolphin 2. For your 212A, you have to step size down, so they fit the appropriate size rudder posts.
                • 1/16" (1.5 mm)
                • 3/23" (2.3 mm)
                • 1/8" (3 mm)
                • 5/32" (4 mm)
                • 3/16" (4.7 mm)
                • 7/32" (5.5 mm)
                • 1/4" (6.3 mm)

                Ideally, since you have a 3 d printer, could you follow the public source design and just design and print your own out of suitable strength material? Doesn't Bob provide a suitable linkage for his 212 kits? I see in his videos Bob seems to crank out plenty of his beautiful 212A's for clients too. Just some thoughts.

                My eyes aren't the best either. I just went to the optometrist and getting new up close and far distance glasses. I've been diabetic type 1 for 50 years on March 19th, 2024. My eyes seem to have the effects of diabetes over time, but fortunately seem well enough to not need injections or lasers. I hope I pass the DMV drivers test soon. The new Rx glasses should be a huge assist. I got to be able to drive to the ponds to be with you guys' 'simmerly afflicted' lol. Not afflicted with diabetes, though I have run into a lot in our local group a number f diabetics' the same age and time but afflicted with model submarines...lol.

                Comment

                • Albacore 569
                  Commander

                  • Sep 2020
                  • 428

                  #53
                  Click image for larger version  Name:	W6A4b2e.jpg Views:	0 Size:	74.8 KB ID:	178943

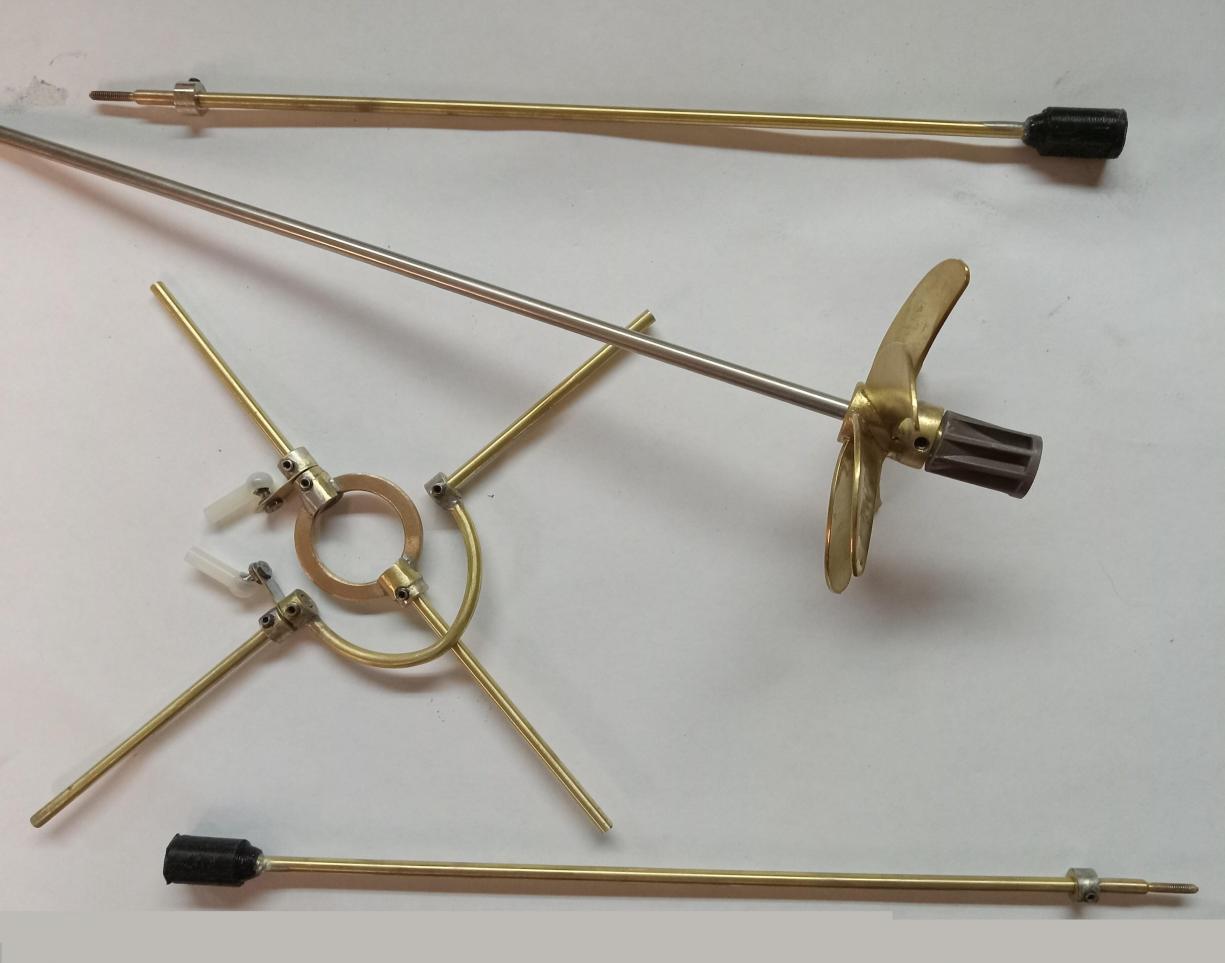

                  The rods top and bottom are in tubing so you can vary the length and tighten with the ring lock nut, the stern plane X stern linkages, and then yesterday I made a sleave to slide into the brass prop to accept a 4 mm steel prop shaft. The prop was originally planned ot have a 5 mm. But I didn't want t waste money when I already had two 4 mm ones that wll be just as strong.
                  the control rods have magnets on the ends t make a solid quick connect to the rods on WTC.

                  The control rods have magnets on the ends t make a solid quick connect to the rods on WTC A similar rod set up maybe similar for the forward bow planes.

                  The control rods were copied in design like those made by Nautilus subs for my Argonaute French submarine. They needed to be so the same WTC in that model will work fine in the Dolphin 2.
                  Last edited by Albacore 569; 03-20-2024, 01:38 PM.

                  Comment

                  • Albacore 569
                    Commander

                    • Sep 2020
                    • 428

                    #54


                    I have a question about batteries. I am using Bob Martin's You tube video to assemble the Dolphin 2 battery packs.

                    These are Tenergy NiMH SubC 5000mAh Flat Top Rechargeable Battery (with Tabs) - 10 Pack. They will provide 12-volt power / 5 amh.
                    I selected these as it is the same power batteries of the Argonaute model. This makes the battery charger settings simplified using same
                    settings on charger for either boat.

                    My question is do I arrange soldering the batteries in one single row (10 x 1) for a heat shrinked waterproof battery pack. 19 inches long 1-inch
                    high 1 inch wide? the hull can accommodate. Or two rows (5 x 2) 9.5 inches long and 2 inches wide and 1 inch high?

                    From a weight balance and inertia point of view - any difference? Which arrangement would be best? A single long battery
                    along the 'keel' best for metacenter stability or the other? what do you guys do? In the Argonaute there are two five battery packs that lay
                    outside the WTC at the longitudinal balance point & curve up forming up along the outside ballast tank area of the wet hull.

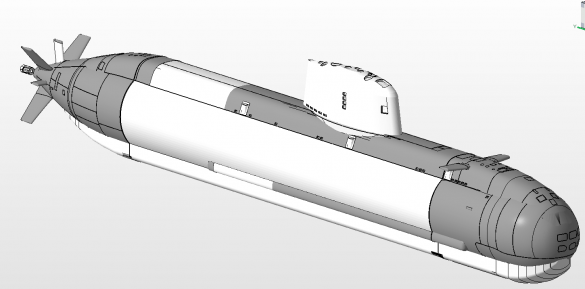

                    The bottom hull fairing seen below in illustration - part of the real subs AIP on the model curves around underneath, and is 4 inch's wide and
                    1 inch deep around its radius, and 33 inches long. Plenty of room for either battery arrangement or any new one you might suggest I have
                    not considered.



                    Click image for larger version  Name:	KfW03t8.png Views:	0 Size:	91.6 KB ID:	179122
                    Last edited by Albacore 569; 03-30-2024, 12:20 AM.

                    Comment

                    • Das Boot
                      Rear Admiral

                      • Dec 2019
                      • 1293

                      #55
                      That is some nice scribing in blending in.
                      Of the 40,000 men who served on German submarines, 30,000 never returned.”

                      Comment

                      • RCSubGuy
                        Welcome to my underwater realm!

                        • Aug 2009
                        • 1862

                        #56
                        The best idea is to keep the packs as close to the center of the keel and center of the boat as possible. I'd go 5x2 if you can get heat shrink that will accommodate that size. Just like ballast, it's best to keep things as tight and as close to the middle of the boat as you can, which will make trimming much easier for you.

                        Comment

                        • Albacore 569
                          Commander

                          • Sep 2020
                          • 428

                          #57
                          Originally posted by RCSubGuy
                          The best idea is to keep the packs as close to the center of the keel and center of the boat as possible. I'd go 5x2 if you can get heat shrink that will accommodate that size. Just like ballast, it's best to keep things as tight and as close to the middle of the boat as you can, which will make trimming much easier for you.
                          Thank you, Bob. I will go with the 5 x 2 arrangement then. Looking now for the heat shrink size now. Steve

                          Grangers has some heat shrink appropriate size for $ 21.05. I'll go downtown and pick it up and save $10.00 shipping on Tuesday when its ready.
                          Last edited by Albacore 569; 03-30-2024, 11:37 AM.

                          Comment

                          • rwtdiver
                            Vice Admiral

                            • Feb 2019
                            • 1922

                            #58
                            Steven,

                            Here is the location of the 3S battery on my 212 A

                            Click image for larger version

Name:	GERMAN 212 A 52.jpg
Views:	173
Size:	69.9 KB
ID:	179143

                            My 212 is very similar in size to your Dolphin.

                            Rob
                            "Firemen can stand the heat."

                            Comment

                            • Albacore 569
                              Commander

                              • Sep 2020
                              • 428

                              #59
                              Originally posted by rwtdiver
                              Steven,

                              Here is the location of the 3S battery on my 212 A

                              Click image for larger version  Name:	GERMAN 212 A 52.jpg Views:	9 Size:	69.9 KB ID:	179143

                              My 212 is very similar in size to your Dolphin.

                              Rob
                              "Firemen can stand the heat."
                              Thank you, Rob. Our boats each have similar arrangements. But our scale sizes are different though. I am building 1/48, and yours i 1/72.
                              (56 inches long and 31 inches long).

                              I will start assembling the battery tomorrow, the last part a waterproof connector which will connect from battery to the WTC has to match

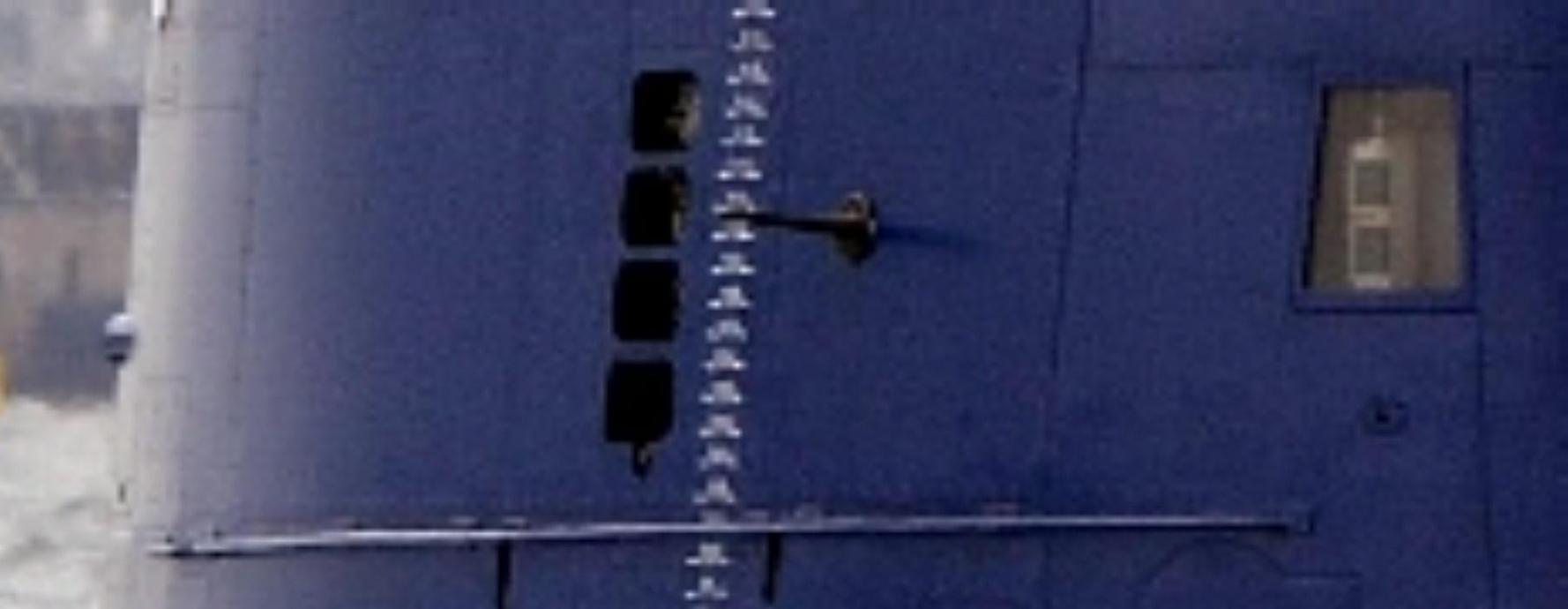

                              expected to arrive tomorrow. I'll add the sail fairwater lights and add the hand railing which is on the Starboard side only today.

                              Also adding Navigation lights powered by a simple 2 - 1.5 AA batteries for a new Tugboat as well today. I will wire the Dolphin 2 fairwater lights
                              too but leave unpowered for now. Best to accomplish that now than retrofit later.

                              Building a sub from semi scratch (The hull parts and several masts 3 D custom printed by Bob Martin of Nautilus Drydocks) there are a lot
                              of mission critical little details, the batteries, waterproof cabling connector, soldering, making the other masts, propellor shaft, prop, paint.
                              sanding, more sanding. Adhesives. This is the world of RC model submarine construction.

                              It is so reassuring having great help and support here. Thankful to be alive, and active and skill be creative and build 'submarine boats'.

                              Click image for larger version  Name:	Z5C6Brb.jpg Views:	0 Size:	74.2 KB ID:	179161

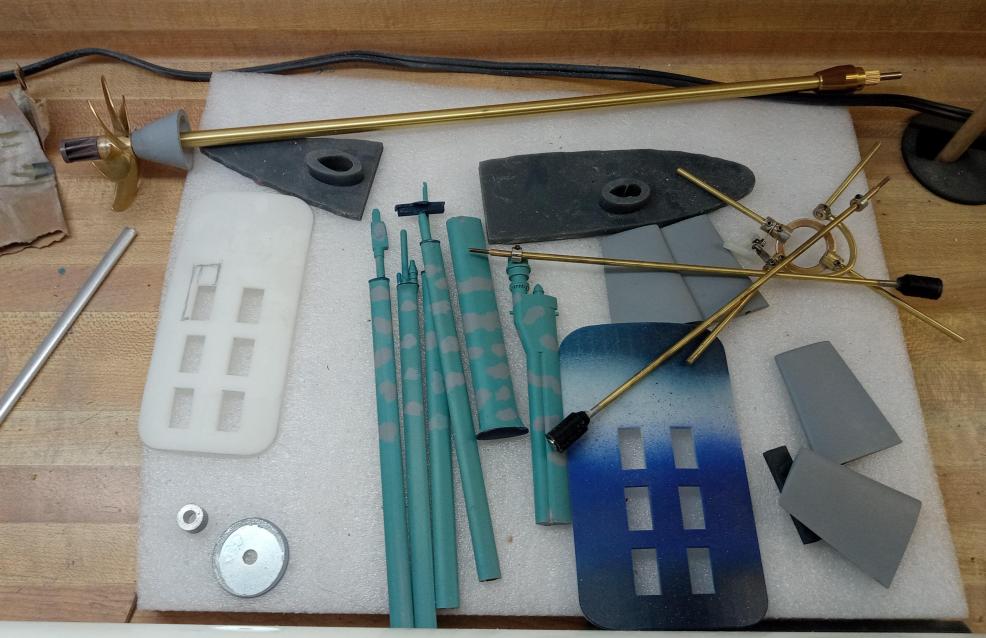

                              Sub assembly's almost ready to add to the hull.


                              Click image for larger version  Name:	EyT3PwM.jpg Views:	0 Size:	85.7 KB ID:	179162

                              Click image for larger version  Name:	eCDC9E0.jpg Views:	0 Size:	79.2 KB ID:	179163

                              Click image for larger version  Name:	BJmGJfS.jpg Views:	0 Size:	59.7 KB ID:	179164
                              Last edited by Albacore 569; 03-31-2024, 12:15 PM.

                              Comment

                              • Albacore 569
                                Commander

                                • Sep 2020
                                • 428

                                #60

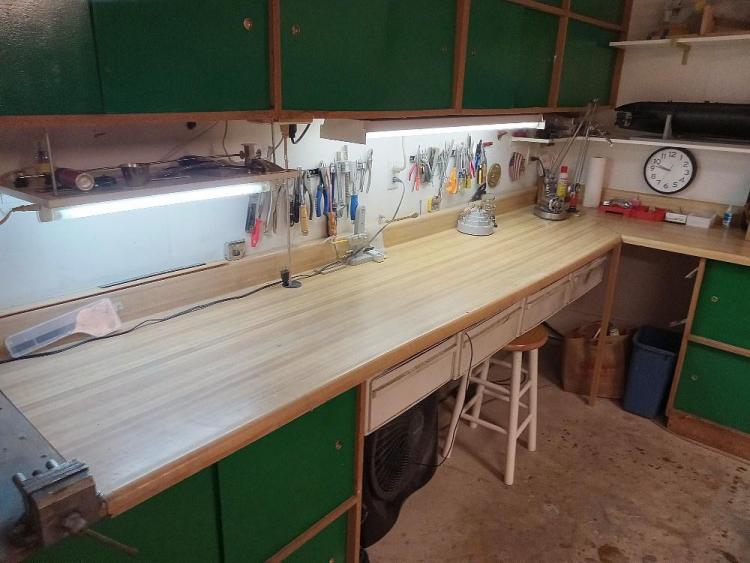

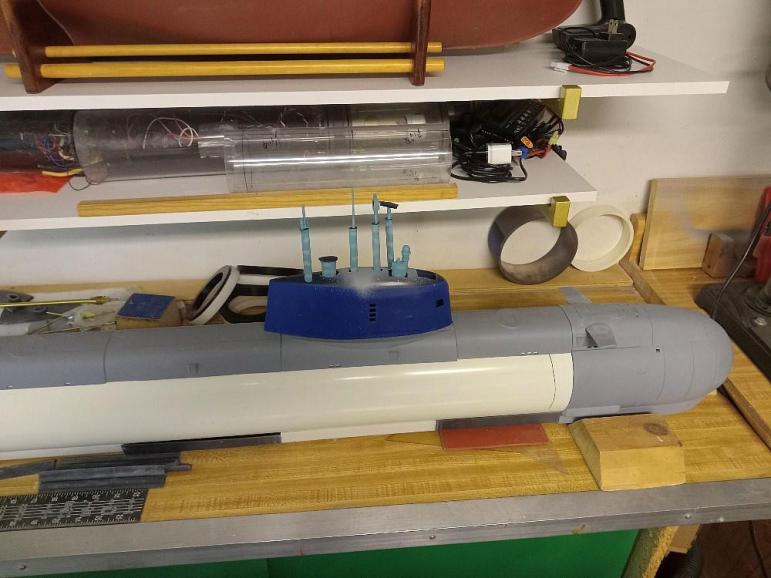

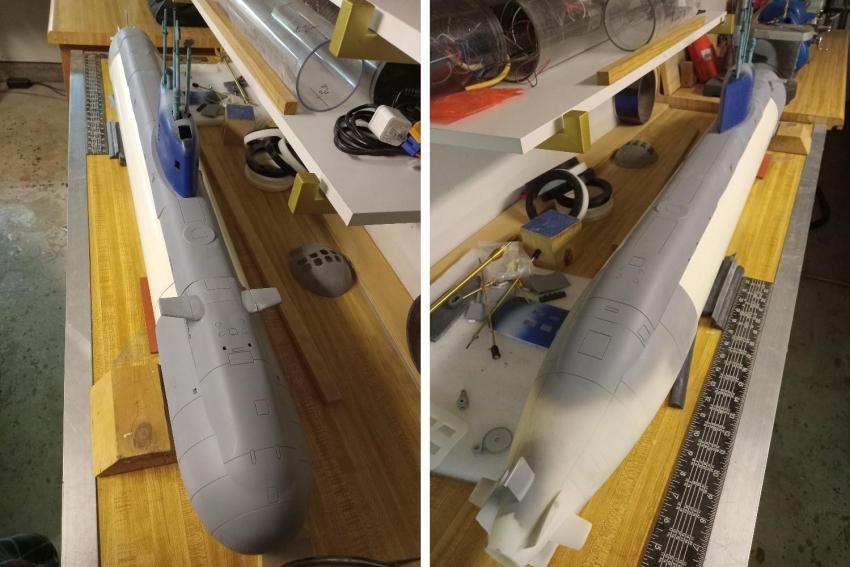

                                Got over my Cold and rested. Parts ordered all collected and ready. Cleared cleaned my shop to get everything in order for final completion of Dolphin 2 class boat INS Tanin. Clean area now to assemble battery. Underwater connectors. Ready to use with existing 3.5 WTC used also on Argonaute.

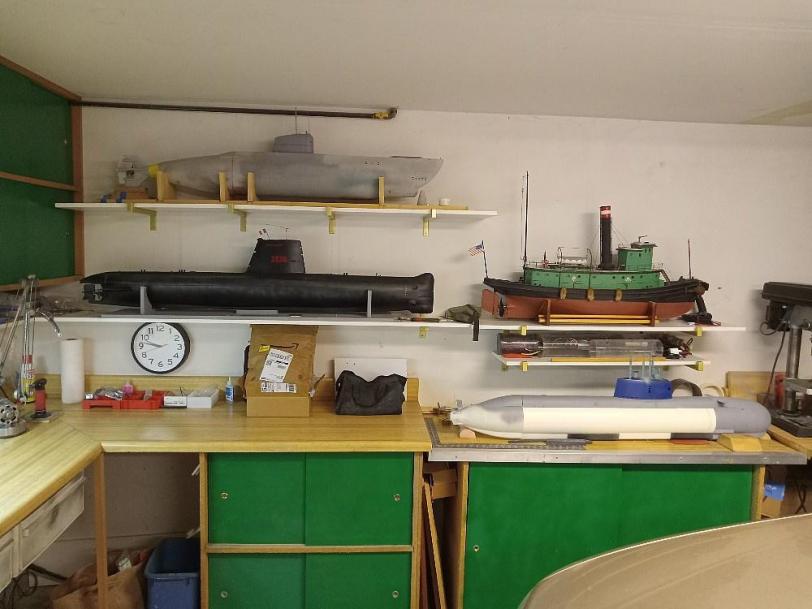

                                Wall shows New French Submarine Argonaute and Brooklyn tug. Amazing both are 1/32 scale! It illustrates perhaps how small these subs really were.

                                Top shelf shows the future HMS Meteorite (ex U-1407) in 1/30 scale).

                                Time to make up and proceed to completion! Super clean area now to start assembling battery for Dolphin now.

                                Click image for larger version  Name:	gXgb8by.jpg Views:	0 Size:	55.5 KB ID:	179893


                                Click image for larger version  Name:	XzHlWs8.jpg Views:	0 Size:	56.8 KB ID:	179894

                                Click image for larger version  Name:	2Cn541d.jpg Views:	0 Size:	58.6 KB ID:	179895

                                Click image for larger version  Name:	5P1vYFL.jpg Views:	0 Size:	68.2 KB ID:	179896
                                Last edited by Albacore 569; 05-07-2024, 01:43 AM.

                                Comment
