    3D Printed USOS Seaview project

    Click image for larger version

Name:	SEAVIEW 1.jpg
Views:	585
Size:	79.8 KB
ID:	176453

    I am using the STL files that I purchased from Nautilus Drydocks. It is a 1/72 scale model at a 100% (approximately 96" long.) I have reduced the files down to 65% which will give me a size of approximately 56" in total length, and a hull beam of at it's widest point of approximately 41/2". The 65% size will allow me to print this boat in my Dremel 3D40 DigiLab printer. I will be using Dremel white PLA, and printing at 100% infill.

    I will be posting progress photos and a written report as to the building progress as I proceed with this project.

    More to come!

    Rob
    "Firemen can stand the heat."
  • rwtdiver
    Vice Admiral

    • Feb 2019
    • 1936

    #2
    I knew coming in that I was going to have a few printing issues. One was going to be the wall thickness. The original STL files at 100% size has a 3mm thickness. I was very pleasantly surprised that at the 65% size that I am printing the walls came out to 2.20mm, which turns out to be great. Looking at the photo below.

    Click image for larger version

Name:	SEAVIEW 6.jpg
Views:	434
Size:	48.9 KB
ID:	176455

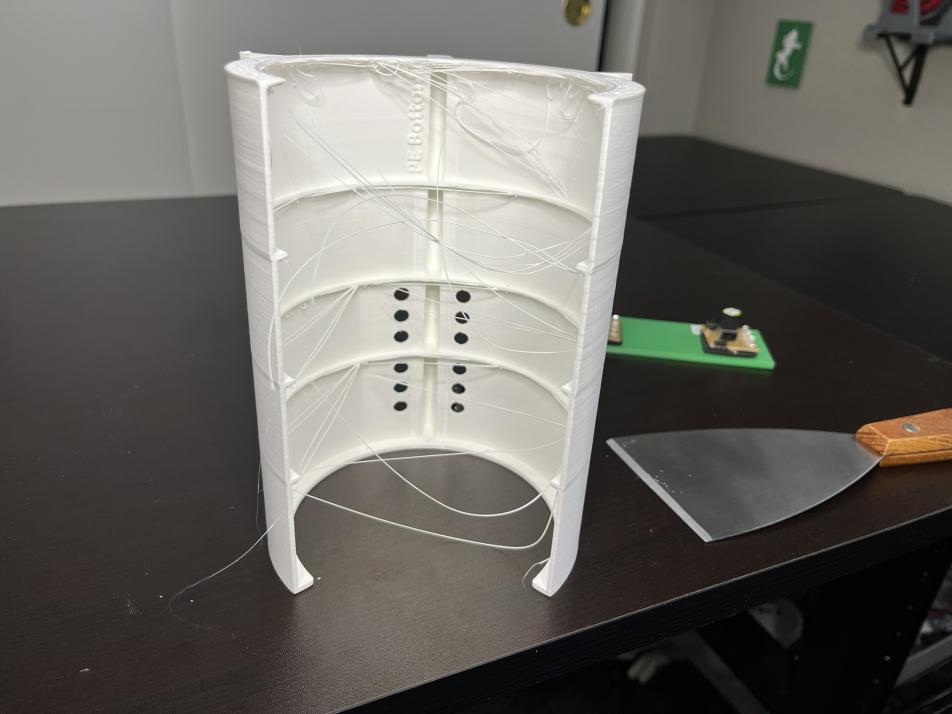

    You see that I am dealing with some stringing, which again is no problem. I chose not to use any supports in this piece (which was my test piece) to not only save on filament (310' down to 134') and also bring the print time down from 23 hours to 12 hours. The little amount of time cleaning up the strings is worth the savings in time and materials.

    Other than that the overall piece looks great! I would say that the reduction in size for me is going to build into a really nice Seaview and the money spent on the files very much worthwhile for me!! :.)

    Rob
    "Firemen can stand the heat."

    Comment

    • Alucard
      Lieutenant Commander
      • Aug 2023
      • 105

      #3
      Looks like a great start.

      Comment

      • redboat219
        Admiral

        • Dec 2008
        • 3381

        #4
        That's great.
        Something for a 1/72 Skipjack to chase.
        Make it simple, make strong, make it work!

        Comment

        • Alucard
          Lieutenant Commander
          • Aug 2023
          • 105

          #5
          Right before the Seaview blows it up, lol.

          Comment

          • He Who Shall Not Be Named
            Moderator

            • Aug 2008
            • 13404

            #6
            Originally posted by redboat219
            That's great.
            Something for a 1/72 Skipjack to chase.















            Who is John Galt?

            Comment

            • Alucard
              Lieutenant Commander
              • Aug 2023
              • 105

              #7
              Great pics for the post.

              Comment

              • rwtdiver
                Vice Admiral

                • Feb 2019
                • 1936

                #8
                Right on David!

                Those are some great photos you put up! And with your permission sir, I would like to copy some of them and use as some wall posters. Thanks David!

                Rob
                "Firemen can stand the heat."

                Comment

                • He Who Shall Not Be Named
                  Moderator

                  • Aug 2008
                  • 13404

                  #9
                  Originally posted by rwtdiver
                  Right on David!

                  Those are some great photos you put up! And with your permission sir, I would like to copy some of them and use as some wall posters. Thanks David!

                  Rob
                  "Firemen can stand the heat."
                  I'm flattered, Rob. Have at it, sir.

                  David
                  Who is John Galt?

                  Comment

                  • rwtdiver
                    Vice Admiral

                    • Feb 2019
                    • 1936

                    #10
                    Thanks David!

                    I have a few more photos of my Seaview build progress.

                    Click image for larger version

Name:	SEAVIEW 9.jpg
Views:	401
Size:	42.5 KB
ID:	176531

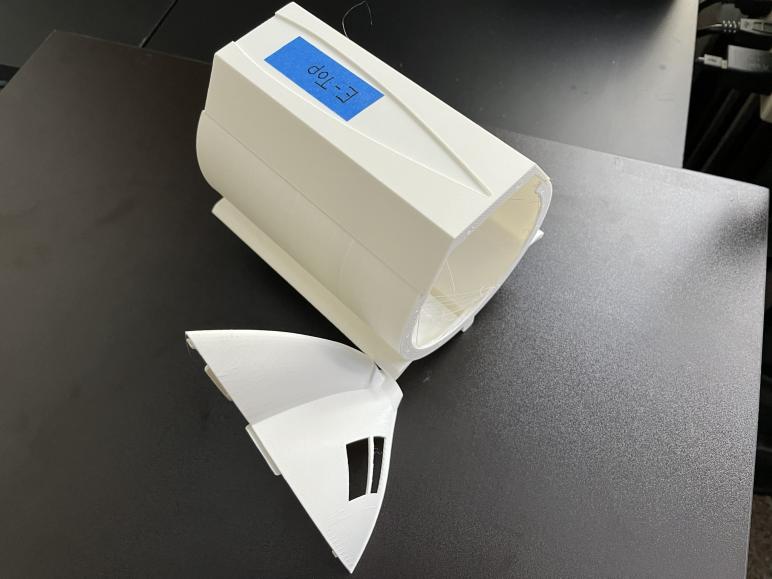

                    The photo above shows 3 new sections that I finished up yesterday. The first part that I built (Previous photo) with all the stringing from the printing, was just not satisfactory for me. I made the decision to build all future parts using any and all supports required. The extra filament and time that it takes to DO IT RIGHT are well worth.
