    Guess the boat type....

    A future project in 1:72 scale....guess the boat type.

    Click image for larger version

Name:	Screenshot 2023-08-21 at 19.24.29.png
Views:	660
Size:	136.6 KB
ID:	173277
  • CC Clarke
    Commander

    • Aug 2020
    • 274

    #2
    Something tells me it's a bottom-dweller. . .

    Comment

    • redboat219
      Admiral

      • Dec 2008
      • 3181

      #3
      I know what this is...

      This is an espresso machine.
      No, no wait. It's a snow cone maker.
      Is it a water heater?




      UB-1?
      Make it simple, make strong, make it work!

      Comment

      • DrSchmidt
        Rear Admiral

        • Apr 2014
        • 1177

        #4
        Preesure hull of the torpedo room of a German Type II submarine.... ;-)

        Comment

        • redboat219
          Admiral

          • Dec 2008
          • 3181

          #5
          For the Special Navy 1/72 Type IIB?
          Make it simple, make strong, make it work!

          Comment

          • DrSchmidt
            Rear Admiral

            • Apr 2014
            • 1177

            #6
            For the special Navy Vesikko....I chose the Vesikko, as there is plenty of source material. Last surviving Type II.....

            Comment

            • redboat219
              Admiral

              • Dec 2008
              • 3181

              #7
              Suggestion for next 3D print, how about the inside of a U boat's conning tower. I have seen very few photos or drawings of the internal layout of it.
              Make it simple, make strong, make it work!

              Comment

              • DrSchmidt
                Rear Admiral

                • Apr 2014
                • 1177

                #8

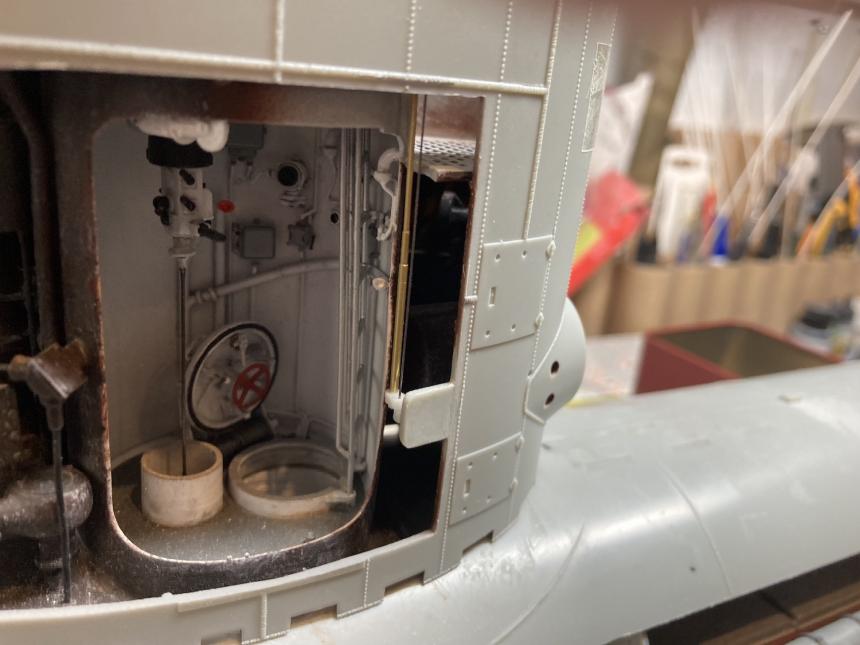

                Here's one of a XXIII ....

                Attached Files

                Comment

                • DrSchmidt
                  Rear Admiral

                  • Apr 2014
                  • 1177

                  #9
                  Click image for larger version

Name:	II.jpg
Views:	618
Size:	48.4 KB
ID:	173344

                  Batteries and some furniture an in...

                  Comment

                  • DrSchmidt
                    Rear Admiral

                    • Apr 2014
                    • 1177

                    #10
                    The torpedo room with some torpedo tubes. I started with the Type XXIII tube. The Type II tubes were similar but a bit more primitive. So I'll strip them down and the use these as basis....

                    Click image for larger version

Name:	Vesikko-001.jpg
Views:	557
Size:	62.4 KB
ID:	173429

                    Comment

                    • DrSchmidt
                      Rear Admiral

                      • Apr 2014
                      • 1177

                      #11
                      I'm on holiday...no access to model building equipment. But I brought my laptop, so I can draw. Worked some more on the torpedo tubes. Stripped my XXIII tubes down, as the Vesikko's ones didn't have lots of the additional gear of the later boats. Between the upper tow tubes was a gangway with an open section. I guess it was used to access the torpedo setting equipment of the upper and the lower tubes. A support beam connected the upper tubes to the lower tube....I guess for stabilization reasons. The muzzle doors were actuated, like on the other german boats, via rotating rods. The lateral offset between the rod on the tube and the rod running to the muzzle door was generated by gear.

                      Click image for larger version

Name:	Vesikko-002.jpg
Views:	536
Size:	94.1 KB
ID:	173581

                      Click image for larger version

Name:	Vesikko-003.jpg
Views:	541
Size:	66.1 KB
ID:	173582

                      Click image for larger version

Name:	Vesikko-004.jpg
Views:	540
Size:	66.6 KB
ID:	173583

                      Comment

                      • DrSchmidt
                        Rear Admiral

                        • Apr 2014
                        • 1177

                        #12
                        More work on the torpedo tubes. I added the compressed air bottles for the ejection of the torpedos (Ausstoßpatrone, expulsion cartridges). The one for the lower tube is on port, the the two above on both sides. Tight setup....

                        Click image for larger version

Name:	Vesikko-005.jpg
Views:	530
Size:	63.5 KB
ID:	173743

                        Comment

                        • DrSchmidt
                          Rear Admiral

                          • Apr 2014
                          • 1177

                          #13
                          With the torpedo room just needing detail work, I started to lay out the foundations of the control room and the galley. The control room was tiny and had, just like the XXIII, a radio room on the starboard side. Below the floor plates was a pressure tight regulating tank. The galley was tiny an located in a 2 meter diameter pressure hull with exterior frames that was suspended in ballast tank II.

                          Click image for larger version

Name:	Vesikko-006.jpg
Views:	507
Size:	56.6 KB
ID:	174316

                          Comment

                          • DrSchmidt
                            Rear Admiral

                            • Apr 2014
                            • 1177

                            #14
                            Added some frames and dividing walls.....

                            Click image for larger version

Name:	Vesikko-007.jpg
Views:	504
Size:	73.3 KB
ID:	174324

                            Comment

                            • DrSchmidt
                              Rear Admiral

                              • Apr 2014
                              • 1177

                              #15
                              The starboard side of the galley in its tiny steel tube with the sink on the right.

                              Click image for larger version

Name:	Vesikko-008.jpg
Views:	487
Size:	67.1 KB
ID:	174343

                              Click image for larger version

Name:	Vesikko-009.jpg
Views:	489
Size:	81.9 KB
ID:	174344
