    Mike, Nice drawings. Those are for the WW1 version. The ones that I am referring to were the later classes built in 1943 and on.
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #17

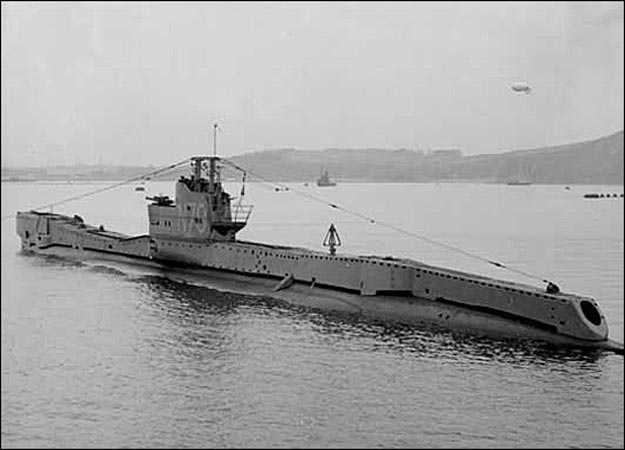

      T class
      In the 1935 London Naval treaty, Great britain was limited to 15,500 ton submarine tonnage. This limited the size of her submarines.
      The T class were the first British submarines to put their fuel tanks within the pressure hull. This along with welding, stopped the persistant fuel tank leaks that used to give away their presence.

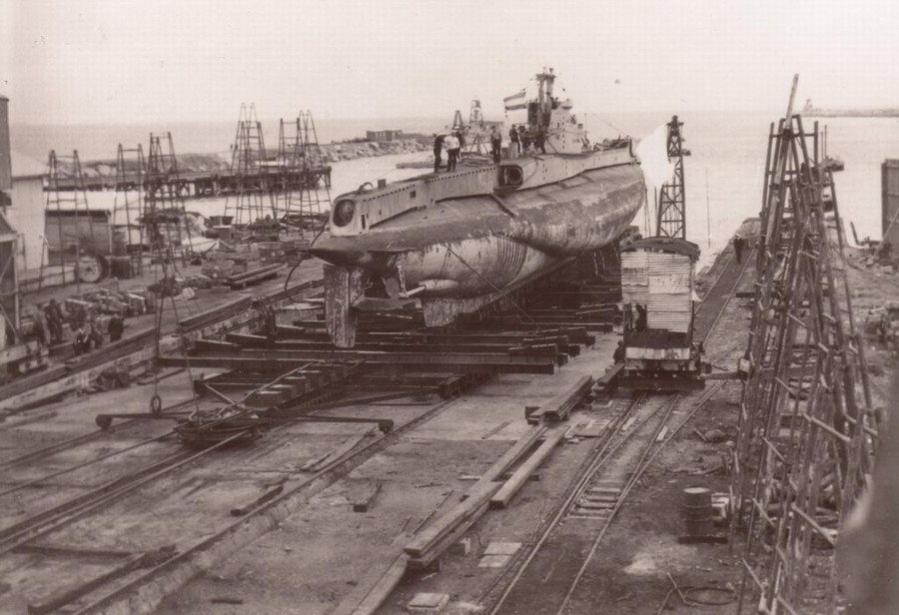

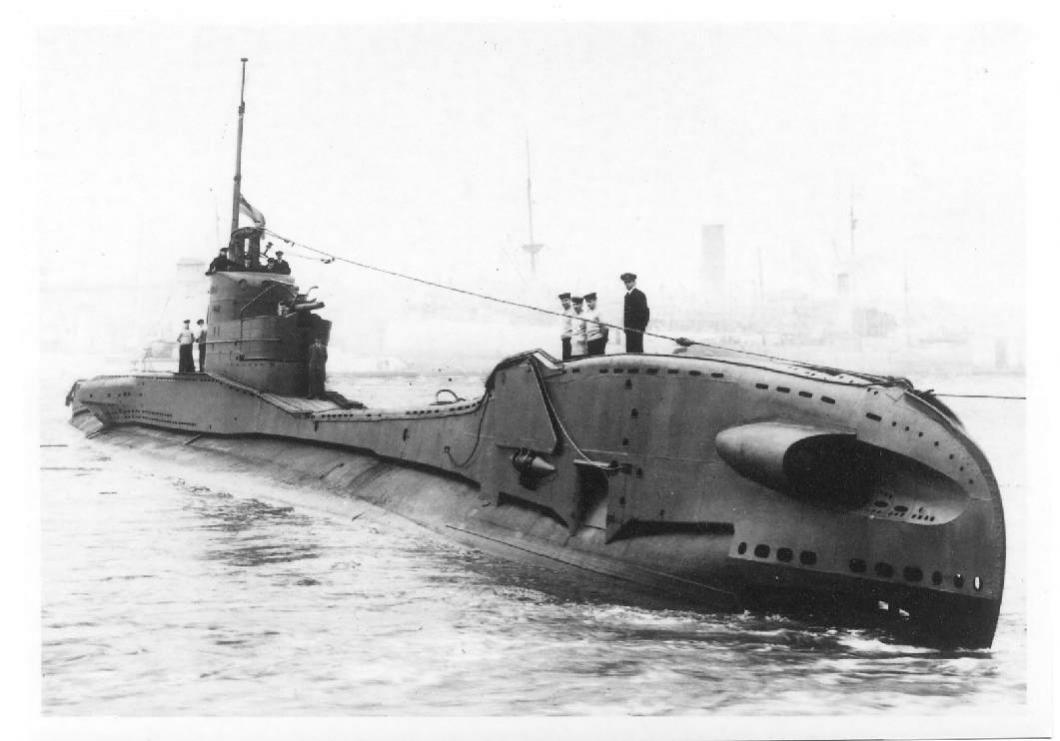

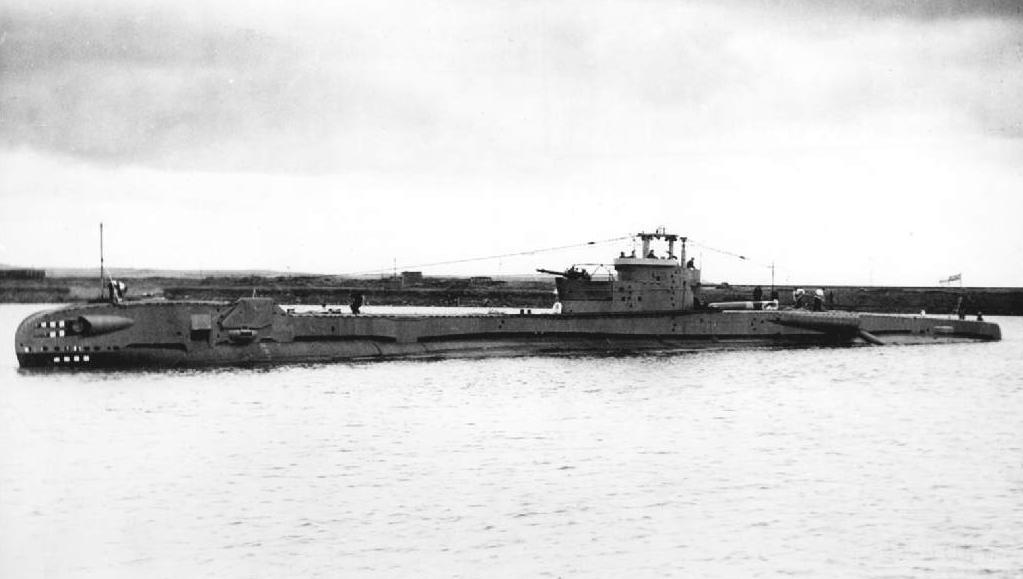

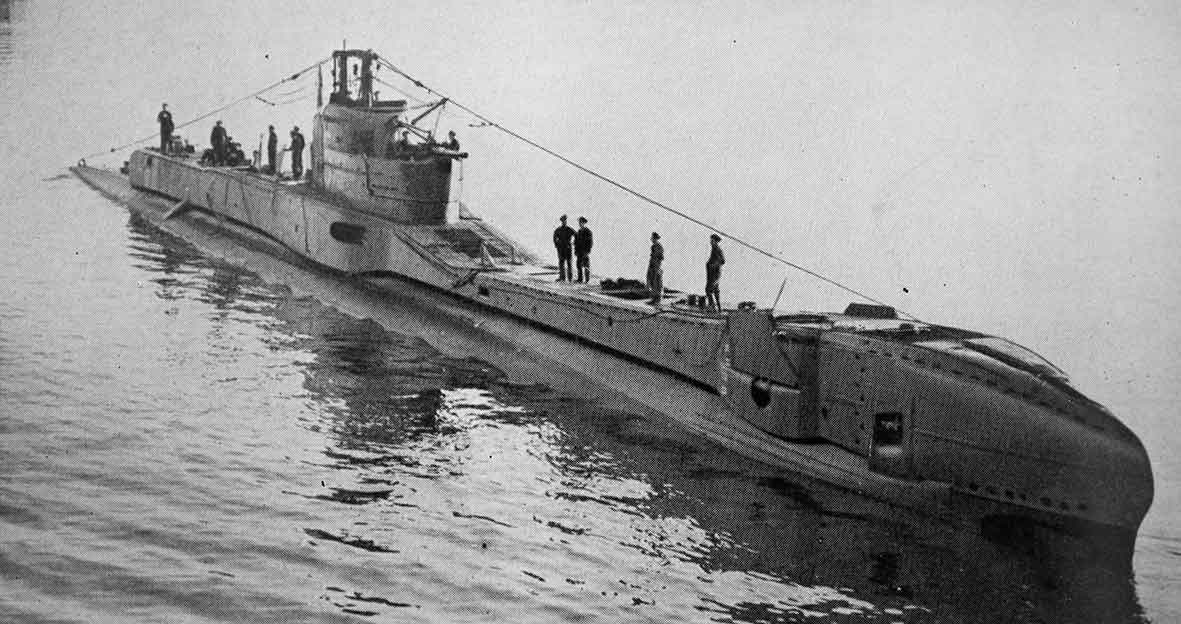

      The first batch of the T class submarines had two(2) tubes amidships firing forward.On the second and third batches those tubes were moved further back and redirected to fire at an angle to the rear. The Bulbous bows that housed the two external tubes were streamlined to reduce the wake which caused periscope visibility problems. As a consequence of that the rear of the tubes could be seen sticking out either side of the bow. Third batch statistics: 273 ft. 5.75" long ,26 ft. 6" beam , 15.25 knots surfaced and 8.75 knots under. Eleven(11) Torpedo tubes of which eight(8) were in the bow and three (3) in the stern. Of those five(5) were external. She packed quite a load. Fifty nine(59) were built Keep in mind that some of these pictures are of boats that have been modified post war..Click image for larger version

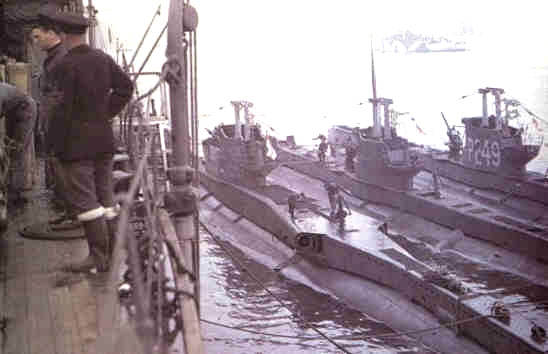

Name:	3boats.JPG
Views:	1
Size:	78.1 KB
ID:	63468Click image for larger version

Name:	04_tclass-625x450.jpg
Views:	2
Size:	35.2 KB
ID:	63469Click image for larger version

Name:	4308213401_5c802ff655_o.jpg
Views:	1
Size:	76.6 KB
ID:	63470Click image for larger version

Name:	DOLPHIN4 A left T right.JPG
Views:	1
Size:	56.1 KB
ID:	63471Click image for larger version

Name:	HMS%20Tactician.jpg
Views:	2
Size:	54.2 KB
ID:	63472Click image for larger version

Name:	hms_tactician_d.jpg
Views:	1
Size:	45.2 KB
ID:	63473
      Click image for larger version

Name:	hms_turpin_c.JPG
Views:	1
Size:	89.7 KB
ID:	63474
      Last edited by greenman407; 08-03-2011, 12:22 PM.
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • greenman407
        Admiral
        • Feb 2009
        • 7530

        #18

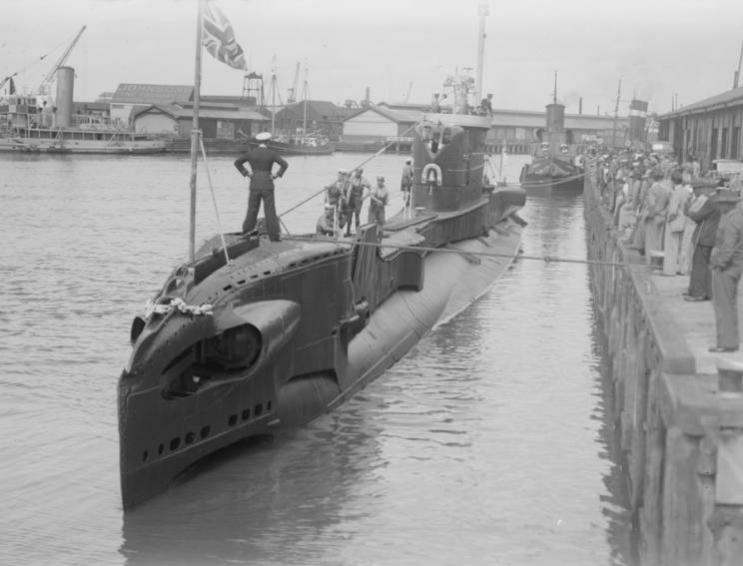

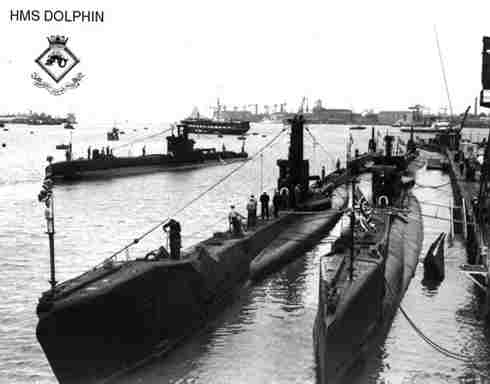

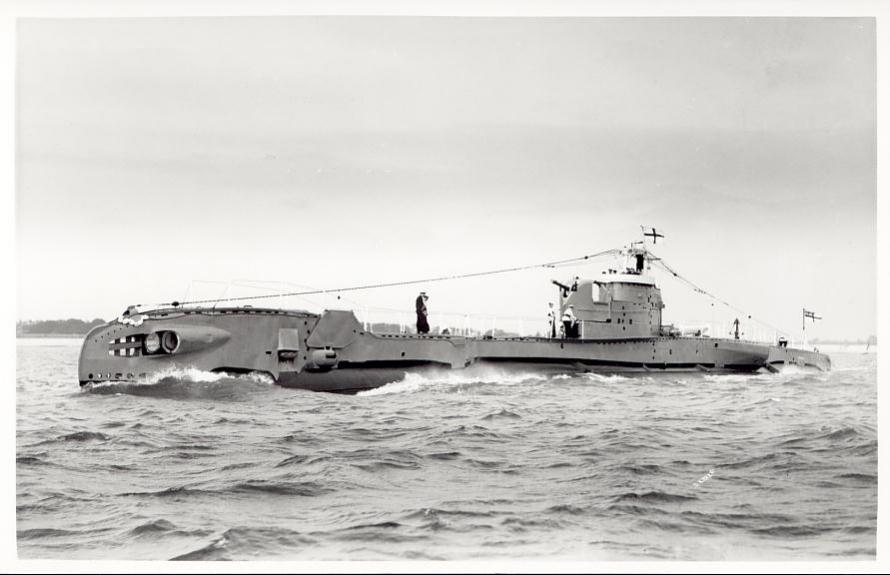

        I am having trouble editing these posts with the new format, the old format was much easier. At any rate , if you look above at the second picture you can see the forward firing torped tubes(external) under the conning tower. The forth picture is of an A class and a T class. The T class is on the Right.
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment

        • greenman407
          Admiral
          • Feb 2009
          • 7530

          #19

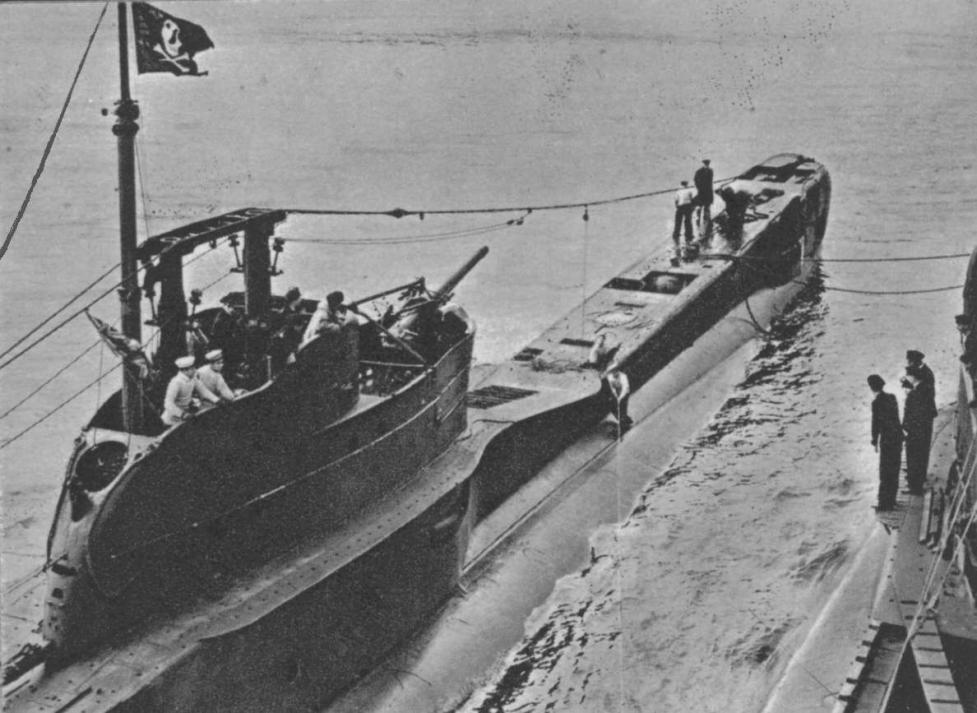

          Click image for larger version

Name:	Photo12ssTelemachus1NP.jpg
Views:	1
Size:	48.9 KB
ID:	63475Click image for larger version

Name:	thorn1b.jpg
Views:	1
Size:	64.3 KB
ID:	63476Click image for larger version

Name:	thun.jpg
Views:	2
Size:	57.2 KB
ID:	63477Click image for larger version

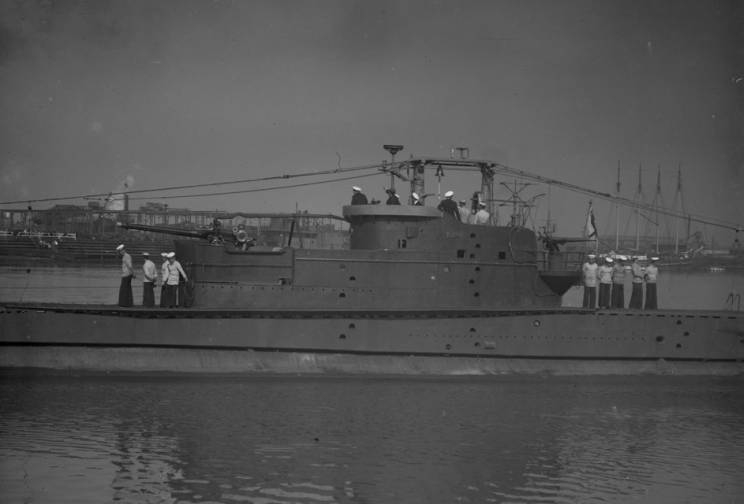

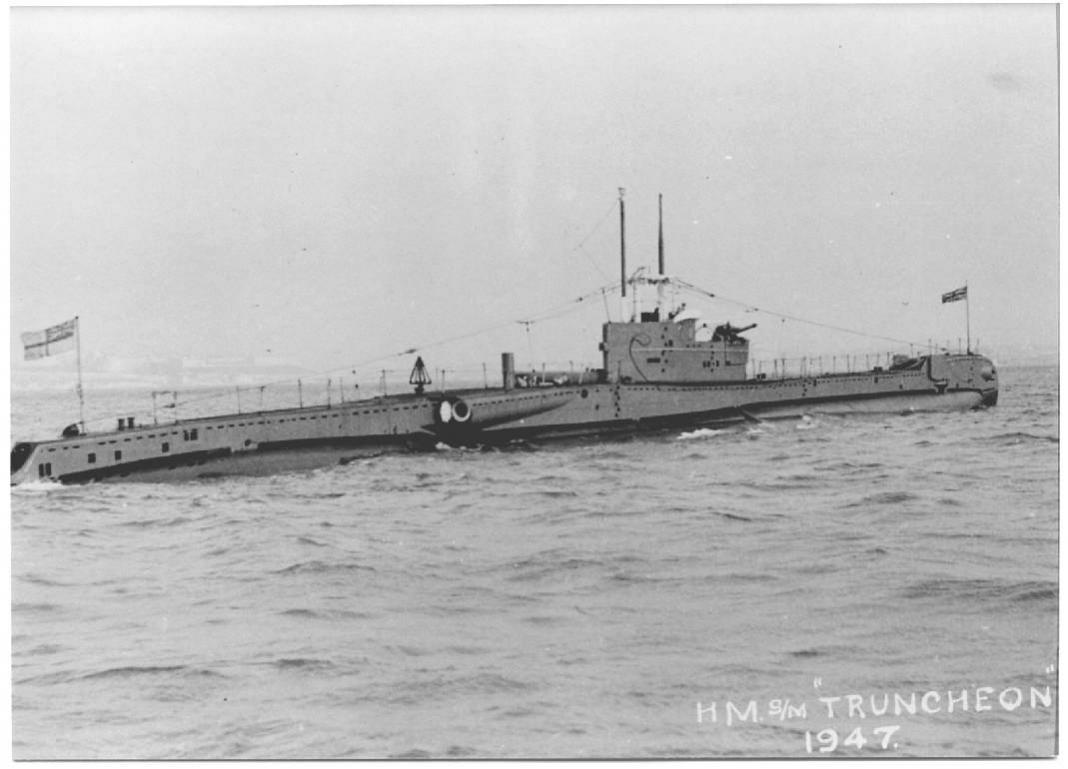

Name:	trnchn1b.jpg
Views:	1
Size:	72.8 KB
ID:	63478Click image for larger version

Name:	zwaardvisch_s814_02 HMS Talent.jpg
Views:	1
Size:	87.3 KB
ID:	63479
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment

          • greenman407
            Admiral
            • Feb 2009
            • 7530

            #20
            Click image for larger version

Name:	thun4.jpg
Views:	3
Size:	92.8 KB
ID:	63480Click image for larger version

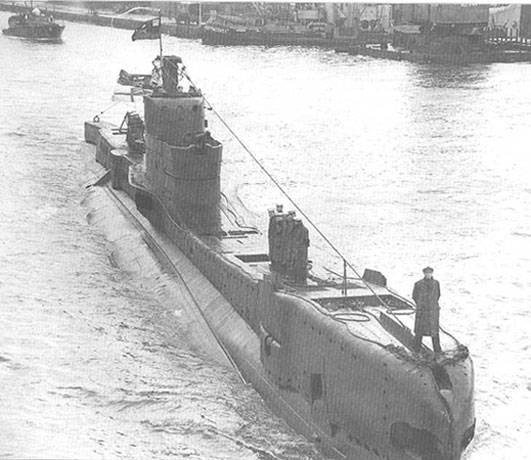

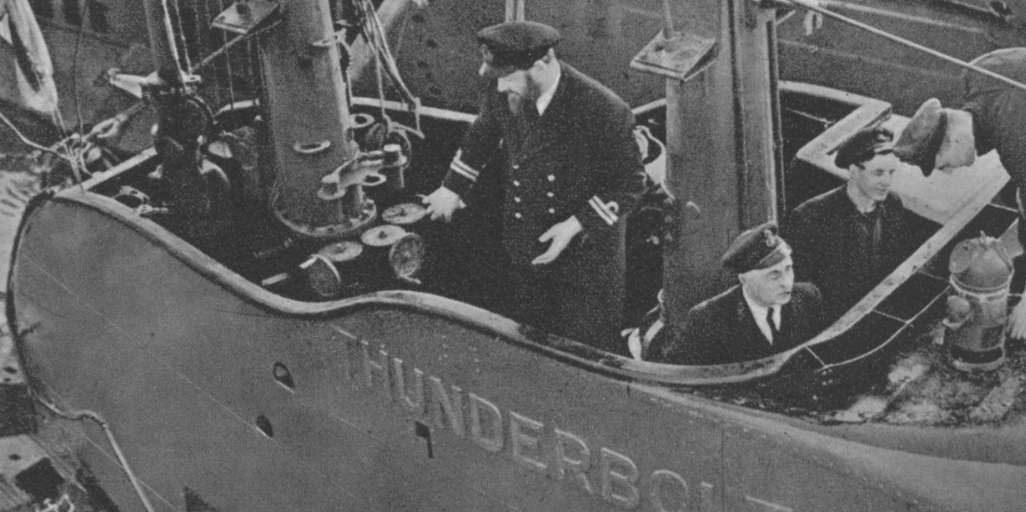

Name:	HMS-Thunderrbolt.jpg
Views:	2
Size:	67.1 KB
ID:	63481Click image for larger version

Name:	Hms thetis.jpg
Views:	2
Size:	80.6 KB
ID:	63482Click image for larger version

Name:	Hms thrasher.jpg
Views:	1
Size:	27.9 KB

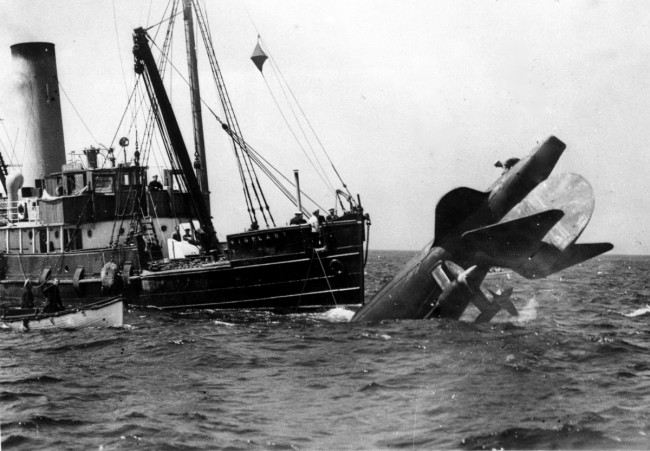

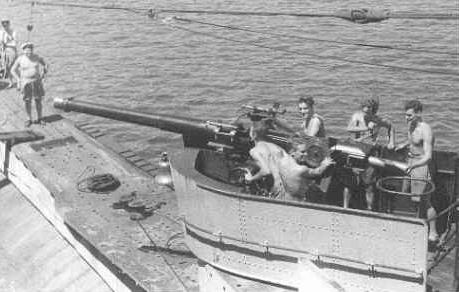

ID:	63483Obviously the gun tube rotates. The third picture is of the tragedy that occured the the Thetis. In the second picture you can see the forward firing torpedo tubes under the conning tower.
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment

            • jlday1256
              Lieutenant
              • Jun 2011
              • 78

              #21
              Much like their aircraft, same with their subs, the Brits could take a mud fence and make it uglier....
              Doodah
              If you ignore the problem long enough, it will go away. Even flooding stops eventually!

              Comment

              • greenman407
                Admiral
                • Feb 2009
                • 7530

                #22
                Heres a couple more.Click image for larger version

Name:	X-hms-torbay-V2.jpg
Views:	1
Size:	55.7 KB
ID:	63484Click image for larger version

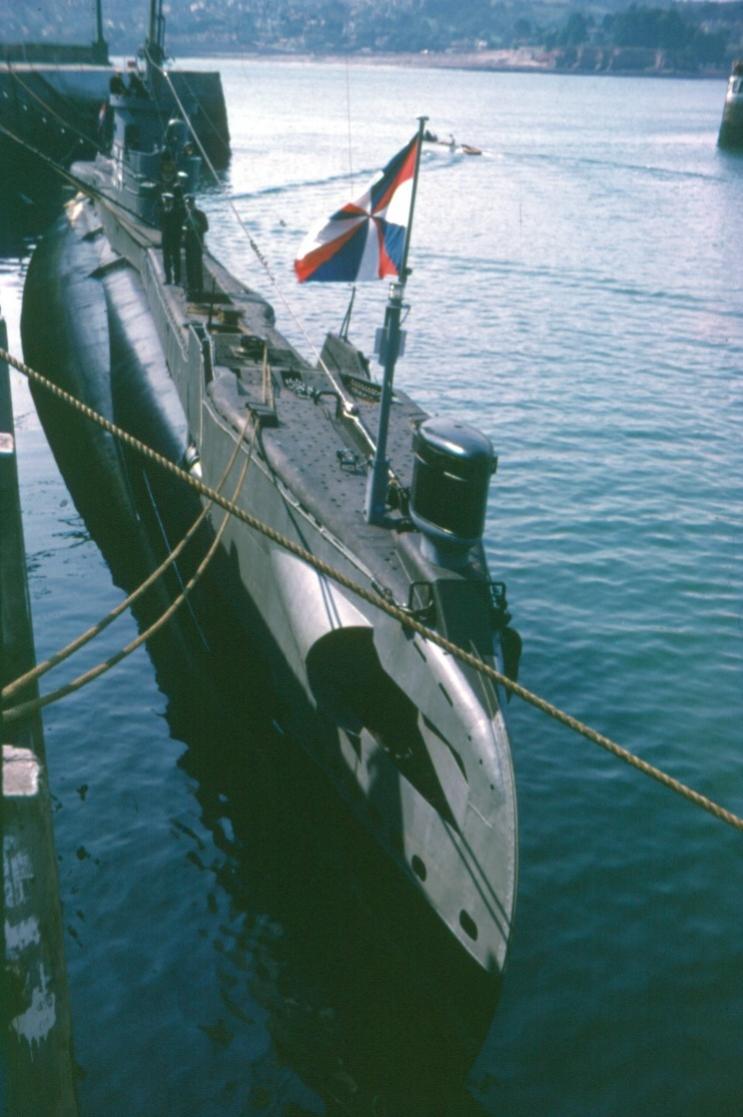

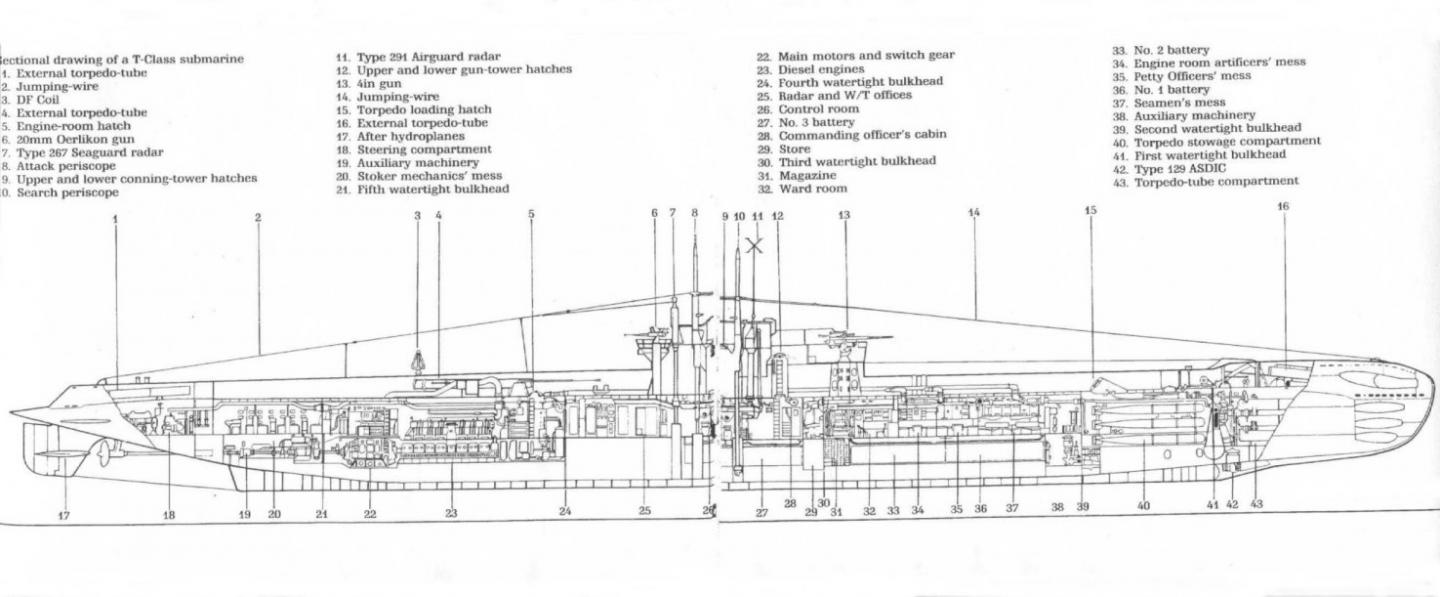

Name:	t_class plans.jpg
Views:	1
Size:	90.6 KB
ID:	63485
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment

                • Kazzer
                  *********
                  • Aug 2008
                  • 2848

                  #23
                  Originally posted by jlday1256
                  Much like their aircraft, same with their subs, the Brits could take a mud fence and make it uglier....
                  Wash your mouth out with carbolic and a flannel!
                  Stop messing about - just get a Sub-driver!

                  Comment

                  • Albion
                    Captain
                    • Dec 2008
                    • 651

                    #24
                    Originally posted by jlday1256
                    Much like their aircraft, same with their subs, the Brits could take a mud fence and make it uglier....
                    Its called character

                    but what about
                    Spitfire
                    Mosquito

                    Even the Hawker Hunter was a great looking jet, and the EE Lightening still shows raw power
                    Next time someone points out it takes 42 muscles to frown, point out it will only take 4 muscles to b1tch slap them if they tell you how mnay muscles you need to smile:pop

                    Comment

                    • Kazzer
                      *********
                      • Aug 2008
                      • 2848

                      #25
                      HMS Torbay
                      Last edited by Kazzer; 08-03-2011, 09:39 PM.
                      Stop messing about - just get a Sub-driver!

                      Comment

                      • greenman407
                        Admiral
                        • Feb 2009
                        • 7530

                        #26
                        HMS Torbay is the sub pictured at the top of this page. I find British sub design busy and refreshing. They offer originality and a different way to design a mouse trap. If all submarines looked like a Los Angelos class, what a boring hobby this could be.
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment

                        • jlday1256
                          Lieutenant
                          • Jun 2011
                          • 78

                          #27
                          Ahhh...its in the eye of the beholder, yada yada, and all that...I like your take on it. That is why even ugly girls get to dance.
                          Doodah
                          If you ignore the problem long enough, it will go away. Even flooding stops eventually!

                          Comment

                          • jlday1256
                            Lieutenant
                            • Jun 2011
                            • 78

                            #28
                            By the way, incredible picture posts. This sings for an online archive....
                            Doodah
                            If you ignore the problem long enough, it will go away. Even flooding stops eventually!

                            Comment

                            • greenman407
                              Admiral
                              • Feb 2009
                              • 7530

                              #29
                              Hey good idea! maybe Kazzer will go for it!
                              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                              Comment

                              • jlday1256
                                Lieutenant
                                • Jun 2011
                                • 78

                                #30
                                I'm just seeing a ton of really great pics and although you may not be modeling the exact sub that is depicted, there is great info there on sub dynamics, coloration, etc.
