  • RC Conversion of Trumpeter 1/144 Submarines


    All knowing HWSNBN

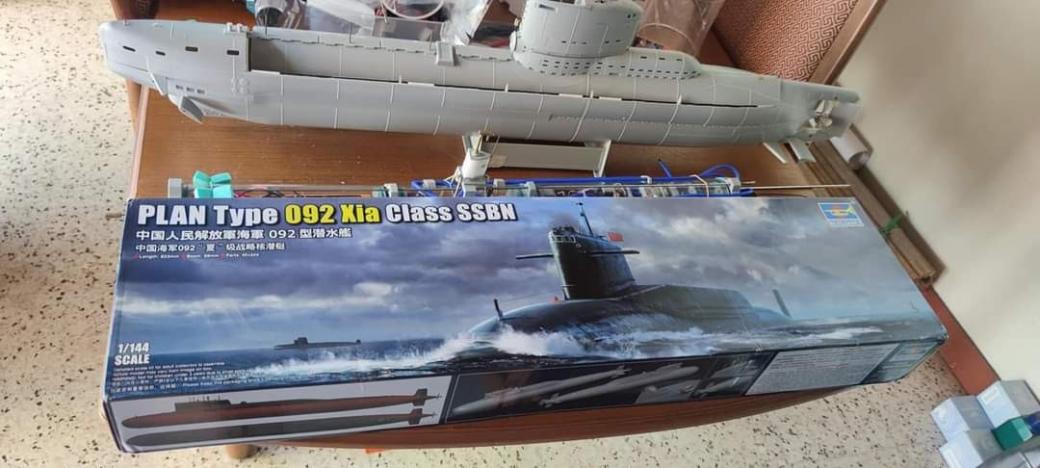

    I want to know if you're planning or currently doing RC conversions of the Trumpeter 1/144 JMSDF Soryu class, HMS Astute or their newly released Chinese PLAN Type 094 Xia class SSBN.

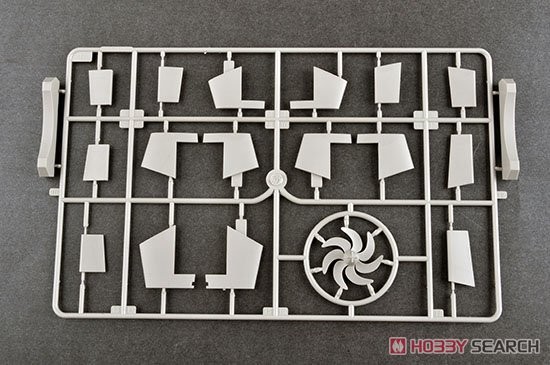

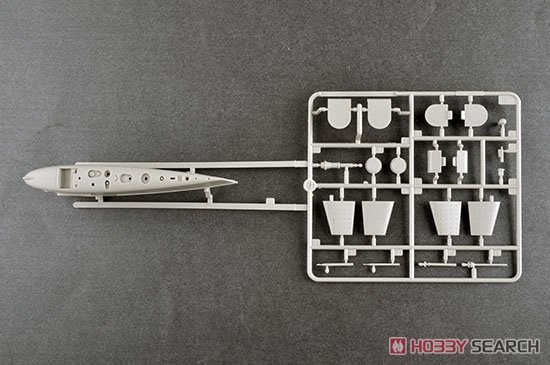

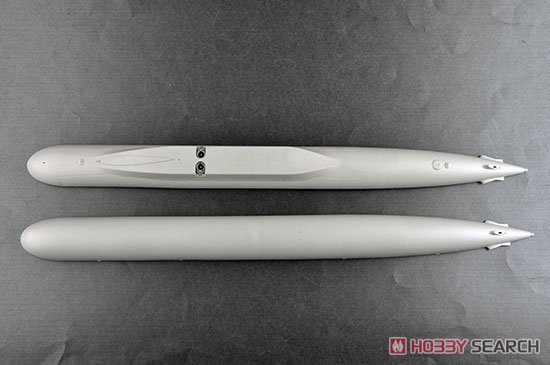

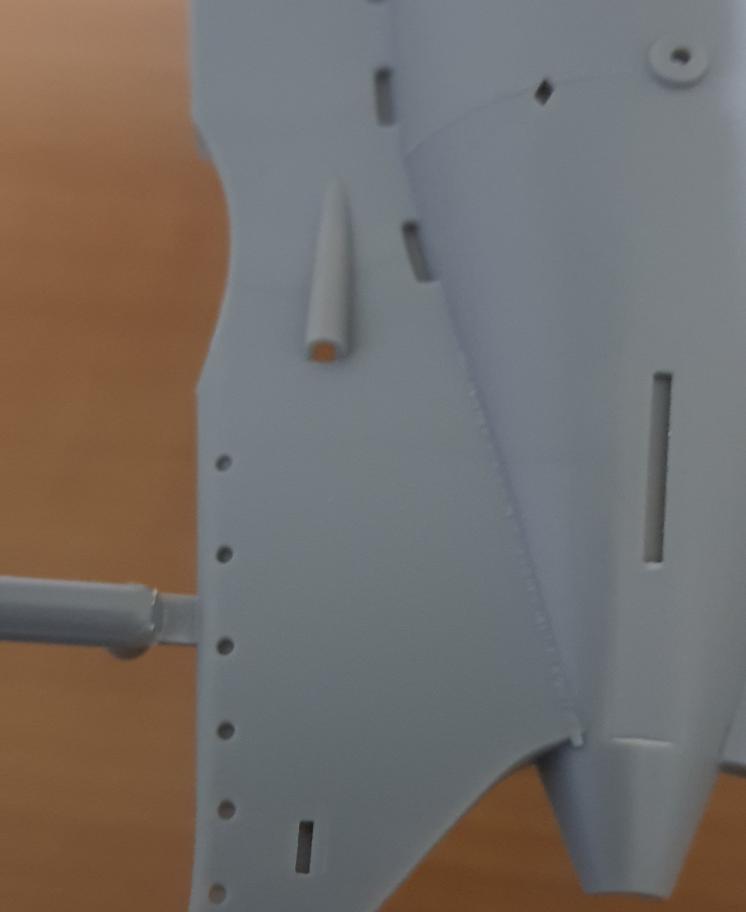

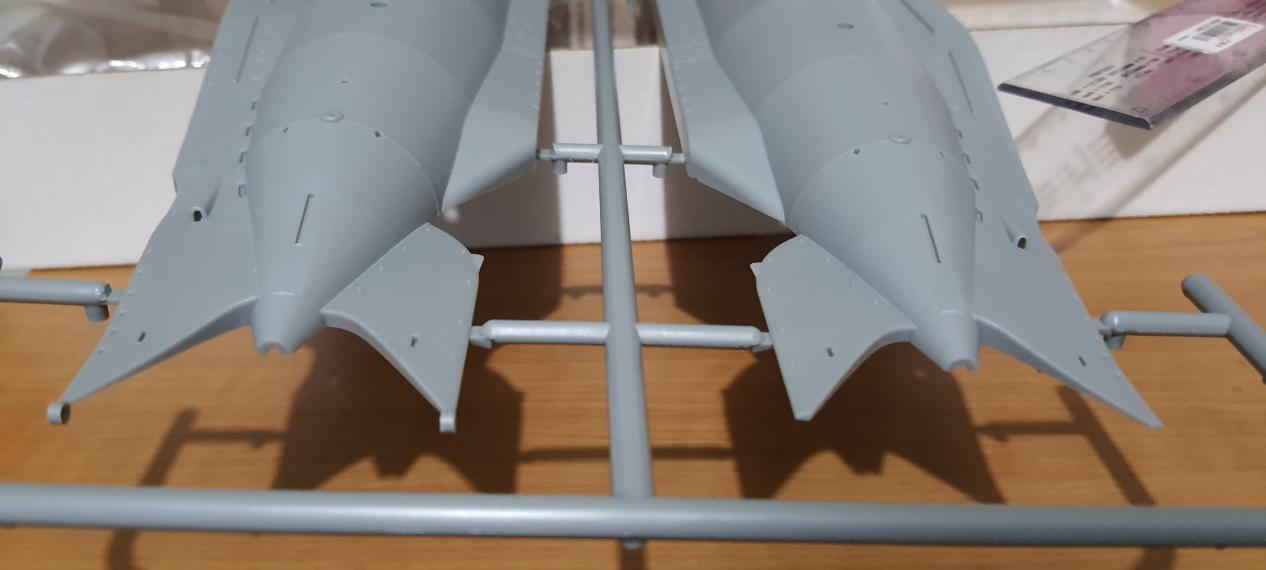

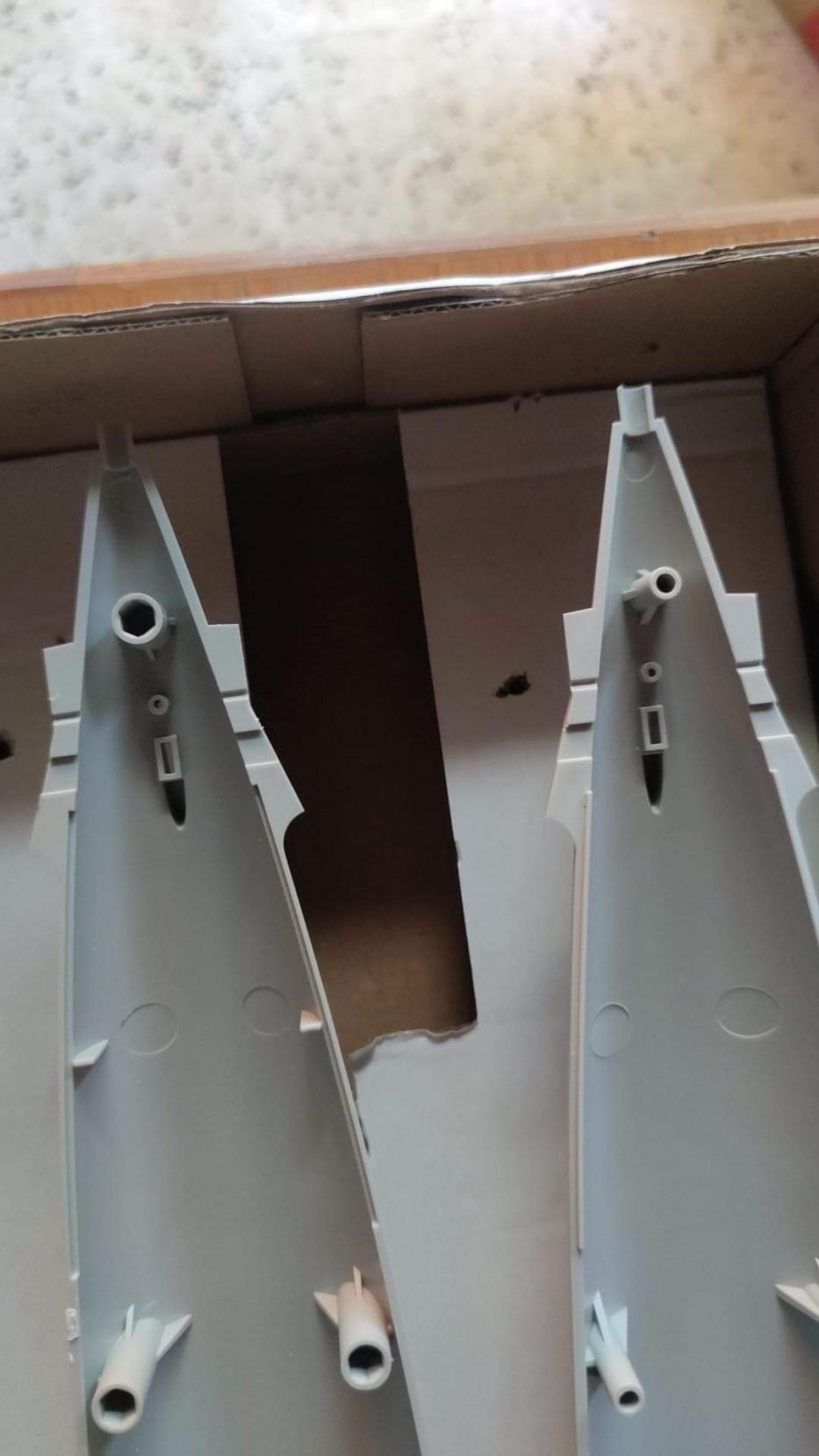

    Some pictures of the Xia kit showing the separate stern planes as opposed to the fixed ones on the Soryu and Astute.

    S Click image for larger version

Name:	FB_IMG_1624029715931.jpg
Views:	275
Size:	54.8 KB
ID:	152391Click image for larger version

Name:	FB_IMG_1624029699480.jpg
Views:	194
Size:	85.4 KB
ID:	152392Click image for larger version

Name:	10771322b3.jpg
Views:	194
Size:	42.3 KB
ID:	152393Click image for larger version

Name:	10771322b4.jpg
Views:	194
Size:	59.9 KB
ID:	152394Click image for larger version

Name:	10771322b5.jpg
Views:	195
Size:	65.7 KB
ID:	152395Click image for larger version

Name:	FB_IMG_1624029691809.jpg
Views:	193
Size:	71.7 KB
ID:	152396Click image for larger version

Name:	FB_IMG_1624019466399.jpg
Views:	191
Size:	84.0 KB
ID:	152397
    Make it simple, make strong, make it work!

  • #2
    Originally posted by redboat219 View Post
    All knowing HWSNBN

    I want to know if you're planning or currently doing RC conversions of the Trumpeter 1/144 JMSDF Soryu class, HMS Astute or their newly released Chinese PLAN Type 094 Xia class SSBN.

    Some pictures of the Xia kit showing the separate stern planes as opposed to the fixed ones on the Soryu and Astute.

    S Click image for larger version

Name:	FB_IMG_1624029715931.jpg
Views:	275
Size:	54.8 KB
ID:	152391Click image for larger version

Name:	FB_IMG_1624029699480.jpg
Views:	194
Size:	85.4 KB
ID:	152392Click image for larger version

Name:	10771322b3.jpg
Views:	194
Size:	42.3 KB
ID:	152393Click image for larger version

Name:	10771322b4.jpg
Views:	194
Size:	59.9 KB
ID:	152394Click image for larger version

Name:	10771322b5.jpg
Views:	195
Size:	65.7 KB
ID:	152395Click image for larger version

Name:	FB_IMG_1624029691809.jpg
Views:	193
Size:	71.7 KB
ID:	152396Click image for larger version

Name:	FB_IMG_1624019466399.jpg
Views:	191
Size:	84.0 KB
ID:	152397
    I guess the word has not gotten out, but earlier this year I 'retired' from the commercial end of the r/c model submarine trade. I no longer produce product for commercial sales. I plan to spend the rest of my misserable life addressing my bucket-list, most of that comprising unfinished model submarines currently residing on my shop walls. I'm now exclusively in it for the fun.

    But, as any attentive reader of this forum will know, I continue contributing to this and other sites, sharing my wisdome, smarts, god-like abilities, charm, and good looks for all those within ear and eye-shot. That will continue till I'm worm-dirt.

    So, no. I'm not going to produce conversion kits for anyone but myself. So there! However with future and past posts to the forums I have/will show you how to cram an effective r/c system into these small 1/144 scale model kits that continue to pop up for sale.

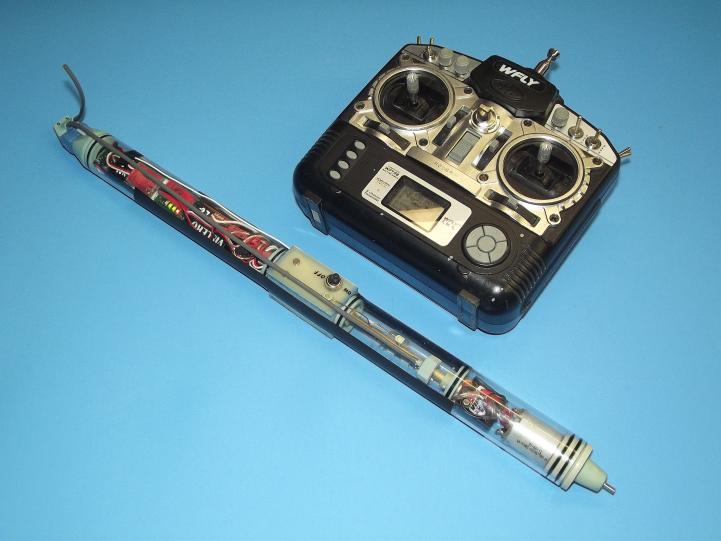

    Here are some shots of work I've done with a 1.25" SD I developed for these small critters:















    Now, you can do me a favor: Where can I find the above three kits you mentioned. I want them! And I want them NOW!

    And always remember... https://youtu.be/TlXHCykk7fU

    David
    The Horrible.
    Resident Luddite

    Comment


    • #3
      David

      The 1.25 subdriver would be perfect for the Merit 1/35 British X-craft.

      What's the length of those SDs again? Click image for larger version  Name:	Screenshot_20210710-153710_YouTube.jpg Views:	0 Size:	74.7 KB ID:	152403
      Last edited by redboat219; 08-14-2021, 04:00 AM.
      Make it simple, make strong, make it work!

      Comment


      • #4
        Originally posted by redboat219 View Post
        David

        The 1.25 subdriver would be perfect for the Merit 1/35 British X-craft.

        What's the length of those SDs again? Click image for larger version Name:	Screenshot_20210710-153710_YouTube.jpg Views:	0 Size:	74.7 KB ID:	152403
        Already working that kit up with an SD. Length varies with the job.

        David
        Resident Luddite

        Comment


        • #5
          Originally posted by He Who Shall Not Be Named View Post

          Already working that kit up with an SD.

          David
          How do you access the SD on yours?

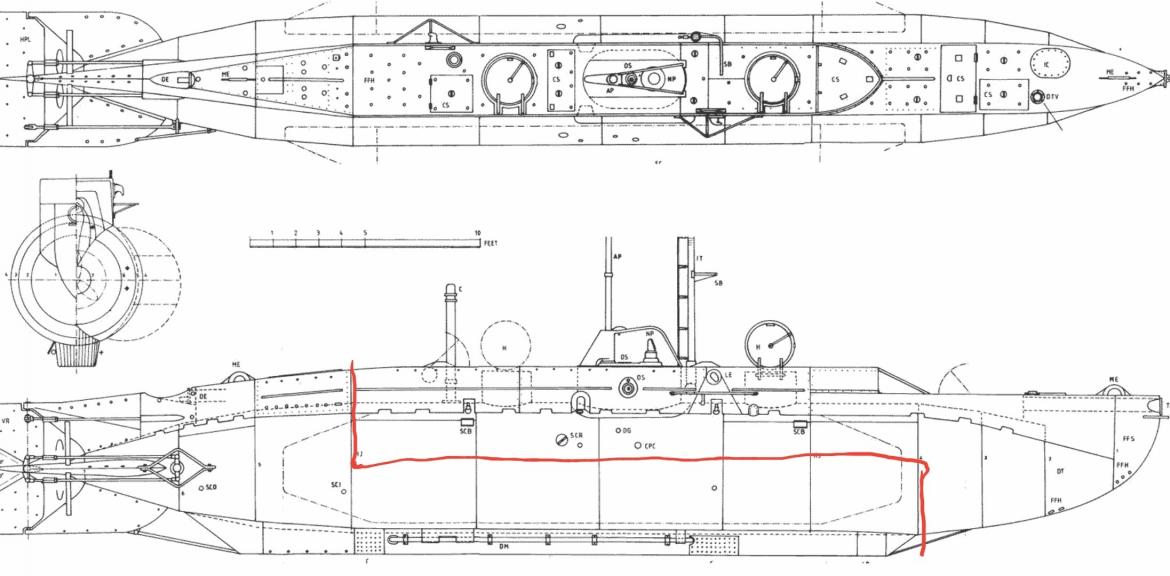

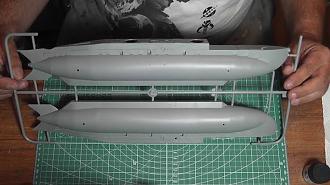

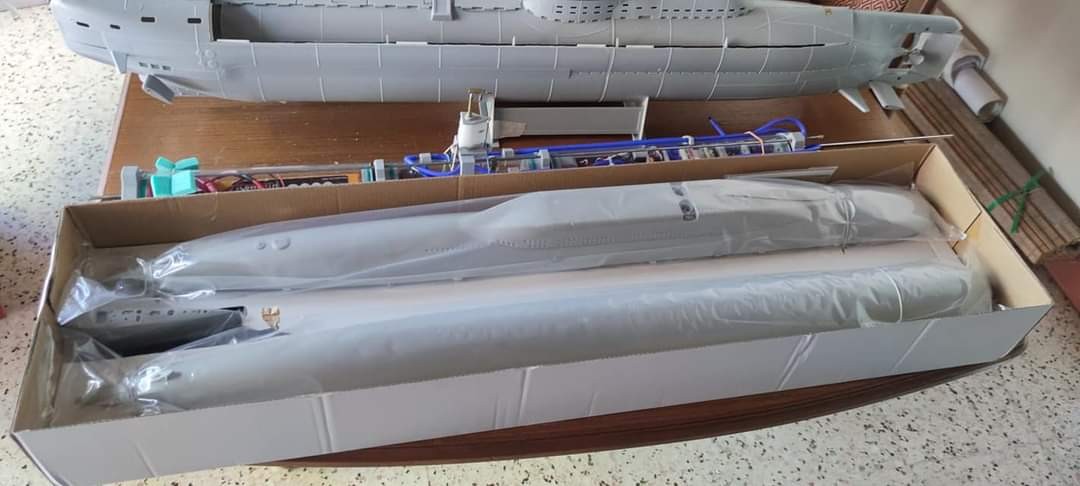

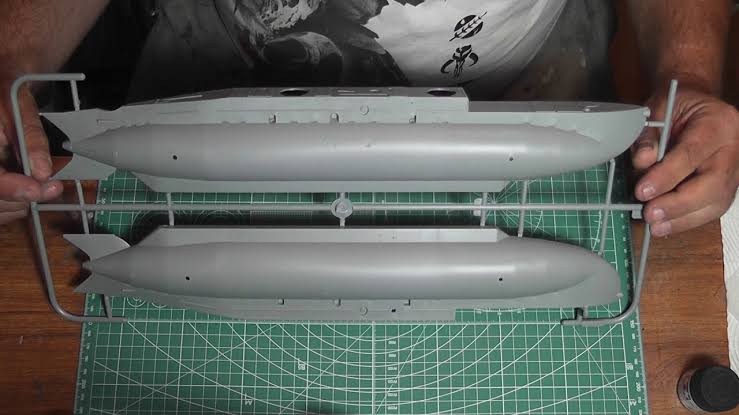

          The X craft hull is molded in right ( with deck attached) and left halves. Was thinking of gluing the 2 halve together then make a vertical cut at the stern cone where the hull transitions. The fore and aft sections will be held together using rare earth magnets like what Manfred did with his Type XXIII. Click image for larger version

Name:	images (22) (2).jpeg
Views:	156
Size:	63.6 KB
ID:	152410

          Make it simple, make strong, make it work!

          Comment


          • #6
            Glue the two halves as you described. But, make the longitudinal (equatorial) side cuts at the maximum hull diameter. Vertical (radial) cuts near the bow and stern. Stern radial cut on the top. Bow radial cut on the bottom.

            David
            Resident Luddite

            Comment


            • #7

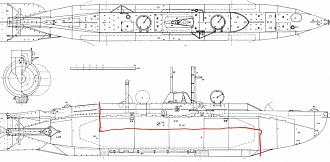

              Aah the dreaded longitudinal cut! Click image for larger version

Name:	Screenshot_20210814-231350_Gallery.jpg
Views:	146
Size:	87.7 KB
ID:	152413
              Make it simple, make strong, make it work!

              Comment


              • #8
                Originally posted by redboat219 View Post
                Aah the dreaded longitudinal cut! Click image for larger version

Name:	Screenshot_20210814-231350_Gallery.jpg
Views:	146
Size:	87.7 KB
ID:	152413
                Now, now!... Stop whining. Credit where credit is do. I blame those two Canadians, Dan Kachur and Greg Sharpe for coming up with and promoting the infamous Z-cut towards the end of the last century. No better way to access the innards and still hide most of the inevitable gaps.

                David
                Resident Luddite

                Comment


                • #9
                  Has anyone here had good clean results making a longitudinal cut with a razor saw? Asking for a friend…..

                  Comment


                  • #10
                    https://finescale.com/online-extras/...waterline-hull
                    Make it simple, make strong, make it work!

                    Comment


                    • #11

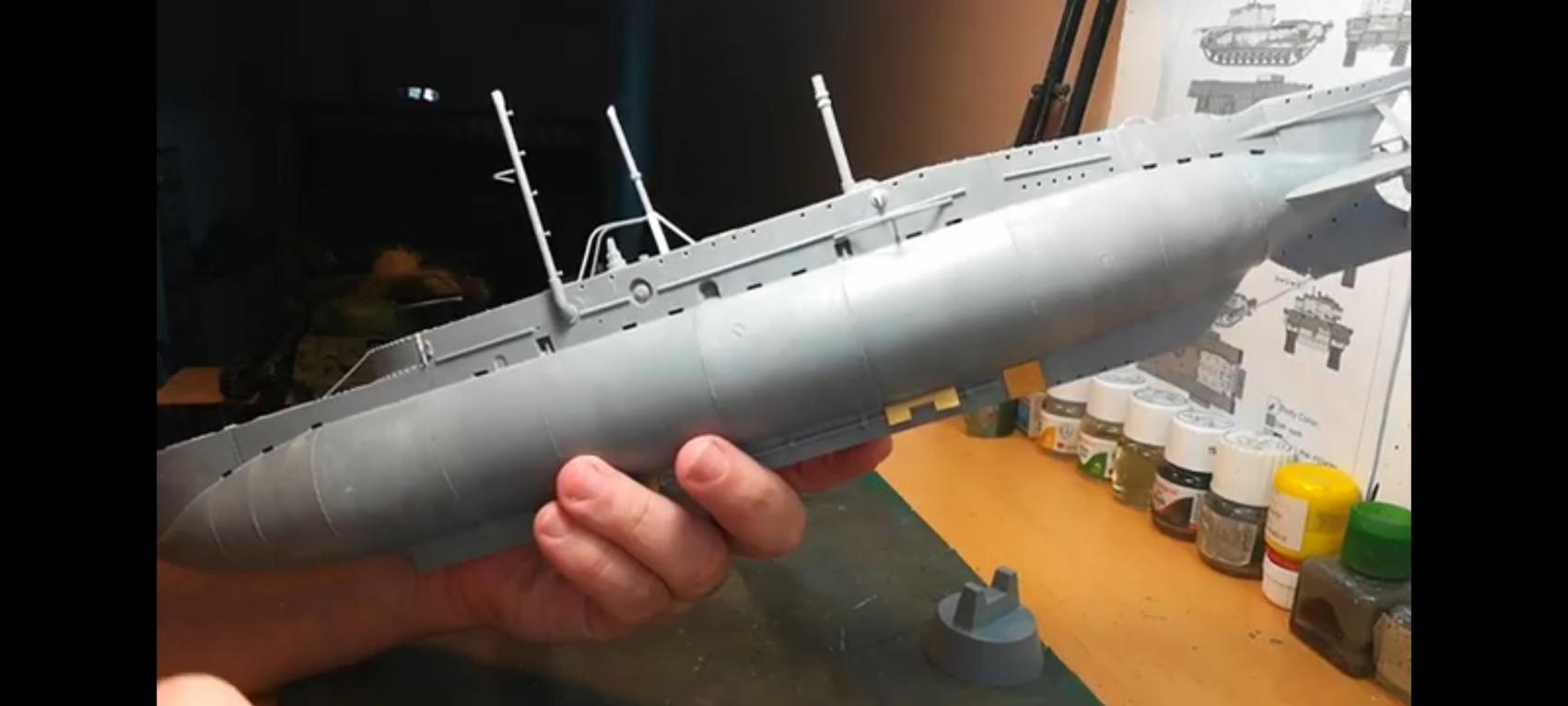

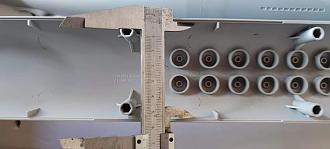

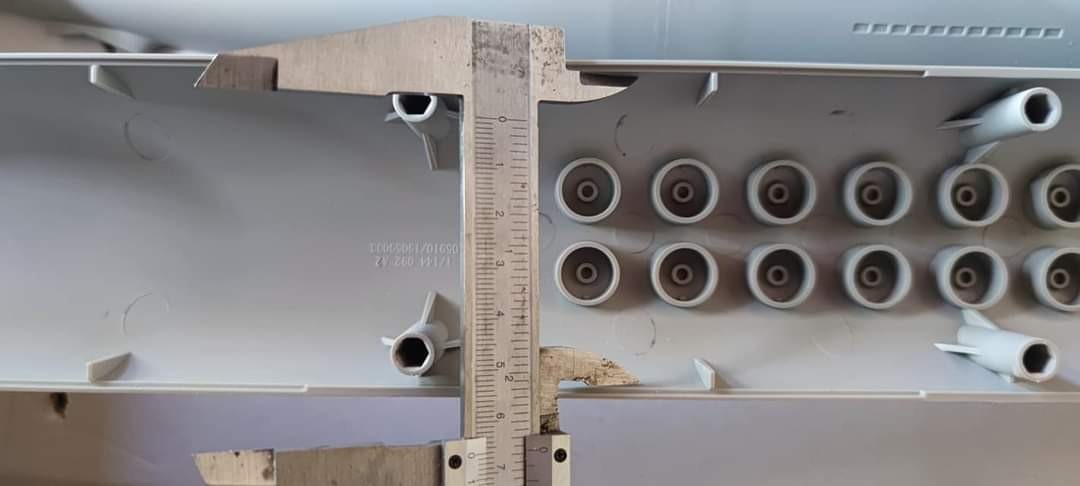

                      Merit molded the outlets for the external control linkages open. Click image for larger version

Name:	20210815_162800.jpg
Views:	139
Size:	48.4 KB
ID:	152435Click image for larger version

Name:	20210815_162819.jpg
Views:	131
Size:	21.3 KB
ID:	152436
                      Last edited by redboat219; 08-15-2021, 04:43 AM.
                      Make it simple, make strong, make it work!

                      Comment


                      • #12

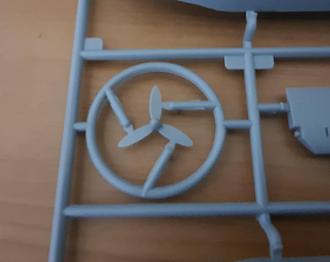

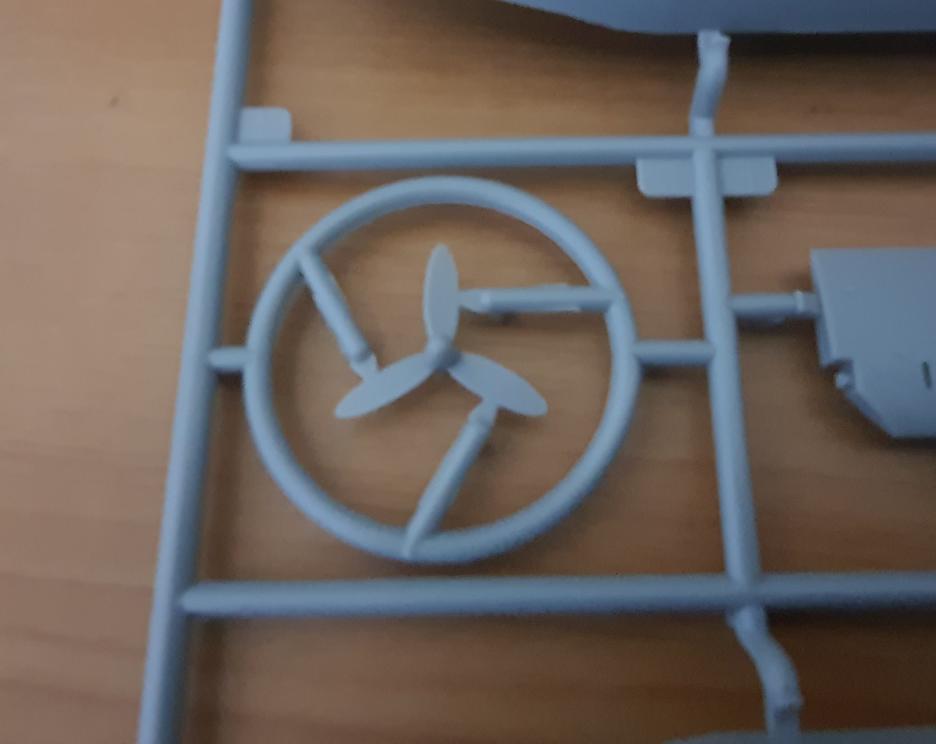

                        One flaw with the kit is the propeller, looks more appropriate on a plane. Click image for larger version

Name:	20210815_165020.jpg
Views:	141
Size:	38.3 KB
ID:	152438
                        Make it simple, make strong, make it work!

                        Comment


                        • #13
                          I make cuts with either a razor saw or an Xacto blade used backwards as a gouge. Works great in styrene! I try to line the cuts up to the underside of a molded weld line, at or below the waterline. Does 2 things; a) Makes a natural guide for a pretty straight cut, and, b) Hides the seam under the slight lip of the weld line. The fingers DO get tired, though!

                          Comment


                          • #14
                            David, regarding your personal conversion of the x-craft, are you fabricating new resin appendages or are the kit parts sufficient?
                            Make it simple, make strong, make it work!

                            Comment


                            • #15
                              Originally posted by redboat219 View Post
                              David, regarding your personal conversion of the x-craft, are you fabricating new resin appendages or are the kit parts sufficient?
                              All kit parts, even the propeller. As I no longer mass-produce it's a much simpler and quicker thing if I just adapt existing static parts to become dynamic parts. And this particular kit is most adaptable for conversion to four channel r/c use. Stern planes, rudder, ballast sub-system, and throttle. Eazy-Peizi.

                              Click image for larger version

Name:	DSCF2183.JPG
Views:	100
Size:	41.3 KB
ID:	152685

                              David
                              Resident Luddite

                              Comment
