Looking for tips on how to make mechanical x tail mixers.

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Looking for tips on how to make mechanical x tail mixers.

    Looking for alternatives to electronic mixers....
    Make it simple, make strong, make it work!

  • #2
    Originally posted by redboat219 View Post
    Looking for alternatives to electronic mixers....
    Click image for larger version

Name:	001_DSCN0133.jpg
Views:	87
Size:	66.8 KB
ID:	143587Click image for larger version

Name:	000_DSCN0128.jpg
Views:	77
Size:	70.4 KB
ID:	143588Click image for larger version

Name:	006_DSCN0141.jpg
Views:	78
Size:	81.9 KB

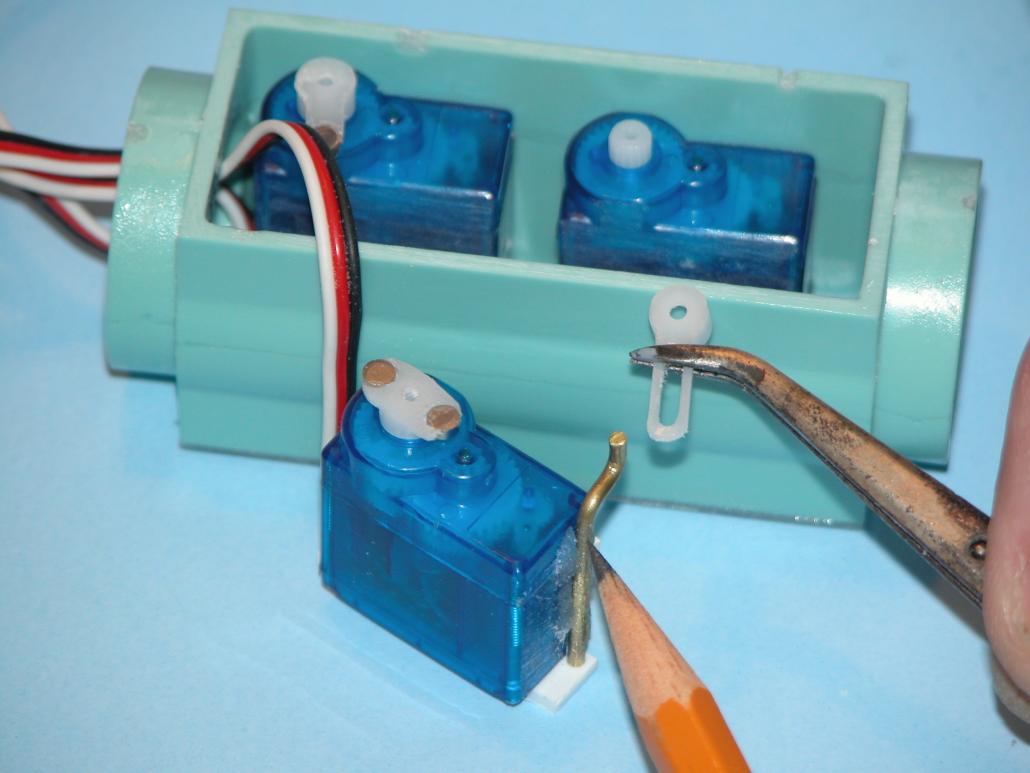

ID:	143589Click image for larger version

Name:	008_DSCN0149.jpg
Views:	74
Size:	61.6 KB
ID:	143590Click image for larger version

Name:	007_DSCN0142.jpg
Views:	75
Size:	76.3 KB
ID:	143591
    "... well, that takes care of Jorgenson's theory!"

    Comment


    • #3
      HWSNBN,
      Do you something that will work with the regular 2-2.5" subdriver?
      Make it simple, make strong, make it work!

      Comment


      • #4
        Hi,

        Why don't you want a V-tail mixer ?
        It works fine.

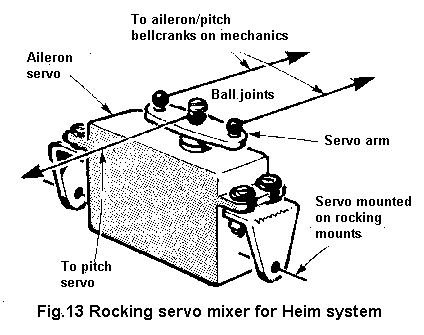

        Mechanical alternative:

        Click image for larger version

Name:	6QJvf25Og7fAZV6nTaboWyN4MloJYB3jjp8Dg3CCjbbko3YXp1Zn4Ix49ozxLBJuzTuxiQdWyvuGvQ.gif
Views:	78
Size:	5.8 KB
ID:	143594
        Last edited by Akula54; 09-17-2020, 06:50 AM.

        Comment


        • #5
          Originally posted by redboat219 View Post
          HWSNBN,
          Do you something that will work with the regular 2-2.5" subdriver?
          What?... you can't take the mechanisms illustrated here -- at your request -- and adapt those mechanical principles to you specific need? You need me to hold your beer while you type your plaintive questions?? I should hold your hand through the creative process???

          Get off your ass and MAKE THE GOD DAMNED THING! If the first iteration don't work, try again. Keep at it till you have a mixer that works to your satisfaction. It's called, WORK!

          I'm gladl to give anyone a steer, but I will be ****ed if I'll wipe their ass for 'em!! I'm not doing your ****ing home-work for you, kid!

          David
          the horrible
          "... well, that takes care of Jorgenson's theory!"

          Comment


          • #6
            Originally posted by Akula54 View Post
            Hi,

            Why don't you want a V-tail mixer ?
            It works fine.

            Mechanical alternative:

            Click image for larger version  Name:	6QJvf25Og7fAZV6nTaboWyN4MloJYB3jjp8Dg3CCjbbko3YXp1Zn4Ix49ozxLBJuzTuxiQdWyvuGvQ.gif Views:	0 Size:	5.8 KB ID:	143594
            It's not that I don't want a "electronic" v-tail mixer but I can't locate a "local" source for it right now. Also the radios I have that are submarine compatible don't have computer mixing. So next best option is a mechanical one. Something that can interface with the SD I already have and not require major modification to the unit. So I can use one SD with say a Seawolf with an + tail one day then transfer the same SD to a Soryu with an X tail the next day.

            Found an old thread from 2009 about a Collins class https://forum.rc-sub.com/forum/build...=4919#post4919. Unfortunately the pictures are gone.
            Last edited by redboat219; 09-17-2020, 09:18 AM.
            Make it simple, make strong, make it work!

            Comment


            • #7
              Just put your bell crank outside the WTC and drive the bell crank with your pushrod from the WTC.

              Comment


              • #8
                Something like this?

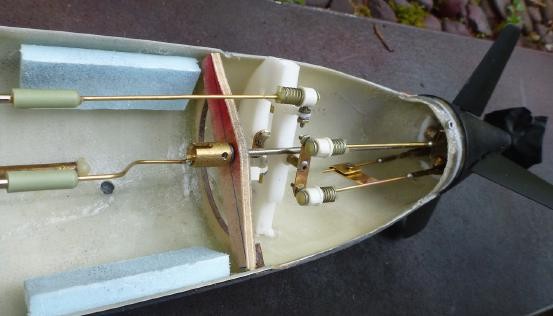

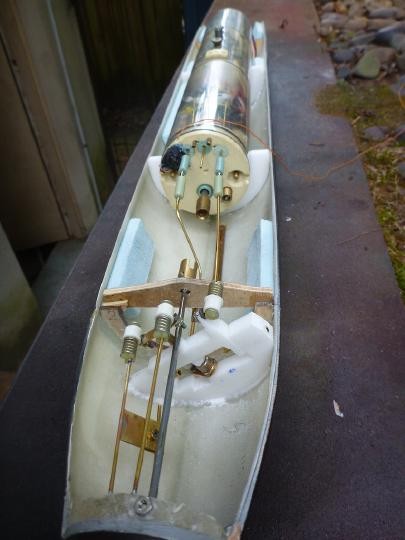

                Click image for larger version

Name:	image_30765.jpg
Views:	61
Size:	41.2 KB
ID:	143599

                Click image for larger version

Name:	image_30769.jpg
Views:	56
Size:	35.5 KB
ID:	143600

                Comment


                • #9
                  Yes! Thanks Hardrock.
                  Completely forgot about your 1/96 Soryu build.

                  I always assumed you need to set up the bell crank assembly completely horizontal (or vertical).
                  Last edited by redboat219; 09-17-2020, 11:06 PM.
                  Make it simple, make strong, make it work!

                  Comment


                  • #10
                    Originally posted by redboat219 View Post

                    It's not that I don't want a "electronic" v-tail mixer but I can't locate a "local" source for it right now. Also the radios I have that are submarine compatible don't have computer mixing.
                    This electronic module is what you need with your radio... a V-Tail mixer.
                    Don't need mechanical assembly, and would work fine with a standard SD.

                    https://www.youtube.com/watch?v=YNnets4QZdw

                    Click image for larger version

Name:	tr-v-tail.jpg
Views:	44
Size:	40.0 KB
ID:	143609

                    Comment


                    • #11
                      Originally posted by redboat219 View Post
                      Yes! Thanks Hardrock.
                      Completely forgot about your 1/96 Soryu build.

                      I always assumed you need to set up the bell crank assembly completely horizontal (or vertical).
                      Works just fine at any angle. Its like this because I needed to run one of the control arms over the bulkhead. I'll send you an .stl file if you have access to a printer.

                      Comment


                      • #12
                        Completely baffled as to why you’d go through the hassle of a mechanical mixer. One tiny module and you’re done.

                        https://www.rc-submarine.com/product...s-x-tail-mixer

                        Now, if you’re going through the exercise to flex some brain cells, then that’s another thing altogether.

                        Comment


                        • #13
                          You got pm Hardrock.
                          Make it simple, make strong, make it work!

                          Comment


                          • #14
                            Originally posted by SubHuman View Post
                            Completely baffled as to why you’d go through the hassle of a mechanical mixer. One tiny module and you’re done.

                            https://www.rc-submarine.com/product...s-x-tail-mixer

                            Now, if you’re going through the exercise to flex some brain cells, then that’s another thing altogether.
                            Using the same SD in three submarines, only one of which is an 'X' tail. No longer have brain cells, working on muscle memory!

                            Comment
