Akula 1/144 Scratch built

[trout]

Came out excellent!
Well worth the wait and Kudos for following David's advice. It gets to me when someone begs for David's advice, he shares his recommendation, and the person will say I am going to try a different way. I guess it is good for someone to try something new, but for success, just follow his guidance. You did and wow the results are spectacular!

[bwi 971]

Thanks guy's.

As I see from where I started with making tooling’s (reusable boxes, etc....... see my post #24) and what I'm doing now it is getting pretty damn close to what David is doing.

I adapted things so they match my way of working and to the means I have available, but at the end why reinventing the wheel, you will end in an almost exact copy of what he is trying to teach us here because it took hem years to fine-tune things so they are simple to use, practical and fast.

And I agree that we are to be thankful he wants to share all this with us.

That’ said Tom we have to stop praising him for a time now, or he will make sure that we regret we have said all those kind words.

Grtz,
Bart

[He Who Shall Not Be Named]

Thanks guy's.

As I see from where I started with making tooling’s (reusable boxes, etc....... see my post #24) and what I'm doing now it is getting pretty damn close to what David is doing.

I adapted things so they match my way of working and to the means I have available, but at the end why reinventing the wheel, you will end in an almost exact copy of what he is trying to teach us here because it took hem years to fine-tune things so they are simple to use, practical and fast.

And I agree that we are to be thankful he wants to share all this with us.

That’ said Tom we have to stop praising him for a time now, or he will make sure that we regret we have said all those kind words.

Grtz,
Bart

Too late. From this point forward soak all packages from Virginia Beach in water at least twelve-hours before opening.

M

[trout]

That’ said Tom we have to stop praising him for a time now, or he will make sure that we regret we have said all those kind words.

Grtz,
Bart

Your right, but sometimes it just needs to be said. Oh look there is a short pier, I guess we better go jump.

[bwi 971]

I promised some foto's of the towed array pot, with the wax core.

Grtz,
Bart

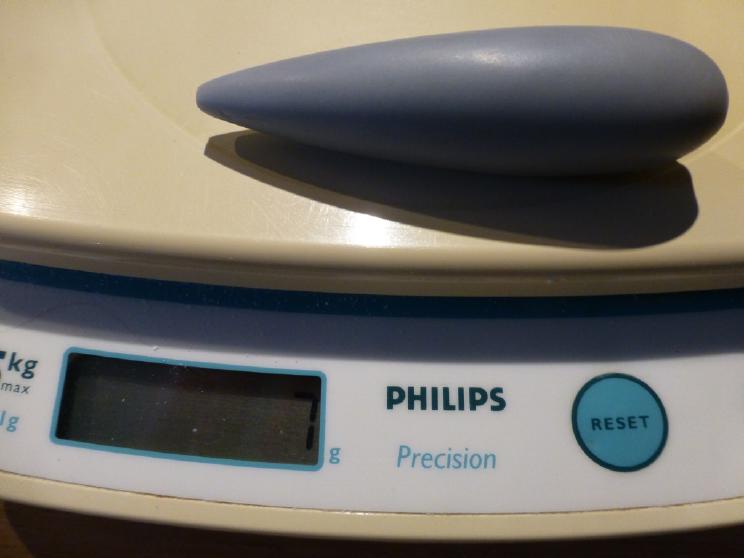

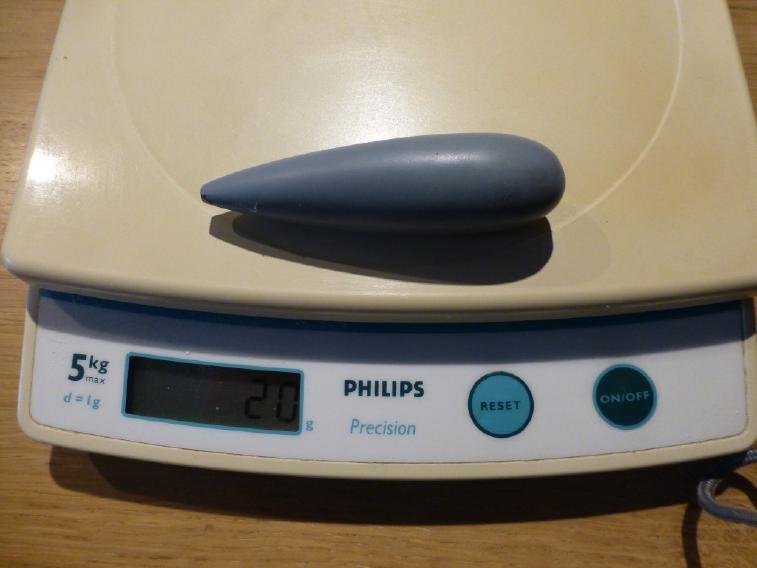

Weight with wax 20g

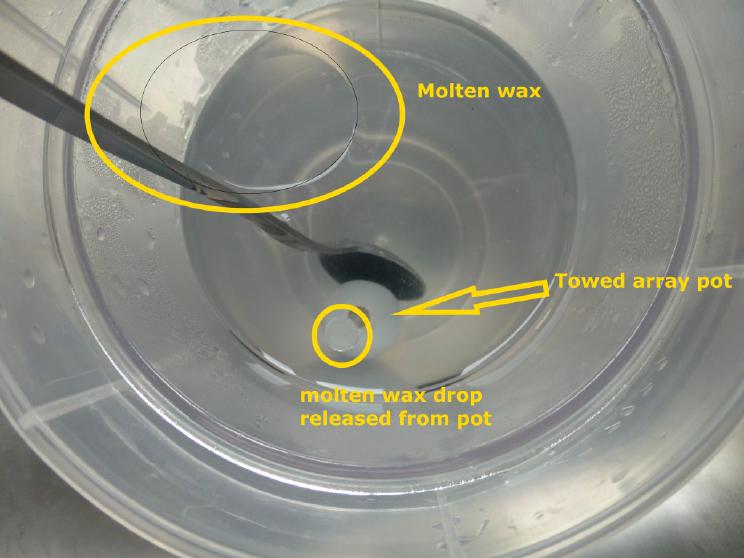

Melting the wax in hot water


Weight without wax 7g


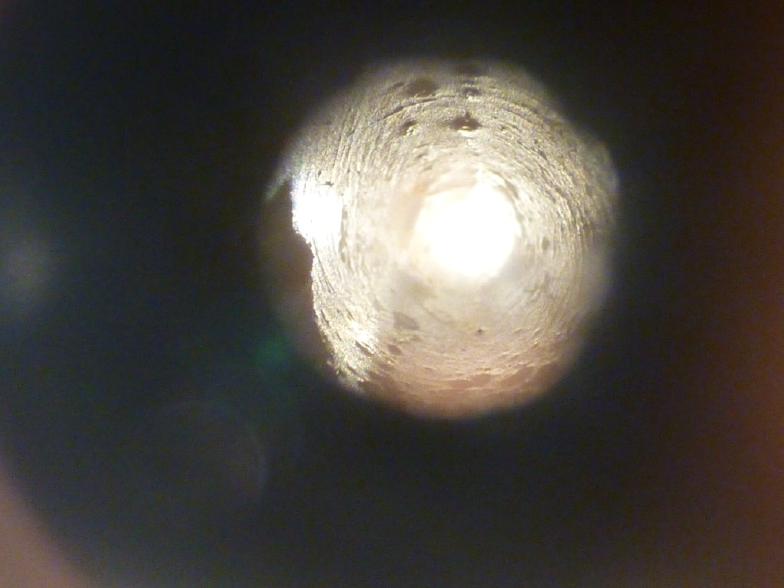

Hollow inside

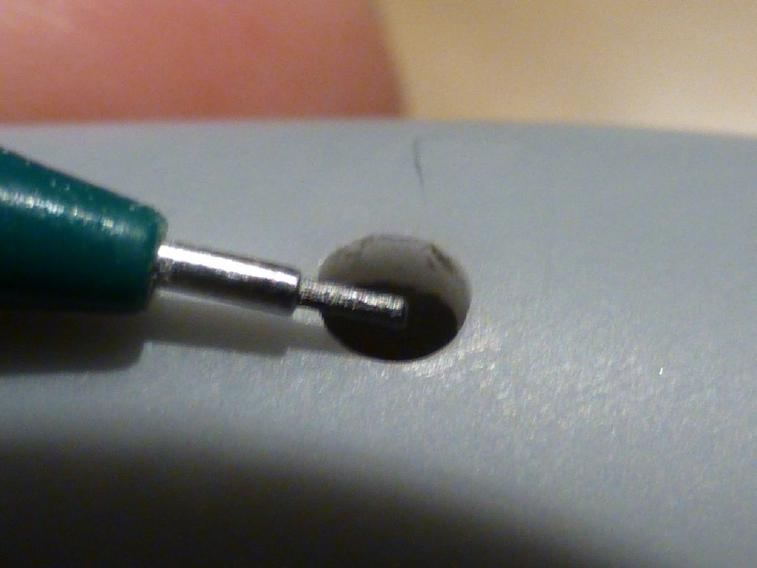

Wall thickness of shell (showing a pencil point of 0.5mm)

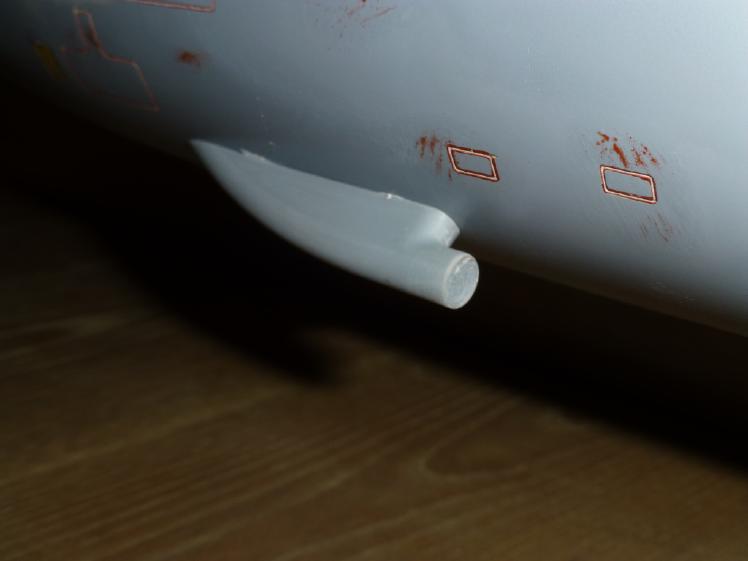

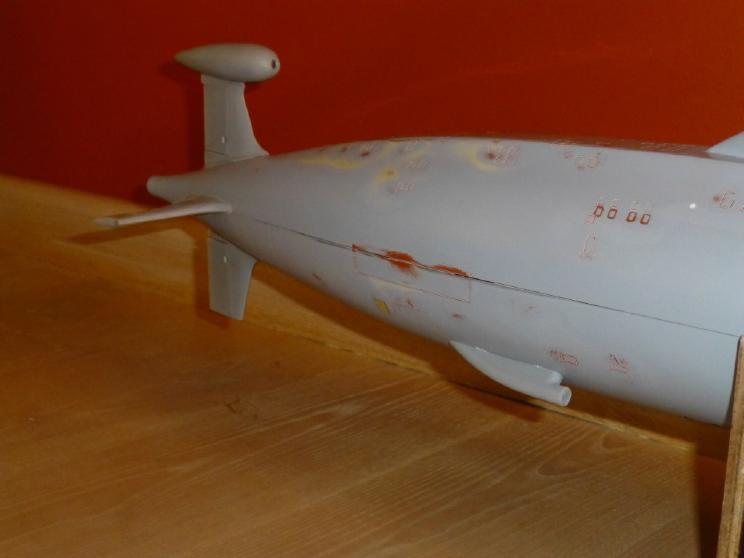

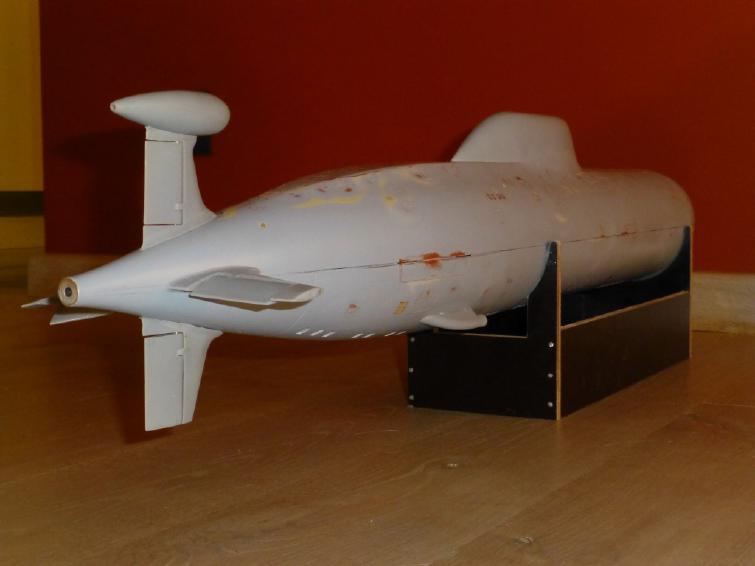

I could not resist to dry-fit the rudders and scoops....she is beginning to look like a sub.

[HardRock]

Outstanding Bart. I love the pod.

[He Who Shall Not Be Named]

I so enjoy watching a well done job coming together. You got the hands, my friend! And you're putting out this quality work with only one-and-a-half-arms. Once you're back up to speed, you'll be a first-class threat.

M

[bwi 971]

Thanks David, I'm almost back to flank speed.

I need advice regarding the bow planes from you guy's.
is a 50° degrees up en 50° degrees down movement sufficient?
I'm designing on the bellcranks for the moment.

Grtz,
bart

[He Who Shall Not Be Named]

Thanks David, I'm almost back to flank speed.

I need advice regarding the bow planes from you guy's.
is a 50° degrees up en 50° degrees down movement sufficient?
I'm designing on the bellcranks for the moment.

Grtz,
bart

Good. Very good. Keep with the therapy and follow Doctor's orders, pal.

No, 50-degree deflection is way, way too much. Waterborne control surfaces typically stall out over 35-degrees. Anything more is only useful as drag-brakes (one of the maneuvers used for 'depth excursion' casualties, AKA 'fishtailing').

M

[bwi 971]

Ok well understood David, Thks.

Design and fabrication progress of the bow planes linkages. Two days’ work…….......need one more day to finish it.......………but work is calling tomorrow DAMN.

Grtz,
Bart

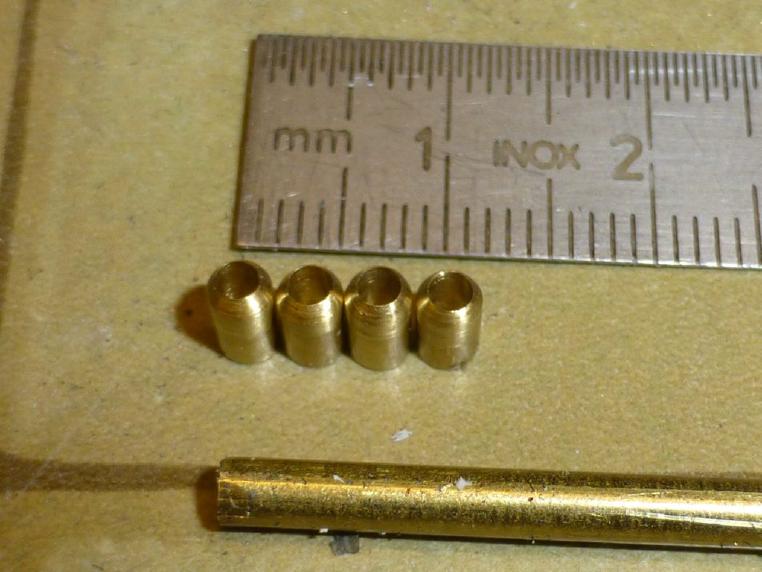

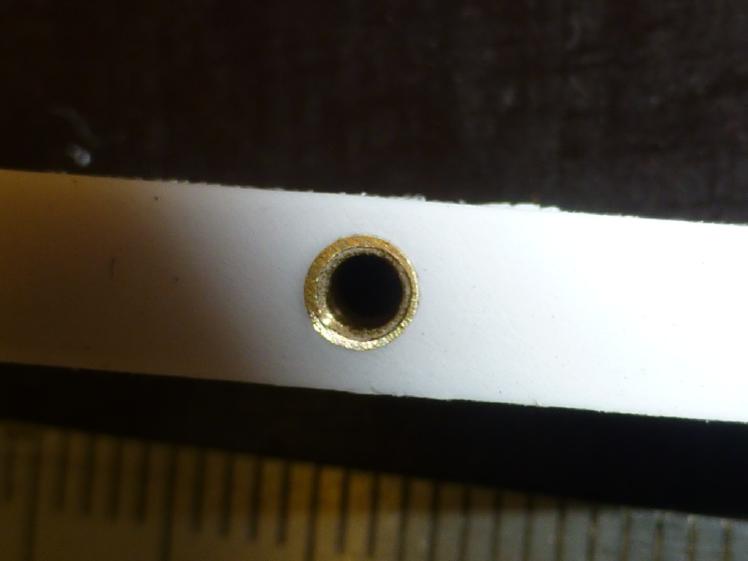

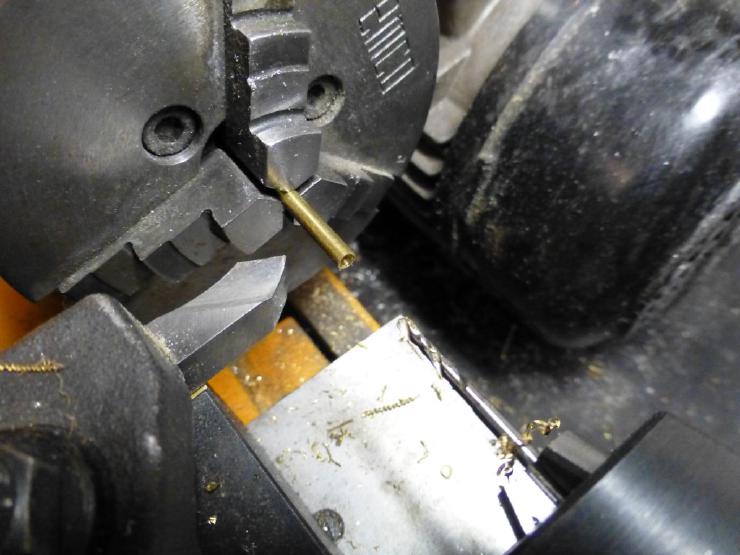

Bushings:
Bushings dia 3mm, bore dia 2mm length 5mm

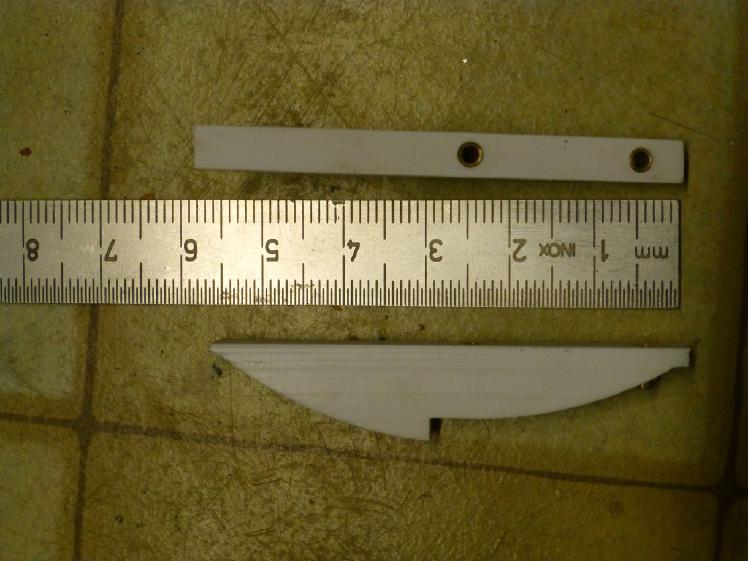

Supports:

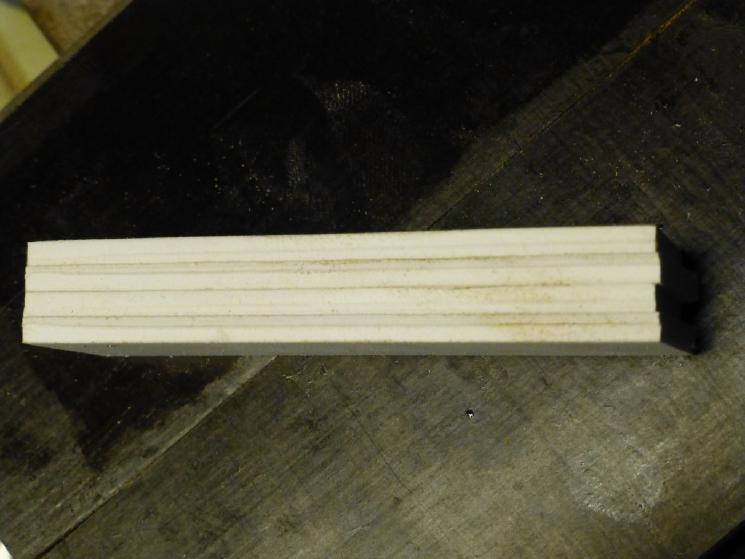

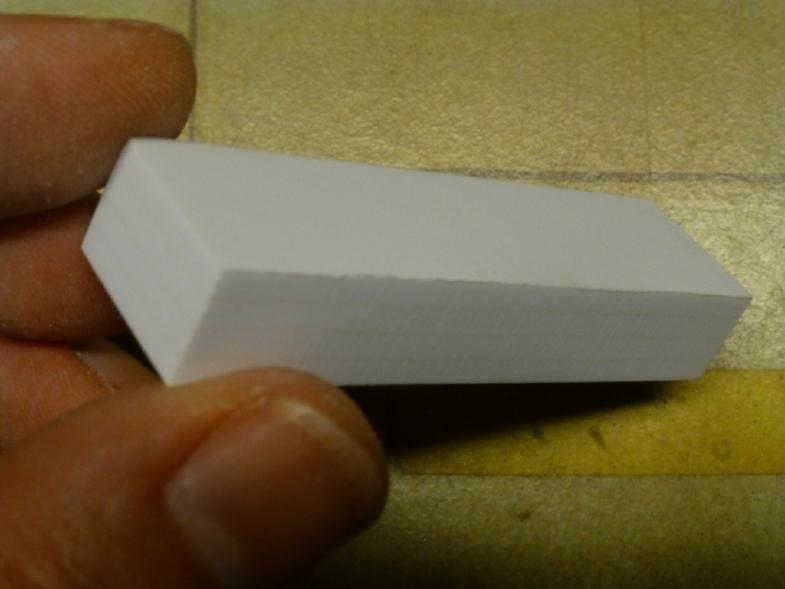

Everything starts with making the required materials, 4 pc of 3mm styrene glued together to the required thickness of 12mm. Sanded everything square/perpendicular so I had a good base to start with. Strange shape? No I have to give room to the Fwd index lip of the lower hull, see below for the assembly.
Cut out the desired shape, provided with 3mm bores to take the bushings.

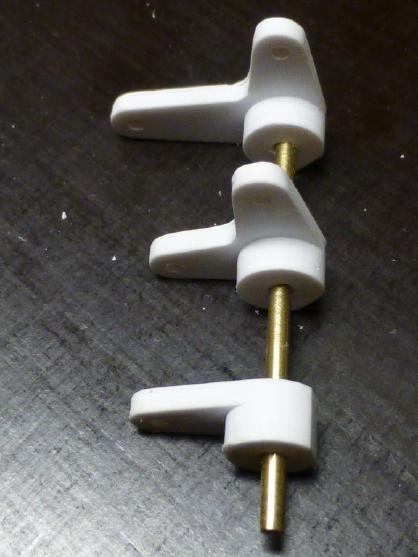

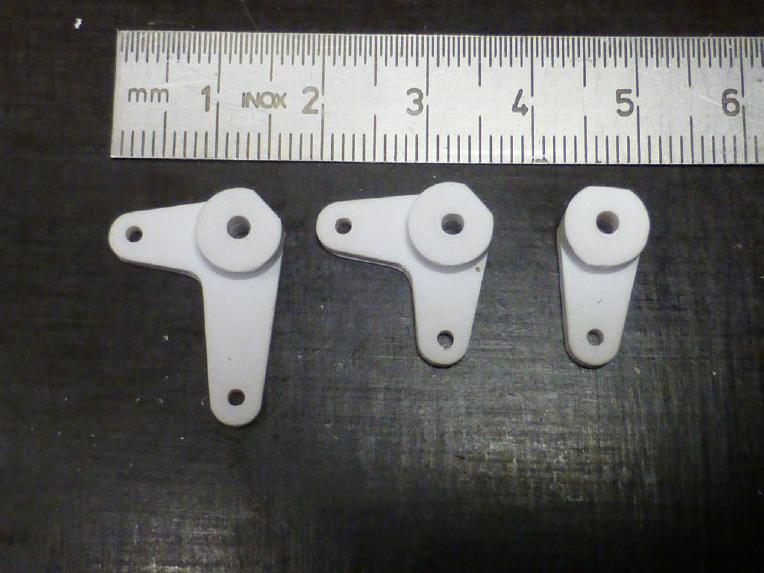

Bell-cranks:
made out styrene sheet, provided with a 2mm bore in the center piece and the arms are provided with a 1.5mm bore. Pitch is 10mm except the one with the longer arm pitch of that one is 15mm, will see which one I will use (probably the one with the 10mm pitch. That will give me app 30° deflection as per David’s instructions.




Assembly

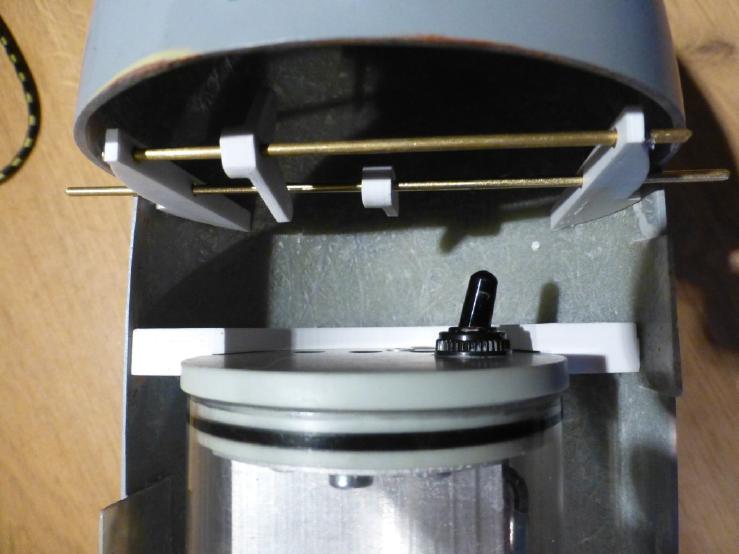

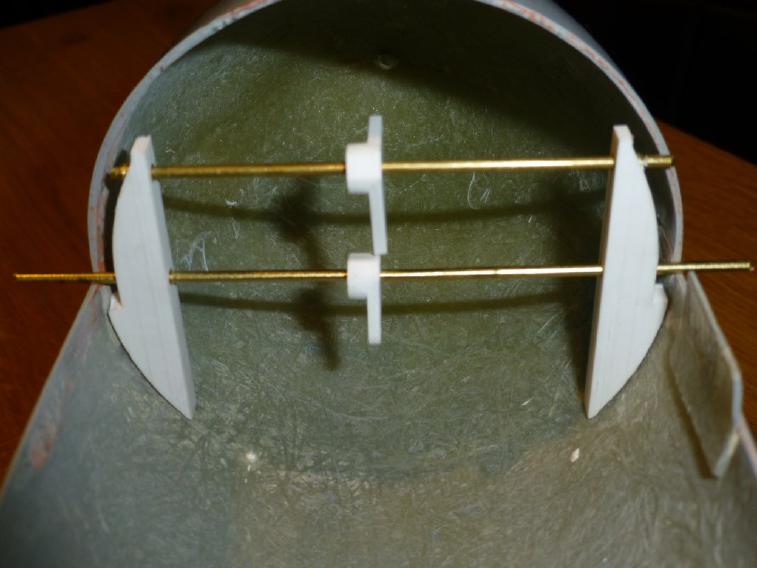

Test fitting the assembly (parts are not yet completed).

[bwi 971]

I’m working on the yokes.

Challenges

• Pushrod movement rear planes 7mm
• Pushrod movement rudders 10mm
• Need about 35° deflection on the rudders and planes.

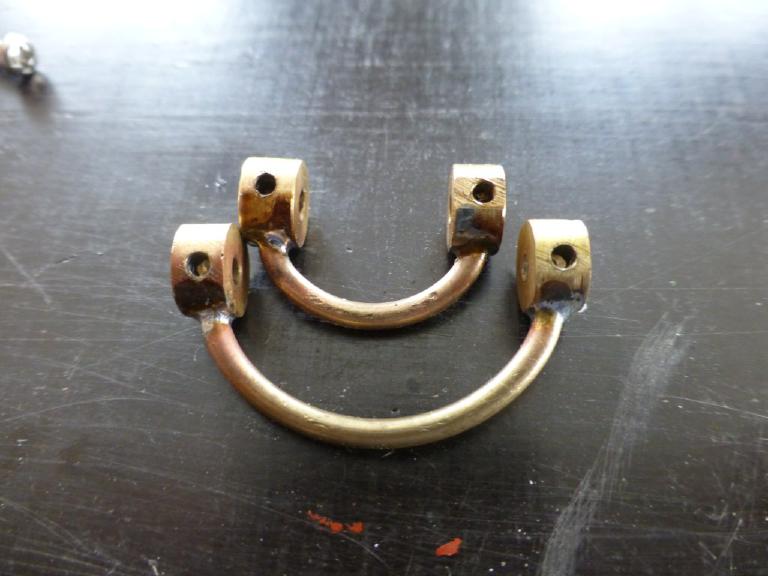

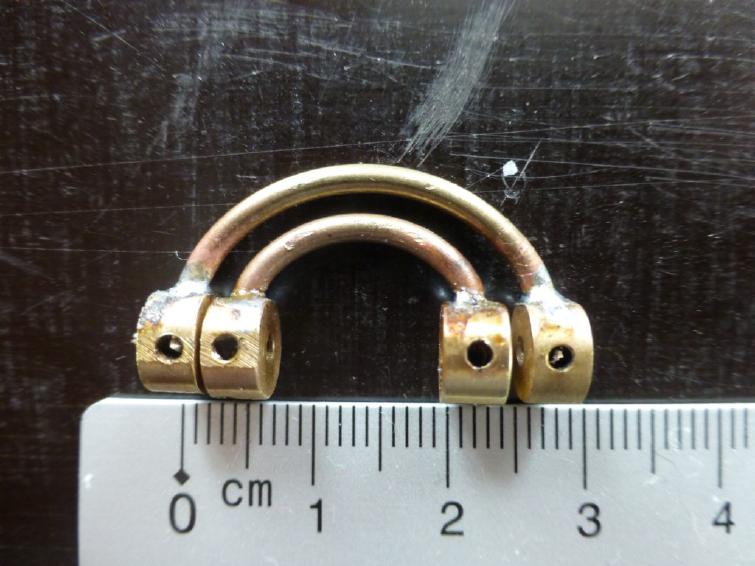

Yokes fabrication

• Collars made out of brass, outer diameter 8mm (5/16), rod bore 2mm (3/32), screw 2mm (3/32).
• Bridge 2mm (1/16) brass rod

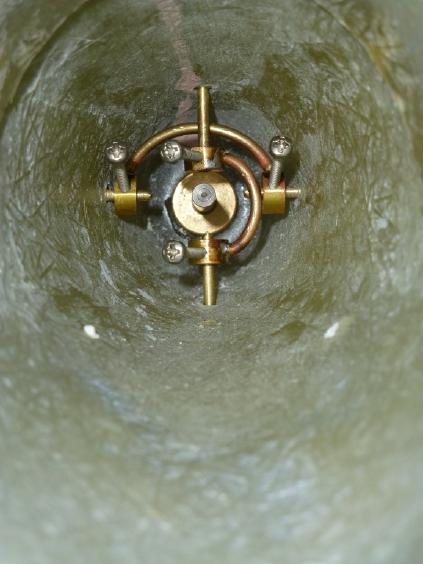

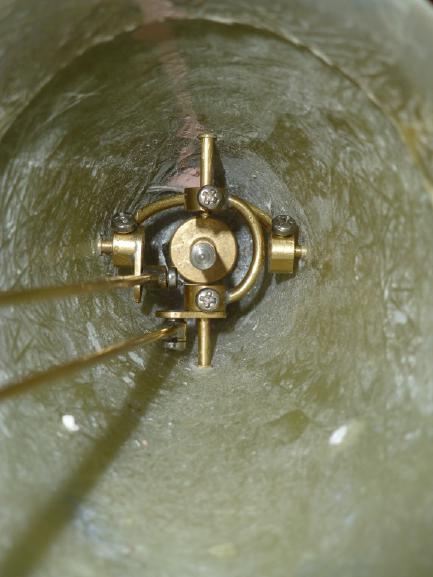

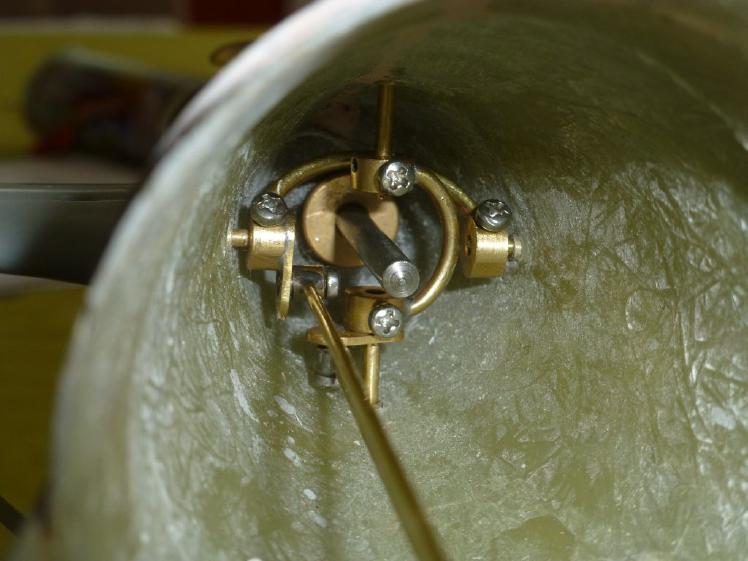

Work in progress, testfitting the yokes








Bell crank Arm.

In order to get the deflection of 35°, a very short arm was necessary. The pitch could not exceed 6mm. It was impossible to use the usual Z-bent pushrods the rod would hit the collar restricting the deflection to 10°.

I came up with the following construction to make it work.
A brass bushing with outer diameter 4mm (???) and inner diameter 3mm (1/8) was fabricated and soldered to the brass pushrod of 1.5mm (1/16).
An arm was fabricated out of 1mm (1/32) brass sheet. Two holes were drilled in the arm, pitch 5mm.
An pin was made out of 3mm (1/8) brass rod and provided with a hole to take a 2mm (3/32) screw.
The pin was soldered to the arm, and the arm was soldered to the yoke.
The bushing of the pushrod pivots over the pin the screw holds the assembly together, preventing the bushing to slide of the pin.

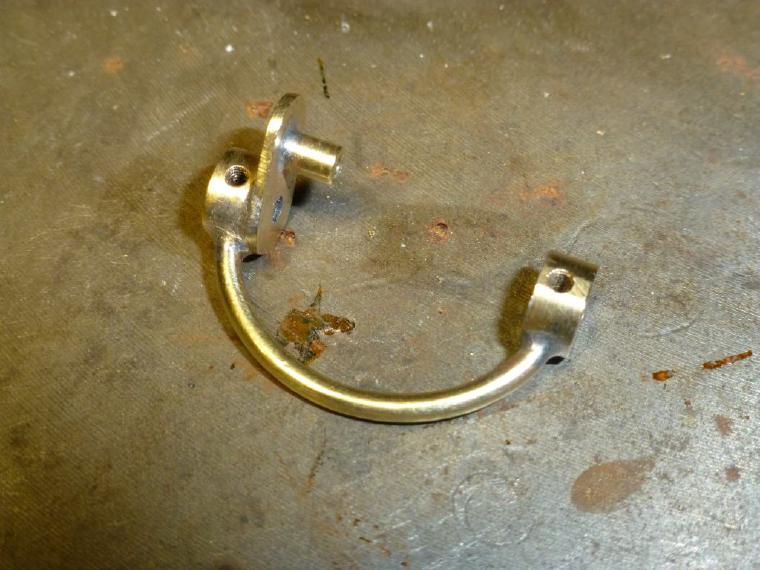

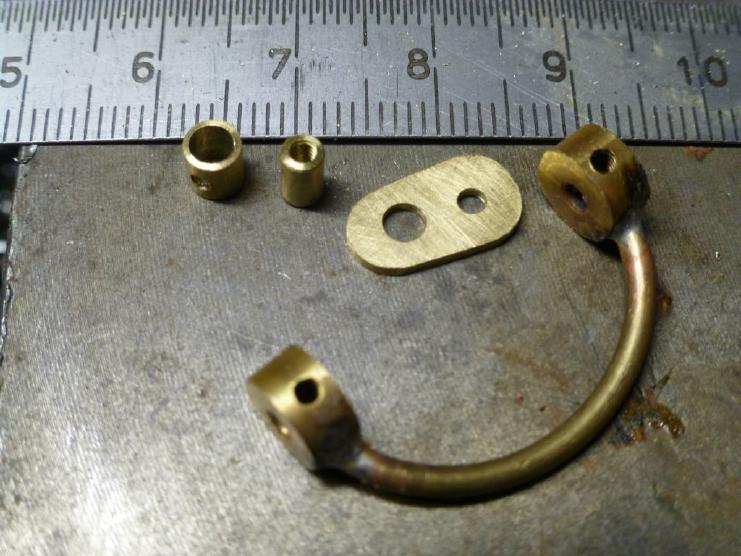

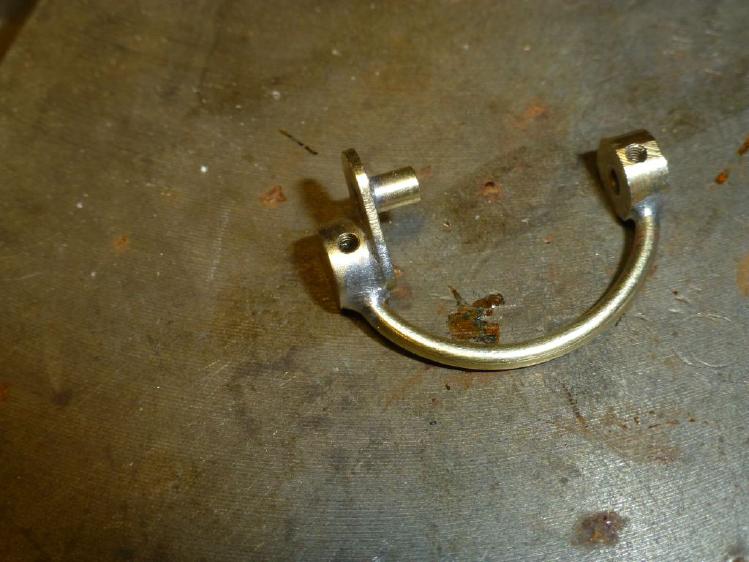

Ready to solder

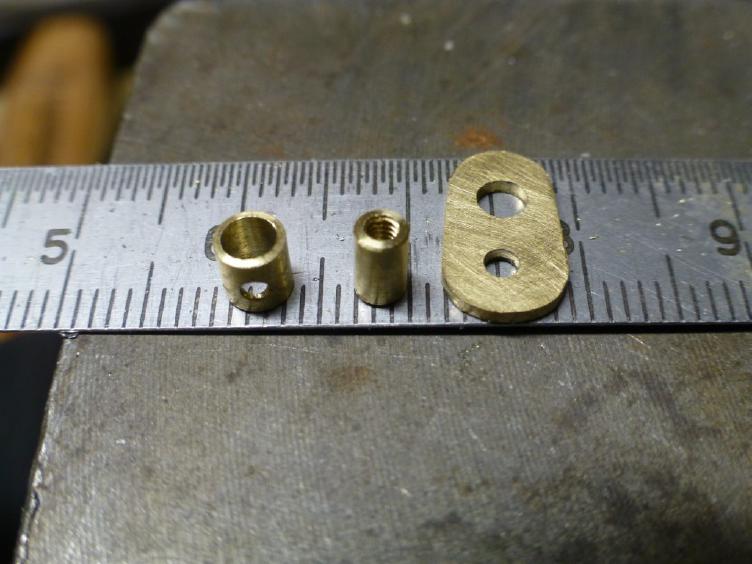

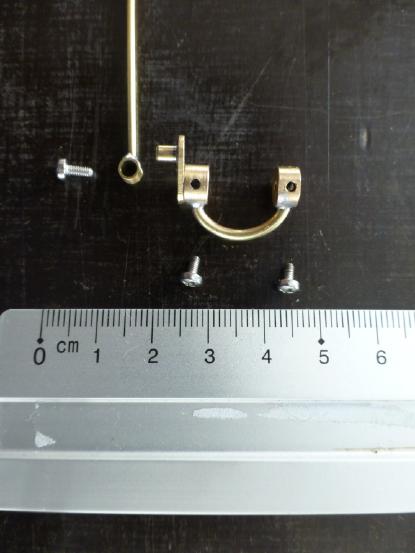

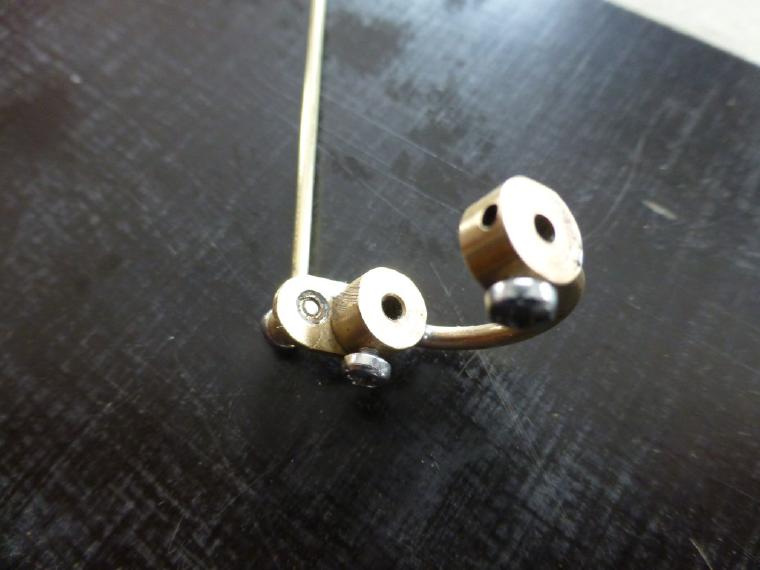

All parts

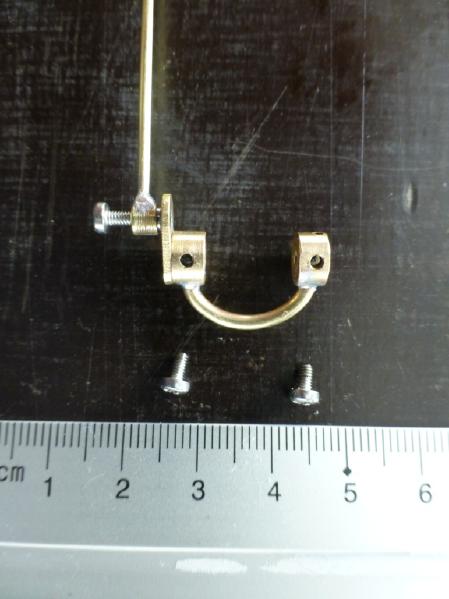

Pushrod connected to pin

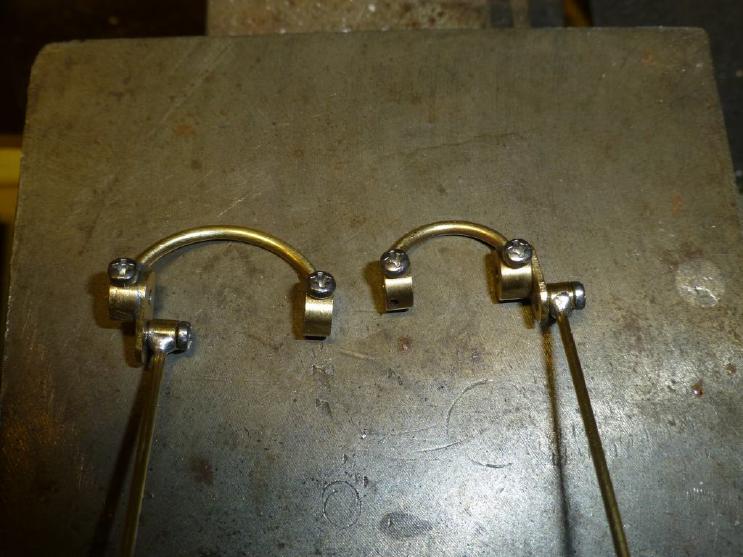

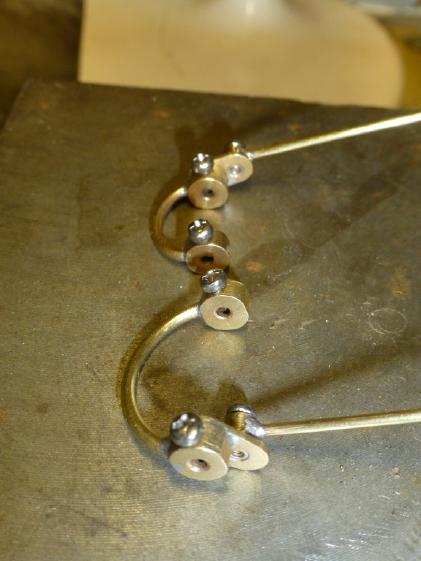

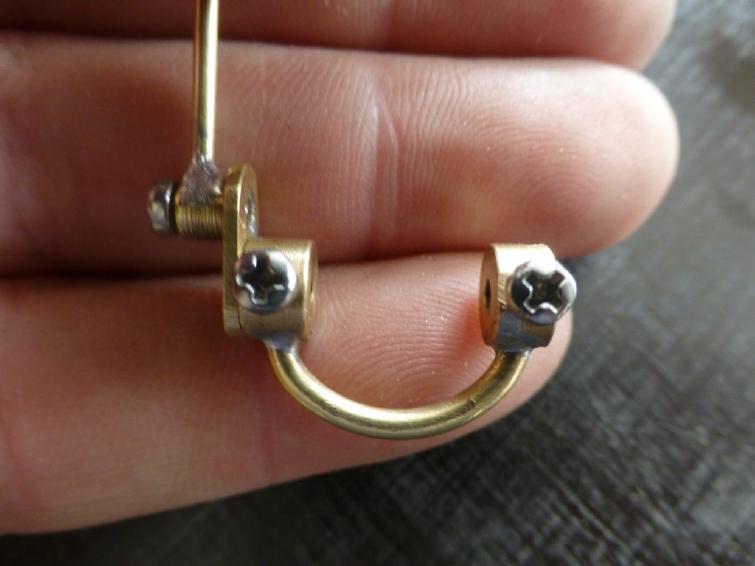

Assembled together.





Grtz,
Bart

[HardRock]

That's very cool. Definately going to steal this idea.

[bwi 971]

That's very cool. Definately going to steal this idea.

Wait till I can confirm that it works Scott......I will finish the other yoke today.

grtz,
Bart

[bwi 971]

Finished the last one........test fitted everything........works like a charm Scott......you can snatch it with confidence.

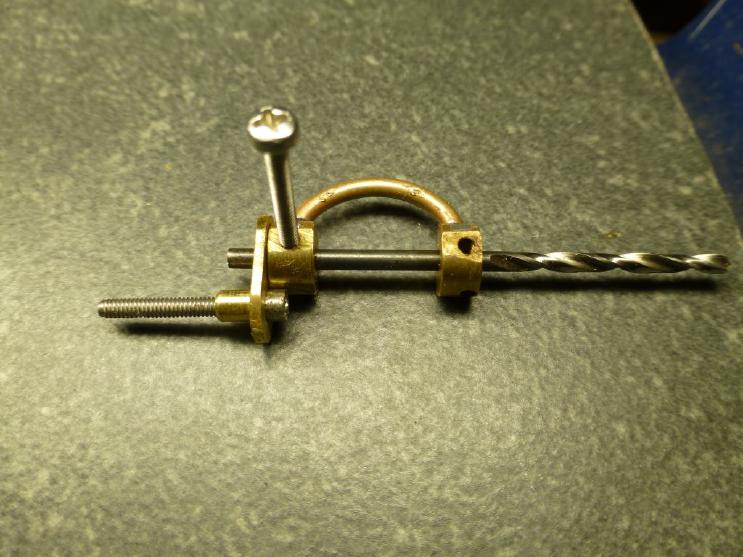

I have included some more detailed pics for you made while fabricating the second one.

Grtz,
Bart

[HardRock]

Great work. I'm off to the bunker to start abendin and asolderin (and a drillin too). Don't they have grub screws wher you live!
