      Next sunday will be her first dive, so I finish all the internals.

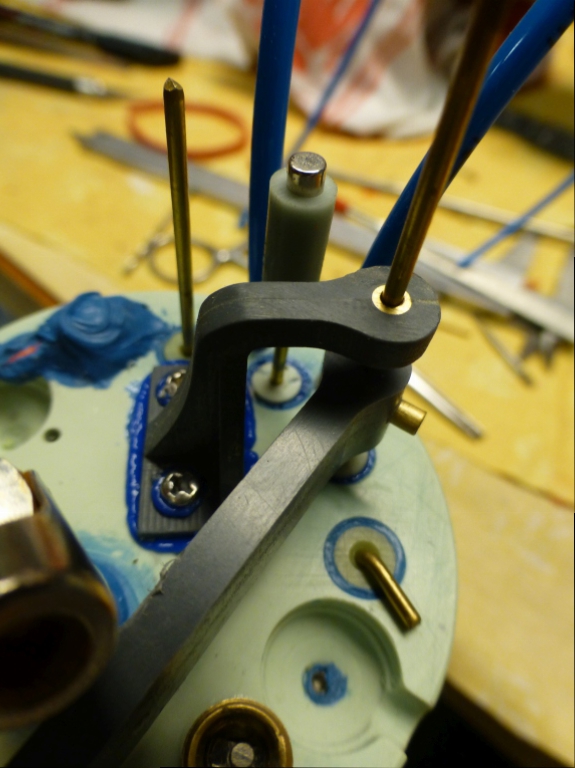

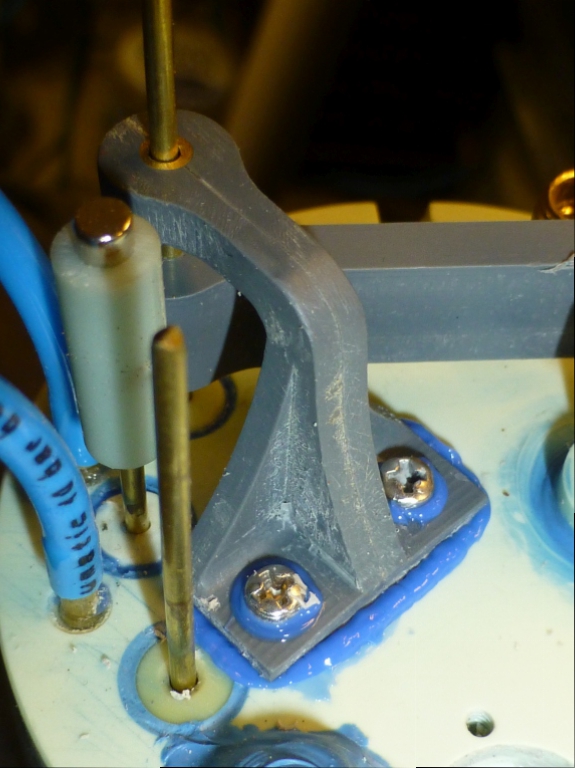

      I owned you guy's some pictures of the arm supporting the pushrod

      Click image for larger version

Name:	P1040859005.jpg
Views:	143
Size:	252.6 KB
ID:	123242

      Click image for larger version

Name:	P1040861007.jpg
Views:	142
Size:	254.2 KB
ID:	123243

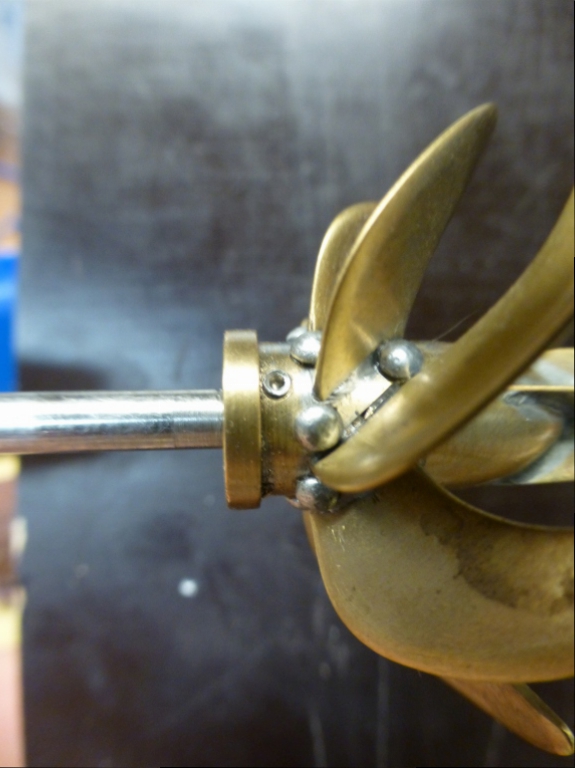

      The 2mm setscrew on the prop

      Click image for larger version

Name:	P1040857003.jpg
Views:	112
Size:	220.1 KB
ID:	123244

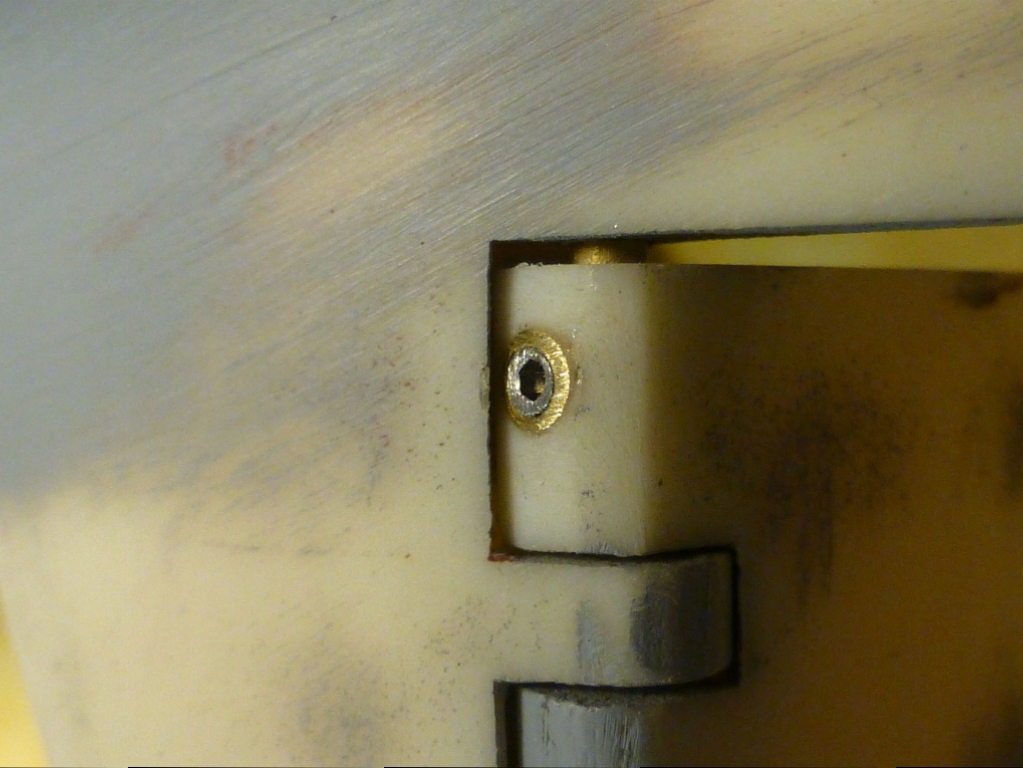

      The 2mm setscrew on the dive plane, I had to fabricate threaded bushings as the material thickness is so little on this part of the plane.

      Click image for larger version

Name:	P1040858004.jpg
Views:	133
Size:	406.5 KB
ID:	123245

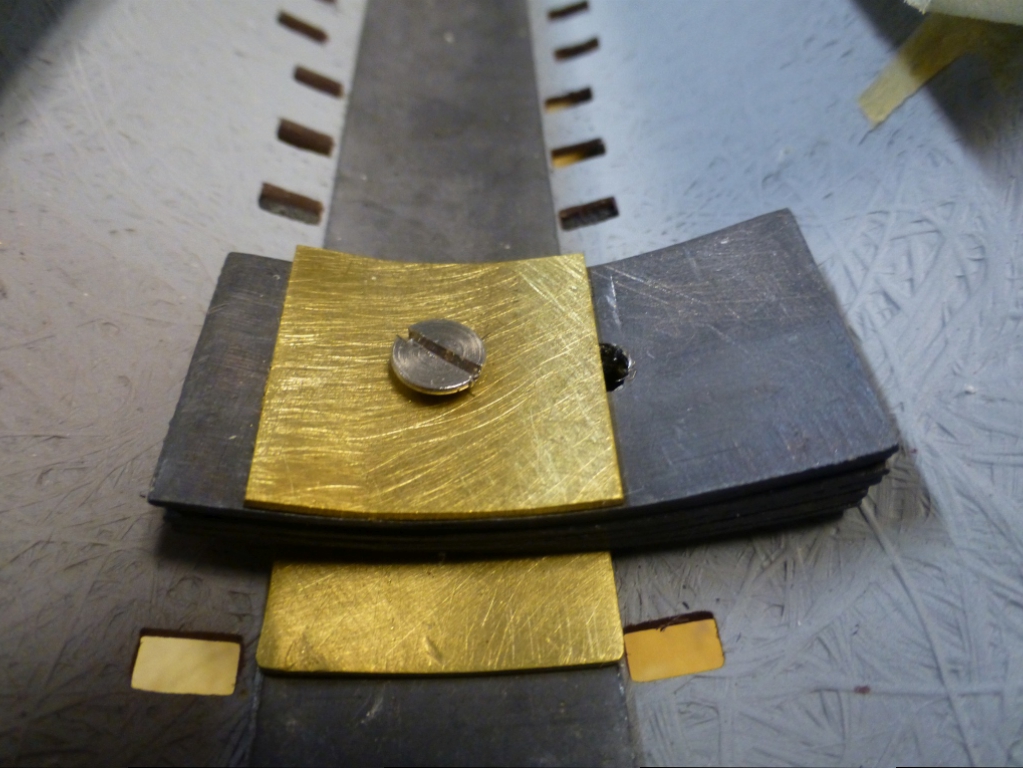

      The ballast that can be altered when needed, the lead is slotted.

      Click image for larger version

Name:	P1040864001.jpg
Views:	121
Size:	438.5 KB
ID:	123246

      the pool were the "poolrun" will take place next sunday

      Click image for larger version

Name:	001.jpg
Views:	126
Size:	486.3 KB
ID:	123247

      Grtz,
      Bart

      Practical wisdom is only to be learned in the school of experience.
      "Samuel Smiles"

      Comment

      • HardRock
        Vice Admiral
        • Mar 2013
        • 1609

        You are a machine. I'm also stealing your ballast idea - and maybe one of those giraffes - they look cute.

        Comment

        • bwi 971
          Captain
          • Jan 2015
          • 896

          Today it was the first time I took command of a sub.
          All went well, she sailed and dived…and came up.

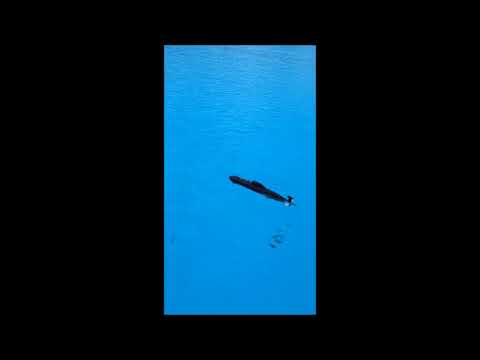

          As a full time noob I pressed the time-lapse button of my phone recording the dived part, so that’s nice to see….I’m sorry for that.

          Observations made:
          • I had the boat trimmed perfectly. Dived the tower sits 5-10mm out of the water.
          • Not a drop of water was ascertained in the SD.
          • She turned like the real one…..awful, horrendous.
          • At 1/3 of throttle she was sailing realistically (you can see it in the video).
          • The fwd dive planes are a little too small (they are on scale) she dives but only at full throw of the stick and I need to help by trimming the rear dive planes to bring her ass up. Once under water she keeps her depth like a pro.
          • The pitch of the prop is too high, when I make my next prop I need to bring the pitch back gradually toward the blade tip. The rotating moment of the prop is to big now especially when going ahead from ‘dead in the water’. The speed of the sub does not increase from 50% to full, this is also an indication the pitch is to high, the prop needs to be flatter.
          • The magnetic pushrod connectors sometimes disconnect when she sails astern with rudder hard to PS.
          All the a.m. are minor things and probably I will not fix them, most of them are due to the fact that I built her scale wise, and I want to keep her that way.

          Grtz,
          Bart

          Practical wisdom is only to be learned in the school of experience.
          "Samuel Smiles"

          Comment

          • HardRock
            Vice Admiral
            • Mar 2013
            • 1609

            Congratulations Mate. Time to get into that bottle of Champers!

            Comment

            • He Who Shall Not Be Named
              Moderator
              • Aug 2008
              • 12256

              Cheery popped!

              Congratulations.

              David
              Who is John Galt?

              Comment

              • trout
                Admiral
                • Jul 2011
                • 3545

                Well done Captain!
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                Comment

                • bwi 971
                  Captain
                  • Jan 2015
                  • 896

                  Thks guy's means a lot.

                  It's a G&T with submarine Ice cubes

                  Grtz,
                  Bart

                  Click image for larger version

Name:	001.jpg
Views:	100
Size:	264.1 KB
ID:	123286
                  Practical wisdom is only to be learned in the school of experience.
                  "Samuel Smiles"

                  Comment

                  • He Who Shall Not Be Named
                    Moderator
                    • Aug 2008
                    • 12256

                    Originally posted by bwi 971
                    Thks guy's means a lot.

                    It's a G&T with submarine Ice cubes

                    Grtz,
                    Bart

                    Click image for larger version

Name:	001.jpg
Views:	100
Size:	264.1 KB
ID:	123286
                    Have your Wife brush up on her Heimlich-maneuver moves before downing that thing.

                    David
                    Who is John Galt?

                    Comment

                    • Subculture
                      Admiral
                      • Feb 2009
                      • 2119

                      Nice work. I'm surprised the prop is causing you big issues. The pitch looks a bit on the high side for a single screw, but not excessive. Increasing the weight of the boat can help with torque roll to some extent.

                      A good pitch to diameter ratio for single screw subs with large multi-blade props is between 0.5-1. Raboesch scimitar props are around 1:1 and they work very well, but as your boat is a wet hull it may benefit from something even lighter in pitch, e.g. 0.8.

                      Comment

                      • bwi 971
                        Captain
                        • Jan 2015
                        • 896

                        It's not a big issue Andy, it’s just something I must keep in mind when making props in the future. If you have a look @ the pictures of my prop you will see the position of the blade tip is quite far aft. I was expecting it would give quite a strong rotating moment to the sub, no surprise here.

                        Probably I will make a few morevariants to see which one works best.

                        grtz,
                        Bart


                        Practical wisdom is only to be learned in the school of experience.
                        "Samuel Smiles"
