  • CC Clarke
    replied
    This keeps getting better and better!

    The fairing is for the towed array cover, (The array is stored inside a steel tube under the fairing when retracted.) The handling system with winch and hull penetration, (static and dynamic seals) for the tow cable is located under the forward leading edge of the fairing.

    Constructed of fiberglass mounted to a steel frame, the towed array covers' center offset makes it an ideal location to mount the safety track with close hatch access.

    CC

    Leave a comment:


  • JHapprich
    replied
    Looking good! Messy bench? Looks like work beeing done to me!
    i thought you were bulding that hull directly , but now i see this is the master plug under construction, right?

    Jörg

    Leave a comment:


  • SSBN659
    replied
    To add the safety track faring I started with a half inch dowel rod, drew a 3/8" chord for scale and mounted the rod to a jig with hot glue to hold it in place. Then I cut the rod at the bandsaw, shaped the ends and mounted it to the hull with blue tape for a first fit. The forth photo shows the placement was off by about a half inch at the pencil mark so I moved the rod back, re-taped it and drilled pilot holes for nails. The next step will be to secure the rod in place with epoxy and nails. There is a lot more to do but our garage is still a bit cold so the work progresses slowly. Oh, hope you don't mind the messy work bench. It works for me.

    Will Rogers
    SSBN659

    Click image for larger version

Name:	IMG_8422.jpg
Views:	342
Size:	54.6 KB
ID:	169325Click image for larger version

Name:	IMG_8423.jpg
Views:	319
Size:	58.6 KB
ID:	169326Click image for larger version

Name:	IMG_8427.jpg
Views:	327
Size:	64.1 KB
ID:	169327Click image for larger version

Name:	IMG_8428.jpg
Views:	326
Size:	49.8 KB
ID:	169328Click image for larger version

Name:	IMG_8429.jpg
Views:	325
Size:	56.7 KB
ID:	169329

    Leave a comment:


  • SSBN659
    replied
    Oops, don't know how that happened. The links above should have been posts number 47 and 45.

    Will Rogers
    SSBN659

    Leave a comment:


  • SSBN659
    replied
    Thanks again for good information CC. Looking back at post D&E MINIATURES SUPPORT I see Toledo had no inset on the sail so your comment about a one-off makes sense. The pictures you posted above and item 2 on post KMC DESIGNS SUPPORT will help me include them on my model.

    Will Rogers
    SSBN659

    Leave a comment:


  • CC Clarke
    replied
    As a former ST, I can tell you the WLR-12 (9, 12, 17) systems all used the same hydrophone configuration topside and on the keel. Two, small, (high-freq hydrophone fairings) and a larger, low freq hydrophone fairing - normally, only the topside, bow-mounted fairings are ever photographed. The smaller fairing on top of the sail and lower fairing on the bow (Kamehameha shown) are pictured.

    The square panels on the sides of the sail may be one-offs on this flight for another sonar, but they aren't from the 12.

    CC

    Attached Files

    Leave a comment:


  • SSBN659
    replied
    Thanks David, right on.

    Found this in Norman Friedman's U.S. SUBMARINES SINCE 1945.

    "Unlike earlier designs, Los Angeles shows no separate sonar dome for an acoustic intercept receiver, so presumably her WLR-12 arrays are behind windows faired into the sail; for example, some photographs suggest that there is an acoustic window on the after part of the sail."

    I will include this in the sail.

    Will Rogers
    SSBN659

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    sonar window?

    Leave a comment:


  • SSBN659
    replied
    Tucson arriving Pearl Harbor shows same inset on port side.

    Click image for larger version

Name:	Tucson Arrival Pearl Harbor.jpg
Views:	286
Size:	55.4 KB
ID:	168872

    Leave a comment:


  • SSBN659
    replied
    Too cold out in the shop to work on the model so researching details for scribing Tucson sail. Found this photo of Tucson coming alongside Emory Land in the Philippines. Can anyone identify what the 2 areas in red are? The larger area appears to be set in.

    Click image for larger version

Name:	Tucson Sail ?.jpg
Views:	293
Size:	64.5 KB
ID:	168868

    Thanks for any help.

    Will Rogers
    SSBN659

    Leave a comment:


  • SSBN659
    replied
    Scribing the fairing covers for the Vertical Launch System has been a challenge. I haven't done any scribing since the Kilo I did several years back and my eyes aren't as sharp as before. I found some templates I used on my Visitor III and tried them.

    Click image for larger version

Name:	VLS DOOR TEMPLATE ROUND.jpg
Views:	427
Size:	51.1 KB
ID:	168457Click image for larger version

Name:	IMG_8204.jpg
Views:	406
Size:	50.4 KB
ID:	168458

    The problem was they were too round and didn't come close to matching the real thing so I created new templates from Polystyrene Sheet. This one was better in that it was closer to the real thing..

    Click image for larger version

Name:	VLS DOORS.jpg
Views:	401
Size:	52.4 KB
ID:	168459Click image for larger version

Name:	0877044.jpg
Views:	394
Size:	94.0 KB
ID:	168461

    I've tried several times to get it just right but still not there yet. I fill the mistakes with glazing putty, sand, prime and re-scribe.
    Click image for larger version

Name:	IMG_8273.jpg
Views:	404
Size:	44.3 KB
ID:	168462Click image for larger version

Name:	IMG_8357.jpg
Views:	388
Size:	42.1 KB
ID:	168460

    I will eventually get there. Stay tuned.

    Will Rogers
    SSBN659

    Leave a comment:


  • SSBN659
    replied
    Thanks CC for the info.

    I found this photo of hatches on Toledo SSN 769 and wanted to include the detail on my model.

    Click image for larger version

Name:	USS_Toledo_(SSN-769) copy.jpg
Views:	332
Size:	75.5 KB
ID:	168128

    I used a Forstner bit to create a flat indent on the hull for my polystyrene hatch plate. Then masked around the hatch plate and filled in with glazing putty. Next I sanded around the plate to get the contour with the hull. Hopefully this will look close to the real thing once I get the final coat of paint on the model. That will take awhile as I still have a lot of work to do on the hull before getting back to the sail, rudders and planes.

    Click image for larger version

Name:	IMG_8254.jpg
Views:	435
Size:	63.0 KB
ID:	168123Click image for larger version

Name:	IMG_8255.jpg
Views:	413
Size:	41.3 KB
ID:	168124Click image for larger version

Name:	IMG_8256.jpg
Views:	432
Size:	47.6 KB
ID:	168125Click image for larger version

Name:	IMG_8257.jpg
Views:	424
Size:	46.3 KB
ID:	168126
    Happy New Year everyone!

    Will Rogers
    SSBN659
    Attached Files

    Leave a comment:


  • CC Clarke
    replied
    Can't make out any detail of #1, but Forum is the same shape and profile of the Active Emissions Intercept LF hydrophone (also mounted topside on the bow) used from the WLR-9 to at least the WLR-17. A smaller, nearly identical fairing for HF acoustic reception sits on top of the sail, and along the keel. Mounting the pair of dual-acoustic band hydrophones above and below the ship's centerline gave optimal threat coverage against targets below (submarines or skimmers joining them) and surface contacts (nearly always skimmers). Forum has an oval mount projecting from the keel with the hydropone suspended from it. Heavy pigs; I never enjoyed having to remove / install the lower from scaffolding.

    Leave a comment:


  • SSBN659
    replied

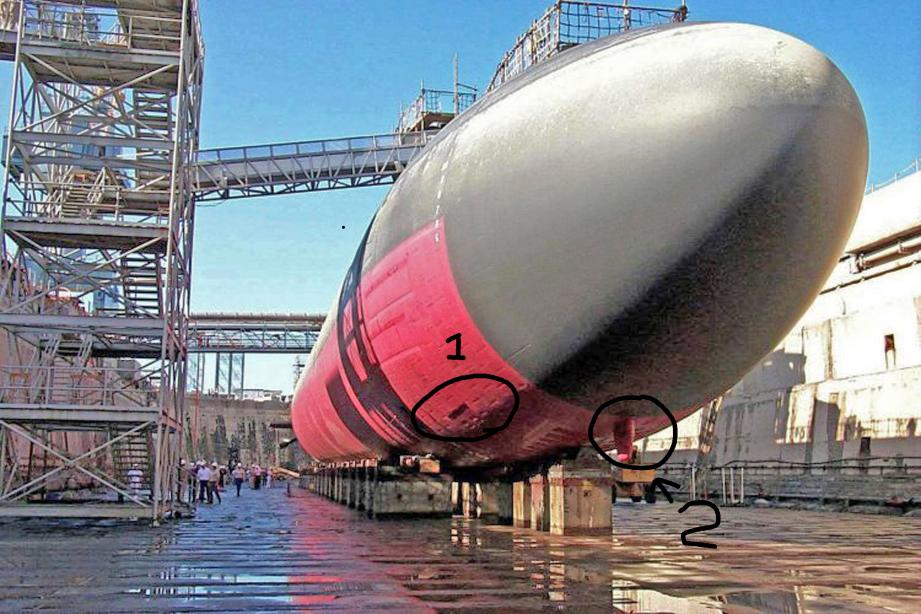

    Too cold to work out in the garage so I've been searching the web and found this shot of the GREENVILLE on dock. These two areas don't show on the drawings I have. What are they?

    Click image for larger version

Name:	0877202.jpg
Views:	241
Size:	106.3 KB
ID:	167839

    Will Rogers
    SSBN659

    Leave a comment:


  • SubICman
    replied
    They are indeed on both sides.

    Leave a comment:
