  • goshawk823
    Lieutenant Commander
    • Oct 2010
    • 211

    That’s an awesome piece of work for that assembly.

    Comment

    • DrSchmidt
      Captain
      • Apr 2014
      • 922

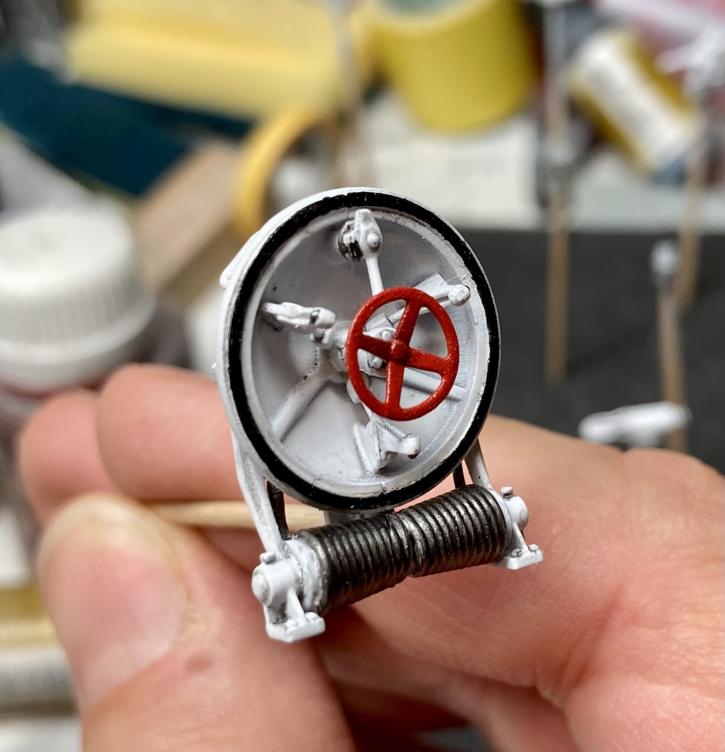

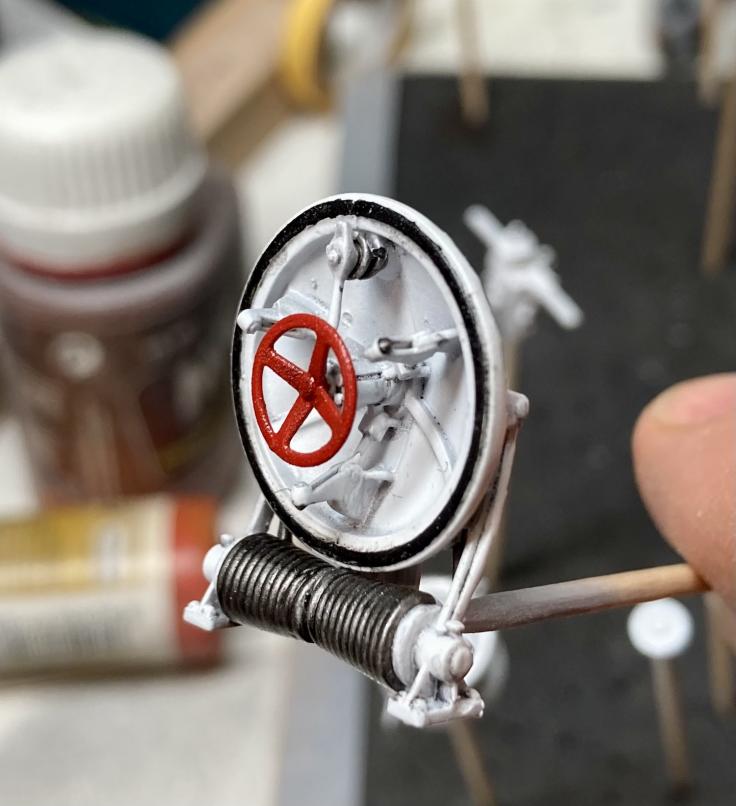

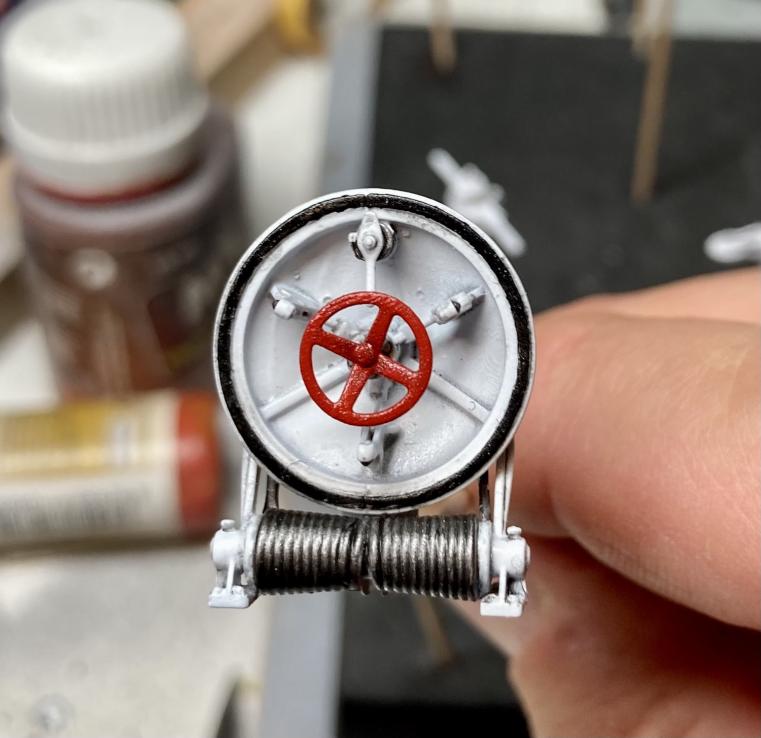

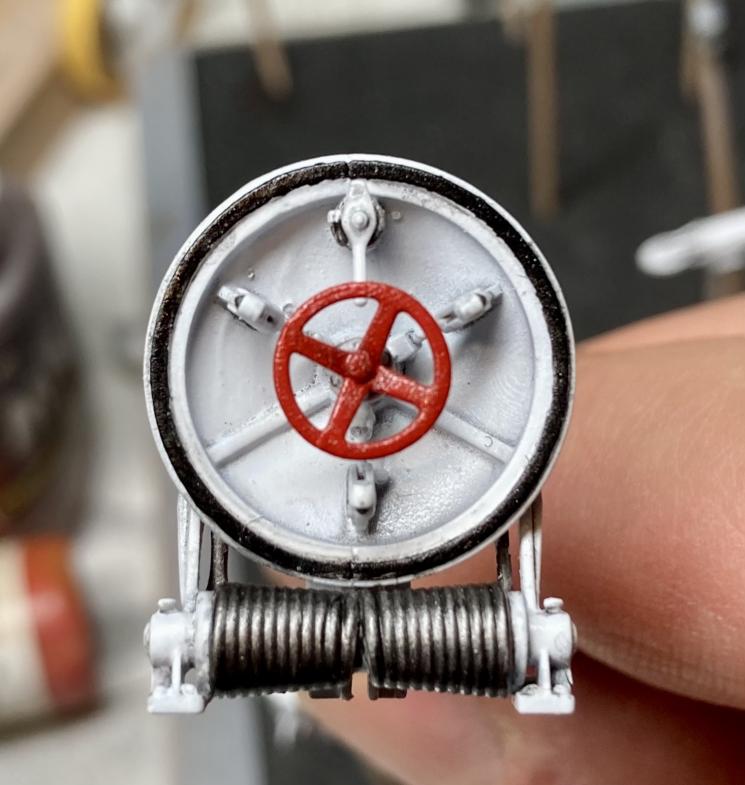

      Put some work into the conning tower. I'm very happy how the hatch turned out. The springs, mechanics and seal, all there like in the CAD model. Looks very good...

      Click image for larger version

Name:	XXIII-324.jpg
Views:	344
Size:	53.4 KB
ID:	169043

      Click image for larger version

Name:	XXIII-325.jpg
Views:	342
Size:	61.1 KB
ID:	169044

      Click image for larger version

Name:	XXIII-326.jpg
Views:	344
Size:	54.4 KB
ID:	169045

      Click image for larger version

Name:	XXIII-327.jpg
Views:	345
Size:	53.5 KB
ID:	169046

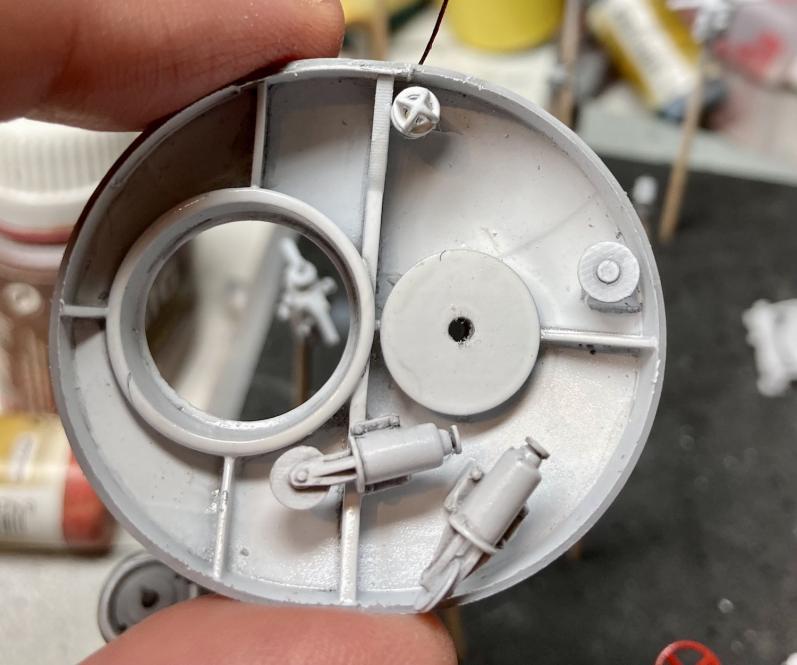

      The roof of the preesure hull of the conning tower got the rollers and tightening mechanism of the cable pulley for raising and lowering the periscope. Also the light is in place.

      Click image for larger version

Name:	XXIII-328.jpg
Views:	340
Size:	54.3 KB
ID:	169047

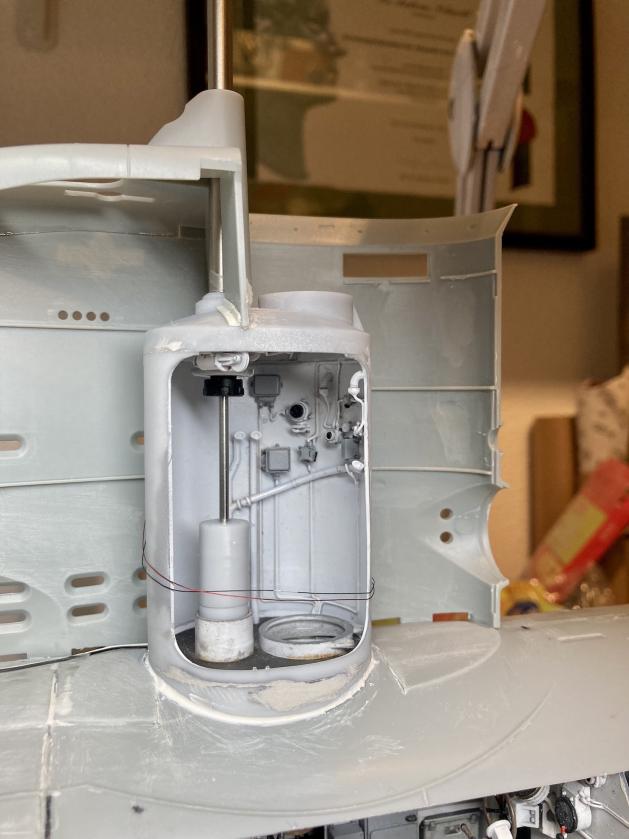

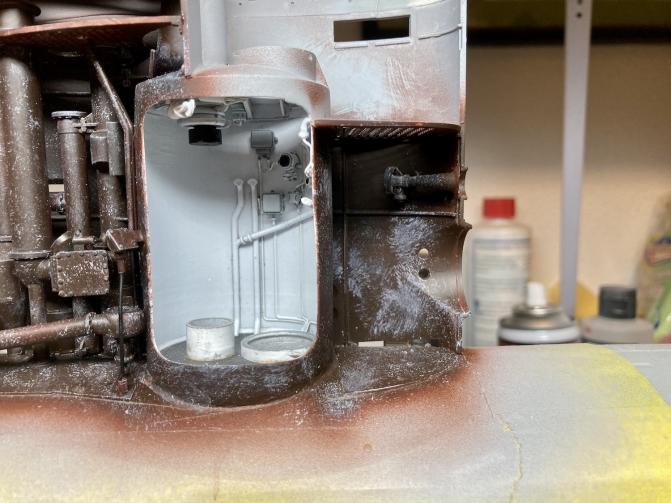

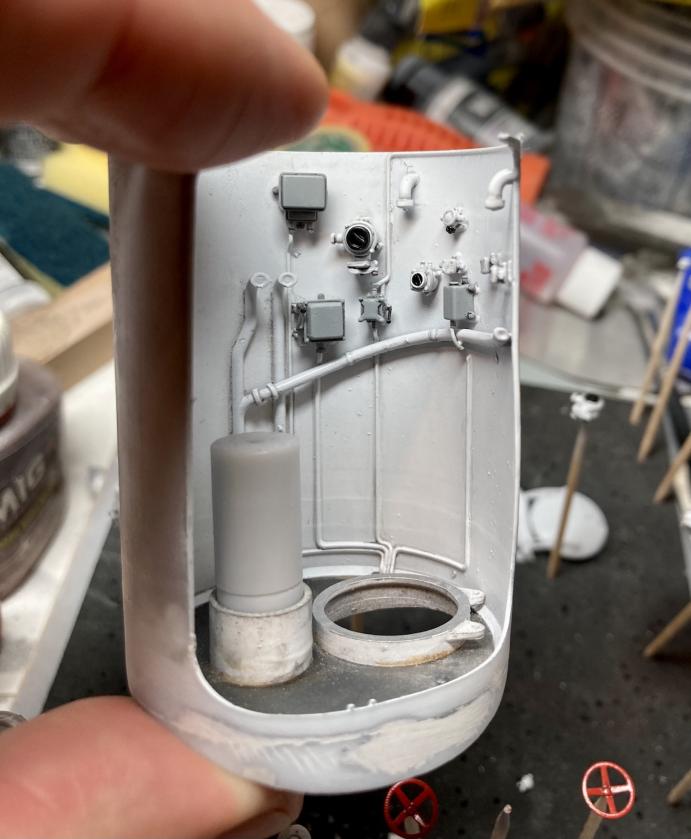

      The conning tower itself got its switches, sockets and boxes. The cabeling was done with 0,2 mm diameter soldering wire.

      Click image for larger version

Name:	XXIII-329.jpg
Views:	350
Size:	57.5 KB
ID:	169048

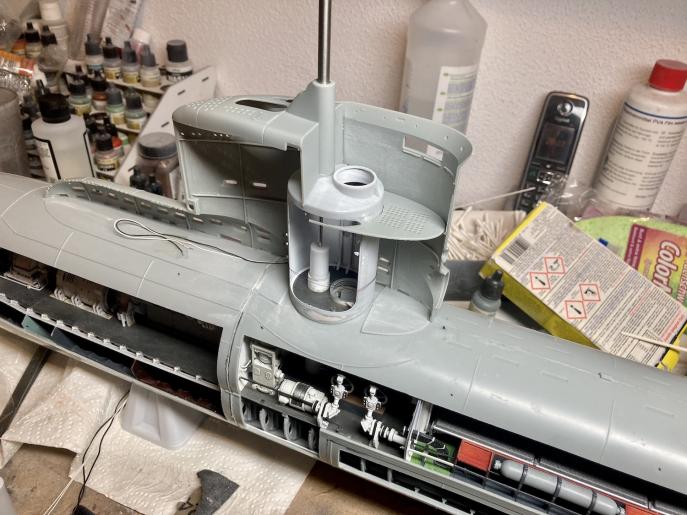

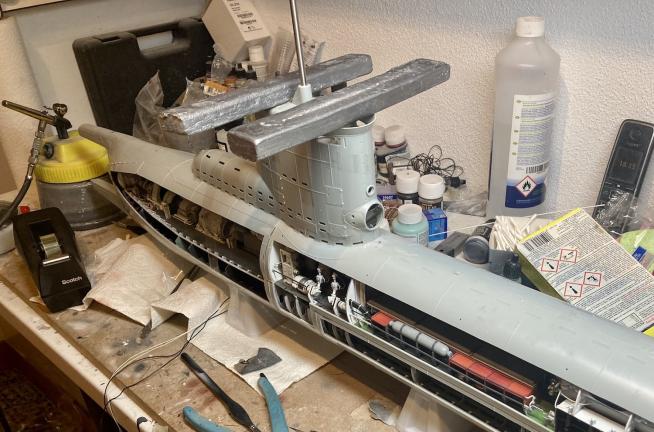

      Allot of thought went into the alignment of pressure hull, the hull of the kit, the conning tower and the sail of the kit. I decided to use the periscope as the centering point. The periscope shaft of the pressure hull was aligned with the respective hole in the hull of the kit. The periscope shaft of the pressure hull got a 3 mm diameter center hole. In inserted a removable plug into the periscope shaft of the conning tower. This plug has a 3 mm pin that slots into the shaft of the pressure hull. This the kit, the pressure hull and the conning tower are aligned. The top of the plug in the conning tower has a 2 mm diameter center hole in which I inserted a 2 mm rod that I used to align the roof of the conning tower to its floor. Onto the 2 mm rod I plugged a 5 mm diameter steel tube (the periscope) that I then used to align the sail of the kit. This way, everything is perfectly aligned. In a first step I then glued the pressure hull of the conning tower to the hull of the kit. In the second step I taped the halves of the sail together and glued the starboard half to the hull. After the glue had set I removed the port side of the sail and happy me....everything is in the right place and easily accessible for the installation of the masts.

      Click image for larger version

Name:	XXIII-330.jpg
Views:	348
Size:	58.2 KB
ID:	169049

      Click image for larger version

Name:	XXIII-331.jpg
Views:	343
Size:	64.2 KB
ID:	169050

      Click image for larger version

Name:	XXIII-332.jpg
Views:	329
Size:	53.0 KB
ID:	169051

      Comment

      • rwtdiver
        Vice Admiral
        • Feb 2019
        • 1793

        Hi Andreas,

        Are you using mostly water base acrylics for your detail work?

        Rob
        "Firemen can stand the heat."

        Comment

        • DrSchmidt
          Captain
          • Apr 2014
          • 922

          Yes, I exclusively use Vallejo colors (Model Air), Pigments and Washes. For filters I used to use oil-based products, but switched to thinned-down washes instead. The only oil based product I still use is light and heavy rust by AMMO MIG.

          Comment

          • DrSchmidt
            Captain
            • Apr 2014
            • 922

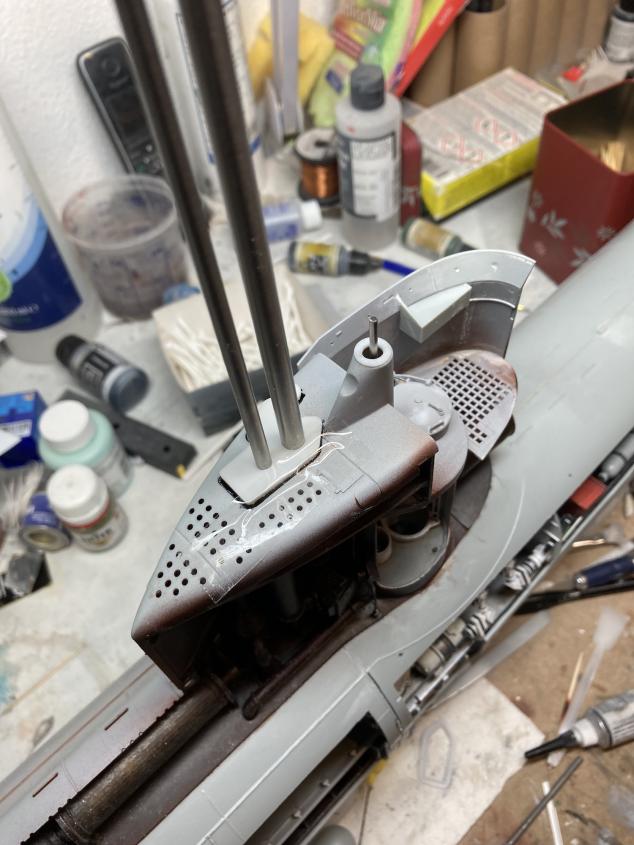

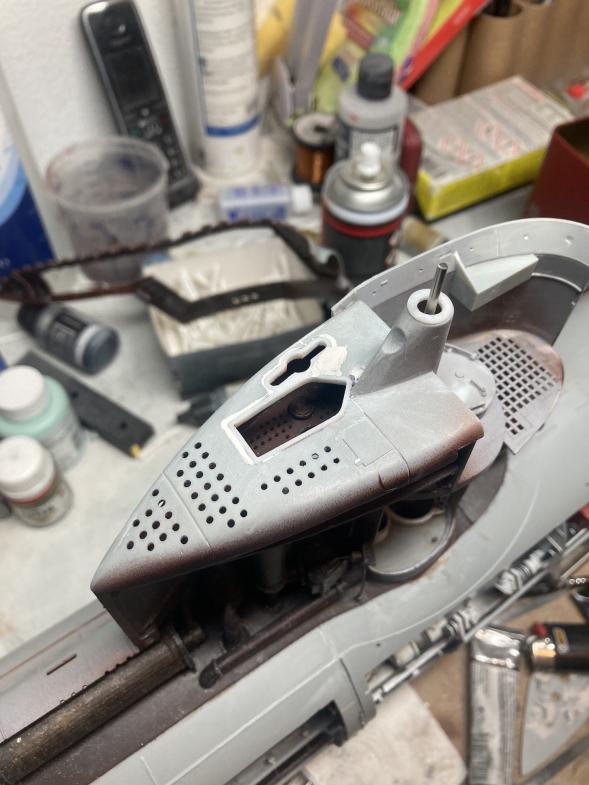

            Again a little update about the sail....allot of work has to be done integrating parts that were designed using original plans, into the sail parts of a plastic kit. So allot of measuring an adjusting had to be done. Here's the first test fitting of the masts (incoming air, outgoing air and the snorkel masts). The intermediate deck in the aft section of the sail behind the conning tower is at the wrong height in the kit, and it looks not right. So I scanned the contour of the deck and designed and printed a new and better looking one. Slowly it looks like this could work...

            Click image for larger version

Name:	XXIII-333.jpg
Views:	309
Size:	60.1 KB
ID:	169221

            Comment

            • DrSchmidt
              Captain
              • Apr 2014
              • 922

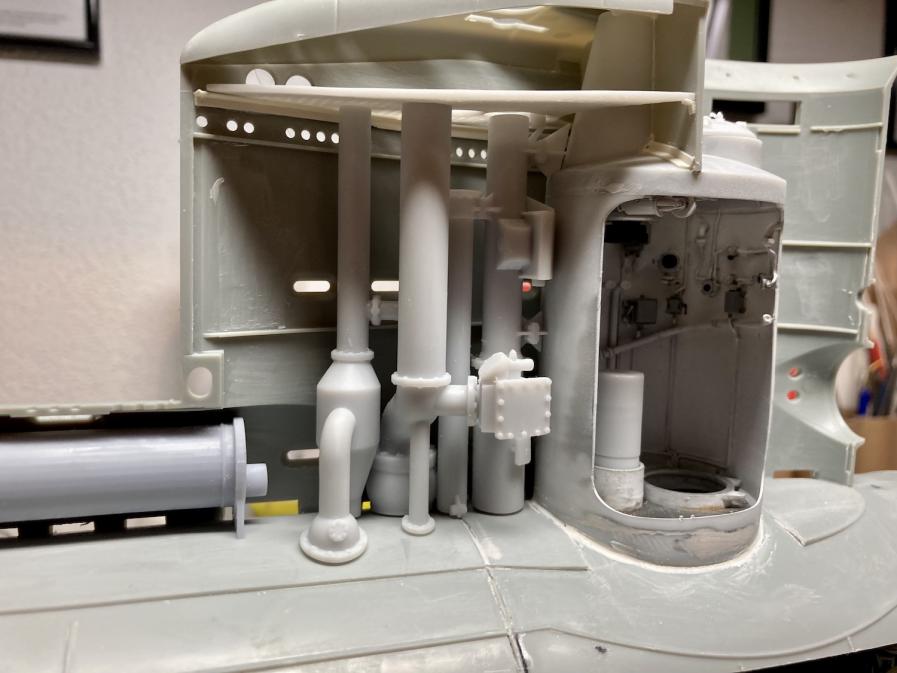

              I made some progress with the interior of the sail...the masts are in place. From left to right: exhaust air mast, air intake mast, snorkel exhaust air mast and snorkel air intake mast. Hidden behind the back, of the snorkel intake is the direction finder mast. The diagonal tube in front of the masts is the vent line for the center ballast tanks with the vent valve. The brass rod in the back is the drive shaft of the gearbox that raises the snorkel. The front brass rods are the drive shafts of the valve connecting the snorkel intake to the intake mast. The two vertical tubes that reach to the intermediate deck in the sail are the fuel oil line and the respective vent line. Behind the masts is the exhaust muffler....yet to be placed.

              Click image for larger version

Name:	XXIII-334.jpg
Views:	281
Size:	53.5 KB
ID:	169259

              Click image for larger version

Name:	XXIII-335.jpg
Views:	271
Size:	54.9 KB
ID:	169260



              Comment

              • DrSchmidt
                Captain
                • Apr 2014
                • 922

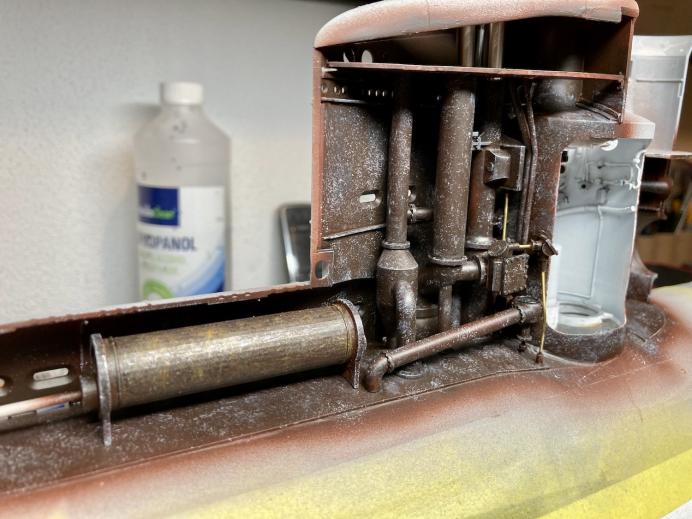

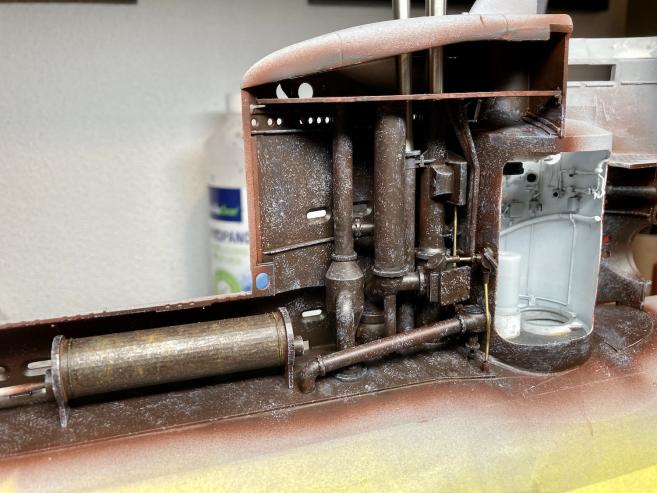

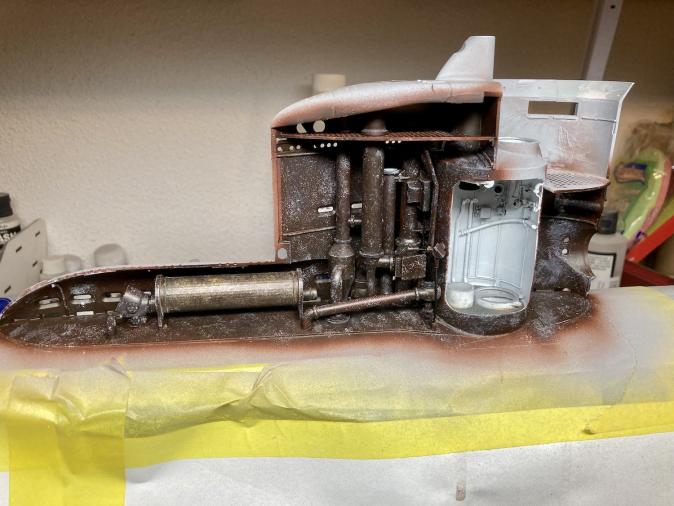

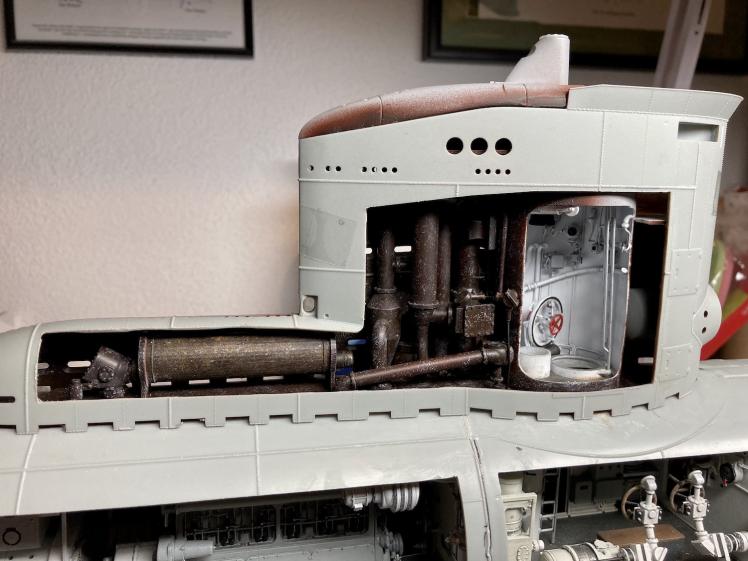

                More progress: All the mast are now in place, including the head valves of the air intake and exhaust on the upper deck. I also installed the Diesel head valve, the muffler and the exhaust....in front of the conning tower the klaxon has found its place. The klaxon had been installed diagonally which necessitated a quite demanding form of the horn. I guess they knew what they were doing. But the thing that makes me the happiest is a package that arrived from the USA, sent by the one himself! The prop of the kit is a crude piece of plastic and I'm very happy that I'll be able to replace it with a cast one made by Mr. Merriman himself. No compromises on this build.

                Click image for larger version

Name:	XXIII-336.jpg
Views:	271
Size:	48.5 KB
ID:	169358

                Click image for larger version

Name:	XXIII-337.jpg
Views:	269
Size:	52.2 KB
ID:	169359

                Click image for larger version

Name:	XXIII-338.jpg
Views:	269
Size:	52.3 KB
ID:	169360Click image for larger version

Name:	XXIII-339.jpg
Views:	272
Size:	50.9 KB
ID:	169361

                Comment

                • MFR1964
                  Detail Nut of the First Order
                  • Sep 2010
                  • 1304

                  Outstanding work Herr Doctor, as you allready probably know, keep the prop steel like the original one.

                  Manfred.
                  I went underground

                  Comment

                  • DrSchmidt
                    Captain
                    • Apr 2014
                    • 922

                    Thanks for the reminder....I read about the steel prop but most probably I would have forgotten about it when the time of installation comes.

                    Comment

                    • DrSchmidt
                      Captain
                      • Apr 2014
                      • 922

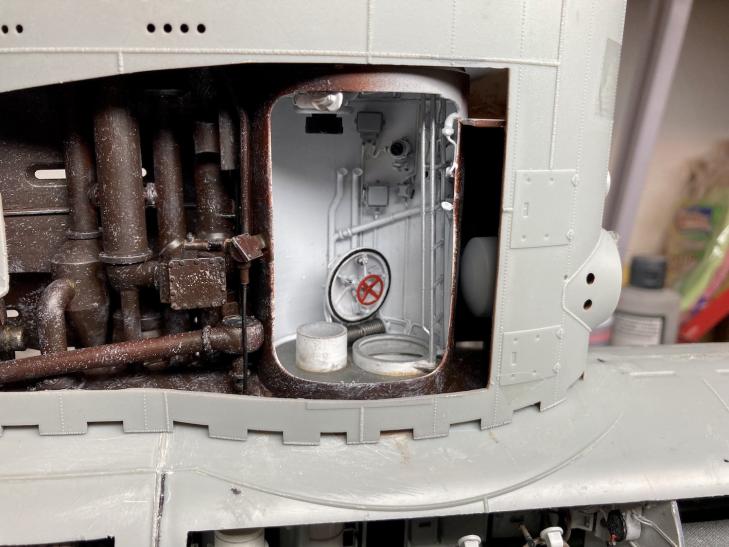

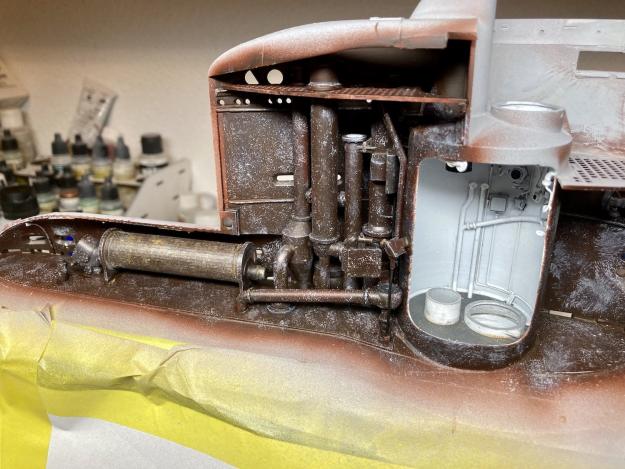

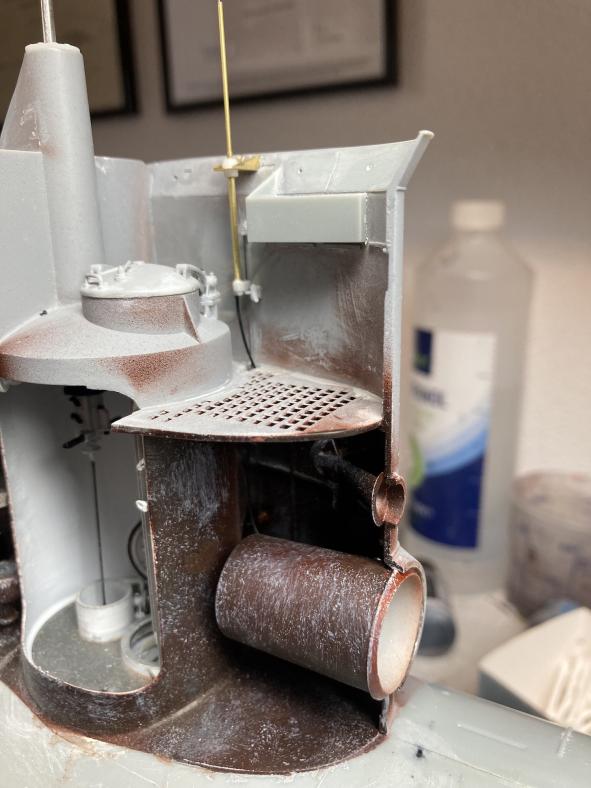

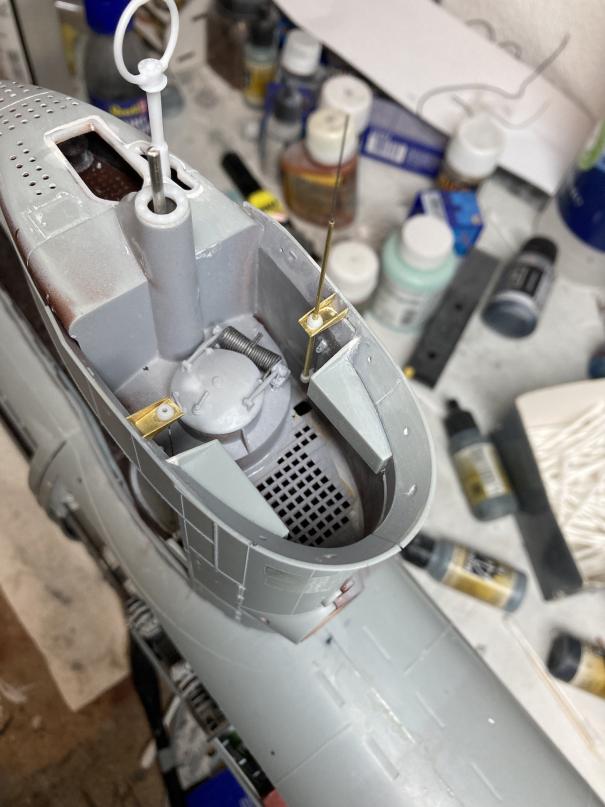

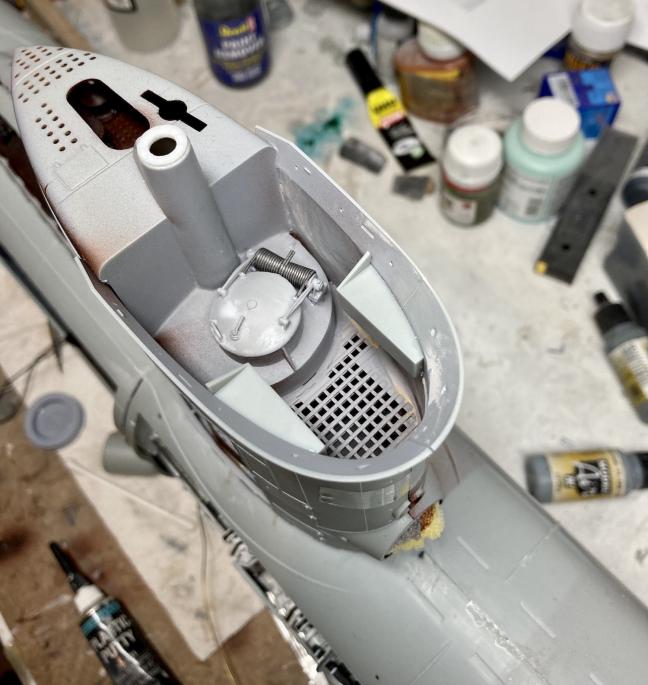

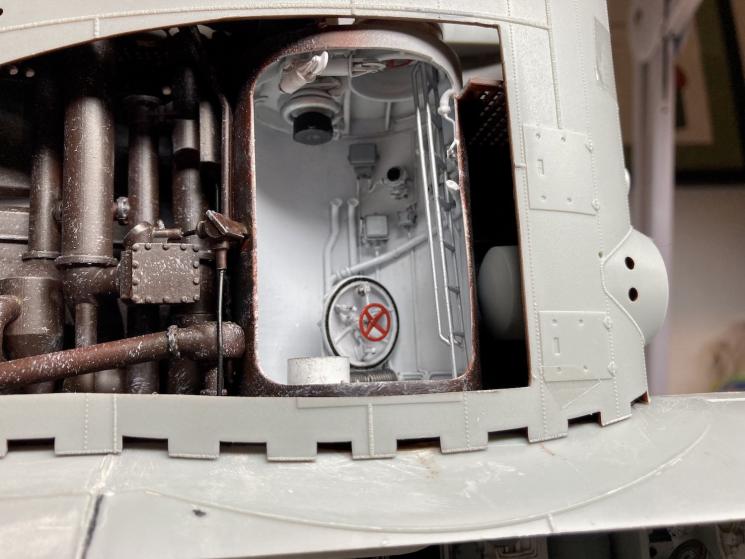

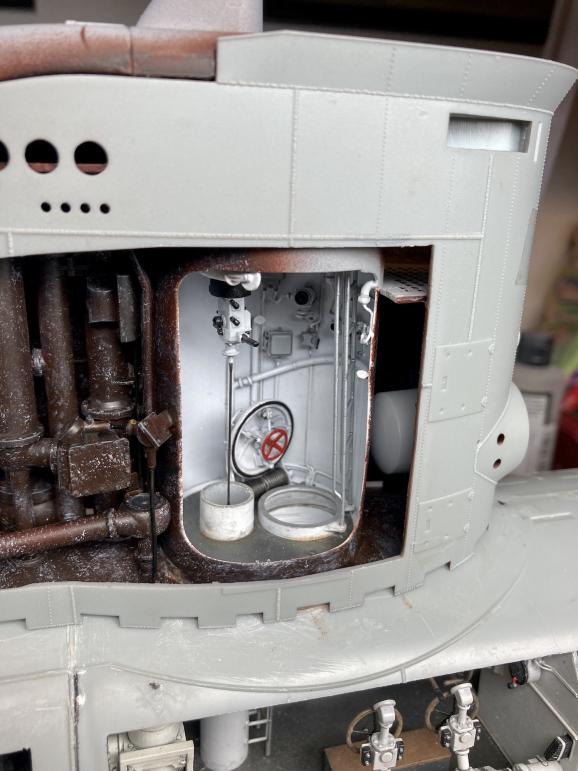

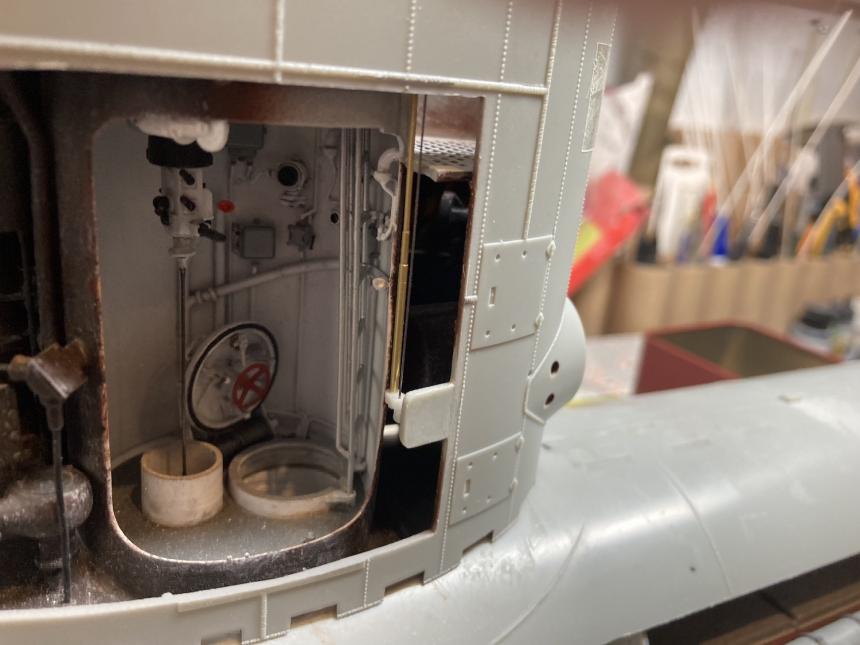

                      On with the conning tower...I installed the hatch to the control room and the ladder to the bridge. Quite crammed in that barrel...also the hatch to the bridge is in place. With the starboard side of the sail secured with scotch tape it already looks like something.

                      Click image for larger version  Name:	XXIII-340.jpg Views:	2 Size:	56.3 KB ID:	169568

                      Click image for larger version  Name:	XXIII-341.jpg Views:	2 Size:	54.4 KB ID:	169569Click image for larger version  Name:	XXIII-342.jpg Views:	2 Size:	54.1 KB ID:	169570

                      Click image for larger version

Name:	XXIII-343.jpg
Views:	259
Size:	57.8 KB
ID:	169571

                      Comment

                      • DrSchmidt
                        Captain
                        • Apr 2014
                        • 922

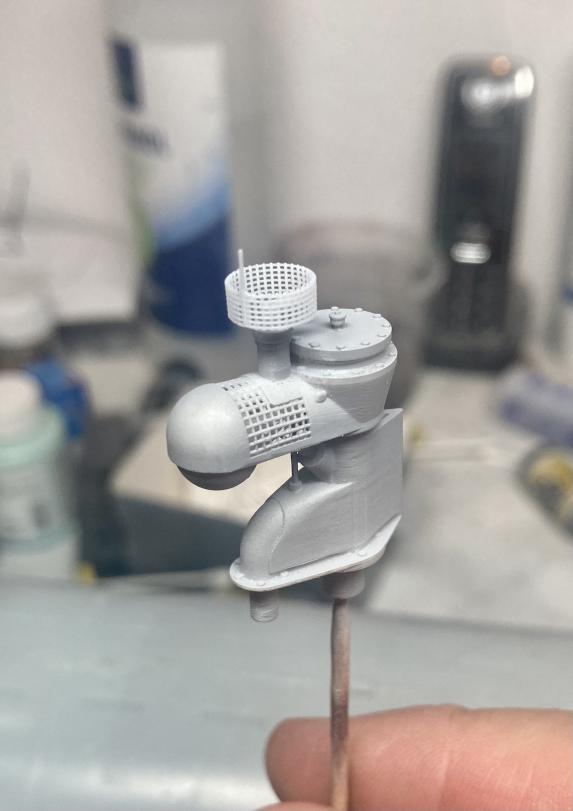

                        The CAD model and the print of the snorkel head are ready as well. This is about the limit what my printer is able to pull off...the gratings have 0,3 mm diameter. The head was printed in 4 pieces and glued together....

                        Click image for larger version

Name:	XXIII-344.jpg
Views:	250
Size:	32.9 KB
ID:	169632

                        Click image for larger version

Name:	XXIII-345.jpg
Views:	237
Size:	31.7 KB
ID:	169633

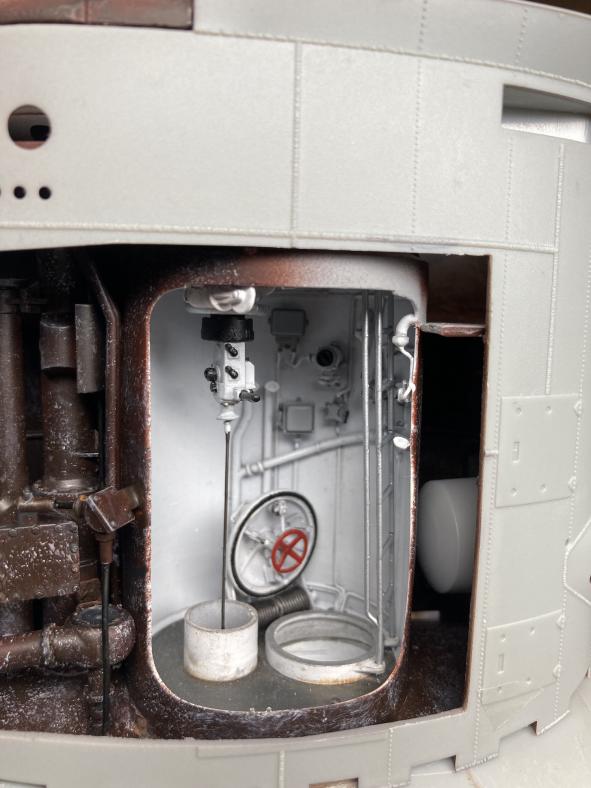

                        The ocular box of the periscope and the respective pull-down wire have also found their place. The periscope is a quite complicated affair. On top the shaft seal with the deflection pulleys for the raising and lowering of the periscope. Below the compass rose with the circular light, The picture of the rose is picked up by a prism on the backside of the ocular box and projected into the field of vision of the operator. Blow that is the pulley ring that is attached to the wires of the pulley mechanism. Finally the ocular box....

                        Click image for larger version

Name:	XXIII-346.jpg
Views:	238
Size:	58.8 KB
ID:	169634

                        Click image for larger version

Name:	XXIII-347.jpg
Views:	247
Size:	60.8 KB
ID:	169635

                        Click image for larger version

Name:	XXIII-348.jpg
Views:	248
Size:	55.0 KB
ID:	169636

                        Comment

                        • DrSchmidt
                          Captain
                          • Apr 2014
                          • 922

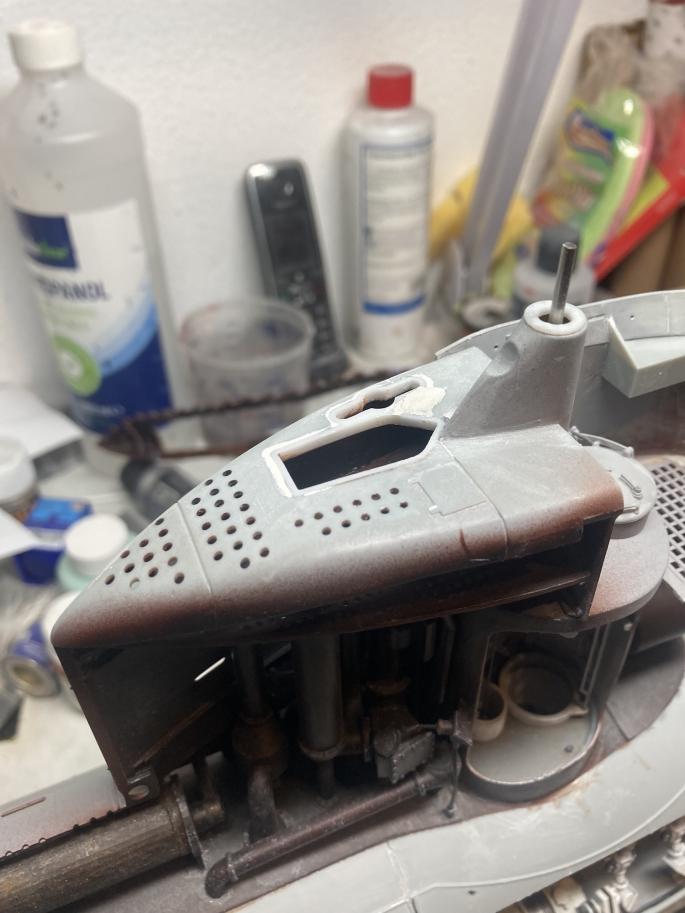

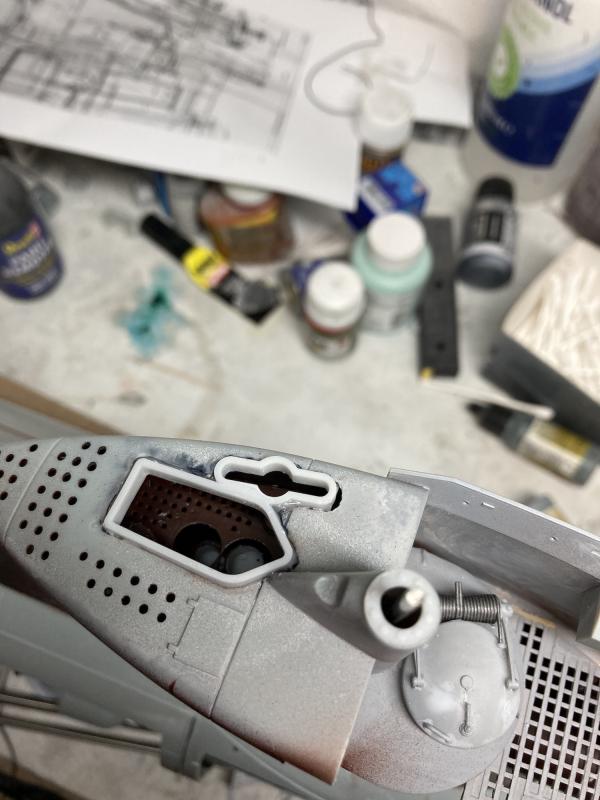

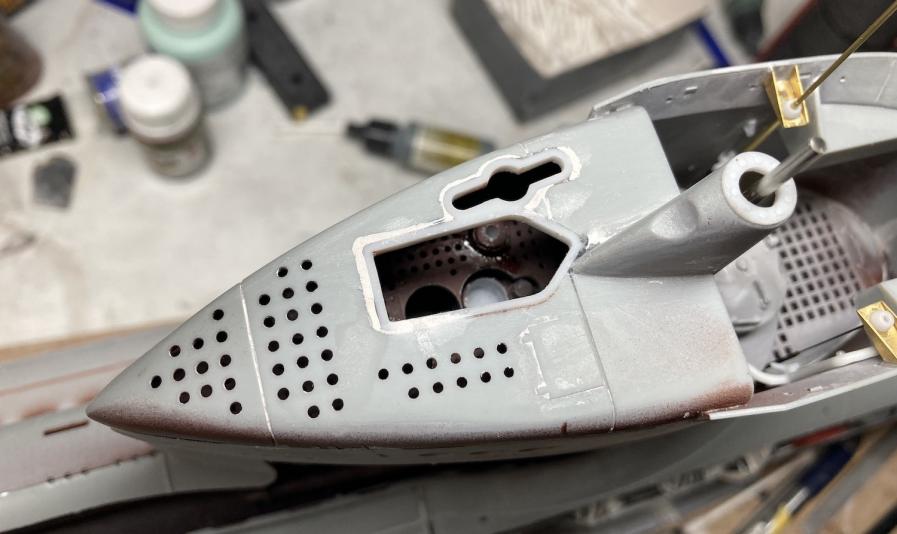

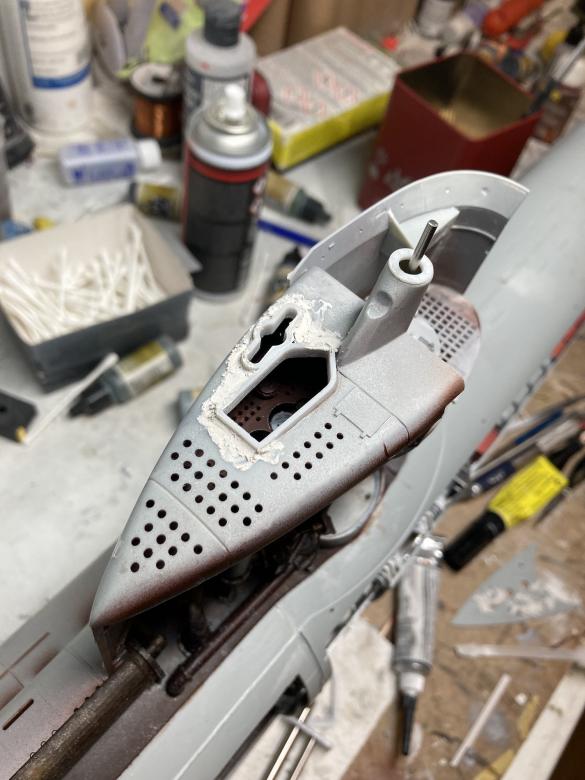

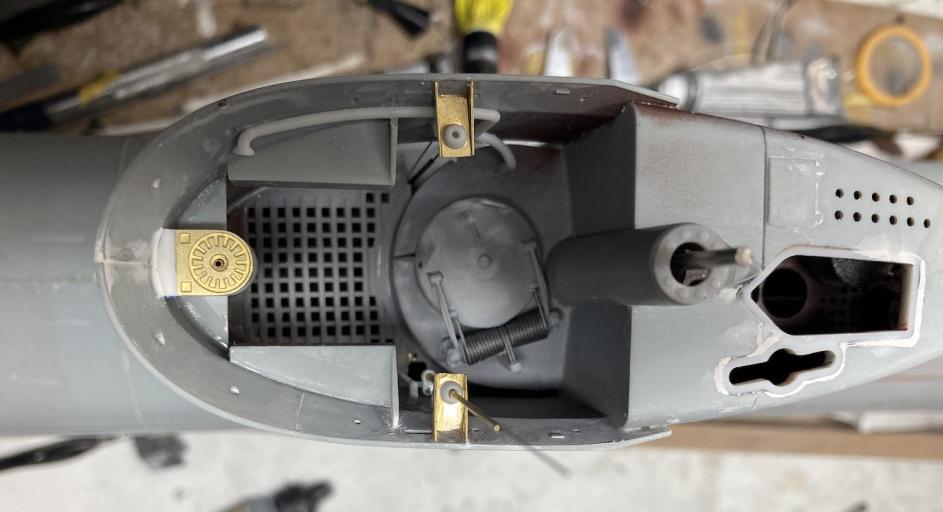

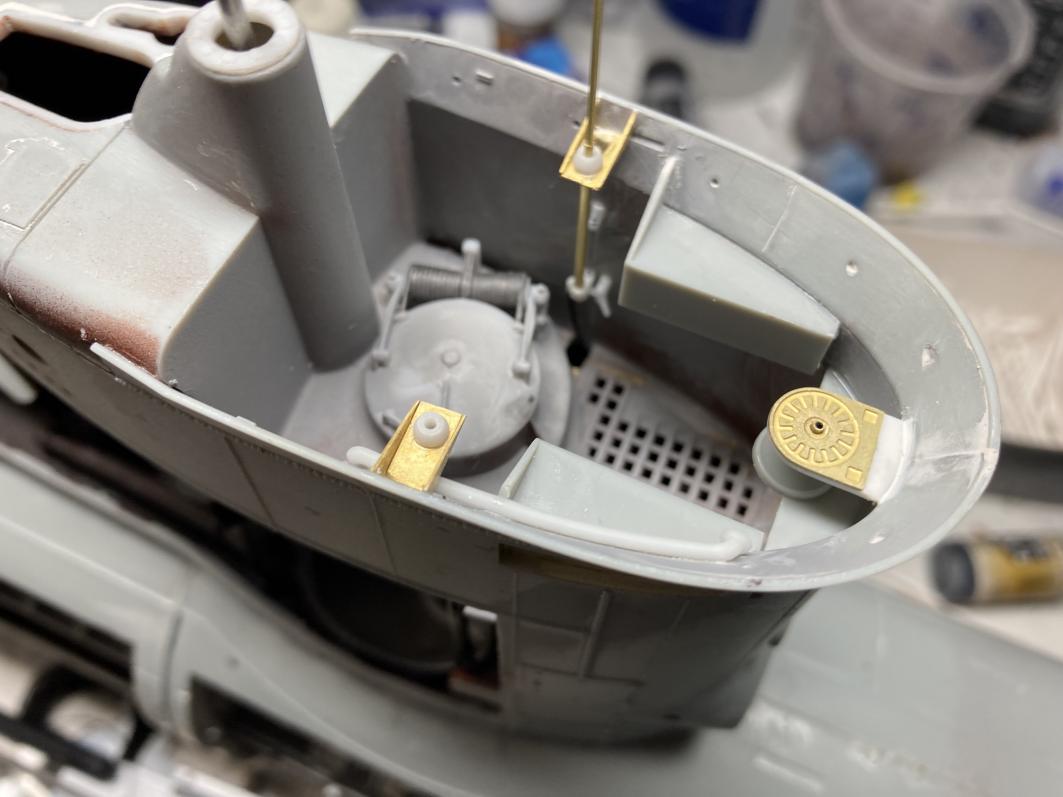

                          What kept me occupied over the last week was the openings for snorkel and direction finder antennae in the roof of the sail. Position, size, shape and orientation are all slightly wrong in the kit. So I designed the correct openings in the CAD and in a first step printed a mask, that I could position on the roof of the sail quite exactly using the masts of the snorkel (6 & 5 mm steel tubes). I copied the contour and adjusted the openings to match the contour. Then I printed a frame with the correct shape and orientation of the openings ad glued it into the adjusted hole from below (won't be visible later on). Filled the gap with putty, filed everything flush with the top side of the roof, et voila....

                          Click image for larger version

Name:	XXIII-349.jpg
Views:	217
Size:	69.8 KB
ID:	169719Click image for larger version

Name:	XXIII-350.jpg
Views:	226
Size:	57.1 KB
ID:	169720

                          Click image for larger version

Name:	XXIII-351.jpg
Views:	219
Size:	60.3 KB
ID:	169721

                          Click image for larger version

Name:	XXIII-353.jpg
Views:	220
Size:	61.7 KB
ID:	169723
                          Attached Files

                          Comment

                          • redboat219
                            Admiral
                            • Dec 2008
                            • 2749

                            Originally posted by DrSchmidt
                            The CAD model and the print of the snorkel head are ready as well. This is about the limit what my printer is able to pull off...the gratings have 0,3 mm diameter. The head was printed in 4 pieces and glued together....

                            Click image for larger version  Name:	XXIII-344.jpg Views:	35 Size:	32.9 KB ID:	169632

                            Click image for larger version  Name:	XXIII-345.jpg Views:	34 Size:	31.7 KB ID:	169633

                            Would it be possible to 3D print a working scale snorkel head valve for use in a snort system?
                            Last edited by redboat219; 02-17-2023, 04:31 AM.
                            Make it simple, make strong, make it work!

                            Comment

                            • DrSchmidt
                              Captain
                              • Apr 2014
                              • 922

                              I don't thik so....moving snorkel ball yes, that'd be pssible, but functional in a ballast system...no. The buoyancywould be too small

                              Comment

                              • DrSchmidt
                                Captain
                                • Apr 2014
                                • 922

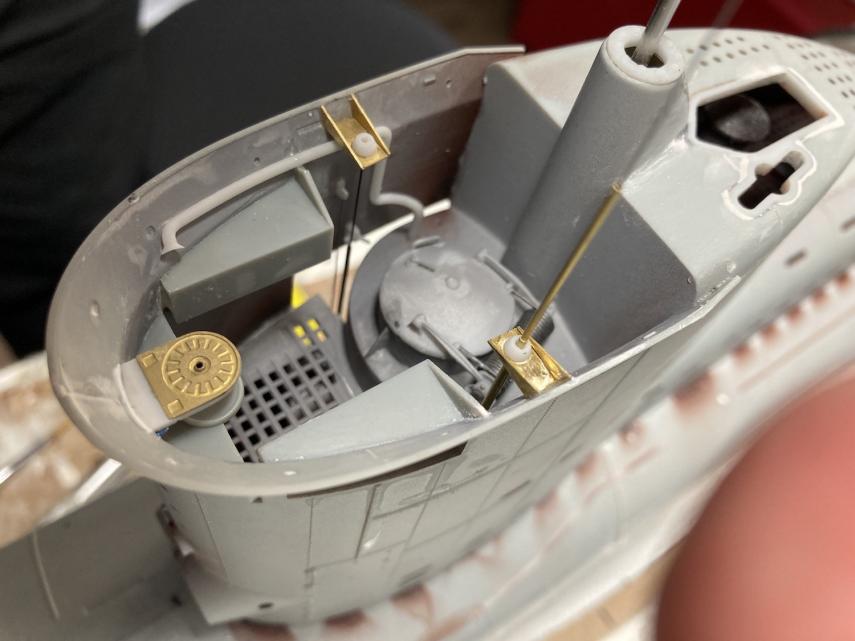

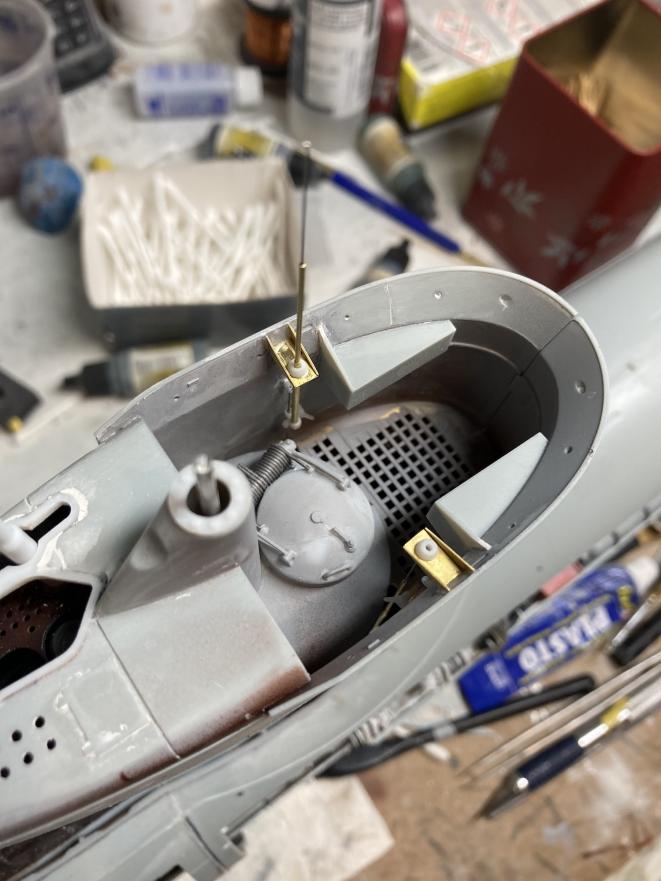

                                I went on with the rod antennas, that I haven't seen recreated correctly on a model. The antennas were manually raised and lowered. For that there were guide rods left and right of the conning tower that reached from the bridge through the bridge deck down into the sail. The antennas had bases that glided on the the guide rods and that contained the connections to the antenna cables. The antennas themselves were clad in rubber to provide better grip for manually hauling them up and down. Once raised, the were secured using simple turnbuckles. I made tha antennas from 0,3 mm diameter spring steel over which I put pieces of thin-walled brass tubes of 0,8 mm, 1 mm, and 1,2 mm diameter. Antenna bases, turnbuckles, and the supports for the guide rods were 3d-printed. The antenna cables were made using 0,8 m diameter wire. I displayed one antenna retracted and one raised. The top of the antennas were guided through welded steel supports. I made those of PE parts by rcsubs and 3d-printed insets. After that I glued the starboard halve of the sail to the assembly, added the support for the UZO and the speaking tube, that protruded from the roof of the conning tower. Now filling & sanding....

                                Click image for larger version

Name:	XXIII-354.jpg
Views:	201
Size:	55.3 KB
ID:	169842

                                Click image for larger version

Name:	XXIII-355.jpg
Views:	199
Size:	54.8 KB
ID:	169843

                                Click image for larger version

Name:	XXIII-356.jpg
Views:	196
Size:	66.6 KB
ID:	169844

                                Click image for larger version

Name:	XXIII-357.jpg
Views:	203
Size:	59.1 KB
ID:	169845

                                Click image for larger version

Name:	XXIII-358.jpg
Views:	197
Size:	69.0 KB
ID:	169846

                                Click image for larger version

Name:	XXIII-359.jpg
Views:	199
Size:	52.3 KB
ID:	169847

                                Click image for larger version

Name:	XXIII-360.jpg
Views:	199
Size:	51.2 KB
ID:	169848Click image for larger version

Name:	XXIII-361.jpg
Views:	199
Size:	53.4 KB
ID:	169849

                                Comment
