Moebius Skipjack

[Ken_NJ]

Hey Ken,
Consider using a plastic Sullivan type flex control rod Keep the box slide but shorten it way up... just big enough the keep the triangle plate ridged-the nyrod will flex plenty to account for the arc of the control arm (no need for the spring loaded telescoping arm)-you'd still have to use an idler to change your travels and mechanical advantage-but you have that already. Brass on brass doesn't play well together If you want to keep existing design-try brass and stainless steel-

I can't shorten the sq rail slide. That rail needs to travel 1-3/16 and it has an internal adjustment to line up the upper and lower hulls (see previous pics). It needs some support. Opening 4 doors in hull halves that need to come apart is challenging. Was going to use that flex rod between the servo and this door mechanism along the top of the SD. Will think about how to do what you describe. Guess I need to minimize the amount of brass contact.

Challenging is good = makes you think = keeps that brain functioning

[Ken_NJ]

Use a knee-lever or Install the pivot further sternwards, the lever must not exceed movement sternwards of the pivot. Better use round rod and tubing, the squares will cause microfriction at the edges. That spring increases friction. Better install the bearings of the pivot rod up- and downwards at its end's and the levers in between to avoid bending. Do not apply grease, the mechanism should run well dry.grease will cause the parts to stick, i believe.

Some math... the servo travel is 3/4. The rail needs to travel 1-3/16 in order for the doors to open. So the telescoping sq tube is giving me the multiplication factor. Also, the nylon pivot is high in the hull since the push rod from the servo is coming off of the topmost part of the SD. Can't be routing push rods all over the place.

You are saying to move the pivot point aft so that the pivot point is 90 degrees to the rearmost point of the rail travel. Then when the rail moves forward to close the doors, wouldn't there be more 'friction' to get the pivot arm to move aft since the sq tube lever has now extended out even further than I have it now. I was looking to keep the telescoping sq tube the minimum amount of extension by putting it in the middle.

And go to round with no grease.

[Bob Gato]

Hey Ken,
Consider using a plastic Sullivan type flex control rod Keep the box slide but shorten it way up... just big enough the keep the triangle plate ridged-the nyrod will flex plenty to account for the arc of the control arm (no need for the spring loaded telescoping arm)-you'd still have to use an idler to change your travels and mechanical advantage-but you have that already. Brass on brass doesn't play well together If you want to keep existing design-try brass and stainless steel-

[JHapprich]

Use a knee-lever or Install the pivot further sternwards, the lever must not exceed movement sternwards of the pivot. Better use round rod and tubing, the squares will cause microfriction at the edges. That spring increases friction. Better install the bearings of the pivot rod up- and downwards at its end's and the levers in between to avoid bending. Do not apply grease, the mechanism should run well dry.grease will cause the parts to stick, i believe.

[Ken_NJ]

Here's the problem. And I thought I would have a problem at this point. Everything moves smoothly by themselves. I added Teflon grease on all moving parts. When the pin is at either end of travel, there is enough friction that prevents the rail from moving easily. It's all a combination of the pin moving the rail. I tried adding a spring, it helps a little but not enough. Any ideas to overcome this issue?



One spring helps a tiny bit. Maybe add another spring at the arrow?



Need some mechanically minded minds on this. I'm beginning to think I need to come up with another push pull mechanism.

[Ken_NJ]

Here's the problem. And I thought I would have a problem at this point. Everything moves smoothly by themselves. I added Teflon grease on all moving parts. When the pin is at either end of travel, there is enough friction that prevents the rail from moving easily. It's all a combination of the pin moving the rail. I tried adding a spring, it helps a little but not enough. Any ideas to overcome this issue?



One spring helps a tiny bit. Maybe add another spring at the arrow?


Need some mechanically minded minds on this. I'm beginning to think I need to come up with another push pull mechanism. Where Manfred? I know he has done many things like this.

[Ken_NJ]

This is the makeup of the main rail. It has a 1-72 rod between them with a lock nut. Rotating the rail to the right allows alignment between the holes for the next mechanism.





The pins on this mechanism join into the holes on the main rail. The larger rod is for the bell crank from the servo. The square tubes allow the one to slide in and out of the other.


The idea is as the servo pushes or pulls the nylon arm, it moves the pins which control the position on the main rail opening the doors. The arrow points to a hole which can be used if I need to fine tune the alignment between the upper and lower rails. Doors are in the closed position here.


Doors in the opening position.


Closed position from looking aft. This is the upper hull which is upside down. The nylon arm will connection from a servo.


Hull halves together right side up. You can see how the pins slip into the top and bottom rails. This allows me to have the upper and lower parts of the hull separate to service all this stuff. Doors closed.


Doors open

[Ken_NJ]

Been working on the torpedo door opening mechanism the last 2 weeks! Lots of plastic and brass shaping and soldering. I'll eventually have a more in depth process on my web site when I can get to it. To spare you those details here's the 'finished product'. Well almost, will get to the almost later. This is a multi-part post. You can see as the main rail is pulled back the doors open. There are holes at the back of the main rail which attached to another mechanism that pulls and pushes that main rail. The rods coming off the Du-Bro connectors allow adjustments to be made to each individual door.

Top hull is the upper one.



This is the upper hull.


This is the upper hull.


This is the lower hull.


This is the lower hull.

[trout]

Yes, put hole for pin.
That is what I did.

[Ken_NJ]

I have the shock absorber permanently mounted in place. Would required much ripping things apart to get it out. Guess a small hole for the pin is the only option.

[He Who Shall Not Be Named]

Problem. The instructions say use a 8-1/4 inch tube to make the shaft. That size tube causes the end of the SD to fall between the studs in the lower hull. So I need to extend the length of the tube by about 7/16" like Tom did. That moves the SD up before the studs.



Whatever the shaft length is to move the SD, the post from the shock absorber falls between the drain holes in the ballast tank. What to do here? Drill a hole in the SD to accommodate the shock absorber post? There is no mention in the instructions about this. What have others done?

Move the shock absorber as required and drill a new hole for the indexing pin.

David

[Ken_NJ]

Problem. The instructions say use a 8-1/4 inch tube to make the shaft. That size tube causes the end of the SD to fall between the studs in the lower hull. So I need to extend the length of the tube by about 7/16" like Tom did. That moves the SD up before the studs.



Whatever the shaft length is to move the SD, the post from the shock absorber falls between the drain holes in the ballast tank. What to do here? Drill a hole in the SD to accommodate the shock absorber post? There is no mention in the instructions about this. What have others done?

[Ken_NJ]

Since I'll have a mechanism to open the torpedo doors, it may need service at some point. I added these ribs to the upper section and two to the lower section. They will be tapped for 1-72 screws.



The brass screws were ground flat and the round edges were squared up so they will sit so they are level with the hull surface.



Like so.



Once pilot holes were drilled thru the hull side and ribs, they were drilled again for the tap size. The ribs were tapped. The hull hole was opened up for a loose fit. Then the outside hole was countersunk so the screw sat flush with the hull exterior.



At this point the seam was sanded so the two hull sections were just about invisible.



Interior shot showing the torpedo doors and ribs holding the upper and lower hulls together.



Four screws will be hardly visible on the outside and 2-56 machine screws hold the aft section together from the inside.



Now I can finally start work on the fun part. The mechanism to open & close the torpedo doors!

[Ken_NJ]

Made the z cuts on the lower forward section and aft upper section. Cuts came out clean and true. Just needed slight sanding to remove the cuts marks.

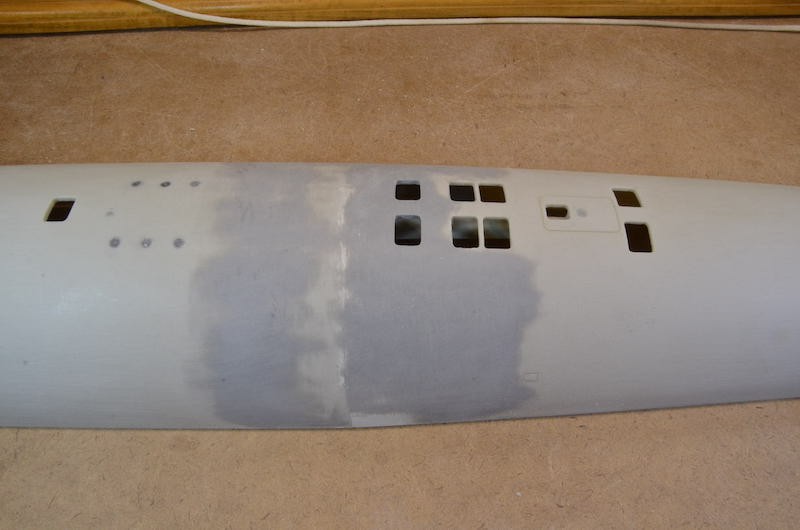

Finished sanding the irregularity between the lower hull sections. Applied about 5 layers of glazing to build up to get it as even and feathered as I can. I think it came out well. Cut open the two holes that were covered by the epoxy and cloth.



Have the strap hold down in place. Relocated the aft screw, see location in above picture. Screws were covered with CA and baking soda and sanded smooth.



Ribs were cut open on the top and bottom hull sections to facilitate water draining and allow air bubbles to flow out.
